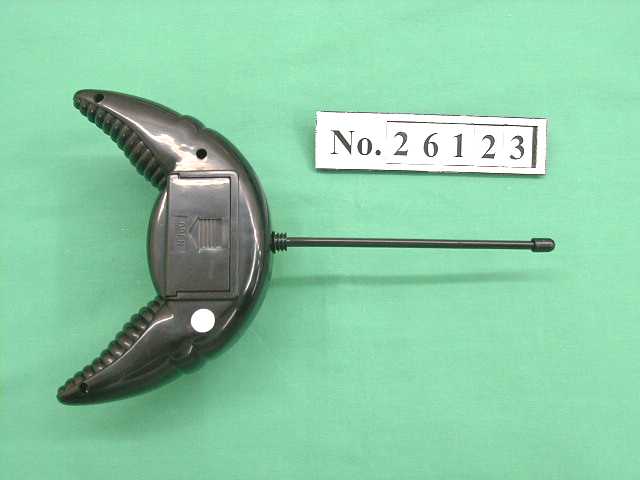

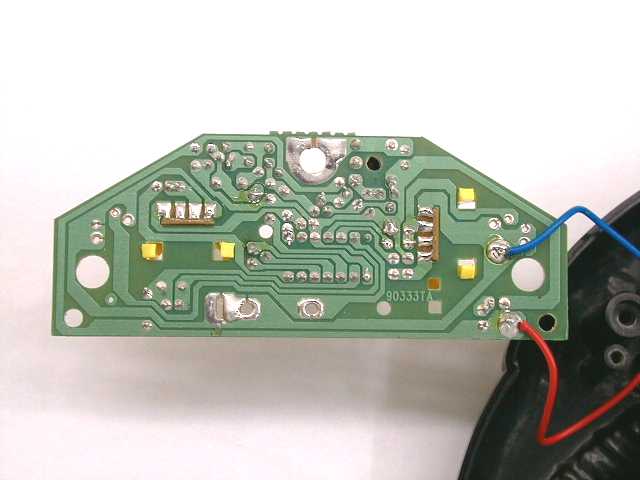

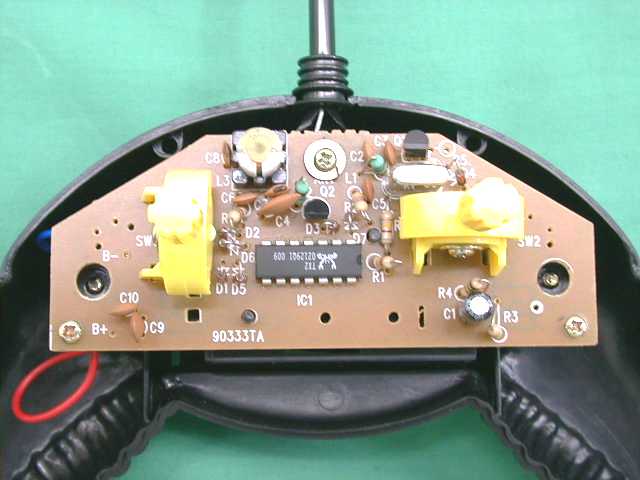

FCC ID: AAO6004288 Model No: 6004288 CIRCUIT DESCRIPTION In transmitter pushing IC input pin F,B,L and R key ,Output of IC pin 8 drives Q2,output of Q2 drives the transformer L3,Which modulates the crystal 27.145Mhz controlled oscillator Q1. This oscillator is the transmitter. The antenna is transformer coupled to the oscillator. In receive L1 turning 27.145Mhz frequency And Q1 are RF amplifier and detector stages. IC control receiver signal to output pin F,B,L and R. Q10 ,Q11 and Q2,Q3 to driver Q12,Q13,Q14,Q15 and Q4,Q5,Q6,Q7 become driving the motor. ANTENNA AND GROUND CIRCUITRY This unit makes use of an external flexible 17 centimeters long antenna. The antenna is inductively coupled. The unit relies on the ground tract of the printed circuit board. No external ground is provided. Energy is supplied by a 9-volt battery.

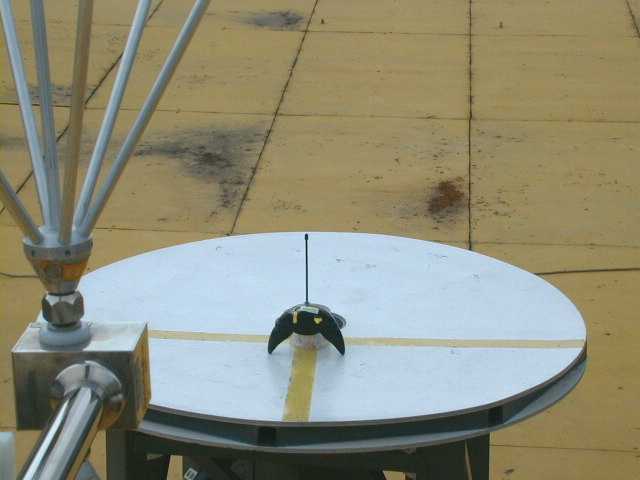

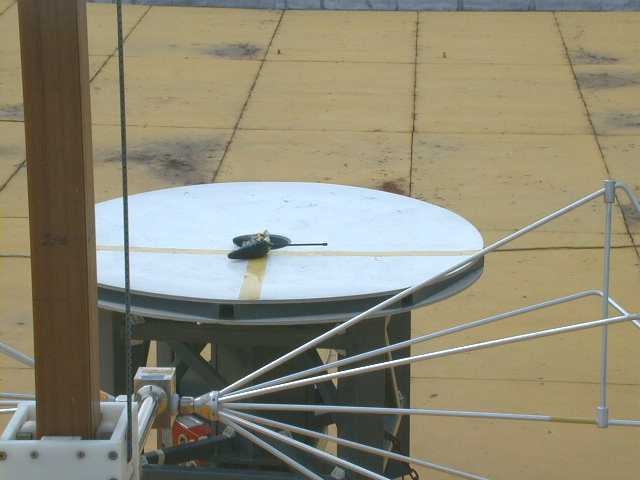

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 26123/1/400F FCC – Test Report No. 26123/1/400F Date: 2001-05-02 Page 2 of 12 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: Surf Monster Model: 60-4288 Applicant: RADIOSHACK CORPORATION Manufacturer : ECHO TOYS LTD FCC – Test Report No. 26123/1/400F Date: 2001-05-02 Page 3 of 12 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure 8. Interference Radiation (Datasheet) 9. Interference Radiation (Datasheet) 10. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) 11. Measurement of Emissions within Band Edges (Datasheet) 12. Notes for Measurement of Emissions within Band Edges FCC – Test Report No. 26123/1/400F Date: 2001-05-02 Page 4 of 12 LABORATORY - REPORT APPLICANT: ADDRESS: RADIOSHACK CORPORATION 100 Throckmorton St., Ste 1300 Fort Worth, TX, 76102-2802 USA DATE OF SAMPLE RECEIVED:2001-04-18 DATE OF TESTING:2001-05-02 DESCRIPTION OF SAMPLE: Product:Surf Monster Manufacturer:ECHO TOYS LTD Model number:60-4288 Rating:DC 9V ('6F22' Size Battery x 1) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiators RESULTS:See the attached test sheets CONCLUSIONSFrom the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark: Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 26123/1/400F Date: 2001-05-02 Page 5 of 12 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. Measurement of Emissions within Band Edges Test result:O.K. Test data:See attached data sheet PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 26123/1/400F Date: 2001-05-02 Page 6 of 12 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast System SchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW10555 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm FCC – Test Report No. 26123/1/400F Date: 2001-05-02 Page 7 of 12 Radiated Emission Test Procedure Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 26123/1/400F Date: 2001-05-02 Page 8 of 12 Radiated Emission Test Procedure ( < 30 MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Equipment under test (on turntable) Test Receiver ESH3 Rohde & Schwarz 92Interference Radiation Measurement of Radiated Emissions (27MHz-1000MHz) Acc:FCC Part 15 Subpart C IECC Ref:26123/1/400FTest Equipment Model:60-4288Receiver: ESVP Rohde & Schwarz Applicant:RADIOSHACK CORPORATIONAntenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:Surf Monster Connected sets: - Operating mode:Power "On" Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result (μV/m) Vert. Test Result (μV/m) Limit (μV/m) Harm.254.28<16<1610.2< 20 < 20 100 Harm.381.42<16<167.1< 14 < 14 100 Harm.4108.56<16<1611.6< 24 < 24 150 Harm.5135.7<16<1614.3< 33 < 33 150 Harm.6162.84<16<1615.6< 38 < 38 150 Harm.7189.98<16<1616.3< 41 < 41 150 Harm.8217.12<16<1616.9< 44 < 44 200 Harm.9244.26<16<1617.6< 48 < 48 200 Harm.10271.4<16<1618.5< 53 < 53 200 Harm.11298.54<16<1619.9< 62 < 62 200 Harm.12325.68<16<1616.8< 44 < 44 200 Harm.13352.82<16<1617.5< 47 < 47 200 Harm.14379.96<16<1618.0< 50 < 50 200 Harm.15407.1<16<1618.4< 53 < 53 200 Harm.16434.24<16<1618.8< 55 < 55 200 Harm.17461.38<16<1619.2< 57 < 57 200 Harm.18488.52<16<1619.5< 60 < 60 200 Harm.19515.66<16<1619.9< 62 < 62 200 Harm.20542.8<16<1620.1< 64 < 64 200 Harm.21569.94<16<1620.5< 67 < 67 200 Harm.22597.08<16<1620.9< 70 < 70 200 Harm.23624.22<16<1621.2< 73 < 73 200 Harm.24651.36<16<1621.6< 76 < 76 200 Harm.25678.5<16<1622.1< 80 < 80 200 Harm.26705.64<16<1622.5< 84 < 84 200 Harm.27732.78<16<1622.8< 88 < 88 200 Harm.28759.92<16<1623.2< 91 < 91 200 Harm.29787.06<16<1623.5< 95 < 95 200 Harm.30814.2<16<1623.9< 99 < 99 200 Harm.31841.34<16<1624.3< 103 < 103 200 Harm.32868.48<16<1624.6< 107 < 107 200 Harm.33895.62<16<1624.9< 112 < 112 200 Harm.34922.76<16<1625.4< 117 < 117 200 Harm.35949.9<16<1625.8< 123 < 123 200 Harm.36977.04<16<1626.2< 128 < 128 500 Radiation Measurement below 30MHz (using loop antenna) Frequency (MHz)Maximum Test Result (μV/m)Limit (μV/m) Peak Average Peak Average 27.14 223.9 177.8100000 10000 Note: The measured radiation outside the operation band and below 30MHz were negligible. Test result: ̋ ̋ O.K. Date: _______________ Operator: _______________ FCC – Test Report No. 26123/1/400F Date: 2001-05-0…
