I N U S E / E N G L I S H E S P A Ñ O L F R A N Ç A I S 900 MHz Cordless Telephone with Caller ID Featuring Clarity ® Power ™ Technology Clarity 430 User Guide C430Eng_1.26.04 1/26/04 8:51 PM Page 1 Safety Instructions . . . . . . . . . . . . . . . . 3 Features . . . . . . . . . . . . . . . . . . . . . . . 5 Getting Started . . . . . . . . . . . . . . . . . . 8 Choosing a Location . . . . . . . . . . . . . 8 Installation . . . . . . . . . . . . . . . . . . . . 8 Battery Installation . . . . . . . . . . . . . . 10 Handset Battery Charging . . . . . . . . . 10 Low Battery . . . . . . . . . . . . . . . . . . . 10 Battery Life . . . . . . . . . . . . . . . . . . . 10 Headset Jack . . . . . . . . . . . . . . . . . . . 11 Belt Clip . . . . . . . . . . . . . . . . . . . . . . . 11 Hearing Aid Compatibility . . . . . . . . . . 11 Quick Reference Guide . . . . . . . . . . . . . 11 Feature Set Up . . . . . . . . . . . . . . . . . . 12 Handset . . . . . . . . . . . . . . . . . . . . . 12 Set Up Mode . . . . . . . . . . . . . . . . 12 Clarity Power Technology . . . . . . . . 14 Boost Clarity Power On/Off . . . . . . 14 Volume Control . . . . . . . . . . . . . . . 14 Handset Ringer . . . . . . . . . . . . . . . 14 Telephone Base . . . . . . . . . . . . . . . . 14 Boost On/Off . . . . . . . . . . . . . . . . 14 Pulse/Tone . . . . . . . . . . . . . . . . . . 15 Ringer Volume . . . . . . . . . . . . . . . . 15 Ringer Style . . . . . . . . . . . . . . . . . . 15 Telephone Operations . . . . . . . . . . . . . 16 Placing a Call . . . . . . . . . . . . . . . . . 16 Answering a Call . . . . . . . . . . . . . . . 16 Temporary Tone . . . . . . . . . . . . . . . . 16 Visual Ringers . . . . . . . . . . . . . . . . . 16 Flash . . . . . . . . . . . . . . . . . . . . . . . . 16 Mute . . . . . . . . . . . . . . . . . . . . . . . . 16 Redial/Pause . . . . . . . . . . . . . . . . . . 16 LCD Display Screen . . . . . . . . . . . . . 17 Lighted Key Pad . . . . . . . . . . . . . . . . 17 Base Lights . . . . . . . . . . . . . . . . . . . 17 Page/Handset Locator . . . . . . . . . . . 17 Channel Operation . . . . . . . . . . . . . 17 Security Code . . . . . . . . . . . . . . . . . 17 Memory Storage . . . . . . . . . . . . . . . . . 18 Memory Storage Locations . . . . . . . . 18 Storing Numbers into Memory . . . . . . 18 Dialing From Memory . . . . . . . . . . . . 18 Editing Numbers in Memory . . . . . . . 18 Deleting Numbers from Memory . . . . 18 Caller ID Operations . . . . . . . . . . . . . . 19 Viewing Call List . . . . . . . . . . . . . . . 19 Placing a Call from the List . . . . . . . . 20 Deleting Entries . . . . . . . . . . . . . . . . 20 Call Waiting . . . . . . . . . . . . . . . . . . 20 Care . . . . . . . . . . . . . . . . . . . . . . . . . 21 Trouble Shooting . . . . . . . . . . . . . . . . . 21 Regulatory Compliance . . . . . . . . . . . . 23 Warranty and Service . . . . . . . . . . . . . 26 Table of Contents C430Eng_1.26.04 1/26/04 8:51 PM Page 2 Important Safety Instructions the owner’s manual. If you are not sure of the voltage in your home, consult your dealer or local power company. 10. Do not place anything on the power cord. Install the telephone where no one will step or trip on the cord. 11. Do not overload wall outlets or exten- sion cords as this can increase the risk of fire or electrical shock. 12. Never push any objects through the slots in the telephone. They can touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock. Never spill liquid of any kind on the telephone. 13. To reduce the risk of electrical shock, do not take this phone apart. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 14. Unplug this product from the wall outlet and refer servicing to the manufacturer under the following conditions: A. When the power supply cord or plug is frayed or damaged. B. If liquid has been spilled into the product. C. If the telephone has been exposed to rain or water. D. If the telephone does not operate E N G L I S H When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the telephone. 3. Do not use this telephone near a bath tub, wash basin, kitchen sink or laundry tub, in a wet basement, near a swimming pool or anywhere else there is water. 4. Avoid using a telephone (other than a cordless type) during a storm. There may be a remote risk of electrical shock from lightning. 5. Do not use the telephone to report a gas leak in the vicinity of the leak. 6. Unplug this telephone from the wall out- lets before cleaning. Do not use liquid cleaners or aerosol cleaners on the tele- phone. Use a damp cloth for cleaning. 7. Place this telephone on a stable surface. Serious damage and/or injury may result if the telephone falls. 8. Do not cover the slots and openings on this telephone. This telephone should never be placed near or over a radiator or heat register. This telephone should not be placed in a built-in installation unless proper ventilation is provided. 9. Operate this telephone using the electrical voltage as stated on the base unit or in 3 SAVE THESE INSTRUCTIONS C430Eng_1.26.04 1/26/04 8:51 PM Page 3 CAUTION:Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 1. Use only the approved battery pack in the handset of your cordless phone. For Handset Unit: 3.6V 600mAHr NiMH Rechargeable Battery GP60AAAH3BMJ GPI International Ltd 2. Do not dispose of the battery in a fire as it may explode. Check with local codes for possible special disposal instructions. 3. Do not open or mutilate the battery. Released electrolyte is corrosive and Important Safety Instructions…

Text truncated - open the document above for the full version.

Regulatory Compliance 24 i) If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this telephone equip- ment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. j) This telephone equipment is hearing aid compatible. Customer-Owned Coin/Credit Card Phones: To comply with state tariffs, the telephone company must be given notification prior to connection. In some states, the state public utility commission, public service commission or corporation commission must give prior approval of connection. Part 15 of FCC Rules Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to provide reason- able protection against harmful interference in residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, you are encouraged to try to correct the interference by one of the following measures: 1. Where it can be done safely, reorient the receiving television or radio antenna. 2. To the extent possible, relocate the television, radio or other receiver with respect to the telephone equip- ment. (This increases the separation between the telephone equipment and the receiver.) 3. Connect the telephone equipment into an outlet on a circuit different from that to which the television, radio, or other receiver is connected. 4. Consult the dealer or an experienced Radio/TV Technician for help. CAUTION:Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the userís authority to operate the equipment. C430Eng_1.26.04 1/26/04 8:51 PM Page 24

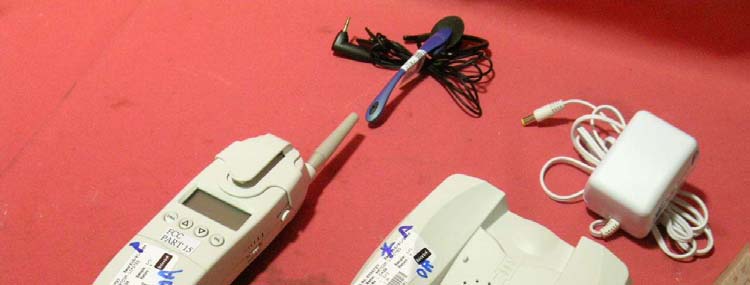

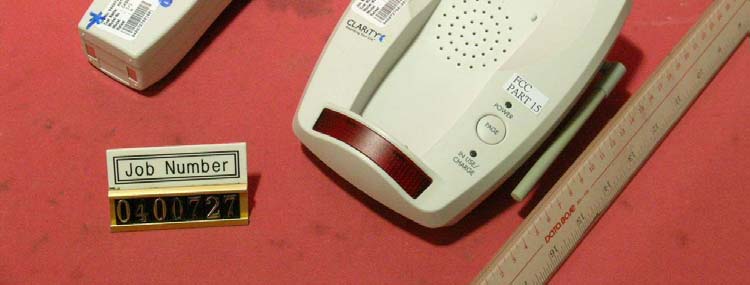

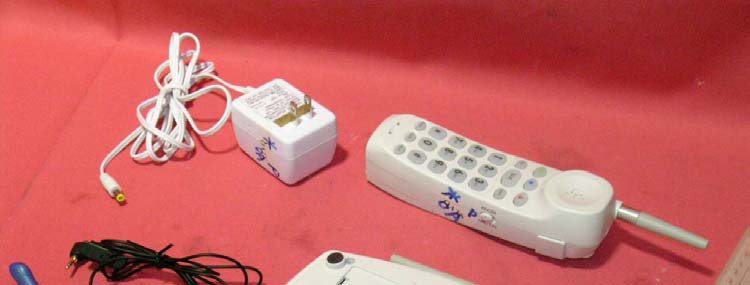

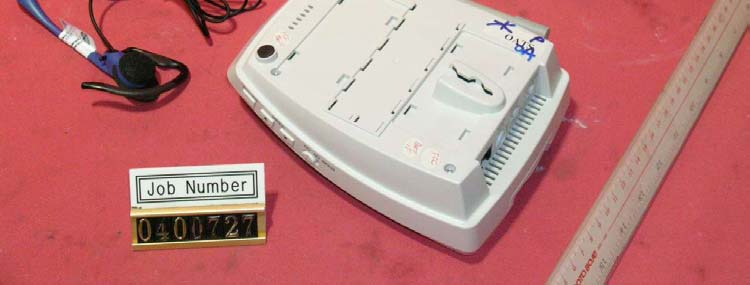

External photos FCC ID: ACEC430 External photos FCC ID: ACEC430

C430 Rev.1 02/04/2004 Clarity ® C430;Battery: 3.6V 600mAhr; Complies with 47CFR Part 68 technical requirements. Reg. No. US: ACEW410BC430; FCC ID ACEC430; IC: 1186C-C430; Ringer Equivalence: 1.0B; USOC Jack RJ11C;This device complies with Part 15IC REN: 0.4. of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Clarity, A Division of Plantronics, Inc. (800) 552-3368 Made in China A I.T.E. 70255 V01A S/N:0204000001 C430 Rev.0 01/19/2004 PULSE/TONEPULSE/TONE ON/OFFON/OFF TEL BOOSTBOOST ( ) 2 Clarity ® 430; Battery: 3.6V 600mA hr; Complies with 47CFR Part 68 technical requirements. Reg. No. US: ACEW909BC430; FCC ID ACEC430; IC: 1186C-C430; Ringer Equivalence: 0.9B; USOC Jack RJ11C;This device complies with Part 15IC REN: 0.4. of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Clarity, A Division of Plantronics, Inc. (800) 552-3368 Made in China A I.T.E. 70255 V01A S/N:XXXXXX 0024 FCC ID: ACEC430 Clarity Model No. C430 IC:1186C-C430 CALL DEL

Internal photos FCC ID: ACEC430 Base assembly Base Main PCB comp side (View 1) Internal photos FCC ID: ACEC430 Base Main PCB comp side (View 2) Base Main PCB solder side Internal photos FCC ID: ACEC430 Base ringer switch PCB front side Base ringer switch PCB rear side Internal photos FCC ID: ACEC430 Base LED front side Base LED rear side Internal photos FCC ID: ACEC430 Base Oscillator PCB comp side Base Oscillator PCB solder side Internal photos FCC ID: ACEC430 Handset assembly Handset Main PCB comp side (View 1) Internal photos FCC ID: ACEC430 Handset Main PCB comp side (View 2) Handset Main PCB keypad side Internal photos FCC ID: ACEC430 Handset Oscillator PCB comp side Handset Oscillator PCB solder side

E • The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: ACEC430 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Website: www.hk.intertek-etlsemko.com Clarity, A Division of Plantronics, Inc. Application For Certification 900MHz 40 Channel Analog Modulation Cordless Phone with Caller ID (FCC ID: ACEC430) 04007271 TL/Ann Choy March 13, 2004 INTERTEK TESTING SERVICES FCC ID: ACEC430 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Security Code Information INTERTEK TESTING SERVICES FCC ID: ACEC430 ii MEASUREMENT/TECHNICAL REPORT Clarity, A Division of Plantronics, Inc. - MODEL: C430 FCC ID: ACEC430 This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] Provision. Report prepared by: Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: ACEC430 iii Table of Contents 1.0 General Description ............................................................................................2 1.1 Product Description ............................................................................................2 1.2 Related Submittal(s) Grants ...............................................................................3 1.3 Test Methodology ...............................................................................................3 1.4 Test Facility .........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification .........................................................................................................5 2.2 EUT Exercising Software....................................................................................5 2.3 Support Equipment List and Description ...........................................................6 2.4 Measurement Uncertainty ..................................................................................7 2.5 Equipment Modification ......................................................................................7 3.0 Emission Results ...................................................................................................9 3.1 Field Strength Calculation................................................................................10 3.2 Radiated Emission Configuration Photograph - Base Unit.............................11 3.3 Radiated Emission Data - Base Unit ...............................................................12 3.4 Radiated Emission Configuration Photograph - Handset ...............................15 3.5 Radiated Emission Data - Handset ..................................................................16 3.6 Radiated Emission on the bandedge ...............................................................19 3.7 Line Conducted Configuration Photograph - Base Unit ..................................21 3.8 Line Conducted Emission Data - Base Unit ....................................................22 4.0 Equipment Photographs .....................................................................................25 5.0 Product Labelling .................................................................................................27 6.0 Technical Specifications .....................................................................................29 7.0 Instruction Manual ...............................................................................................31 8.0 Security Code Information ..................................................................................33 INTERTEK TESTING SERVICES FCC ID: ACEC430 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission for Base config photos.doc Test Setup Photo Radiated Emission for Handset config photos.doc Test Report Emission Plot emission.pdf Test Setup Photo Conducted Emission config photos.doc Test Report Conducted Emission Test Result conduct.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf User Manual FCC Information fcc information.pdf INTERTEK TESTING SERVICES FCC ID: ACEC430 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: ACEC430 2 1.0 General Description 1.1 Product Description The C430 is a 900MHz 40 Channel Analog Modulation Cordless Phone with Caller ID. The unit is capable of either tone or pulse dialing. The internal power supply's isolation is accomplished through a power transformer having an adequate dielectric rating. The circuit wiring is consistent under t…

Text truncated - open the document above for the full version.

Report No.:04007271 Talk Mode Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:04007271 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.:04007271 Talk Mode Ctrl No.:N/A Tested By:Hong, Report No.:04007271 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 41.6 66.0 0.21000 38.6 63.2 0.29500 35.2 60.3 0.41500 30.5 57.6 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit exceeded
