ADB9ZWDSC60Maritime DSC controller With MF/HF Watchkeeping Receiver

i DISTRESS Call Procedure Do the following when a life endangering situation arises on your vessel: 1. Open the DISTRESS button cover and press the [DISTRESS] button more than three seconds to show the following display, then release the [DISTRESS] button. Distress call in progress! TIME TO GO : 38S NATURE: UNDESIGNATED POS: 12 ̊34N 123 ̊45E AT 12:34 TELEPHONE 2182.0 KHZ DSC FREQ : 2187.5 KHZ 2. After the distress call is transmitted the following displays appear in order. Waiting for distress acknowledgement. TIME TO GO: 3M10S NATURE: UNDESIGNATED POS: 12 ̊34N 123 ̊45E AT 12:34 TELEPHONE 2182.0 KHZ DSC FREQ : 2187.5 KHZ SHIP IN DIST: 123456789 POS: 12 ̊34N 123 ̊45E AT 12:34 TELEPHONE 2182.0 KHZ FROM COAST: 001234567 NATURE: UNDESIGNATED Distress acknowledge call received. STOP ALARM When distress call is acknowledged by coast station (within1 min to 2 min. 45 sec). 3. The audio alarm sounds; press the [CANCEL] key to silence the alarm 4. Communicate with the coast station via radiotelephone as follows: a) Say MAYDAY three times. b) Say “This is ... “ name of your vessel and your call sign three times. c) Give nature of distress and assistance needed. d) Give description of your vessel (type, color, number of persons onboard, etc.) and any other information which may aid in rescue. For detailed information see page 3-1. ii SAFETY INSTRUCTIONS WARNING Immediately turn off the power at the switchboard if water leaks into the equipment or something is dropped in the equipment. Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service. Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Do not place liquid-filled containers on the top of the equipment. Fire or electrical shock can result if a liquid spills into the equipment. Immediately turn off the power at the switchboard if the equipment is emitting smoke or fire. Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service. Make sure no rain or water splash leaks into the equipment. Fire or electrical shock can result if water leaks in the equipment. ELECTRICAL SHOCK HAZARD Do not open the equipment. Only qualified personnel should work inside the equipment. WARNING Keep heater away from equipment. A heater can melt the equipment's power cord, which can cause fire or electrical shock. Do not operate the equipment with wet hands. Electrical shock can result. CAUTION Do not use the equipment for other than its intended purpose. Use of the equipment as a stepping stool, for example, can result in personal injury or equipment damage. A warning label is attached to the equipment. Do not remove the label. If the label is missing or illegible, contact a FURUNO agent or dealer. WARNING To avoid electrical shock, do not remove cover. No user-serviceable parts inside. Name: Warning Label (1) Type: 86-003-1011-0 Code No.: 100-236-230 iii TA B LE OF CONTENTS FOREWORD.................................................................................................................. vi SYSTEM CONFIGURATION ....................................................................................... viii 1. DSC SYSTEM OVERVIEW .................................................................................. 1-1 1.1 What is DSC?..............................................................................................................................1-1 1.2 DSC Call .....................................................................................................................................1-1 1.2.1 Distress alert call and reply................................................................................................1-3 1.2.2 Individual call......................................................................................................................1-4 1.3 Audio Alarms...............................................................................................................................1-4 1.4 Remote Control and Automatic Acknowledge ............................................................................1-5 1.4.1 Remote control...................................................................................................................1-5 1.4.2 Automatic acknowledge .....................................................................................................1-5 1.4.3 Both remote control and automatic acknowledge ON .......................................................1-5 1.5 Interpreting Call Displays ............................................................................................................1-6 1.5.1 Receive calls ......................................................................................................................1-6 1.5.2 Send calls...........................................................................................................................1-8 1.6 Remote Control of SSB Radiotelephone ....................................................................................1-9 2. OPERATIONAL OVERVIEW ............................................................................... 2-1 2.1 Controls, LED Description...........................................................................................................2-1 2.2 Turning the Power On/Off ...........................................................................................................2-3 2.3 DSC Standby Screen, Radiotelephone Setting Screen and Their Indications ...........................2-3 2.3.1 DSC standby screen ..........................................................................................................2-3 2.3.2 Radiotelephone setting screen ..........................................................................................2-3 2.4 Panel Backlighting and LCD Contrast...................................................................................…

Text truncated - open the document above for the full version.

5-1 5. LOG FILE The log file stores routine received messages (messages other than Distress), received distress messages and transmitted messages, each in its own separate log. 5.1Log File Description Three memory banks are provided for storage of messages: received ordinary log, received distress log and transmitted log. Each memory bank stores 50 messages, on a first-in, first-out basis. This means that a latest message is saved as log no.1 and the log no. of all previous messages in that memory bank increments by one. When the storage capacity is exceeded the oldest message is deleted to make room for the latest. Any unread messages are retained, and marked with * . 5.2Opening a Log File 5.2.1 Distress log 1. Press the [0/LOG] key to open the log file menu. 8436.5 35 ̊00.000N 135 ̊00.000E 23:59 WATCH KEEPING 21 168 DIST ROUT 21 16903.012657.0 VOLUME Select log file RECEIVED ORDINARY RECEIVED DISTRESS TRANSMITTED 22 2. Select RECEIVED DISTRESS and press the [ENT] key. Use  or  to scroll the log as desired. Scroll with or . * Rcvd distress log * 02.JUL-23-19:56 DISTRESS 03.JUL-23-13:45 * RELAY ALL 04.JUL-23-11:52 RELAY AREA 05.JUL-23-11:43 RELAY GRP 06.JUL-22-21:18 RELAY INDV 01.JUL-23-19:58 ACKNOWLEDG * Rcvd distress log * 46.JUN-29-19:56 * RELAY ALL 47.JUN-29-19:48 * DISTRESS 48.JUN-29-19:44 * DISTRESS 49.JUN-26-12:36 * ACKNOWLED 45.JUL-01-23:45 * RELAY ALL 50.JUN-26-12:34 * DISTRESS OLD NEW DELETE OLD NEW DELETE 3. To view a file, select it and press the [ENT] key. To return to the distress log, press the [CANCEL] key. 5-2 Select file, press [ENT] to view. * Rcvd distress log * 46.JUN-29-19:56 * RELAY ALL 47.JUN-29-19:48 * DISTRESS 48.JUN-29-19:44 * DISTRESS 49.JUN-26-12:36 * ACKNOWLED 45.JUL-01-23:45 * RELAY ALL 50.JUN-26-12:34 * DISTRESS * Received message * JUN-26-1999-12:34:56ECC: OK DISTRESS CALL ANSWER SHIP IN DIST : 987654321 NATURE : UNDESIGNATED POS : 12 ̊34N 123 ̊45E AT 12:34 TELEPHONE 2182.0 KHZ ALL VIEW OLD NEW DELETE 4. To delete a file, select it, press  to select DELETE, and press the [ENT] key. The log files are renumbered to reflect the deletion. Note: Unread files cannot be deleted. Select file to delete, press to select DELETE, press [ENT] to delete. * Rcvd distress log * 46.JUN-29-19:56 * RELAY ALL 47.JUN-29-19:48 * DISTRESS 48.JUN-29-19:44 * DISTRESS 49.JUN-26-12:36 * ACKNOWLED 45.JUL-01-23:45 * RELAY ALL 50.JUN-26-12:34 * DISTRESS * Rcvd distress log * 46.JUN-29-19:56 * RELAY ALL 47.JUN-29-19:48 * DISTRESS 48.JUN-29-19:44 * DISTRESS 49.JUN-26-12:36 * ACKNOWLED 45.JUL-01-23:45 DELETE * RELAY ALL 44.JUL-01-12:34 * RELAY ALL OLD NEW OLD NEW DELETE 5-3 5.2.2Ordinary log 1. Press the [LOG] key to open the log file menu. 8436.5 35 ̊00.000N 135 ̊00.000E 23:59 WATCH KEEPING 21 168 DIST ROUT 21 16903.012657.0 VOLUME Select log file RECEIVED ORDINARY RECEIVED DISTRESS TRANSMITTED 22 2. Press the [ENT] key to open the received ordinary log. * Rcvd ordinary log 02.JUL-23-23:41 PSTN CALL 03.JUL-23-21:34 TEST CALL 04.JUL-22-12:34 ALL SHIPS 05.JUL-13-18:21 * GROUP CALL 06.JUN-29-11:23 AREA CALL 01.JUL-23-23:55 * INDIVIDUAL OLD NEW DELETE 3. Use  or  to scroll the log. 4. To view the contents of a file, select it and press the [ENT] key. To return the ordinary log, press the [CANCEL] key. * Rcvd ordinary log 46.MAY-12-03:31 NEUTRAL 47.APR-24-01:54 MEDICAL 48.MAR-27-22:09 * INDIVIDUAL 49.FEB-13-18:17 INDIVIDUAL 45.JUN-29-20:49 * POLLING 50.JAN-11-11:23 * ALL SHIPS JAN-11-1999-11:23:45 ECC: OK ALL SHIPS CALL FROM SHIP : 234567890 SAFETY TELEPHONE 2182.0 KHZ * Received message * GO TO ALL VIEW [ENT] to view file. OLD NEW DELETE 5. To delete a file, select it, press  to select DELETE, and press the [ENT] key. The log files are renumbered to reflect the deletion. Note: Unread files cannot be deleted. * Rcvd ordinary log 46.MAY-12-03:31 NEUTRAL 47.APR-24-01:54 MEDICAL 48.MAR-27-22:09 * INDIVIDUAL 49.FEB-13-18:17 INDIVIDUAL 45.JUN-29-20:49 * POLLING 50.JAN-11-11:23 ALL SHIPS DELETE * Rcvd ordinary log 46.MAY-12-03:31 NEUTRAL 47.APR-24-01:54 MEDICAL * INDIVIDUAL 44.JUL-01-23:45 INDIVIDUAL 45.JUN-29-20:49 * POLLING 48.MAR-27-22:09 49.FEB-13-18:17 INDIVIDUAL Select file, press to select [DELETE], and press [ENT[. OLD NEW OLD NEW DELETE 5-4 5.2.3Transmitted log 1. Press the [LOG] key to open the log file menu. 8436.5 35 ̊00.000N 135 ̊00.000E 23:59 WATCH KEEPING 21 168 DIST ROUT 21 16903.012657.0 VOLUME Select log file RECEIVED ORDINARY RECEIVED DISTRESS TRANSMITTED 22 2. Select TRANSMITTED and press the [ENT] key. ** Transmitted log * 02.JUL-23-23:41 PSTN CALL 03.JUL-23-21:34 TEST CALL 04.JUL-22-12:34 ALL SHIPS 05.JUL-13-18:21 * GROUP CALL 06.JUN-29-11:23 AREA CALL 01.JUL-23-23:55 * INDIVIDUAL OLD NEW DELETE 3. Use  or to scroll the log. 4. To view the contents of a file select it and press the [ENT] key. ** Transmitted log * 02.JUL-23-23:41 PSTN CALL 03.JUL-23-21:34 TEST CALL 04.JUL-22-12:34 ALL SHIPS 05.JUL-13-18:21 *GROUP CALL 06.JUN-29-11:23 AREA CALL 01.JUL-23-23:55 *INDIVIDUAL Select file, press [ENT] to view. MAY-12-1999-03:31:45 UNABLE ACK NO REASON GIVEN TO SHIP : 234567890 ROUTINE * Xmitted message * RE-SEND ALL VIEW OLD NEW DELETE 5. To delete a file, select it, press  to select DELETE, and press the [ENT] key. The log files are renumbered to reflect the deletion. Note: Unread files cannot be deleted. 6. To re-send a file do the following: a) Do steps 1-4 above to select file to re-send. b) Press  to select RE-SEND. c) Press the [ENT] key. d) Press the [CALL] key. 6-1 6. PREPARING SEND MESSAGES In Chapter 3 you learned how to manually send individual, group and area calls. In this chapter you will learn how to send prepare and send them automatically, using prepared messages (files). 50 such files can be stored for future use. 6.1Preparing Individual Call Messages 1. Press the [#/SETUP] key to open the Setup menu. 2. Select MESSAGE and press the [ENT] key. 3. Press the [ENT] key to open the CALL TYPE menu. * Message file entry CALL TYPE STATION ID COM. TYPE COM. FREQ …

Text truncated - open the document above for the full version.

i DISTRESS Call Procedure Do the following when a life endangering situation arises on your vessel: 1. Open the DISTRESS button cover and press the [DISTRESS] button more than three seconds to show the following display, then release the [DISTRESS] button. Distress call in progress! TIME TO GO : 38S NATURE: UNDESIGNATED POS: 12 ̊34N 123 ̊45E AT 12:34 TELEPHONE 2182.0 KHZ DSC FREQ : 2187.5 KHZ 2. After the distress call is transmitted the following displays appear in order. Waiting for distress acknowledgement. TIME TO GO: 3M10S NATURE: UNDESIGNATED POS: 12 ̊34N 123 ̊45E AT 12:34 TELEPHONE 2182.0 KHZ DSC FREQ : 2187.5 KHZ SHIP IN DIST: 123456789 POS: 12 ̊34N 123 ̊45E AT 12:34 TELEPHONE 2182.0 KHZ FROM COAST: 001234567 NATURE: UNDESIGNATED Distress acknowledge call received. STOP ALARM When distress call is acknowledged by coast station (within1 min to 2 min. 45 sec). 3. The audio alarm sounds; press the [CANCEL] key to silence the alarm 4. Communicate with the coast station via radiotelephone as follows: a) Say MAYDAY three times. b) Say “This is ... “ name of your vessel and your call sign three times. c) Give nature of distress and assistance needed. d) Give description of your vessel (type, color, number of persons onboard, etc.) and any other information which may aid in rescue. For detailed information see page 3-1. ii SAFETY INSTRUCTIONS WARNING Immediately turn off the power at the switchboard if water leaks into the equipment or something is dropped in the equipment. Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service. Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Do not place liquid-filled containers on the top of the equipment. Fire or electrical shock can result if a liquid spills into the equipment. Immediately turn off the power at the switchboard if the equipment is emitting smoke or fire. Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service. Make sure no rain or water splash leaks into the equipment. Fire or electrical shock can result if water leaks in the equipment. ELECTRICAL SHOCK HAZARD Do not open the equipment. Only qualified personnel should work inside the equipment. WARNING Keep heater away from equipment. A heater can melt the equipment's power cord, which can cause fire or electrical shock. Do not operate the equipment with wet hands. Electrical shock can result. CAUTION Do not use the equipment for other than its intended purpose. Use of the equipment as a stepping stool, for example, can result in personal injury or equipment damage. A warning label is attached to the equipment. Do not remove the label. If the label is missing or illegible, contact a FURUNO agent or dealer. WARNING To avoid electrical shock, do not remove cover. No user-serviceable parts inside. Name: Warning Label (1) Type: 86-003-1011-0 Code No.: 100-236-230 iii TA B LE OF CONTENTS FOREWORD.................................................................................................................. vi SYSTEM CONFIGURATION ....................................................................................... viii 1. DSC SYSTEM OVERVIEW .................................................................................. 1-1 1.1 What is DSC?..............................................................................................................................1-1 1.2 DSC Call .....................................................................................................................................1-1 1.2.1 Distress alert call and reply................................................................................................1-3 1.2.2 Individual call......................................................................................................................1-4 1.3 Audio Alarms...............................................................................................................................1-4 1.4 Remote Control and Automatic Acknowledge ............................................................................1-5 1.4.1 Remote control...................................................................................................................1-5 1.4.2 Automatic acknowledge .....................................................................................................1-5 1.4.3 Both remote control and automatic acknowledge ON .......................................................1-5 1.5 Interpreting Call Displays ............................................................................................................1-6 1.5.1 Receive calls ......................................................................................................................1-6 1.5.2 Send calls...........................................................................................................................1-8 1.6 Remote Control of SSB Radiotelephone ....................................................................................1-9 2. OPERATIONAL OVERVIEW ............................................................................... 2-1 2.1 Controls, LED Description...........................................................................................................2-1 2.2 Turning the Power On/Off ...........................................................................................................2-3 2.3 DSC Standby Screen, Radiotelephone Setting Screen and Their Indications ...........................2-3 2.3.1 DSC standby screen ..........................................................................................................2-3 2.3.2 Radiotelephone setting screen ..........................................................................................2-3 2.4 Panel Backlighting and LCD Contrast...................................................................................…

Text truncated - open the document above for the full version.

5-1 5. LOG FILE The log file stores routine received messages (messages other than Distress), received distress messages and transmitted messages, each in its own separate log. 5.1Log File Description Three memory banks are provided for storage of messages: received ordinary log, received distress log and transmitted log. Each memory bank stores 50 messages, on a first-in, first-out basis. This means that a latest message is saved as log no.1 and the log no. of all previous messages in that memory bank increments by one. When the storage capacity is exceeded the oldest message is deleted to make room for the latest. Any unread messages are retained, and marked with * . 5.2Opening a Log File 5.2.1 Distress log 1. Press the [0/LOG] key to open the log file menu. 8436.5 35 ̊00.000N 135 ̊00.000E 23:59 WATCH KEEPING 21 168 DIST ROUT 21 16903.012657.0 VOLUME Select log file RECEIVED ORDINARY RECEIVED DISTRESS TRANSMITTED 22 2. Select RECEIVED DISTRESS and press the [ENT] key. Use  or  to scroll the log as desired. Scroll with or . * Rcvd distress log * 02.JUL-23-19:56 DISTRESS 03.JUL-23-13:45 * RELAY ALL 04.JUL-23-11:52 RELAY AREA 05.JUL-23-11:43 RELAY GRP 06.JUL-22-21:18 RELAY INDV 01.JUL-23-19:58 ACKNOWLEDG * Rcvd distress log * 46.JUN-29-19:56 * RELAY ALL 47.JUN-29-19:48 * DISTRESS 48.JUN-29-19:44 * DISTRESS 49.JUN-26-12:36 * ACKNOWLED 45.JUL-01-23:45 * RELAY ALL 50.JUN-26-12:34 * DISTRESS OLD NEW DELETE OLD NEW DELETE 3. To view a file, select it and press the [ENT] key. To return to the distress log, press the [CANCEL] key. 5-2 Select file, press [ENT] to view. * Rcvd distress log * 46.JUN-29-19:56 * RELAY ALL 47.JUN-29-19:48 * DISTRESS 48.JUN-29-19:44 * DISTRESS 49.JUN-26-12:36 * ACKNOWLED 45.JUL-01-23:45 * RELAY ALL 50.JUN-26-12:34 * DISTRESS * Received message * JUN-26-1999-12:34:56ECC: OK DISTRESS CALL ANSWER SHIP IN DIST : 987654321 NATURE : UNDESIGNATED POS : 12 ̊34N 123 ̊45E AT 12:34 TELEPHONE 2182.0 KHZ ALL VIEW OLD NEW DELETE 4. To delete a file, select it, press  to select DELETE, and press the [ENT] key. The log files are renumbered to reflect the deletion. Note: Unread files cannot be deleted. Select file to delete, press to select DELETE, press [ENT] to delete. * Rcvd distress log * 46.JUN-29-19:56 * RELAY ALL 47.JUN-29-19:48 * DISTRESS 48.JUN-29-19:44 * DISTRESS 49.JUN-26-12:36 * ACKNOWLED 45.JUL-01-23:45 * RELAY ALL 50.JUN-26-12:34 * DISTRESS * Rcvd distress log * 46.JUN-29-19:56 * RELAY ALL 47.JUN-29-19:48 * DISTRESS 48.JUN-29-19:44 * DISTRESS 49.JUN-26-12:36 * ACKNOWLED 45.JUL-01-23:45 DELETE * RELAY ALL 44.JUL-01-12:34 * RELAY ALL OLD NEW OLD NEW DELETE 5-3 5.2.2Ordinary log 1. Press the [LOG] key to open the log file menu. 8436.5 35 ̊00.000N 135 ̊00.000E 23:59 WATCH KEEPING 21 168 DIST ROUT 21 16903.012657.0 VOLUME Select log file RECEIVED ORDINARY RECEIVED DISTRESS TRANSMITTED 22 2. Press the [ENT] key to open the received ordinary log. * Rcvd ordinary log 02.JUL-23-23:41 PSTN CALL 03.JUL-23-21:34 TEST CALL 04.JUL-22-12:34 ALL SHIPS 05.JUL-13-18:21 * GROUP CALL 06.JUN-29-11:23 AREA CALL 01.JUL-23-23:55 * INDIVIDUAL OLD NEW DELETE 3. Use  or  to scroll the log. 4. To view the contents of a file, select it and press the [ENT] key. To return the ordinary log, press the [CANCEL] key. * Rcvd ordinary log 46.MAY-12-03:31 NEUTRAL 47.APR-24-01:54 MEDICAL 48.MAR-27-22:09 * INDIVIDUAL 49.FEB-13-18:17 INDIVIDUAL 45.JUN-29-20:49 * POLLING 50.JAN-11-11:23 * ALL SHIPS JAN-11-1999-11:23:45 ECC: OK ALL SHIPS CALL FROM SHIP : 234567890 SAFETY TELEPHONE 2182.0 KHZ * Received message * GO TO ALL VIEW [ENT] to view file. OLD NEW DELETE 5. To delete a file, select it, press  to select DELETE, and press the [ENT] key. The log files are renumbered to reflect the deletion. Note: Unread files cannot be deleted. * Rcvd ordinary log 46.MAY-12-03:31 NEUTRAL 47.APR-24-01:54 MEDICAL 48.MAR-27-22:09 * INDIVIDUAL 49.FEB-13-18:17 INDIVIDUAL 45.JUN-29-20:49 * POLLING 50.JAN-11-11:23 ALL SHIPS DELETE * Rcvd ordinary log 46.MAY-12-03:31 NEUTRAL 47.APR-24-01:54 MEDICAL * INDIVIDUAL 44.JUL-01-23:45 INDIVIDUAL 45.JUN-29-20:49 * POLLING 48.MAR-27-22:09 49.FEB-13-18:17 INDIVIDUAL Select file, press to select [DELETE], and press [ENT[. OLD NEW OLD NEW DELETE 5-4 5.2.3Transmitted log 1. Press the [LOG] key to open the log file menu. 8436.5 35 ̊00.000N 135 ̊00.000E 23:59 WATCH KEEPING 21 168 DIST ROUT 21 16903.012657.0 VOLUME Select log file RECEIVED ORDINARY RECEIVED DISTRESS TRANSMITTED 22 2. Select TRANSMITTED and press the [ENT] key. ** Transmitted log * 02.JUL-23-23:41 PSTN CALL 03.JUL-23-21:34 TEST CALL 04.JUL-22-12:34 ALL SHIPS 05.JUL-13-18:21 * GROUP CALL 06.JUN-29-11:23 AREA CALL 01.JUL-23-23:55 * INDIVIDUAL OLD NEW DELETE 3. Use  or to scroll the log. 4. To view the contents of a file select it and press the [ENT] key. ** Transmitted log * 02.JUL-23-23:41 PSTN CALL 03.JUL-23-21:34 TEST CALL 04.JUL-22-12:34 ALL SHIPS 05.JUL-13-18:21 *GROUP CALL 06.JUN-29-11:23 AREA CALL 01.JUL-23-23:55 *INDIVIDUAL Select file, press [ENT] to view. MAY-12-1999-03:31:45 UNABLE ACK NO REASON GIVEN TO SHIP : 234567890 ROUTINE * Xmitted message * RE-SEND ALL VIEW OLD NEW DELETE 5. To delete a file, select it, press  to select DELETE, and press the [ENT] key. The log files are renumbered to reflect the deletion. Note: Unread files cannot be deleted. 6. To re-send a file do the following: a) Do steps 1-4 above to select file to re-send. b) Press  to select RE-SEND. c) Press the [ENT] key. d) Press the [CALL] key. 6-1 6. PREPARING SEND MESSAGES In Chapter 3 you learned how to manually send individual, group and area calls. In this chapter you will learn how to send prepare and send them automatically, using prepared messages (files). 50 such files can be stored for future use. 6.1Preparing Individual Call Messages 1. Press the [#/SETUP] key to open the Setup menu. 2. Select MESSAGE and press the [ENT] key. 3. Press the [ENT] key to open the CALL TYPE menu. * Message file entry CALL TYPE STATION ID COM. TYPE COM. FREQ …

Text truncated - open the document above for the full version.

LABOTECH Furuno Labotech International Report Number: FLI 12-99-044 - Page A.1 of 8 - Attachment A Photos of DSC-60 1 Front View LABOTECH Furuno Labotech International Report Number: FLI 12-99-044 - Page A.2 of 8 - 2 Right Side View (showing Name Plate.) LABOTECH Furuno Labotech International Report Number: FLI 12-99-044 - Page A.3 of 8 - 3 Rear view

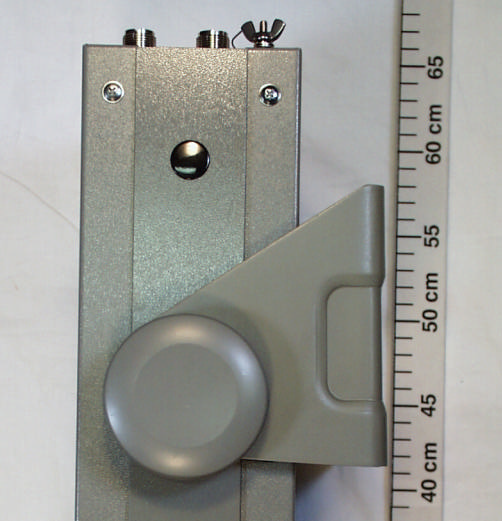

LABOTECH Furuno Labotech International Report Number: FLI 12-99-044 - Page A.4 of 8 - 4 Left Side View LABOTECH Furuno Labotech International Report Number: FLI 12-99-044 - Page A.5 of 8 - 5 Top View

LABOTECH This report shall not be reproduced except in full, without the written approval of Furuno Labotech International Co., Ltd. TECHNICAL INFORMATION TEST REPORT ON THE PERFORMANCE OF MARITIME DSC-CONTROLLER WITH INTEGRATED MF/HF- WATCHKEEPING RECEIVER Trade Mark : FURUNO Model : DSC-60 Report no.: FLI 12-99-044 Date of issue: December 15, 1999 Furuno Labotech International Co., Ltd. 9-52 Ashihara-cho, Nishinomiya City, Hyogo 662-8580, Japan Tel: +81-798-63-1094 Fax: +81-798-63-1098 LABOTECH Furuno Labotech International Report number: FLI 12-99-044 - Page 1 of 10 - All tests were performed in Furuno Labotech International Co., Ltd. All data herein contained is true and correct to our best knowledge. All tests were performed by: Name: Takekazu Yokose Function: Chief engineer Signature: Review and report by: Name: Toshiro Segawa Function: Manager/QA Signature: This report has been verified and approved by: Date: December 15, 1999 Name: Sadatomo Kuwahara Function: Manager/Engineering Section Signature: LABOTECH Furuno Labotech International Report number: FLI 12-99-044 - Page 2 of 10 - * * * * * * C O N T E N T S * * * * * * 1General Information...............................................................................................................................3 2Identification of Equipment (FCC Rule 2.925)....................................................................................4 3Test Data.................................................................................................................................................5 1)RF Power Output (FCC Rule 2.1046)...................................................................................................5 2)Modulation Characteristics (Bit Stream Speed) (FCC Rule 2.1047).....................................................5 3)Occupied Bandwidth (FCC Rule 2.1049)..............................................................................................6 4)Spurious Emissions at Antenna Terminals (FCC Rule 2.1051)............................................................8 5)Field Strength of Spurious Radiation (FCC Rule 2.1053).....................................................................8 6)Frequency Stability (FCC Rule 2.1055).................................................................................................8 4Photographs to reveal equipment construction and layout (FCC Rule 2.1035).............................9 5Description of Circuitry and Devices (FCC Rule 2.1033).................................................................10 5.1Block Description.................................................................................................................................10 5.2Description of the Functions of the Active Devices.............................................................................10 6Operator’s Manual including Circuit Diagrams (FCC Rule 2.1033)................................................10 Attachment A Photos of DSC-60 ------------------------------------------------------------------------A.1 – 9 Attachment B DSC-60 Block Description ------------------------------------------------------------B.1 – 22 Attachment C Description of the functions of the active devices ----------------------------C.1 - 4 LABOTECH Furuno Labotech International Report number: FLI 12-99-044 - Page 3 of 10 - 1General Information 1.1General (a) Manufacturer: Furuno Electric Co., Ltd. Ashihara-Cho 9-52, Nishinomiya-City, 662-8580 Japan. (b) Model/Name: MARITIME DSC-CONTROLLER WITH INTEGRATED MF/HF- WATCHKEEPING RECEIVER (c) Type: DSC-60 Serial No.: 3516-0011 (d) Frequency Range: 1.6 to 27.5 MHz (e) GMDSS Compliance: IMO Res. A.613(15) (f) Communication Protocol: Complies with ITU-R Rec. 493-9, 541-8, 1082-1 (g) Class of Emission: F1B/J2B (h) Power Supply: 24 VDC, 24 W (i) Dimensions & Weight: 108 (H) x 258 (D) x 303 (D) mm, 4 kg LABOTECH Furuno Labotech International Report number: FLI 12-99-044 - Page 4 of 10 - 2Identification of Equipment (FCC Rule 2.925) The following nameplate is permanently fixed on the equipment unit. FCC ID: ADB9ZWDSC60 Material of nameplate: Polyester film, 0.1 mm thick Size: 80 (W) x 16 (H) (mm) LABOTECH Furuno Labotech International Report number: FLI 12-99-044 - Page 5 of 10 - 3Test Data 1)RF Power Output (FCC Rule 2.1046) Not applicable. 2)Modulation Characteristics (Bit Stream Speed) (FCC Rule 2.1047) Method of measurement: Fig. 1 shows setup for measurement. Fig. 1 Test result:- 4.7 ppm (Dot pattern signals generated in the DSC-60 were measured.) Limit: The frequency shall be 50 Hz +/- 30 ppm corresponding to the bit stream speed 100 bit/s. DSC-60 RT De-modulator Frequency counter Model: R5362A S/N: 13720092 ADVANTEST LINE OUT Power supply 12 VDC LABOTECH Furuno Labotech International Report number: FLI 12-99-044 - Page 6 of 10 - 3)Occupied Bandwidth (FCC Rule 2.1049) Method of measurement: Fig. 2 shows setup for measurement. Fig. 2 Test result: Refer to Fig. 3. (Dot pattern signals generated in the DSC-60 were measured.) DSC-60 RT LINE OUT Power supply 12 VDC Dummy 600 ohm PLOTTER Model: P84XA S/N: 12000467 SPECTRUM ANALYZER Model: TR4173 S/N: 85580030 ADVANTEST LABOTECH Furuno Labotech International Report number: FLI 12-99-044 - Page 7 of 10 - Fig. 3 LABOTECH Furuno Labotech International Report number: FLI 12-99-044 - Page 8 of 10 - 4)Spurious Emissions at Antenna Terminals (FCC Rule 2.1051) Not a…

Text truncated - open the document above for the full version.
