ADB9ZWFM8800DVHF MARINE RADIOTELEPHONE

VHF RADIOTELEPHONE FM-8800D/8800S Your Local Agent/DealerYour Local Agent/Dealer 9-52 Ashihara-cho,9-52 Ashihara-cho, Nishinomiya 662-8580, JAPANNishinomiya 662-8580, JAPAN Telephone :Telephone :0798-65-21110798-65-2111 FaxFax0798-65-42000798-65-4200 :: FIRST EDITION :FIRST EDITION :SEPSEP..20042004 Printed in JapanPrinted in Japan All rights reserved.All rights reserved. A1A1::SEPSEP..22, 200422, 2004 Pub. No.Pub. No.OME-56420OME-56420 *00014993000**00014993000* *00014993000**00014993000* ((TATATATA)) FM-8800D/SFM-8800D/S * 0 0 0 1 4 9 9 3 0 0 0 ** 0 0 0 1 4 9 9 3 0 0 0 * *OME56420A10**OME56420A10* *OME56420A10**OME56420A10* * O M E 5 6 4 2 0 A 1 0 ** O M E 5 6 4 2 0 A 1 0 * i CANCELING DISTRESS ALERT If less than three seconds has elapsed since the [DISTRESS] key was pressed, the distress alert may be canceled by pressing the [CANCEL] key. Otherwise, do the following: 1. Switch off equipment immediately. 2. Switch equipment on and set to Channel 16. 3. Transmit message to “All Stations” giving your vessel's name, callsign and DSC number to cancel the distress alert. Example message: All Stations, All Stations, All Stations This is VESSEL'S NAME, CALLSIGN, DSC NUMBER, POSITION. Cancel my distress alert of DATE, TIME, UTC. =Master, VESSEL'S NAME, CALLSIGN. DSC NUMBER, DATE, TIME UTC. ii SAFETY INSTRUCTIONS Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Turn off the power immediately if water Do not open the equipment. leaks into the equipment or the equip- ment is emitting smoke or fire. Continued use of the equipment can cause fire or electrical shock. Do not place liquid-filled containers on the top of the equipment. Fire or electrical shock can result if a liquid spills into the equipment. Any repair work must be done by a licensed radio technician. Improper repair work can cause electrical shock or fire. Do not operate the equipment with wet hands. Electrical shock can result. Keep heater away from equipment. Heat can alter equipment shape and melt the power cord, which can cause fire or electrical shock. Hazardous voltage which can cause electrical shock, burn or serious injury exists inside the equipment. Only qualified personnel should work inside the equipment. WARNINGWARNING CAUTION Do not touch any part of the antenna when the equipment is transmitting. Electrical shock can result. Use the proper fuse. Use of a wrong fuse can result in fire or cause permanent damage to the equipment. WARNING To avoid electrical shock, do not remove cover. No user-serviceable parts inside. Terminal, Communication Unit Name: Warning Label (1) Type: 86-003-1011 Code No.: 100-236-231 Do not approach the antenna closer than 33 cm when it is transmitting. The antenna emits radio waves which can be harmful to the human body. WARNINGWARNING FM-8800S RF power density on antenna aperture distance 100 W/m 2 0.11 m 10 W/m 2 0.33 m FM-8800D 100 W/m 2 0.10 m 10 W/m 2 0.33 m iii TABLE OF CONTENTS FOREWORD ......................................................................................................... v SYSTEM CONFIGURATION ............................................................................... vii SPECIFICATIONS ........................................................................................... SP-1 1. OPERATIONAL OVERVIEW 1.1 Controls Keys and LCD Indication .............................................................................1-1 1.2 VHF Basic Operation ................................................................................................. 1-7 1.3 DSC Operational Overview......................................................................................1-10 1.4 Priority ..................................................................................................................... 1-12 2. DSC DISTRESS COMMUNICATION 2.1 Distress Alert Transmission from the DISTRESS Key ................................................ 2-1 2.2 Distress Alert Transmission with Nature of Distress ................................................... 2-3 2.3 Distress Alert Transmission From CALL Key.............................................................. 2-4 2.4 Canceling a False Distress Alert ................................................................................ 2-6 2.5 Receiving Distress Alert from Other Vessel, Transmitting DIST ACK Signal............... 2-6 2.6 Sending Distress Relay on Behalf of a Ship in Distress ........................................... 2-11 2.7 Receiving Distress Relay ......................................................................................... 2-15 3. DSC OPERATION FOR NON-DISTRESS CASES 3.1 Coast or Ship Call...................................................................................................... 3-1 3.2 Group Call ............................................................................................................... 3-10 3.3 PSTN Call................................................................................................................ 3-13 3.4 All Ships Call............................................................................................................ 3-16 3.5 Geographical Area Call ............................................................................................ 3-19 3.6 Position Call............................................................................................................. 3-22 3.7 Polling Call...............................................................................................................3-25 3.8 Neutral Craft Call..................................................................................................... 3-29 3.9 Medical Transport Call ............................................................................................. 3-30 3.10 Log File.................................................................................................................... 3-32 4. BASIC SE…

Text truncated - open the document above for the full version.

VHF RADIOTELEPHONE FM-8800D/8800S Your Local Agent/DealerYour Local Agent/Dealer 9-52 Ashihara-cho,9-52 Ashihara-cho, Nishinomiya 662-8580, JAPANNishinomiya 662-8580, JAPAN Telephone :Telephone :0798-65-21110798-65-2111 FaxFax0798-65-42000798-65-4200 :: FIRST EDITION :FIRST EDITION :SEPSEP..20042004 Printed in JapanPrinted in Japan All rights reserved.All rights reserved. AA3::FEB..9, 2005 Pub. No.Pub. No.OME-56420OME-56420 *00014993000**00014993000* *00014993000**00014993000* ((TATATATA)) FM-8800D/SFM-8800D/S * 0 0 0 1 4 9 9 3 0 0 0 ** 0 0 0 1 4 9 9 3 0 0 0 * *OME56420A20**OME56420A20* *OME56420A20**OME56420A20* * O M E 5 6 4 2 0 A * O M E 5 6 4 2 0 A 3 0 * i CANCELING DISTRESS ALERT If less than three seconds has elapsed since the [DISTRESS] key was pressed, the distress alert may be canceled by pressing the [CANCEL] key. Otherwise, do the following: 1. Switch off equipment immediately. 2. Switch equipment on and set to Channel 16. 3. Transmit message to “All Stations” giving your vessel's name, callsign and DSC number to cancel the distress alert. Example message: All Stations, All Stations, All Stations This is VESSEL'S NAME, CALLSIGN, DSC NUMBER, POSITION. Cancel my distress alert of DATE, TIME, UTC. =Master, VESSEL'S NAME, CALLSIGN. DSC NUMBER, DATE, TIME UTC. ii SAFETY INSTRUCTIONS Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Turn off the power immediately if water Do not open the equipment. leaks into the equipment or the equip- ment is emitting smoke or fire. Continued use of the equipment can cause fire or electrical shock. Do not place liquid-filled containers on the top of the equipment. Fire or electrical shock can result if a liquid spills into the equipment. Any repair work must be done by a licensed radio technician. Improper repair work can cause electrical shock or fire. Do not operate the equipment with wet hands. Electrical shock can result. Keep heater away from equipment. Heat can alter equipment shape and melt the power cord, which can cause fire or electrical shock. Hazardous voltage which can cause electrical shock, burn or serious injury exists inside the equipment. Only qualified personnel should work inside the equipment. WARNINGWARNING CAUTION Do not touch any part of the antenna when the equipment is transmitting. Electrical shock can result. Use the proper fuse. Use of a wrong fuse can result in fire or cause permanent damage to the equipment. WARNING To avoid electrical shock, do not remove cover. No user-serviceable parts inside. Terminal, Communication Unit Name: Warning Label (1) Type: 86-003-1011 Code No.: 100-236-231 Do not approach the antenna closer than 0.9 m (MPE by FCC) when it is transmitting. WARNINGWARNING FM-8800S RF power density on antenna aperture Distance 100 W/m 2 0.11 m 10 W/m 2 0.33 m FM-8800D 2 W/m 2 0.9 m 0.11 m Description required by (MPE: Minimum Permissible Exposure) IEC 60945 IEC 60945 MPE by FCC IEC 60945 IEC 60945 MPE by FCC 0.33 m 0.9 m 100 W/m 2 10 W/m 2 2 W/m 2 The antenna emits radio waves which can be harmful to the human body. iii Important Notices • No part of this manual may be copied or reproduced without written permission. • If this manual is lost or worn, contact your dealer about replacement. • The contents of this manual and equipment specifications are subject to change without notice. • The example screens (or illustrations) shown in this manual may not match the screens you see on your display. The screen you see depends on your system configuration and equipment settings. • This manual is intended for use by native speakers of English. • FURUNO will assume no responsibility for the damage caused by improper use or modification of the equipment or claims of loss of profit by a third party. i v TABLE OF CONTENTS FOREWORD ....................................................................................................... vii SYSTEM CONFIGURATION................................................................................ ix SPECIFICATIONS ........................................................................................... SP-1 1. OPERATIONAL OVERVIEW 1.1 Controls Keys and LCD Indication.............................................................................1-1 1.1.1 Front panel......................................................................................................1-1 1.1.2 Controls ..........................................................................................................1-2 1.1.3 Indications on the LCD.................................................................................... 1-5 1.1.4 Audio alarms................................................................................................... 1-6 1.2 VHF Basic Operation................................................................................................. 1-7 1.2.1 Turning the power on and adjusting contrast................................................... 1-7 1.2.2 Selecting channel modes, channels................................................................ 1-7 1.2.3 Adjusting volume of loudspeaker .................................................................... 1-8 1.2.4 Adjusting squelch............................................................................................ 1-8 1.2.5 Transmitting .................................................................................................... 1-8 1.2.6 Selecting output power ................................................................................... 1-8 1.2.7 Turning the loudspeaker on/off........................................................................ 1-8 1.2.8 Quick selection of CH16 ................................................................................. 1-9 1.2.9 Dual watch...................................................................................................... 1-9 1.2.10 Scanning....................................................…

Text truncated - open the document above for the full version.

3. DSC OPERATION FOR NON-DISTRESS CASES 3-27 9-2. When "No response! Try calling again?" is displayed, do one of the following: Re-send call: Push the ENT key followed by the CALL key. Cancel call: Press the CANCEL key to return to the standby display. 3.7.2 Receiving a polling call Automatic reply 1. When a polling request is received and the equipment is set up for automatic acknowledge POLLING on the AUTO ACK menu is ON and the ACK key is set to show AUTO ACK on the display, the display changes as shown in the illustration below and the audio alarm sounds. Polling auto ack transmitted. ROUTINE TCmd1 : POLLING TCmd2 : NO INFO CANCEL ALARM 2. Press the CANCEL or ENT key to silence the alarm. The display changes as below. ** Send Message ** POLLING ACK TO : 123456789 ROUTINE TCmd1 : POLLING TCmd2 : NO INFO PRESS ENT 3. DSC OPERATION FOR NON-DISTRESS CASES 3-28 Manual reply 1. When a polling request call is received and the setting of POLLING CALL on the system setup menu is OFF, the display changes as shown in the illustration below and the audio alarm sounds. Position request call received. FROM : 123456789 ROUTINE TCmd1 : POLLING TCmd2 : NO INFO CANCEL ALARM 2. Press the CANCEL key to silence the alarm. The display changes as below. ** Received Message ** APR01/04 12 : 34 ECC : OK POLLING CALL ROUTINE TCmd1 : POLLING TCmd2 : NO INFO FROM : 123456789 PRESS ENT TO ACK. 3. To respond to the call, press the ENT key. The following pop-up window appears. ANSWER NO ANSWER 4. Choose ANSWER by the CH knob and press the CALL key to send the polling acknowledge call. Then the standby display appears. To send no reply, choose NO ANSWER and press the ENT key twice to return to the standby display. 3. DSC OPERATION FOR NON-DISTRESS CASES 3-29 3.8 Neutral Craft Call The neutral craft call, which contains own ship position and ID, informs all ships that your ship is not a participant in armed conflict. Send the call BEFORE entering an area of armed conflict. 3.8.1 Sending a neutral craft call 1. Press the CALL key. The display changes from the standby display to the COMPOSE MESSAGE screen and the CALL TYPE is displayed in reverse video. 2. Press the ENT key to open the call type list. 3. Rotate the CH knob (or press up / down arrow key) to choose NEUTRAL and press the ENT key. ** Compose Message ** CRAFT TCmd1 : SIMPLEX TP TCmd2 : NEUTRAL CRAFT CH : 16 URGENCY CALL TYPE : NEUTRAL 6. URGENCY is selected; press the ENT key. 7. Choose SAFETY, or URGENCY as appropriate followed by pressing the ENT key. 8. Press the CALL key more than three seconds to transmit the call. After the call is transmitted, the standby display appears. 3.8.2 Receiving a neutral craft call 1. When a neutral craft call is received, the alarm sounds and the display changes as below. Neutral craft call received. FROM : 123456789 URGENCY TCmd1 : SIMPLEX TP TCmd2 : NEUTRAL CRAFT CH : 16 CANCEL ALARM 3. DSC OPERATION FOR NON-DISTRESS CASES 3-30 2. Press the CANCEL or ENT key. The audible alarm is silenced and the display changes as below. ** Received Message ** APR01/04 12 : 34 ECC : OK NEUTRAL CALL APR01/04 12 : 34 ECC : OK SAFETY TCmd1 : SIMPLEX TP TCmd2 : NEUTRAL CRAFT CH : 16 FROM : 123456789 PRESS ENT TO CHANGE CH 3. Press the ENT key. The display changes to the standby display, indicating CH16. 3.9 Medical Transport Call The medical transport call informs all ships, by urgency priority, that own ship carries medical supplies. 3.9.1 Sending a medical transport call 1. Press the CALL key. The display changes from the standby display to the COMPOSE MESSAGE screen and the CALL TYPE is displayed in reverse video. 2. Press the ENT key to open the call type list. 3. Rotate the CH knob (or press up / down arrow key) to choose the MEDICAL and press the ENT key.              4. Press the CALL key more than three seconds to transmit the call. After the call is transmitted, the standby display appears, with CH16 selected. 3. DSC OPERATION FOR NON-DISTRESS CASES 3-31 3.9.2 Receiving a medical transport call 1. When a medical call is received, the alarm sounds and the display changes as below. Medical call received. FROM : 123456789 URGENCY TCmd1 : SIMPLEX TP TCmd2 : MEDICAL CH : 16 CANCEL ALARM 2. Press the CANCEL or ENT key. The audible alarm stops and the display changes as below. ** Received Message ** APR01/04 12 : 34 ECC : OK MEDICAL CALL URGENCY TCmd1 : SIMPLEX TP TCmd2 : MEDICAL CH : 16 FROM : 123456789 PRESS ENT TO CHANGE CH 3. Press the ENT key. The display changes to the standby display, indicating CH16. 3. DSC OPERATION FOR NON-DISTRESS CASES 3-32 3.10 Log File Three log files are provided for storage of calls: received ordinary log, received distress log and transmitted log. Each log file stores 50 calls, on a first-in, first-out basis. This means that the latest call is saved as log no.1 and the log no. of all previous calls in that log increments by one. When the storage capacity is exceeded, the oldest call is deleted to make room for the latest. A letter mark shows unread or unacknowledged calls. Received distress calls are automatically deleted 48 hours after being read. Opening a log file The procedure for opening a log is common to all logs. 1. Press the LOG key to open the SELECT LOG FILE display.          2. Rotate the CH knob to choose RCVD ORDINARY, RCVD DISTRESS or TRANSMITTED as appropriate and press the ENT key. For example, choose RCVD ORDINARY or TRANSMITTED. 01: APR 10/04 12:30 RCVD ORDINARY LOG 1/13 SHIP ACK 02: APR 15/04 10: 15 ALL SHIP 03: APR 25/04 11: 30 COAST CALL TRANSMITTED 1/13 04: MAY10/04 18: 30 COAST CALL 01: APR 10/04 12:35 SHIP CALL 02: APR 15/04 10: 25 ALL SHIPS CALL 03: APR 25/04 12: 30 COAST CALL 04: MAY10/04 19: 30 COAST CALL T T 3. Rotate the CH knob to choose a file you wish to browse. The in the RCVD ORDINARY LOG indicates unread or unacknowledged message. 3. DSC OPERATION FOR NON-DIS…

Text truncated - open the document above for the full version.

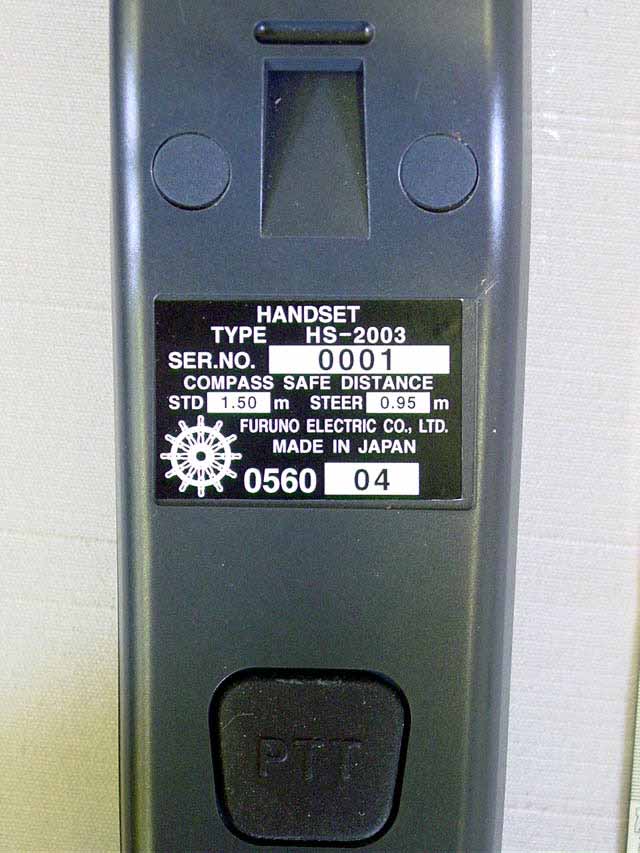

Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S1 of 45 - Photographs of VHF Radio Telephone FM-8800S TABLE OF CONTENTS 1 External View ............................................................................................................................ 2 1.1 Transceiver Unit FM-8800S ...................................................................................................2 1.2 Handset HS-2003 with Bracket .............................................................................................. 5 1.3 Remote Station RB-8810 with Handset HS-8800 (upper) ...................................................... 8 1.4 Remote Station RB-8800 with Handset HS-8800 ................................................................ 11 1.5 Junction Box IF-8810 ........................................................................................................... 14 1.6 DMC Interface IF-8820......................................................................................................... 15 1.7 Handset HS-8800................................................................................................................. 16 2 Internal View............................................................................................................................ 18 2.1 Transceiver Unit FM-8800S ................................................................................................. 18 2.2 Handset HS-2003................................................................................................................. 31 2.3 Remote Station RB-8810 .....................................................................................................33 2.4 Remote Station RB-8800 .....................................................................................................35 2.5 Junction Box IF-8810 ........................................................................................................... 38 2.6 DMC Interface IF-8820......................................................................................................... 40 2.7 Handset HS-8800................................................................................................................. 42 Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S2 of 45 - 1 External View 1.1 Transceiver Unit FM-8800S 1.1.1 Top View (Showing Name Plate on Outside Cover) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S3 of 45 - 1.1.2 Rear View Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S4 of 45 - 1.1.3 Name Plate Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S5 of 45 - 1.2 Handset HS-2003 with Bracket 1.2.1Top View Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S6 of 45 - 1.2.2 Bottom View (Handset (Left) and Bracket (Right)) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S7 of 45 - 1.2.3 Name Plate Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S8 of 45 - 1.3 Remote Station RB-8810 with Handset HS-8800 (upper) 1.3.1 Top View Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S9 of 45 - 1.3.2 Top View (with Handset taken off the hook) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S10 of 45 - 1.3.3 Name Plate Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S11 of 45 - 1.4 Remote Station RB-8800 with Handset HS-8800 1.4.1Top View Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S12 of 45 - 1.4.2 Top View (with Handset taken off the hook) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S13 of 45 - 1.4.3 Name Plate Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S14 of 45 - 1.5 Junction Box IF-8810 1.5.1 Top View (Showing Name Plate) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S15 of 45 - 1.6 DMC Interface IF-8820 1.6.1 Top View (Showing Name Plate) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S16 of 45 - 1.7 Handset HS-8800 1.7.1 Top View Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Revision no.: 1 Date of Revised issue: 6 January 2005 - Page S17 of 45 - 1.7.2 Bottom View (showing Name Plate)

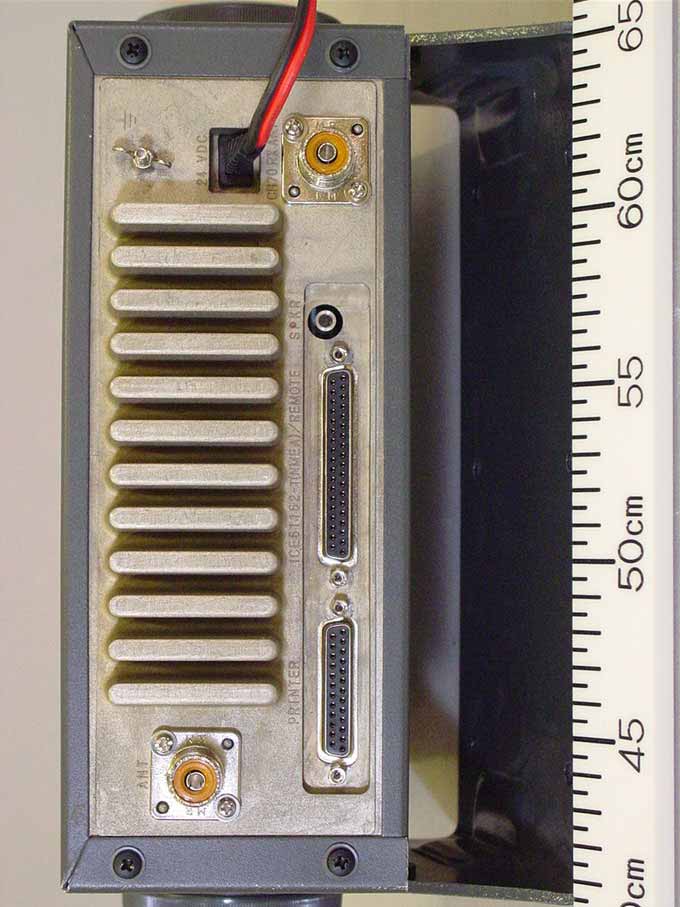

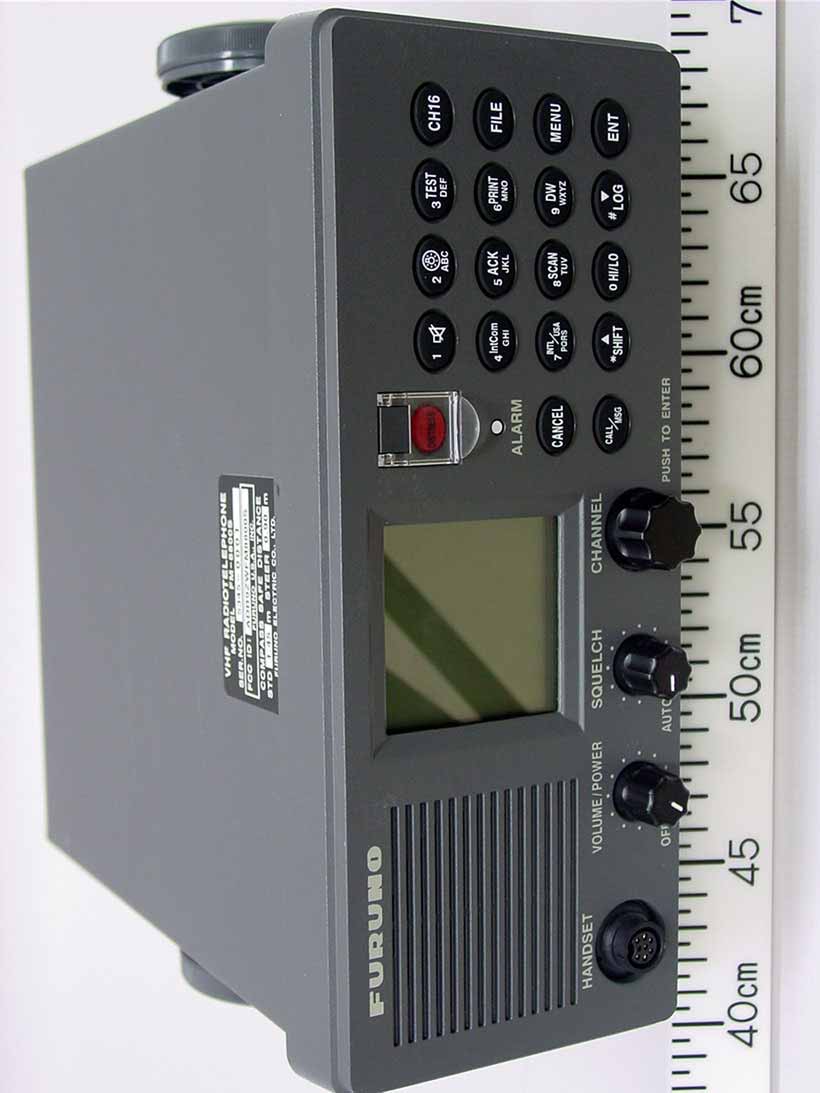

Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 1 of 47 - Photographs of VHF Radio Telephone FM-8800D 1Transceiver Unit FM-8800D 1.1 Top View (Showing Name Plate on Outside Cover) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 2 of 47 - 1.2 Rear View Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 3 of 47 - 1.3 Inside Top View (with Outside Cover removed, showing Duplexer (upper)) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 4 of 47 - 1.4 Inside Top View (with Duplexer and shield-cover removed, showing TX / RX Board 05P0774 (upper) and PWR Board 05P0776 (lower)) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 5 of 47 - 1.5 TX / RX Board 05P0774 Front side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 6 of 47 - 1.6 TX / RX Board 05P0774 Rear side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 7 of 47 - 1.7 PWR Board 05P776 Front side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 8 of 47 - 1.8 PWR Board 05P776 Rear side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 9 of 47 - 1.9 Inside Bottom View (with Outside Cover removed, showing DUP RX Board 05P0777 (upper right), CH70 RX Board 05P0775 (upper left) and CPU Board 05P0773 (lower)) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 10 of 47 - 1.10 DUP RX Board 05P0777 Front side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 11 of 47 - 1.11 DUP RX Board 05P0777 Rear side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 12 of 47 - 1.12 CH70 RX Board 05P0775 Front side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 13 of 47 - 1.13 CH70 RX Board 05P0775 Rear side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 14 of 47 - 1.14 CPU Board 05P0773 Front side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 15 of 47 - 1.15 CPU Board 05P0773 Rear side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 16 of 47 - 1.16 Panel Inside View (showing PANEL Board 05P0772 Rear side) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 17 of 47 - 1.17 Panel Inside View (with PANEL Board removed, showing Back of Front Panel) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 18 of 47 - 1.18 PANEL Board 05P0772 Front side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 19 of 47 - 1.19 Name Plate Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 20 of 47 - 2.1 Handset HS-2003 with Bracket 2.1Top View Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 21 of 47 - 2.2 Bottom View (Handset (Left) and Bracket (Right)) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 22 of 47 - 2.3 Inside View (with Cover opened, showing Handset Board 05P0780 Front side) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 23 of 47 - 2.4 Handset Board 05P0780 Rear side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 24 of 47 - 2.5 Name Plate

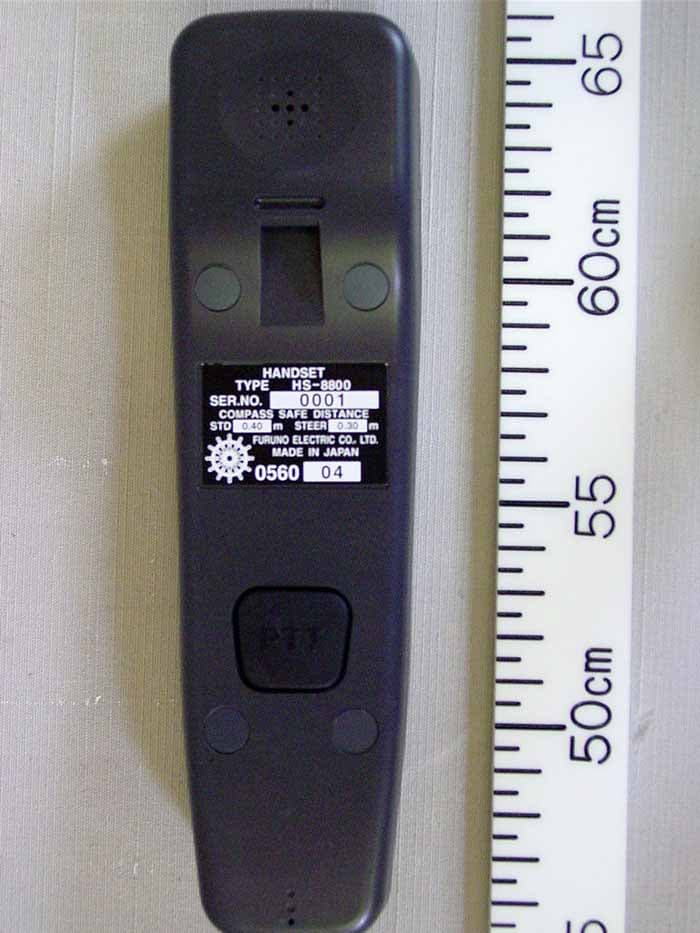

Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 25 of 47 - 3 Remote Station RB-8810 with Handset HS-8800 (upper) 3.1 Top View Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 26 of 47 - 3.2 Top View (with Handset taken off the hook) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 27 of 47 - 3.3 Inside View (with Cover opened, showing TB Board 05P0798 Front side) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 28 of 47 - 3.4 TB Board 05P0798 Rear side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 29 of 47 - 3.5 Name Plate Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 30 of 47 - 4 Remote Station RB-8800 with Handset HS-8800 4.1Top View Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 31 of 47 - 4.2 Top View (with Handset taken off the hook) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 32 of 47 - 4.3 Inside View (showing REMOTE Board 05P0779 Rear side (upper) and TB Board 05P0782 Front side (lower)) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 33 of 47 - 4.4 REMOTE Board 05P0779 Front side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 34 of 47 - 4.5 TB Board 05P0782 Rear side Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 35 of 47 - 4.6 Name Plate Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 36 of 47 - 5 Junction Box IF-8810 5.1 Top View (Showing Name Plate) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 37 of 47 - 5.2 Inside View (with Top cover removed, showing JUNCTION Board 05P0790 Front side) Furuno Labotech International Co., Ltd. Document. number: FLI 01-04-024 Date of issue: 1 September 2004 - Page 38 of 47 - 5.3 JUNCTION Board 05P0790 Rear side Furuno Labotech International Co., Ltd. Document.…
