MODEL 1833C MARINE RADARMODEL 1933C MARINE RADARMODEL 1943C MARINE RADARMODEL 1953C MARINE RADAR COLOR VIDEO PLOTTER GD-1900C Your Local Agent/DealerYour Local Agent/Dealer 9-52 Ashihara-cho,9-52 Ashihara-cho, Nishinomiya, JapanNishinomiya, Japan Telephone :Telephone :0798-65-21110798-65-2111 Telefax :Telefax :0798-65-42000798-65-4200 FIRST EDITION :FIRST EDITION :APR.APR.20012001 Printed in JapanPrinted in Japan All rights reserved.All rights reserved. E :E :FEB.FEB.13,200213,2002 PUB.No.PUB.No.OME-35030OME-35030 *00080919801**00080919801* *00080919801**00080919801* ((HIMAHIMA)) M1833C SER & GD1900CM1833C SER & GD1900C * 0 0 0 8 0 9 1 9 8 0 1 ** 0 0 0 8 0 9 1 9 8 0 1 * *OME35030E00**OME35030E00* *OME35030E00**OME35030E00* * O M E 3 5 0 3 0 E 0 0 ** O M E 3 5 0 3 0 E 0 0 * i SAFETY INSTRUCTIONS WARNING ELECTRICAL SHOCK HAZARD Do not open the equipment. Only qualified personnel should work inside the equipment. Turn off the radar power switch before servicing the antenna unit. Post a warn- ing sign near the switch indicating it should not be turned on while the antenna unit is being serviced. Prevent the potential risk of being struck by the rotating antenna and exposure to RF radiation hazard. Wear a safety belt and hard hat when working on the antenna unit. Serious injury or death can result if someone falls from the radar antenna mast. Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Turn off the power immediately if water leaks into the equipment or the equip- ment is emitting smoke or fire. Continued use of the equipment can cause fire or electrical shock. Use the proper fuse. Fuse rating is shown on the power cable. Use of a wrong fuse can result in damage to the equipment. Keep heater away from equipment. Heat can alter equipment shape and melt the power cord, which can cause fire or electrical shock. CAUTION A warning label is attached to the equipment. Do not remove the label. If the label is missing or damaged, contact a FURUNO agent or dealer. WARNING To avoid electrical shock, do not remove cover. No user-serviceable parts inside. Name: Warning Label (1) Type: 86-003-1011-0 Code No.: 100-236-230 WARNING Radio Frequency Radiation Hazard The radar antenna emits electromagnetic radio frequency (RF) energy which can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the trans- mitting antenna at a close distance. Distances at which RF radiation levels of 100 and 10 W/m 2 exist are given in the table below. Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible - Ask your FURUNO representative or dealer to provide this feature. MODEL Distance to 100 W/m 2 point Distance to 10 W/m 2 point MODEL 1833C Nil Worst case 0.50 m MODEL 1933C MODEL 1943C Worst case 0.20 m Worst case 3.00 m Nil Worst case 2.50 m MODEL 1953C Nil Worst case 2.50 m Worst case 2.30 m XN-12A XN-13A ii TABLE OF CONTENTS FOREWORD................................................................................................................ viii SYSTEM CONFIGURATIONS ........................................................................................ x 1. OPERATIONAL OVERVIEW .................................................................................. 1-1 1.1 Operating Controls............................................................................................................... 1-2 1.1.1 Display unit controls ....................................................................................... 1-2 1.1.2 Remote controller ........................................................................................... 1-4 1.2 Inserting a Chart Card..........................................................................................................1-5 1.3 Turning the Unit On/Off ........................................................................................................1-6 1.4 Display Brilliance, Panel Brilliance, Hue.............................................................................. 1-7 1.4.1 Display brilliance, panel brilliance................................................................... 1-7 1.4.2 Hue ................................................................................................................ 1-8 1.5 Selecting a Display .............................................................................................................. 1-9 1.5.1 Display modes................................................................................................ 1-9 1.5.2 Selecting a display ....................................................................................... 1-10 1.5.3 Switching control in combination and overlay screens.................................. 1-11 1.5.4 Selecting image source ................................................................................ 1-12 1.6 Trackball, Cursor................................................................................................................ 1-13 1.7 Entering the MOB Mark, Setting MOB as Destination....................................................... 1-14 1.8 Data Boxes......................................................................................................................... 1-15 1.8.1 Showing, hiding data boxes with soft key ..................................................... 1-15 1.8.2 Rearranging data boxes ............................................................................... 1-16 1.8.3 Temporarily erasing a data box..................................................................... 1-16 1.9 Function Keys .................................................................................................................... 1-17 1.9.1 Executing a funct…

Text truncated - open the document above for the full version.

3-1 3. PLOTTER OPERATION 3.1 Plotter Displays You may show the plotter display over the entire screen, in the overlay screen with the radar display, or in a combination screen. 3.1.1 Full-screen plotter display 34° 22. 3456'N 359.9°M TRIP NU 080° 22. 3456'E 19.9 kt 99.9 nm BRIDGE FISH 002WPT MARK ENTRY MODE NTH UP NAV POS D. BOX ON/OFF Nav data window (Data changes with NAV soft key setting and cursor status. For details see next page.) Course bar Soft keys Track Own ship marker Icon (from left) North Marker Chart Alarm Track Hold Chart Offset Save L/L Offset Battery Simulation (See icon table on page A-12 for details.) Waypoint name Waypoint marker Scale 16.0nm S I M Full-screen plotter display Note: : The own ship marker blinks when the unit loses the GPS signal. The message ìNo GPS fix!î appears approx. 90 seconds after the positioning error and is accompanied by the audio alarm. When the message ìNO POSITION DATAî appears, a cable may be loosened. 3. PLOTTER OPERATION 3-2 Nav data window The data shown in the nav data window depends on the status of the NAV soft key and the cursor. 359. 9° M 359. 9 ° M 79. 9°F NU 19. 9kt 99. 9nm 345 ft Bearing to Waypoint Course, Speed Range to Waypoint Water Temp.*, Depth* CSE SOG BRG RNG TMP DPT NAV S/C soft key Presentation Mode Own Ship MarkSpeed Trip Distance NAV POS soft key 34°24. 3456'N 359. 9°M TRIP NU 124°24. 3456'W 19. 9kt 99. 9nm CourseLatitude, Longitude Presentation Mode Own ship position Own ship speed and course NAV OFF soft key Turns off nav data window * Requires appropriate sensor. 34°24. 3456'N 359. 9°M TRIP NU 124°24. 3456'W 59.9nm 99. 9nm Bearing to Cursor Latitude, Longitude Trip Distance Presentation Mode + Cursor Mark Latitude and longitude of cursor intersection Range to Cursor 359. 9°M TTG4D02H23M NU 19. 9nm ETA1st 13:45 Bearing to WaypointWaypoint Name Estimated Time of Arrival Range to Waypoint Waypoint Mark 001WPT Presentation Mode NAV WPT soft key Destination waypoint data Time-to-Go to Destination 359. 9°M359. 9°M TRIP NU 19. 9nm 19. 9kt 99. 9nm CourseBearing to WaypointWaypoint Name 001WPT Waypoint data (waypoint selected with cursor) Presentation Mode SpeedRange to WaypointWaypoint MarkTrip Distance Contents of nav data window 3. PLOTTER OPERATION 3-3 3.1.2 Compass display The compass display, shown in combination displays, provides steering information. The compass rose shows two triangles: the red triangle shows own shipís course and the black triangle, which moves with shipís course, shows the bearing to destination waypoint. The water temperature and depth graphs, which require appropriate sensors, show the latest 10 minutes of water temperature and depth data. The range of the depth graph is 50 feet and it is automatically adjusted with depth. Bearing scale XTE monitor (See next page for description.) Depth graph* Water temperature graph* Time-to-go to destination Estimated time of arrival at destination Ship's course (red) Destination waypoint Range to destination waypoint Speed over ground * = Requires appropriate sensor. Destination waypoint bearing (black) 0 50 20 10 BRG DPT TMP 359.9° M 45.2ft 16.2°F 359.9°M 003WPT 0D 9H 59MTTG23th23:59 ETA SOG 10.0kt 10.0 ktSTW RNG99.9nm N w E Speed through water CSE Direction to steer (green) Shown (in red on color model) when direction to steer is "left." Own ship marker (Black when within XTE range, yellow when over.) Compass display 3. PLOTTER OPERATION 3-4 Reading the XTE (cross-track error) monitor The XTE monitor, located below the compass rose, shows the distance you are off course and the direction to steer to return to course. The own ship marker moves according to direction and distance off course. It is shown in black when the amount of cross-track error is within the XTE monitor range and yellow when it is over. An arrow appears at the right or left side of the XTE monitor and it shows the direction to steer to return to intended course. It is shown in red when you should steer left, and green when you should steer right. In the example on the previous page you would steer right to return to course. To maintain course, steer the vessel so the own ship marker stays at the center of the XTE monitor. Soft keys You can show the soft keys for the compass display by pressing the [HIDE/SHOW] key. COMPSS CNTRL: On the radar/plotter/compass combination display you can switch control to the compass display by pressing the CNTRL soft key to select COMPSS. EDIT XT-LMT: Sets the range for XTE monitor scale. See the procedure below for how to set. RESET XTE: This soft key may be operated to restart navigation, when a destination is set. Press the EDIT XT-LMT soft key followed by the RESET XTE soft key. The following message is displayed. RESTART NAVGATION TO CURRENT WPT. ARE YOU SURE? YES ... PUSH ENTER KNOB NO ... PUSH CLEAR KEY Setting the range for the XTE monitor 1. With the compass (or highway) display shown, press the EDIT XT-LMT soft key to display the following window. XTE LIMIT 0 .1nm XTE range setting window 2. Use the trackball to select digit to change. Note that all digits may be cleared by pressing the [CLEAR] key. 3. Enter value with the alphanumeric keys. 4. Push the [ENTER] knob to set, or press the CANCEL soft key to cancel. 3. PLOTTER OPERATION 3-5 3.1.3 Highway display The highway display, shown in combination displays, provides a graphic presentation of shipís track along intended course. It is useful for monitoring shipís progress toward a waypoint. The own ship marker shows the relation between ship and intended course. The XTE monitor shows the direction and amount your vessel is off course ñ the arrow shows the direction to steer to return to your course and the numeric the distance you are off course. Using the figure below as an example, you would steer right 0.009 nm to return to course. To maintain course, steer the vessel so the own ship marker stays aligned with the intended course line. Time-to-go to destination Range to destination waypoint …

Text truncated - open the document above for the full version.

5-1 5. CUSTOMIZING YOUR UNIT This chapter describes the various options which allow you to set up your unit to suit your needs. For mode-specific menus, e.g. radar, plotter and sounder, make sure that you select the appropriate display when making changes or viewing menu options. 5.1 General Setup This paragraph shows you how to set up functions common to the plotter, radar and sounder displays. This is done on the GENERAL SETUP menu, which you may display from any mode. These items include language, key beep, units of measurement, data sources, etc. 1. Press the [MENU] key to display the main menu. 2. Press the SYSTEM CONFIGURATION soft key. 3. Press the GENERAL SETUP soft key. GENERAL SETUP1 EDIT NEXT PAGE RETURN GENERAL SETUP2 EDIT PREV. PAGE Page 1 Page 2 KEY BEEPON LANGUAGEENGLISH RANGE UNITnm, kt TEMPERATURE UNIT °F DEPTH UNITft TEMPERATURE SOURCE NMEA DEPTH SOURCENMEA RESET TRIP LOGNO LAT/LON DISPLAYDD°MM.MMMM’ TD DISPLAYLORAN C SPEED SOG POSITION DISPLAYLAT/LON TIME DISPLAY24 HOURS INFRARED REMOTE MODE A RANGE & BEARING MODE RHUMB LINE BEARING READOUT MAGNETIC MAGNETIC VARIATIONAUTO 07.0 °E General setup menu 4. Press the NEXT PAGE or PREV. PAGE soft key to switch pages if necessary. 5. Use the trackball to select item. 6. Press the EDIT soft key. 7. Use the trackball to select option desired, then press the ENTER soft key. 8. Press the [MENU] key to close the menu. 5. CUSTOMIZING YOUR UNIT 5-2 Contents of general setup menu Item Description Settings Default Setting Key Beep Turns key beep on/off. On, Off On Language Chooses menu language. English, French, German, Italian, Portuguese, Spanish English Range Unit Chooses unit of range and speed measurement. nm, kt; km, km/h; sm, mph; nm & yd, kt; nm & m, kt; km & m, km/h; sm & yd, mph nm, kt Temperature Unit Chooses unit of water temperature measurement. °C,°F °F Depth Unit Chooses unit of depth measurement. ft, m, fa, P/B (Passi/Braza) ft Temperature Source Chooses source of water temperature data. ETR, NMEA. Select ETR to show water temperature data fed from the network sounder. NMEA Depth Source Chooses source of depth data. ETR, NMEA. Select ETR to show depth data fed from the network sounder. NMEA Reset Trip Log Resets distance run to zero. Yes, No No Lat/Lon Display Chooses how many digits (or seconds) to display after decimal point in latitude and longitude position. DD°MM.MM’, DD°MM.MMM’, DD°MM.MMMM’, DD°MM’SS.S” DD°MM.MMMM’ TD Display Chooses TD type. Loran C, Decca Loran C Speed Chooses speed format to display. SOG (Speed over ground), STW (Speed through water) SOG Position Display Chooses position display format. LAT/LON, TD LAT/LON Time Display Chooses time notation. 12 hours, 24 hours 24 hours Infrared Remote Mode A remote controller can be set exclusively for use with a specific display unit, in the case of multiple NavNet display units. For further details see the Installation Manual. A, B, C, D A Range & Bearing Mode Chooses how to calculate range and bearing. Rhumb Line: Straight line drawn between two points on a nautical chart. Great Circle: Shortest course between two points on the surface of the earth. Rhumb Line (Continued on next page) 5. CUSTOMIZING YOUR UNIT 5-3 Contents of general setup menu (con’t from previous page) Item Description Settings Default Setting Bearing Readout Chooses bearing display format for course, course over ground and cursor bearing. True, Magnetic Magnetic Magnetic Variation The magnetic variations for all areas of the earth are preprogrammed into this unit. The preprogrammed variation is accurate for most instances, however you may wish to manually enter a variation. For manual input, select Manual, hit the EDIT soft key, enter value, then hit the ENTER soft key to set. “AUTO” requires position data. Auto, Manual Auto (07.0°W) 5.2 Radar Setup This paragraph explains how to customize the radar display to suit your operational needs. 5.2.1 Radar display setup The radar display may be set up from the RADAR DISPLAY SETUP menu, which contains items such as EBL reference and cursor position format. 1. Press the [MENU] key to show the main menu. 2. Press the RADAR DISPLAY SETUP soft key. DISPLAY SETUP EDIT D. BOX RETURN
EBL REFERENCERELATIVE CURSOR POSITIONRNG & BRG-REL TUNINGAUTO TX SECTOR BLANKING OFF 000 ° 001° NOISE REJECTIONOFF BACKGROUND COLOR BLACK/GREEN ECHO COLORGREEN 2ND ECHO REJECTION OFF WATCHMAN TIME5 minutes RANGE UNITnm TRAIL MODERELATIVE Radar display setup menu 5. CUSTOMIZING YOUR UNIT 5-4 Contents of radar display setup menu Item Description Settings Default Setting EBL Reference References EBL bearing, shown in the EBL data box, to North (True) or heading (Relative). Relative with no heading input. True only in course-up, north-up and true motion. True, Relative Relative Cursor Position Chooses how to display cursor position. Note: “RNG & BRG-TRUE” requires heading data, true bearing. Reverts to relative bearing when heading data is lost. LAT/LON: Lat/Long position of cursor TD: Loran C or Decca TDs RNG & BRG-REL: Range and bearing in relative bearing. RNG & BRG-TRUE: Range and bearing in true bearing. RNG & BRG-REL Tuning Selects receiver tuning method. For further details see the paragraph “2.6 Tuning.” Auto, Manual Auto Turns on/off dead sector graphic, which shows area where no echoes are transmitted. To set sector, select ON, then enter range. Max. sector is 135°. Dashed lines mark the dead sector. Note that noise may occasionally appear in the TX sector when the echo trail feature is turned on. TX Sector Blanking Dead sector On, Off Off (0°) Noise Rejection Electrical noise, appearing on the screen as “speckles,” may be suppressed with the noise rejector. Note that some forms of interference cannot be suppressed. On, Off Off (Con’t on next page) 5. CUSTOMIZING YOUR UNIT 5-5 Contents of radar display setup menu (con’t from previous page) Item Description Settings Default Setting Background Color Chooses colors of background, range rings and characters. Effective …

Text truncated - open the document above for the full version.

%PDF-1.2 %âãÏÓ ̋3 0 obj << /Linearized 1 /O 5 /H [ 937 177 ] /L 21922 /E 21598 /N 1 /T 21745 >> endobj xref 3 27 0000000016 00000 n ̋0000000884 00000 n ̋0000001114 00000 n ̋0000001265 00000 n ̋0000001547 00000 n ̋0000001594 00000 n ̋0000001641 00000 n ̋0000001820 00000 n ̋0000001868 00000 n ̋0000001916 00000 n ̋0000001964 00000 n ̋0000002012 00000 n ̋0000002190 00000 n ̋0000002786 00000 n ̋0000003451 00000 n ̋0000004221 00000 n ̋0000004988 00000 n ̋0000005740 00000 n ̋0000006526 00000 n ̋0000007784 00000 n ̋0000010940 00000 n ̋0000014305 00000 n ̋0000017543 00000 n ̋0000020690 00000 n ̋0000021456 00000 n ̋0000000937 00000 n ̋0000001094 00000 n ̋trailer << /Size 30 /Info 2 0 R /Root 4 0 R /Prev 21736 /ID[<36246d93408f7f060071b960a0389c75><36246d93408f7f060071b960a0389c75>] >> startxref 0 %%EOF 4 0 obj << /Type /Catalog /Pages 1 0 R >> endobj 28 0 obj << /S 36 /Filter /FlateDecode /Length 29 0 R >> stream ̋H‰b`` d``^É` ̄þG•° ́ (-`ÄâPÌÀ ÏÀÃÖð•$íÀÈ `DÍJAYºF•t„-{ïQ=ŸS~ðÐyÆ•@y•` ̃`u± ̈ endstream endobj 29 0 obj 73 endobj 5 0 obj << /Type /Page /Parent 1 0 R /Resources 6 0 R /Contents 14 0 R /MediaBox [ 0 0 612 792 ] /CropBox [ 0 0 612 792 ] /Rotate 0 >> endobj 6 0 obj << /ProcSet [ /PDF /ImageC /ImageI ] /XObject << /Im1 21 0 R /Im2 22 0 R /Im3 23 0 R /Im4 24 0 R /Im5 25 0 R /Im6 26 0 R >> /ExtGState << /GS1 27 0 R >> /ColorSpace << /Cs5 9 0 R /Cs9 10 0 R /Cs10 8 0 R /Cs11 11 0 R /Cs12 7 0 R /Cs13 12 0 R /Cs14 13 0 R >> >> endobj 7 0 obj [ /Indexed 9 0 R 255 18 0 R ] endobj 8 0 obj [ /Indexed 9 0 R 255 17 0 R ] endobj 9 0 obj [ /CalRGB << /WhitePoint [ 0.9505 1 1.089 ] /Gamma [ 2.22221 2.22221 2.22221 ] /Matrix [ 0.4124 0.2126 0.0193 0.3576 0.71519 0.1192 0.1805 0.0722 0.9505 ] >> ] endobj 10 0 obj [ /Indexed 9 0 R 255 16 0 R ] endobj 11 0 obj [ /Indexed 9 0 R 255 20 0 R ] endobj 12 0 obj [ /Indexed 9 0 R 255 19 0 R ] endobj 13 0 obj [ /Indexed 9 0 R 255 15 0 R ] endobj 14 0 obj << /Length 104 /Filter /FlateDecode >> stream ̋H‰|Ê1 ̋•0 @Ñ=§È Ú& iÝ ̆q• ààTD¼?XPˆ ̊–¿üáùq!ÜN8••a ̈± 3¹ÈAQ„ëàZÀO...pØaþ“”MrKÆ^LƦLÁ¤4¥ ̈Éî+©wòƬ.ç ̈ë / ́ ̇` ̈·5® ̋endstream endobj 15 0 obj << /Length 522 /Filter /FlateDecode >> stream ̋H‰:}úô¾}û -=ºsçÎU«V¹»»KKK ̊ ̊ðññ 9::º¹¹EEE9;; ̈ ̇ ̄†......•••ijjÆÆÆÚÛÛ•••ÇÄÄDDDðòòjkkÛÙÙÉÉÉ©©©YYYqqqñðð ̧ ̧ ̧HJJÊÊÊêê ꪫ«ËÈÈX[[•••XZZ***êëë ̋ ̋rsssrrrpp°³³óóóKHH ̊ ‹ˆˆˆ‰‰EFFÎ ;wïÞ½‡ •:vì؉•'Îœ9³gÏ ]»v- [¶ÌÏÏOAAA\\\TTTJJJ^^^YYYIIIEEECCCOOÏÜÜÜÁÁÁÂÂÂÓÓÓÕÕ5<<¼¬¬lÒ¤I+W¬Ü¿ ÿÁƒ ̈O <yäÈ‘5kÖ ¤¥¥•••ªªªšššš™™™ ̃ ̃899ùøø ̄ ̇ ̇ ̇ ̆ ̆¥¤¤ddddff¦¦¦¦§§geeåæææäääåååçç—””••••••——— WUU555UVVVTTÔÖÖ677××××ÕÕμμμuww÷öööôôô÷÷O™2e„ “&Nš5kÖìÙ³•,X0sæÌ©S§Î™3gáÂ...óçÏ_¿~ý ̃ ̈ - ?~öìÙÇ•oÛ¶mÞ¼y•••ííí--- •'Nœ6mÚŒ•3•-Z ́dÉ’ •6¬]»våÊ•«W ̄Þ²e˺uë¶oß¾{÷îÍ›7oݺõÔ©S £` ̈` ̊0`‹ ̊ǧ ̋endstream endobj 16 0 obj << /Length 591 /Filter /FlateDecode >> stream ̋H‰:}úô¾}ûöïß æÌ™S§N 8qâäÉ“G -=~üø‘#G •:tìرÇ•- <xðÀ ̃»wíÞμk× ={vïÞ½iӦ͛7oݺuûöí;wî\¿~ýÚμk×-[·råÊ5kÖ,_¾|Ù²esæÌ™7oÞÌ™3gÏ =kÖ¬¹sç îÝ»wÇ ••6lX ̧pá’%K6nÜ ̧jÕªE‹•-^¼xéÒ¥óçÏŸ>}ú‚ ̆ fÌ ̃1mÚ ́É“'wuuuttôôôôöövvv¶···μμμ ́ ́477755566ÖÖÖVUUÕÔÔTTT”——×××744TVV•••— ••åçççææ•••dgggffÆÅÅ¥§§çååEGG‡„„DDD„††ÆÄÄx{{ûùùyyyyxxøúúÚÙÙYYYYZZš››[XX ̃ ̃ ̃•••ééé éëë•••••• ́¶¶– ””DEEùûû ̈ ̄ ̄899988ØÚÚZ[[ÛØØØÛÛ›™™éêê•••***êèèhkk+++«©©ÉÈÈÈÉÉÉÊÊÊËË‹‰‰IJJJKKKIIIHH ˆ‹‹ ‹ˆˆðòò ̋ ̋ ̋ ̋ ̊ ̊ðóósppðññqss‹ŠŠFFFòððprrrqq©««'&&vww+((°³³³±±)))ijjª ̈ ̈hhhøøø ̄ ̈ ̈‡......¹¹¹ ¥¥¥™šš¦¦¦¦¤¤äääÄÆÆN™2...••μ ̈ ̈ ̈¿¿?00°®®n„ ®®®AAA=Ý=“&M*,,tqqqtt\±b...–– V||¼»»;Ãp ̄` ́ ̇`•yá ̃ ̋endstream endobj 17 0 obj << /Length 696 /Filter /FlateDecode >> stream ̋H‰¼Á‡V)```ÐwÚ{ï4 ̈$í=)D[h£ ́÷Îl¡A(£Th׉– Ñ^ ́Kë£ú‹wïÏÏÏÃÃÃïïïÞÞ^RR’«««“““»»»---ƒƒƒ ½½½ ³³³‹‹‹‡‡GVVÖÔÔÔôôtcc£ •™Lær¹óó óiii +++<- ̄¥¥...Ïççææzyy•——///gffÖÕÕ•••EGG—––nnn ŒŒôõõ ̆ ̆ ̆a±Ø™™™°°°‚‚ˆ±X @ÒÓÓ½½½ ́`ÀîîîäädppðÚÚZBB‚ŸŸ›Í---¦Óé• ̇ ̇ƒùúúzzzªÕêÚÚZ ̇ƒÑÔÔT\\ìææÆb±• ̊D ÿÒÒ• ̋...²¶¶vtt ̊ ̊ ̧¿¿ÿüüüþþ^\\ ̄ˆ ãããCCC‘‘‘ÍÍÍ•••ÉÉÉ eee•‰$;;{kk«¡¡¡··W*••‰ÄÐÐP8• F£KJJ„B!• „B¡•••• æàà`bb"//onnn}}½ ̈ ̈h ¿ªª*55•D"ÅÄÄ 0•Ì •‘HD¡P® ̄ ̄ßßß ̆ˆAFFFEEEkk«V«mkk«¬¬T*”H$rll¬°°P¡P•@ ™LF¥R ̈ ̇ ̇ôz}WWWNN Aoàp8r¹<**ŠÉd®®®• ̊ ̄ƒÁ`6›ù<~www||üììlHHHxx ̧¿¿¿••• ‡;==•••LLLŒ íìì<;;³ ́ ́ÄãñíííÛÛÛ£££B ÐÂÂ"%%E&•‘Iäêêê ̧ ̧8.‡{yyùññq~~ ̇ƒi4ZMMM~~~OO N§{yy© ̄ ̄ {{ûúú2™Lp•œÅd•- -- œœ\]]]\\ÜÜÜÜÝÝ• ÆÛÛÛ§§§ççç××W•J¥×éMFÓÆƆN«£Óè•4F*‘âqx Z£T*ÿý/ ˆ `á8•Ý ̋endstream endobj 18 0 obj << /Length 693 /Filter /FlateDecode >> stream ̋H‰¼Á‡6*```З •²göÊÞ3»l© ̊Ñ0ÛC)¥(”••é rŠPöÞ› •- å/Þ½V«õùùùççG§ÓEEEyzzººº‚@ ¢¢"&“éïïïàààäääèèèìì ̄ˆ]\\ìíííììlmmmll``• ̄ ̄oqqq]]]yyy@@@IIINNNvvvSSSkkk^^ ‡‡‡—— WZZZlllYYYXXX__ßÀÀ@MM ··wHHHWWWppphh( @HHH@¡P½½½ýýýÑÑÑYYY£££•••îîîùùùp8¼±±‘Ãá$'' GDDtww‹ÅâÎÎN*•êææ–””¤R©Þßß μZmLL ƒÁ ̊ ÌÍÍ• ̋...===ééé,• ˆ P(•• ÇasÐh4 Fc³Ù$•I •ÄÇÇËd²ÁÁÁ¶¶¶ÕÕÕÒÒÒ†††ÊÊÊ””” Ÿêêj(•*—Ë???×××ÃÃÃa0• N/((Àb±CCC-- -•‰D$••ð„ŠŠ ̋ ̇S__ D"###§§§‡‡‡SSS'&&•t ̇“Álnnîèèðó󛟟—J¥D"±°°pkk+33sdd¤½½]-VS)T.— K&“y< ^ ̄OLLÄãñ ̊ ̄"..Îb±ÔÖÖVUU mnn‚Áà™™• •C£Ò(dŠÁ`•ÿúúš››3è +++SSSˆ¾@£ÑLNNŠ„¢íííÙÙÙ •>Ÿ ̄T*eRÙáááÒÒ•‰Hz}}Ýßß7›Í ̋¹baaammmccãàà`wwwooÏd2•- ›Mf ̄•q ÿøøxyyi4•ooo_^^nnn® ̄ ̄-- ÞÞÞ®®® x\ÞÅÅÅÝÝÝòòòÙÙ•‹É:==E£Ðçççßßß''' ̋...B"– ,..þû þ ̄•`Q_ ̈{ ̋endstream endobj 19 0 obj << /Length 678 /Filter /FlateDecode >> stream ̋H‰ÄÁ‡6² ́``ÐßÞÙ{ dd$›²·lBÙšvQšvôe4ìÍ©P¡ìqÊh8'=”Çøï5›Í- ¿¿¿• &;;ÛÅÅÅÍÍÍÁÁÁÙÙ9(( ̈ ̈ ̈ ̈¢¢"99ÙÝÝ•ˆ x{{;::†......åååA¡ÐððpWWׄ„ ̄``ööö vvv$•‰H$•‹Äûûûb±x}}}aa ÇãÍÌÌ,///..2™ÌŒŒ '''[[[{{{OOO;;;kkk• ̊•••\^^^SSSRRRUUUVVV\\œŸŸ @ àpxVVVZZZjjêÔÔ”^ ̄·X,:-îææ&==ÝËË+&&&>>Þ×××ÇÇ'00• ̇{xxøùùÙØØ„„„DEEÅÆÆÆÅÅ...††NNNêt:μZíï’•••™ ̃ ̃ ̊ƒÁ""" Hd]]]RRRAAAaaaCCC[[[@@@{{{GG Gkkëèèh}}=•‹---ýúúº½½%• ̊ (•ª ̄ ̄ ̄©© ‡Ã ́ ́ ́äæævvv677c0 ̃œœœÙÙY ̋...2<<\]]=88øøø822ÒßßßÛÛ›™™Éd0ÉdòÄÄ ̄‘HD£ÑŸŸŸ•••t• D"UVV ̋...ÂÒÒ R" ˆÇãÇÆÆh4ÚÝÝ]tttww·••UWW×øø ̧V«¥R©ÓÓÓ\.whhˆÃáÜßßÏÏÏÓéôÕÕU>Ÿ/•J/..°•¬\&• ̊ ̄+++ ̇ãìììüü\&“Éåò --- ¥¥¥ÃÃÃËËË“““§§§ÍÍÍÓÓÓ««+*...z||üýýýüüÌb±ÖÖÖÞßß ̆•`{{[¥RÍÍÍ)• ̋ ™TöòòòúúÊf± ̄ ̄ ̄•J%À ̈ÞÞÞvww FãÏÏ•-‡× ̈5&“‰Íf• † ÿÕŸ` ̃`¿Cˆ} ̋endstream endobj 20 0 obj << /Length 712 /Filter /FlateDecode >> stream ̋H‰ ́Á‡6*```Ðwì½÷-Ù{ï=³gÑ0Ëj)«PÒ@¡(e••Ê®¬†MÙ>ÊW¼{ ~~-- 777}}}ÝÜÜ\\\lmm-¬¬ìíí••• œœrss£¢¢ìììBBB‚ƒƒ #""<<<BCC ̃ ̃ ̃cbb,,,lll¬-----ñx< ‡Ã`0ÃÃÃ(•jpp°§§ghh ̊ ̇÷ööÂáp• ÖÕÕÕßß D"»»»!•…

Text truncated - open the document above for the full version.

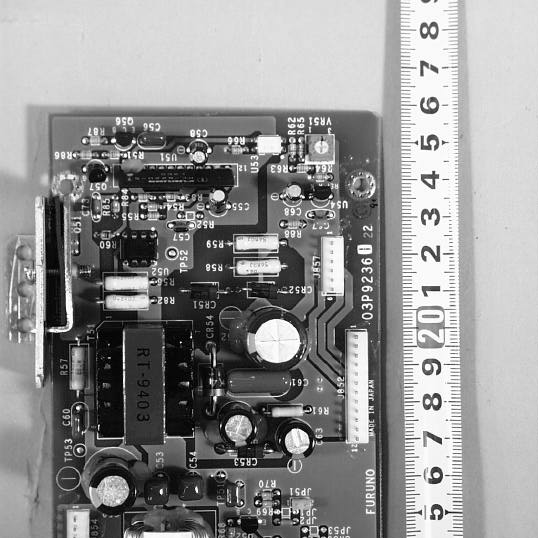

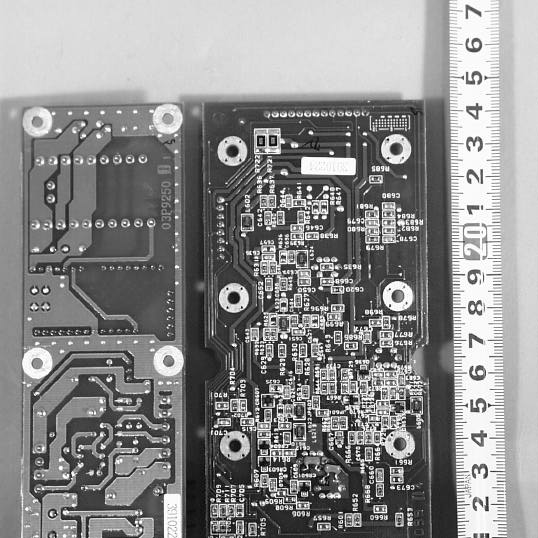

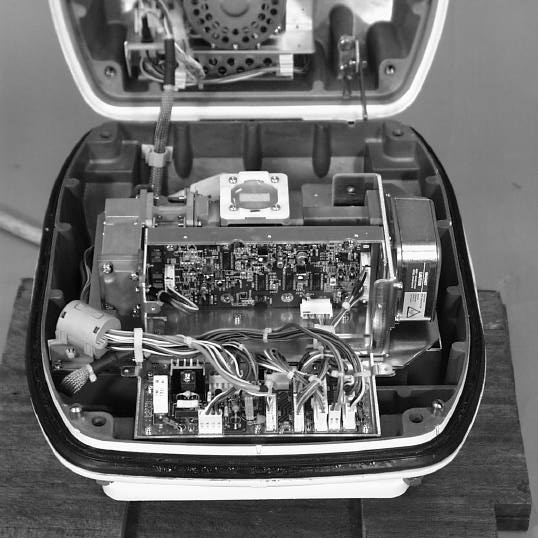

LABOTECH This report shall not be reproduced except in full, without the written approval of Furuno Labotech International Co., Ltd. TECHNICAL INFORMATION TEST REPORT ON THE PERFORMANCE OF MARINE RADAR Trade Name : FURUNO Transceiver Type : RTR-060 Report no.: FLI 12-02-002 Date of issue: February 12, 2002 Furuno Labotech International Co., Ltd. 9-52 Ashihara-cho, Nishinomiya City, Hyogo 662-8580, Japan Tel: +81-798-63-1094 Fax: +81-798-63-1098 LABOTECH Furuno Labotech International Report no.: FLI 12-02-002 Form: FQ053/01 - Page 1 of 41 - All tests were performed in Furuno Labotech International Co., Ltd. All data herein contained is true and correct to our best knowledge. All tests were performed by: Name: Katsumi Imamura Function: Test Engineer Signature: Review and report by: Name: Toshiro Segawa Function: Manager, QA Signature: This report has been verified and approved by: Date: February 12, 2002 Name: Mitsuyoshi Komori Function: Manager, Technical Section Signature: LABOTECH Furuno Labotech International Report no.: FLI 12-02-002 Form: FQ053/01 - Page 2 of 41 - * * * * * * C O N T E N T S * * * * * * 1General Information...............................................................................................................................3 2Identification of Equipment (FCC Rule 2.925)...............................................................................9 3Test data...............................................................................................................................................10 3.1RF Power Output (FCC Rule 2.1046)...............................................................................................10 3.2 Modulation Characteristics (FCC Rule 2.1047).................................................................................13 3.3Occupied Bandwidth (FCC Rule 2.1049)..........................................................................................21 3.4Spurious Emissions at Antenna Terminal (FCC Rule 2.1051)..........................................................23 3.5Field Strength of Spurious Radiation (FCC Rule 2.1053)..............................................................25 3.6Frequency Stability (FCC Rule 2.1055)............................................................................................27 3.7Suppression of Interference Aboard Ships (FCC Rule 80.217)......................................................30 4Photographs to Reveal Equipment Construction and Layout (FCC Rule 2.1033)............34 5Description of Circuitry and Devices (FCC Rules 2.1033).......................................................35 5.1 Function of Each Semiconductor or Active Device................................................................................35 5.2 Description of the circuits employed for suppression of spurious radiation, for limiting or shaping the control pulse, and for limiting or controlling power................................................................................38 6 Operators Manual Incl. Circuit Diagrams (FCC Rule 2.1033)......................................................41 Attachment A[ Test data for 3.4 Spurious Emissions at Antenna Terminal ] ......... A.1 - A.10 Attachment B[ Test data for 3.5 Field Strength of Spurious Radiation ] ......... B.1 - B.5 Attachment C[ Test data for 3.7 Suppression of Interference Aboard Ships ] ......... C.1 - C.21 Attachment D[ List of Test/ Measuring Equipment ] ......... D.1 - D.3 Attachment E[ Photographs of the EUT ] ......... E.1 - E.40 LABOTECH Furuno Labotech International Report no.: FLI 12-02-002 Form: FQ053/01 - Page 3 of 41 - 1General Information 1.1General (a)Manufacturer:Furuno Electric Co., Ltd. Ashihara-cho 9-52, Nishinomiya-city, 662-8580 Japan (b)Model:MODEL 1953C TypeSerial Number Display unitRDP-1394309-0020 Antenna unitRSB-0072R089-0005 Transceiver:RTR-060(contained in Antenna unit) Radiator:XN12A Power supply unitPSU-005R126-0001 (c)Primary Function:Search, Navigation and anticollison (d)Discrimination Range Discrimination:20 meters on a range scale of 0.25 nm Bearing Discrimination: Radiator typeXN12AXN13A 1.9 ̊1.4 ̊ on a range scale of 0.25 nm (e)Minimum Range:25 meters on a range scale of 0.25 nm (f)Frequency Range:Fixed frequency, X-band Type of Emission:P0N (g)Power Supply: 12 - 24 VDC 1.2Antenna Unit 1.2.1Transceiver Type:RTR-060 (1)Transmitter (a)Assignable Frequency for Shipborne Radar: Between 9300 and 9500 MHz (FCC Rule 80.375 (d)-(1)) (b)Type of RF Generator Magnetron Type:MG5241 E3566 Peak Output Power:12 kW nominal (c)Magnetron Ratings Center frequency of Magnetron:9410 MHz Tolerances LABOTECH Furuno Labotech International Report no.: FLI 12-02-002 Form: FQ053/01 - Page 4 of 41 - MG5241E3566 Manufacturing:± 30 MHz± 30 MHz Pulling:23 MHz18 MHz Tolerance for 20 ̊C temperature variation: -5 MHz (d) Guard Band: Guard Band is specified to be equal to 1.5/T MHz, where "T" is the pulselength in microseconds. See para (e). (FCC Rule 80.209(b)) (e) Pulse Characteristics: Range Scale (nm)(Short )(Middle)(Long 1)(Long 2)(Long 3) 0.125 0.25 0.5 0.75 1 1.51.5 2 33 4 6 8 12 16 24 36 48 64 72 Pulselength (μs)0.080.300.800.800.80 P.R.R.(Hz)21001200600550500 Duty cycle1.68X10 -4 3.60X10 -4 4.80X10 -4 4.40X10 -4 4.00X10 -4 Guard Band (MHz)18.755.001.881.881.88 Note 1: Tests were carried out for the underlined Range Scales. (2)Modulator (a)FET Type:2SK1450 Trigger Voltage: Approx. +20 VDC positive LABOTECH Furuno Labotech International Report no.: FLI 12-02-002 Form: FQ053/01 - Page 5 of 41 - (3)Receiver (a)Passband (MHz) RF Stage:100 MHz IF Stage: PulselengthShortMiddleLong 1Long 2Long 3 (MHz)2525333 Video Amp.: PulselengthShortMiddleLong 1Long 2Long 3 (MHz)77777 (b)Gain (overall) (dB):Sufficient to cause limiting, approximately 130 (c)Overall Noise Figure (dB): 6 (typical) (d)Video Output Voltage (V): 0.7 V positive across 75 ohms (e)Features Provided: Sensitivity Time Controls (Anti-clutter Sea), Fast Time Constant (Anti…
