MARINE RADAR MODEL1722/1732/1742/1752/1762MODEL1722C/1732C/1742C/1752C/1762C Your Local Agent/DealerYour Local Agent/Dealer 9-52 Ashihara-cho,9-52 Ashihara-cho, Nishinomiya, JapanNishinomiya, Japan Telephone :Telephone :0798-65-21110798-65-2111 Telefax :Telefax :0798-65-42000798-65-4200 FIRST EDITION :FIRST EDITION :APR.APR.20012001 Printed in JapanPrinted in Japan All rights reserved.All rights reserved. E :E :DEC.DEC.07,200107,2001 PUB.No.PUB.No.OME-3494OME-3494 *00080918200**00080918200* *00080918200**00080918200* ((DAMIDAMI)) MODEL1722/C SER.MODEL1722/C SER. * 0 0 0 8 0 9 1 8 2 0 0 ** 0 0 0 8 0 9 1 8 2 0 0 * *OME34940E00**OME34940E00* *OME34940E00**OME34940E00* * O M E 3 4 9 4 0 E 0 0 ** O M E 3 4 9 4 0 E 0 0 * i SAFETY INSTRUCTIONS WARNING Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Immediately turn off the power at the switchboard if the equipment is emitting smoke or fire. Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service. Keep heater away from equipment. A heater can melt the equipment's power cord, which can cause fire or electrical shock. Use the proper fuse. Fuse rating is shown on the equipment. Use of a wrong fuse can result in damage to the equipment. ELECTRICAL SHOCK HAZARD Do not open the equipment. Only qualified personnel should work inside the equipment. CAUTION A warning label is attached to the equip- ment. Do not remove the label. If the label is missing or damaged, contact a FURUNO agent or dealer about replacement. WARNING To avoid electrical shock, do not remove cover. No user-serviceable parts inside. Name: Warning Label (1) Type: 86-003-1011-0 Code No.: 100-236-230 WARNING Radio Frequency Radiation Hazard The radar antenna emits electromagnetic radio frequency (RF) energy which can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the trans- mitting antenna at a close distance. Distances at which RF radiation levels of 100 and 10 W/m 2 exist are given in the table below. Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible - Ask your FURUNO representative or dealer to provide this feature. MODEL Distance to 100 W/m 2 point Distance to 10 W/m 2 point 1722 Nil Worst case 0.50 m 1732 1742 1762 0.20 m Nil Worst case 0.50 m Nil Worst case 1.00 m Worst case 3.00 m No one navigation device should ever be solely replied upon for the navigation of a vessel. Always confirm position against all available aids to navigation, for safety of vessel and crew. CAUTION 1752 0.15 m Worst case 2.00 m ii TABLE OF CONTENTS TABLE OF CONTENTS ........................................................................................ ii FOREWORD....................................................................................................... viii SYSTEM CONFIGURATIONS............................................................................... x 1. OPERATIONAL OVERVIEW .........................................................................1-1 1.1 Operating Controls .................................................................................................... 1-2 1.1.1 Display unit controls ........................................................................................ 1-2 1.1.2 Remote controller............................................................................................ 1-5 1.2 Inserting a Chart Card ............................................................................................... 1-6 1.3 Turning the Unit On/Off.............................................................................................. 1-7 1.4 Cursor Pad, Cursor.................................................................................................... 1-8 1.5 Display Brilliance, Panel Brilliance, Contrast, Hue ..................................................... 1-9 1.5.1 Display brilliance, panel brilliance.................................................................... 1-9 1.5.2 Contrast ........................................................................................................ 1-10 1.5.3 Hue (MODEL1722C series)........................................................................... 1-10 1.6 Selecting a Display .................................................................................................. 1-11 1.6.1 Display modes .............................................................................................. 1-11 1.6.2 Selecting a display ........................................................................................ 1-12 1.6.3 Switching control in combination and overlay screens................................... 1-13 1.6.4 Selecting radar source .................................................................................. 1-14 1.7 Data Boxes.............................................................................................................. 1-15 1.7.1 Showing, hiding data boxes with soft key ...................................................... 1-15 1.7.2 Rearranging data boxes ................................................................................ 1-15 1.7.3 Temporarily erasing a data box ..................................................................... 1-15 1.8 Function Keys.......................................................................................................... 1-16 1.8.1 Executing a function...................................................................................... 1-16 1.9 Simulation Display ................................................................................................... 1-17 2. RADAR OPERATION ..........................................................................…

Text truncated - open the document above for the full version.

3. PLOTTER OPERATION 3-3 3.1.2 Compass display The compass display, displayed at the bottom half of the screen in the combination display, provides steering information. The compass rose shows two triangles: the black triangle (hollow on monochrome model) shows the bearing to destination waypoint and the red (solid on monochrome) triangle, which moves with ship’s course, shows own ship’s course. The water temperature and depth graphs, which require appropriate sensors, show the latest 10 minutes of temperature and depth data. The range of the depth graph is 50 feet and it is automatically adjusted with depth. Bearing scale XTE monitor (See next page for description.) Depth graph* Water temperature graph* Time-to-go to destination Estimated time of arrival at destination Ship's course (red and filled on color model, filled on monochrome model ) Destination waypoint Range to destination waypoint Speed over ground * = Requires appropriate sensor. Destination waypoint bearing (black and filled on color model, hollow on mono- chrome model) 0 50 20 10 BRG DPT TMP 359.9°M 45.2ft 16.2°F 359.9°M 003WPT 0D 9H 59MTTG23th23:59 ETA SOG 10.0kt 10.0 ktSTW RNG99.9nm N w E Speed through water CSE Direction to steer (green on color model) Shown (in red on color model) when direction to steer is "left." Own ship marker (For color model, black when within XTE range, yellow when over; flashes when over XTE range on monochrome model) Compass display 3. PLOTTER OPERATION 3-4 Reading the XTE (cross-track error) monitor The XTE monitor, located below the compass rose, shows the amount you are off course and the direction to steer to return to course. The own ship marker shows the direction and amount your ship is off course. It is shown in black when the amount of cross-track error is within the XTE monitor range and yellow when it is over. (On the monochrome model it flashes when the amount of cross-track error is more than the XTE monitor range.) An arrow appears at the right or left side of the XTE monitor and it shows the direction to steer to return to intended course. (For the color model the arrow is shown in red when you should steer left, and green when you should steer right.) In the example on the previous page you would steer right to return to course. To maintain course, steer the vessel so the own ship marker stays at the center of the XTE monitor. Soft keys EDIT XT-LMT: Sets the range for XTE monitor scale. See the procedure below for how to set. RESTART NAVGATION TO CURRENT WAYPOINT. ARE YOU SURE? YES ... PUSH ENTER KNOB NO ... PUSH CLEAR KEY (Setting the range for the XTE monitor) 1. With the compass (or highway) display shown, press the EDIT XT-LMT soft key to display the following window. XTE LIMIT 0 .1nm XTE range setting window 2. Use the cursor pad to select digit to change. Note that all digits may be cleared by pressing the [CLEAR] key. 3. Use the [ENTER] knob to set value, or press the CANCEL soft key to cancel. RESET XTE: Displayed when destination is set, and enables you to restart navigation. When this soft key is pressed, the following message is displayed. 3. PLOTTER OPERATION 3-5 3.1.3 Highway display The highway display, displayed at the lower half of the screen in the combination display, provides a graphic presentation of shipís track along intended course. It is useful for monitoring shipís progress toward a waypoint. The own ship marker shows relation between ship and intended course. The XTE monitor shows the direction and amount your vessel is off course ñ the arrow shows the direction to steer to return to your course and the numeric the distance you are off course. Using the figure below as an example, you would steer right 0.009 nm to return to course. To maintain course, steer the vessel so the own ship marker stays aligned with the intended course line. Time-to-go to destination Range to destination waypoint Estimated time of arrival at destination 0.9 nm WPT001 003WPT 0D 9H 59MTTG23th23:59 ETA SOG 10.0kt 10.0 ktSTW RNG99.9 nm Destination waypoint Own ship marker Speed over ground, speed through water XTE monitor 0.009nm 0.9 nm XTE range Intended course Destination waypoint Direction to steer (green on color model) Shown (in red on color model) when direction to steer is "left." Highway display Soft keys EDIT XT-LMT: Sets the range for the XTE monitor scale. See the procedure on the previous page for how to set. RESET XTE: Displayed when destination is set, and enables you to restart navigation. See the description on the previous page. 3. PLOTTER OPERATION 3-6 3.1.4 Nav data display The nav data display provides comprehensive navigation data. The user may select what data to display and where to display it, on the NAV DATA DISPLAY SETUP menu. For details see paragraph “5.8 Nav Data Display Setup.” Appropriate sensors are required. Bars ( - -) appear when corresponding sensor is not connected. ETA TTGTRIP LOG 103 nm TIMEDATE FEB 1 0D 2H 30M 1st 1:25 01:27:05 2001 POSITION 34° 34. 5678' N 120° 34. 5678' W SOGWPT POSITION COURSESTW 10.0 kt RANGEBEARING 9.2° M TEMPDEPTH Speed over ground Position Water temperature Range to waypoint Course Bearing to waypoint Speed through water Waypoint Position Depth Half-screen display Full-screen display 34° 14. 5678' N 120° 14. 5678' W 10.0 kt 101.6° M 0.18 nm 1324.1 ft 18.2 °C Nav data displays 3. PLOTTER OPERATION 3-7 3.2 Presentation Mode Three types of presentation modes are provided for the plotter display: north-up, course-up and auto course-up. To change the presentation mode, first press the [HIDE/SHOW] key if the plotter soft keys are not displayed. Press the MODE soft key to select desired mode. Each press of the key changes the presentation mode and presentation mode indication (top right-hand corner of the screen) cyclically in the sequence of North-up, Course-up and Auto course-up. 3.2.1 North-up North is at the top of the display and own ship, shown by a filled circle. This mode is useful for long-range navigation. BRIDGE…

Text truncated - open the document above for the full version.

4. VIDEO SOUNDER OPERATION 4-26 4.14.3 Fish school echoes Fish school echoes will generally be plotted between the zero line and the bottom. Usually the fish school/fish echo is weaker than the bottom echo because its reflection property is much smaller compared to the bottom. The size of the fish school can be ascertained from the density of the display. Size of fish school Small school Large school Fish school echoes 4.14.4 Surface noise/Aeration When the waters are rough or the boat passes over a wake, surface noise may appear near the zero line. As surface turbulence is acoustically equivalent to running into a brick wall, the bottom echo will be displayed intermittently. Similar noise sometimes appears when a water temperature difference (thermocline) exists. Different species of fish tend to prefer different temperature zones, so the thermocline may be useful to help identify target fish. 200 kHz tends to show shallow thermoclines better than 50 kHz. In rough waters the display is occasionally interrupted due to below-the-ship air bubbles obstructing the sound path. This also occurs when the boat makes a quick turn or reverses movement. Lowering the picture advance speed may reduce the interruption. However, reconsideration of the transducer installation may be necessary if the interruption occurs frequently. Surface noise Caused by aerated water Thermocline Surface noise/aeration 5-1 5. CUSTOMIZING YOUR UNIT This chapter describes the various options which allow you to set up your unit to suit your needs. For mode specific menus, e.g. radar plotter and sounder, make sure that you select the appropriate display when making changes or viewing menu option. 5.1 General Setup This paragraph shows you how to set up functions common to the plotter, radar and sounder displays. This is done on the GENERAL SETUP menu, which you may display from any mode. These items include data, position and time formats, units of measurement, data sources, etc. 1. Show the any display and press the [MENU] key to display the main menu. 2. Press the SYSTEM CONFIGURATION soft key. 3. Press the GENERAL SETUP soft key. GENERAL SETUP 1 KEY BEEP ON LANGUAGE ENGLISH RANGE UNIT nm, kt TEMPERATURE UNIT °C DEPTH UNIT ft TEMPERATURE SOURCE NMEA DEPTH SOURCE NMEA RESET TRIP LOG NO
Page 1 NEXT PAGE EDIT RETURN LAT/LON DISPLAY DD° MM.MMM' TD DISPLAY LORAN C SPEED SOG POSITION DISPLAY LAT/LON TIME DISPLAY 24 HOURS INFRARED REMOTE MODE A RANGE & BEARING MODE RHUMB LINE BEARING READOUT MAGNETIC MAGNETIC VARIATION AUTO 7.0° W DISPLAY MODE* DAY
GENERAL SETUP 2 EDIT PREV. PAGE Page 2 (MODEL1722 series) * *: MODEL1722 series only General setup menu 4. Press the NEXT PAGE or PREV. PAGE soft key to switch pages if necessary. 5. Use the cursor pad to select item. 6. Press the EDIT soft key. 7. Use the cursor pad to select option desired and press the ENTER soft key or [ENTER] knob. 8. Press the [MENU] key to close the menu. 5. CUSTOMIZING YOUR UNIT 5-2 Contents of general menu Item Description Settings Default Setting Key Beep Turns key operation beep on/off. On, Off On Language Chooses menu language. English, French, German, Italian, Portuguese, Spanish English Range Unit Chooses unit of range and speed measurement. nm, kt; km, km/h; sm, mph; nm & yd, kt; nm & m, kt; km & m, km/h; sm & yd, mph nm, kt Temperature Unit Chooses unit of water temperature measurement. °C, °F °F Depth Unit Chooses unit of depth measurement. ft, m, fa, PB (Passi/Braza) ft Temperature Source Chooses source of water temperature data. ETR (network sounder), NMEA NMEA Depth Source Chooses source of depth data. ETR, NMEA. NMEA Reset Trip Log Resets distance run. Yes, No No Lat/Lon Display Chooses how many digits (or seconds) to display after decimal point in latitude and longitude position. DD °MM.MM’, DD °MM.MMM’, DD °MM.MMMM’, DD °MM’SS.S” DD °MM.MMMM’ TD Display Chooses TD type. Loran C, Decca Loran C Speed Chooses speed format to display. SOG (Speed over ground), STW (Speed through water) SOG Position Display Chooses position display format. LAT/LON, TD LAT/LON Time Display Chooses time notation. 12 hours, 24 hours 24 hours Infrared Remote Mode A remote controller can be set exclusively for use with a specific display unit, in the case of multiple NavNet display units. For further details see the Installation Manual. A, B, C, D A Range & Bearing Mode Chooses how to calculate range and bearing. Rhumb Line: Straight line drawn between two points on a nautical chart. Great Circle: Shortest course between two points on the surface of the earth. Rhumb Line Bearing Readout Chooses bearing display format for course, course over ground and cursor bearing. True, Magnetic Magnetic Magnetic Va ri a t i o n The magnetic variations for all areas of the earth are preprogrammed into this unit. The preprogrammed variation is accurate for most instances, however you may wish to manually enter a variation. For manual input, select Manual, hit the EDIT soft key, enter value and hit the ENTER soft key to finish. “AUTO” requires position data. Auto, Manual Auto Display Mode (Monochrome model) Reverses background (black) and foreground (white) colors. Day, Night Day *Select ETR to show water temperature/depth data fed from the network sounder, and then set the TEMP and DEPTH CALIBRATION of the SENSOR SETUP in the SOUNDER SYSTEM SETUP menu. 5. CUSTOMIZING YOUR UNIT 5-3 5.2 Radar Setup This paragraph explains how to customize the radar display to suit your operational needs. Be sure to show the radar display before executing any of the procedures. 5.2.1 Radar display setup The radar display may be set up from the RADAR DISPLAY SETUP menu, which contains items such as EBL reference and cursor position format. 1. Show the radar display, and press the [MENU] key to show the main menu. 2. Press the RADAR DISPLAY SETUP soft key. EBL REFERENCE RELATIVE CURSOR POSITION RNG & BRG-REL TUNING AUTO TX SECTOR BLANKING OFF NOISE REJECTION OFF BACKGROUND COLOR BLACK ECHO COLOR YELLOW WA…

Text truncated - open the document above for the full version.

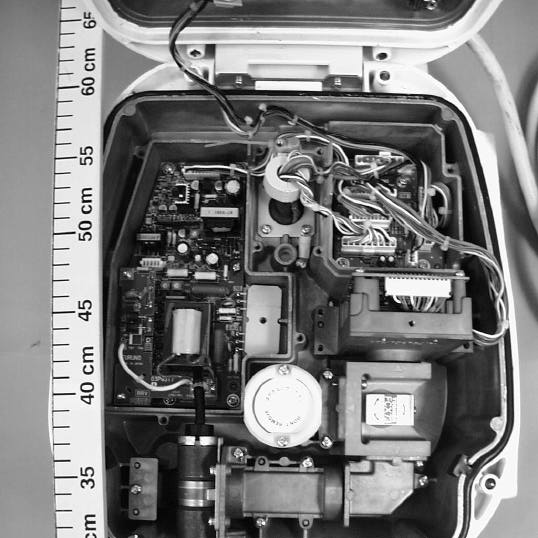

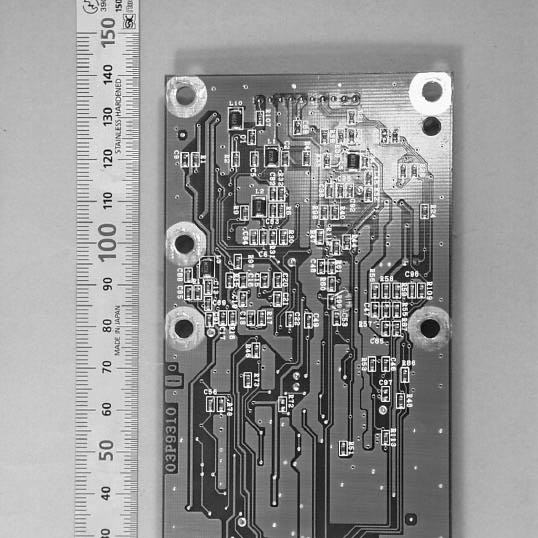

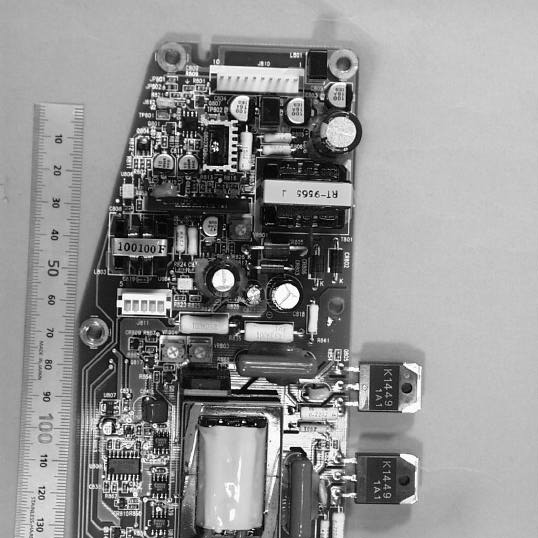

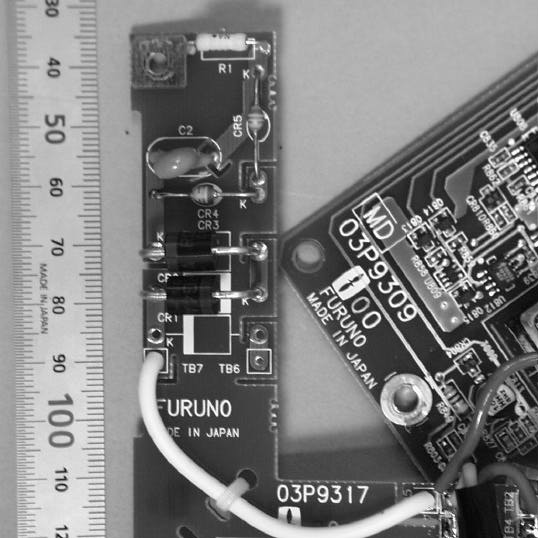

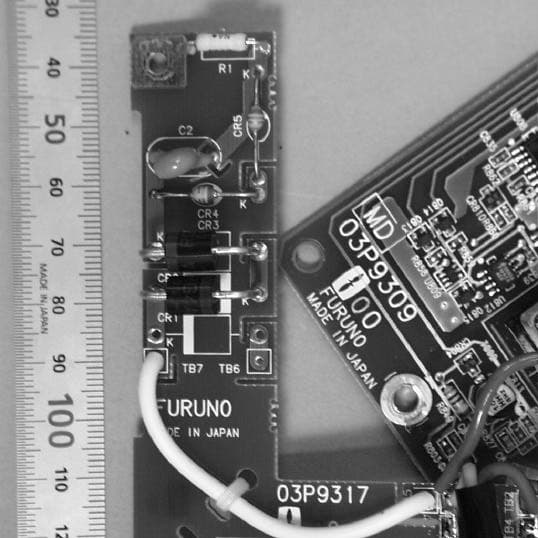

LABOTECH This report shall not be reproduced except in full, without the written approval of Furuno Labotech International Co., Ltd. TECHNICAL INFORMATION TEST REPORT ON THE PERFORMANCE OF MARINE RADAR Trade Mark : FURUNO Transceiver Type : RTR-069 Report no.: FLI 12-01-056 Date of issue: December 12, 2001 Furuno Labotech International Co., Ltd. 9-52 Ashihara-cho, Nishinomiya City, Hyogo 662-8580, Japan Tel: +81-798-63-1094 Fax: +81-798-63-1098 LABOTECH Furuno Labotech International Report no.: FLI 12-01-056 FQ053/01 - Page 1 of 39 - All tests were performed in Furuno Labotech International Co., Ltd. All data herein contained is true and correct to our best knowledge. All tests were performed by: Name: Katsumi Imamura Function: Test Engineer Signature: Review and report by: Name: Toshiro Segawa Function: Manager, QA Signature: This report has been verified and approved by: Date: December 12, 2001 Name: Mitsuyoshi Komori Function: Manager, Technical Section Signature: LABOTECH Furuno Labotech International Report no.: FLI 12-01-056 FQ053/01 - Page 2 of 39 - * * * * * * C O N T E N T S * * * * * * 1General Information.........................................................................................................................3 2Identification of Equipment (FCC Rule §2.925)...........................................................................10 3Test data..........................................................................................................................................11 3.1RF Power Output (FCC Rule §2.1046)............................................................................................11 3.2 Modulation Characteristics (FCC Rule §2.1047)............................................................................14 3.3Occupied Bandwidth (FCC Rule §2.1049).......................................................................................19 3.4Spurious Emissions at Antenna Terminal (FCC Rule §2.1051).......................................................21 3.5Field Strength of Spurious Radiation (FCC Rule §2.1053)...........................................................23 3.6Frequency Stability (FCC Rule §2.1055)..........................................................................................25 3.7Suppression of Interference Aboard Ships (FCC Rule § 80.217)....................................................28 4Photographs to Reveal Equipment Construction and Layout (FCC Rule §2.1033)..........32 5Description of Circuitry and Devices (FCC Rules §2.1033).....................................................33 5.1 Function of Each Semiconductor or Active Device...........................................................................33 5.2 Description of the circuits employed for suppression of spurious radiation, for limiting or shaping the control pulse, and for limiting or controlling power...........................................................................35 6 Operator’s Manual Incl. Circuit Diagrams (FCC Rule §2.1033).......................................................39 Attachment A[ Test data for 3.4 Spurious Emissions at Antenna Terminal ] ......... A.1 - A.6 Attachment B[ Test data for 3.5 Field Strength of Spurious Radiation ] ......... B.1 - B.3 Attachment C[ Test data for 3.7 Suppression of Interference Aboard Ships ] ......... C.1 - C.21 Attachment D[ List of Test/Measuring Equipment ] ......... D.1 - D.3 Attachment E[ Photographs of the EUT ] ......... E.1 - E.27 LABOTECH Furuno Labotech International Report no.: FLI 12-01-056 FQ053/01 - Page 3 of 39 - 1General Information 1.1General (a)Manufacturer:Furuno Electric Co., Ltd. 9-52 Ashihara-cho, Nishinomiya-city 662-8580, Japan (b)Models:MODEL 1752 MODEL 1752 Display unitRDP-130 (S/N: 4305-0030) Antenna unit:RSB-0091 (S/N: R124-0004) Transceiver:RTR-069 (contained in Antenna unit) Radiator:XN065BF (c) Primary Function:Search, Navigation and anticollison (d)Discrimination Range Discrimination:20 meters on a range scale of 0.25 nm Bearing Discrimination:3.5on a range scale of 0.25 nm (e)Minimum Range:25 meters on a range scale of 0.25 nm (f)Frequency Range:Fixed frequency, X-band Type of Emission:P0N (g)Power Supply: 12 - 24 VDC 1.2Antenna Unit 1.2.1Transceiver Type:RTR-069 (1)Transmitter (a)Assignable Frequency for Shipborne Radar: Between 9300 and 9500 MHz (FCC Rule 80.375 (d)-(1)) (b)Type of RF Generator Magnetron Type:E3571A/E3571MG5388/MG4004 Peak Output Power:4 kW nominal (c)Magnetron Ratings Center frequency of Magnetron:9410 MHz Tolerances E3571A/E3571MG5388/MG4004 Manufacturing:30 MHz, 30 MHz Pulling: 27 MHz, 27 MHz Tolerance for 20°C temperature variation: -5 MHz, -5 MHz LABOTECH Furuno Labotech International Report no.: FLI 12-01-056 FQ053/01 - Page 4 of 39 - (d) Guard Band: Guard Band is specified to be equal to 1.5/T MHz, where “T” is the pulselength in microseconds. See para (e). (FCC Rule §80.209 (b)) (e) Pulse Characteristics: Range Scale (nm)(Short)(Middle)(Long) 0.125 0.25 0.5 0.75 1 1.51.5 2 33 4 6 8 12 16 24 36 Pulselength (μs) 0.080.300.80 P. R. R. (Hz)21001200600 Duty cycle 1.68 × 10 -4 3.60 × 10 -4 4.80 × 10 -4 Guard Band (MHz)18.755.001.88 Note: Tests were carried out for the underlined Range Scales. LABOTECH Furuno Labotech International Report no.: FLI 12-01-056 FQ053/01 - Page 5 of 39 - (2)Modulator (a)FET Type:2SK1449 Trigger Voltage: Approx. +20 VDC positive (3)Receiver (a)Passband (MHz) RF Stage:100 MHz IF Stage: PulselengthShortMiddleLong (MHz) (typ.)1033 Video Amp.: PulselengthShortMiddleLong (MHz) (typ.)302.61.0 (b)Gain (overall) (dB):Sufficient to cause limiting, approximately PulselengthShortMiddleLong (MHz) (typ.)909898 (c)Overall Noise Figure (dB): 6 (typical) (d)Video Output Voltage (V): 4 V positive (e)Features Provided: Sensitivity Time Controls (Anti-clutter Sea), Fast Time Constant (Anti-clutter Rain) (f)If receiver is tunable, describe method of adjusting frequency: Adjustment of tuning voltage of receiver local oscilla…
