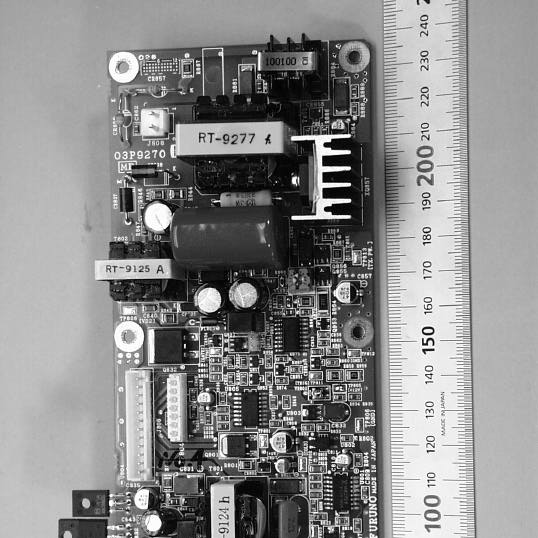

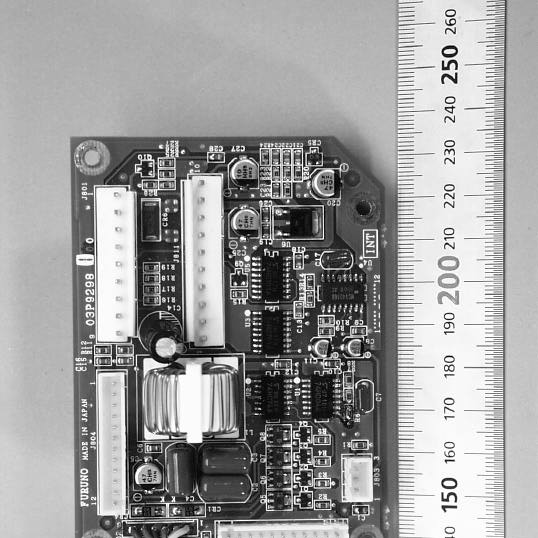

ADB9ZWRTR070MARINE RADAR

MARINE RADAR MODEL-1722/1722C/1732/1732C/1742/1742C/1762/1762C C 9-52, Ashihara-cho, Nishinomiya, Japan Telephone: 0798-65-2111 Telefax: 0798-65-4200 Your Local Agent/Dealer All rights reserved. PUB. No. OME-34940 MODEL1722/C SERIES (DAMI) Printed in Japan i SAFETY INSTRUCTIONS WARNING Immediately turn off the power at the switchboard if water leaks into the equipment or something is dropped in the equipment. Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service. Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Do not place liquid-filled containers on the top of the equipment. Fire or electrical shock can result if a liquid spills into the equipment. Immediately turn off the power at the switchboard if the equipment is emitting smoke or fire. Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service. ELECTRICAL SHOCK HAZARD Do not open the equipment. Only qualified personnel should work inside the equipment. WARNING Keep heater away from equipment. A heater can melt the equipment's power cord, which can cause fire or electrical shock. Use the proper fuse. Fuse rating is shown on the equipment. Use of a wrong fuse can result in equipment damage. CAUTION Do not use the equipment for other than its intended purpose. Use of the equipment as a stepping stool, for example, can result in personal injury or equipment damage. No one navigation device should ever be solely replied upon for the navigation of a vessel. Always confirm position against all available aids to navigation, for safety of vessel and crew. A warning label is attached to the equip- ment. Do not remove the label. If the label is missing or damaged, contact a FURUNO agent or dealer. WARNING To avoid electrical shock, do not remove cover. No user-serviceable parts inside. Name: Warning Label (1) Type: 86-003-1011-0 Code No.: 100-236-230 Turn off the radar power switch before servicing the antenna unit. Post a warn- ing sign near the switch indicating it should not be turned on while the antenna unit is being serviced. Prevent the potential risk of being struck by the rotating antenna and exposure to RF radiation hazard. Make sure no rain or water splash leaks into the equipment. Fire or electrical shock can result if water leaks in the equipment. ii TABLE OF CONTENTS FOREWORD ............................................................................................................ xi SYSTEM CONFIGURATIONS ............................................................................... xiii 1. OPERATIONAL OVERVIEW ............................................................................. 1-1 1.1 Operating Controls .................................................................................................................... 1-2 1.1.1 Control overview ................................................................................................................. 1-2 1.1.2 Soft keys.............................................................................................................................. 1-3 1.1.3 [ENTER] knob ..................................................................................................................... 1-4 1.2 Inserting a Chart Card............................................................................................................... 1-5 1.3 Turning the Unit On/Off ............................................................................................................. 1-6 1.4 Adjusting Display Brilliance, Panel Brilliance, Contrast, Hue.................................................... 1-7 1.4.1 Display brilliance, panel brilliance ....................................................................................... 1-7 1.4.2 Contrast............................................................................................................................... 1-8 1.4.3 Hue (MODEL-1700C series only) ....................................................................................... 1-8 1.5 Selecting a Display.................................................................................................................... 1-9 1.5.1 Display modes..................................................................................................................... 1-9 1.5.2 Selecting a display ............................................................................................................ 1-10 1.5.3 Switching control in combination and overlay screens ......................................................1-11 1.5.4 Selecting image source..................................................................................................... 1-12 1.6 Entering the MOB Mark, Setting MOB as Destination ............................................................ 1-13 1.7 Data Boxes.............................................................................................................................. 1-14 1.7.1 Showing, hiding data boxes with soft key ......................................................................... 1-14 1.7.2 Rearranging data boxes....................................................................................................1-14 1.7.3 Temporarily erasing a data box......................................................................................... 1-14 1.8 Soft Keys ................................................................................................................................. 1-15 1.8.1 Executing a function.......................................................................................................... 1-15 1.9 Demonstration Display ............................................................................................................ 1-16 iii 2. RADAR OPERATION......................................................................................... …

Text truncated - open the document above for the full version.

2-1 2. RADAR OPERATION This chapter covers radar operation, including the optional ARPA (Automatic Radar Plotting Aid) function. Connection of a 1833/1933/1943 series network radar equipped with the ARPA circuit board is required. 2.1Radar Display 17.0 R 8.2nm E1 V1 E2 320.1 R 359.9 R 11.7nm V2 10.9nm Cursor 12/ 3nm SP HU 319. 9 R TRAIL 30m 02m30s G1 IN G2 OUT ES 2 IR L NR Range/ range ring interval Presentation mode Alarm icon Battery icon Zoom area Zoom window Guard zone 1 Trail time Trail elapsed time Guard zone 1 Guard zone 2 Echo stretch Interference rejector Noise rejector Guard zone 2 VRM2 EBL1 VRM1 EBL2 Range ring Pulselength Bearing Heading line EBL1 range VRM1 range Cursor range and bearing EBL2 bearing, VRM2 range Radar display 2. RADAR OPERATION 2-2 2.2Transmitting, Stand-by 1. Press the RADAR TX soft key to show the radar picture. 2. When the radar picture is not required, but you want keep it in a state of readiness, press the RADAR TX soft key to go into the standby mode. ST-BY appears on the display and the RADAR soft key shows STBY as its current option. 2.3Adjusting the Gain The gain circuit adjusts the gain (sensitivity) of the radar receiver. It works in precisely the same manner as the volume control of a broadcast receiver, amplifying the signals received. The proper setting is such that the background noise is just visible on the screen. If you set up for too little gain, weak echoes may be missed. On the other hand excessive gain yields too much background noise; strong targets may be missed because of the poor contrast between desired echoes and the background noise on the display. To adjust receiver gain, transmit on long range, and then do the following. 1. Press the [GAIN] key to display the soft key for adjustment of gain. GAIN ADJUST + E2 °R V2 nm 359.9° R 11.7nm E1 °R V1 nm GAIN A/C SEA A/C RAIN FTC RETURN 12/ 319.9° R 3nm SP HU GAIN ADJUST + E2 °R V2 nm 359.9° R 11.7nm E1 °R V1 nm GAIN A/C SEA A/C RAIN RETURN 12/ 319.9° R 3nm SP HU Linear amp Log amp A/C AT ON OFF Gain adjust menu 2. RADAR OPERATION 2-3 2. Press the GAIN soft key to show the GAIN SENSITIVITY window. GAIN SENSITIVITY
¡ AUTO ROUGH/OCEAN ¡ AUTO MODERATE ¡ AUTO CALM/HARBOR ¤ MAN  68 Gain sensitivity window 3. Operate the cursor pad to select AUTO ROUGH/OCEAN, AUTO MODERATE, AUTO CALM/HARBOR or MAN (manual) as appropriate. 4. For manual adjustment, rotate the [ENTER] knob to adjust the gain. The adjustable range is 0-100(%). 5. Press the RETURN soft key to finish. 2.4Reducing Sea Clutter Echoes from waves can be troublesome, covering the central part of the display with random signals known as “sea clutter”. The higher the waves, and the higher the antenna above the water, the further the clutter will extend. Sea clutter appears on the display as many small echoes which might affect radar performance. (See the left-hand figure in the figure below.) When sea clutter masks the picture, adjust the A/C SEA circuit to reduce the clutter. A/C SEA adjusted; sea clutter suppressed Sea clutter at screen center Effect of A/C SEA 2.4.1How the A/C SEA circuit works The A/C SEA circuit reduces the amplification of echoes at short ranges (where clutter is the greatest) and progressively increases amplification as the range increases, so amplification will be normal at those ranges where there is no sea clutter. 2. RADAR OPERATION 2-4 2.4.2Adjusting A/C SEA The proper setting of the A/C SEA should be such that the clutter is broken up into small dots, and small targets become distinguishable. 1. Press the [GAIN] key. 2. Press the A/C SEA soft key to show the A/C SEA setting window. A/C SEA
¡ AUTO ROUGH/OCEAN ¡ AUTO MODERATE ¡ AUTO CALM/HARBOR ¤ MAN  68 A/C SEA setting window 3. Operate the cursor pad to select AUTO LOW, AUTO MEDIUM, AUTO HIGH or MAN (manual). 4. When MAN is selected, rotate the [ENTER] knob to adjust the A/C SEA. The adjustable range is 0-100(%). 5. For the log amp type network radar (MODEL-1833/C, 1933/C, 1943/C), A/C SEA and A/C RAIN can be automatically adjusted. Press the soft key A/C AT to turn automatic adjustment on or off as appropriate. 6. Press the GAIN or RETURN soft key to finish. 2.5Reducing Precipitation Clutter The vertical beamwidth of the antenna is designed to see surface targets even when the ship is rolling. However, by this design the unit will also detect rain clutter (rain, snow, hail, etc.) in the same manner as normal targets. The illustration in below shows the appearance of rain clutter on the display. [A/C RAIN] control off [A/C RAIN] control adjusted Effect of A/C RAIN 2. RADAR OPERATION 2-5 2.5.1Adjusting the A/C RAIN When rain clutter masks echoes, adjust the A/C RAIN circuit. This circuit splits up these unwanted echoes into a speckled pattern, making recognition of solid targets easier. 1. Press the [GAIN] key to show the GAIN ADJUST menu. 2. Press the A/C RAIN soft key to show the A/C RAIN window. A/C RAIN 68 A/C RAIN setting window 3. Rotate the [ENTER] knob to adjust the A/C RAIN affect. The current level is shown on the A/C RAIN level bar in the A/C RAIN window, and the adjustable range is 0 to 100(%). 4. Press the A/C RAIN or RETURN soft key to finish. 2.5.2Adjusting the FTC (linear amp-type network radar only) To suppress rain clutter from heavy storms or scattered rain clutter, adjust FTC. The FTC circuit splits up these unwanted echoes into a speckled pattern, making recognition of solid targets easier. Note:In addition to reducing clutter, the FTC can be used in fine weather to clarify the picture when navigating in confined waters. However, with the circuit activates the receiver is less sensitive. Therefore, turn off the circuit when its function is not required. 1. Press the [GAIN] key to show the GAIN ADJUST menu. 2. Press the FTC soft key to show the FTC window. FTC 68 FTC setting window 3. Rotate the [ENTER] knob to adjust FTC circuit affect. The adjustable range is 0-100(%). 4. Press the GAIN or RETURN soft key to finish. 2. RADAR OPERATI…

Text truncated - open the document above for the full version.

3-1 3. PLOTTER OPERATION 3.1Plotter Displays 3.1.1Normal plotter display You may show the plotter display over the entire screen, in the overlay screen (MODEL-1700 series only) with the radar display, or in a combination screen. 34° 22. 3456'N 359.9° TRIP NU 080° 22. 3456'E 19.9 kt 99.9 nm BRIDGE FISH 002WP MARK ENTRY MODE NTH-UP NAV POS Nav data window (Data changes with NAV soft key setting and cursor status. For details see next page.) Course bar Functions for soft keys Track Own ship marker Presentation mode (North-up) Icon (from left) North Marker Chart Alarm Battery Track Hold Chart Offset Save L/L Offset Battery (See icon table on page A-3 for details.) Waypoint name Waypoint mark 1024 nm Scale Trip distance Normal plotter display 3. PLOTTER OPERATION 3-2 Nav data window The data show in the nav data window depends on the status of the NAV soft key and the cursor. 359. 9° TTG4d02h2h23mNU 19. 9nm ETA1st 13:45 Time-to-Go to Destination Bearing to WaypointWaypoint Name Estimated Time of ArrivalRange to WaypointWaypoint Mark 001WPT NAV POS soft key 34°24. 3456'N 359. 9° TRIP NU 124°24. 3456'W 19. 9kt 99. 9nm CourseLatitude, Longitude Own Ship MarkSpeedTrip Distance NAV WAYPT soft key 359. 9° 359. 9° 79. 9°F NU 19. 9kt 99. 9nm 345 ft BearingCourse, Speed Range Water Temp., Depth CSE SPD BRG RNG TMP DPT NAV S/C soft key 359. 9°359. 9° TRIP NU 59. 9nm 59. 9kt 99. 9nm CourseBearing to WaypointWaypoint Name SpeedRange to WaypointWaypoint MarkTrip Distance 001WPT Waypoint selected with cursor Presentation Mode Presentation Mode Presentation Mode 34°24. 3456'N 359. 9° TRIP NU 124°24. 3456'W 59.9nm 99. 9nm CourseLatitude, Longitude Trip Distance Presentation Mode + Cursor Mark Range to Cursor Position selected with cursor Presentation Mode NAV soft key status and nav data window 3. PLOTTER OPERATION 3-3 3.1.2Compass display The compass display, displayed at the bottom half of the screen in the plotter/compass combination display, provides steering information. The compass rose shows two arrows: the solid triangle shows own ship’s course (heading) and the hollow inverted triangle shows the bearing to destination waypoint. When own ship’s course is changed, the hollow inverted triangle moves with course change. Ship’s course and waypoint direction are updated every second and other information is updated every 15 seconds. The water temperature and depth graphs shows latest 10 minutes of temperature and depth data. The range of the depth graph is 50 feet and it is automatically adjusted with depth. 003WPT RANGE SOG 10.0km/h STW 10.0km/h 9h59m TTG 23th23:59 ETA 99.9km 350 400 80 60 N w E CSE BEARINGDEPTHTEMP 359.9 359.9°382.9ft59.9°F Waypoint bearing Ship's course Bearing scale XTE monitor (Amount and distance to steer to return to course) Depth graph* Water temperature graph* TO Waypoint Time-to-go to destination Range to waypoint Speed * = Requires appropriate sensor Estimated time of arrival at destination Compass display 3. PLOTTER OPERATION 3-4 Reading the XTE monitor The XTE monitor, located below the compass rose, shows the direction you are off course. In the example the monitor shows, by the solid triangle, that the vessel is off course to the port side. Steer the vessel so the triangle keeps at the center of the monitor scale. Soft keys EDIT XT-LMT: Sets the range for XTE monitor scale. See the procedure below for how to set. RESET XTE: Displayed when destination is set, and enables you to restart navigation. When the key is pressed the following message is displayed. RESTART NAVGATION TO CURRENT WAYPOINT. ARE YOU SURE? YES ... PUSH ENTER KNOB NO ... PUSH CLEAR KEY COMPASS CNTRL: Switches control between the compass display and other display, in a combination display. Setting the range for the XTE monitor 1. With the highway display shown, press the EDIT XT-LMT soft key to display the following window. XTE LIMIT 0 .1nm DEFAULT: 0.1 nm (km, sm) XTE range setting window 2. Use the cursor pad to select digit to change. 3. Use the [ENTER] knob to set. 4. Repeat steps 2 and 3. 5. Press the [ENTER] knob to set, or press the CANCEL soft key to cancel. 3. PLOTTER OPERATION 3-5 3.1.3Highway display The highway display, displayed at the lower half of the screen in the plotter/highway combination display, provides a graphic presentation of ship’s track along intended course. It is useful for monitoring ship’s progress to a waypoint. The own ship marker shows own ship’s movement and direction. The XTE monitor to show the direction and amount your vessel is off course. The arrow shows the direction to steer and the numeric the amount you are off course. Using the figure below as an example, you would steer starboard 0.009 nm to return to course. WPT001 RANG SOG 10.0km/h STW 10.0km/h 0d9h59m TTG 25th22:39 ETA 99.9nm Time-to-go to destination Range to waypoint Estimated time of arrival at destination WPT001 0.9 nm TO Waypoint Own ship Speed XTE monitor 0.009nm 0.9 nm XTE range Highway display Note that all digits may be cleared by pressing the [CLEAR] key. Soft keys EDIT XT-LMT: Sets the range for XTE monitor scale. See the procedure on the previous page for how to set. RESET XTE: Displayed when destination is set, and enables you to restart navigation. When the key is pressed the following message is displayed. RESTART NAVGATION TO CURRENT WAYPOINT. ARE YOU SURE? YES ... PUSH ENTER KNOB NO ... PUSH CLEAR KEY COMPASS CNTRL: Switches control between the compass display and other display, in a combination display. 3. PLOTTER OPERATION 3-6 3.1.4Nav data display The nav data display provides comprehensive navigation data. It can be displayed on the entire screen or in a combination display. POS34° 34. 5678' N 120° 34. 5678' W COURSE T 359.9 ̊ SPEED km/s 99.9 TEMP. 109.9 DEPTH f t 1200 ̊F POS 34° 34. 5678' N 120° 34. 5678' W COURSE T 359.9 ̊ SPEED km/s 99.9 TEMP. 109.9 DEPTH f t 1200 BEARING 359.9 ̊ RANG nm 99.9 DATE2000 24. SEP LOG TRIP nm 99.9 ̊F Course Position Date Bearing to waypoint Water temperature…

Text truncated - open the document above for the full version.

5-1 5. CUSTOMIZING YOUR UNIT This chapter describes the various options which allow you to set up your unit to suit your needs. 5.1Generic Setup This paragraph shows you how to set up functions common to the plotter, radar and sounder displays, on the GENERAL SETUP menu, which you may display from any mode. These items include data, position and time formats, units of measurement, data sources, etc. 1. Show the plotter display and press the [MENU] key to display the main menu. 2. Press the SYSTEM CONFIGURATION soft key. 3. Press the GENERAL SETUP soft key. GENERAL SETUP 1 RETURN NEXT PAGE EDIT KEY BEEP ON LANGUAGE ENGLISH RANGE/SPEED UNIT nm, kt TEMP UNIT °C DEPTH UNIT ft TEMP SOURCE NMEA DEPTH SOURCE NMEA RESET TRIP LOG NO
Page 1 (MODEL-1700C series, MODEL-1700 series) PREV. PAGE GENERAL SETUP 2 EDIT LAT/LON DISPLAY DD° MM.MMM' TD DISPLAY LC SPEED DISPLAY SOG POSITION DISPLAY LAT&LON TIME DISPLAY 24hours I/R REMOTE MODE A RANGE, BEARING MODE RHUMB LINE BEARING MAGNETIC MAG VARIATION AUTO 7.0° W
Page 2 (MODEL-1700C series) PREV. PAGE GENERAL SETUP 2 EDIT LAT/LON DISPLAY DD° MM.MMM' TD DISPLAY LC SPEED DISPLAY SOG POSITION DISPLAY LAT&LON TIME DISPLAY 24hours I/R REMOTE MODE A RANGE, BEARING MODE RHUMB LINE BEARING MAGNETIC MAG VARIATION AUTO 7.0° W DISPLAY MODE NORMAL
Page 2 (MODEL-1700 series) General setup menu 4. Press the NEXT PAGE or PREV. PAGE soft key to switch pages if necessary. 5. Use the cursor pad to select item. 6. Press the EDIT soft key. 7. Use the cursor pad to select option desired. 8. Press the RETURN soft key. 9. Press the [MENU] key to close the menu. 5. CUSTOMIZING YOUR UNIT 5-2 Contents of general menu ItemDescriptionSettingsDefault Settings Key BeepTurns key operation beep on/off.On, OffOn LanguageChooses menu language. English, French, German, Italian, Portuguese, Spanish English Range/Speed Unit Chooses unit of range and speed measurement. nm, kt; km, km/h; sm, mph; nm & yd, kt, nm & m, kt; km & m, km/h, sm & yd, mph nm, kt Te m p U n i t Chooses unit of water temperature measurement. °C, °F°F Depth UnitChooses unit of depth measurement.ft, m, fa PB (Passi/Braza)Ft Temp SourceChooses source of water temperature data.ETR (blackbox transducer), NMEA NMEA Depth SourceChooses source of depth data.ETR, NMEANMEA Reset Trip LogResets distance run.Yes, NoNo Lat&Lon Display Chooses how many digits (or seconds) to display after decimal point in latitude and longitude position. DD°MM.MM’, DD °MM.MMM’, DD °MM.MMMM’, DD °MM’SS.S” DD °MM.MMMM’ TD DisplayChooses TD type.Loran C, DeccaLoran C Speed Display Chooses speed measurement method to use; speed-over-ground or speed-thru-water. SOG, STWSOG Position DisplayShows position in LAT/LON or TD.LAT/LON, TDLAT/LON Time DisplayChooses time notation.12 hours, 24 hours24 hours I/R Remote Mode Chooses remote controller mode.A, B, C, DA Bearing Mode A navigation device outputs both true and magnetic bearings. A magnetic bearing is true bearing plus (or minus) earth’s magnetic deviation. Thus the equation for finding magnetic bearing is; true bearing ± x (magnetic variation) = magnetic bearing True, MagneticMagnetic Mag Variation The magnetic variations for all areas of the earth are preprogrammed into this unit. The preprogrammed variation is accurate for most instances, however you may wish to manually enter a variation. For manual input, select Manual, hit the EDIT soft key, enter value and hit the RETURN soft key to finish. Auto, ManualAuto Display Mode (MODEL-1700 series) Reverses background (black) and foreground (white) colors. Normal, ReverseNormal 5. CUSTOMIZING YOUR UNIT 5-3 5.2 Plotter Setup This paragraph provides the information necessary for setting up the plotter display. Be sure to show the plotter display before executing any procedure. 5.2.1Navigation options Navigation options, for example, waypoint switching method, may be set on the plotter setup menu. 1. Show the plotter display and press the [MENU] key open the main menu. 2. Press the PLOTTER SETUP soft key. WAYPOINT SWITCHING AUTO 2 COURSE VECTOR LINE SET GO TO METHOD 1 POINT
PLOTTER SETUP EDIT RETURN Display option menu Contents of display option menu ItemDescriptionSettingsDefault Setting Waypoints Switching Chooses waypoint switching method. See “switching waypoints” on page 2-28. Auto 1, Auto 2, Manual Auto Course Vector You may extend a line from the own ship position to show ship’s course. It may be a vector (length depends on ship’s speed) or a simple line (course bar) Line, Vector, OffLine Set Go to Method Sets the method by which to navigate to a quick point. See paragraph “2.12.1 Navigating to a quick point.” 1 Point, 35 Points, 35 Points & Port Service 1 Point 5. CUSTOMIZING YOUR UNIT 5-4 5.2.2Soft key setup The soft keys, shown when the soft keys are turned off, provide one-touch call up of a desired function. If the above settings are not to your liking you may change them as follows: 1. Press the [MENU] key. 2. Press the SOFT KEY SETUP soft key. FUNC KEY RETURN EDIT SOFT KEY1 ADD NEW WAYPOINT A D D SOFT KEY2 MOVE WAYPOINT M W P SOFT KEY3 START/STOP TRACK T R K SOFT KEY4 ALPHANUMERIC LIST A L P SOFT KEY5 DATA BOX ON/OFF D B X
Soft key setup menu (plotter) 3. Select the function key (soft key) you want to program and press the EDIT soft key. A menu shows the functions available and the current selection is highlighted. FUNCTION OFF ADD NEW WAYPOINT MOVE WAYPOINT RULER GO TO WAYPOINT GO TO ROUTE EDIT MARK&LINE START/STOP TRACK TTM ON/OFF ERASE TTM TRACK ALPHANUMERIC LIST LOCAL LIST ROUT LIST CHANGE CONTROL DATA BOX ON/OFF Soft key menu (plotter) 4. Select function desired and press the ENTER soft key or the [ENTER] knob. See the table below for description of each function. 5. Press the [MENU] key to close the menu. 5. CUSTOMIZING YOUR UNIT 5-5 Plotter soft keys FunctionActionFunction Key Label NO FUNCTIONAssigns no function. ADD NEW WAYPOINTEnters new waypoint, at cursor position.ADD MOVE WAYPOINTMoves selected waypoint to different positio…

Text truncated - open the document above for the full version.

WARNING Radio Frequency Radiation Hazard The radar antenna emits electromagnetic radio frequency (RF) energy which can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the trans- mitting antenna at a close distance. Distances at which RF radiation levels of 100 and 10 W/m 2 exist are given in the table below. Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible - Ask your FURUNO representative or dealer to provide this feature. MODEL Distance to 100 W/m 2 point Distance to 10 W/m 2 point 1722 Nil Worst case 0.50 m 1732 1742 1762 0.20 m Nil Worst case 0.50 m Nil Worst case 1.00 m Worst case 3.00 m
