MARINE RADAR/ARPA FAR-28x7 Series FAR-21x7(-BB) Series OPERATOR'S MANUAL www.furuno.co.jp MODEL Complies with IMO MSC.192(79) i IMPORTANT NOTICES General • The operator of this equipment must read and follow the descriptions in this manual. Wrong operation or maintenance can cancel the warranty or cause injury. • Do not copy any part of this manual without written permission from FURUNO. • If this manual is lost or worn, contact your dealer about replacement. • The contents of this manual and equipment specifications can change without notice. • The example screens (or illustrations) shown in this manual can be different from the screens you see on your display. The screens you see depend on your system configuration and equipment settings. • Save this manual for future reference. • Any modification of the equipment (including software) by persons not authorized by FURUNO will cancel the warranty. • All brand and product names are trademarks, registered trademarks or service marks of their respective holders. How to discard this product Discard this product according to local regulations for the disposal of industrial waste. For disposal in the USA, see the homepage of the Electronics Industries Alliance (http://www.eiae.org/) for the correct method of disposal. How to discard a used battery Some FURUNO products have a battery(ies). To see if your product has a battery, see the chapter on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals of battery before disposal to prevent fire, heat generation caused by short circuit. In the European Union The crossed-out trash can symbol indicates that all types of batteries must not be discarded in standard trash, or at a trash site. Take the used batteries to a battery collection site according to your national legislation and the Batteries Directive 2006/66/EU. In the USA The Mobius loop symbol (three chasing arrows) indicates that Ni-Cd and lead-acid rechargeable batteries must be recycled. Take the used batteries to a battery collection site according to local laws. In the other countries There are no international standards for the battery recycle symbol. The number of symbols can increase when the other countries make their own recycling symbols in the future. Cd Ni-CdPb SAFETY INSTRUCTIONS ii Mandatory Action Prohibitive Action WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, can result in minor or moderate injury. Warning, Caution SAFETY INSTRUCTIONS The operator and installer must read the applicable safety instructions before attempting to install or operate the equipment. WARNING Radio Frequency Radiation Hazard The radar antenna emits electromagnetic radio frequency (RF) energy which can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar ius in operation or eexpose yourself to the transmitting antenna at a close distance. Distances at which RF radiation level of 100, 50 and 10 W/m are given in the table below. Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible. Ask your FURUNO representive or dealer to provide this feature. 2 DANGER Indicates a potentially hazardous situation which, if not avoided, will result in death or se rious injury. *1 XN12AF: 120cm, XN20AF: 198cm, XN24AF: 243cm, SN30AF: 309cm, SN36AF: 377cm 100W/m 2 Radar model FAR-2127/2827 FAR-2117/2817 XN12AF XN20AF XN24AF XN12AF XN20AF XN24AF SN30AF 0.3m 0.1m 0.1m 0.9m 0.5m 0.2m FAR-2137S/2837S XN20AF FAR-2837SW FAR-2827W Transceiver Magnetron RTR-079A MG5436 RTR-078A RTR-080 RTR-081A RTR-082 MAF-1565N MG5223F MG5436 MG5223F SN36AF Antenna *1 0.1m 0.4m 10W/m 2 3.7m 2.2m 1.5m 9.0m 4.6m 3.3m 2.4m 5.6m 1.9m 50W/m 2 1.2m 0.7m 0.4m 2.6m 1.7m 1.0m 1.0m 0.2m SN36AF 0.1m 2.0m 0.7m XN24AF0.2m3.4m 0.5m - SAFETY INSTRUCTIONS iii WARNING ELECTRICAL SHOCK HAZARD Do not open the equipment. Only qualified personnel should work inside the equipment. Turn off the radar power switch before servicing the antenna unit. Post a warn- ing sign near the switch indicating it should not be turned on while the antenna unit is being serviced. Prevent the potential risk of being struck by the rotating antenna and exposure to RF radiation hazard. Wear a safety belt and hard hat when working on the antenna unit. Serious injury or death can result if someone falls from the radar antenna mast. Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Immediately turn off the power at the ship's mains switchboard if water leaks into the equipment or the equip- ment is emitting smoke or fire. Continued use can cause fatal damage to the equipment. WARNING Use the proper fuse. Use of a wrong fuse can result in damage to the equipment or cause fire. Keep heater away from equipment. Heat can alter equipment shape and melt the power cord, which can cause fire or electrical shock. Do not place liquid-filled containers near the equipment. Fire or electrical shock can result if a liquid spills into the equipment. Do not operate the equipment with wet hands. Electrical shock can result. Before servicing the radar, turn off the appropriate external breaker. Power is not removed from the radar simply by turning off its power switch. SAFETY INSTRUCTIONS iv WARNING No one navigational aid should be relied upon for the safety of vessel and crew. The navigator has the responsibility to check all aids available to confirm position. Electronic aids are not a substitute for basic navigational principles and common sense. • This TT automatically tracks automatically or manually acquired radar targets and calculates their courses and speeds, indicating them by vectors. Since the data genera…

Text truncated - open the document above for the full version.

www.furuno.co.jp All brand and product names are trademarks, registered trademarks or service marks of their respective holders. MARINE RADAR/ARPA FAR-2117/2127/2817/2827 FAR-2117-BB/2127-BB Installation Manual Comply with MSC.192(79) TABLE OF CONTENTS SAFETY IINSTRUCTIONS ..................... i EQUIPMENT LISTS ...............................iii SYSTEM CONFIGURATION .................vi 1. MOUNTING..................................... 1-1 1.1 Antenna Unit.................................1-1 1.2 Monitor Unit..................................1-6 1.3 Control Unit ................................1-10 1.4 Processor Unit............................1-15 2. WIRING ........................................ 2-1 2.1 Interconnection.............................2-1 2.2 Antenna Unit.................................2-2 2.3 Monitor Unit..................................2-6 2.4 Processor Unit..............................2-7 2.5 Changing AC Power Specification of Processor Unit ..........................2-12 3. SETTING AND ADJUSTMENT .... 3-1 3.1 DIP Switch Setting .......................3-1 3.2 Initializing Tuning..........................3-2 3.3 Heading Alignment .......................3-3 3.4 Adjustment Sweep Timing............3-6 3.5 Suppressing Main Bang...................3-7 3.6 Other Settings ..............................3-8 3.7 Dual Radar Display (non IMO-type only) ..................3-16 4. INSTALLING OPTIONAL EQUIPMENT................................ 4-1 4.1 Gyro Converter GC-10 .................4-1 4.2 Memory Card Interface Unit..............4-9 4.3 DVI-RGB Conversion Kit (for VDR connection) ..................4-12 4.4 Performance Monitor PM-31 ......4-15 4.5 BNC Connector Converter .........4-17 4.6 Junction Box...............................4-18 5. INPUT/OUTPUT DATA ................ 5-1 INSTALLATION MATERIALS, ACCESSORIES,SPARE PARTS ........ A-1 OUTLINE DRAWINGS ...................... D-1 INTERCONNECTION DIAGRAMS ... S-1 *00014745418**00014745418* *00014745418**00014745418* i Mandatory Action Prohibitive Action WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, can result in minor or moderate injury. Warning, Caution SAFETY INSTRUCTIONS The operator and installer must read the applicable safety instructions before attempting to install or operate the equipment. WARNING Radio Frequency Radiation Hazard The radar antenna emits electromagnetic radio frequency (RF) energy which can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar ius in operation or eexpose yourself to the transmitting antenna at a close distance. Distances at which RF radiation level of 100, 50 and 10 W/m are given in the table below. Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible. Ask your FURUNO representive or dealer to provide this feature. * : XN12AF: 4 ft, XN20AF: 6.5 ft, XN24AF: 8 ft ModelTransceiver MagnetronAntenna 100W/m 2 50W/m 2 10W/m 2 XN-12AF0.3 m1.2m3.7 m XN-20AF0.1 m0.7 m2.2 m XN-24AF0.1 m0.4 m1.5 m XN-12AF0.9 m2.6 m9.0 m XN-20AF0.5 m1.7 m4.6 m XN-24AF0.2 m1.0 m3.3 m MAF1565N RTR-078A (X-12 kw) FAR-2817/2117 FAR-2827/2127 RTR-079A (X-25 kw) MG5436 2 DANGER Indicates a potentially hazardous situation which, if not avoided, will result in death or se rious injury. Wear a safety belt and hard hat when working on the antenna unit. Serious injury or death can result if someone falls from the radar antenna mast. DANGER * 1 ii Be sure that the power supply is compatible with the voltage rating of the equipment. Do not install the monitor unit, processor unit or control unit where they may get wet from rain or water splash. Fire or damage to the equipment can result if a different cable is used. Connection of an incorrect power supply can cause fire or damage the equipment . Use only the specified power cable. Water in the units can result in fire, electrical shock, or damage the equipment. Attach securely protective earth to the ship's body. The protective earth (grounding) is required to the AC power supply to prevent electrical shock. CAUTION Observe the following compass safe distances to prevent deviation of a magnetic compass: Antenna Unit (12 kw) Standard compass 2.15 m1.40 m Antenna Unit (25 kw) 2.05 m1.30 m Monitor Unit (MU-201CR) 1.55 m1.00 m Monitor Unit (MU-231CR) 1.85 m1.20 m Processor Unit (RPU-013) 1.35 m0.85 m Control Unit (RCU-014) 0.30 m0.30 m Control Unit (RCU-015) 0.95 m0.60 m Control Unit (RCU-016) 0.65 m0.45 m Memory Card Interface Unit (CU-200) 0.90 m0.60 m Steering compass Switching Hub (HUB-100) 1.00 m 0.60 m Junction Box (RJB-001) 1.10 m 0.70 m Do not open the equipment unless totally familiar with electrical circuits and service manual. Only qualified personnel should work inside the equipment. WARNING Construct a suitable service platform from which to install the antenna unit. Serious injury or death can result if some- one falls from the radar antenna mast. Turn off the power at the mains switch- board before beginning the installation. Fire, electrical shock or serious injury can result if the power is left on or is applied while the equipment is being installed. ELECTRICAL SHOCK HAZARD iii EQUIPMENT LISTS Standard Supply Name Type Code No. QtyRemarks XN12AF-RSB096-078A- FAR-2117/2117-BB/2817, 24 rpm, 1200 mm, W/CP03-24201 XN12AF-RSB097-078A- FAR-2117/2117-BB/2817, 42 rpm, 1200 mm, W/CP03-24201 XN20AF-RSB096-078A- FAR-2117/2117-BB/2817, 24 rpm, 2000 mm, W/CP03-19101 XN20AF-RSB097-078A- FAR-2117/2117-BB/2817, 42 rpm, 2000 mm, W/CP03-19101 XN24AF-RSB096-078A- FAR-2117/2117-BB/2817, 24 rpm, 2400 mm, W/CP03-19101 XN24AF-RSB097-078A- FAR-2117/2117-BB/2817, 42 rpm, 2400 mm, W/CP03-19101 XN12AF-RSB096-079A- FAR-2127/2127-BB/2827, …

Text truncated - open the document above for the full version.

4. INSTALLING OPTIONAL EQUIPMENT 4-16 Lifting fixture * A P922 View Fix the cable. Stern side Bow side Gasket Lifting fixture Scanner cover assy Scanner cover assy Relay plate TB board J911 is on rear side. 1.Insert the lifting fixture as shown below. Lifting fixture Coating face Note:Fix flat side of the fixture to the coating face. 2. Fix the lifting fixture as shown below. Upside down the fixture from step 1 and pull it in arrow mark direction. TB board 03P9349 How to fix lifting fixture Change the chain here. B 4. INSTALLING OPTIONAL EQUIPMENT 4-17 4.5 BNC Connector Converter To connect the VR-5000 (FURUNO Voyage Data Recorder) to this radar, the DVI-RGB conversion kit (mentioned at previous paragraph) and the BNC connector converter are required. Also VGA cable (between the processor unit and the BNC connector converter) and five 75 ohms coaxial cables (between the BNC connector converter and VR-5000) are required. BNC connector converter DSUB-BNC-1 VR-5000 Data collecting unit FAR-2107 Processor Unit DVI-RGB Conversion kit D-sub 15P Female VGA cable 75 Wcoax. cable VD1 R G B HS VS R G B H V D-sub 15P Male Interconnection 4. INSTALLING OPTIONAL EQUIPMENT 4-18 4.6 Junction Box If the length of the antenna cable is more than 100 m, the optional junction boxes are required. These boxes should be mounted at the location protected because its waterproofing is IPX3. RW-9600 (Max 15 m) Junction box RJB-001 RW-9600 (Max 15 m) DPYCY-6 (3 pcs.) TTYCY-4 (1 pc.) RG-12/UY (1 pc.) (Max 270 m) Antenna unit Processor unit Junction box RJB-001 Shipyard supply Mounting Fasten the junction boxes to the mounting location with four sets of M8 bolt and nut. 514 474 320 280 139 360 430 270 60 NAMEPLATE 4- I10 FIXING HOLES Mass: 12kg 4. INSTALLING OPTIONAL EQUIPMENT 4-19 Cable fabrication RW-9600 6 14 5 9 approx. 450 5 20 Armor Units: mm Shield Vinyl sheath Pull out inner cables from here. Shield Coaxial cable Crimp on lug for M8 DPYC-6 and TTYC-4 20 5 6 DPYC-6: approx. 130 TTYCY-4: approx. 150 Conductor S = 0.75 mm = 1.11 mm 2 TTYCY-4 (Four twisted pairs) Armor Sheath = 17.7 mm Sheath Conductor S = 6 mm I= 3.12 mm 2 DPYCY-6 Armor Sheath I = 13.9 mm Armor Vinyl sheath Taper for unused wires. I I RG-12/UY 20 60 14 9 5 Vinyl sheathArmor Inner conductor Outer conductor 4. INSTALLING OPTIONAL EQUIPMENT 4-20 Connection Insert each cable to the cable gland as follows. Flat washer Cable gland Vinyl sheath Clamping gland Gasket Cut and trim armor. Connect each cable cores to the terminal board, referring to the interconnection diagram on next page. 15 14 13 12 11 10 98765 4 3 21 RG12/UY RG-12/UY TTYCY-4 DPYCY-6 RW-9600 Connect inner conductors. M8 screw for grounding Clamp outer conductor of coaxial cables. Fix wires with cable-tie. 4. INSTALLING OPTIONAL EQUIPMENT 4-21 RED[B] GRN[B] WHT BRK GRN RED WHT[B] PPL[B] COAX GLY[B] BLU[B] YEL[B] ORG[B] BRN N.C. N.C. N.C. 03P9349 TB802 12 2 13 14 3 4 5 6 7 8 9 10 11 1 TB801 1 2 GND SIG-GND 1 2 Junction box Antenna unit GND IF_VIDEO RF_SPU_D_B RF_SPU_D_A SPU_RF_D_B SPU_RF_D_A MOTOR(-) MOTOR(-) MOTOR(+) MOTOR(+) 24V_MINUS 24V_PLUS N.C. TX-HV RED[B] GRN[B] WHT BRK GRN RED WHT[B] PPL[B] GLY[B] BLU[B] YEL[B] ORG[B] BRN N.C. N.C. N.C. 03P9342 1 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 J610 GND SIG-GND 10 2 1 2 3 4 5 6 7 8 9 1 2 1 J613 Processor unit GND IF_VIDEO RF_SPU_D_B RF_SPU_D_A SPU_RF_D_B SPU_RF_D_A MOTOR(-) MOTOR(-) MOTOR(+) MOTOR(+) 24V_MINUS 24V_PLUS N.C. TX-HV 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 11 12 Junction box RW-9600 RW-9600 RG-12/UY DPYCY-6 TTYCY-4 J609 COAX DPYCY-6 DPYCY-6 Clamp with cable-clamp IV-1.25 pair pair 4. INSTALLING OPTIONAL EQUIPMENT 4-22 This page is intentionally left blank. 5-1 5. INPUT/OUTPUT DATA Input and output data are shown in the table below. Note: This radar accepts position data fixed by WGS-84 geodetic datum only. Set the datum to WGS-84 on the EPFS (GPS, etc.) connected to this radar. If other type of datum is input, the error message "DATUM" appears and the AIS feature is inoperative. Baud rate for the serial input is automatically set to 4800, 9600, 19200 or 38400 as appropriate. Input Data Specifications Contents Remarks synchro or step GC-10 required AD-10 format External AD-100 Heading signal IEC 61162-2** AD-10 and IEC 61162 are switched by menu setting. Speed signal IEC 61162-1 Navaid data IEC 61162-1 Position, course, speed, LORAN-C TD, waypoint, route, time, wind data, current data, depth, temperature, roll, pitch, ROT For IMO spec, IEC-61162-1 Edition 2 is required. External radar signal Heading, Bearing, Trigger, Video No STC control Operate as remote display Contact closure Input from alarm system Alarm ACK input IEC61162-1 ACK Input from alarm system Track Control unit RS-422 Option Output Radar system data RS-232C RSD, OSD, TLL, For PC plotter TT data* IEC 61162-1 TTD, TTM For ECDIS ALARM data IEC 61162-1 ALR For ALARM system Remote display signal HD, BP Trigger, Video 2 ports External LCD monitor signal DVI Same as main display unit 2 systems in total External CRT monitor signal R, G, B, H, V Same as main display unit Option Contact closure Output to alarm system by using photo-relay 4 systems, Output contents are selected by menu. Alarm signal IEC 61162-1 ALR Output to alarm system *The output sentence, mode and baud rate can be set at the TT Preset menu. **Data cycle should be input with more than 40 Hz (HSC) or 20 Hz (normal speed). 5. INPUT/OUTPUT DATA 5-2 IEC 61162 input sentence and priority Contents Sentence and priority Speed (STW) Speed (SOG) Speed (position) Heading (True) Position Datum Waypoint Route Date Depth Temperature Wind Set and Drift ALARM ACK VBW>VHW VBW VTG>RMC THS*>HDT* GNS>GGA>RMC>GLL DTM BWR>BWC> RMB WPL, RTE ZDA DPT >DBT>DBS>DBK MTW MWV>VWT>VWR VDR ACK *: THS and HDT are IEC61162-2 Others: IEC61162-1 ed2. IEC 61162 output sentence Contents Sentence Target L/L Radar system data Own ship data TT target data ALARM data TLL * RSD OSD TTD, TLB, TTM ALR *non IMO-type only. %1&'01  6;2' %…

Text truncated - open the document above for the full version.

Federal Communications Commission Office of Engineering and Technology 445 12th Street, SW Washington, DC 20554 To whom it may concern, We hereby respectfully request that under the provision of KDB Publication 726920, the following documents submitted in support of this application for ADB9ZWRTR079A certification be provided with confidential status. Schematics Parts list/Tune up info Operational description These documents contain trade secrets that are treated as confidential by us. Substantial competitive harm to our company business could result should they be made available to the public. Best regards , Shane Ryan Type Acceptance Commercial Service FURUNO USA Inc. (360) 834-9300 X5060 (360) 834- 833 -5195 [email protected]

Furuno Labotech International Report no.: FLI 01-10-065 Date of issue: 9 February 2011 - Page 1 of 4 - Photographs of the Transceiver Unit RTR-079A for Furuno Radar FAR-2127 1 External View 1 Antenna Unit RSB-096 (including Transceiver RTR-079A) 1.1 Outside Front View (showing Radiator XN-20CF and Scanner) Furuno Labotech International Report no.: FLI 01-10-065 Date of issue: 9 February 2011 - Page 2 of 4 - 1.2 Outside Rear View Furuno Labotech International Report no.: FLI 01-10-065 Date of issue: 9 February 2011 - Page 3 of 4 - 1.1.3 Outside Rear View of Scanner (with ID Label attached on the base) Furuno Labotech International Report no.: FLI 01-10-065 Date of issue: 9 February 2011 - Page 4 of 4 - 1.1.4 ID Label (Name Plate)

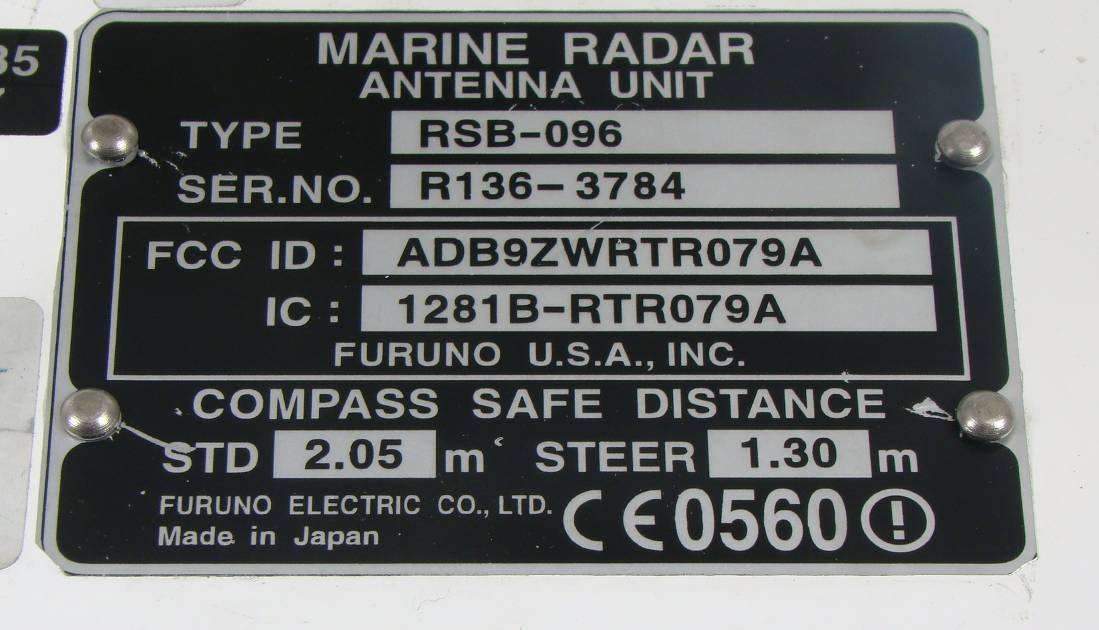

 Furuno Labotech International Document number: FLI 01-10-072 Date of issue: 9 February 2011 Form: Q053/01 - Page 1 of 2 - Identification of Equipment for the Furuno Radar Transceiver RTR-079A (FCC Rule, 2.925) 1 ID Label The following nameplate is permanently fixed on the corresponding equipment unit. FCC ID: ADB9ZWRTR079A Material of Nameplate: Aluminum, 0.5 mm thick  Furuno Labotech International Document number: FLI 01-10-072 Date of issue: 9 February 2011 Form: Q053/01 - Page 2 of 2 - 2 ID Label Location ID Label is affixed on the Scanner.

Furuno Labotech International Report no.: FLI 01-10-066 Date of issue: 9 February 2011 - Page 1 of 7 - Photographs of the Transceiver Unit RTR-079A for Furuno Radar FAR-2127 1 Internal View 1.1 Inside Rear View (with Scanner cover removed, showing Scanner Motor Gear wheels and TB Board 03P9349) Furuno Labotech International Report no.: FLI 01-10-066 Date of issue: 9 February 2011 - Page 2 of 7 - 1.2 Inside Front View (with Scanner cover removed, showing Transceiver module RTR-079A and Performance Monitor PM-31 (back of Scanner cover)) Furuno Labotech International Report no.: FLI 01-10-066 Date of issue: 9 February 2011 - Page 3 of 7 - 1.3 Inside Front view (with Transceiver module removed, showing Scanner Motor) Furuno Labotech International Report no.: FLI 01-10-066 Date of issue: 9 February 2011 - Page 4 of 7 - 2 Transceiver module RTR-079A 2.1 Outside Top view (showing PWR Board 03P9348 (right), Circulator and Limiter (center)) Furuno Labotech International Report no.: FLI 01-10-066 Date of issue: 9 February 2011 - Page 5 of 7 - 2.2 Outside Top view (with Shield cover removed, showing PWR Board 03P9348 (left) and RFC Board 03P9346 (right)) Furuno Labotech International Report no.: FLI 01-10-066 Date of issue: 9 February 2011 - Page 6 of 7 - 2.3 Outside Left View (with Shield cover removed, showing MD Board 03P9244 (lower)) Furuno Labotech International Report no.: FLI 01-10-066 Date of issue: 9 February 2011 - Page 7 of 7 - 2.4 Outside Front view (with Shield cover opened, showing IF_AMP Board 03P9355)

This report shall not be reproduced except in full, without the written approval of Furuno Labotech International Co., Ltd. Test Report (FCC Rules 2.1046/2.1047/2.1049/2.1051/2.1053/2.1055/80.217) For Trade name: Furuno Model: Transceiver for Marine Radar Type: RTR-079A Report no.: FLI 12-11-015 Date of issue: 9 February 2011 Furuno Labotech International Co., Ltd. 9-52 Ashihara-cho, Nishinomiya City, Hyogo 662-8580, Japan Tel: +81-798-63-1094 Fax: +81-798-63-1098 Furuno Labotech International Report no.: FLI 12-11-015 Form: FQ053/05 - Page 2 of 40 - Report Summary FLI project number: FLI 04-10-0290 Test report number of initial issue: FLI 12-11-015 Date of initial issue 9 February 2011 Test report number of revised/replaced issue: --- Date of revised/replaced issue --- Test report revision/ replacement history: Test report no. Rev. no.Date PageItem Description of change/reason --- --- --- --- --- --- Test standard(s)/ Test specifications: FCC 47 CFR, Sections: 2.1046 - RF Power Output, 2.1047 - Modulation Characteristics, 2.1049 - Occupied Bandwidth, 2.1051 - Spurious Emissions at Antenna Terminal, 2.1055 - Frequency Stability, 2.1053 - Field Strength of Spurious Radiation, 80.217 - Suppression of Interference Aboard Ships. (Date of issue: 1 October 2009) Customer: Furuno Electric Co., Ltd. 9-52 Ashihara-Cho, Nishinomiya-City, 662-8580 Japan Manufacturer: Furuno Electric Co., Ltd. 9-52 Ashihara-Cho, Nishinomiya-City, 662-8580 Japan Trade name: FURUNO Model: Transceiver for Marine Radar Type: RTR-079A Product function and intended use: For Marine Safety navigation Number of samples tested: One Serial number: R136-5807 Power rating: 24 VDC, 9.7 A or 100 - 115, 3.0 - 3.4 A/220 - 230 VAC, 1.8/1.9A 50/60 Hz (for Processer Unit RPU-013) (The EUT was powered through the Processor unit, not directly from AC/DC mains.) Product status: Pre-production model Modifications made to samples during testing: None. Date of receipt of samples: 12 July 2010 Test period: 13 July 2010 to 6 January 2011 Place of test: Furuno Labotech International Co., Ltd. - Nishinomiya Lab. 9-52 Ashihara-Cho, Nishinomiya City, Hyogo Prefecture, 662-8580 Japan - Nishinomiya-Hama Lab. 2-20 Nishinomiya-Hama, Nishinomiya City, Hyogo Prefecture, 662-0934 Japan Anechoic Chamber used for the test has been registered by FCC. (File number: 90607) Test results/ Compliance: Passed. The test results of this report relate only to the samples tested. Tested by: Katsumi Imamura Written by: Akiko Inoue Verified by: Yoshihiro Ishii Approved by: Date: 9 February 2011 Name: Yoshihiro Ishii Title: Manager, Technical Section, Furuno Labotech International Co., Ltd. Signature: Furuno Labotech International Report no.: FLI 12-11-015 Form: FQ053/05 - Page 3 of 40 - Testing Laboratory Status Furuno Labotech International Co., Ltd. (hereafter called FLI) has been holding the following status after having been assessed according to the provisions of ISO/IEC 17025 and/or the relevant rules: (1) Telefication Listed Testing Laboratory: - listed by Telefication B. V., Edisonstraat 12a, 6902 PK Zevenaar, The Netherlands - Laboratory assignment number: L116 - Date of initial certification: 26 July 1999 (*) - for testing the following product categories/ test standards: - EN 60945, Maritime navigation and radiocommunication equipment and systems - General requirements. - IEC 61162-1/-2, Maritime navigation and radiocommunication equipment and systems - Digital interfaces - Part 1: Single talker and multiple listeners / Part 2: Single talker and multiple listeners, high speed transmission. (2) BSH Recognized Testing Laboratory: - recognized by Bundesamt für Seeschifffahrt und Hydrographie, Bernhad-Nocht-Str. 78, 20359 Hamburg, Federal Republic of Germany - Recognition certificate number: BSH4613/06201/0835/08 - Date of initial certification: 4 April 2003 (*) - for testing in the fields of: “Marine navigational and radiocommunication equipment and systems” - EMC and environmental tests according to: IEC 60945: 2002, DIN EN 60945: 2003 - Radar - Shipborne navigational displays IEC 60936-1: 1999, DIN EN 60936-1: 2000 IEC 62288: 2008 IEC 60936-2: 1998, DIN EN 60936-2: 1999 (3) TÜV Appointed EMC Test Laboratory: - appointed by TÜV Rheinland Japan Ltd., 19-5 Shin Yokohama 3-chome, Kohoku-ku, Yokohama 222-0033 Japan - Laboratory assignment number: UA 50046428 - Date of initial certification: 21 December 1998 (*) - for carrying out the tests of: - EN 55022, CISPR 22, EN 61000-3-2/-3, EN/IEC 61000-4-2/-3/-4/-5/-6/-8/-11, EN/IEC 61000-6-1/-2, EN/IEC 61000-6-3/-4, EN/IEC 60945, EN/IEC 61326-1, EN/IEC 61326-2-6, EN/IEC 60601-1-2, JIS T 0601-1-2, JIS C 1806-1, EN 55011, CISPR 11. (4) RMRS Recognized Testing Laboratory: - recognized by Russian Maritime Register of Shipping, 8, Dvortsovaya Nab., St. Petersburg, 191186 Russia - Laboratory recognition number : 09.00110.011 - Date of initial certification : 27 January 2009 (*) - for carrying out testing in the field of : 21001301 Elecrtrical measurements and tests, 21001302 EMC tests, 21001500 Mechanical measurements and tests, 21002000 Equipment protection degree tests, and 21002100 Climatic tests for Ship’s radio and navigational equipment and IEC 60945 : 2002 Note: (*) – The current certificates may be found in the FLI web site (http://www.furuno-labotech.co.jp). Furuno Labotech International Report no.: FLI 12-11-015 Form: FQ053/05 - Page 4 of 40 - TABLE OF CONTENTS Report Summary ............................................................................................................................. 2 Testing Laboratory Status ............................................................................................................. 3 1 Principal Information ................................................................................................................... 5 1.1 Equipment under test (EUT) ................................................................................................... 5 1.2 Observ…
