ADB9ZWRTR084MARINE RADAR

MARINE RADAR/ARPA FAR-28x7 Series FAR-21x7(-BB) Series FURUNO Authorized Distributor/DealerFURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho,9-52 Ashihara-cho, Nishinomiya 662-8580, JAPANNishinomiya 662-8580, JAPAN Telephone :Telephone :0798-65-21110798-65-2111 FaxFax0798-65-42000798-65-4200 :: FIRST EDITION :FIRST EDITION :JAN.JAN.20042004 Printed in JapanPrinted in Japan All rights reserved.All rights reserved. D2D2::NOV.NOV.22, 200522, 2005 Pub. No.Pub. No.OME-35190OME-35190 *00014745203**00014745203* *00014745203**00014745203* ((DAMIDAMI)) FAR-2107/2807 SER.FAR-2107/2807 SER. * 0 0 0 1 4 7 4 5 2 0 3 ** 0 0 0 1 4 7 4 5 2 0 3 * *OME35190D20**OME35190D20* *OME35190D20**OME35190D20* * O M E 3 5 1 9 0 D 2 0 ** O M E 3 5 1 9 0 D 2 0 * i SAFETY INSTRUCTIONS WARNINGWARNING Radio Frequency Radiation Hazard The radar antenna emits electromagnetic radio frequency (RF) energy which can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the transmitting antenna at a close distance. Distances at which RF radiation levels of 100 and 10 W/m 2 exist are given in the table below. Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible. Ask your FURUNO representative or dealer to provide this feature. FAR-2827/2127RTR-079MG5436XN12AF0.80 m11.20 m FAR-2827/2127RTR-079MG5436XN20AF0.40 m 8.60 m FAR-2827/2127RTR-079MG5436XN24AF0.20 m 5.80 m FAR-2817/2117RTR-078MG4010 2 XN12AF0.30 m 4.20 m FAR-2817/2117RTR-078 MG4010 2 XN20AF0.10 m 3.00 m FAR-2817/2117RTR-078MG4010 2 XN24AF -- 2.40 m FAR-2157 RTR-083 9M31 XN4A 1.20 m 13.60 m XN5A 1.10 m 12.30 m FAR-2137SRTR-080MG5223FSN30AF1.20 m 9.50 m FAR-2137SRTR-080MG5223FSN36AF0.70 m 8.30 m FAR-2167DS RTR-084 MG5240F SN30AF 0.60 m 8.90 m SN36AF 0.40 m 7.40 m FAR-2827WRTR-081MG5436XN20AF2.20 m13.0 m FAR-2827WRTR-081MG5436XN24AF1.50 m11.50 m FAR-2837SRTR-080MG5223FSN30AF1.20 m9.50 m FAR-2837SRTR-080MG5223FSN36AF0.70 m8.30 m FAR-2837SWRTR-082MG5223FSN36AF1.00 m8.50 m Distance to 100 W/m 2 point Distance to 10 W/m 2 point Model 3 TR unitMagnetronAntenna 1 1 XN4A: 8ft XN5A: 10ft XN12AF: 4 ft XN20AF: 6.5 ftXN24AF: 8 ft SN30AF: 10 ftSN36AF: 12 ft 2 Or MAF1425B 3 FAR-2117/2127/2157/2137S/2167DS available in blackbox configuration. SAFETY INSTRUCTIONS ii WARNING ELECTRICAL SHOCK HAZARD Do not open the equipment. Only qualified personnel should work inside the equipment. Turn off the radar power switch before servicing the antenna unit. Post a warn- ing sign near the switch indicating it should not be turned on while the antenna unit is being serviced. Prevent the potential risk of being struck by the rotating antenna and exposure to RF radiation hazard. Wear a safety belt and hard hat when working on the antenna unit. Serious injury or death can result if someone falls from the radar antenna mast. Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Immediately turn off the power at the ship's mains switchboard if water leaks into the equipment or the equip- ment is emitting smoke or fire. Continued use can cause fatal damage to the equipment. WARNING Use the proper fuse. Use of a wrong fuse can result in damage to the equipment or cause fire. Keep heater away from equipment. Heat can alter equipment shape and melt the power cord, which can cause fire or electrical shock. Do not place liquid-filled containers near the equipment. Fire or electrical shock can result if a liquid spills into the equipment. Do not operate the equipment with wet hands. Electrical shock can result. Before servicing the radar, turn off the appropriate external breaker. Power is not removed from the radar simply by turning off its power switch. SAFETY INSTRUCTIONS iii WARNING No one navigational aid should be relied upon for the safety of vessel and crew. The navigator has the responsibility to check all aids available to confirm position. Electronic aids are not a substitute for basic navigational principles and common sense.  This ARP automatically tracks automatically or manually acquired radar targets and calculates their courses and speeds, indicating them by vectors. Since the data generated by the auto plotter are based on what radar targets are selected, the radar must always be optimally tuned for use with the auto plotter, to ensure required targets will not be lost or unwanted targets such as sea returns and noise will not be acquired and tracked.  A target does not always mean a land- mass, reef, ships or other surface vessels but can imply returns from sea surface and clutter. As the level of clutter changes with environment, the operator should properly adjust the A/C SEA, A/C RAIN and GAIN controls to be sure target echoes are not eliminated from the radar screen. CAUTION The plotting accuracy and response of this ARP meets IMO standards. Tracking accuracy is affected by the following:  Tracking accuracy is affected by course change. One to two minutes is required to restore vectors to full accuracy after an abrupt course change. (The actual amount depends on gyrocompass specifications.)  The amount of tracking delay is inversely proportional to the relative speed of the target. Delay is on the order of 15—30 seconds for high relative speed; 30—60 seconds for low relative speed. The data generated by ARP, AIS and video plotter are intended for reference only. Refer to official nautical charts for detailed and up-to-date information. SAFETY INSTRUCTIONS iv WARNING To avoid electrical shock, do not remove cover. No user-serviceable parts inside. WARNING LABEL Warning labels are attached to the equipment. Do not remove any label. If a label is missing or damaged, contact a FURUNO agent or dealer about replacement. WARNING Radiation hazard. Only qualified personnel should work inside s…

Text truncated - open the document above for the full version.

Federal Communications Commission Office of Engineering and Technology 445 12th Street, SW Washington, DC 20554 Request for Confidentiality Dear Sir or Madam, In regard to the FCC application for ID ADB9ZWRTR084. The following documents are company confidential, containing technical information of a proprietary nature. Circuit Diagrams/Schematics Operational Description I respectfully request that documents of this category be kept confidential. Thank you for your assistance. Best regards, Shane Ryan Type Acceptance Commercial Service FURUNO USA Inc. (360) 834-9300 X5060 (360) 834- 833-5195 [email protected]

Furuno Labotech International Co., Ltd Document number: FLI 01-05-064 Date of issue: 17 October 2005 - Page 1 of 5 - Photographs of the Furuno Radar FAR-2167DS with Transceiver RTR-084 included 1 External View 1.1 Antenna unit RSB-111 (with Transceiver RTR-084 contained) 1.1.1 Front View with Radiator SN-36AF installed. Furuno Labotech International Co., Ltd Document number: FLI 01-05-064 Date of issue: 17 October 2005 - Page 2 of 5 - 1.1.2 Rear View ID Label is affixed on the Scanner Case of the Antenna unit. Furuno Labotech International Co., Ltd Document number: FLI 01-05-064 Date of issue: 17 October 2005 - Page 3 of 5 - 1.1.3 Front View Furuno Labotech International Co., Ltd Document number: FLI 01-05-064 Date of issue: 17 October 2005 - Page 4 of 5 - 1.1.4 Rear View Furuno Labotech International Co., Ltd Document number: FLI 01-05-064 Date of issue: 17 October 2005 - Page 5 of 5 - 1.1.5 Name Plate (ID Label)

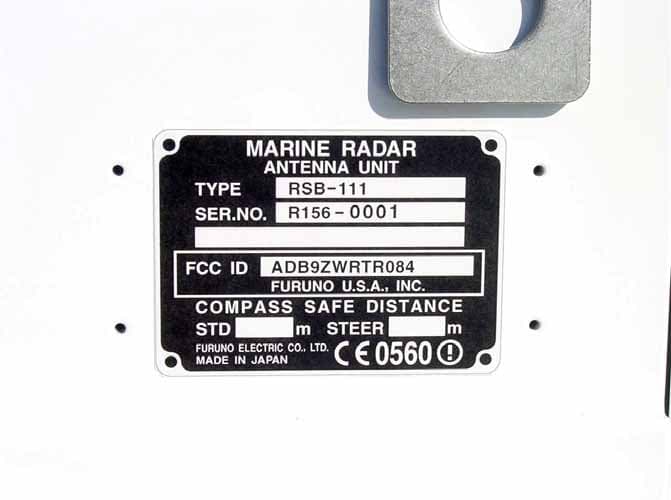

Furuno Labotech International Report no.: FLI 01-05-052 Date of issue: October 17, 2005 Form: Q053/01 - Page 1 of 2 - Identification of Equipment for the Furuno Radar FAR-2167DS with Transceiver RTR-084 included (FCC Rule, 2.925) 1. ID Label The following nameplates are permanently fixed on the corresponding equipment units. FCC ID: ADB9ZWRTR084 Material of nameplate: Aluminum, 0.2 mm thick Photo 1.1 Name Plate for Antenna unit Including FCC ID Furuno Labotech International Report no.: FLI 01-05-052 Date of issue: October 17, 2005 Form: Q053/01 - Page 2 of 2 - 2. ID Label Location

Furuno Labotech International Co., Ltd Document number: FLI 01-05-065 Date of issue: 17 October 2005 - Page 1 of 6 - Photographs of the Furuno Radar FAR-2167DS with Transceiver RTR-084 included 1 Internal View 1.1 Antenna unit RSB-111 1.1.1 Inside Left View (with Side cover opened, showing RFC (upper center), MIC RU-9760 (center bottom) and TB Board 03P9349 (center)) Furuno Labotech International Co., Ltd Document number: FLI 01-05-065 Date of issue: 17 October 2005 - Page 2 of 6 - 1.1.2 Inside Left View (with shield-cover opened, showing IF AMP Board 03P9335 (left) RFC Board 03P9444 (upper center)) Furuno Labotech International Co., Ltd Document number: FLI 01-05-065 Date of issue: 17 October 2005 - Page 3 of 6 - 1.1.3 Inside Right View (with side cover removed, showing PWR Board 03P9348 (center)) Furuno Labotech International Co., Ltd Document number: FLI 01-05-065 Date of issue: 17 October 2005 - Page 4 of 6 - 1.1.4 Inside Right View (with shield-cover removed, showing Magnetron (upper) and PWR Board 03P9348 (bottom)) Furuno Labotech International Co., Ltd Document number: FLI 01-05-065 Date of issue: 17 October 2005 - Page 5 of 6 - 1.1.5 Inside Right View (with Magnetron and PCBs removed) Furuno Labotech International Co., Ltd Document number: FLI 01-05-065 Date of issue: 17 October 2005 - Page 6 of 6 - 1.1.6 Transceiver Bottom View (with PFN2 Board 03P9445 (upper left), PFN1 Board 03P9431 (center left) and Pulse Transformer (center right))

Furuno Labotech International Co., Ltd. Document no.: FLI 01-05-068 Date of issue: 24 October 2005 PARTS LIST of Antenna units for FURUNO Marine Radar types: FAR-2157/-2167DS including Transceiver RTR-083/-084 Antenna units of these equipments contain the complex modules, printed circuit boards and major discrete parts. These are listed below: 1 FAR-2157 (TX power: 50 kWpeak, X-band) Function modules/ Major discrete parts Module type/ Type number Remarks 1 Antenna unit 1.1 Scanner RSB-106, RSB-107 16/20 rpm, 20 rpm Antenna drive motor G0B8222, RM-6585 16/20 rpm, 20 rpm Reed switch RS 1 NO/ 03S8621 1.2 Transceiver RTR-083 1.2.1 TB-IF Board 03P9435 1.2.2 TB-RF Board 03P9436 1.2.3 RFC Board 03P9444 1.2.4 PWR Board 03P9348 1.2.5 IF AMP Board 03P9335 1.2.6 PFN1 Board 03P9431 1.2.7 PFN2 Board 03P9432 1.2.8 PFN3 Board 03P9433 1.2.9 BP GEN Board 03P9347 Magnetron 9M31 Circulator RC3686 Limiter B3LT16114 MIC (Microwave Integrated Circuit) RU9602 HV (Pulse) transformer RT9828 1.3 Radiator XN4A, XN5A 8-ft type, 10-ft type Furuno Labotech International Co., Ltd. Document no.: FLI 01-05-068 Date of issue: 24 October 2005 2 FAR-2167DS (TX power: 60 kWpeak, S-band) Function modules/ Major discrete parts Module type/ Type number Remarks 1 Antenna unit 1.1 Scanner RSB-111, RSB-112 21/26 rpm Antenna drive motor RM-7398, RM-7435 for RSB-111, for RSB-112 Reed switch RS 1 NO/ 03S8621 1.2 Transceiver RTR-084 1.2.1 TB Board 03P9349 1.2.2 RFC Board 03P9444 1.2.3 PWR Board 03P9348 1.2.4 BUF Board 03P9446 1.2.5 IF AMP Board 03P9335 1.2.6 PFN1 Board 03P9431 1.2.7 PFN2 Board 03P9445 1.2.8 PFN3 Board 03P9433 1.2.9 BP GEN Board 03P9347 Magnetron MG5240F Circulator RC6584 Limiter RU9426 MIC (Microwave Integrated Circuit) RU9760 HV (Pulse) transformer RT9051 1.3 Radiator SN30AF, SN36AF 10-ft type, 12-ft type

This report shall not be reproduced except in full, without the written approval of Furuno Labotech International Co., Ltd. TECHNICAL INFORMATION TEST REPORT ON THE PERFORMANCE OF MARINE RADAR Trade Name : FURUNO Transceiver Type : RTR-084 Report no.: FLI 12-05-046 Date of issue: October 17, 2005 Furuno Labotech International Co., Ltd. 9-52 Ashihara-cho, Nishinomiya City, Hyogo 662-8580, Japan Tel: +81-798-63-1094 Fax: +81-798-63-1098 Furuno Labotech International Report no.: FLI 12-05-046 Form: Q053/01 - Page 1 of 39 - All tests were performed in Furuno Labotech International Co., Ltd. All data herein contained is true and correct to our best knowledge. All tests were performed and reported by: Tested by: Katsumi Imamura/Assistant Chief, Technical Section Review by: Sadatomo Kuwahara/Chief Engineer, Technical Section Approved by: Mitsuyoshi Komori/Manager, Technical Section Date: October 17, 2005 Name: Mitsuyoshi Komori Manager, Technical Section Signature: Furuno Labotech International Report no.: FLI 12-05-046 Form: Q053/01 - Page 2 of 39 - * * * * * * C O N T E N T S * * * * * * 1 General Information.............................................................................................................................. 3 2 Identification of Equipment (FCC Rule, 2.925)................................................................................. 10 3 Test data.............................................................................................................................................. 11 3.1 RF Power Output (FCC Rule, 2.1046).................................................................................................. 11 3.2 Modulation Characteristics (FCC Rule, 2.1047).................................................................................. 14 3.3 Occupied Bandwidth (FCC Rule, 2.1049) ............................................................................................ 22 3.4 Spurious Emissions at Antenna Terminal (FCC Rule, 2.1051) ............................................................ 24 3.5 Field Strength of Spurious Radiation (FCC Rule, 2.1053) ................................................................. 28 3.6 Frequency Stability (FCC Rule, 2.1055) ............................................................................................... 30 3.7 Suppression of Interference Aboard Ships (FCC Rule, 80.217) .......................................................... 33 4 Photographs to Reveal Equipment Construction and Layout (FCC Rule, 2.1033)................ 37 5 Description of Circuitry and Devices (FCC Rules, 2.1033).......................................................... 38 6 Operator’s Manual Incl. Circuit Diagrams (FCC Rule, 2.1033)....................................................... 39 Attachment A [ Test data for 3.4 Spurious Emissions at Antenna Terminal ] Attachment B [ Test data for 3.5 Field Strength of Spurious Radiation ] Attachment C [ Test data for 3.7 Suppression of Interference Aboard Ships ] Attachment D [ List of Test/ Measuring Equipment ] Furuno Labotech International Report no.: FLI 12-05-046 Form: Q053/01 - Page 3 of 39 - 1 General Information 1.1 General (a) Manufacturer: Furuno Electric Co., Ltd. Ashihara-cho 9-52, Nishinomiya-city, 662-8580 Japan (b) Model: FAR-2167DS Type Serial Number Note Display Unit MU-201CR 0701 Antenna Unit Scanner (*) RSB-111 R156-0001 Antenna rotation rate: 21/26 rpm RSB-112 Transceiver: RTR-084 Contained in Scanner Radiator: SN-30AF 10-ft Type (*) SN-36AF 12-ft Type Processor Unit: RPU-013 4317-0786 Power Supply Unit: PSU-006 R158-0001 Note (*) - 1 (one) selectable. (c) Primary Function: Search, Navigation and anticollison (d) Discrimination Range Discrimination: 26 meters on a range scale of 1.5 nm Bearing Discrimination: on a range scale of 1.5 nm, Radiator type: SN-30AF SN-36AF Discrimination (°):2.48 2.03 (e) Minimum Range: 22 meters on a range scale of 0.25 nm (f) Frequency Range: Fixed frequency, S-band Type of Emission: P0N (g) Power Supply: 100 - 115/220 - 230 VAC (for Processor Unit), 100 - 115/220 - 230 VAC (for Power Supply Unit), 200 VAC, 3Φ, 50 Hz/220 VAC, 3Φ, 60 Hz (for RSB-111 Antenna motor via Power Supply Unit), 380 VAC, 3Φ, 50 Hz/440 VAC, 3Φ, 60 Hz (for RSB-112 Antenna motor via Power Supply Unit), 100 - 230 VAC (for Display Unit) 1.2 Transceiver Unit Type: RTR-084 Furuno Labotech International Report no.: FLI 12-05-046 Form: Q053/01 - Page 4 of 39 - (1) Transmitter (a) Assignable Frequency for Shipborne Radar: Between 2900 and 3100 MHz (FCC Rule: 80.375 (d)-(1)) (b) Type of RF Generator Magnetron Type: MG5240F Peak Output Power: 60 kW nominal (c) Magnetron Ratings Center frequency of Magnetron: 3050 MHz Tolerances MG5240F Manufacturing: ±25 MHz Pulling: 13 MHz Tolerance for 20°C temperature variation: -1.4 MHz (d) Guard Band: Guard Band is specified to be equal to 1.5/T MHz, where "T" is the pulselength in microseconds. See para (e). (FCC Rule: 80.209(b)) (e) Pulse Characteristics: Range Scale (Short 1) (Middle 1) (Middle 2) (Long 1)(Long 2) (nm) 0.125 0.25 0.5 0.75 0.75 1.5 1.5 3 3 6 6 12 12 16 16 24 24 32 48 96 Pulselength (μs) 0.08 0.20 0.60 1.20 1.20 P.R.R.(Hz) 1900 1100 600 600 500 Duty cycle 1.52X10 -4 2.20X10 -4 3.60X10 -4 7.20X10 -4 6.00X10 -4 Guard Band (MHz) 18.75 7.50 2.50 1.25 1.25 Note 1: Tests were carried out for the underlined Range Scales. Furuno Labotech International Report no.: FLI 12-05-046 Form: Q053/01 - Page 5 of 39 - (2) Modulator (a) SCR Type: RU9509 Trigger Voltage: Approx. + 12 VDC positive (3) Receiver (a) Passband (MHz) RF Stage: 100 MHz IF Stage: Pulselength Short Middle 1 Middle 2 Long 1 Long 2 (MHz) 40 10 10 3 3 (b) Gain (overall) (dB): Sufficient to cause limiting, approximately 130 (c) Overall Noise Figure (dB): 4 (typical) (d) Video Output Voltage (V): 2 V negative (e) Features Provided: Sensitivity Time Controls (Anti-clutter Sea), Fast Time Constant (Anti-clutter Rain) (f) If receiver is tunable, describe metho…
