ADB9ZWRTR085MARINE RADAR

MARINE RADAR FR-8062, FR-8122, FR-8252 i SAFETY INSTRUCTIONS WARNING Radio Frequency Radiation Hazard The radar antenna emits electromagnetic radio frequency (RF) energy which can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the transmitting antenna at a close distance. Distances at which RF radiation levels of 100 and 10 W/m 2 exist are given in the table below. Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible. Ask your FURUNO representative or dealer to provide this feature. MODEL Distance to 100 W/m 2 point Distance to 10 W/m 2 point FR-8062 Nil Worst case 2.50 m Worst case 2.30 m XN-12A XN-13A XN-12A XN-13A Worst case 0.50 m Worst case 0.30 m Worst case 7.50 m Worst case 7.00 m FR-8122 XN-12A XN-13A Worst case 0.80 m Worst case 0.70 m Worst case 9.50 m Worst case 9.00 m FR-8252 ii WARNING ELECTRICAL SHOCK HAZARD Do not open the equipment. Only qualified personnel should work inside the equipment. Turn off the radar power switch before servicing the antenna unit. Post a warn- ing sign near the switch indicating it should not be turned on while the antenna unit is being serviced. Prevent the potential risk of being struck by the rotating antenna and exposure to RF radiation hazard. Wear a safety belt and hard hat when working on the antenna unit. Serious injury or death can result if someone falls from the radar antenna mast. Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Turn off the power immediately if water leaks into the equipment or the equip- ment is emitting smoke or fire. Continued use of the equipment can cause fire or electrical shock. WARNING Use the proper fuse. Fuse rating is shown on the equipment. Use of a wrong fuse can result in damage to the equipment. Keep heater away from equipment. Heat can alter equipment shape and melt the power cord, which can cause fire or electrical shock. Do not place liquid-filled containers on the top of the equipment. Fire or electrical shock can result if a liquid spills into the equipment. Do not operate the equipment with wet hands. Electrical shock can result. iii WARNINGWARNING No one navigational aid should be relied upon for the safety of vessel and crew. The navigator has the responsibility to check all aids available to confirm position. Electronic aids are not a substitute for basic navigational principles and common sense. • This ARP automatically tracks automatically or manually acquired radar targets and calculates their courses and speeds, indicating them by vectors. Since the data generated by the auto plotter are based on what radar targets are selected, the radar must always be optimally tuned for use with the auto plotter, to ensure required targets will not be lost or unwanted targets such as sea returns and noise will not be acquired and tracked. • A target does not always mean a land- mass, reef, ships or other surface vessels but can imply returns from sea surface and clutter. As the level of clutter changes with environment, the operator should properly adjust the A/C SEA, A/C RAIN and GAIN controls to be sure target echoes are not eliminated from the radar screen. CAUTION The plotting accuracy and response of this ARP meets IMO standards. Tracking accuracy is affected by the following: • Tracking accuracy is affected by course change. One to two minutes is required t o restore vectors to full accuracy after an abrupt course change. (The actual amount depends on gyrocompass specifications.) • The amount of tracking delay is inversely proportional to the relative speed of the target. Delay is on the order of 15—30 seconds for high relative speed; 30—60 seconds for low relative speed. The data generated by ARP, AIS and video plotter are intended for reference only. Refer to official nautical charts for detailed and up-to-date information. iv WARNING To avoid electrical shock, do not remove cover. No user-serviceable parts inside. WARNING LABEL Warning labels are attached to the equipment. Do not remove any label. If a label is missing or damaged, contact a FURUNO agent or dealer about replacement. WARNINGARNING Radiation hazard. Only qualified personnel should work inside scanner. Confirm that TX has stopped before opening scanner. DISPLAY UNIT Name:Warning Label (1) Type:86-003-1011-0 Code No.: 100-236-230 ANTENNA UNIT Name:Radiation Warning Label Type:03-142-3201-0 Code No.: 100-266-890 TFT LCD The high quality TFT (Thin Film Transistor) LCD displays 99.999% of its picture ele- ments. The remaining 0.01% may drop out or light, however this is an inherent property of the LCD; it is not a sign of malfunction. v TABLE OF CONTENTS FOREWORD ............................................................................................... ix SYSTEM CONFIGURATION ...................................................................... xi 1. OPERATIONAL OVERVIEW .............................................................. 1-1 1.1Controls .....................................................................................................................1-1 1.2Turning the Radar On/Off, Transmitting ....................................................................1-4 1.3Display Indications.....................................................................................................1-5 1.4Display Brilliance, Panel Dimmer ..............................................................................1-6 1.5Menu Overview..........................................................................................................1-6 1.6Tuning........................................................................................................................1-7 1.7Presentation Modes............................…

Text truncated - open the document above for the full version.

Federal Communications Commission Office of Engineering and Technology 445 12th Street, SW Washington, DC 20554 Request for Confidentiality Dear Sir or Madam, In regard to the FCC application for ID ADB9ZWRTR085. The following documents are company confidential, containing technical information of a proprietary nature. Schematic Diagrams Operational Description I respectfully request that documents of this category be kept confidential. Thank you for your assistance. Best regards, Shane Ryan Type Acceptance Commercial Service FURUNO USA Inc. (360) 834-9300 X5060 (360) 834- 833-5195 [email protected]

Federal Communications Commission Office of Engineering and Technology 445 12th Street, SW Washington, DC 20554 Request for Confidentiality Dear Sir or Madam, In regard to the FCC application for ID ADB9ZWRTR085. Corespondance #29678 requested FCC part# and emission designator, please see below information. FCC part # 80 Emission designator is 55M0P0N Thank you for your assistance. Best regards, Shane Ryan Type Acceptance Commercial Service FURUNO USA Inc. (360) 834-9300 X5060 (360) 834- 833-5195 [email protected]

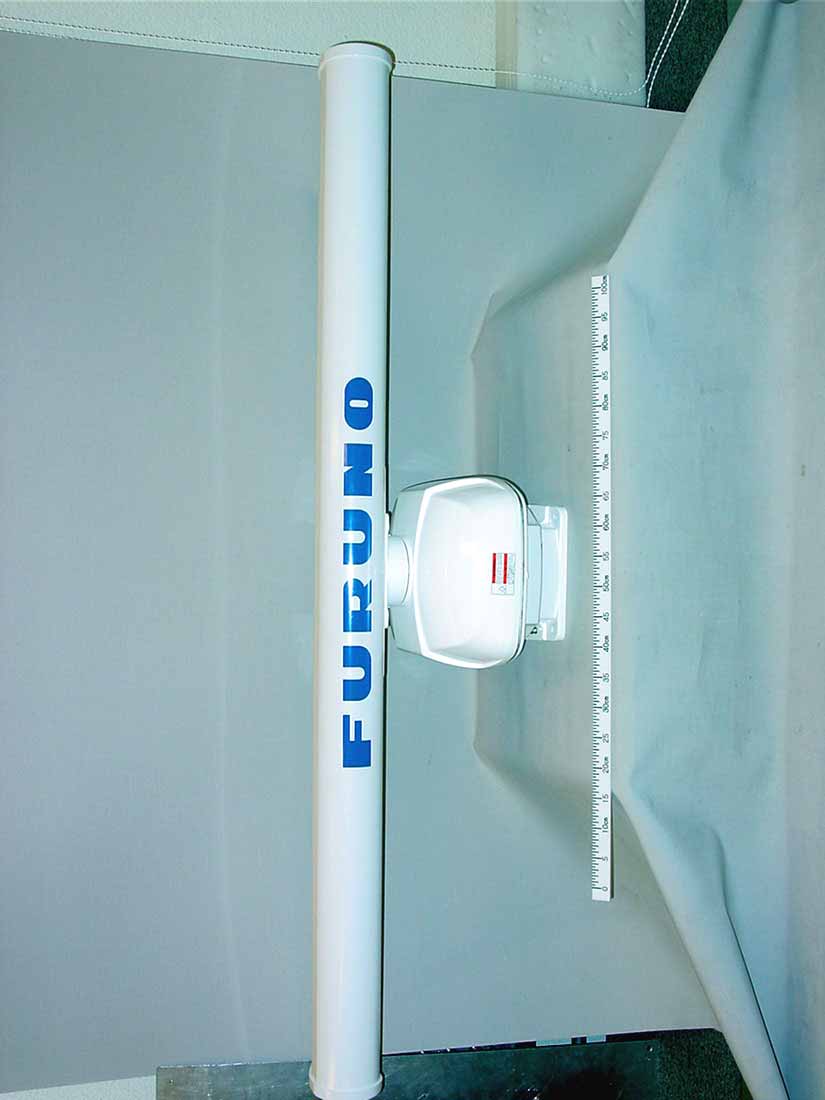

Furuno Labotech International Co., Ltd. Document number: FLI 01-05-013 Date of issue: 15 June 2005 - Page 1 of 3 - Photographs of the Furuno Radar FR-8062 with Transceiver RTR-085 included 1 External View 1.1 Antenna unit RSB-0073 (with Transceiver RTR-085 contained) 1.1.1 Front View Furuno Labotech International Co., Ltd. Document number: FLI 01-05-013 Date of issue: 15 June 2005 - Page 2 of 3 - 1.1.2 Rear View ID Label is affixed on the Scanner Case of the Antenna unit. Furuno Labotech International Co., Ltd. Document number: FLI 01-05-013 Date of issue: 15 June 2005 - Page 3 of 3 - 1.1.3 Name Plate

Furuno Labotech International Document number: FLI 01-05-020 Date of issue: 15 June 2005 Form: Q053/01 - Page 1 of 2 - Identification of Equipment for the Furuno Radar FR-8062 with Transceiver RTR-085 included (FCC Rule, 2.925) 1 ID Label The following nameplates are permanently fixed on the corresponding equipment units. FCC ID: ADB9ZWRTR085 Material of Nameplate: Polyester film, 0.1 mm thick Photo. 1.1 Name Plate for Antenna unit Photo. 1.2 Name Plate for Display unit Furuno Labotech International Document number: FLI 01-05-020 Date of issue: 15 June 2005 Form: Q053/01 - Page 2 of 2 - 2 ID Location Photo. 1 ID Location

Furuno Labotech International Co., Ltd. Document number: FLI 01-05-018 Date of issue: 15 June 2005 - Page 1 of 5 - Photographs of the Furuno Radar FR-8062 with Transceiver RTR-085 included 1 Internal View 1.1 Antenna unit RSB-0073 1.1.1 Inside View (with Top cover opened, showing Scanner Motor (upper) and Transceiver RTR-085 (lower)) Furuno Labotech International Co., Ltd. Document number: FLI 01-05-018 Date of issue: 15 June 2005 - Page 2 of 5 - 1.1.2 Transceiver Top View (with shield-cover removed, showing RTB Board 03P9405 (right), IF AMP Board enclosed by shield-cover (center), Magnetron (top left), Circulator (center left), Limiter (lower left) and Mic (bottom left)) Furuno Labotech International Co., Ltd. Document number: FLI 01-05-018 Date of issue: 15 June 2005 - Page 3 of 5 - 1.1.3 Transceiver Top View (with IF AMP’s shield-cover removed, showing IF AMP Board 03P9404 (center)) Furuno Labotech International Co., Ltd. Document number: FLI 01-05-018 Date of issue: 15 June 2005 - Page 4 of 5 - 1.1.4 Transceiver Bottom View Furuno Labotech International Co., Ltd. Document number: FLI 01-05-018 Date of issue: 15 June 2005 - Page 5 of 5 - 1.1.5 Transceiver Bottom View (with shield-cover removed, showing MD 03P9235 and RRV 03P9323 (on MD Board) Boards Front side)

Furuno Labotech International Co., Ltd. Document no.: FLI 01-05-053 Date of issue: 6 October 2005 PARTS LIST of Antenna units for FURUNO Marine radar Types: FR-8XX2 series including Transceiver RTR-085/-086/-087 Antenna units of this equipment contain the complex modules, printed circuit boards and major discrete parts. These are listed below: 1 FR-8062 (TX power: 6 kWpeak) Function modules/ Major discrete parts Module type/ Type number Remarks 1 Antenna unit 1.1 Scanner RSB-0070, RSB-0073 24 rpm, 24/36/48 rpm Antenna drive motor RM8025, RM8711 24 rpm, 24/36/48 rpm Reed switch RS 1 NO/ 03S8621 1.2 Transceiver RTR-085 1.2.1 RTB Board 03P9405 1.2.2 IF AMP Board 03P9404 1.2.3 MD Board 03P9235 1.2.4 RRV Board 03P9323 Magnetron MAF1422B, MG4006 Circulator RC4356 Limiter RU9099 MIC (Microwave Integrated Circuit) RU9731 1.3 Radiator XN12A, XN13A 4-ft type, 6-ft type Furuno Labotech International Co., Ltd. Document no.: FLI 01-05-053 Date of issue: 6 October 2005 2 FR-8122 (TX power: 12 kWpeak) Function modules/ Major discrete parts Module type/ Type number Remarks 1 Antenna unit 1.1 Scanner RSB-0073 24/36/48 rpm Antenna drive motor RM8711 24/36/48 rpm, Reed switch RS 1 NO/ 03S8621 1.2 Transceiver RTR-086 1.2.1 RTB Board 03P9405 1.2.2 IF AMP Board 03P9404 1.2.3 PTU Board 03P9236 1.2.4 MD Board 03P9237 Magnetron MAF1425B Circulator RC4356 Limiter RU9099 MIC (Microwave Integrated Circuit) RU9731 HV (Pulse) transformer RT4427 1.3 Radiator XN12A, XN13A 4-ft type, 6-ft type Furuno Labotech International Co., Ltd. Document no.: FLI 01-05-053 Date of issue: 6 October 2005 3 FR-8252 (TX power: 25 kWpeak) Function modules/ Major discrete parts Module type/ Type number Remarks 1 Antenna unit 1.1 Scanner RSB-0073 24/36/48 rpm Antenna drive motor RM8711 24/36/48 rpm Reed switch RS 1 NO/ 03S8621 1.2 Transceiver RTR-087 1.2.1 RTB Board 03P9405 1.2.2 IF AMP Board 03P9404 1.2.3 RFC Board 03P9238 1.2.4 MD Board 03P9239 Magnetron M1458(F) Circulator RC4356 Limiter RU9099 MIC (Microwave Integrated Circuit) RU9731 HV (Pulse) transformer RT9023 Fan motor MMS-06C24DS-R01/ 03S9110 1.3 Radiator XN12A, XN13A 4-ft type, 6-ft type

This report shall not be reproduced except in full, without the written approval of Furuno Labotech International Co., Ltd. TECHNICAL INFORMATION TEST REPORT ON THE PERFORMANCE OF MARINE RADAR Brand Name : FURUNO Transceiver Type : RTR-085 Report no.: FLI 12-05-025 Date of issue: June 15, 2005 Furuno Labotech International Co., Ltd. 9-52 Ashihara-cho, Nishinomiya City, Hyogo 662-8580, Japan Tel: +81-798-63-1094 Fax: +81-798-63-1098 Furuno Labotech International Report no.: FLI 12-05-025 Form: Q053/01 - Page 1 of 39 - All tests were performed in Furuno Labotech International Co., Ltd. All data herein contained is true and correct to our best knowledge. Tested by: Katusmi Imamura/Assistant Chief Engineer, Technical Section Reviewed by: Sadatomo Kuwahara/Chief Engineer, Technical Section Approved by: Mitsuyoshi Komori/Manager, Technical Section Date: June 15, 2005 Name: Mitsuyoshi Komori Manager, Technical Section Signature: Furuno Labotech International Report no.: FLI 12-05-025 Form: Q053/01 - Page 2 of 39 - * * * * * * C O N T E N T S * * * * * * 1 General Information.............................................................................................................................. 3 2 Identification of Equipment (FCC Rule, 2.925)................................................................................. 10 3 Test data.............................................................................................................................................. 11 3.1 RF Power Output (FCC Rule, 2.1046).................................................................................................. 11 3.2 Modulation Characteristics (FCC Rule, 2.1047).................................................................................. 14 3.3 Occupied Bandwidth (FCC Rule, 2.1049) ............................................................................................ 22 3.4 Spurious Emissions at Antenna Terminal (FCC Rule, 2.1051) ............................................................ 24 3.5 Field Strength of Spurious Radiation (FCC Rule, 2.1053) ................................................................... 28 3.6 Frequency Stability (FCC Rule, 2.1055) ............................................................................................... 30 3.7 Suppression of Interference Aboard Ships (FCC Rule, 80.217) .......................................................... 33 4 Photographs to Reveal Equipment Construction and Layout (FCC Rule, 2.1033)...................... 37 5 Description of Circuitry and Devices (FCC Rules, 2.1033)............................................................. 38 6 Operator’s Manual Incl. Circuit Diagrams (FCC Rule, 2.1033)....................................................... 39 Attachment A [ Test data for 3.4 Spurious Emissions at Antenna Terminal ] Attachment B [ Test data for 3.5 Field Strength of Spurious Radiation ] Attachment C [ Test data for 3.7 Suppression of Interference Aboard Ships ] Attachment D [ List of Test/ Measuring Equipment ] Furuno Labotech International Report no.: FLI 12-05-025 Form: Q053/01 - Page 3 of 39 - 1 General Information 1.1 General (a) Manufacturer: Furuno Electric Co., Ltd. Ashihara-cho 9-52, Nishinomiya-city, 662-8580 Japan (b) Model: FR-8062 Type Serial Number Display unit RDP-150 4332-0002 Antenna unit (*) RSB-0070Antenna rotation rate: 24 rpm RSB-0073 24/36/48 rpm Transceiver: RTR-085 Contained in Antenna unit Radiator (*): XN12A XN13A Note: (*) - 1 (one) selectable (c) Primary Function: Search, Navigation and anticollison (d) Discrimination Range Discrimination:20 meters on a range scale of 1.5 nm Bearing Discrimination: Radiator type: XN12A XN13A Discrimination (°):1.90 1.35 (e) Minimum Range: 20 meters on a range scale of 0.25 nm (f) Frequency Range: Fixed frequency, X-band Type of Emission: P0N (g) Power Supply: 12 - 24 VDC 1.2 Antenna Unit 1.2.1 Transceiver Type: RTR-085 (1) Transmitter (a) Assignable Frequency for Shipborne Radar: Between 9300 and 9500 MHz (FCC Rule, 80.375 (d)-(1)) (b) Type of RF Generator Magnetron Type: MAF1422B , MG4006 Peak Output Power: 6 kW nominal 6 kW nominal Furuno Labotech International Report no.: FLI 12-05-025 Form: Q053/01 - Page 4 of 39 - (c) Magnetron Ratings Center frequency of Magnetron:9410 MHz Tolerances MAF1422B MG4006 Manufacturing: 30 MHz 30 MHz Pulling: 18 MHz 30 MHz Tolerance for 20°C temperature variation: -5 MHz -5 MHz (d) Guard Band: Guard Band is specified to be equal to 1.5/T MHz, where "T" is the pulselength in microseconds. See para (e). (FCC Rule, 80.209(b)) (e) Pulse Characteristics: Range Scale (nm) (Short ) (Middle)(Long 1)(Long 2) (Long 3) 0.125 0.25 0.5 0.75 1.0 1.5 1.5 2 3 3 4 6 8 12 16 24 36 48 64 72 Pulselength (s) 0.08 0.30 0.80 0.80 0.80 P.R.R.(Hz) 2100 1200 600 550 500 Duty cycle 1.68X10 -4 3.60X10 -4 4.80X10 -4 4.40X10 -4 4.00X10 -4 Guard Band (MHz) 18.75 5.00 1.88 1.88 1.88 Note 1: Tests were carried out for the underlined Range Scales. (2) Modulator (a) FET Type: 2SK1450 Trigger Voltage: Approx. +20 VDC positive Furuno Labotech International Report no.: FLI 12-05-025 Form: Q053/01 - Page 5 of 39 - (3) Receiver (a) Passband (MHz) RF Stage: 60 MHz IF Stage: Pulselength Short Middle Long 1Long 2Long 3 (MHz) 40 2.5 2.5 2.5 2.5 (b) Gain (overall) (dB): Sufficient to cause limiting, approximately 100 (c) Overall Noise Figure (dB): 5.0 (typical) (d) Video Output Voltage (V): 4 V negative (e) Features Provided: Sensitivity Time Controls (Anti-clutter Sea), Fast Time Constant (Anti-clutter Rain) (f) If receiver is tunable, describe method of adjusting frequency: Adjustment of tuning voltage of receiver local oscillator (Automatic and manual) 1.2.2 Antenna (a) Antenna Rotation ON-OFF Switch: Not Provided. (b) Reflector: Slotted array antenna Radiator type: XN12A XN13A Length (cm): 120 180 Length (ft): 3.9 5.9 (c) Type of Beam: Vertical fan (d) Beam Width (between half-Radiator power points) Radiator type: XN12A XN13A Horizontal 1.90° …

Text truncated - open the document above for the full version.
