ADB9ZWRTR093AMarine Radar

Federal Communications Commission Office of Engineering and Technology 445 12th Street, SW Washington, DC 20554 To whom it may concern, We hereby respectfully request that under the provision of KDB Publication 726920 & rule sections 0.457 and 0.459, the following documents submitted in support of this application for ADB9ZWRTR093A certification be provided with confidential status. Schematics Parts list/Tune up info Operational description These documents contain trade secrets that are treated as confidential by us. Substantial competitive harm to our company business could result should they be made available to the public. Best regards, Shane Ryan Type Acceptance Commercial Service FURUNO USA Inc. (360) 834-9300 X5060 (360) 834- 833-5195 [email protected]

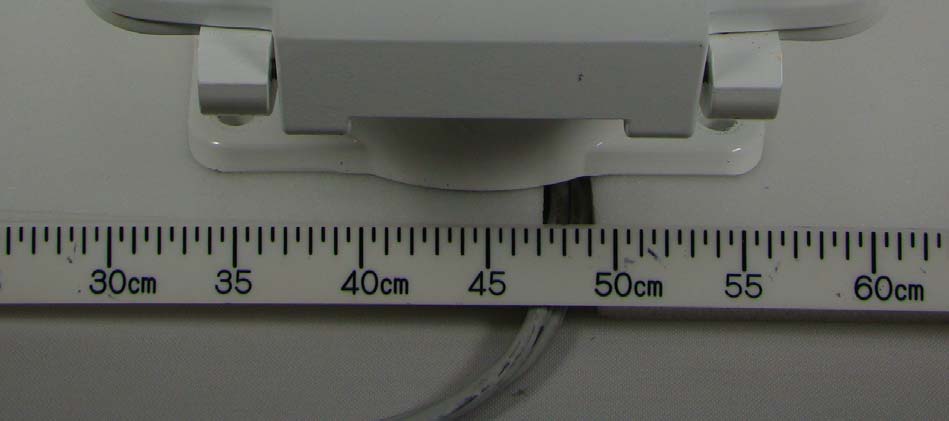

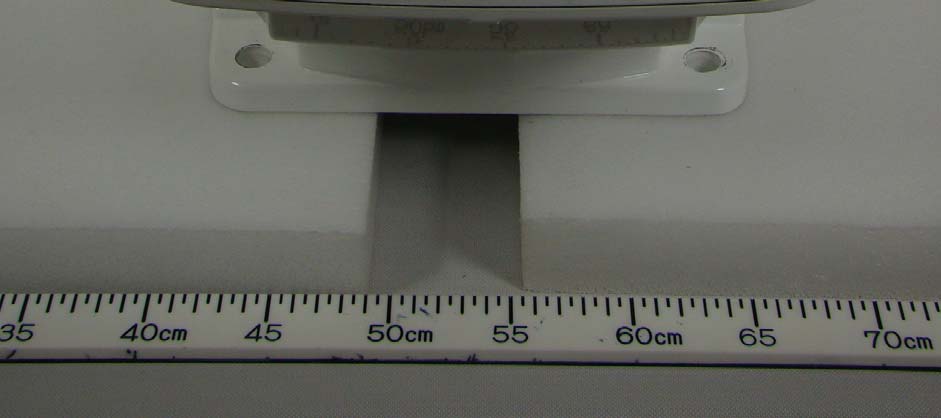

Furuno Labotech International Co., Ltd. Document number: FLI 01-11-042 Date of issue: 10 June 2011 - Page 1 of 3 - Photographs of Furuno Radar Sensor DRS6A with Transceiver RTR-093A 1 External View 1.1 Front View (without Antenna Radiator) Furuno Labotech International Co., Ltd. Document number: FLI 01-11-042 Date of issue: 10 June 2011 - Page 2 of 3 - 1.2 Rear View ID Label is affixed on the Scanner case. Furuno Labotech International Co., Ltd. Document number: FLI 01-11-042 Date of issue: 10 June 2011 - Page 3 of 3 - 1.3 Name Plate (ID Label)

 Furuno Labotech International Document number: FLI 01-11-048 Date of issue: 10 June 2011 Form: Q053/01 - Page 1 of 2 - Identification of Equipment for the Furuno Radar Sensor DRS6A with Transceiver RTR-093A included (FCC Rule, 2.925) 1 ID Label The following nameplates are permanently fixed on the corresponding equipment units. FCC ID: ADB9ZWRTR093A Material of Nameplate: Polyester film, 0.2 mm thick  Furuno Labotech International Document number: FLI 01-11-048 Date of issue: 10 June 2011 Form: Q053/01 - Page 2 of 2 - 2 ID Label Location ID Label is affixed on the Scanner case.

Furuno Labotech International Co., Ltd. Document number: FLI 01-11-043 Date of issue: 10 June 2011 - Page 1 of 9 - Photographs of Furuno Radar Sensor DRS6A with Transceiver RTR-093A 1 Internal View 1.1 Inside View (with Top cover opened, showing Scanner Motor (upper) and Transceiver RTR-093A (lower)) Furuno Labotech International Co., Ltd. Document number: FLI 01-11-043 Date of issue: 10 June 2011 - Page 2 of 9 - 1.2 Transceiver Top View Furuno Labotech International Co., Ltd. Document number: FLI 01-11-043 Date of issue: 10 June 2011 - Page 3 of 9 - 1.3 Transceiver Right Side View Furuno Labotech International Co., Ltd. Document number: FLI 01-11-043 Date of issue: 10 June 2011 - Page 4 of 9 - 1.4 Transceiver Top View (with Shield-cover removed, showing MD Board 03P9450 (upper) and PWR Board 03P9452 (lower)) Furuno Labotech International Co., Ltd. Document number: FLI 01-11-043 Date of issue: 10 June 2011 - Page 5 of 9 - 1.5 Transceiver Right Side View (with Shield-cover removed, showing Magnetron MAF1422B) Magnetron MD Board Furuno Labotech International Co., Ltd. Document number: FLI 01-11-043 Date of issue: 10 June 2011 - Page 6 of 9 - 1.6 Transceiver Rear side View Magnetron Isolator Limiter Filter Circulator Furuno Labotech International Co., Ltd. Document number: FLI 01-11-043 Date of issue: 10 June 2011 - Page 7 of 9 - 1.7 Transceiver Bottom View Furuno Labotech International Co., Ltd. Document number: FLI 01-11-043 Date of issue: 10 June 2011 - Page 8 of 9 - 1.8 Transceiver Bottom View (with Shield-cover removed) Furuno Labotech International Co., Ltd. Document number: FLI 01-11-043 Date of issue: 10 June 2011 - Page 9 of 9 - 1.9 Transceiver Bottom View (with shield-covers removed, showing SPU Board 03P9455 (upper) and NMEA2000 Board 03P9462 (lower)) RXM Module

This report shall not be reproduced except in full, without the written approval of Furuno Labotech International Co., Ltd. Test Report (FCC Rules 2.1046/2.1047/2.1049/2.1051/2.1053/2.1055/80.217) For Trade name: Furuno Model: Transceiver for Radar Sensor DRS6A Type: RTR-093A Report no.: FLI 12-11-073 Date of issue: 10 June 2011 Furuno Labotech International Co., Ltd. 9-52 Ashihara-cho, Nishinomiya City, Hyogo 662-8580, Japan Tel: +81-798-63-1094 Fax: +81-798-63-1098 Furuno Labotech International Report no.: FLI 12-11-073 Form: FQ053/04 - Page 2 of 39 - Report Summary FLI project number: FLI 04-10-0337 Test report number: FLI 12-11-073 Date of Initial Issue: 10 June 2011 Revision number: --- Date of Revised Issue: --- Test report revision made: Rev. no. Date PageItemDescription of change --- --- --- --- --- Test standard(s)/ Test specifications: FCC 47 CFR, Sections: 2.1046 - RF Power Output, 2.1047 - Modulation Characteristics, 2.1049 - Occupied Bandwidth, 2.1051 - Spurious Emissions at Antenna Terminal, 2.1055 - Frequency Stability, 2.1053 - Field Strength of Spurious Radiation, 80.217 - Suppression of Interference Aboard Ships. (Date of issue: 1 October 2009) Customer: Furuno Electric Co., Ltd. 9-52 Ashihara-Cho, Nishinomiya-City, 662-8580 Japan Manufacturer: Furuno Electric Co., Ltd. 9-52 Ashihara-Cho, Nishinomiya-City, 662-8580 Japan Trade name: FURUNO Model: Transceiver for RADAR SENSOR DRA6A Type: RTR-093A Product function and intended use: For Maritime Safety Navigation Number of samples tested: One Serial number: 4388-0001 Power rating: 12 - 24 VDC, 92 W (For PSU-012) Product status: Pre-production model Modifications made to samples during testing: None. Date of receipt of samples: 12 April 2011 Test period: 12 April 2011 to 28 April 2011 Place of test: Furuno Labotech International Co., Ltd. - Nishinomiya Lab. 9-52 Ashihara-Cho, Nishinomiya City, Hyogo Prefecture, 662-8580 Japan - Nishinomiya-Hama Lab. 2-20 Nishinomiya-Hama, Nishinomiya City, Hyogo Prefecture, 662-0934 Japan Anechoic Chamber used for the test has been registered by FCC. (File number: 90607) Test results/ Compliance: Passed. The test results of this report relate only to the samples tested. Tested by: Akira Inoue Written by: Akiko Inoue Verified by: Yoshihiro Ishii Approved by: Date: 10 June 2011 Name: Yoshihiro Ishii Title: Manager, Technical Section, Furuno Labotech International Co., Ltd. Signature: Furuno Labotech International Report no.: FLI 12-11-073 Form: FQ053/04 - Page 3 of 39 - Testing Laboratory Status Furuno Labotech International Co., Ltd. (hereafter called FLI) has been holding the following status after having been assessed according to the provisions of ISO/IEC 17025 and/or the relevant rules: (1) Telefication Listed Testing Laboratory: - listed by Telefication B. V., Edisonstraat 12a, 6902 PK Zevenaar, The Netherlands - Laboratory assignment number: L116 - Date of initial listing: 26 July 1999 (*) - for testing the following product categories/ test standards: - EN 60945, IEC 61162-1/-2, and IEC 62288 for Maritime navigation and radiocommunication equipment and systems (2) BSH Recognized Testing Laboratory: - recognized by Bundesamt für Seeschifffahrt und Hydrographie, Bernhad-Nocht-Str. 78, 20359 Hamburg, Federal Republic of Germany - Recognition certificate number: BSH4613/06201/0835/08 - Date of initial recognition: 4 April 2003 (*) - for testing the following product categories/ test standards: - IEC/EN 60945, IEC 62388, IEC 61162-1/-2, and IEC 62288 for Marine navigational and radiocommunication equipment and systems (3) TÜV Appointed EMC Test Laboratory: - appointed by TÜV Rheinland Japan Ltd., 19-5 Shin Yokohama 3-chome, Kohoku-ku, Yokohama 222-0033 Japan - Laboratory assignment number: UA 50046428 - Date of initial appointment: 21 December 1998 (*) - for carrying out the tests of: - EN 55022, CISPR 22, EN 61000-3-2/-3, EN/IEC 61000-4-2/-3/-4/-5/-6/-8/-11, EN/IEC 61000-6-1/-2, EN/IEC 61000-6-3/-4, EN/IEC 60945, EN/IEC 61326-1, EN/IEC 61326-2-6, EN/IEC 60601-1-2, JIS T 0601-1-2, JIS C 1806-1, EN 55011, CISPR 11. (4) RMRS Recognized Testing Laboratory: - recognized by Russian Maritime Register of Shipping, 8, Dvortsovaya Nab., St. Petersburg, 191186 Russia - Laboratory recognition number : 09.00110.011 - Date of initial recognition : 27 January 2009 (*) - for carrying out testing in the field of : 21001301 Elecrtrical measurements and tests, 21001302 EMC tests, 21001500 Mechanical measurements and tests, 21002000 Equipment protection degree tests, and 21002100 Climatic tests for Ship’s radio and navigational equipment and IEC 60945 : 2002 Note: (*) – The current certificates may be found in the FLI web site (http://www.furuno-labotech.co.jp). Furuno Labotech International Report no.: FLI 12-11-073 Form: FQ053/04 - Page 4 of 39 - TABLE OF CONTENTS Testing Laboratory Status ............................................................................................................. 3 1 Principal Information ................................................................................................................... 5 1.1 Equipment under test (EUT) ................................................................................................... 5 1.2 Observation and comments .................................................................................................... 8 2 Test Results Summary ................................................................................................................ 8 3 Test Results .................................................................................................................................. 9 3.1 RF Power Output (FCC Rule, 2.1046) ..................................................................................... 9 3.2 Modulation Characteristics (FCC Rule, 2.1047) ....................................................................... 9 3.3 Occupied Bandwidth (FCC Rule, 2.1049) ........................................…
