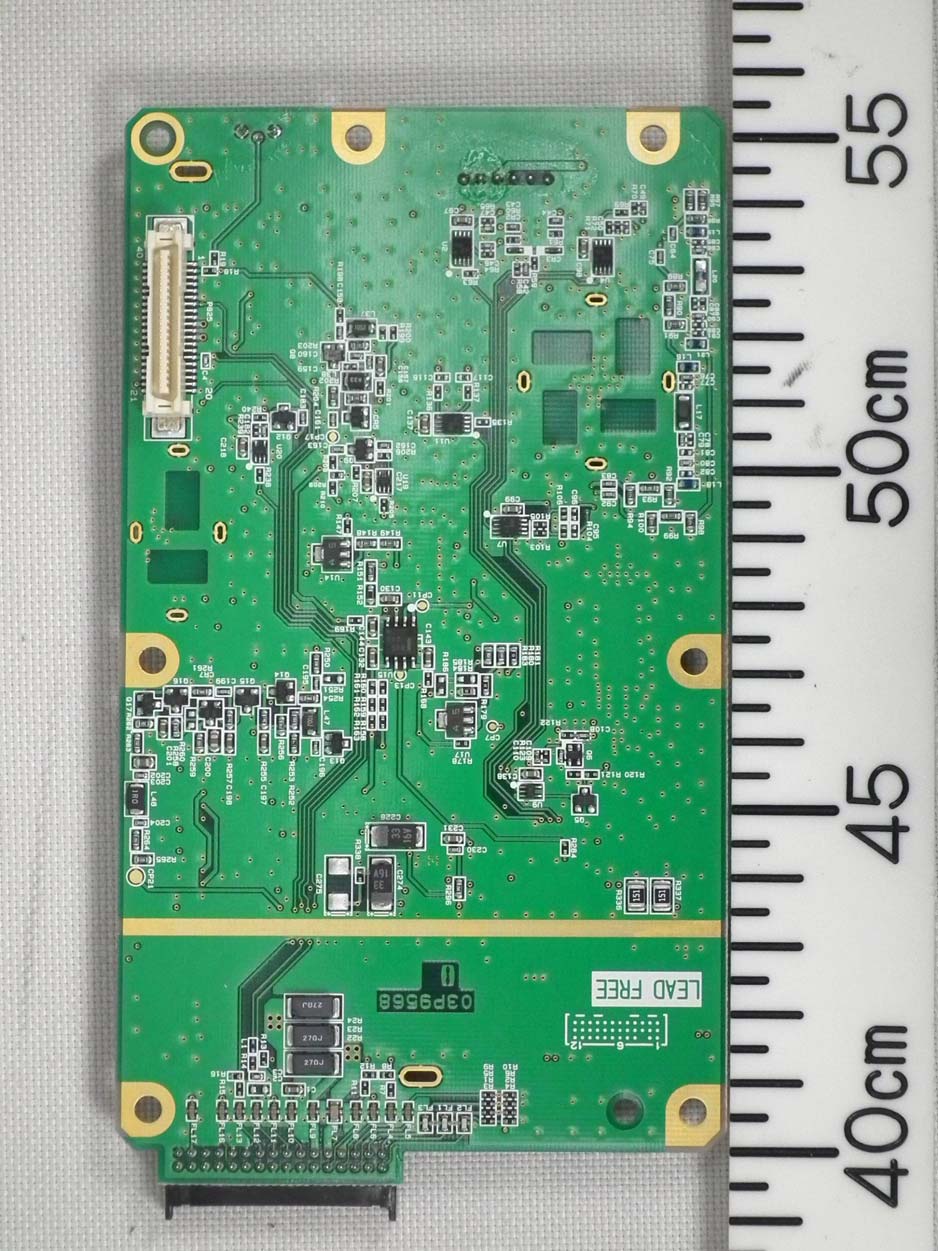

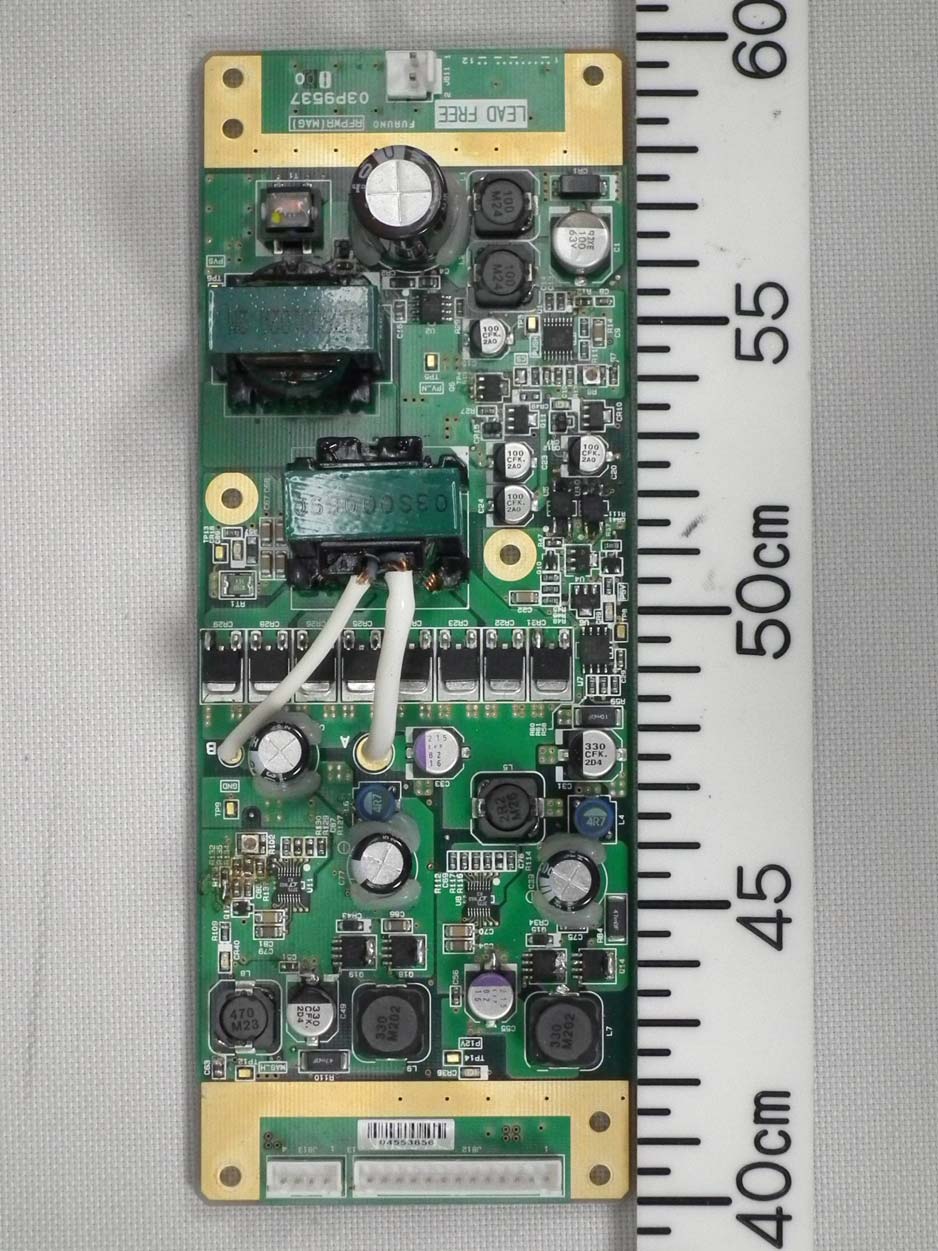

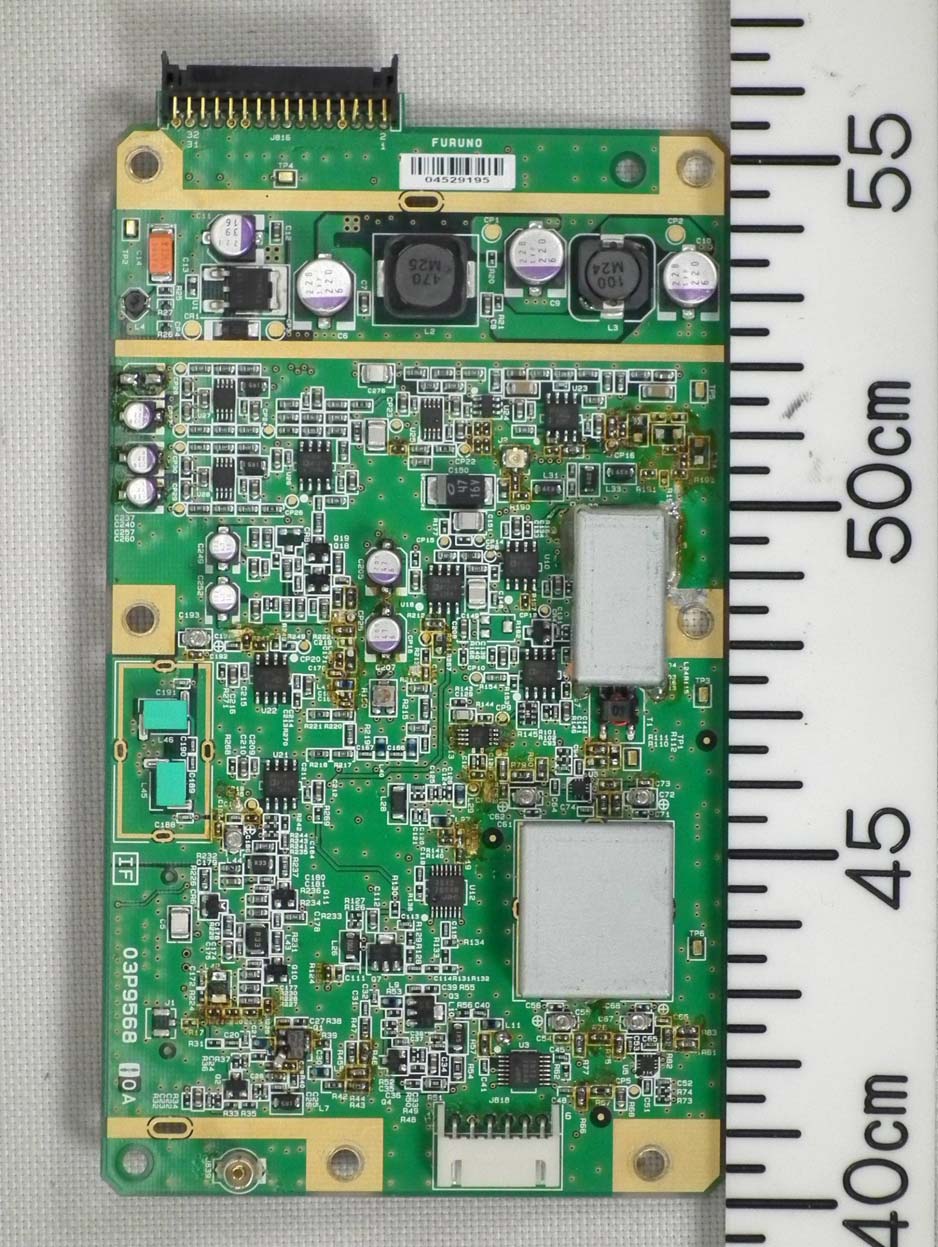

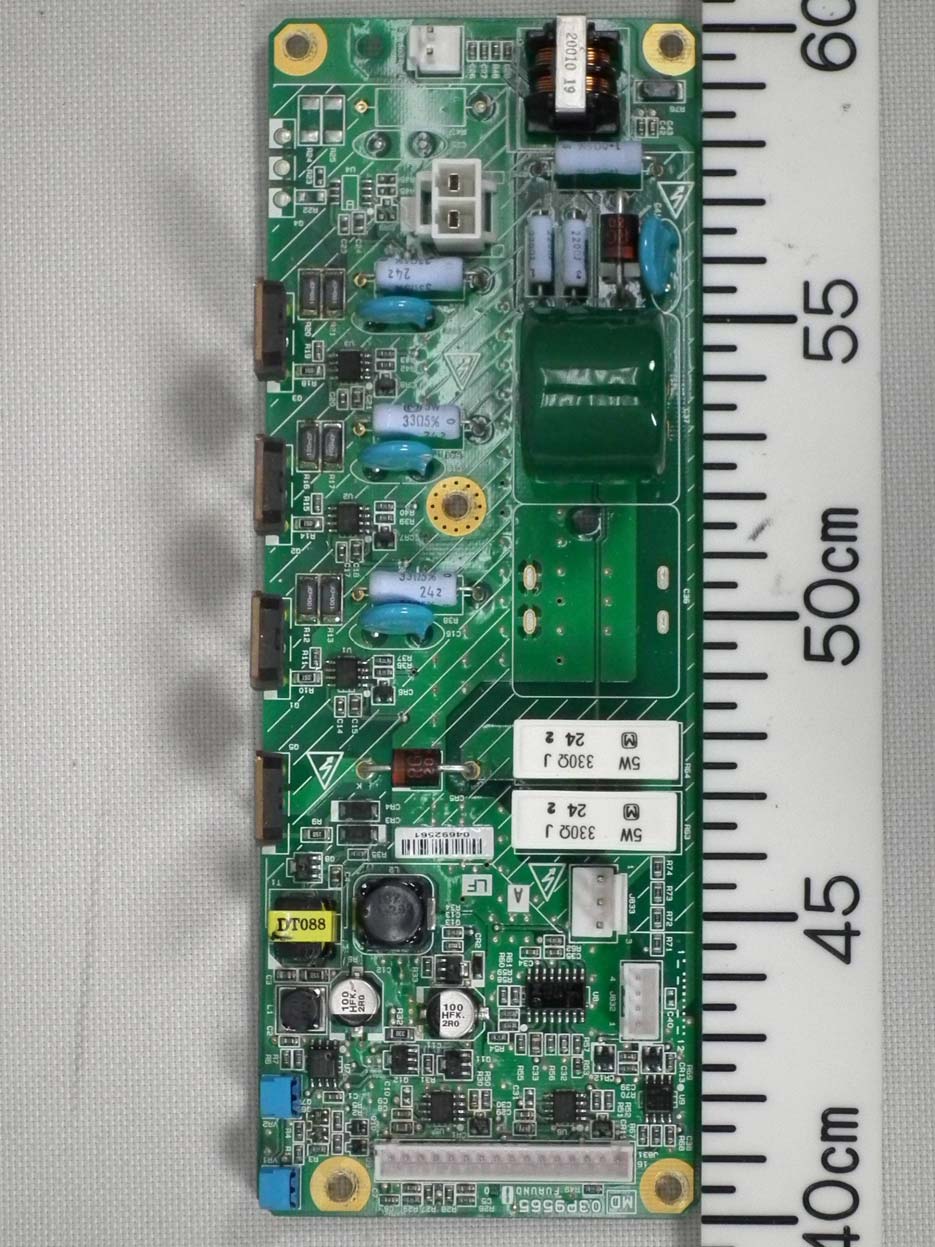

ADB9ZWRTR105Transceiver for Radar model FAR-3210/3310

OPERATOR'S MANUAL www.furuno.com CHART RADAR FAR-3210 FAR-3220 FAR-3230S FAR-3230S-SSD FAR-3310 FAR-3320 FAR-3330S FAR-3330S-SSD FAR-3320W FAR-3330SW FAR-3210-BB FAR-3220-BB FAR-3230S-BB FAR-3230S-SSD-BB FAR-3220W-BB FAR-3230SW-BB Model (Product Name: MARINE RADAR) The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN A:APR2014 . Printed in Japan All rights reserved. B2:DEC.15, 2014 Pub. No. OME-36160-B2 ( YOTA ) FAR-3000SERIES 0 0 0 1 7 8 0 2 7 1 1 i IMPORTANT NOTICES General How to discard this product Discard this product according to local regulations for the disposal of industrial waste. For disposal in the USA, see the homepage of the Electronics Industries Alliance (http://www.eiae.org/) for the correct method of disposal. How to discard a used battery Some FURUNO products have a battery(ies). To see if your product has a battery, see the chapter on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals of battery before disposal to prevent fire, heat generation caused by short circuit. In the European Union The crossed-out trash can symbol indicates that all types of batteries must not be discarded in standard trash, or at a trash site. Take the used batteries to a battery collection site according to your national legislation and the Batteries Directive 2006/66/EU. In the USA The Mobius loop symbol (three chasing arrows) indicates that Ni-Cd and lead-acid rechargeable batteries must be recycled. Take the used batteries to a battery collection site according to local laws. In the other countries There are no international standards for the battery recycle symbol. The number of symbols can increase when the other countries make their own recycle symbols in the future. • This manual has been authored with simplified grammar, to meet the needs of international users. • The operator of this equipment must read and follow the descriptions in this manual. Wrong oper- ation or maintenance can cancel the warranty or cause injury. • Do not copy any part of this manual without written permission from FURUNO. • If this manual is lost or worn, contact your dealer about replacement. • The contents of this manual and equipment specifications can change without notice. • The example screens (or illustrations) shown in this manual can be different from the screens you see on your display. The screens you see depend on your system configuration and equipment settings. • Save this manual for future reference. • Any modification of the equipment (including software) by persons not authorized by FURUNO will cancel the warranty. • All brand and product names are trademarks, registered trademarks or service marks of their re- spective holders. • “C-MAP” means “C-MAP by Jeppesen” in this manual. • Windows is a registered trademark of the Microsoft Corporation of the USA and other countries. Cd Ni-CdPb ii SAFETY INSTRUCTIONS The operator must read the safety instructions before attempting to operate the equipment. The radar antenna emits electromagnetic radio frequency (RF) energy that can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the transmitting antenna at a close distance. Distances at which RF radiation level of 100, 50 and 10 W/m 2 are given in the table below. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. 100W/m 2 Radar model FAR-3220/ FAR-3320/ FAR-3220-BB FAR-3210/ FAR-3310/ FAR-3210-BB FAR-3230S/ FAR-3330S/ FAR-3230S-BB FAR-3330SW/ FAR-3230SW-BB FAR-3320W/ FAR-3220W-BB TransceiverMagnetronAntenna 10W/m 2 50W/m 2 Warning, CautionProhibitive Action Mandatory Action Radio Frequency Radiation Hazard WARNING CAUTION WARNING RTR-105 FNE1201 XN12CF XN20CF XN24CF RTR-106 MG5436 XN12CF XN20CF XN24CF RTR-108 MG5436 XN20CF XN24CF RTR-107 MG5223F SN36CF RTR-109 MG5223F SN36CF Magnetron radar 100W/m 2 Radar model FAR-3230S-SSD/ FAR-3330S-SSD/ FAR-3230S-SSD-BB TransceiverAntenna 10W/m 2 50W/m 2 RTR-111 SN36CF Solid state radar N/A N/A N/A 1.0 m 0.5 m4.6 m 0.6 m 1.4 m4.4 m 0.4 m 0.9 m3.0 m 0.3 m 0.6 m2.5 m 1.3 m 2.7 m9.5 m 1.0 m 1.7 m6.8 m 0.7 m 1.3 m5.5 m N/A 0.26 m2.3 m 0.5 m 1.2 m5.5 m 0.3 m 0.9 m4.0 m SAFETY INSTRUCTIONS iii WARNING Do not open the equipment. The equipment uses high voltage that can cause electrical shock. Refer any repair work to a qualified technician. Before turning on the radar, be sure no one is near the antenna. Prevent the potential risk of being struck by the rotating antenna, which can result in serious injury or death. If water leaks into the equipment or something is dropped into the equipment, immediately turn off the power at the switchboard. Fire or electrical shock can result. If the equipment is giving off smoke or fire, immediately turn off the power at the switchboard. Fire or electrical shock can result. If you feel the equipment is acting abnormally or giving off strange noises, immediately turn off the power at the switchboard and contact a FURUNO service techni- cian. Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Make sure no rain or water splash leaks into the equipment. Fire or electrical shock can result if water leaks into the equipment. Do not place liquid-filled containers on or near the equipment. Fire or electrical shock can result if a liquid spills into the equipment. Do not operate the equipment with wet hands. Electrical shock can result. Keep objects away from the open- type antenna unit, so as not to impede rotation of the antenna. Fire, electrical shock or serious injury can result. Use the proper fuse. Use of the wrong fuse can cause fire or damage the equipment. The TT function is a valuable…

Text truncated - open the document above for the full version.

www.furuno.com All brand and product names are trademarks, registered trademarks or service marks of their respective holders. Installation Manual CHART RADAR Model FAR-3210(-BB)/3220(-BB)/ 3310/3320 (Product Name: Marine Radar) SAFETY INSTRUCTIONS ........................i SYSTEM CONFIGURATION ..................iii EQUIPMENT LIST ..................................vi 1. INSTALLATION...............................1-1 1.1 Antenna Unit .......................................1-1 1.2 Monitor Unit.........................................1-6 1.3 Radar Control Unit, Trackball Control Unit .........................................1-7 1.4 Power Supply Unit ............................1-10 1.5 Processor Unit ..................................1-11 1.6 Sensor Adapters (option) ..................1-13 1.7 Intelligent Hub (option)......................1-14 1.8 Switching Hub (option)......................1-15 1.9 Junction Box (option) ........................1-15 2. WIRING............................................2-1 2.1 Overview .............................................2-1 2.2 Antenna Unit .......................................2-3 2.3 Processor Unit ..................................2-12 2.4 Power Supply Unit ............................2-23 2.5 Monitor Unit.......................................2-27 2.6 Sensor Adapters (option) ..................2-29 2.7 LAN Signal Converter Kit (option).....2-47 2.8 Junction Box (option) ........................2-54 2.9 Intelligent HUB (option).....................2-56 2.10 How to Extend the Control Unit Cable (option) ...................................2-57 3. SETTINGS AND ADJUSTMENTS ..3-1 3.1 How to Access the Radar Installation Menu ...................................................3-1 3.2 How to Align the Heading ...................3-1 3.3 How to Adjust the Sweep Timing ........3-2 3.4 How to Suppress Main Bang ..............3-3 3.5 Dual Radar Display .............................3-3 3.6 Other Settings .....................................3-6 4. INPUT/OUTPUT DATA................... 4-1 4.1 Processor Unit ....................................4-1 4.2 IEC 61162 Sentences .........................4-2 APPENDIX 1 JIS CABLE GUIDE ..... AP-1 APPENDIX 2 ROD TERMINALS ...... AP-2 APPENDIX 3 DIGITAL INTERFACE .................................... AP-7 PACKING LISTS ................................. A-1 OUTLINE DRAWINGS ........................ D-1 INTERCONNECTION DIAGRAMS ..... S-1 The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN A:APR2014 . Printed in Japan All rights reserved. C1:NOV.18, 2014 Pub. No. IME-36160-C1 ( AKMU ) FAR-3210 0 0 0 1 7 8 0 3 1 1 2 i SAFETY INSTRUCTIONS Mandatory Action Prohibitive Action WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, can result in minor or moderate injury. Warning, Caution WARNING Radio Frequency Radiation Hazard * XN12CF: 4 ft, XN20CF: 6.5 ft, XN24CF: 8 ft DANGER Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. Wear a safety belt and hard hat when working on the antenna unit. Serious injury or death can result if someone falls from the radar antenna mast. DANGER ModelTransceiverAntenna* 100 W/m 2 50 W/m 2 10 W/m 2 FAR-3210(-BB) FAR-3310 RTR-105 (12 kW) XN12CF XN20CF XN24CF FAR-3220(-BB) FAR-3320 RTR-106 (25 kW) The radar antenna emits electromagnetic radio frequency (RF) energy which can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the transmitting antenna at a close distance. Distances at which RF radiation level of 100, 50 and 10 W/m 2 are given in the table below. If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. See the installation manual for how to manage blind sectors. The installer of the equipment must read the applicable safety instructions before attempting to install the equipment. XN12CF XN20CF XN24CF 0.6 m 0.4 m 0.3 m 1.3 m 1.0 m 0.7 m 1.4 m 0.9 m 0.6 m 2.7 m 1.7 m 1.3 m 4.4 m 3.0 m 2.5 m 9.5 m 6.8 m 5.5 m SAFETY INSTRUCTIONS ii CAUTION Observe the following compass safe distances to prevent deviation of a magnetic compass: Note: For more information, please refer to IMO SN/Circ.271 “Guidelines for the installa- tion of shipborne radar equipment.” Do not open the equipment unless totally familiar with electrical circuits and service manual. Only qualified personnel are allowed to work inside the equipment. WARNING ELECTRICAL SHOCK HAZARD Construct a suitable service platform from which to install the antenna unit. Serious injury or death can result if someone falls from the radar antenna mast. Turn off the power at the mains switchboard before beginning the installation. Fire, electrical shock or serious injury can result if the power is left on or is applied while the equipment is being installed. Be sure that the power supply is compatible with the voltage rating of the equipment. Connection of an incorrect power supply can cause fire or damage the equipment. Use only the specified power cable. Fire or damage to the equipment can result if a different cable is used. Do not install the monitor unit, processor unit, power supply unit or control unit in a dusty environment, orone where the units may get wet from rain or water splash. Dust or water in the units can result in fire, electrical shock, or damage to the equipment. Attach protective earth securely to the ship's body. The protective earth (grounding) is required for the AC power supply to prevent electrical shock. Antenna Unit (12 kW) Standard compass 2.15 m1.40 m Antenna Unit (25 kW) 2.45 m1.60 m Monitor Unit (MU-231) …

Text truncated - open the document above for the full version.

2-1 2.WIRING 2.1Overview Cabling considerations To lessen the chance of picking up electrical interference, avoid where possible rout- ing the antenna cable (power and LAN lines) near other onboard electrical equipment (radars, TX radio antennas, etc.). Also avoid running the cable in parallel with power cables. When crossing with other cable, the angle must be 90° to minimize the mag- netic field coupling. The antenna cable between the antenna and processor units is available in lengths of 15 m, 30 m, 40 m, and 50 m. Whatever length is used, it must be unbroken; namely, no splicing allowed. Use the antenna cable as short as possible to minimize attenua- tion of the signal. The radar must be connected to an emergency power source, as required by SOLAS II-1. About network construction About wiring • Use the optional Switching Hub HUB-100 to connect the sensor networks. For the gate- way networks, use the optional Intelligent Hub HUB-3000. • Do not connect the ship’s LAN network to the optional HUBs. Also, commercial PCs cannot be connected to the gateway network, other than for maintenance. • To connect the FEA-2xx7, FMD-32xx, FAR-2xx7, FCR-2xx9 via LAN network, use the INS network. • Use the optional USB cable (type: OP24-32) to connect to the USB port on the control unit. • The length of the USB cable must be within 5 m to prevent equipment trouble. • The length of LAN cables must be within 50 m. • Use the Cat5e or Cat6 LAN cable for the network if available locally. • If LAN cables are not available locally, use the optional LAN cables (FR-FTPC-CY for sensor network, DTI-C5E350 VCV for gateway network). • If extension or division of the DVI or RGB cables is necessary, use the dividers shown below. • DVI cable divider: DVI-12A (maker: IMAGENICS) • RGB divider: CIF-12H, DD-106 or WBD-14F (maker: IMAGENICS) • Make sure that the ground wires are connected between the ground terminals on each equipment and the ship’s earth. • If a UPS (user supply) is connected to this equip- ment, be sure that the grounding lamp does not light. • The output from the UPS must be a sine wave, as in the right figure. 50Hz 60Hz 2. WIRING 2-2 Standard wiring A Cat 5e LAN cable (RW-00135) connects between the antenna unit and the PSU. The maximum length of the cabling between the Processor Unit and the antenna unit is 80 m. Retrofit (using antenna cable RW-4873/6896/9600) or foremast installation is also possible, with the installation of a pair of LAN Signal Converters, one in the antenna unit, the other in the PSU. See section 2.7. 100-230 VAC RW-00135 15/30/40/50 m DPYC-2.5 : Cable requires fabrication DSUB9P-DSUB9P 5 m/10 m Processor Unit EC-3000 100-230 VAC DVI-D/D SINGLE LINK 5 m/10 m LAN: DTI-C5E 350 VCV (10/20/30 m) or Cat 5e LAN cable (local supply) Power Supply Unit PSU-014 Sensor Adapter or HUB-100 Serial: TTYCS-1Q FR-FTPC-CY 100-230 VAC GYRO, AIS TTYCS-4 x2 GPS, LOG, E/S, WIND, ALARM, NAVTEX, etc. TTYCS-1Q x5 5 m (for USB) 30 m x2 TTYCS-10 System fail, Power fail, Normal close 1/2, Normal open 1/2, ACK IN Monitor Unit DPYC-1.5 VDR RGB cable IEC60320-C13-L5M HUB-3000 5 m (for USB) 30 m Sub monitor RW-00136 15/30/40/50 m 100-115/ 100-230 VAC USB memory Radar Control Unit RCU-025 Trackball Control Unit RCU-026 USB memory LANPower Antenna Unit MU-190 (for FAR-3210/3220) MU-231 (for FAR-3310/3320) De-icer 100-115/220-230 VAC DPYCY-1.5 DTI-C5E 350 VCV (10/20/30 m) 2. WIRING 2-3 2.2Antenna Unit Three cables are connected to the antenna unit: antenna cable, cable for the sub mon- itor (option) and power cable for the deicer (option). The procedure shows how to con- nect all cables. Disregard the descriptions for the optional equipment if not applicable. 2.2.1How to fabricate the cables Antenna cable RW-00135 The end of the antenna cable RW-00135 which connects to the antenna unit is pre- fabricated. Antenna cable RW-9600/6895/4873 (for retrofit or foremast installation) RW-9600 (foremast or retrofit):The white, red, and green wires are not used. Attach a single crimp-on lug (FV5.5-S4(LF), yellow) locally to the wires. (These wires will be connected together with the shield of the power line, in the next section.) RW-6895/4873 (retrofit only): Fifteen wires are not used. Cut the wires and bind them with vinyl tape. Do not connect the wires to ground. Cable RW-00136 (for a sub monitor) Sheath Crimp-on lug ShieldShield 3 9 0 390 SheathSheath Vinyl tape Coaxial cable Coaxial cable 6 365 14 5 9 4 0 0 400 4 0 0 400 Armor (clamp with cable clamp.) Armor (clamp with cable clamp.) Crimp-on lug Shield SheathSheath Vinyl tape Coaxial cable Braided shield 6 14 5 9 36 5 3 9 0 3 9 0 330330 4 5 0 4 5 0 2. WIRING 2-4 Cable DPYCY-1.5 (for the optional deicer) 2.2.2How to connect the cables Some parts or wiring have been omitted from the illustrations for clarity. 1. Unfasten four bolts from the rear cover to remove the rear cover. If the deicer is already installed or will be installed, remove two bolts inside the antenna to enable removal of the front cover. See Note 2. Note 1: The cable for the performance monitor is connected between the rear cover and the RF-TB Board in the antenna unit. Open the cover slowly to prevent damage to the cable and connector. Note 2: If the deicer is to be installed, spread open the right and left heater ele- ments on the cover, then remove the front cover, being careful not to hit the ele- ments on the radiator or chassis. Note 3: If this a retrofit or foremast installation, a LAN Signal Converter is re- quired, in both the antenna unit and the power supply unit. See section 2.7. Armor SheathSheath Crimp-on lug (FV2-M4) Wrap spiral tubing. Lay armor in cable clamp. SheathSheath Vinyl tape 6 10 900 36 NOTICE If there is a chance of inclement weather when the transceiver unit is removed, cover the intake on both covers with packing tape. Be sure to remove the tape after completing the installation. Intake 2. WIRING 2-5 2. Disconnect the performance monitor connector (J807) and the motor drive …

Text truncated - open the document above for the full version.

2. WIRING 2-23 2.4Power Supply Unit This procedure shows how to wire the power supply. For details see the interconnec- tion diagram. 1. Unfasten five screws to open the cover of the power supply unit. 2. Unfasten two screws from the cable clamp to separate the cable clamp assembly. 3. Pass the LAN and serial cables through the cable clamp. 4. As shown below, fabricate the cable TTYCS(LA)-1Q and the LAN cable. (They connect between the processor unit and the power supply unit.) TTYCS(LA)-1Q Cable clamp Cable clamp 1. Insert the cable.1. Insert the cable. 2. Pass the cable to next lane. 2. Pass the cable to next lane. LAN cable Serial cable Set the cable.Set the cable. 5 Drain wire Armor Sheath (Clamp here.) Vinyl tape 200 40 Pass the vinyl sheath (local supply) onto the drain wire, then attach the crimp-on lug (preattached to the earth clamp on the processor unit) to the wire. Crimp-on lug 4 3 2 1 5 30 60 2. WIRING 2-24 LAN cable See "How to fabricate the LAN cable" on page 2-14 for how to attach the LAN cable connector. 5. Connect the cables fabricated at step 4 as shown below. 6. Fabricate the antenna cable as shown below. RW-00135 See "How to fabricate the LAN cable" on page 2-14 for how to attach the LAN cable connector. RW-4873/6895/9600 SheathSheath Vinyl tape 40 30 280 Outer sheath Inner sheath Connect serial cable from processor unit to TB132 on PSU-TB Board. Connect serial cable from processor unit to TB132 on PSU-TB Board. Connect LAN cable from processor unit to J101 on PSU-CNTL Board. 43215 Clamp the sheath.Clamp the sheath. Clamp the inner sheath.Clamp the inner sheath. SheathSheath Armor Vinyl tape Crimp-on lug (M3) Braided shield LAN cable 6 170 100 40 30 100 Power line 250 Wrap the shield of LAN cable with vinyl tape. Crimp-on lug (M4) SheathSheath Armor 6 170 100 40 30 Crimp-on lug (M4) Power line Coaxial cable 14 5 9 180 Vinyl tape 2. WIRING 2-25 7. Pass the antenna cable through the cable clamp. 8. Connect the power line of the antenna cable to the 13-pin WAGO connector. 9. Connect the power line and the LAN cable of the antenna cable as shown below. 10. Connect the shield wires of the antenna cable and serial cable for the processor unit. 11. Reattach the cable clamp assembly. Insert the antenna cable.Insert the antenna cable. 43218765121110913 PinPinColorColor 1 Brown 3 Red 6 Orange 7 Yellow 8 Green 9 Blue 11 Purple 12 White For retrofit antenna cable, connect unused lines here. Connect power line of antenna cable to TB131 on PSU-TB Board. Connect power line of antenna cable to TB131 on PSU-TB Board. Connect LAN cable of antenna cable to J102 on PSU-CNTL Board. 43218765121110913 Ground the LAN cable. Clamp the armor. Grounding point (for antenna cable)Grounding point (for antenna cable) Grounding point (for serial cable for processor unit) Grounding point (for serial cable for processor unit) 2. WIRING 2-26 12. Remove the connector cover for the power cable (2 places). 13. Fabricate the power cable (DPYC-2.5) as shown below. 14. Pull up the plastic cover and connect the power cable. 15. Remount the connector cover for the power cable. 16. Reattach the cover of the power supply unit. Connector cover of power cable Plastic cover Vinyl tape Armor FV2-4 35 25 30 Sheath (Clamp here.)Sheath (Clamp here.) 2. WIRING 2-27 2.5Monitor Unit For the wiring of the monitor unit MU-190/231, see the operator’s manual supplied with the monitor unit. Mounting considerations zStandard type • Connect the radar main monitor to the DVI1 and COM1 ports. • Connect the sub radar monitor to the DVI2 and COM2 ports. zVDR connection, ask your dealer To connect a VDR, it is necessary to output data in analog format. See the instal- lation manuals for the VDR to prepare the cables to use. To connect a VDR to the DVI3 port, use the optional DVI-BNCX5-L2000 cable to output the RGB signal from the DVI-I. Adjustment of the output is necessary. The [INSTALLATION SETTING] menu appears only when the power is turned on for the first time after installation of the monitor unit. Adjust the settings referring to the following table. *: [DVI PWR SYNC] is the slide switch at the bottom rear of the monitor unit. Confirm that this switch is set to [ON] (default setting). See Slide switch below for details. EXT BRILL CTRL SERIAL BAUD RATE COLOR CALIBRATION KEY LOCK DVI PWR SYNC* RS-4854800bpsONONON INSTALLATION SETTING EXT BRILL CTRL SERIAL BAUDRATE COLOR CALIBRATION KEY LOCK SAVE AND EXIT RS-485 4800bps ON ON YES (OFF/DVI1/DVI2/RS-232C/RS-485/USB) (4800/9600/19200/38400) (OFF/ON) (OFF/ON) (NO/YES) Menu Menu item 2. WIRING 2-28 Slide switch Set the slide switch to “ON” (default setting). This setting automatically powers the monitor unit on or off according to the DVI signal input. The power switch of the mon- itor unit is inoperative. Note: The OFF position provides control of the monitor unit power with the power switch of the monitor unit. How to open the [INSTALLATION SETTING] menu Turn off the monitor unit. While you hold the DISP key, press the BRILL key to turn on the monitor unit. Press and hold the DISP key for more than five seconds. Note: When the [DVI PWR SYNC] slide switch is ON, turn on the connected external equipment while you press the DISP key to turn on the monitor unit. 2. WIRING 2-29 2.6Sensor Adapters (option) A maximum of eight MC-3000S can be connected to a sensor network (for the redun- dant connection: 16). The MC-3000S (serial input/output, IEC61162-2/1, 4ch) can connect a maximum of 10 sensor adapters, using the MC1.5-W cables. The maximum number of MC-3010A units is five. When fabricating the MC1.5-W cables, use the lot terminal (ferrule type, supplied) to maintain performance. Use the ferrule-type terminals (supplied) to connect the cables to the terminals in the sensor adapters. This connection requires a crimping tool (CRIMPFOX10S, option). For the relations between the connectors and rod terminals, see page AP-2. Also, the stickers attached on the reverse side of the covers show t…

Text truncated - open the document above for the full version.

2. WIRING 2-49 4. Fasten the BNC case to the antenna unit with two screws. Connect the coaxial ca- ble to the BNC case then pass it through the locking wire saddle circled below. 5. Fasten the converter to the transceiver unit with four screws at the locations cir- cled below. 6. Unfasten the two screws from the cover plate that hides the SPU board. Connect the power cable (supplied) to the converter. Pass the cable through the two lock- ing wire saddles circled below then connect the cable to J824 on the SPU board. Close the cover plate. Coaxial cableCoaxial cable LAN Signal ConverterLAN Signal Converter J824J824 2. WIRING 2-50 7. Connect the LAN cable to the LAN port on the converter. Pass the cable through the four locking wire saddles circled below then connect the cable to J821 on the SPU board. 8. Mount the transceiver unit. Connect the coaxial cable from the BNC case to the converter. J821J821 2. WIRING 2-51 2.7.3Installation in the power supply unit Some parts or wiring may have been omitted from the illustrations of the power supply unit for clarity. 1. Set the M_S switch on the converter to the M (Master) position. 2. Fasten the converter to its mounting bracket with four screws. 3. Loosen two screws on the BNC case. Attach the coaxial cable from the antenna cable then close the case. 4. Fasten the BNC case to the mounting bracket with two screws. Master/Slave Coax/PLC LAN PWR TEST M S HMC-200CE-A BNC case Fasten conductor with screw. Fasten shield with clamp. Loosen two screws. 14 5 9 2. WIRING 2-52 5. Pass the LAN cable thru the clamp circled below then connect it to J102 on the PSU-CNTL board. (The cable will be connected to the converter after the convert- er is installed.) 6. Fasten the converter with three screws at the locations shown circled below. At- tach the two supplied locking wire saddles to the locations circled below. 7. Connect the LAN, power and coaxial cables as shown below. • Pass the LAN cable through the four locking wire saddles circled in the figure on the next page then connect it to the LAN port on the converter. • Connect the power cable (supplied) between the converter and J107 on the PSU-CNTL Board. • Connect the coaxial cable between the converter and the BNC case. J102 J102 5 43218765121110913 Attach locking wire saddles. Fasten converter with three screws. LAN Signal Conv. LAN Signal Conv. 43215 2. WIRING 2-53 2.7.4How to check the installation Observe the LEDs on the converter to check for proper operation, troubleshoot. Note: The TEST button is for factory use. Do not operate the button. LEDStateMeaning PWROFFPower OFF Lighting greenPower ON Flashing orangeTest mode LANOFFLink down Lighting green100 M link up Flashing green100 M active Lighting orange10 M link up Flashing orange10 M active Coax/PLCOFFLink down Lighting greenLink up Master/SlaveLighting greenMaster mode Lighting orangeSlave mode J107J107 43218765121110913 Power cablePower cable LAN cable Coaxial cable Coaxial cable 43215 Master/Slave Coax/PLC LAN PWR TEST M S HMC-200CE-A 2. WIRING 2-54 2.8Junction Box (option) Junction boxes are required when the distance between the antenna unit and power supply unit is greater than 100 meters (max. 460 meters); for example, the antenna unit is installed on the foremast. Use signal cable RW-9600(x2), power cable DPYCY- 6(x3), and coaxial cable RG-12/UY(x3). Pass each cable through its cable gland as shown below. Flat washer Cable gland Vinyl sheath Clamping gland Gasket Cut and trim armor. 15 14 13 12 11 10 98 7 65 4 3 21 RG12/UY RG-12/UY DPYCY-6RW-9600 Connect inner conductors. M8 screw for grounding Clamp outer conductor of coaxial cables. Fix wires with cable ties. 2. WIRING 2-55 Connect the RW-9600 cable as shown below. Refer also to the interconnection dia- gram. The table below shows the wire colors for the RW-6895 and RW-4873 cables. * Thick Power Supply UnitAntenna Unit TB131 Cable TB801 Cable RW-9600 RW-6895/ 4873 RW-9600 RW-6895/ 4873 1BrownBrown1BrownBrown 3BlackBlack3BlackBlack 6Red*Red*6Red*Red* 7Orange*White*7Orange*White* 8Yellow*Yellow*8Yellow*Yellow* 9Green*Green*9Green*Green* 10--10Blue*Blue* 11Blue*Blue*11Purple*Black* 12Purple*Black* 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 TB1 JUNCTION BOX RJB-001 1 2 TB2 COAX. JB 8 HMC-200CE-A 3 4 5 6 7 8 9 10 11 1 2 TB-801 DC12V IN1 NC TX-HV-H TX-HV-C MOTOR-H MOTOR-H MOTOR-C MOTOR-C NC NC P48V-H P48V-C RW-9600,MAX.30m JB 8 HMC-200CE-A 3 4 5 6 7 8 9 1 2 10 11 12 13 NC TX-HV-H TX-HV-C MOTOR-H MOTOR-H NC NC P48V-H P48V-C MOTOR-C MOTOR-C MOTOR-H MOTOR-C TB131 DC12V IN1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 TB1 JUNCTION BOX RJB-001 1 2 TB2 DPYCY-6,MAX.400m DPYCY-6,MAX.400m DPYCY-6,MAX.400m RG-12/UY,MAX.400m RW-9600,MAX.30m MAX.460m *1 *1 *1 ANTENNA UNIT 8 J821 LAN J524 2 8 J102 J107 2 POWER SUPPLY UNIT PSU-014RSB-128 *1 BRN BLK ORG[B] YEL[B] GRN[B] RED[B] BLU[B] PPL[B] ORG[B] YEL[B] GRN[B] BLU[B] PPL[B] RED[B] BRN BLK LAN-SIGNAL CONVERTER LAN-SIGNAL CONVERTER 2. WIRING 2-56 2.9Intelligent HUB (option) Fix the LAN cables to the cable clamp with the cable ties (supplied). No use. Power port Power Fail LAN port Ground wire (IV-1.25sq., supplied) DPYC-1.5 cable DPYC-1.5 cable To gateway network (ECDIS, radar, etc.) Attach the LAN cap (supplied) to the unused connector holes to comply with waterproofing standard IPX2. LAN cable Cable clamp 2. WIRING 2-57 2.10How to Extend the Control Unit Cable (option) To extend the length of the cable between a control unit and the processor unit, use the optional cable assy 6TPSH-XH12X2-LxxSP1 (for RCU-024) or 6TPSH-XH12X2- LxxSP2 (for RCU-026). You can select the cable length among 10, 20 and 30 m. 2.10.1Radar control unit (RCU-025) 1. Unfasten 12 binding screws (M3×8) from the bottom of the control unit to remove the cover. Note: Remove the cover slowly to prevent damage to the cables connected to the circuit board in the control unit. 2. Unfasten two pan head screws (M3×12) to remove the clamp and cable clamp from the control unit. Disconnect the control unit cable …

Text truncated - open the document above for the full version.
