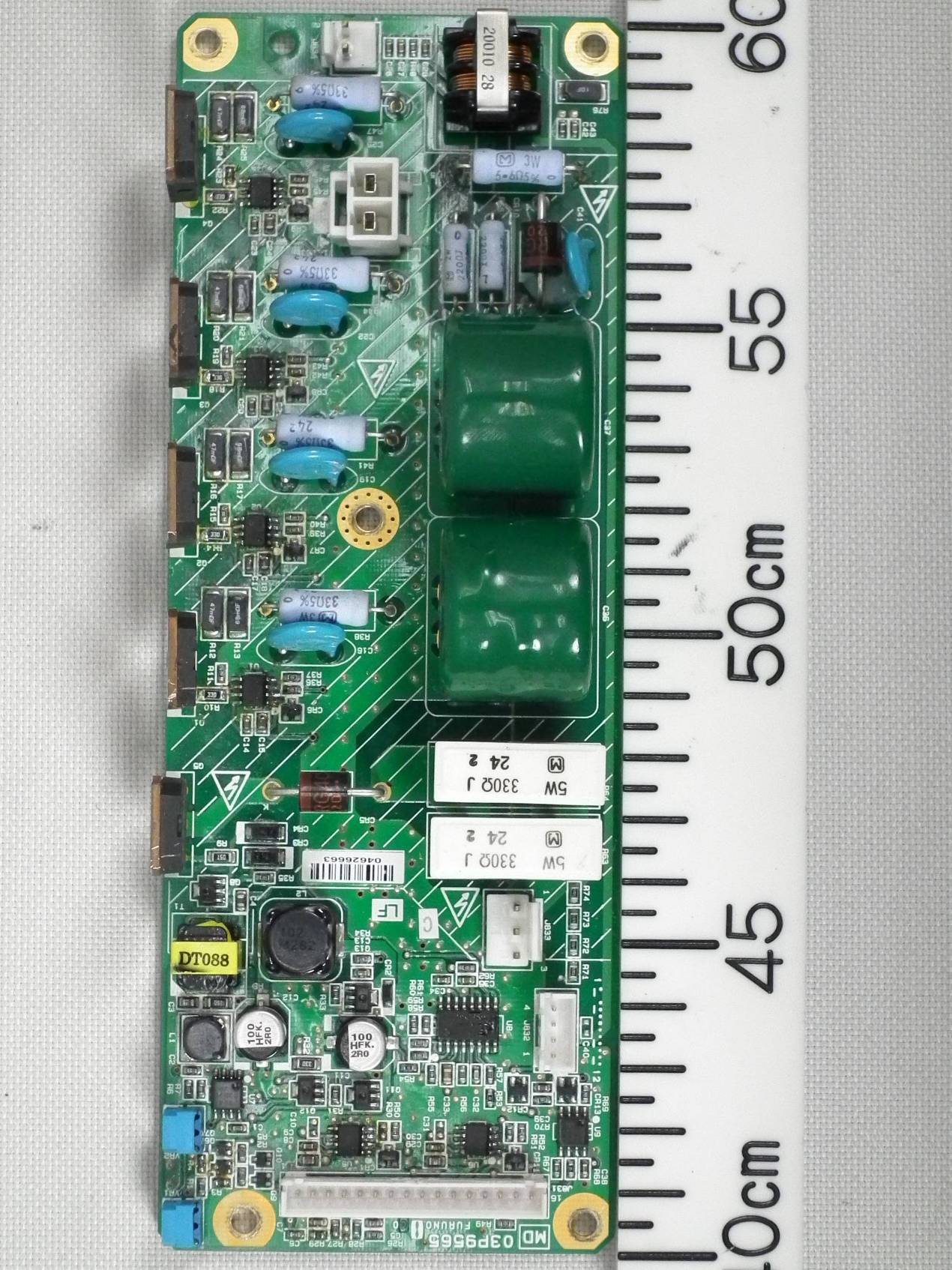

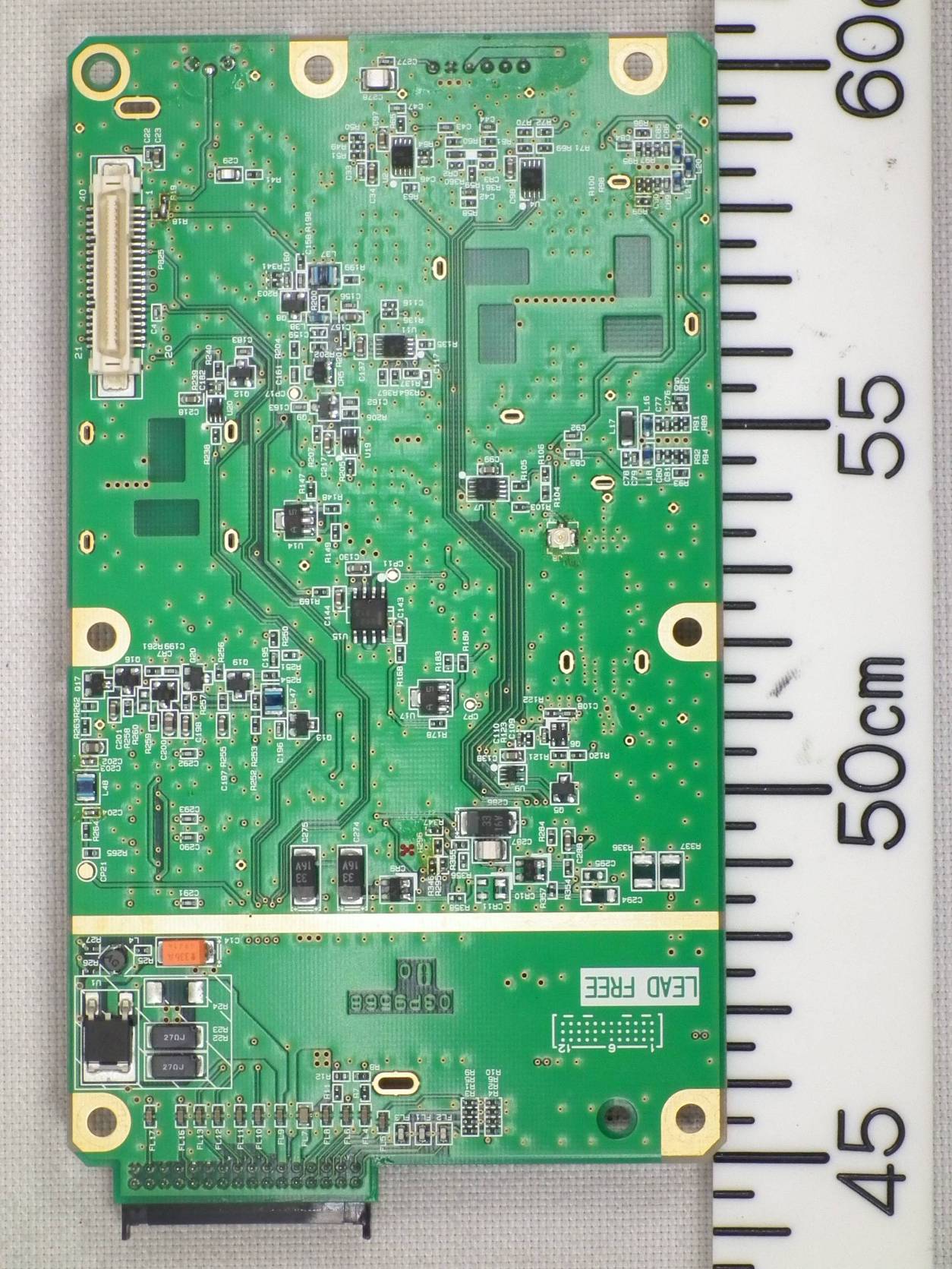

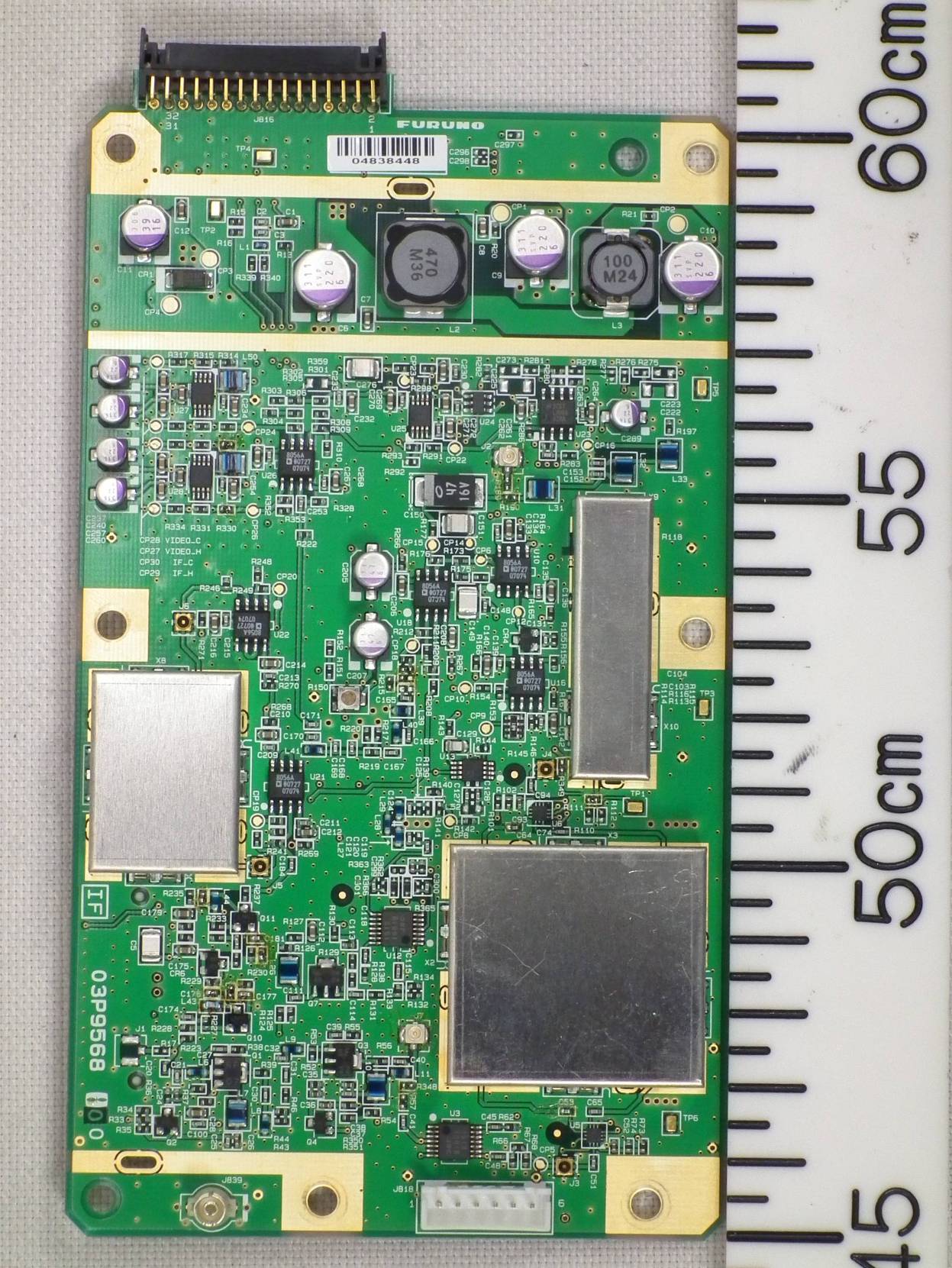

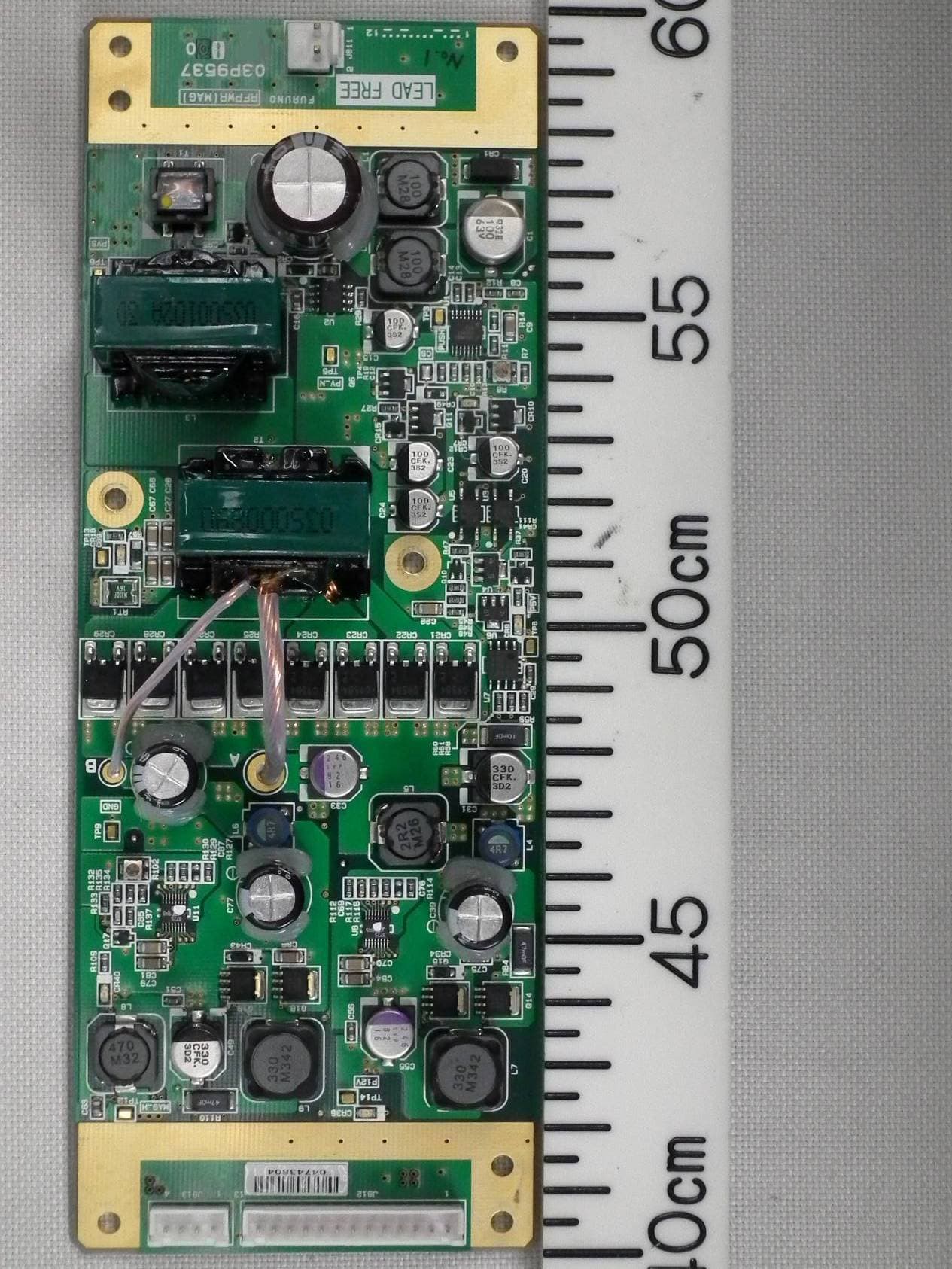

ADB9ZWRTR108Transceiver for Radar model FAR-3320W

OPERATOR'S MANUAL www.furuno.com CHART RADAR FAR-3210 FAR-3220 FAR-3230S FAR-3230S-SSD FAR-3310 FAR-3320 FAR-3330S FAR-3330S-SSD FAR-3320W FAR-3330SW FAR-3210-BB FAR-3220-BB FAR-3230S-BB FAR-3230S-SSD-BB FAR-3220W-BB FAR-3230SW-BB Model (Product Name: MARINE RADAR) The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN A:APR2014 . Printed in Japan All rights reserved. B2:DEC.15, 2014 Pub. No. OME-36160-B2 ( YOTA ) FAR-3000SERIES 0 0 0 1 7 8 0 2 7 1 1 i IMPORTANT NOTICES General How to discard this product Discard this product according to local regulations for the disposal of industrial waste. For disposal in the USA, see the homepage of the Electronics Industries Alliance (http://www.eiae.org/) for the correct method of disposal. How to discard a used battery Some FURUNO products have a battery(ies). To see if your product has a battery, see the chapter on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals of battery before disposal to prevent fire, heat generation caused by short circuit. In the European Union The crossed-out trash can symbol indicates that all types of batteries must not be discarded in standard trash, or at a trash site. Take the used batteries to a battery collection site according to your national legislation and the Batteries Directive 2006/66/EU. In the USA The Mobius loop symbol (three chasing arrows) indicates that Ni-Cd and lead-acid rechargeable batteries must be recycled. Take the used batteries to a battery collection site according to local laws. In the other countries There are no international standards for the battery recycle symbol. The number of symbols can increase when the other countries make their own recycle symbols in the future. • This manual has been authored with simplified grammar, to meet the needs of international users. • The operator of this equipment must read and follow the descriptions in this manual. Wrong oper- ation or maintenance can cancel the warranty or cause injury. • Do not copy any part of this manual without written permission from FURUNO. • If this manual is lost or worn, contact your dealer about replacement. • The contents of this manual and equipment specifications can change without notice. • The example screens (or illustrations) shown in this manual can be different from the screens you see on your display. The screens you see depend on your system configuration and equipment settings. • Save this manual for future reference. • Any modification of the equipment (including software) by persons not authorized by FURUNO will cancel the warranty. • All brand and product names are trademarks, registered trademarks or service marks of their re- spective holders. • “C-MAP” means “C-MAP by Jeppesen” in this manual. • Windows is a registered trademark of the Microsoft Corporation of the USA and other countries. Cd Ni-CdPb ii SAFETY INSTRUCTIONS The operator must read the safety instructions before attempting to operate the equipment. The radar antenna emits electromagnetic radio frequency (RF) energy that can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the transmitting antenna at a close distance. Distances at which RF radiation level of 100, 50 and 10 W/m 2 are given in the table below. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. 100W/m 2 Radar model FAR-3220/ FAR-3320/ FAR-3220-BB FAR-3210/ FAR-3310/ FAR-3210-BB FAR-3230S/ FAR-3330S/ FAR-3230S-BB FAR-3330SW/ FAR-3230SW-BB FAR-3320W/ FAR-3220W-BB TransceiverMagnetronAntenna 10W/m 2 50W/m 2 Warning, CautionProhibitive Action Mandatory Action Radio Frequency Radiation Hazard WARNING CAUTION WARNING RTR-105 FNE1201 XN12CF XN20CF XN24CF RTR-106 MG5436 XN12CF XN20CF XN24CF RTR-108 MG5436 XN20CF XN24CF RTR-107 MG5223F SN36CF RTR-109 MG5223F SN36CF Magnetron radar 100W/m 2 Radar model FAR-3230S-SSD/ FAR-3330S-SSD/ FAR-3230S-SSD-BB TransceiverAntenna 10W/m 2 50W/m 2 RTR-111 SN36CF Solid state radar N/A N/A N/A 1.0 m 0.5 m4.6 m 0.6 m 1.4 m4.4 m 0.4 m 0.9 m3.0 m 0.3 m 0.6 m2.5 m 1.3 m 2.7 m9.5 m 1.0 m 1.7 m6.8 m 0.7 m 1.3 m5.5 m N/A 0.26 m2.3 m 0.5 m 1.2 m5.5 m 0.3 m 0.9 m4.0 m SAFETY INSTRUCTIONS iii WARNING Do not open the equipment. The equipment uses high voltage that can cause electrical shock. Refer any repair work to a qualified technician. Before turning on the radar, be sure no one is near the antenna. Prevent the potential risk of being struck by the rotating antenna, which can result in serious injury or death. If water leaks into the equipment or something is dropped into the equipment, immediately turn off the power at the switchboard. Fire or electrical shock can result. If the equipment is giving off smoke or fire, immediately turn off the power at the switchboard. Fire or electrical shock can result. If you feel the equipment is acting abnormally or giving off strange noises, immediately turn off the power at the switchboard and contact a FURUNO service techni- cian. Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Make sure no rain or water splash leaks into the equipment. Fire or electrical shock can result if water leaks into the equipment. Do not place liquid-filled containers on or near the equipment. Fire or electrical shock can result if a liquid spills into the equipment. Do not operate the equipment with wet hands. Electrical shock can result. Keep objects away from the open- type antenna unit, so as not to impede rotation of the antenna. Fire, electrical shock or serious injury can result. Use the proper fuse. Use of the wrong fuse can cause fire or damage the equipment. The TT function is a valuable…

Text truncated - open the document above for the full version.

www.furuno.com All brand and product names are trademarks, registered trademarks or service marks of their respective holders. Installation Manual CHART RADAR Model FAR-3320W/3220W-BB/ 3330SW/3230SW-BB (Product Name: Marine Radar) SAFETY INSTRUCTIONS ........................i SYSTEM CONFIGURATION ..................iii EQUIPMENT LIST .................................vii 1. INSTALLATION...............................1-1 1.1 Antenna Unit .......................................1-1 1.2 Transceiver Unit................................1-12 1.3 Monitor Unit.......................................1-12 1.4 Radar Control Unit, Trackball Control Unit .......................1-13 1.5 Power Supply Unit ............................1-16 1.6 Processor Unit ..................................1-17 1.7 Sensor Adapters (option) ..................1-19 1.8 Intelligent Hub (option)......................1-20 1.9 Switching Hub (option)......................1-21 2. WIRING............................................2-1 2.1 Overview .............................................2-1 2.2 Antenna Unit .......................................2-4 2.3 Transceiver Unit................................2-17 2.4 Processor Unit ..................................2-25 2.5 Power Supply Unit ............................2-36 2.6 Monitor Unit.......................................2-40 2.7 Sensor Adapters (option) ..................2-42 2.8 Intelligent HUB (option).....................2-60 2.9 How to Extend the Control Unit Cable (option) ...................................2-61 3. SETTINGS AND ADJUSTMENTS ..3-1 3.1 How to Access the Radar Installation Menu.................................3-1 3.2 How to Align the Heading ...................3-1 3.3 How to Adjust the Sweep Timing ........3-2 3.4 How to Suppress Main Bang ..............3-3 3.5 Dual Radar Display .............................3-3 3.6 Other Settings .....................................3-6 4. INPUT/OUTPUT DATA................... 4-1 4.1 Processor Unit ....................................4-1 4.2 IEC 61162 Sentences .........................4-2 APPENDIX 1JIS CABLE GUIDE ............ AP-1 APPENDIX 2ROD TERMINALS ............. AP-2 APPENDIX 3DIGITAL INTERFACE ....... AP-7 PACKING LISTS ................................. A-1 OUTLINE DRAWINGS ........................ D-1 INTERCONNECTION DIAGRAM ........ S-1 The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN A:SEP2014 . Printed in Japan All rights reserved. B1:NOV.18, 2014 Pub. No. IME-36240-B1 ( AKMU ) FAR-3320W 0 0 0 1 7 8 0 3 7 1 1 i SAFETY INSTRUCTIONS Mandatory Action Prohibitive Action WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, can result in minor or moderate injury. Warning, Caution WARNING Radio Frequency Radiation Hazard * XN20CF: 6.5 ft, XN24CF: 8 ft, SNC36CF: 12 ft DANGER Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. Wear a safety belt and hard hat when working on the antenna unit. Serious injury or death can result if someone falls from the radar antenna mast. DANGER ModelTransceiverAntenna* 100 W/m 2 50 W/m 2 10 W/m 2 FAR-3320W FAR-3320W-BB RTR-108 (25 kW) XN20CF XN24CF FAR-3300SW FAR-3300SW-BB RTR-109 (30 kW) N/A 0.26 m 2.3 m 0.5 m 0.3 m The radar antenna emits electromagnetic radio frequency (RF) energy which can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the transmitting antenna at a close distance. Distances at which RF radiation level of 100, 50 and 10 W/m 2 are given in the table below. If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. See the installation manual for how to manage blind sectors. The installer of the equipment must read the applicable safety instructions before attempting to install the equipment. SN36CF 1.2 m 0.9 m 5.5 m 4.0 m SAFETY INSTRUCTIONS ii CAUTION Observe the following compass safe distances to prevent deviation of a mag- netic compass: Note: For more information, please refer to IMO SN/Circ.271 “Guidelines for the installa- tion of shipborne radar equipment.” Do not open the equipment unless totally familiar with electrical circuits and service manual. Only qualified personnel are allowed to work inside the equipment. WARNING ELECTRICAL SHOCK HAZARD Construct a suitable service platform from which to install the antenna unit. Serious injury or death can result if someone falls from the radar antenna mast. Turn off the power at the mains switchboard before beginning the installation. Fire, electrical shock or serious injury can result if the power is left on or is applied while the equipment is being installed. Be sure that the power supply is compatible with the voltage rating of the equipment. Connection of an incorrect power supply can cause fire or damage the equipment. Use only the specified power cable. Fire or damage to the equipment can result if a different cable is used. Do not install the monitor unit, processor unit, transceiver unit, power supply unit or control unit in a dusty environment, orone where the units may get wet from rain or water splash. Dust or water in the units can result in fire, electrical shock, or damage to the equipment. Attach protective earth securely to the ship's body. The protective earth (grounding) is required for the AC power supply to prevent electrical shock. Transceiver Unit (RTR-108) 2.00 m1.25 m 4.50 m 2.90 m Antenna Unit (FAR-3320W) Standard compass 1.90 m1.20 m Antenna Unit (FAR-3330SW) 1.55 m 0.95 m Monitor Unit (MU-231) 0.85 m0.55 m Radar Control Unit (RCU-025) 0.30 m0.30 m Trackball Control Unit (RCU…

Text truncated - open the document above for the full version.

2-1 2.WIRING 2.1Overview Cabling considerations To lessen the chance of picking up electrical interference, avoid where possible rout- ing the antenna cable (power and LAN) near other onboard electrical equipment (ra- dars, TX radio antennas, etc.). Also avoid running the cable in parallel with power cables. When crossing with other cable, the angle must be 90° to minimize the mag- netic field coupling. The antenna cable between the antenna and processor units is available in lengths of 15 m, 30 m, 40 m, and 50 m. Whatever length is used, it must be unbroken; namely, no splicing allowed. Use the antenna cable as short as possible to minimize attenua- tion of the signal. The radar must be connected to an emergency power source, as required by SOLAS II-1. About network construction About wiring • Use the optional Switching Hub HUB-100 to connect the sensor networks. For the gate- way networks, use the optional Intelligent Hub HUB-3000. • Do not connect the ship’s LAN network to the optional HUBs. Also, commercial PCs cannot be connected to the gateway network, other than for maintenance. • To connect the FEA-2xx7, FMD-32xx, FAR-2xx7, FCR-2xx9 via LAN network, use the INS network. • Use the optional USB cable (type: OP24-32) to connect to the USB port on the control unit. • The length of the USB cable must be within 5 m to prevent equipment trouble. • The length of LAN cables must be within 50 m. • Use the Cat5e or Cat6 LAN cable for the network if available locally. • If LAN cables are not available locally, use the optional LAN cables (FR-FTPC-CY for sensor network, DTI-C5E350 VCV for gateway network). • If extension or division of the DVI or RGB cables is necessary, use the dividers shown below. • DVI cable divider: DVI-12A (maker: IMAGENICS) • RGB divider: CIF-12H, DD-106 or WBD-14F (maker: IMAGENICS) • Make sure that the ground wires are connected between the ground terminals on each equipment and the ship’s earth. • If a UPS (user supply) is connected to this equip- ment, be sure that the grounding lamp does not light. • The output from the UPS must be a sine wave, as in the right figure. 50Hz 60Hz 2. WIRING 2-2 FAR-3320W, FAR-3320W-BB wiring The maximum length of cabling is 130 m. Cabling between the transceiver unit and the antenna unit: 80 m Waveguide: 50 m Antenna Unit TTYCYSLA-10 15/30/40/50 m FR-9 Waveguide 20/30/50 m 100-115 / 220-230 VAC DPYCY-1.5 De-icer 100-230 VAC DPYC-2.5 : Cable requires fabrication DSUB9P-DSUB9P 5 m/10 m Processor Unit EC-3000 100-230 VAC DVI-D/D SINGLE LINK 5 m/10 m Power Supply Unit PSU-014 Sensor Adapter or HUB-100 Serial: TTYCS-1Q FR-FTPC-CY 100-230 VAC GYRO, AIS TTYCS-4 x2 GPS, LOG, E/S, WIND, ALARM, NAVTEX etc. TTYCS-1Q x5 5 m (for USB) 30 m x2 TTYCS-10 System fail, Power fail, Normal close 1/2, Normal open 1/2, ACK IN TB1 Monitor Unit MU-231 DPYC-1.5 VDR RGB cable IEC60320-C13-L5M HUB-3000 5 m (for USB) 30 m 100-230 VAC USB memory Radar Control Unit RCU-025 Trackball Control Unit RCU-026 USB memory DTI-C5E 350 VCV (10/20/30 m) LAN: DTI-C5E 350 VCV (10/20/30 m) (or Cat 5e LAN cable (local supply)) I/O Board LAN: MOD-Z072-050+ RW-00135 15/30/40/50 m LANPower Sub monitor RW-00136 15/30/40/50 m Transceiver Unit RTR-108 2. WIRING 2-3 FAR-3330SW, FAR-3230SW-BB wiring The maximum length of cabling is 110 m. Cabling between the transceiver unit and the antenna unit: 80 m Microwave coaxial cable: 30 m RW-00135 15/30/40/50 m LANPower Antenna Unit TTYCYSLA-10 15/30/40/50 m LHPX-20-ASSY 20/30 m 100-115 / 220-230 VAC Sub monitor RW-00136 15/30/40/50 m Transceiver Unit RTR-109 DPYCY-1.5 De-icer 100-230 VAC DPYC-2.5 : Cable requires fabrication DSUB9P-DSUB9P 5 m/10 m Processor Unit EC-3000 100-230 VAC DVI-D/D SINGLE LINK 5 m/10 m Power Supply Unit PSU-014 or PSU-015 Sensor Adapter or HUB-100 Serial: TTYCS-1Q FR-FTPC-CY 100-230 VAC GYRO, AIS TTYCS-4 x2 GPS, LOG, E/S, WIND, ALARM, NAVTEX etc. TTYCS-1Q x5 5 m (for USB) 30 m x2 TTYCS-10 System fail, Power fail, Normal close 1/2, Normal open 1/2, ACK IN TB1 Monitor Unit MU-231 DPYC-1.5 VDR RGB cable IEC60320-C13-L5M HUB-3000 5 m (for USB) 30 m 100-230 VAC USB memory Radar Control Unit RCU-025 Trackball Control Unit RCU-026 USB memory DTI-C5E 350 VCV (10/20/30 m) LAN: DTI-C5E 350 VCV (10/20/30 m) (or Cat 5e LAN cable (local supply)) I/O Board LAN: MOD-Z072-050+ 2. WIRING 2-4 2.2Antenna Unit 2.2.1How to fabricate the cables FAR-3320W, FAR-3330SW Three cables are connected to the antenna unit: the serial cable from the transceiver unit, waveguide (FAR-3220W) or microwave coaxial cable (FAR-3330SW), and power cable for the de-icer (option). Serial cable (TTYCYSLA-10) Power cable (DPYCY-1.5) for de-icer ? Before beginning any work on the antenna unit, turn off the breaker for the de-icer at the mains switchboard. (Turning of the display unit has not effect.) ? The neck of the antenna unit becomes VERY HOT when the de-icer is working. (The de-icer turns on when ambient temperature goes down to 5°C and heats to 55°C.) SheathSheath Pass the heat shrink tubing (local supply) onto the drain wire. Attach crimp-on lug to the wire. * Preattched to the X-band antenna. See figure on page 2-7 for location.) Vinyl tape Crimp-on lug* (FV1.25-3(LF) RED) Clamp armor with cable clamp. * L1: X-band, 450, S-band, 350 L2: X-band, 450, S-band, 200 6 5 L2* Drain wire L1* Armor SheathSheath 5 36 SheathSheath *X-band, 900, S-band, 1270 For X-band For S-band Crimp-on lug (FV2-M4) Wrap spiral tubing. Clamp here. SheathSheath Vinyl tape Armor SheathSheath 6 10 L* 36 Crimp-on lug (FV2-M4) Wrap spiral tubing. Clamp here. SheathSheath Vinyl tape 2. WIRING 2-5 Flexible waveguide for FAR-3220W The connector at the antenna side is preattached to the flexible waveguide. The bend- ing radius shown below must be observed to prevent damage to the waveguide. E-bend: 200 mm, H-bend: 400 mm Microwave coaxial cable for FAR-3330SW See the FURUNO Installation Handbook (publication no. TIE-00160) for how to treat this cable. 2.2.2How to connect the serial cable, p…

Text truncated - open the document above for the full version.

2. WIRING 2-25 2.4Processor Unit Note: The interface ports approved for interconnecting navigation equipment are shown in the figure below. For details, see section 2.4.3 "How to select the serial input/ output format". 2.4.1How to connect cables to terminals in the processor unit Use screws (M3×6, supplied) to attach the wiring plate 1 and wiring plate 2 to the pro- cessor unit. Connect the cables shown below to the connectors at the front of the pro- cessor unit. Bind cables to the appropriate fixing metal with the cable ties (supplied). For the cables from the monitor unit, DSUB9P-X2-L5/10M) and ground wire, connect them to the processor unit directly (without fixing to a wiring plate). Tighten the fixing screws on these connectors to prevent disconnection from the processor unit. Note: Connect the cables so that they do not interfere with the opening or closing of the DVD tray. J5J5J5 J11J11J11 J4J4J4 J3J3J3 J8J8J8 J9J9J9 J10J10J10 J6J6J6 J7J7J7 J12J12J12 J13J13J13 J14J14J14 J3, J4 For IEC 61162-2 or IEC 61162-1 J5, J6, J7, J8, J9, J10 For IEC 61162-1 Top view of EC-3000 OK UP 2. WIRING 2-26 Cables connected at wiring plate 1Cables connected at wiring plate 2 ? USB cables from the control units ? Printer cable ? LAN cable (type: DTI-C5E350 VCV) from the HUB-3000 ? LAN cable (type: FR-FTPC-CY) from the HUB-100/MC-3000S ? Power cable (Type: IEC60320-C13-L5M) ? LAN cable to the LAN3 port MU-231 (DVI1: DVI-D/D S-LINK cable, COM1: DSUB9P-X2-L cable) COM1 VDR (DVI3: BNCX5-L2000) DVI3 USB1 RCU-025/026 (TS-20-071-1 cable) USB2/3 Optional control unit RCU-024/025/026 (TS-20-071-1 cable) HUB-3000 (DTI-C5E350 VCV cable) LAN1 LAN2 HUB-100/MC-3000S (FR-FTPC-CY cable, within 50m) DVI1 COM2 Cable clamp (See the next page.) Ground wire (IV-2sq., local supply) Power cable (IEC60320-C13- L5M cable) USB4 For USB printer LAN3 DVI2 MU-231 (COM2: DSUB9P- X2-L cable DVI2: DVI-D/D S-LINK cable) MOD-Z072-005+ 2. WIRING 2-27 How to fabricate the LAN cable Fabricate the LAN cable (FR-FTPC-CY, DTI-C5E350 VCV), as shown below. (Wrap both edges of the armor with vinyl tape.) Make sure the shield of the cable contacts the shell of the modular plug. Note: For a locally supplied LAN cable, expose the armor and clamp the armor with the cable clamp. Wrap vinyl tape. (width: 20 mm) Cable jacket Armor Outer vinyl sheath Inner vinyl sheath 55 30 Using special crimping tool MPT5-8 (PANDUIT CORP.), crimp the modular plug. Finally check the plug visually. 1 WHT/GRN 2 GRN 3 WHT/ORG 4 BLU 5 WHT/BLE 6 ORG 7 WHT/BRN 8 BRN WHT/ORG 1 ORG 2 WHT/GRN 3 BLU 4 WHT/BLE 5 GRN 6 WHT/BRN 7 BRN 8 1 WHT/ORG 2 ORG 3 WHT/GRN 4 BLU 5 WHT/BLE 6 GRN 7 WHT/BRN 8 BRN WHT/ORG 1 ORG 2 WHT/GRN 3 BLU 4 WHT/BLE 5 GRN 6 WHT/BRN 7 BRN 8 Expose inner vinyl sheath. [Crossover cable][Straight cable] Remove the outer sheath by approx 25 mm. Be careful not to damage inner shield and cores. Fold back the shield, wrap it onto the outer sheath and cut it, leaving 9 mm. 12 3 25 mm approx. 9 mm 4 5 6 approx. 9 mm approx. 11 mm Drain wire Fold back drain wire and cut it, leaving 9 mm. Straighten and flatten the core in order and cut them, leaving 11 mm. Insert the cable into the modular plug so that the folded part of the shield enters the modular plug. The drain wire must be on the tab side of the jack. 7 1 8 Modular plug 2. WIRING 2-28 IPX2 kit The optional IPX2 kit (Type: OP24-23, Code No.: 001-171-780) protects the connec- tors shown below to waterproofing standard IPX2. Contents of IPX2 kit 1. Set the connector gasket to the unused connector not used. 2. Fasten two binding screws to fix the connector gasket. 3. Peel the paper from the double-sided tape on the rainproof cover, then attach the cover to the position shown below by using four screws pre-attached to the pro- cessor unit. NameTypeCode No.QtyRemarks Binding Screw#4-40UNCX3/16000-176-619-1010 Connector Gasket 124-014-0107100-367-730-102For D-sub connectors Connector Gasket 224-014-0108100-367-741-103For DVI connectors Rainproof Cover24-014-0109100-372-202-101 Gasket Clamping Plate24-014-0114100-372-210-102For D-sub connectors 24-014-0115100-372-220-103For DVI connectors Connector gasket Gasket clamping plate Screws to fix the rainproof cover Rainproof cover Processor unitProcessor unit 2. WIRING 2-29 2.4.2How to connect cables inside the processor unit How to fabricate the cables Fabricate the JIS cables (see the Appendix for equivalent cables if not available local- ly) as shown below. Connect the cables to the WAGO connectors on the I/O Board (24P0124) inside the processor unit. For locations of cables and cores, see the sticker on the reverse side of the top cover. (All dimensions in millimeters) Shield 6 5 100 * 30 Armor Sheath L Fabrication of TTYCS series Vinyl tape (Width: 20) After exposing cores, wind shield around the armor. Clamp here by cable clamp. Length of “L” TTYCS-4, TTYCSLA-4, TTYCS-1Q, TTYCSLA-1Q TTYCS-10, TTYCSLA-10 400 380 Cable type (JIS) Fabrication of TTYCSLA series Pass the heat shrinkable tube (local supply) onto the drain wire, then attach the crimp-on lug (preattached to the earth clamp on the processor unit) to it. Sheath Armor Vinyl tape (Width: 20) Clamp here by cable clamp. Drain wire Crimp-on lug Processor unit, cover removed Crimp-on lugs for drain wires 30 L 6 How to connect wires to WAGO connector Press downward. Terminal opener WAGO connector Wire Twist <Procedure> 1. Twist the cores. 2. Press the terminal opener downward. 3. Insert the wire to hole. 4. Remove the terminal opener. 5. Pull the wire to confirm that it is secure. 2. WIRING 2-30 How to connect the cables 1. Unfasten four screws (M4×8) to remove the top cover from the processor unit. 2. Unfasten the three bolts circled below to remove the upper plate of the cable clamp. Processor unit, top view 3. Pass the cables through the clamp holes, then fasten the bolts removed at step 2 to fix the cables. Unfasten these three bolts to remove the upper plate. Unfasten this bolt to use the lower clamp holes. Unfast…

Text truncated - open the document above for the full version.

2. WIRING 2-56 Case gasket OP24-29 The optional kit OP24-29 protects the connectors on the MC-3010A/3020D/3030D to waterproofing standard IPX2. Case gasket (type: OP24-29, code no.: 001-169-960) 1. Unfasten four binding screws to remove the cover from the adapter. 2. Peel the paper from the case gasket, then attach the case gasket to the reverse side of the cover and the body unit as shown below. 3. Attach the cover to the MC-3010A/3020D/3030D chassis. NameTypeCode No.QtyRemarks Case gasket (analog) 24-014-2052-1100-367-961-102MC-3010A/3020D/3030D Binding screw Cover Case gasket Case gasket Case gasket Case gasket Cover (reverse side) Chassis 2. WIRING 2-57 2.7.3How to set jumper blocks in the sensor adapters MC-3000S See the jumper blocks on the MC-CS Board (24P0114) referring to the tables that fol- low. MC-CS Board (24P0114) Rotary switch: Use the rotary switch (S2) to set the Modbus address when setting connectors J4/J5 to Modbus. The Modbus address set at J4/J5 in the network is not used. When setting J4/J5 to IEC61162-1/2, use the default setting (“0”). Jumper block: Use the jumper block J19 to set the termination resistor on/off for the MODBUS communication on the connector J1. For the first and last sensor adapter in a series, their termination resistors must be set to ON. Use the MC-CS Board with the default setting because it becomes the “first” adapter in a series. Set the jumper blocks J14 through J17 to turn the termination resistors on connectors J4 through J7, respectively. Jumper block J19Connector J1 1-2SHORTTermination resistor: ON 2-3OPEN 1-2OPENTermination resistor: OFF (default setting) 2-3SHORT S2 J14 J22 J23 J15 J16 J17 J19J20 J21 2. WIRING 2-58 (Termination resistor ON) ? When setting the starting/ending terminal for the multipoint, or the multipoint is not connected (CH1 to 4). ? When setting the starting/ending terminal for Modbus (CH1, CH2) (Terminal resistor OFF) ? When setting the terminal other than starting/ending for the multipoint (CH1 to 4). ? When setting the terminal other than starting/ending for Modbus (CH1/CH2) Set the jumper blocks J20 and J21 to choose the communication type (IEC-61162-1/ 2 or MODBUS) of the connector J4 (CH1). The setting of the jumper block JP20 and JP21 must be identical. The jumper blocks J22 and J23 are used to set the communication type of the con- nector J5 (CH2). Jumper block J14Connector J4 (CH1) 1-2SHORTTermination resistor: ON (default setting) 2-3OPEN 1-2OPENTermination resistor: OFF 2-3SHORT Jumper block J15Connector J5 (CH2) 1-2SHORTTermination resistor: ON (default setting) 2-3OPEN 1-2OPENTermination resistor: OFF 2-3SHORT Jumper block J16Connector J6 (CH3) 1-2SHORTTermination resistor: ON (default setting) 2-3OPEN 1-2OPENTermination resistor: OFF 2-3SHORT Jumper block J17Connector J7 (CH4) 1-2SHORTTermination resistor: ON (default setting) 2-3OPEN 1-2OPENTermination resistor: OFF 2-3SHORT Jumper block J20/J21 Communication type of J4 (between RD1 and TD1) 1-2OPENIEC-61162-1/2 (default setting) 2-3SHORT 1-2SHORTMODBUS (The setting of J14 is different depending on the unit position (starting/ending terminal).) 2-3OPEN Jumper block J22/J23 Communication type of J5 (between RD2 and TD2) 1-2OPENIEC-61162-1/2 (default setting) 2-3SHORT 1-2SHORTMODBUS (The setting of J14 is different depending on the unit position (starting/ending terminal).) 2-3OPEN 2. WIRING 2-59 MC-3010A/3020D/3030D This paragraph shows how to set the MC-ANLG Board (24P0115, for MC-3010A), MC-DIN Board (24P0116, for MC-3020D) and MC-DOUT Board (24P0117, for MC- 3030D). Rotary switch: Use the rotary switch (U18) to set the MODBUS address with a digit of number from “0”. When multiple sensor adapters are connected to the MC-3000S, the same number cannot be used among them. (It is allowed to use the same number between the MC-3000S and a sensor adapter.) Jumper block: Use the jumper block J25 to set the termination resistor on/off for the MODBUS communication on the connector J1. For the first and last sensor adapter in a series, their termination resistors must e set to ON. If not, communication between sensor adapters is not possible. Jumper block J25Connector J1 1-2OPENTermination resistor: ON (default setting) 2-3SHORT 1-2SHORTTermination resistor: OFF 2-3OPEN U18 U18 U18 J25 J25 J25 J3 J4 J5 MC-ANLG Board (24P0115) MC-DIN Board (24P0116)MC-OUT Board (24P0117) 2. WIRING 2-60 2.8Intelligent HUB (option) Fix the LAN cables to the cable clamp with the cable ties (supplied). No use. Power port Power Fail LAN port Ground wire (IV-1.25sq., supplied) DPYC-1.5 cable DPYC-1.5 cable To gateway network (ECDIS, radar, etc.) Attach the LAN cap (supplied) to the unused connector holes to meet waterproofing standard IPX2. LAN cable Cable clamp 2. WIRING 2-61 2.9How to Extend the Control Unit Cable (option) To extend the length of the cable between a control unit and the processor unit, use the optional cable assy 6TPSH-XH12X2-LxxSP1 (for RCU-024) or 6TPSH-XH12X2- LxxSP2 (for RCU-026). You can select the cable length among 10, 20 and 30 m. 2.9.1Radar control unit 1. Unfasten 12 binding screws (M3×8) from the bottom of the control unit to remove the cover. Note: Remove the cover slowly to prevent damage to the cables connected to the circuit board in the control unit. 2. Unfasten two pan head screws (M3×12) to remove the clamp and cable clamp from the control unit. Disconnect the control unit cable from the J1 connector. 3. Pull out the control unit cable from the cover. 4. Pass the optional cable assy (6TPSH-XH12X2-LxxSP1) through the cable hole on the control unit. 5. Fasten the shield part of the cable assy with the cable clamp (removed at step 2), then connect the connector at the end of the cable assy to the J1 on the circuit board inside the unit. 6. Reattach the control unit cover. 7. Unfasten four screws (M4×8) to remove the processor unit cover. Binding screw Control unit cable J1 connector Clamp Cable clamp 2. WIRING 2-62 8. Unfasten the three bolts circled …

Text truncated - open the document above for the full version.
