OPERATOR'S MANUAL www.furuno.com CHART RADAR FAR-3210 FAR-3220 FAR-3230S FAR-3230S-SSD FAR-3310 FAR-3320 FAR-3330S FAR-3330S-SSD FAR-3320W FAR-3330SW FAR-3210-BB FAR-3220-BB FAR-3230S-BB FAR-3230S-SSD-BB FAR-3220W-BB FAR-3230SW-BB Model (Product Name: MARINE RADAR) The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN A:APR2014 . Printed in Japan All rights reserved. B2:DEC.15, 2014 Pub. No. OME-36160-B2 ( YOTA ) FAR-3000SERIES 0 0 0 1 7 8 0 2 7 1 1 i IMPORTANT NOTICES General How to discard this product Discard this product according to local regulations for the disposal of industrial waste. For disposal in the USA, see the homepage of the Electronics Industries Alliance (http://www.eiae.org/) for the correct method of disposal. How to discard a used battery Some FURUNO products have a battery(ies). To see if your product has a battery, see the chapter on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals of battery before disposal to prevent fire, heat generation caused by short circuit. In the European Union The crossed-out trash can symbol indicates that all types of batteries must not be discarded in standard trash, or at a trash site. Take the used batteries to a battery collection site according to your national legislation and the Batteries Directive 2006/66/EU. In the USA The Mobius loop symbol (three chasing arrows) indicates that Ni-Cd and lead-acid rechargeable batteries must be recycled. Take the used batteries to a battery collection site according to local laws. In the other countries There are no international standards for the battery recycle symbol. The number of symbols can increase when the other countries make their own recycle symbols in the future. • This manual has been authored with simplified grammar, to meet the needs of international users. • The operator of this equipment must read and follow the descriptions in this manual. Wrong oper- ation or maintenance can cancel the warranty or cause injury. • Do not copy any part of this manual without written permission from FURUNO. • If this manual is lost or worn, contact your dealer about replacement. • The contents of this manual and equipment specifications can change without notice. • The example screens (or illustrations) shown in this manual can be different from the screens you see on your display. The screens you see depend on your system configuration and equipment settings. • Save this manual for future reference. • Any modification of the equipment (including software) by persons not authorized by FURUNO will cancel the warranty. • All brand and product names are trademarks, registered trademarks or service marks of their re- spective holders. • “C-MAP” means “C-MAP by Jeppesen” in this manual. • Windows is a registered trademark of the Microsoft Corporation of the USA and other countries. Cd Ni-CdPb ii SAFETY INSTRUCTIONS The operator must read the safety instructions before attempting to operate the equipment. The radar antenna emits electromagnetic radio frequency (RF) energy that can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the transmitting antenna at a close distance. Distances at which RF radiation level of 100, 50 and 10 W/m 2 are given in the table below. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. 100W/m 2 Radar model FAR-3220/ FAR-3320/ FAR-3220-BB FAR-3210/ FAR-3310/ FAR-3210-BB FAR-3230S/ FAR-3330S/ FAR-3230S-BB FAR-3330SW/ FAR-3230SW-BB FAR-3320W/ FAR-3220W-BB TransceiverMagnetronAntenna 10W/m 2 50W/m 2 Warning, CautionProhibitive Action Mandatory Action Radio Frequency Radiation Hazard WARNING CAUTION WARNING RTR-105 FNE1201 XN12CF XN20CF XN24CF RTR-106 MG5436 XN12CF XN20CF XN24CF RTR-108 MG5436 XN20CF XN24CF RTR-107 MG5223F SN36CF RTR-109 MG5223F SN36CF Magnetron radar 100W/m 2 Radar model FAR-3230S-SSD/ FAR-3330S-SSD/ FAR-3230S-SSD-BB TransceiverAntenna 10W/m 2 50W/m 2 RTR-111 SN36CF Solid state radar N/A N/A N/A 1.0 m 0.5 m4.6 m 0.6 m 1.4 m4.4 m 0.4 m 0.9 m3.0 m 0.3 m 0.6 m2.5 m 1.3 m 2.7 m9.5 m 1.0 m 1.7 m6.8 m 0.7 m 1.3 m5.5 m N/A 0.26 m2.3 m 0.5 m 1.2 m5.5 m 0.3 m 0.9 m4.0 m SAFETY INSTRUCTIONS iii WARNING Do not open the equipment. The equipment uses high voltage that can cause electrical shock. Refer any repair work to a qualified technician. Before turning on the radar, be sure no one is near the antenna. Prevent the potential risk of being struck by the rotating antenna, which can result in serious injury or death. If water leaks into the equipment or something is dropped into the equipment, immediately turn off the power at the switchboard. Fire or electrical shock can result. If the equipment is giving off smoke or fire, immediately turn off the power at the switchboard. Fire or electrical shock can result. If you feel the equipment is acting abnormally or giving off strange noises, immediately turn off the power at the switchboard and contact a FURUNO service techni- cian. Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result. Make sure no rain or water splash leaks into the equipment. Fire or electrical shock can result if water leaks into the equipment. Do not place liquid-filled containers on or near the equipment. Fire or electrical shock can result if a liquid spills into the equipment. Do not operate the equipment with wet hands. Electrical shock can result. Keep objects away from the open- type antenna unit, so as not to impede rotation of the antenna. Fire, electrical shock or serious injury can result. Use the proper fuse. Use of the wrong fuse can cause fire or damage the equipment. The TT function is a valuable…

Text truncated - open the document above for the full version.

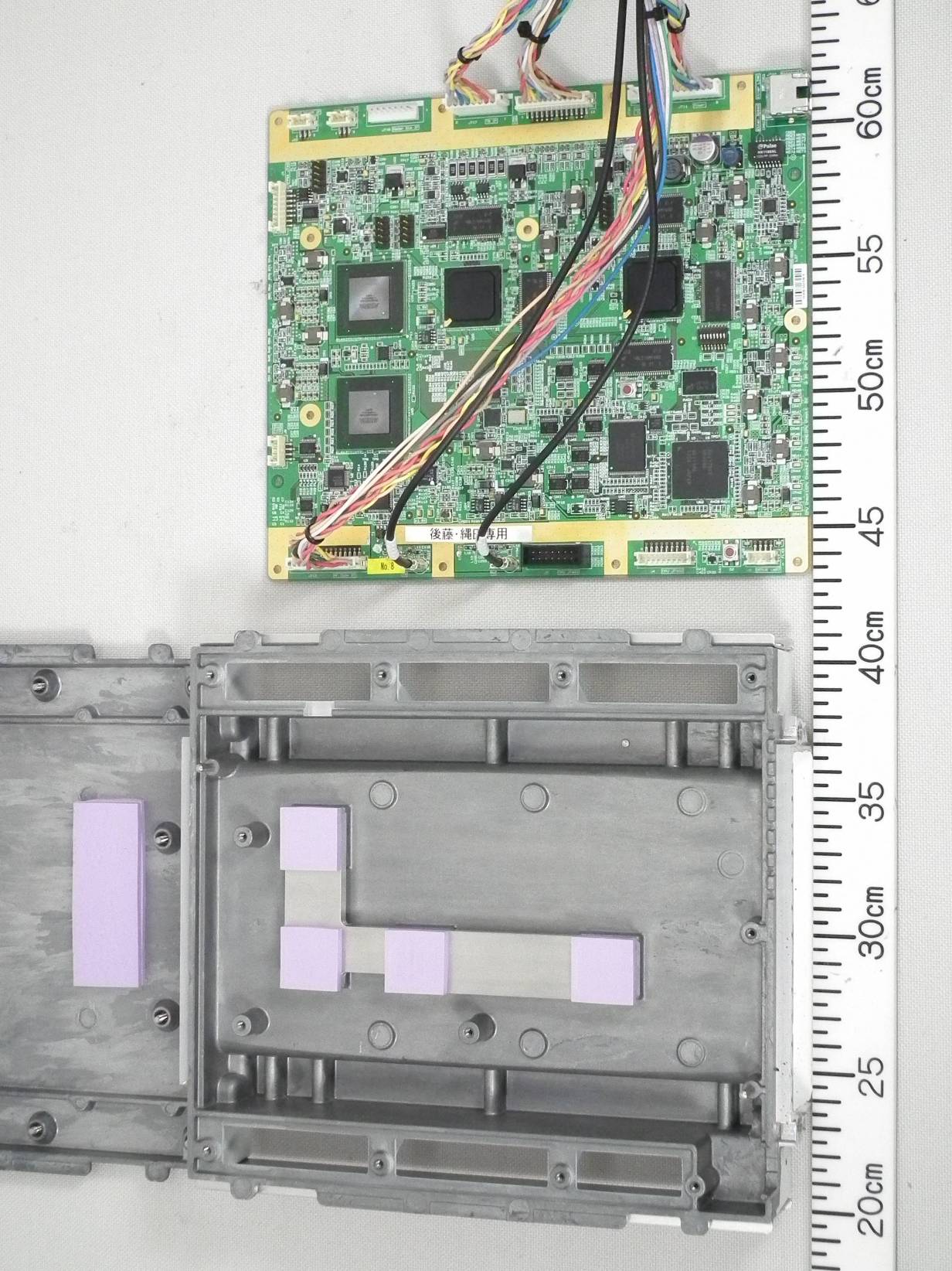

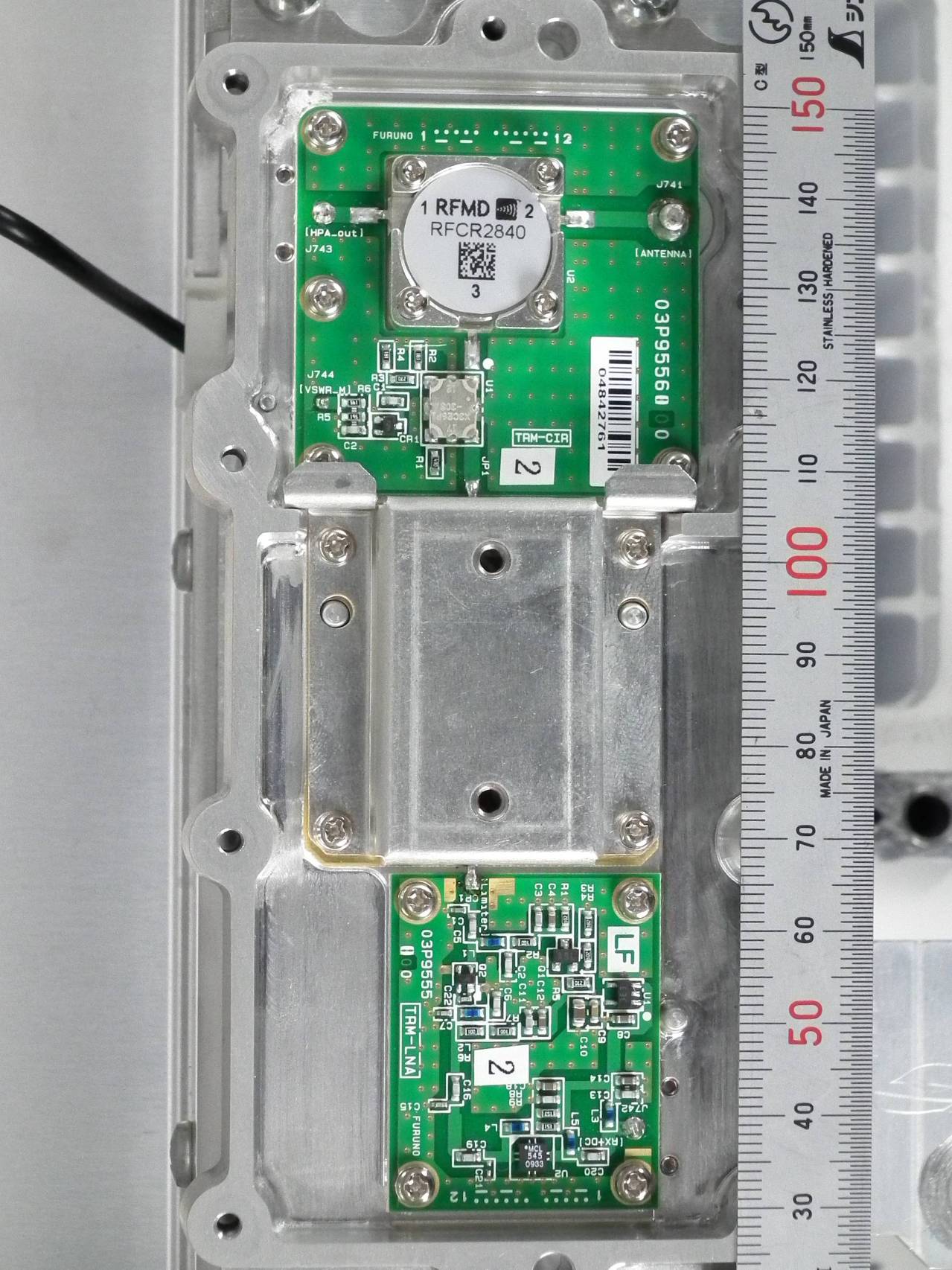

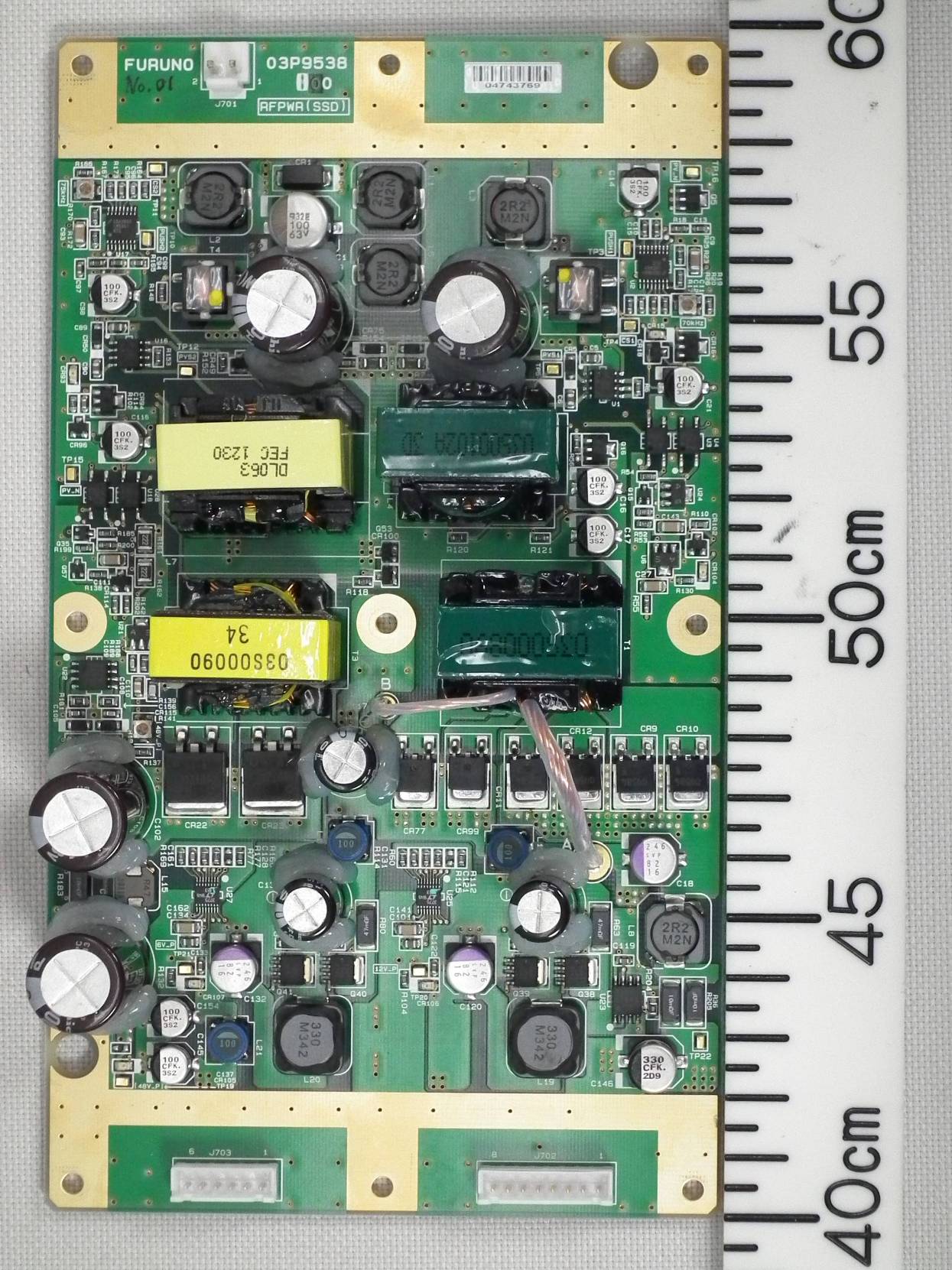

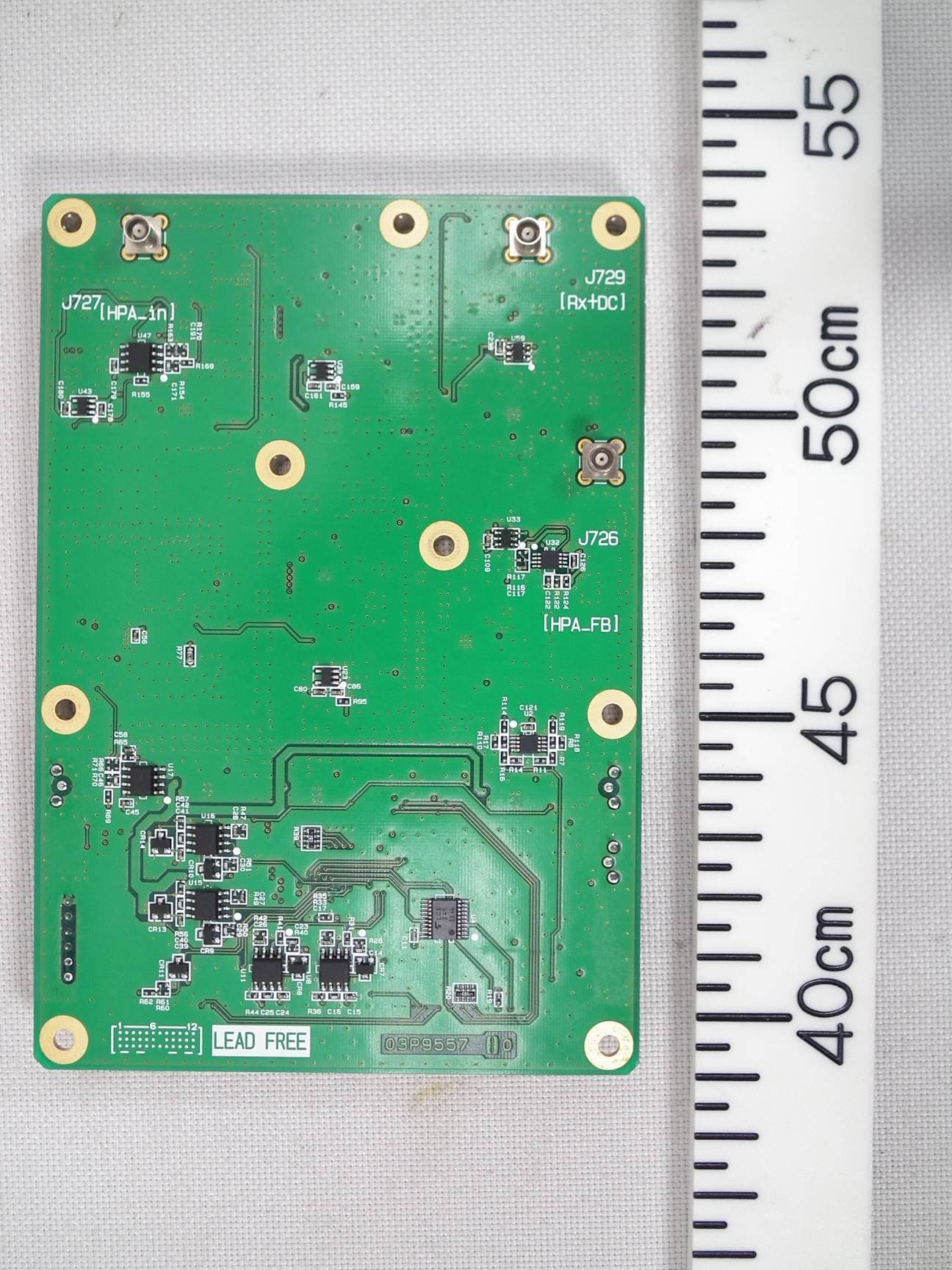

www.furuno.com All brand and product names are trademarks, registered trademarks or service marks of their respective holders. Installation Manual CHART RADAR Model FAR-3230S-SSD(-BB)/FAR-3330S-SSD (Product name: MARINE RADAR) SAFETY INSTRUCTIONS ................................................................................................ i SYSTEM CONFIGURATION .......................................................................................... iii EQUIPMENT LISTS........................................................................................................ vi 1. INSTALLATION....................................................................................................... 1-1 1.1 Antenna Unit ......................................................................................................................1-1 1.2 Monitor Unit........................................................................................................................1-8 1.3 Radar Control Unit, Trackball Control Unit.........................................................................1-8 1.4 Power Supply Unit (PSU-016/PSU-018)..........................................................................1-11 1.5 Processor Unit .................................................................................................................1-12 1.6 Sensor Adapter MC-3000S/3010A/3020D/3030D (option) ..............................................1-13 1.7 Intelligent Hub HUB-3000 (option) ...................................................................................1-14 1.8 Switching Hub HUB-100 (option) .....................................................................................1-16 2. WIRING.................................................................................................................... 2-1 2.1 Overview ............................................................................................................................2-1 2.2 Antenna Unit ......................................................................................................................2-3 2.3 Processor Unit .................................................................................................................2-10 2.4 Power Supply Unit ...........................................................................................................2-21 2.5 Monitor Unit......................................................................................................................2-25 2.6 Sensor Adapters (option) .................................................................................................2-26 2.7 LAN Signal Converter Kit (option)....................................................................................2-43 2.8 Intelligent Hub HUB-3000 (option) ...................................................................................2-47 2.9 How to Extend the Control Unit Cable (option) ................................................................2-48 3. SETTINGS AND ADJUSTMENTS .......................................................................... 3-1 3.1 How to Access the Radar Installation Menu ......................................................................3-1 3.2 How to Align the Heading ..................................................................................................3-1 3.3 How to Adjust the Sweep Timing .......................................................................................3-2 3.4 How to Suppress Main Bang .............................................................................................3-3 3.5 Dual Radar Display ............................................................................................................3-3 3.6 Other Settings ....................................................................................................................3-6 4. INPUT/OUTPUT DATA............................................................................................ 4-1 4.1 Processor Unit ...................................................................................................................4-1 4.2 IEC 61162 Sentences ........................................................................................................4-2 APPENDIX 1 JIS CABLE GUIDE ............................................................................. AP-1 APPENDIX 2 ROD TERMINALS .............................................................................. AP-2 APPENDIX 3 DIGITAL INTERFACE ........................................................................ AP-7 PACKING LISTS ......................................................................................................... A-1 OUTLINE DRAWINGS ................................................................................................ D-1 INTERCONNECTION DIAGRAM ................................................................................ S-1 The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN A:APR2014 . Printed in Japan All rights reserved. C:OCT.15, 2014 Pub. No. IME-36190-C ( AKMU ) FAR-3230S-SSD 0 0 0 1 7 8 0 3 5 1 2 i SAFETY INSTRUCTIONS The operator and installer must read the applicable safety instructions before attempting to install or operate the equipment. DANGER Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, can result in minor or moderate injury. Warning, Caution Prohibitive Action Mandatory Action DANGER Wear a safety belt and hard hat when working on the antenna unit. Serious injury or death can result if someone falls from the radar antenna mast. WARNING Radio Frequency Radiation Hazar…

Text truncated - open the document above for the full version.

2. WIRING 2-10 2.3Processor Unit Note: The interface ports approved for interconnecting navigation equipment are shown in the figure below. For details, see paragraph 2.3.3 "How to select the serial input/output format". 2.3.1How to connect cables to terminals in the processor unit Use screws (M3×6, supplied) to attach the wiring plate 1 and wiring plate 2 to the pro- cessor unit. Connect the cables shown below to the connectors at the front of the pro- cessor unit. Bind cables to the appropriate fixing metal with the cable ties (supplied). For the cables from the monitor unit (type: DVI-D/D SLINK5M/10M* (*: MU-190 only), DSUB9P-X2-L5/10M) and ground wire, connect them to the processor unit directly (without fixing to a wiring plate). Tighten the fixing screws on these connectors to pre- vent disconnection from the processor unit. Note: Connect the cables so that they do not interfere with the opening or closing of the DVD tray. J5J5J5 J11J11J11 J4J4J4 J3J3J3 J8J8J8 J9J9J9 J10J10J10 J6J6J6 J7J7J7 J12J12J12 J13J13J13 J14J14J14 J3, J4 For IEC 61162-2 or IEC 61162-1 J5, J6, J7, J8, J9, J10 For IEC 61162-1 Top view of EC-3000 OK UP Desktop or Bulkhead (Sideway slot) Hanging or Bulkhead (Vertical slot) 2. WIRING 2-11 Cables connected at wiring plate 1 assy • USB cables from the control units • Printer cable • LAN cable (type: DTI-C5E350 VCV) from the HUB-3000 • LAN cable (type: FR-FTPC-CY) from the HUB-100/MC-3000S Cables connected at the wiring plate 2 • Power cable (Type: IEC60320-C13-L5M) • LAN cable to the LAN3 port Wiring plate 2 assy Wiring plate 1 Slide the plate toward the unit to hide LED and switches. MU-190/231 (DVI1: DVI-D/D S-LINK cable, COM1: DSUB9P-X2-L cable) COM1 DVI3 USB1 RCU-025/026 (TS-20-071-1 cable) USB2/3 Optional control unit RCU-024/025/026 (TS-20-071-1 cable) HUB-3000 (DTI-C5E350 VCV cable) LAN1 LAN2 HUB-100/MC-3000S (FR-FTPC-CY cable, within 50m) DVI1 COM2 Cable clamp Ground wire (IV-2sq., local supply) Power cable (IEC60320-C13- L5M cable) USB4 For USB printer LAN3 MOD-Z072-005+ DVI2 MU-190/231 (DVI2: DVI-D/D S-LINK cable or DVI-BNCX5-L2000 cable) VDR (DVI3: BNCX5-L2000 cable) (COM2: DSUB9P-X2-L cable) 2. WIRING 2-12 How to fabricate the LAN cable Fabricate the LAN cable (FR-FTPC-CY, DTI-C5E350 VCV), as shown below. (Wrap both edges of the armor with vinyl tape.) Make sure the shield of the cable contacts the shell of the modular plug. Note: For a locally supplied LAN cable, expose the armor and clamp the armor with the cable clamp. Wrap vinyl tape. (width: 20 mm) Cable jacket Armor Outer vinyl sheath Inner vinyl sheath 55 30 Using special crimping tool MPT5-8 (PANDUIT CORP.), crimp the modular plug. Finally check the plug visually. Expose inner vinyl sheath. Remove the outer sheath by approx 25 mm. Be careful not to damage inner shield and cores. Fold back the shield, wrap it onto the outer sheath and cut it, leaving 9 mm. 12 3 25 mm approx. 9 mm 4 5 6 approx. 9 mm approx. 11 mm Drain wire Fold back drain wire and cut it, leaving 9 mm. Straighten and flatten the core in order and cut them, leaving 11 mm. Insert the cable into the modular plug so that the folded part of the shield enters into the plug housing. The drain wire should be located on the tab side of the jack. 7 1 8 Modular plug 2. WIRING 2-13 IPX2 kit The optional IPX2 kit (Type: OP24-23, Code No.: 001-171-780) protects the connec- tors shown below to waterproofing standard IPX2. Contents of IPX2 kit 1. Set the connector gasket to the unused connector not used. 2. Fasten two binding screws to fix the connector gasket. 3. Peel the paper from the double-sided tape on the rainproof cover, then attach the cover to the position shown below by using four screws pre-attached to the pro- cessor unit. NameTypeCode No.QtyRemarks Binding Screw#4-40UNCX3/16000-176-619-1010 Connector Gasket 124-014-0107100-367-730-102For D-sub connectors Connector Gasket 224-014-0108100-367-741-103For DVI connectors Rainproof Cover24-014-0109100-372-202-101 Gasket Clamping Plate24-014-0114100-372-210-102For D-sub connectors 24-014-0115100-372-220-103For DVI connectors 1 WHT/GRN 2 GRN 3 WHT/ORG 4 BLU 5 WHT/BLE 6 ORG 7 WHT/BRN 8 BRN WHT/ORG 1 ORG 2 WHT/GRN 3 BLU 4 WHT/BLE 5 GRN 6 WHT/BRN 7 BRN 8 1 WHT/ORG 2 ORG 3 WHT/GRN 4 BLU 5 WHT/BLE 6 GRN 7 WHT/BRN 8 BRN WHT/ORG 1 ORG 2 WHT/GRN 3 BLU 4 WHT/BLE 5 GRN 6 WHT/BRN 7 BRN 8 [Cross cable] [Straight cable] Connector gasket Gasket clamping plate Screws to fix the rainproof cover Rainproof cover Processor unitProcessor unit 2. WIRING 2-14 2.3.2How to connect cables inside the processor unit Fabrication Fabricate the JIS cables (see the Appendix for equivalent cables if not available local- ly) as shown below. Connect the cables to the WAGO connectors on the I/O Board (24P0124) inside the processor unit. For locations of cables and cores, see the sticker on the reverse side of the top cover. (All dimensions in millimeters) Shield 6 5 100 * 30 Armor Sheath L Fabrication of TTYCS series Vinyl tape (Width: 20) After exposing cores, wind shield around the armor. Clamp here by cable clamp. Length of “L” TTYCS-4, TTYCSLA-4, TTYCS-1Q, TTYCSLA-1Q TTYCS-10, TTYCSLA-10 400 380 Cable type (JIS) Fabrication of TTYCSLA series Pass the heat shrinkable tube (local supply) onto the drain wire, then attach the crimp-on lug (preattached to the earth clamp on the processor unit) to it. Sheath Armor Vinyl tape (Width: 20) Drain wire Crimp-on lug Processor unit, cover removed Crimp-on lugs for drain wires 30 L 6 How to connect wires to WAGO connector Press downward. Terminal opener WAGO connector Wire Twist <Procedure> 1. Twist the cores. 2. Press the terminal opener downward. 3. Insert the wire to hole. 4. Remove the terminal opener. 5. Pull the wire to confirm that it is secure. Cable tie (supplied) Clamp here by cable clamp. Cable tie (supplied) 2. WIRING 2-15 Connection 1. Unfasten four screws (M4×8) to remove the top cover from the processor unit. 2. Unfasten the three bolts circled below to remove the upper…

Text truncated - open the document above for the full version.

2. WIRING 2-40 2.6.3How to set jumper blocks in the sensor adapters MC-3000S See the jumper blocks on the MC-CS Board (24P0114) referring to the tables that fol- low. MC-CS Board (24P0114) Rotary switch S2: Use the rotary switch (S2) to set the Modbus address when setting connectors J4/J5 to Modbus. The Modbus address set at J4/J5 in the network is not used. When setting J4/J5 to IEC61162-1/2, use the default setting (“0”). Jumper block: Use the jumper block J19 to set the termination resistor on/off for the MODBUS com- munication on the connector J1. For the first and last sensor adapter in a series, their termination resistors must be set to ON. Use the MC-CS Board with the default setting because it becomes the “first” adapter in a series. Set the jumper blocks J14 through J17 to turn the termination resistors on connectors J4 through J7, respectively. <Termination resistor ON> • When setting the starting/ending terminal for the multipoint, or the multipoint is not connected (CH1 to 4). • When the starting/ending terminal for Modbus (CH1, CH2) Jumper block J19Connector J1 1-2SHORTTermination resistor: ON (default setting) 2-3OPEN 1-2OPENTermination resistor: OFF 2-3SHORT S2 J14 J22 J23 J15 J16 J17 J19J20 J21 2. WIRING 2-41 <Terminal resistor OFF> • When setting the terminal other than starting/ending for the multipoint (CH1 to 4). • When setting the terminal other than starting/ending for Modbus (CH1/CH2) Communication type: Set the jumper blocks J20 and J21 to choose the communication type (IEC-61162-1/ 2 or MODBUS) of the connector J4 (CH1). The setting of the jumper block JP20 and JP21 must be identical. The jumper blocks J22 and J23 are used to set the communication type of the con- nector J5 (CH2). Jumper block J14Connector J4 (CH1) 1-2SHORTTermination resistor: ON (default setting) 2-3OPEN 1-2OPENTermination resistor: OFF 2-3SHORT Jumper block J15Connector J5 (CH2) 1-2SHORTTermination resistor: ON (default setting) 2-3OPEN 1-2OPENTermination resistor: OFF 2-3SHORT Jumper block J16Connector J6 (CH3) 1-2SHORTTermination resistor: ON (default setting) 2-3OPEN 1-2OPENTermination resistor: OFF 2-3SHORT Jumper block J17Connector J7 (CH4) 1-2SHORTTermination resistor: ON (default setting) 2-3OPEN 1-2OPENTermination resistor: OFF 2-3SHORT Jumper block J20/J21 Communication type of J4 (between RD1 and TD1) 1-2OPENIEC-61162-1/2 (default setting) 2-3SHORT 1-2SHORTMODBUS 2-3OPEN Jumper block J22/J23 Communication type of J5 (between RD2 and TD2) 1-2OPENIEC-61162-1/2 (default setting) 2-3SHORT 1-2SHORTMODBUS (The setting of J14 is different depending on the unit position (starting/ending terminal).) 2-3OPEN 2. WIRING 2-42 MC-3010A/3020D/3030D This paragraph shows how to set the MC-ANLG Board (24P0115, for MC-3010A), MC-DIN Board (24P0116, for MC-3020D) and MC-DOUT Board (24P0117, for MC- 3030D). Rotary switch U18: Use the rotary switch (U18) to set the MODBUS address with a digit of number from “0”. When multiple sensor adapters are connected to the MC-3000S, the same num- ber cannot be used among them. (It is allowed to use the same number between the MC-3000S and a sensor adapter.) Jumper block Use the jumper block J25 to set the termination resistor on/off for the MODBUS com- munication on the connector J1. For the first and last sensor adapter in a series, their termination resistors must be set to ON. If not, communication between sensor adapt- ers is not possible. Jumper block J25Connector J1 1-2OPENTermination resistor: ON 2-3SHORT 1-2SHORTTermination resistor: OFF (default setting) 2-3OPEN U18 U18 U18 J25J25 J25J25 J25J25 J3 J4 J5 MC-ANLG Board (24P0115) MC-DIN Board (24P0116) MC-OUT Board (24P0117) 2. WIRING 2-43 2.7LAN Signal Converter Kit (option) Two LAN Signal Converters (for antenna unit and PSU) allow the use of existing an- tenna cable RW-4873/6895/9600 in the case of a retrofit. Kit contents (Type: OP03-223-1, Code no.: 001-254-360) 2.7.1Application overview Use with existing antenna cable (RW-4873/6895/9600) in case of retrofit. The maxi- mum length of the antenna cable is 100 m. NameType Code no.QtyRemarks LAN Signal Converter OP03-223001-249-9301For PSU OP03-223001-254-3501For antenna unit LAN Cable Assy. IOK-V0024-0.35000-178-739-101 BNC-PP L=30000-178-969-101 XH Connector 03-2425(2P)001-249-9401 Connector Fixing Plate 03-183-5123-0100-385-330-101For antenna unit Installation Materials OP03-223-1/2/3000-166-029-111For antenna unit Binding Screws M3×6000-176-673-1044 pcs. For PSU LAN COAX CONV KIT C32-01312-*000-178-7751Installation instructions ANTENNA UNIT Antenna cable (RW-4873/6895/9600) SPU board * Installed inside respective unit. PSU-TB LAN↔Coax Converter* RF-TB LAN↔Coax Converter* Power Power PSU- CNTL POWER SUPPLY UNIT Power Power LAN LAN Power Coaxial 2. WIRING 2-44 2.7.2Installation in the antenna unit Dismount the transceiver unit. See paragraph 2.2.2 for the procedure. 1. Set the M_S switch on the converter to the S (Slave) position. 2. Orient the converter so the coax connector is upward then fasten the converter from inside the transceiver unit with four screws. 3. Unfasten two screws to remove the cover plate from the SPU board. 4. Connect the power cable between the converter and J720 on the SPU board. Note polarity before connecting. Close the cover plate. 5. Connect the LAN cable to the LAN port on the transceiver unit. Pass the cable through the locking wire saddle then connect it to the LAN port on the converter. 6. Open the BNC case to connect the coaxial cable to the BNC case, then close the case. 7. Fasten the BNC case to the antenna unit, then pass the coaxial cable from the converter through three locking wire saddles. 8. Mount the transceiver unit, then connect the coaxial cable from the converter to the BNC case. Fasten conductor with screw. Fasten shield with clamp. Loosen two screws on the BNC case. BNC case BNC case 14 5 9 Coaxial cable of the antenna cable Fasten the BNC case to the rail inside the antenna unit with two screws. Three lockin…

Text truncated - open the document above for the full version.

APPENDIX 3 DIGITAL INTERFACE AP-11 VBW - Dual ground/water speed VDM - UAIS VHF data-link message VDO - UAIS VHFG data-link own vessel report VDR - Set and drift VHW - Water speed and headings $**VBW,x.x,x.x,x,x.x,x.x,x,x.x,x,x.x,x,*hh<CR><LF> 1 2 3 4 5 6 7 8 9 10 1. Longitudinal water speed, knots (-99.949 - 99.949) 2. Transverse water speed, knots (-99.949 - 99.949, null) 3. Status: water speed, A=data valid V=data invalid 4. Longitudinal ground speed, knots (-99.949 - 99.949) 5. Transverse ground speed, knots (-99.949 - 99.949, null) 6. Status: ground speed, A=data valid V=data invalid 7. Stern transverse water speed, knots (-99.949 - 99.949) 8. Status: stern water speed, A=data valid V=data invalid 9. Stern transverse ground speed, knots (-99.949 - 99.949) 10. Status: stern ground speed, A=data valid V=data invalid !AIVDM,x,x,x,x,s--s,x,*hh<CR><LF> 1 2 3 4 5 6 1. Total number of sentences needed to transfer the message (1 to 9) 2. Message sentence number (1 to 9) 3. Sequential message identifier (0 to 9, NULL) 4. AIS channel Number (A or B) 5. Encapsulated ITU-R M.1371 radio message (1 - 63 bytes) 6. Number of fill-bits (0 to 5) !AIVDO,x,x,x,x,s--s,x,*hh<CR><LF> 1 2 3 4 5 6 1. Total number of sentences needed to transfer the message (1 to 9) 2. Message sentence number (1 to 9) 3. Sequential message identifier (0 to 9, NULL) 4. AIS channel Number (A or B, NULL) 5. Encapsulated ITU-R M.1371 radio message (1 - 63 bytes) 6. Number of fill-bits (0 to 5) $**VDR,x.x,T,x.x,M,x.x,N,*hh <CR><LF> 1 2 3 4 5 6 1. Direction, degrees (0.00 - 360.00, null) 2. T=True (fixed) 3. Direction, degrees (0.00 - 360.00, null) 4. M=Magnetic (fixed) 5. Current speed (0 - 99.99) 6. N=Knots (fixed) $**VHW,x.x,T,x.x,M,x.x,N,x.x,K,*hh <CR><LF> 1 2 3 4 5 6 7 8 1. Heading, degrees (No use) 2. T=True (fixed, No use) 3. Heading, degrees (No use) 4. M=Magnetic (fixed, No use) 5. Speed, knots (0.00 - 99.94) 6. N=Knots (fixed) 7. Speed, knots (0.00 - 99.94) 8. K=km/hr (fixed) APPENDIX 3 DIGITAL INTERFACE AP-12 VTG - Course over ground and ground speed ZDA - Time and date Output sentences For ACK, ALR and HBT see input sentences. ABM - UAIS Addressed binary and safety related message ALC - Cyclic alert list $**VTG,x.x,T,x.x,M,x.x,N,x.x,K,a,*hh <CR><LF> 1 2 3 4 5 6 7 8 9 1. Course over ground, degrees (0.00 - 360.00) 2. T=True (fixed) 3. Course over ground, degrees (No use) 4. M=Magnetic (No Use) 5. Speed over ground, knots (0.00-99.94) 6. N=Knots (fixed) 7. Speed over ground (0.00-99.94) 8. K=km/h (fixed) 9. Mode indicator ( A=Autonomous, D=Differential E=Estimated (dead reckoning) M=Manual input S=Simulator P=Precision) $**ZDA,hhmmss.ss,xx,xx,xxxx,xx,xx<CR><LF> 1 2 3 4 5 6 1. UTC (000000.00 - 235960.99) 2. Day (01 - 31) 3. Month (01 -12) 4. Year (UTC, 1970 - 2037) 5. Local zone, hours (No use) 6. Loca zone, minutes (No use) !**ABM,x,x,x,xxxxxxxxx,x,x.x,s--s,x,*hh<CR><LF> 1 2 3 4 5 6 7 8 1. Total number of sentences needed to transfer the message (1 - 9) 2. Message sentence number (1 - 9) 3. Message sequence identifier (0 - 3) 4. The MMSI of destination AIS unit for the ITU-R M.1371 message (9 digits) 5. AIS channel for broadcast of the radio message (0 - 3) 6. VDL message number (6 or 12), see ITU-R M.1371 7. Encapsulated data (1 - 63 bytes) 8. Number of fill-bits (0 - 5) $**ALC,xx,xx,xx,x.x, aaa,x.x,x.x,x.x,’’’’’’’’’,*hh<CR><LF> 1 2 3 4 5 6 7 8 9 1. Total number of sentences this message (01 to 99) 2. Sentence number (01 to 99) 3. Sequential message identifier (00 to 99) 4. Number of alert entries (0 to 3) 5. Manufacturer mnemonic code (FEC, null) 6. Alert identifier (999 or 10001 to 10999) 7. Alert instance (null) 8. Revision counter (1 to 99) 9. Additional alert entries (see Note) Note: Alert entry 0 - n: Each alert entry consists of - Manufacturer Identifier (see ALF Manufactuer - Alert Identifier (see ALF Alert identifier) - Alert instance (see ALF instance) - Revision counter (see ALF revision counter) Each entry identifies a certain alert with a certain state. It is not allowed that an alert entry is split between two ALC sentences. Alert entry 1 See Note APPENDIX 3 DIGITAL INTERFACE AP-13 ALF - Alert sentence ARC - Alert command refused BBM - UAIS broadcast binary message EVE - General event message $**ALF,x,x,x,hhmmss.ss,a,a,a,aaa,x.x,x.x,x.x,x,c--c,*hh<CR><LF> 1 2 3 4 5 6 7 8 9 10 11 12 13 1. Total number of ALF sentences this message (1, 2) 2. Sentence number (1, 2) 3. Sequential message identifier (0 to 9) 4. Time of last change (hh=00 to 23, mm=00 to 59, ss.ss=00.00 to 60.99), null 5. Alert category (A=Alert category A, B=Alert category B, C=Alert category C), null 6. Alert priority (A=Alarm, W=Warning, C=Caution), null when #2 is 2. 7. Alert state (V=Not ACKed, S=Silence, A=ACked, O/U=Resolved, Not ACKed, N=Normal state), null when #2 is 2. 8. Manufacturer mnemonic code (FEC, null) 9. Alert identifier (999 or 10001 to 10999) 10. Alert instance (null) 11. Revision counter (1 to 99) 12. Escalation counter (0 to 2) 13. Alert text (max. 18 characters) $**ARC,hhmmss.ss,aaa,x.x,x.x,c*hh<CR><LF> 1 2 3 4 5 1. Release time of the alert command refused (hh: 00 to 23, mm: 00 to 59, ss.ss: 00.0060.99) 2. Used for proprietary alerts, defined by the manufacturer (FEC, null) 3. The alert identifier (1 to 999 or 10001 to 10999) 4. The alert instance (Null) 5. Refused alert command (A: Acknowledge) $**BBM,x,x,x,x,xx,s--s,x,*hh<CR><LF> 12 3 4 5 6 7 1. Total number of sentences needed to transfer the message (1 - 9) 2. Sentence number (1 - 9) 3. Sequential Message identifier (0 - 9) 4. AIS channel for broadcast of the radio message (0 - 3) 5. ITU-R M.1371 message ID (8 or 14) 6. Encapsulated data (1 - 63 bytes) 7. Number of fill-bits, 0 to 5 $ **EVE,hhmmss.ss,c--c,c--c*hh <CR><LF> 1 2 3 1. Event time (000000.00 - 235960.99) 2. Tag code used for identification of source of event (RA0001 - RA0010, EI0001 - EI0016, IN0001 - IN0016, II0001 - II0016) 3. Event description (OPERATION) Note: This sentence is output after input has be…
