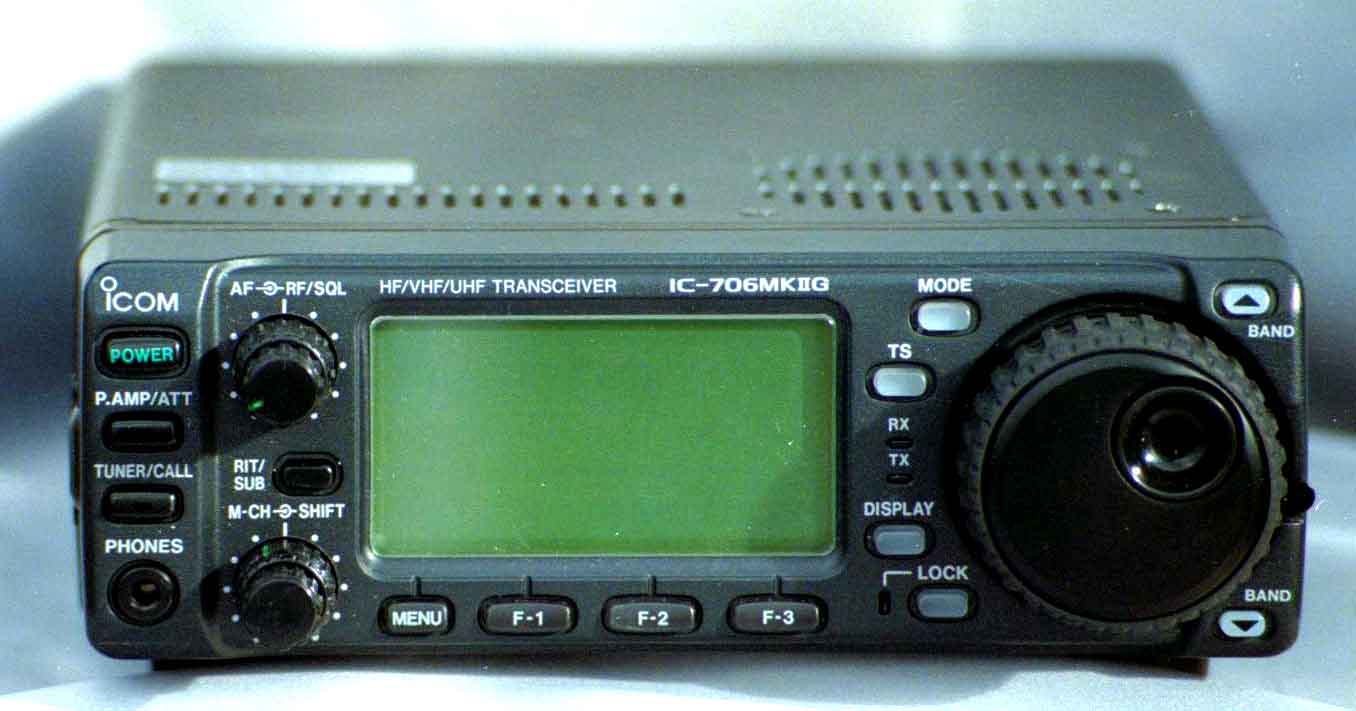

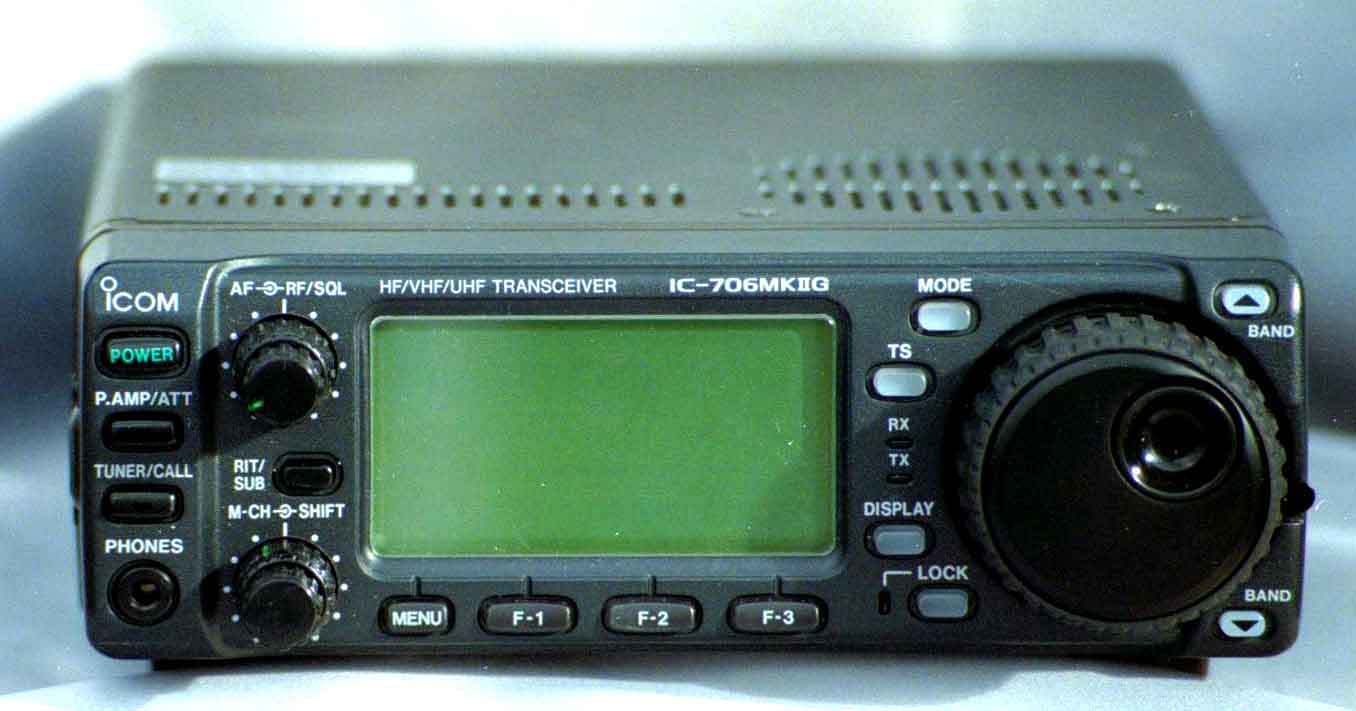

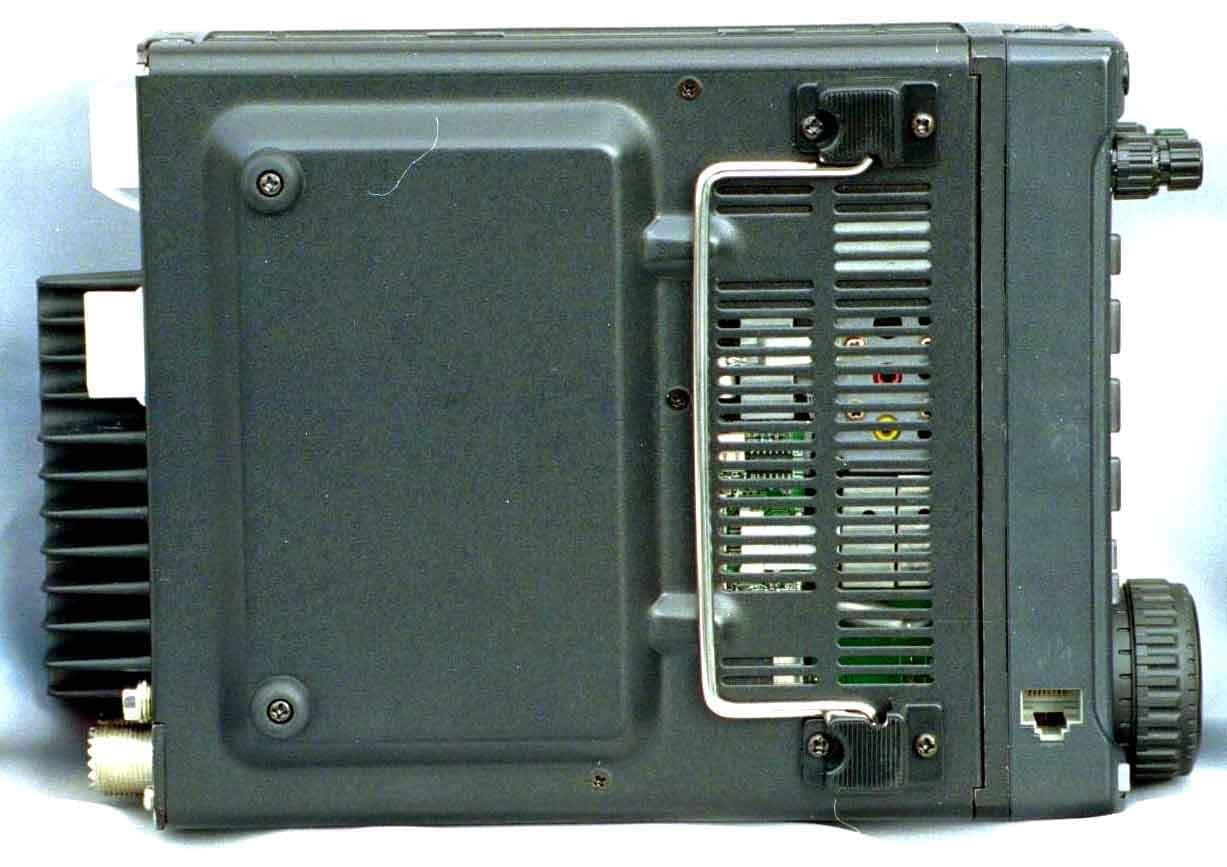

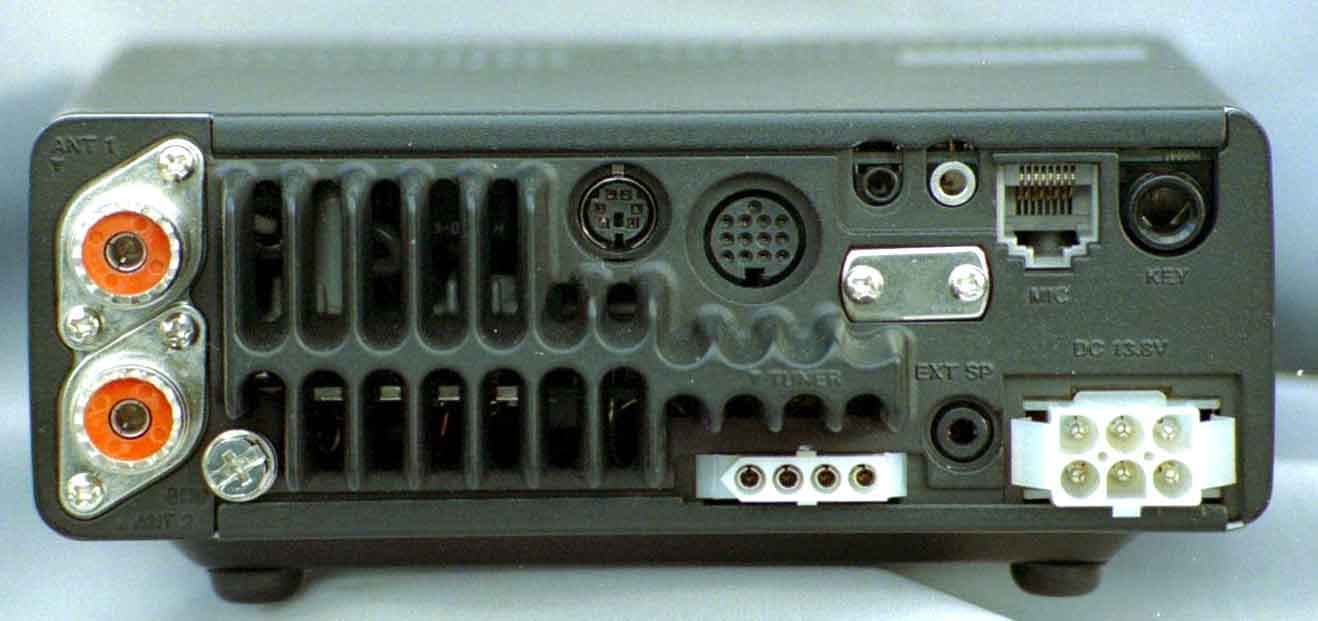

INSTRUCTION MANUAL i706MK™G HF/VHF/UHF ALL MODE TRANSCEIVER This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful in- terference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC-706MKIIG.qxd 02.3.27 13:53 Page 1 EXPLICIT DEFINITIONS PRECAUTIONS IMPORTANT RReeaadd tthhiiss iinnssttrruuccttiioonn mmaannuuaall ccaarreeffuullllyy before attempting to operate the transceiver. SSaavvee tthhiiss iinnssttrruuccttiioonn mmaannuuaall.. This instruction manual contains important safety and operating instructions for the IC-706MKIIG. R WWAARRNNIINNGG HHIIGGHH VVOOLLTTAAGGEE!! NNEEVVEERR attach an antenna or internal antenna connector dur- ing transmission. This may result in an electrical shock or burn. R NNEEVVEERR apply AC to the [DC13.8V] socket on the transceiver rear panel. This could cause a fire or ruin the transceiver. R NNEEVVEERR apply more than 16 V DC, such as a 24 V battery, to the [DC13.8V] socket on the transceiver rear panel. This could cause a fire or ruin the transceiv- er. R NNEEVVEERR let metal, wire or other objects touch any internal part or connectors on the rear panel of the transceiver. This will cause electric shock. R NNEEVVEERR expose the transceiver to rain, snow or any liquids. NNEEVVEERR allow children to play with the transceiver. AAVVOOIIDD using or placing the transceiver in areas with temperatures below –10°C (+14°F) or above +60°C (+140°F). Be aware that temperatures on a vehicle’s dashboard can exceed 80°C, resulting in permanent damage to the transceiver’s front panel if left there for extended periods. AAVVOOIIDD placing the transceiver in excessively dusty environments or in direct sunlight. AAVVOOIIDD placing the transceiver against walls or putting anything on top of the transceiver. This will obstruct heat dissipation. During mobile operation, DDOO NNOOTT operate the trans- ceiver without running the vehicle’s engine. When transceiver power is ON and your vehicle’s engine is OFF, the vehicle’s battery will soon become exhausted. Make sure the transceiver power is OFF before start- ing the vehicle. This will avoid possible damage to the transceiver by ignition voltage spikes. During maritime mobile operation, keep the transceiv- er and microphone as far away as possible from the magnetic navigation compass to prevent erroneous indications. BBEE CCAARREEFFUULL!! The heatsink will become hot when operating the transceiver continuously for long peri- ods. BBEE CCAARREEFFUULL!! If a linear amplifier is connected, set the transceiver’s RF output power to less than the lin- ear amplifier’s maximum input level, otherwise, the lin- ear amplifier will be damaged. Use Icom microphones only (supplied or optional). Other manufacturer’s microphones have different pin assignments and connection to the IC-706MKIIG may damage the transceiver. Beat signals may be heard on some frequencies. These will occur as a result of circuit construction. For U.S.A. only CCaauuttiioonn:: Changes or modifications to this transceiver, not expressly approved by Icom Inc., could void your authority to operate this transceiver under FCC regulations. i The explicit definitions described below apply to this instruction manual. WWOORRDDDDEEFFIINNIITTIIOONN R WWAARRNNIINNGG Personal injury, fire hazard or electric shock may occur. CCAAUUTTIIOONN Equipment damage may occur. NNOOTTEE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. IC-706MKIIG.qxd 02.3.27 13:53 Page i TABLE OF CONTENTS IMPORTANT................................................... i PRECAUTIONS ................................................i EXPLICIT DEFINITIONS.................................... i TABLE OF CONTENTS .................................... ii UNPACKING...................................................ii 11PPAANNEELL DDEESSCCRRIIPPTTIIOONN ........................... 11––88 Front panel ...................................................... 1 Function switches............................................. 3 Rear and side panels ....................................... 5 Function display ............................................. 7 Microphone (HM-103) ....................................... 8 22IINNSSTTAALLLLAATTIIOONN AANNDD CCOONNNNEECCTTIIOONNSS ... 99––1144 Unpacking ...................................................... 9 Grounding ...................................................... 9 Antenna .........................................................9 Installation......................................................10 Required connections .......................................11 Advanced connections....................................12 Power supply connections .................................13 External antenna tuners and linear amplifier .........14 33FFRREEQQUUEENNCCYY SSEETTTTIINNGG ........................ 1155––1199 When first applying power (CPU resetting)............ 15 Initial settings................................................ 15 VFO description ............................................. 16 Frequency setting.......................................... 17 Mode selection ................................................19 44RREECCEEIIVVEE AANNDD TTRRAANNSSMMIITT .................. 2200––3388 Functions for receive ....................................... 20 Functions for transmit .................................... 25 Split frequency operation ................................. 29 Tone squelch operation .................................... 31 Tone scan operation ....................................... 31 One-touch repeater ....................................... 32 Auto repeater function .................................... 32 Functions for CW ............................................. 33 Functions for RTTY .......................................... 35 Packet operation.…

Text truncated - open the document above for the full version.

1 PREPARATION BEFORE SERVICING REQUIRED TEST EQUIPMENT DC power supply RF power meter (terminated type) Frequency counter RF voltmeter Standard signal generator (SSG) FM deviation meter Modulation analyzer Distortion meter Oscilloscope Digital multimeter AC millivoltmeter DC voltmeter DC ammeter Audio generator Spectram analyzer Attenuator External speaker EQUIPMENTGREDE AND RANGEEQUIPMENTGREDE AND RENGE 7 IC-706MKIIG ADJUSTMENT PROCEDURES Output voltage: 13.8 V DC Current capacity: 30 A or more Measuring range: 10–200 W Frequency range: 1.8–500 MHz Impedance: 50 Ω SWR: Less than 1.2 : 1 Frequency range: 0.1–500 MHz Frequency accuracy: ±1 ppm or better Sensitivity: 100 mV or better Frequency range: 0.1–500 MHz Measuring range: 0.01–10 V Frequency range: 0.1–30 MHz Output level: 0.1 μV–32 mV (–127 to –17 dBm) Frequency range: 0–500 MHz Measuring range: 0 to ±5 kHz Frequency range: At least 500 MHz Measuring range: 0–100 % Frequency range: 1 kHz ±10 % Measuring range: 1–100 % Frequency range: DC–100 MHz Measuring range: 0.01–10 V Imput impeadance: 10 MΩ/DC or beter Measuring range: 10 mV–10 V Input impedance: 50 kΩ/V DC or better Measurement capability: 1 A/50 A Frequency range: 300–3000 Hz Measuring range: 1–500 mV Frequency range: At least 1000 MHz Spectraum bandwidth : 100 kHz or more Power attenuation: 50 or 60 dB Capacity: 150 W or more Input impedance: 8 Ω Capacity: 5 W or more 2 PLL ADJUSTMENTS 8 REFERENCE FREQUENCY REFERENCE LOOP LOCK VOLTAGE MAIN LOOP LOCK VOLTAGE ADJUSTMENT ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE POINT UNITLOCATIONUNITADJUST 1 2 1 1 2 3 • Display frequency: Any • L623 (PLL unit): Center • Receiving • Display frequency: 0.0300 MHz • Mode: USB • Receiving • Display frequency : 128.99999 MHz • Mode: USB • Receiving • Display frequency : 199.99999 MHz • Mode: USB • Receiving • Display frequency : 470.00000 MHz • Mode: USB • Receiving PLL PLL PLL Connect an RF volt- meter to check point P681. Connect a frequency counter to check point P681. Connect a digital multimeter or oscillo- scope to check point CP131. Connect a digital multimeter or oscillo- scope to check point CP401. Maximum level (0 dB or more) 60.000000 MHz 2.0 V 4.0 V 4.0 V 4.0 V PLL PLL PLL L681, L682 L601 L623 R602 C4 C306 C335 C367 3 TRANSMITTER ADJUSTMENTS TRANSMIT TOTAL GAIN OUTPUT POWER CARRIER SUPPRESSION ADJUSTMENT ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE POINT UNITLOCATIONUNITADJUST 1 2 1 2 3 4 1 • Display frequency: 14.10000 MHz • Mode: USB • [Q1 RF POWER] : H • Connect an audio generator to [MIC] connector and set as: 1.5 kHz/3 mV • Transmitting • Transmitting • Display frequency: 14.10000 MHz • Mode: USB • [Q2 MIC GAIN]: 5 • Connect an audio generator to [MIC] connector and set as: 1.5 kHz/30 mV • Transmitting • Display frequency : 52.00000 MHz • Transmitting • Display frequency : 145.00000 MHz • Transmitting • Display frequency : 435.00000 MHz • Transmitting • Display frequency : 14.10000 MHz • Mode: USB and LSB • Apply no signal to [MIC] connector. • Transmitting Rear Panel Rear Panel Rear Panel Connect an RF power meter to [ANT1] connector. Connect an RF power meter to [ANT1] connector. Connect an RF power meter to [ANT2] connector. Connect a spectrum analyzer to [ANT1] connector via an attenuator. Maximum RF power 50 W 100 W 100 W 50 W 20 W Minimum carrier level MAIN MAIN MAIN L511, L512, L562, L563, L566 R579 R1082 R1084 R1086 R1088 R1045 9 TRANSMITTER ADJUSTMENTS (continued) FM VCO FM DEVIATION RESIDUAL AM AM MODULATION CW CARRIER LEVEL ADJUSTMENT ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE POINT UNITLOCATIONUNITADJUST 1 1 1 2 1 2 3 1 • Display frequency: 29.10000 MHz • Mode: FM • [Q1 RF POWER] : H • [M4 TON]: OFF • Apply no signal to [MIC] connector. • Transmitting • Display frequency: 29.10000 MHz • Mode: FM • [Q1 RF POWER] : H • [M4 TON]: OFF • [Q2 MIC GAIN]: 5 • Connect an audio generator to [MIC] connector and set as: 1 kHz/30 mV • Transmitting • Display frequency: 29.10000 MHz • Mode: FM • [Q1 RF POWER] : H • [M4 TON]: OFF • [Q2 MIC GAIN]: 5 • Connect an audio generator to [MIC] connector and set as: 1 kHz/30 mV and OFF • Transmitting • Display frequency : 14.10000 MHz • Mode: AM • [Q1 RF POWER] : H • [Q2 MIC GAIN]: 5 • Disconnect the plug from J281 on the MAIN board. • Apply no signal to [MIC] connector. • Transmitting • Connect the plug to J281 on the MAIN board. • Apply no signal to [MIC] connector. • Transmitting • Connect an audio generator to [MIC] connector and set as: 1 kHz/30 mV • Transmitting • Display frequency: 14.10000 MHz • Mode: CW • [Q1 RF POWER] : H • [Q5 KEY SPEED] : 60 • [M4 BRK]: BK (semi break-in) • CW paddle: n • Connect an RF power meter to [ANT1] connector. • Transmit dots for a while using a paddle. MAIN Rear Panel MAIN Rear Panel Connect a digital multimeter to check point CP1011. Connect an FM devi- ation meter to [ANT1] connector via an attenuator. Connect an RF power meter to [ANT1] connector. Connect an osillo- scope to check point CP1041. Connect an RF power meter to [ANT1] connector. Connect a modula- tion analyzer to [ANT1] connector via an attenuator. Connect an osillo- scope to check point CP921 and [ANT1] connector. 1.8 V ±4.5 kHz Minimum power differ- ence with modulation and unmodulation. 100 mVp-p 35 W 90 % modulation At the point where the CW carrier completely comes up in a 10 msec. delay after CP921 voltage comes up. MAIN MAIN MAIN MAIN MAIN C1022 R1002 adjust in sequence L511, L512, then adjust L562, L563, L566. R1042 R1080 R999 R921 After adjustment, varify the TRANSMIT TOTAL GAIN and OUTPUT POWER adjustments. 10 msec. Keying (CP921) 10 TRANSMITTER ADJUSTMENTS (continued) IDLING CURRENT (for drive amplifiers) (for final amplifiers) SWR DETECTION ADJUSTMENT ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE POINT UNITLOCATIONUNITADJUST 1 2 3 4 5 1 2 3 • Display frequency: 14.10000 MHz • Mode: USB • [Q2 MIC GAIN]: 1 (minimum) • turn R162, R174, R175, R214, R231 (on the PA unit) to maximum counterclockwise position. • Dis…

Text truncated - open the document above for the full version.

April 08, 2003 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Certification Testing in accordance with FCC CFR 47, Part 15, Subpart B - Class B Unintentional Radiators and Scanning Receivers Operating in the frequency bands 0.03-200 MHz and 400- 470 MHz. Product: SCANNING RECEIVER Model No.: IC-706MKIIG FCC ID: AFJ217700 Dear Sir/Madam As appointed agent for ICOM Incorporated, we would like to submit the application for FCC certification of the above product. Please review all necessary files uploaded to AmericanTCB electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 April 08, 2003 ICOM Incorporated 1-1-32, Kamiminami Hirano-ku, Osaka Japan, 547-003 Attn.: Mr. Takashi Aoki Subject: Certification Testing in accordance with FCC CFR 47, Part 15, Subpart B - Class B Unintentional Radiators and Scanning Receivers Operating in the frequency bands 0.03-200 MHz and 400-470 MHz. Product: SCANNING RECEIVER Model: IC-706MKIIG FCC ID: AFJ217700 Dear Mr. Aoki, The product sample has been tested in accordance with FCC CFR 47, Part 15, Subpart B - Class B Unintentional Radiators and Scanning Receivers Operating in the frequency bands 0.03-200 MHz and 400-470 MHz, and the results and observation were recorded in the engineering report, Our File No.: ICOM-054FCC15RX Enclosed you will find copies of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SCANNING RECEIVER Model No.: IC-706MKIIG FCC ID: AFJ217700 Applicant: ICOM Incorporated 1-1-32, Kamiminami Hirano-ku, Osaka Japan, 547-003 Tested in Accordance With Federal Communications Commission (FCC) CFR 47, Part 15, Subpart B Class B Unintentional Radiators & Scanning Receivers operating in the Frequency Band 0.03-200 MHz and 400-470 MHz UltraTech's File No.: ICOM-054FCC15RX This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: April 08, 2003 Report Prepared by: Tri M. Luu, P.Eng. Tested by: Hung Trinh Issued Date: April 08, 2003 Test Dates: Mar. 27 - April 04, 2003 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 00-034 FCC PART 15, SUBPART B, SUBPART B, CLASS B UNINTENTIONAL RADIATORS AND SCANNING RECEIVERS Page 1 SCANNING RECEIVER, Model IC-706MKIIG FCC ID: AFJ217700 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ....................................................................................................................................... 3 1.1. SCOPE....................................................................................................................................................................... 3 1.2. RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 1.3. NORMATIVE REFERENCES ................................................................................................................................. 3 EXHIBIT 2. PERFORMANCE ASSESSMENT ............................................................................................................ 4 2.1. CLIENT INFORMATION ........................................................................................................................................... 4 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION.................................................................................................... 4 2.3. EUT’S TECHNICAL SPECIFICATIONS................................................................................................................ 5 2.4. LIST OF EUT’S PORTS................................................................................................................................................ 5 2.5. ANCILLARY EQUIPMENT............................................................................................................................................. 6 2.6. DRAWING OF TEST SETUP............................................................................................................................................ 7 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................. 8 3.1. CLIMATE TEST CONDITIONS........................................................................................................................................ 8 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS..................................................................... 8 EXHIBIT 4. SUMMARY OF TEST RESULTS ............................................................................................................. 9 4.1. LOCATION OF TESTS ............................................................................................................................................ 9 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS......................................................................... 9 4.3. MODIFICATIONS REQUIRED FOR COMPLIANCE ........................................................................…

Text truncated - open the document above for the full version.

Annex 1 – Photographs of Test Setup Photo # 1 SCANNING RECEIVER, Model IC-706MKIIG FCC ID: AFJ217700 Annex 1 – Photographs of Test Setup Photo # 2 SCANNING RECEIVER, Model IC-706MKIIG FCC ID: AFJ217700
