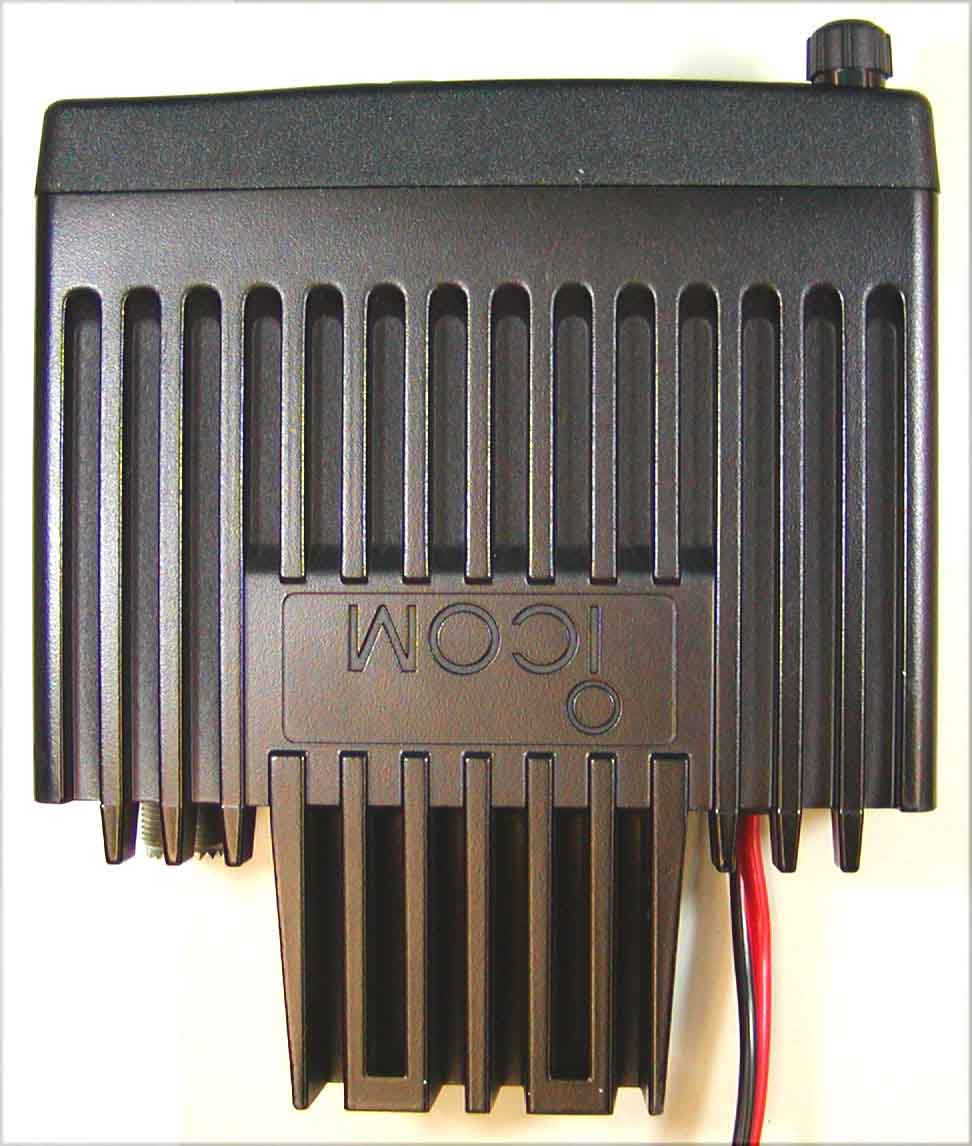

AFJ262200Mobile VHF Transceiver

ICOM Incorporated

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Jan 28, 2003
Application Purpose: Original Equipment
Date of Application: Jan 28, 2003
Equipment Note: Mobile VHF Transceiver
Frequency Range: 136.00000000 - 174.00000000
Company: ICOM Incorporated
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

INSTRUCTION MANUAL iF111VHF TRANSCEIVERUHF TRANSCEIVERiF121iF211iF221 IC-F111_F121_F211_F221.qxd 02.12.26 6:17 PM Page a (1,1) i IMPORTANTEXPLICIT DEFINITIONS R WARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electricshock. CAUTION! NEVER touch the transceiver (especially the heat sink ) when transmitting continuously for long peri- ods. It will become hot. NEVER connect the transceiver to a power source of more than 16 V DC such as a 24 V battery. This connection will ruinthe transceiver. NEVER cut the DC power cable between the DC plug and fuse holder. If an incorrect connection is made after cutting,the transceiver might be damaged. NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodilyinjury. NEVER allow children to touch the transceiver. NEVER expose the transceiver to rain, snow or any liquids. PRECAUTION WORD DEFINITION R WARNING Personal injury, fire hazard or electric shockmay occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No riskof personal injury, fire or electric shock. READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instructionsfor the IC-F111/F121 VHF TRANSCEIVER and IC-F211/F221 UHF TRANSCEIVER . Icom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United states, the UnitedKingdom, Germany, France, Spain, Russia and/or other countries.SmarTrunk II™ is a trademark of the SmarTrunk Systems, Inc. IC-F111_F121_F211_F221.qxd 02.12.26 6:17 PM Page i (1,1) ii USE the supplied microphone only. Other microphones have different pin assignments and may damage the trans-ceiver. DO NOT use or place the transceiver in areas with tem- peratures below –22°F (–30°C) or above +140°F (+66°C), orin areas subject to direct sunlight, such as the dashboard. AVOID operating the transceiver without running the vehi- cle’s engine. The vehicle’s battery will quickly run out if thetransceiver transmits while the vehicle’s engine OFF.AVOID placing the transceiver in excessively dusty envi- ronments. AVOID placing the transceiver against walls. This will obstruct heat dissipation. AVOID the use of chemical agents such as benzine or alco- hol when cleaning, as they damage the transceiver surfaces.For U.S.A. onlyCAUTION: Changes or modifications to this transceiver, not ex- pressly approved by Icom Inc., could void your authority to operatethis transceiver under FCC regulations. TABLE OF CONTENTSIMPORTANT .................................................................................... iEXPLICIT DEFINITIONS ................................................................. iPRECAUTION .................................................................................. iTABLE OF CONTENTS .................................................................. ii1 PANEL DESCRIPTION ........................................................... 1–6 Front panel ............................................................................... 1 Function display ....................................................................... 2 Programmable function keys .................................................... 3 2 OPERATION .......................................................................... 7–10 Turning power ON .................................................................... 7 Channel selection ..................................................................... 7 Receiving and transmitting ....................................................... 8 D Transmitting notes ................................................................. 8 D TX code channel selection .................................................... 9 D TX code number selection .................................................... 9 D DTMF transmission ............................................................... 9 D Scrambler function ................................................................ 9 D User set mode ..................................................................... 10 3 OPTIONAL SmarTrunk II TM OPERATION .......................... 11–12 SmarTrunk II TM and conventional modes ............................... 11 SmarTrunk II TM operation ....................................................... 11 4 CONNECTION AND MAINTENANCE ................................ 13–17 Rear panel and connection .................................................... 13 Supplied Accessories ............................................................. 14 Mounting the transceiver......................................................... 15 Optional UT-105, UT-108 or UT-111 installation ..................... 15 Optional UT-109 or UT-110 installation .................................. 16 Optional OPC-617 installation................................................. 16 Antenna ................................................................................... 17 Fuse replacement .................................................................. 17 Cleaning ................................................................................. 17 5 OPTIONS ................................................................................... 186 SAFETY TRAINING INFORMATION ........................................ 19 IC-F111_F121_F211_F221.qxd 02.12.26 6:17 PM Page ii (1,1) 1 1 PANEL DESCRIPTION y t r q w e Front panel q AF VOLUME CONTROL KNOB Rotate the knob to adjust the audio output level. • Minimum audio level is pre-programmed. w FUNCTION DISPLAY Displays a variety of information, such as an operatingchannel number/name, 5-tone code, DTMF numbers andaudible condition, etc. NOTE: The above functions depend on pre-programming. e UP/DOWN [ ] / [ ] KEYS ➥ Push to select the operating channel. ➥ Can be programmed for one of several fun…

Text truncated - open the document above for the full version.

Cover Letter(s)

January 02, 2003 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency bands 136-174 MHz (12.5 kHz and 25 kHz Channel Spacings). Applicant: ICOM Incorporated Product: MOBILE VHF TRANSCEIVER Model: IC-F121 FCC ID: AFJ262200 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to AmericanTCB electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

ID Label/Location Info

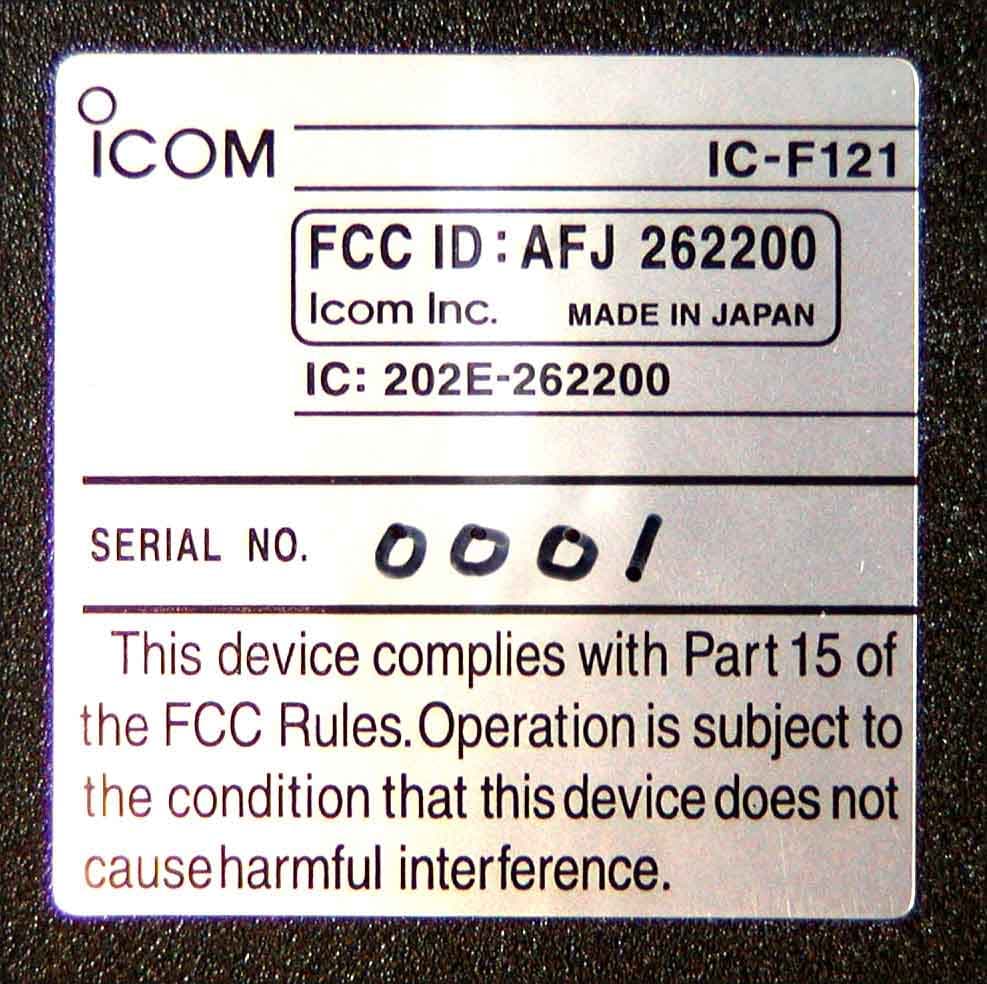

IC-F121 FCCIDLABEL WARNING STICKER LABEL

Test Report

MOBILE VHF TRANSCEIVER (136-174 MHz) Model No.: IC-F121 FCC ID: AFJ262200 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, PARTS 2 and 90 (Subpart I) UltraTech's File No.: ICOM-046FCC90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: Jan. 02, 2003 Report Prepared by: Tri M. Luu, P.Eng. Issued Date: Jan. 02, 2003 Tested by: Hung Trinh Test Dates: Dec. 19-24, 2003 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 00-034 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i MOBILE VHF TRANSCEIVER, Model IC-F121 FCC ID: AFJ262200 ULTRATECH GROUP OF LABS File #: ICOM-046FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Jan. 02, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST...................................................................................................................... 1 EXHIBIT 2. INTRODUCTION ....................................................................................................................................... 2 2.1. SCOPE....................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 2 2.3. NORMATIVE REFERENCES.................................................................................................................................. 2 EXHIBIT 3. PERFORMANCE ASSESSMENT ............................................................................................................ 3 3.1. CLIENT INFORMATION ........................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION.................................................................................................... 3 3.3. EUT’S TECHNICAL SPECIFICATIONS................................................................................................................ 4 3.4. LIST OF EUT’S PORTS................................................................................................................................................ 4 3.5. ANCILLARY EQUIPMENT............................................................................................................................................. 4 3.6. BLOCK DIAGRAM.................................................................................................................................................. 5 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................. 6 4.1. CLIMATE TEST CONDITIONS........................................................................................................................................ 6 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS..................................................................... 6 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................. 7 5.1. LOCATION OF TESTS ............................................................................................................................................ 7 5.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS................................................................................... 7 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES.................................................................. 7 5.4. DEVIATION OF STANDARD TEST PROCEDURES ...........................................................................................7 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................. 8 6.1. TEST PROCEDURES..................................................................................................................................................... 8 6.2. MEASUREMENT UNCERTAINTIES................................................................................................................................. 8 6.3. MEASUREMENT EQUIPMENT USED...............................................................................................................................8 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER...................................... 8 6.5. RF POWER OUTPUT @ FCC 2.1046 & 90.205 ............................................................................................................. 9 6.5.1. Limits @ FCC 90.205 ........................................................................................................................................ 9 6.5.2. Method of Measurements................................................................................................................................... 9 6.5.3. Test Equipment List ........................................................................................................................................... 9 6.5.4. Test Arrangement .................…

Text truncated - open the document above for the full version.

Test Report

ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 1 Plot # 1 Occupied Bandwidth Carrier Frequency: 136.1 MHz Channel Spacing: 12.5 kHz Power: 50 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 2 Plot # 2 Occupied Bandwidth Carrier Frequency: 155.1 MHz Channel Spacing: 12.5 kHz Power: 50 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 3 Plot # 3 Occupied Bandwidth Carrier Frequency: 173.9 MHz Channel Spacing: 12.5 kHz Power: 50 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 4 Plot # 4 Occupied Bandwidth Carrier Frequency: 136.1 MHz Channel Spacing: 25 kHz Power: 50 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 5 Plot # 5 Occupied Bandwidth Carrier Frequency: 155.1 MHz Channel Spacing: 25 kHz Power: 50 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 6 Plot # 6 Occupied Bandwidth Carrier Frequency: 173.9 MHz Channel Spacing: 25 kHz Power: 50 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 7 Plot # 7 Emission Mask B Carrier Frequency: 136.1 MHz Channel Spacing: 25 kHz Power: 5 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 8 Plot # 8 Emission Mask B Carrier Frequency: 155.1 MHz Channel Spacing: 25 kHz Power: 5 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 9 Plot # 9 Emission Mask B Carrier Frequency: 173.9 MHz Channel Spacing: 25 kHz Power: 5 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 10 Plot # 10 Emission Mask B Carrier Frequency: 136.1 MHz Channel Spacing: 25 kHz Power: 50 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 11 Plot # 11 Emission Mask B Carrier Frequency: 155.1 MHz Channel Spacing: 25 kHz Power: 50 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 12 Plot # 12 Emission Mask B Carrier Frequency: 173.9 MHz Channel Spacing: 25 kHz Power: 50 W Modulation: FM with 2.5 kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 13 Plot # 13 Emission Mask D Carrier Frequency: 136.1 MHz Channel Spacing: 12.5 kHz Power: 5 W Modulation: FM with 2.5kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 14 Plot # 14 Emission Mask D Carrier Frequency: 155.1 MHz Channel Spacing: 12.5 kHz Power: 5 W Modulation: FM with 2.5kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 15 Plot # 15 Emission Mask D Carrier Frequency: 173.9 MHz Channel Spacing: 12.5 kHz Power: 5 W Modulation: FM with 2.5kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 16 Plot # 16 Emission Mask D Carrier Frequency: 136.1 MHz Channel Spacing: 12.5 kHz Power: 50 W Modulation: FM with 2.5kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 17 Plot # 17 Emission Mask D Carrier Frequency: 155.1 MHz Channel Spacing: 12.5 kHz Power: 50 W Modulation: FM with 2.5kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 18 Plot # 18 Emission Mask D Carrier Frequency: 173.9 MHz Channel Spacing: 12.5 kHz Power: 50 W Modulation: FM with 2.5kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 19 Plot # 19 Spurious Emissions at Antenna Terminals Carrier Frequency: 136.1 MHz Channel Spacing: 12.5 kHz Power: 5 W Modulation: FM with 2.5kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 20 Plot # 20 Spurious Emissions at Antenna Terminals Carrier Frequency: 136.1 MHz Channel Spacing: 12.5 kHz Power: 5 W Modulation: FM with 2.5kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 21 Plot # 21 Spurious Emissions at Antenna Terminals Carrier Frequency: 155.1 MHz Channel Spacing: 12.5 kHz Power: 5 W Modulation: FM with 2.5kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 22 Plot # 22 Spurious Emissions at Antenna Terminals Carrier Frequency: 155.1 MHz Channel Spacing: 12.5 kHz Power: 5 W Modulation: FM with 2.5kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 23 Plot # 23 Spurious Emissions at Antenna Terminals Carrier Frequency: 173.9 MHz Channel Spacing: 12.5 kHz Power: 5 W Modulation: FM with 2.5kHz sine wave ANNEX 1 - TEST DATA PLOTS Icom Incorporated VHF FM Transceiver, Model IC-F121 FCC ID: AFJ262200 IC: 202E-262200 A1 - 24 Plot # 24 Spurious Emission…
