INSTRUCTION MANUAL iF111VHF TRANSCEIVERUHF TRANSCEIVERiF121iF211iF221 !IC-F111_F121_F211_F221.qxd 03.2.12 10:02 AM Page a (1,1) i IMPORTANTEXPLICIT DEFINITIONS R WARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electricshock. CAUTION! NEVER touch the transceiver (especially the heat sink ) when transmitting continuously for long peri- ods. It will become hot. NEVER connect the transceiver to a power source of more than 16 V DC such as a 24 V battery. This connection will ruinthe transceiver. NEVER cut the DC power cable between the DC plug and fuse holder. If an incorrect connection is made after cutting,the transceiver might be damaged. NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodilyinjury. NEVER allow children to touch the transceiver. NEVER expose the transceiver to rain, snow or any liquids. PRECAUTION WORD DEFINITION R WARNING Personal injury, fire hazard or electric shockmay occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No riskof personal injury, fire or electric shock. READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instructionsfor the IC-F111/F121 VHF TRANSCEIVER and IC-F211/F221 UHF TRANSCEIVER . Icom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United states, the UnitedKingdom, Germany, France, Spain, Russia and/or other countries.SmarTrunk II™ is a trademark of the SmarTrunk Systems, Inc. !IC-F111_F121_F211_F221.qxd 03.2.12 10:02 AM Page i (1,1) ii USE the supplied microphone only. Other microphones have different pin assignments and may damage the trans-ceiver. DO NOT use or place the transceiver in areas with tem- peratures below –22°F (–30°C) or above +140°F (+66°C), orin areas subject to direct sunlight, such as the dashboard. AVOID operating the transceiver without running the vehi- cle’s engine. The vehicle’s battery will quickly run out if thetransceiver transmits while the vehicle’s engine OFF.AVOID placing the transceiver in excessively dusty envi- ronments. AVOID placing the transceiver against walls. This will obstruct heat dissipation. AVOID the use of chemical agents such as benzine or alco- hol when cleaning, as they damage the transceiver surfaces.For U.S.A. onlyCAUTION: Changes or modifications to this transceiver, not ex- pressly approved by Icom Inc., could void your authority to operatethis transceiver under FCC regulations. TABLE OF CONTENTSIMPORTANT .................................................................................... iEXPLICIT DEFINITIONS ................................................................. iPRECAUTION .................................................................................. iTABLE OF CONTENTS .................................................................. ii1 PANEL DESCRIPTION ........................................................... 1–6  Front panel ............................................................................... 1  Function display ....................................................................... 2  Programmable function keys .................................................... 3 2 OPERATION .......................................................................... 7–10  Turning power ON .................................................................... 7  Channel selection ..................................................................... 7  Receiving and transmitting ....................................................... 8 D Transmitting notes ................................................................. 8 D TX code channel selection .................................................... 9 D TX code number selection .................................................... 9 D DTMF transmission ............................................................... 9 D Scrambler function ................................................................ 9 D User set mode ..................................................................... 10 3 OPTIONAL SmarTrunk II TM OPERATION .......................... 11–12  SmarTrunk II TM and conventional modes ............................... 11  SmarTrunk II TM operation ....................................................... 11 4 CONNECTION AND MAINTENANCE ................................ 13–17  Rear panel and connection .................................................... 13  Supplied Accessories ............................................................. 14  Mounting the transceiver......................................................... 15  Optional UT-105, UT-108 or UT-111 installation ..................... 15  Optional UT-109 or UT-110 installation .................................. 16  Optional OPC-617 installation................................................. 16  Antenna ................................................................................... 17  Fuse replacement .................................................................. 17  Cleaning ................................................................................. 17 5 OPTIONS ................................................................................... 186 SAFETY TRAINING INFORMATION ........................................ 19 !IC-F111_F121_F211_F221.qxd 03.2.12 10:02 AM Page ii (1,1) 1 1 PANEL DESCRIPTION y t r q w e  Front panel q AF VOLUME CONTROL KNOB Rotate the knob to adjust the audio output level. • Minimum audio level is pre-programmed. w FUNCTION DISPLAY Displays a variety of information, such as an operatingchannel number/name, 5-tone code, DTMF numbers andaudible condition, etc. NOTE: The above functions depend on pre-programming. e UP/DOWN [ ] / [ ] KEYS ➥ Push to select the operating channel. ➥ Can be programmed for one of several …

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 18, 2003 RE: FCC ID: AFJ262301 Attention: Tri Luu I have a few comments on this Application. 1. FYI - Please note that on page 19 of the manual it states, “In order to ensure this distance is met, the installation of the antenna must be mounted at least 1 meter away from the nearest edge of the vehicle in order to protect against exposure to by standers.” On the same page for the other model it states, “In order to ensure this distance is met, the installation of the antenna must be mounted at least 79 centimeters away from the nearest edge of the vehicle in order to protect against exposure to bystanders.” However the drawing on page 13 clearly shows the antenna on the trunk area well within less than 79cm separation from possible persons or body contact. 2. On pages 1 and 5 of the internal photos there is a section of the board that is under a shielded cover. Please provide a photo or drawing of what is under the shielded cover. 3. Please note that the exhibit labeled “Plots19-27-TxCndt.PDF” are not plots but is a duplicate “icom49-f221-fcc90.PDF” file. Please provide plots 19-27. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

dward From: Tri M.Luu [[email protected]] Sent: Wednesday, February 19, 2003 11:11 AM To: [email protected] Subject: Re: AFJ262301 comments Page 1 of 1 2/19/2003 Hi Dennis, (1) This Users Manual is applied for family Models as it stated in the front cover. 1 meter separation is applied for Model IC-F121 which was certified by you ATCB earlier. 79 cm is a separation applied for Model IC-F221 that is applied under this application. Page 13 only shows symbolic mean of vehicle mount antenna, it is not an instruction of antenna installation. We have never had this problem with FCC in many of our similar application before. (2) I will have the photos with the shield removed for you later. (3) That is weird and will send you a new file later. Tri Luu ----- Original Message ----- From: dward To: tri@ultratech -labs.com Sent: Tuesday, February 18, 2003 5:31 PM Subject: AFJ262301 comments Please see comments Thanks Dennis

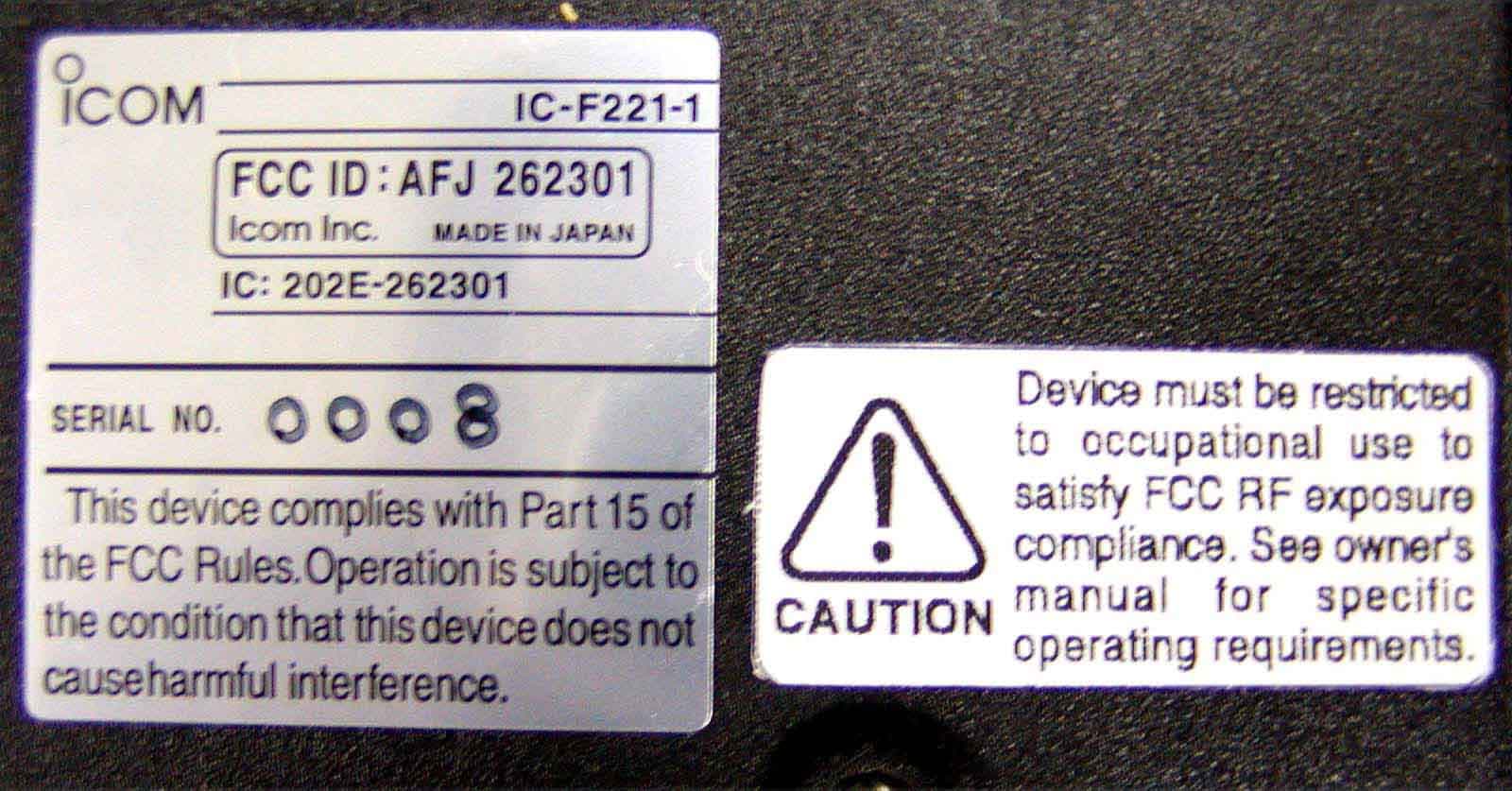

IC-F121/F221 FCCIDLABEL WARNING STICKER LABEL

FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 15 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ULTRATECH GROUP OF LABSFile #: ICOM-045FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4Jan. 24, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com ß All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.6. RF EXPOSURE REQUIRMENTS @ 1.1310 & 2.1091 6.6.1. Limits ß FCC 1.1310:- The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Control Exposures 300-1500......F/3006 (B) Limits for General Population/Uncontrolled Exposure 300-1500......F/15006 F = Frequency in MHz 6.6.2. Method of Measurements Refer to FCC @ 1.1310, 2.1091 and Public Notice DA 00-705 (March 30, 2000) • In order to demonstrate compliance with MPE requirements (see Section 2.1091), the following information is typically needed: (1) Calculation that estimates the minimum separation distance (20 cm or more) between an antenna and persons required to satisfy power density limits defined for free space. (2) Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement (3) Any caution statements and/or warning labels that are necessary in order to comply with the exposure limits (4) Any other RF exposure related issues that may affect MPE compliance FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 16 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ULTRATECH GROUP OF LABSFile #: ICOM-045FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4Jan. 24, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com ß All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) Calculation Method of RF Safety Distance: S = PG/4 Π r 2 =EIRP/4 Π r 2 Where:P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device r = PG/4 Π S FCC radio frequency exposure limits may not be exceeded at distances closer than r cm from the antenna of this device • For portable transmitters (see Section 2.1093), or devices designed to operate next to a person’s body, compliance is determined with respect to the SAR limit (define in the body tissues) for near-field exposure conditions. If the maximum average output power, operating condition configurations and exposure conditions are comparable to those of existing cellular and PCS phones., an SAR evaluation may be required in order to determine if such a device complies with SAR limit. When SAR evaluation data is not available, and the additional supporting information cannot assure compliance, the Commission may request that an SAR evaluation be performed, as provided for in Section 1.1307(d) FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 17 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ULTRATECH GROUP OF LABSFile #: ICOM-045FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4Jan. 24, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com ß All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.6.3. Test Data Antenna Gain Limit specified by Manufactuer: 0 dBi 6.6.3.1. Antenna Separation Distance for Operators (Occupational/Control Exposures) The following separation distance calculation is applied for the trained users or operators: Frequency Range (MHz) Peak Measured RF Conducted Power (Watts) Average Measured RF Conducted Power with 50% Duty Cycle (Watts) Average Calculated EIRP (Watts) Laboratory’s Recommended Minimum RF Safety Distance r (cm) 440 - 49045.022.522.534.9 Note 1:RF EXPOSURE DISTANCE LIMITS: r = (PG/4ΠΠS) 1/2 = (EIRP/4ΠΠS) 1/2 S = F/300 = 440.10/300 = 1.467 W/cm 2 6.6.3.2. Antenna Separation for Bystanders (General Population/Uncontrolled Exposure) The following separation distance calculation is applied for the bystanders: Frequency Range (MHz) Peak Measured RF Conducted Power (Watts) Average Measured RF Conducted Power with 50% Duty Cycle (Watts) Average Calculated EIRP (Watts) Laboratory’s Recommended Minimum RF Safety Distance r (cm) 440 - 49045.022.522.578.1 Note 1:RF EXPOSURE DISTANCE LIMITS: r = (PG/4ΠΠS) 1/2 = (EIRP/4ΠΠS) 1/2 S = F/300 = 440.10/1500 = 0.2934 W/cm 2 Evaluation of RF Exposure Compliance Requirements RF Exposure RequirementsCompliance with FCC Rules Minimum calculated separation distance between antenna and persons required: 34.9 cm for operators and 78.1 cm for bystanders Manufacturer’ instruction for separation distance between antenna and persons required: 79 cm (for both operators and bystanders) Please refer to page # 15 of the Users Manual Caution statements and/or warning labels that are necessary in order to comply with the exposure limits Please refer to page # 15 of the Users Manual for RF Safety Training

19 6 SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagneticenergy during transmit mode. This radio isdesigned for and classified as “ Occupational Use Only ” , meaning it must be used only during the course of employment by individuals awareof the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “ General Population ” in an uncontrolled environment. • For compliance with FCC and Industry Canada RF Exposure Requirements, the transmitter antenna installation shall comply withthe following two conditions: 1. The transmitter antenna gain shall not exceed 0 dBi.2. IC-F121: The antenna is required to be located outside of a vehicle andkept at a distance of 1 meter or more between the transmittingantenna of this device and any persons during operation. Forsmall vehicle as worst case, the antenna shall be located on theroof top at any place on the centre line along the vehicle in orderto achieve 1 meter separation distance. In order to ensure thisdistance is met, the installation of the antenna must be mountedat least 1 meter away from the nearest edge of the vehicle inorder to protect against exposure to bystanders. 3. IC-F221: The antenna is required to be located outside of a vehicle andkept at a distance of 79 centimeters or more between the trans-mitting antenna of this device and any persons during operation.For small vehicle as worst case, the antenna shall be located onthe roof top at any place on the centre line along the vehicle inorder to achieve 79 centimeters separation distance. In order to ensure this distance is met, the installation of the antenna mustbe mounted at least 79 centimeters away from the nearest edgeof the vehicle in order to protect against exposure to bystanders. To ensure that your exposure to RF electromag-netic energy is within the FCC allowable limitsfor occupational use, always adhere to the fol-lowing guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCCRF exposure limits. A proper antenna is the antenna supplied withthis radio by the manufacturer or an antenna speci fi cally authorized by the manufacturer for use with this radio. • DO NOT transmit for more than 50% of total radio use time ( “ 50% duty cycle ” ). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radiois transmitting when the “ TX indicator ” lights red. You can cause the radio to transmit by pressing the “ PTT ” switch. Electromagnetic Interference/CompatibilityDuring transmissions, your Icom radio generates RF energy that canpossibly cause interference with other devices or systems. To avoidsuch interference, turn off the radio in areas where signs are postedto do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blastingsites. WARNING CAUTION !IC-F111_F121_F211_F221.qxd 03.2.12 10:02 AM Page 19 (1,1)

Jan. 24, 2003 ICOM Incorporated 1-1-32, Kamiminami Hirano-ku, Osaka Japan, 547-0003 Attn.:Mr. Takahasi Aoki Subject:Certification Testing in accordance with FCC CFR 47, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency bands 440-490 MHz (12.5 kHz and 25 kHz Channel Spacings). Product:MOBILE UHF TRANSCEIVER Model:IC-F221 FCC ID:AFJ262301 Dear Mr. Aoki, The product sample has been tested in accordance with FCC CFR 47, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency bands 440-490 MHz (12.5 kHz and 25 kHz Channel Spacings), and the results and observation were recorded in the engineering report, Our File No.: ICOM-045FCC90 Enclosed you will find copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] MOBILE UHF TRANSCEIVER (440-490 MHz) Model No.: IC-F221 FCC ID: AFJ262301 Applicant: ICOM Incorporated 1-1-32, Kamiminami Hirano-ku, Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) CFR 47, PARTS 2 and 90 (Subpart I) UltraTech's File No.: ICOM-045FCC90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: Jan. 24, 2003 Report Prepared by: Tri M. Luu, P.Eng.Tested by: Wayne Wu, RFI Engineer Issued Date: Jan. 24, 2003Test Dates: Jan. 19-23, 2003 ß The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ß This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 2 31040/SITC-137646390-2049200093-000-034 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 1 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ULTRATECH GROUP OF LABSFile #: ICOM-045FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4Jan. 24, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com ß All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1.SUBMITTAL CHECK LIST............................................................................................................................................4 EXHIBIT 2.INTRODUCTION.............................................................................................................................................................5 2.1.SCOPE..............................................................................................................................................................................................5 2.2.RELATED SUBMITAL(S)/GRANT(S)...............................................................................................................................................5 2.3.NORMATIVE REFERENCES.........................................................................................................................................................5 EXHIBIT 3.PERFORMANCE ASSESSMENT.................................................................................................................................6 3.1.CLIENT INFORMATION...............................................................................................................................................................6 3.2.EQUIPMENT UNDER TEST (EUT) INFORMATION..................................................................................................................6 3.3.EUT’S TECHNICAL SPECIFICATIONS.....................................................................................................................................7 3.4.LIST OF EUT’S PORTS.....................................................................................................................................................................8 3.5.ANCILLARY EQUIPMENT..............................................................................................................................................................8 3.6.BLOCK DIAGRAM........................................................................................................................................................................9 EXHIBIT 4.EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS...............................................10 4.1.CLIMATE TEST CONDITIONS......................................................................................................................................................10 4.2.OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS........................................................................10 EXHIBIT 5.SUMMARY OF TEST RESULTS.................................................................................................................................11 5.1.LOCATION OF TESTS................................................................................................................................................................11 5.2.APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS...............................................................................................11 5.3.MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES...................................................................11 5.4.DEVIATION OF STANDARD TEST PROCEDURES........................................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - 99% OCCUPIED BANDWIDTHPlot # 1 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - 99% OCCUPIED BANDWIDTHPlot # 2 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - 99% OCCUPIED BANDWIDTHPlot # 3 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - 99% OCCUPIED BANDWIDTHPlot # 4 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - 99% OCCUPIED BANDWIDTHPlot # 5 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - 99% OCCUPIED BANDWIDTHPlot # 6 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301

ANNEX 1 - EMISSION MASKSPlot # 7 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - EMISSION MASKSPlot # 8 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - EMISSION MASKSPlot # 9 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - EMISSION MASKSPlot # 10 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - EMISSION MASKSPlot # 11 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - EMISSION MASKSPlot # 12 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - EMISSION MASKSPlot # 13 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - EMISSION MASKSPlot # 14 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - EMISSION MASKSPlot # 15 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - EMISSION MASKSPlot # 16 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - EMISSION MASKSPlot # 17 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - EMISSION MASKSPlot # 18 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301

ANNEX 1 - PLOTS OF RF CONDUCTED EMISSIONS AT TRANSMITTER ANTENNA PORT Plot # 19 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ANNEX 1 - PLOTS OF RF CONDUCTED EMISSIONS AT TRANSMITTER ANTENNA PORT Plot # 20 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ANNEX 1 - PLOTS OF RF CONDUCTED EMISSIONS AT TRANSMITTER ANTENNA PORT Plot # 21 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ANNEX 1 - PLOTS OF RF CONDUCTED EMISSIONS AT TRANSMITTER ANTENNA PORT Plot # 22 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ANNEX 1 - PLOTS OF RF CONDUCTED EMISSIONS AT TRANSMITTER ANTENNA PORT Plot # 23 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ANNEX 1 - PLOTS OF RF CONDUCTED EMISSIONS AT TRANSMITTER ANTENNA PORT Plot # 24 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ANNEX 1 - PLOTS OF RF CONDUCTED EMISSIONS AT TRANSMITTER ANTENNA PORT Plot # 25 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ANNEX 1 - PLOTS OF RF CONDUCTED EMISSIONS AT TRANSMITTER ANTENNA PORT Plot # 26 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301 ANNEX 1 - PLOTS OF RF CONDUCTED EMISSIONS AT TRANSMITTER ANTENNA PORT Plot # 27 MOBILE UHF TRANSCEIVER, Model IC-F221FCC ID: AFJ262301

ANNEX 1 - RF CONDUCTED EMISSIONS AT TX RF PORT @ High Power (45 Watts)Plot # 28 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - RF CONDUCTED EMISSIONS AT TX RF PORT @ High Power (45 Watts)Plot # 29 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - RF CONDUCTED EMISSIONS AT TX RF PORT @ High Power (45 Watts)Plot # 30 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - RF CONDUCTED EMISSIONS AT TX RF PORT @ High Power (45 Watts)Plot # 31 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - RF CONDUCTED EMISSIONS AT TX RF PORT @ High Power (45 Watts)Plot # 32 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - RF CONDUCTED EMISSIONS AT TX RF PORT @ High Power (45 Watts)Plot # 33 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - RF CONDUCTED EMISSIONS AT TX RF PORT @ High Power (45 Watts)Plot # 34 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - RF CONDUCTED EMISSIONS AT TX RF PORT @ High Power (45 Watts)Plot # 35 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 ANNEX 1 - RF CONDUCTED EMISSIONS AT TX RF PORT @ High Power (45 Watts)Plot # 36 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301

ANNEX 1 - TRANSIENT FREQUENCY BEHAVIORPlot # 37 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 Test Mode: 12.5 kHz channel spacing, Modulation: no mod., Transmitter: turned on +12.5 kHz +6.25 kHz +1.1 kHz -1.1 kHz -6.25 kHz -12.5 kHz ANNEX 1 - TRANSIENT FREQUENCY BEHAVIORPlot # 38 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 Test Mode: 12.5 kHz channel spacing, Modulation: no mod., Transmitter: turned off +12.5 kHz +6.25 kHz +1.1 kHz -1.1 kHz -6.25 kHz -12.5 kHz ANNEX 1 - TRANSIENT FREQUENCY BEHAVIORPlot # 39 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 Test Mode: 12.5 kHz channel spacing, Modulation: FM with 2.5 kHz sinw wave signal, Transmitter: turned on +12.5 kHz +6.25 kHz +1.1 kHz -1.1 kHz -6.25 kHz -12.5 kHz ANNEX 1 - TRANSIENT FREQUENCY BEHAVIORPlot # 40 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 Test Mode: 12.5 kHz channel spacing, Modulation: FM with 2.5 kHz sine wave signal, Transmitter: turned off +12.5 kHz +6.25 kHz +1.1 kHz -1.1 kHz -6.25 kHz -12.5 kHz ANNEX 1 - TRANSIENT FREQUENCY BEHAVIORPlot # 41 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 Test Mode: 25 kHz channel spacing, Modulation: No mod, Transmitter: turned on +25 kHz +12.5 kHz +2.2 kHz -2.2 kHz -12.5 kHz -25 kHz ANNEX 1 - TRANSIENT FREQUENCY BEHAVIORPlot # 42 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 Test Mode: 25 kHz channel spacing, Modulation: no mod., Transmitter: turned off +25 kHz +12.5 kHz +2.2 kHz -2.2 kHz -12.5 kHz -25 kHz ANNEX 1 - TRANSIENT FREQUENCY BEHAVIORPlot # 43 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 Test Mode: 25 kHz channel spacing, Modulation: FM with 2.5 kHz sine wave signal, Transmitter: turned on +25 kHz +12.5 kHz +2.2 kHz -2.2 kHz -12.5 kHz -25 kHz ANNEX 1 - TRANSIENT FREQUENCY BEHAVIORPlot # 44 MOBILE UHF TRANSCEIVER, Model IC-F221IC: 202E-262301 Test Mode: 25 kHz channel spacing, Modulation: FM with 2.5 kHz sine wave signal, Transmitter: turned off +25 kHz +12.5 kHz +2.2 kHz -2.2 kHz -12.5 kHz -25 kHz

ANNEX 2 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) Icom Incorporated UHF FM Transceiver, Model IC-F221 FCC ID: AFJ262301 IC: 202E-262301A2 - 1 ANNEX 2 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) Icom Incorporated U…
