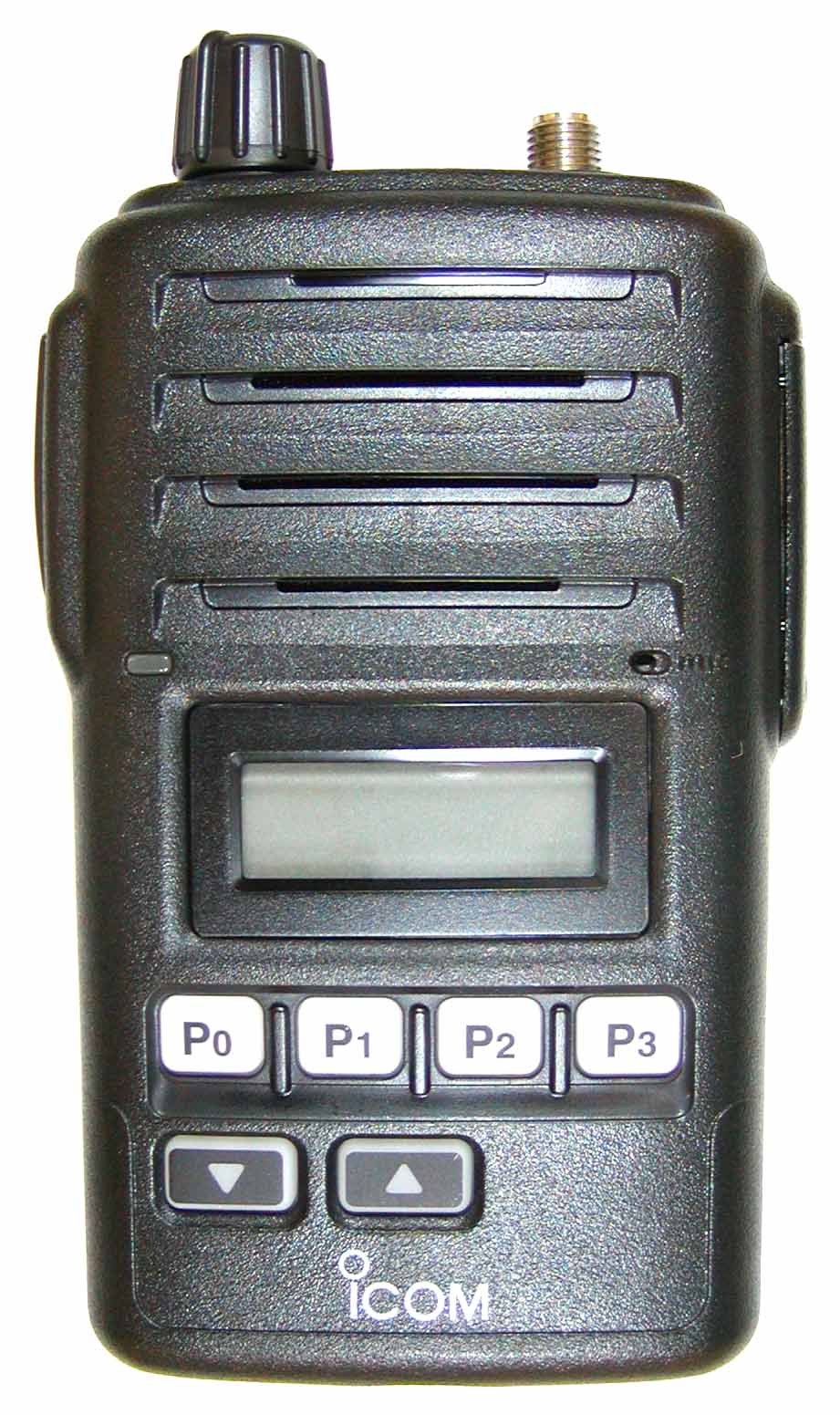

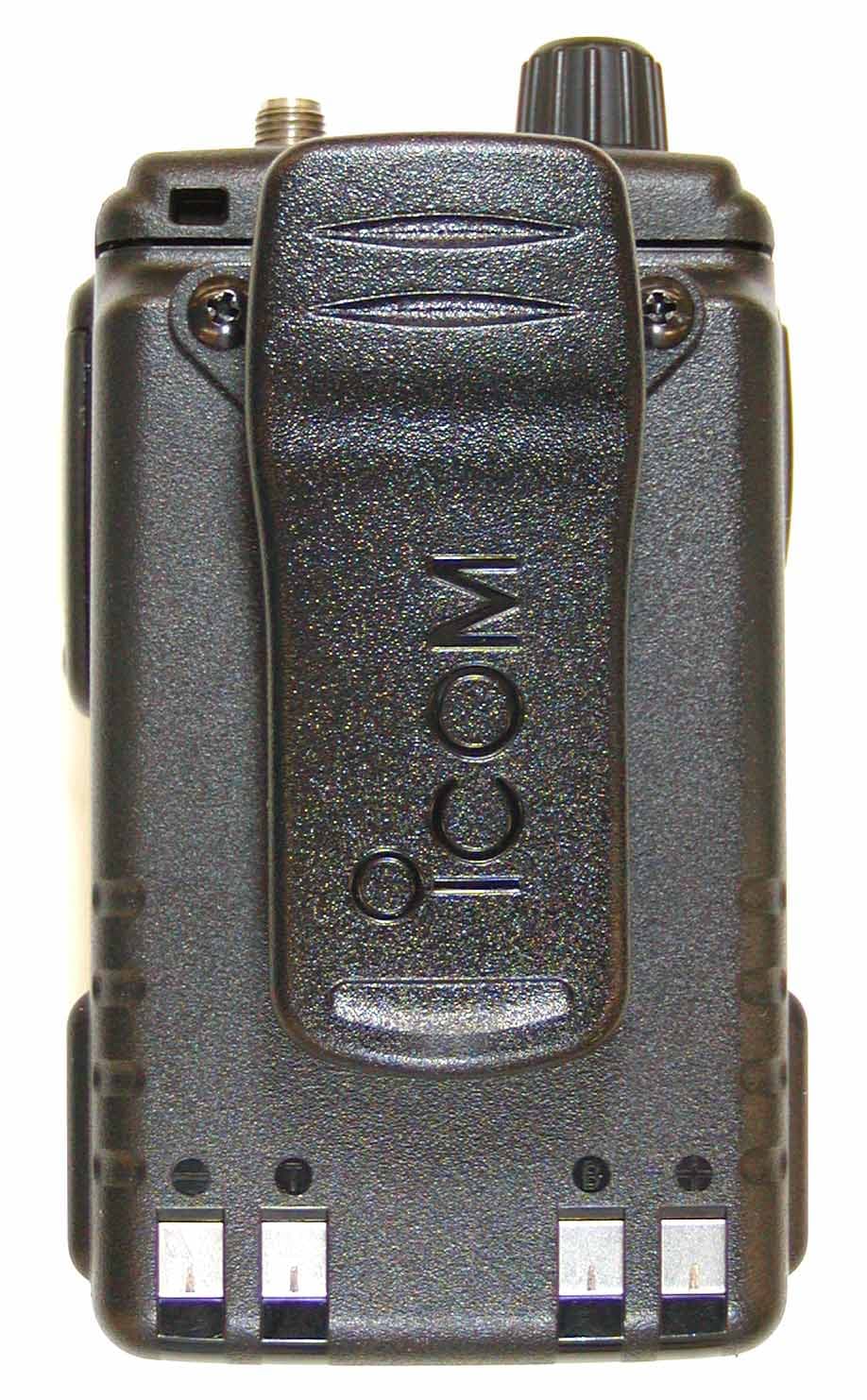

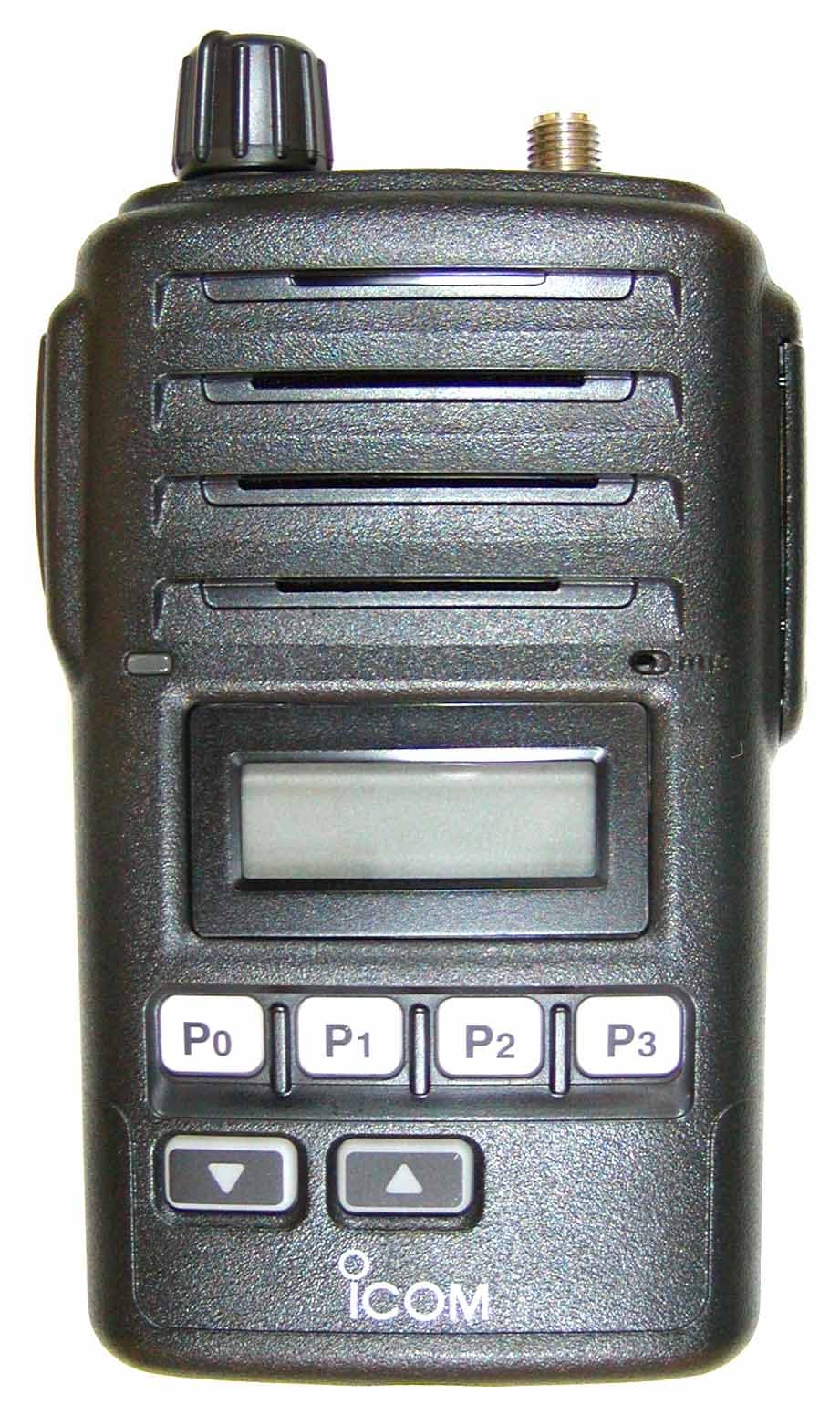

AFJ268100VHF Transceiver

INSTRUCTION MANUAL This device complies with Part 15 ofthe FCC rules. Operation is subject tothe condition that this device does notcause harmful interference. UHF TRANSCEIVER iF60 VHF TRANSCEIVER iF50 !IC-F50_F60 BIIS.qxd 03.9.3 1:38 PM Page A (1,1) i ii SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagnetic energy during transmit mode. This radio is designed for and clas-sified as “Occupational Use Only”, meaning it must beused only during the course of employment by individualsaware of the hazards, and the ways to minimize such haz-ards. This radio is NOT intended for use by the “GeneralPopulation” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure lim-its for “Occupational Use Only”. In addition, your Icom radio complies withthe following Standards and Guidelines with regard to RF energy andelectromagnetic energy levels and evaluation of such levels for exposureto humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Com- pliance with FCC Guidelines for Human Exposure to Radio Fre-quency Electromagnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Fre-quency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recom- mended Practice for the Measurement of Potentially Hazardous Elec-tromagnetic Fields– RF and Microwave. • The following accessories are authorized for use with this product. Use of accessories other than those specified may result in RF ex-posure levels exceeding the FCC requirements for wireless RF ex-posure.; Belt Clip (MB-98), Rechargeable Li-Ion Battery Pack(BP-227), Alkaline Battery Case (BP-226) and Speaker-microphone(HM-138). To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupa-tional use, always adhere to the following guidelines: CAUTION WARNING • DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you to exceed FCC RFexposure limits. A proper antenna is the antenna supplied with thisradio by the manufacturer or antenna specifically authorized by themanufacturer for use with this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCCRF exposure compliance requirements to be exceeded. The radio istransmitting when the “TX indicator” lights red. You can cause theradio to transmit by pressing the “PTT” switch. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clip which is listedon page iv when attaching the radio to your belt, etc., to ensure FCCRF exposure compliance requirements are not exceeded. To providethe recipients of your transmission the best sound quality, hold theantenna at least 5 cm (2 inches) from your mouth, and slightly off toone side. The information listed above provides the user with the informationneeded to make him or her aware of RF exposure, and what to do to as-sure that this radio operates with the FCC RF exposure limits of this radio.Electromagnetic Interference/CompatibilityDuring transmissions, your Icom radio generates RF energy that can pos-sibly cause interference with other devices or systems. To avoid such in-terference, turn off the radio in areas where signs are posted to do so.DO NOT operate the transmitter in areas that are sensitive to electro- magnetic radiation such as hospitals, aircraft, and blasting sites.Occupational/Controlled UseThe radio transmitter is used in situations in which persons are exposedas consequence of their employment provided those persons are fullyaware of the potential for exposure and can exercise control over theirexposure. !IC-F50_F60 BIIS.qxd 03.9.3 1:38 PM Page i (1,1) iv iii FOREWORDREAD ALL INSTRUCTIONS carefully and completely before using the transceiver. SAVE THIS INSTRUCTION MANUAL— This instruction manual contains important operating instructions for the IC-F50 VHF TRANSCEIVER and IC-F60 UHF TRANSCEIVER . EXPLICIT DEFINITIONSINSTALLATION NOTES• When transmitting with a portable radio, hold the radio in a vertical position with its microphone 5 to 10 centimeters (2 to 4 inch) awayfrom your mouth. Keep the antenna at least 2.5 centimeters (1inch) from your head and body. • If you wear a portable two-way radio on your body, ensure that the antenna is at least 2.5 centimeters (1 inch) from your body whentransmitting. WORD DEFINITION R WARNING Personal injury, fire hazard or electric shock may occur. NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. CAUTION Equipment damage may occur. PRECAUTIONR WARNING! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of the body, especiallythe face or eyes, while transmitting. The transceiver will performbest if the microphone is 5 to 10 cm (2 to 4 inches) away from thelips and the transceiver is vertical. R WARNING! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. CAUTION! NEVER short the terminals of the battery pack. NEVER connect the transceiver to a power source other than the BP-226 or BP-227. Such a connection will ruin the transceiver. DO NOT push the PTT when not actually desiring to transmit. AVOID using or placing the transceiver in direct sunlight or in areas with temperatures below –30°C (–22°F) or above +60°C(+140°F). DO NOT modify the transceiver for any reason. MAKE SURE the flexible antenna and battery pack are securely attached to the transceiver, and that the antenna and battery packare dry before attachment. Exposing the inside of the transceiverto water will result in serious damage to the transceiver.The use of non-Icom battery packs/chargers may impair transceiverperformance and invalidate the warranty. FCC caution:Changes or modifications to…

Text truncated - open the document above for the full version.

October 15, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 136-174 MHz (12.5 kHz and 25 kHz Channel Spacings). Applicant: ICOM Incorporated Product: VHF TRANSCEIVER Model: IC-F50 FCC ID: AFJ268100 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to FCC electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R

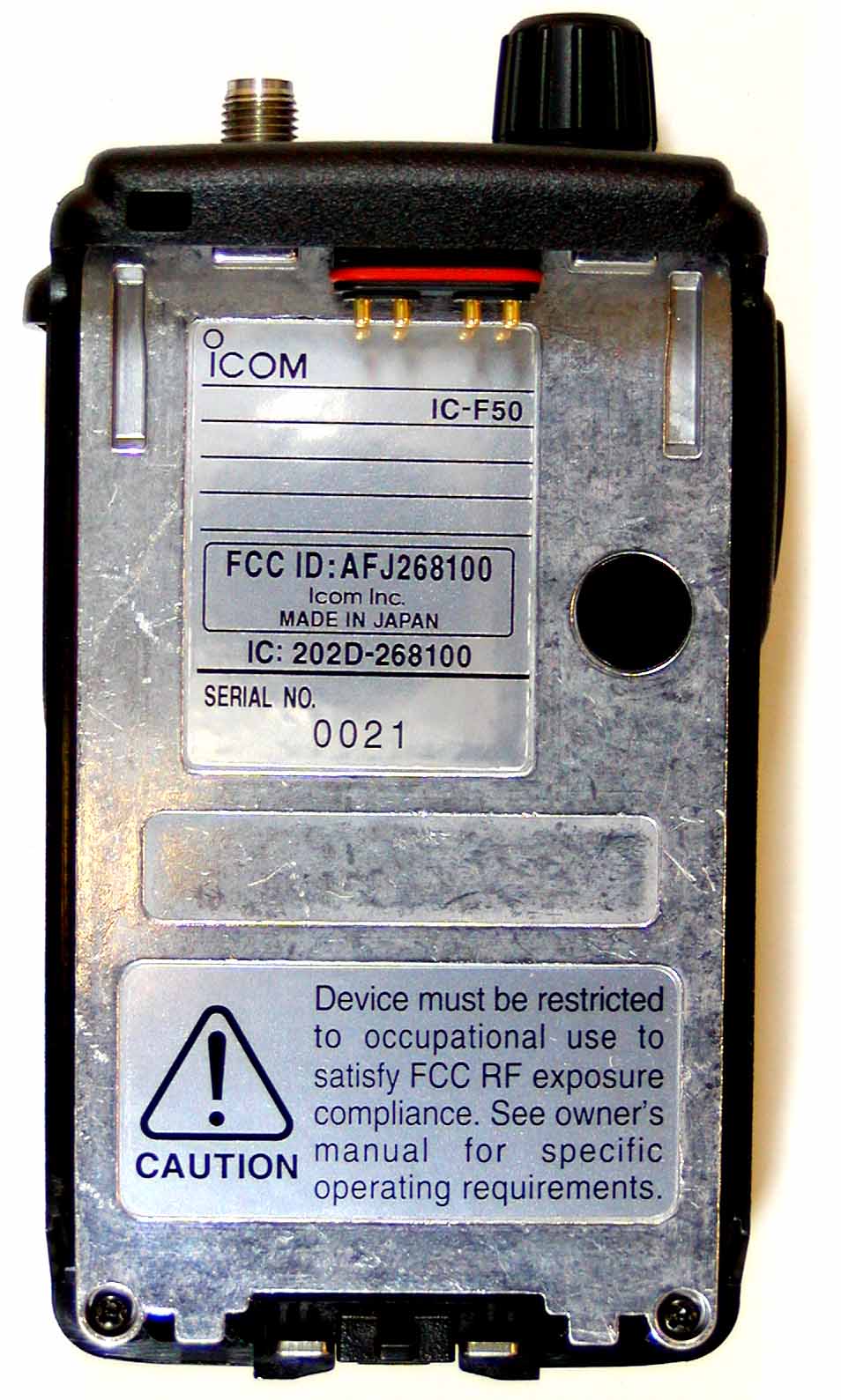

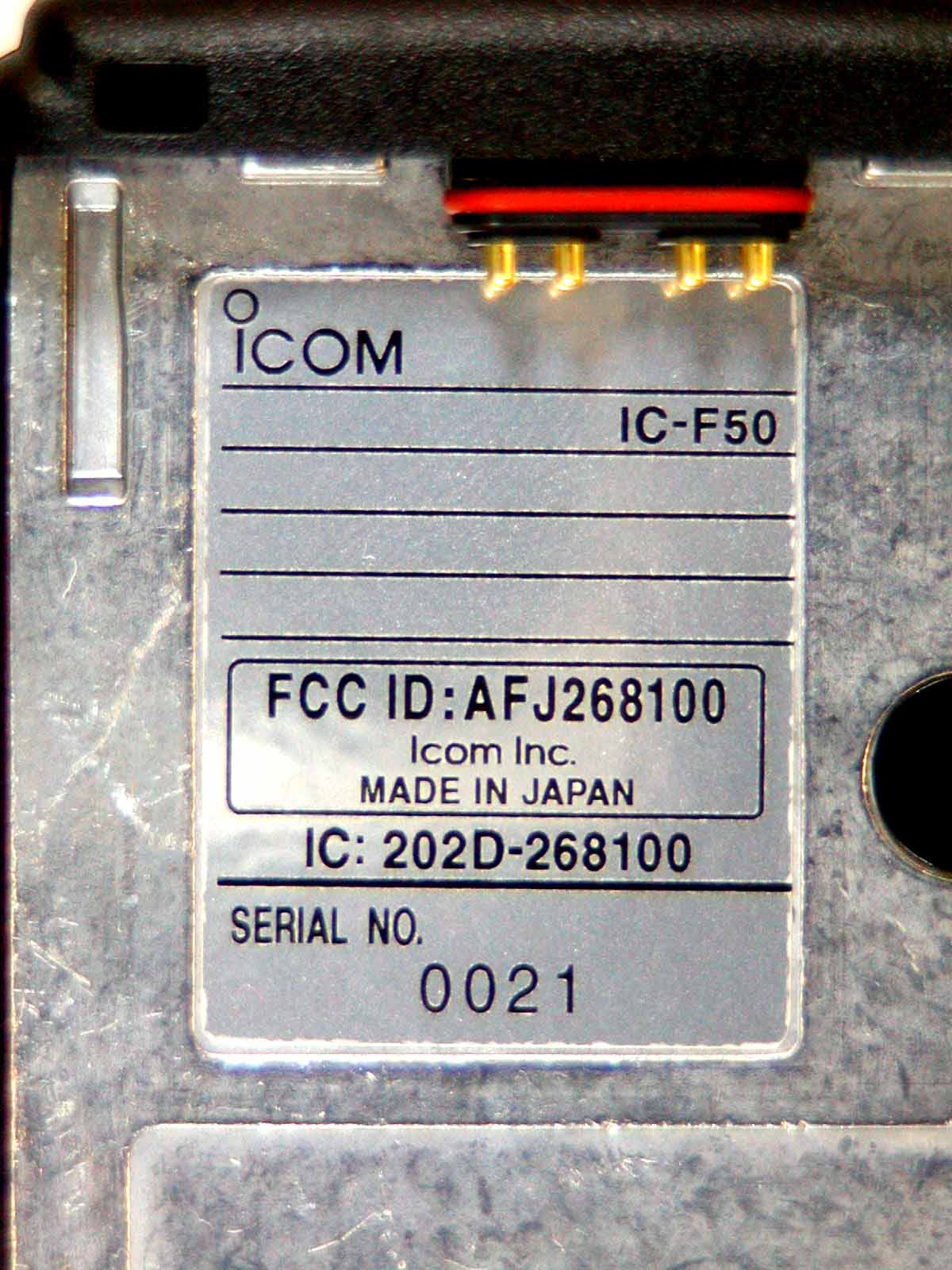

Serial Location

IC-F50 CONNECTOR PARTS LIST REF No .DESCRIPTION TYPE(PARTS) MANUFACTURER QTY D701 S.VARISTOR AVR-M1005C080MT ABB TDK 1 D702 S.VARISTOR AVR-M1005C080MT ABB TDK 1 D703 S.VARISTOR AVR-M1005C080MT ABB TDK 1 D704 S.VARISTOR AVR-M1005C080MT ABB TDK 1 D705 S.VARISTOR AVR-M1005C080MT ABB TDK 1 R701 S.ARRAY EXB28V102J 1K MACO 1 C701 S.CERAMIC 0.001 ECJ10 B MACO 1 C702 S.CERAMIC 0.001 ECJ10 B MACO 1 C703 S.CERAMIC 0.001 ECJ10 B MACO 1 C704 S.CERAMIC 0.001 ECJ10 B MACO 1 EP701 S.BEAD MMZ1608Y102BT TDK 1 EP702 S.BEAD MMZ1608Y102BT TDK 1 EP703 S.BEAD MMZ1608Y102BT TDK 1 EP704 S.BEAD MMZ1608Y102BT TDK 1 EP705 S.BEAD MMZ1608Y102BT TDK 1 EP706 PCB B-6035C (#2681-1C) MURAKAMI 1 IC-F50 FRONT PARTS LIST REF No .DESCRIPTION TYPE(PARTS) MANUFACTURER QTY IC401 S.IC HD64F2268TF(EMPTY) RENESAS 1 IC403 S.IC NJM12902V JRC 1 IC405 S.IC TA7368F TOSHIBA 1 IC406 S.IC TC7W66FK TOSHIBA 1 IC407 S.IC NJM12904V JRC 1 IC408 S.IC BD5242G ROHM 1 IC409 S.IC 24LC64T-I/SN MICROCHIP 1 IC410 S.IC BU4094BCFV ROHM 1 Q401 S.TRANSISTOR 2SB1132 Q ROHM 1 Q402 S.TRANSISTOR XP6501 AB MEC 1 Q403 S.TRANSISTOR 2SC4116 Y TOSHIBA 1 Q404 S.FET RSR025N03 ROHM 1 Q405 S.FET RSR025N03 ROHM 1 Q406 S.TRANSISTOR DTC144EU ROHM 1 Q407 S.TRANSISTOR DTA144EU ROHM 1 Q408 S.TRANSISTOR DTC144EU ROHM 1 Q409 S.TRANSISTOR XP4111 MEC 1 Q411 S.TRANSISTOR XP4312 MEC 1 Q412 S.TRANSISTOR DTA144EU ROHM 1 Q413 S.FET RSR025N03 ROHM 1 D401 S.DIODE MA2S111 MEC 1 D402 S.DIODE MA2S111 MEC 1 D403 S.DIODE MA2S111 MEC 1 D404 S.DIODE MA2S077 MEC 1 D405 S.ZENER MA8062 M MEC 1 D406 S.DIODE MA2S111 MEC 1 X401 S.XTAL CR-764 DAISHINKU 1 R401 S.RESISTOR 22K ERJ2GE MACO 1 R402 S.RESISTOR 33K ERJ2GE MACO 1 R403 S.RESISTOR 1K ERJ2GE MACO 1 R404 S.RESISTOR 1K ERJ2GE MACO 1 R405 S.RESISTOR 15K ERJ2GE MACO 1 R406 S.RESISTOR 8.2K ERJ2GE MACO 1 R407 S.RESISTOR 330K ERJ2GE MACO 1 R408 S.RESISTOR 100K ERJ2GE MACO 1 R409 S.RESISTOR 100K ERJ2GE MACO 1 R410 S.RESISTOR 100K ERJ2GE MACO 1 R411 S.RESISTOR 100K ERJ2GE MACO 1 R412 S.RESISTOR 100K ERJ2GE MACO 1 R413 S.RESISTOR 27K ERJ2GE MACO 1 R414 S.RESISTOR 27K ERJ2GE MACO 1 R415 S.RESISTOR 150K ERJ2GE MACO 1 R416 S.RESISTOR 150K ERJ2GE MACO 1 R417 S.RESISTOR 470K ERJ2GE MACO 1 R418 S.RESISTOR 470K ERJ2GE MACO 1 R420 S.RESISTOR 27K ERJ2GE MACO 1 R421 S.RESISTOR 100K ERJ2GE MACO 1 R422 S.RESISTOR 100K ERJ2GE MACO 1 IC-F50 FRONT PARTS LIST REF No .DESCRIPTION TYPE(PARTS) MANUFACTURER QTY R423 S.RESISTOR 100K ERJ2GE MACO 1 R426 S.RESISTOR 330K ERJ2GE MACO 1 R427 S.RESISTOR 47K ERJ2GE MACO 1 R428 S.RESISTOR 47K ERJ2GE MACO 1 R429 S.RESISTOR 4.7K ERJ2GE MACO 1 R430 S.RESISTOR 39K ERJ2GE MACO 1 R432 S.RESISTOR 56K ERJ2GE MACO 1 R433 S.RESISTOR 100K ERJ2GE MACO 1 R434 S.RESISTOR 470 ERJ2GE MACO 1 R435 S.RESISTOR 33 ERJ2GE MACO 1 R436 S.RESISTOR 10 ERJ2GE MACO 1 R437 S.RESISTOR 1K ERJ2GE MACO 1 R438 S.RESISTOR 3.3K ERJ2GE MACO 1 R439 S.RESISTOR 2.7K ERJ2GE MACO 1 R440 S.RESISTOR 100K ERJ2GE MACO 1 R441 S.RESISTOR 68K ERJ2GE MACO 1 R442 S.RESISTOR 470K ERJ2GE MACO 1 R443 S.RESISTOR 470K ERJ2GE MACO 1 R444 S.RESISTOR 100K ERJ2GE MACO 1 R445 S.RESISTOR 100 ERJ2GE MACO 1 R446 S.RESISTOR 100K ERJ2GE MACO 1 R455 S.RESISTOR 470 ERJ2GE MACO 1 R456 S.RESISTOR 100 ERJ2GE MACO 1 R457 S.RESISTOR 470 ERJ2GE MACO 1 R458 S.RESISTOR 1K ERJ2GE MACO 1 R461 S.RESISTOR 180K ERJ2GE MACO 1 R462 S.RESISTOR 56K ERJ2GE MACO 1 R463 S.RESISTOR 22K ERJ2GE MACO 1 R464 S.RESISTOR 22K ERJ2GE MACO 1 R465 S.RESISTOR 10K ERJ2GE MACO 1 R466 S.RESISTOR 47K ERJ2GE MACO 1 R467 S.RESISTOR 47K ERJ2GE MACO 1 R468 S.RESISTOR 47K ERJ2GE MACO 1 R469 S.RESISTOR 4.7K ERJ2GE MACO 1 R470 S.RESISTOR 47K ERJ2GE MACO 1 R471 S.RESISTOR 220K ERJ2GE MACO 1 R472 S.RESISTOR 100K ERJ2GE MACO 1 R473 S.RESISTOR 47K ERJ2GE MACO 1 R474 S.RESISTOR 22K ERJ2GE MACO 1 R475 S.RESISTOR 10K ERJ2GE MACO 1 R476 S.RESISTOR 68K ERJ2GE MACO 1 R477 S.RESISTOR 68K ERJ2GE MACO 1 R478 S.RESISTOR 68K ERJ2GE MACO 1 R479 S.RESISTOR 68K ERJ2GE MACO 1 R480 S.RESISTOR 68K ERJ2GE MACO 1 R482 S.RESISTOR 100K ERJ2GE MACO 1 R483 S.RESISTOR 100K ERJ2GE MACO 1 R484 S.RESISTOR 100K ERJ2GE MACO 1 IC-F50 FRONT PARTS LIST REF No .DESCRIPTION TYPE(PARTS) MANUFACTURER QTY R485 S.RESISTOR 100K ERJ2GE MACO 1 R486 S.ARRAY EXB28V102J 1K MACO 1 R487 S.RESISTOR 100K ERJ2GE MACO 1 R488 S.RESISTOR 100K ERJ2GE MACO 1 R489 S.RESISTOR 100K ERJ2GE MACO 1 R490 S.RESISTOR 100K ERJ2GE MACO 1 R491 S.RESISTOR 10 ERJ2GE MACO 1 R492 S.RESISTOR 1M ERJ2GE MACO 1 R493 S.RESISTOR 12K ERJ2GE MACO 1 R494 S.RESISTOR 12K ERJ2GE MACO 1 R495 S.RESISTOR 12K ERJ2GE MACO 1 R496 S.RESISTOR 10K ERJ2GE MACO 1 R497 S.RESISTOR 10K ERJ2GE MACO 1 R500 S.RESISTOR 100K ERJ2GE MACO 1 R501 S.RESISTOR 100K ERJ2GE MACO 1 R502 S.RESISTOR 100K ERJ2RHD MACO 1 R503 S.RESISTOR 100K ERJ2RHD MACO 1 R506 S.RESISTOR 3.3K ERJ2GE MACO 1 R507 S.RESISTOR 27K ERJ2GE MACO 1 R508 S.RESISTOR 2.2K ERJ2GE MACO 1 R509 S.RESISTOR 100K ERJ2GE MACO 1 R511 S.RESISTOR 270K ERJ2GE MACO 1 R512 S.RESISTOR 100K ERJ2GE MACO 1 R513 S.RESISTOR 5.6K ERJ2GE MACO 1 R514 S.RESISTOR ERJ2GE-JPW MACO 1 C401 S.CERAMIC 0.001 ECJ10 B MACO 1 C402 S.CERAMIC 0.001 ECJ10 B MACO 1 C403 S.CERAMIC 0.001 ECJ10 B MACO 1 C404 S.CERAMIC 0.001 ECJ10 B MACO 1 C405 S.CERAMIC 0.0022 ECJ10 B MACO 1 C406 S.CERAMIC 0.0027 ECJ10 B MACO 1 C407 S.CERAMIC 100P ECJ10 CH MACO 1 C408 S.CERAMIC 0.1 ECJ10 10V B MACO 1 C409 S.CERAMIC 0.1 ECJ10 10V B MACO 1 C410 S.CERAMIC 0.1 ECJ10 10V B MACO 1 C411 S.CERAMIC 0.1 ECJ10 10V B MACO 1 C412 S.CERAMIC 0.1 ECJ10 10V B MACO 1 C413 S.CERAMIC 470P ECJ10 B MACO 1 C414 S.CERAMIC 15P ECJ10 CH MACO 1 C415 S.CERAMIC 0.01 ECJ10 16V B MACO 1 C416 S.CERAMIC 12P ECJ10 CH MACO 1 C417 S.CERAMIC 6P ECJ10 CH MACO 1 C418 S.CERAMIC 0.1 ECJ10 10V B MACO 1 C419 S.TANTALUM 10 10V MSVA NEC 1 C420 S.CERAMIC 0.1 ECJ10 10V B MACO 1 C421 S.CERAMIC 0.1 ECJ10 10V B MACO 1 C423 S.CERAMIC 0.1 ECJ10 10V B MACO 1 C424 S.CERAMIC 0.001 ECJ10 B MACO 1 IC-F50 FRONT PARTS LIST REF No .DESCRIPTION TYPE(PARTS) MANUFACTURER QTY C425 S.CERAMIC 470P ECJ10 B MACO 1 C426 S.CERAMIC 0.001 ECJ10 B MACO 1 C427 S.TANTALUM 10 16V MSVB2 NEC 1 C428 S.CERAMIC 0.1 ECJ10 …

Text truncated - open the document above for the full version.

4 1 PREPARATION When adjusting IC-F50, the optional CS-F50 ADJ ADJUSTMENT SOFTWARE(Rev. 1.0 or later), *OPC-966 JIG CABLE(modified OPC- 966 CLONING CABLE) are required. REQUIRED TEST EQUIPMENT IC-F50 ADJUSTMENT PROCEDURES SYSTEM REQUIREMENTS • IBM ® PC compatible computer with an RS-232C serial port (38400 bps or faster). • Microsoft ® Windows ® 95 or Windows 98 • Intel i486DX processor or faster (Pentium 100 MHz or faster recommended) • At least 16 MB RAM and 10 MB of hard disk space • 640×480 pixel display (800×600 pixel display recommend- ed) ADJUSTMENT SOFTWARE INSTALLATION qBoot up Windows. - Quit all applications when Windows is running. wInsert the cloning software CD-ROM into the appropriate CD-ROM drive. eSelect ‘Run’from the [Start] menu. rType the setup program name using the full path name, then push [Enter] key. (For example; D:\Setup.exe) tFollow the prompts. yProgram group ‘CS-F50 ADJ’appears in the ‘Programs’ folder of the [Start] menu. STARTING SOFTWARE ADJUSTMENT qConnect IC-F50 and PC with *OPC-966 JIG CABLE. wTurn the transceiver power ON. eBoot up Windows, and click the program group ‘CS-F50 ADJ’in the ‘Programs’folder of the [Start] menu, then CS-F50 ADJ’s window appears. rClick ‘Connect’on the CS-F50’s window, then appears IC-F50’s up-to-date condition. tSet or modify adjustment data as desired. IBM ® is a registered trademark of International Business Machines Corporation in the U.S.A. and other countries. Microsoft ® and Windows ® are registered trademarks of Microsoft Corporation in the U.S.A. and other countries. All other products or brands are registered trademarks or trademarks of their respective holders. • High power transmittion When adjusting the output power (high power), the battery type detector must be connected to GND (see illustration at below). Otherwise the transceiver does not transmit high power, the output power will be low. EQUIPMENT DC power supply FM deviation meter Frequency counter Digital multimeter RF power meter (terminated type) GRADE AND RANGE Output voltage: 7.5 V DC Current capacity: 5 A or more Frequency range: DC–300 MHz Measuring range: 0 to ±10 kHz Frequency range: 0.1–300 MHz Frequency accuracy : ±1 ppm or better Sensitivity: 100 mV or better Input impedance: 10 MΩ/V DC or better Measuring range: 1–10 W Frequency range: 100–300 MHz Impedance: 50 Ω SWR: Less than 1.2 : 1 EQUIPMENT Audio generator Attenuator Standard signal generator (SSG) DC voltmeter Oscilloscope AC millivoltmeter GRADE AND RANGE Frequency range: 300–3000 Hz Output level: 1–500 mV Power attenuation: 40 or 50 dB Capacity: 10 W or more Frequency range: 100–300 MHz Output level: 0.1 μV–32 mV (–127 to –17 dBm) Input impedance: 50 kΩ/V DC or better Frequency range: DC–20 MHz Measuring range: 0.01–20 V Measuring range: 10 mV–10 V 5 2 SOFTWARE ADJUSTMENT (PLL AND TRANSMITTING) Select an operation using [↑] / [↓] keys, then set specified value using [←] / [→] keys on the connected computer keyboard. 1 2 3 4 1 1 2 3 1 2 3 1 2 3 4 • Operating freq. : 174.000 MHz • Receiving • Operating freq. : 174.000 MHz • Transmitting • Operating freq. : 136.000 MHz • Receiving • Operating freq. : 136.000 MHz • Transmitting • Operating freq. : 174.000 MHz • Output power: Low1 • Connect an RF power meter or 50 Ω dummy load to the antenna connector. • Transmitting • Operating freq. : 174.000 MHz • Output power: High • Transmitting • Output power: Low2 • Transmitting • Output power: Low1 • Transmitting • Operating freq. : 155.000 MHz • Output power: Low1 • IF bandwidth: Narrow • Set the FM deviation meter as: HPF: OFF LPF: 20 kHz De-emphasis : OFF Detector: (P–P)/2 • Connect the audio generator to the multi connector through the JIG cable (*OPC- 966) and set as : 1.0 kHz/150 mVrms • Transmitting • IF bandwidth: Middle • Transmitting • IF bandwidth: Wide • Transmitting IMPORTANT!:Set DTCS code to 174.000 MHZ using CS-F50 CLONING SOFTWARE in advance. • Operating freq. : 174.000 MHz • Output power: Low1 • No audio applied to the [MIC] input. • Set an FM deviation meter as: HPF: OFF LPF: 20 kHz De-emphasis : OFF Detector: (P–P)/2 • IF bandwidth: Narrow • Transmitting • IF bandwidth: Middle • Transmitting • IF bandwidth: Wide • Transmitting PLL LOCK VOLATGE [LV (RX LVA)] [LV (TX LVA)] REFERENCE FREQUENCY [REF] OUTPUT POWER [Power (Hi)] [Power (L2)] [Power (L1)] FM DEVIATION [MOD N] (Narrow) [MOD Ratio] (Middle) [MOD Ratio] (Wide) MODULATION BALLANCE [BAL N] (Narrow) [BAL Ratio] (Middle) [BAL Ratio] (Wide) Soft ware Soft ware To p panel To p panel To p panel Check the “LV” item on the CS- F50 ADJ’s display. Check the “LV” item on the CS- F50 ADJ’s display. Connect a digital multimeter to the “LV” line. Loosely couple a frequnecy counter to the antenna connec- tor. Connect an RF power meter to the antenna connector. Connect an FM deviation meter to the antenna connector through the attenuator. Connect an FM deviation meter with an oscilloscope to the antenna connector through an attenuator. 3.5 V 3.5 V 0.9–1.5 V (Verify) 0.9–1.5 V (Verify) 174.0000 MHz 5.0 W 2.0 W 1.0 W ±2.10 kHz ±3.20 kHz ±4.10 kHz ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE UNIT LOCATION Set to square wave form 6 SOFTWARE ADJUSTMENT(PLL AND TRANSMITTING) – continued Select an operation using [↑] / [↓] keys, then set specified value using [←] / [→] keys on the connected computer keyboard. 1 2 IMPORTANT!:Set CTCSS frequency (151.4 Hz) to 155.000 MHz using CS-F50 CLONING SOFTWAREin advance. • Operating freq. : 155.000 MHz • Output power: Low1 • IF bandwidth: Wide • CTCSS: 151.4 Hz • DTCS code: 007 • No audio applied to the [MIC] input. • Transmitting CTCSS/DTCS DEVIATION [CTCS/DTCS] To p panel Connect an FM deviation meter to the antenna connector through the attenuator. ±0.68 kHz ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE UNIT LOCATION 7 *The output level of the standard signal generator (SSG) is indicated as the SSG’s open circuit. 3 SOFTWARE ADJUSTMENT (RECEIVING) • Select an operation using [↑] / [↓] keys, the…

Text truncated - open the document above for the full version.

VHF TRANSCEIVER Model No.: IC-F50 Tested For ICOM Incorporated 2380 116 Avenue North East USA In Accordance With SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: ICOM-072-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: October 27, 2003 Report Prepared by: JaeWook Choi, SAR System Engineer Tested by: JaeWook Choi, SAR System Engineer Issued Date: October 27, 2003 Test Dates: September 16, 2003 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATE (SAR) Page 1 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) VHF Transceiver M/N: IC-F50 FCC ID: AFJ268100 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION................................................................................................................................................4 1.1. SCOPE...............................................................................................................................................................................4 1.2. REFERENCES...................................................................................................................................................................4 EXHIBIT 2. PERFORMANCE ASSESSMENT.....................................................................................................................5 2.1. CLIENT AND MANUFACTURER INFORMATION......................................................................................................5 2.2. DEVICE UNDER TEST (D.U.T.) DESCRIPTION..............................................................................................................5 2.3. LIST OF D.U.T.’S ACCESSORIES:.................................................................................................................................. 6 2.4. SPECIAL CHANGES ON THE D.U.T.’S HARDWARE/SOFTWARE FOR TESTING PURPOSES.............................6 2.5. ANCILLARY EQUIPMENT.............................................................................................................................................6 2.6. GENERAL TEST CONFIGURATIONS...........................................................................................................................6 2.6.1. Equipment Configuration...........................................................................................................................................6 2.6.2. Exercising Equipment.................................................................................................................................................6 2.7. SPECIFIC OPERATING CONDITIONS......................................................................................................................................6 2.8. BLOCK DIAGRAM OF TEST SETUP.............................................................................................................................7 EXHIBIT 3. SUMMARY OF TEST RESULTS......................................................................................................................8 3.1. LOCATION OF TESTS.....................................................................................................................................................8 3.2. APPLICABILITY & SUMMARY OF SAR RESULTS.....................................................................................................8 EXHIBIT 4. MEASUREMENTS, EXAMINATIONS & TEST DATA................................................................................9 4.1. TEST SETUP.....................................................................................................................................................................9 4.2. PHOTOGRAPH OF D.U.T. AND ALL ACCESORIES................................................................................................................10 4.3. PHOTOGRAPHS OF D.U.T. POSITION........................................................................................................................15 4.3.1. Head Front Configuration........................................................................................................................................15 4.3.1.1. Push-To-Talk; Front-side in parallel to the phantom with the spacing of 25 mm....................................................................15 4.3.2. Body-Worn(By stander) Configuration....................................................................................................................16 4.3.2.1. Body-worn; Back-side in parallel to the phantom and the belt clip in contact.........................................................................16 4.4. MAXIMUM PEAK SPATIAL-AVERAGE SAR........................................................................................................................17 4.4.1. Maximum Peak Spatial-average SAR Data..............................................................................................................17 4.4.2. Maximum Peak Spatial-Average SAR Location.......................................................................................................17 4.5. SAR MEASUREMENT DATA..............................................................................................................................................18 4.5.1. Head Front Configuration Result.…

Text truncated - open the document above for the full version.

i ii SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagnetic energy during transmit mode. This radio is designed for and clas-sified as “Occupational Use Only”, meaning it must beused only during the course of employment by individualsaware of the hazards, and the ways to minimize such haz-ards. This radio is NOT intended for use by the “GeneralPopulation” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure lim-its for “Occupational Use Only”. In addition, your Icom radio complies withthe following Standards and Guidelines with regard to RF energy andelectromagnetic energy levels and evaluation of such levels for exposureto humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Com- pliance with FCC Guidelines for Human Exposure to Radio Fre-quency Electromagnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Fre-quency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recom- mended Practice for the Measurement of Potentially Hazardous Elec-tromagnetic Fields– RF and Microwave. • The following accessories are authorized for use with this product. Use of accessories other than those specified may result in RF ex-posure levels exceeding the FCC requirements for wireless RF ex-posure.; Belt Clip (MB-98), Rechargeable Li-Ion Battery Pack(BP-227), Alkaline Battery Case (BP-226) and Speaker-microphone(HM-138). To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupa-tional use, always adhere to the following guidelines: CAUTION WARNING • DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you to exceed FCC RFexposure limits. A proper antenna is the antenna supplied with thisradio by the manufacturer or antenna specifically authorized by themanufacturer for use with this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCCRF exposure compliance requirements to be exceeded. The radio istransmitting when the “TX indicator” lights red. You can cause theradio to transmit by pressing the “PTT” switch. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clip which is listedon page iv when attaching the radio to your belt, etc., to ensure FCCRF exposure compliance requirements are not exceeded. To providethe recipients of your transmission the best sound quality, hold theantenna at least 5 cm (2 inches) from your mouth, and slightly off toone side. The information listed above provides the user with the informationneeded to make him or her aware of RF exposure, and what to do to as-sure that this radio operates with the FCC RF exposure limits of this radio.Electromagnetic Interference/CompatibilityDuring transmissions, your Icom radio generates RF energy that can pos-sibly cause interference with other devices or systems. To avoid such in-terference, turn off the radio in areas where signs are posted to do so.DO NOT operate the transmitter in areas that are sensitive to electro- magnetic radiation such as hospitals, aircraft, and blasting sites.Occupational/Controlled UseThe radio transmitter is used in situations in which persons are exposedas consequence of their employment provided those persons are fullyaware of the potential for exposure and can exercise control over theirexposure. !IC-F50_F60 BIIS.qxd 03.9.3 1:38 PM Page i (1,1)

VHF TRANSCEIVER Model No.: IC-F50 FCC ID: AFJ268100 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, PARTS 2 and 90 (Subpart I) UltraTech's File No.: ICOM-072F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: October 15, 2003 Report Prepared by: William Truong Issued Date: October 15, 2003 Tested by: Hung Trinh, RFI/EMI Technician Test Dates: August 23-September 15, 2003 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E- 1119R 00-034 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i VHF TRANSCEIVER, Model IC-F50 FCC ID: AFJ268100 ULTRATECH GROUP OF LABS File #: ICOM-072F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Oc…
