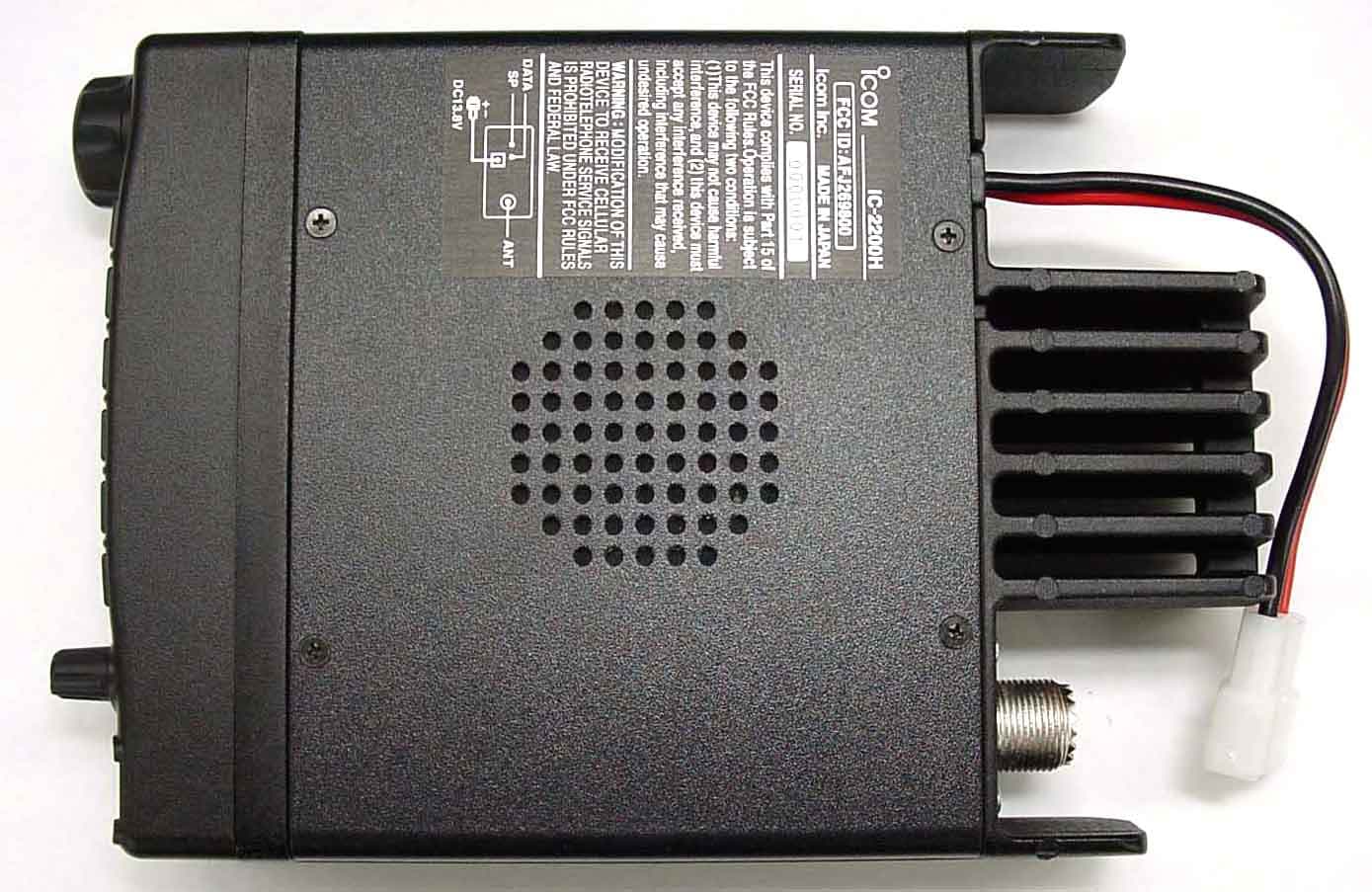

AFJ269800Amateur Transceiver with Scanning Receiver

INSTRUCTION MANUAL i2200HVHF TRANSCEIVER This device complies with Part 15 of the FCC rules. Operation is sub-ject to the following two conditions: (1) This device may not causeharmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation. i FOREWORDThank you for purchasing this Icom product. The IC-2200HVHF TRANSCEIVER is designed and built with Icom’s superior technology and craftsmanship. With proper care, this productshould provide you with years of trouble-free operation. We want to take a couple of moments of your time to thankyou for making your IC-2200H your radio of choice, and hopeyou agree with Icom’s philosophy of “technology first.” Manyhours of research and development went into the design ofyour IC-2200H. DD FEATURES ❍ 65 W* of high transmit output power (except Taiwan version) ❍ Front mounted speaker for clear audioreadability ❍ Tone squelch, DTCS squelch standard ❍ Dual color (amber & green) LCD backlight ❍ Remote control microphone available (optional for some versions) ❍ Optional DTMF decoder IMPORTANTREAD ALL INSTRUCTIONS carefully and completely before using the transceiver. SAVE THIS INSTRUCTION MANUAL— This in- struction manual contains important operating instructions forthe IC-2200H. EXPLICIT DEFINITIONS WORD DEFINITION R WARNING! CAUTION NOTE Personal injury, fire hazard or electric shockmay occur.Equipment damage may occur.Recommended for optimum use. No risk ofpersonal injury, fire or electric shock. Icom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Ger-many, France, Spain, Russia and/or other countries. R WARNING RF EXPOSURE! This device emits Radio Frequency (RF) energy. Extreme caution should be ob-served when operating this device. If you have any questions re-garding RF exposure and safety standards please refer to theFederal Communications Commission Office of Engineering andTechnology’s report on Evaluating Compliance with FCC Guide-lines for Human Radio frequency Electromagnetic Fields (OETBulletin 65) R WARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electric shock. R WARNING! NEVER operate the transceiver while dri- ving a vehicle. Safe driving requires your full attention—anythingless may result in an accident. NEVER connect the transceiver to a power source of more than 16 V DC. This will ruin the transceiver. NEVER connect the transceiver to a power source using re- verse polarity. This will ruin the transceiver. NEVER cut the DC power cable between the DC plug and fuse holder. If an incorrect connection is made after cutting, thetransceiver may be damaged. NEVER expose the transceiver to rain, snow or any liquids. The transceiver may be damaged. NEVER operate or touch the transceiver with wet hands. This may result in an electric shock or ruin the transceiver. NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodily injury. NEVER let objects impede the operation of the cooling fan on the rear panel. DO NOT push the PTT when not actually desiring to transmit. DO NOT allow children to play with any radio equipment con- taining a transmitter.During mobile operation, DO NOT operate the transceiver without running the vehicle’s engine. When the transceiver’spower is ON and your vehicle’s engine is OFF, the vehicle’s bat-tery will soon become exhausted. BE CAREFUL! The transceiver will become hot when op- erating it continuously for long periods.AVOID using or placing the transceiver in direct sunlight or in areas with temperatures below –10°C (+14 ̊F) or above +60°C(+140 ̊F). AVOID the use of chemical agents such as benzine or alcohol when cleaning, as they can damage the transceiver’s surfaces.USE Icom microphones only (supplied or optional). Other man- ufacturer’s microphones have different pin assignments and maydamage the transceiver if attached. ii CAUTIONS iii TABLE OF CONTENTS SUPPLIED ACCESSORIESq DC power cable (3 m) . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 w Mobile mounting bracket . . . . . . . . . . . . . . . . . . . . . . . . 1 e Microphone (HM-133V)* . . . . . . . . . . . . . . . . . . . . . . . . . 1 r Fuse (20 A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 t Mounting screws, nuts and washers . . . . . . . . . . . . 1 set y Microphone hanger † . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 *HM-118N HAND MICROPHONE or HM-118TN/TAN DTMF MICROPHONE supplied versions are also available. † Depending on version. qwe r ty FOREWORD ........................................................................................... iIMPORTANT ............................................................................................ iEXPLICIT DEFINITIONS ......................................................................... iCAUTIONS ............................................................................................. iiSUPPLIED ACCESSORIES .................................................................. iiiTABLE OF CONTENTS ......................................................................... iiiQUICK REFERENCE GUIDE ............................................................ I–VI  Installation ....................................................................................... I  Your first contact ........................................................................... IV  Repeater operation ........................................................................ V  Programming memory .................................................................. VI 1 PANEL DESCRIPTION ................................................................. 1–8  Front panel ..................................................................................... 1  Function display .......................................................…

Text truncated - open the document above for the full version.

Dec. 10, 2003 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Certification Testing in accordance with FCC CFR 47, Part 15, Subpart B - Class B Unintentional Radiators and Scanning Receivers Operating in the frequency bands 118-174 MHz. Product: SCANNING RECEIVER Model No.: IC-2200H FCC ID: AFJ269800 Dear Sir/Madam As appointed agent for ICOM Incorporated, we would like to submit the application for FCC certification of the above product. Please review all necessary files uploaded to AmericanTCB electronic filing site. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034

4 IC-2200H ADJUSTMENT PROCEDURES 1 PREPARATION Need to enter the adjustment mode, and the JIG cable is required when adjusting the IC-2200H. REQUIRED TEST EQUIPMENT DC power supply RF power meter (terminated type) Frequency counter Standard signal generator (SSG) FM deviation meter Oscilloscope Audio generator Attenuator EQUIPMENTGREDE AND RANGEEQUIPMENTGREDE AND RENGE Output voltage: 13.8 V DC Current capacity: 20 A or more Measuring range: 0.1–100 W Frequency range: 50–400 MHz Impedance: 50 Ω SWR: Less than 1.2 : 1 Frequency range: 0.1–400 MHz Frequency accuracy: ±1 ppm or better Sensitivity: 100 mV or better Frequency range: 0.1–400 MHz Output level: 0.1 μV–32 mV (–127 to –17 dBm) Frequency range: 0–400 MHz Measuring range: 0 to ±5 kHz Frequency range: DC–400 MHz Measuring range: 0.01–10 V Frequency range: 300–3000 Hz Measuring range: 1–500 mV Power attenuation: 50 or 60 dB Capacity: 150 W or more ENTERING THE ADJUSTMENT MODE qTurn the transceiver’s power OFF. wConnect the JIG cable to the [MIC] jack. ePush and hold the [SET] and [MONI] keys, and then turn power ON. NOTE:Exiting from the adjustment mode when the transciever’s power is OFF. OPERATING ON THE ADJUSTMENT MODE • Change the adjustment value: [DIAL] • Verifying the adjustment value: [M/CALL] key • Forward the adjustment item: [BANK] key • Go back the adjustment item: [V/MHz] key • Store the adjustment value in the memory: [S.MW] key CAUTION:Need to push the [S.MW] key when storing the adjustment value in the memory. Otherwise, the transceiver is not adjusted properly. IMPORTANT!:The transceiver need to be cancelled adjustment mode (as following method) to use normal mode when adjustments are finished, otherwise the transceiver does not work properly. q: Turn the power OFF. w: Push and hold [S.MW] and [SET] keys, and then turn the power ON. 5 5-2 SOFTWARE ADJUSTMENTS (TRANSMITTING AND RECEIVING) REFERENCE FREQUENCY [Fr] REFERENCE VOLTAGE [rE] VHF OUTPUT POWER (High) [PO] (Middle) [PO+MID] (Middle-Low) [PO+MID+LOW] (Low) [PO+LOW] PROTECT VOLTAGE [PU] FREQUENCY DEVIATION (Analog) [dE] DIGITAL VCO DEVIATION [dE+DIGITAL] DTCS WAVE FORM [dt] 1 1 1 2 3 4 1 1 1 1 • Operating frequency: 146.0 MHz • Loosely couple a frequency counter to the antenna connector on the rear panel. • Transmitting • Operating frequency: 146.0 MHz • Receiving • Operating frequency: 146.0 MHz • Connect an RF power meter to the antenna connector. • Transmitting • Operating frequency: 146.0 MHz • Transmitting • Operating frequency: 146.0 MHz • Transmitting • Operating frequency: 146.0 MHz • Transmitting • Operating frequency: 146.0 MHz • [High]/[Low] switch: High • Connect an RF power meter to the antenna connector. • Transmitting • Operating frequency: 146.0 MHz • IF bandwidth: Wide • Connect an audio generator to the [MIC] jack and set as: 1 kHz/80 mV rms • Connect an FM deviation meter to the antenna con- nector and set as : HPF: OFF LPF: 20 kHz De-emphasis: OFF Detector: (P–P)/2 • Transmitting • Operating frequency: 146.0 MHz • IF bandwidth: Wide • No audio signal is applied to the [MIC] jack. • Connect an FM deviation meter to the antenna con- nector and set as : HPF: OFF LPF: 20 kHz De-emphasis: OFF Detector: (P–P)/2 • Transmitting • Operating frequency: 146.0 MHz • IF bandwidth: Wide • No audio signal is applied to the [MIC] jack. • DTCS code: 023 • Set an FM deviation meter as: HPF: OFF LPF: 20 kHz De-emphasis: OFF Detector: (P–P)/2 • Transmitting • Turn the [DIAL] to set to 146.0000 MHz. • Push the [S.MW] key. • Push the [S.MW] key. • Turn the [DIAL] to set the VHF high power to 67 W. • Push the [S.MW] key. • Turn the [DIAL] to set the VHF middle power to 25 W. • Push the [S.MW] key. • Turn the [DIAL] to set the VHF low power to 10 W. • Push the [S.MW] key. • Turn the [DIAL] to set the VHF low power to 5 W. • Push the [S.MW] key. • Push the [S.MW] key while transmitting. • Turn the [DIAL] to set to ±4.6 kHz. • Push the [S.MW] key after finish adjustment. • Turn the [DIAL] to set to ±1.25 kHz. • Push the [S.MW] key after finish adjustment. • Turn the [DIAL] to set to flat wave form as shown below. • Push the [S.MW] key after finish adjustment. ADJUSTMENTADJUSTMENT CONDITION OPERATION Set to flat wave form 6 SOFTWARE ADJUSTMENTS (TRANSMITTING AND RECEIVING)–Continued DIGITAL REFERENCE DEVIATION [dt+DIGITAL] RECEIVER SENSITIVITY [tr] SQUELCH LEVEL (Wide) [Sq] S-METER (FM mode) [Sr] (AM mode) [Sr+.] 1 1 2 3 4 1 1 2 • Operating frequency: 146.0 MHz • IF bandwidth: Wide • No audio signal is applied to the [MIC] jack. • Connect an FM deviation meter to the antenna con- nector and set as : HPF: OFF LPF: 20 kHz De-emphasis: OFF Detector: (P–P)/2 • Transmitting • Operating frequency: 118.020 MHz • Connect an SSG to the antenna connector and set as Level: 0.5 μV* (–113 dBm) Modulation: 1 kHz Deviation: ± 3.5 kHz • Receiving • Operating frequency: 136.020 MHz • Receiving • Operating frequency: 147.980 MHz • Receiving • Operating frequency: 173.980 MHz • Receiving • Operating frequency: 145.020 MHz • Connect an SSG to the antenna connector and set as Level: 0.1 μV* (–127 dBm) Modulation: 1 kHz Deviation: ± 3.5 kHz • Receiving • Operating frequency: 145.020 MHz • Connect an SSG to the antenna connector and set as Level: 1.3 μV* (–105 dBm) Modulation: 1 kHz Deviation: ± 3.5 kHz • Receiving • Operating frequency: 127.020 MHz • Connect an SSG to the antenna connector and set as Level: 1.0 μV* (–107 dBm) Modulation: 1 kHz Deviation: 30 % • Receiving • Turn the [DIAL] to set to ±0.85 kHz. • Push the [S.MW] key after finish adjustment. • Push the [S.MW] key. • Push the [S.MW] key. • Push the [S.MW] key. • Push the [S.MW] key. • Turn the [DIAL] to set to squelch tight point. • Turn the [DIAL] to set to squelch threshold point. • Push the [S.MW] key. • Push the [S.MW] key. • Push the [S.MW] key. ADJUSTMENTADJUSTMENT CONDITION OPERATION *This output level of a standard signal generator (SSG) is indicated as SSG’s open circuit.

Dec. 10, 2003 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Certification Testing in accordance with FCC CFR 47, Part 15, Subpart B - Class B Unintentional Radiators and Scanning Receivers Operating in the frequency bands 118-174 MHz. Product: SCANNING RECEIVER Model No.: IC-2200H FCC ID: AFJ269800 Dear Sir/Madam As appointed agent for ICOM Incorporated, we would like to submit the application for FCC certification of the above product. Please review all necessary files uploaded to AmericanTCB electronic filing site. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 Dec. 10, 2003 ICOM Incorporated 1-1-32, Kamiminami Hirano-ku, Osaka Japan, 547-003 Attn.: Mr. Takashi Aoki Subject: Certification Testing in accordance with FCC CFR 47, Part 15, Subpart B - Class B Unintentional Radiators and Scanning Receivers Operating in the frequency bands 118-174 MHz. Product: SCANNING RECEIVER Model: IC-2200H FCC ID: AFJ269800 Dear Mr. Aoki, The product sample has been tested in accordance with FCC CFR 47, Part 15, Subpart B - Class B Unintentional Radiators and Scanning Receivers Operating in the frequency bands 118-174 MHz, and the results and observation were recorded in the engineering report, Our File No.: ICOM-076FCC15RX Enclosed you will find copies of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SCANNING RECEIVER Model No.: IC-2200H FCC ID: AFJ269800 Applicant: ICOM Incorporated 1-1-32, Kamiminami Hirano-ku, Osaka Japan, 547-003 Tested in Accordance With Federal Communications Commission (FCC) CFR 47, Part 15, Subpart B Class B Unintentional Radiators & Scanning Receivers operating in the Frequency Band 118-174 MHz UltraTech's File No.: ICOM-076FCC15RX This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: Dec. 10, 2003 Report Prepared by: Tri M. Luu, P.Eng. Tested by: Hung Trinh Issued Date: Dec. 10, 2003 Test Dates: Mar. 27 - April 04, 2003 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 00-034 FCC PART 15, SUBPART B, SUBPART B, CLASS B UNINTENTIONAL RADIATORS AND SCANNING RECEIVERS Page 1 SCANNING RECEIVER, Model IC-2200H FCC ID: AFJ269800 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ....................................................................................................................................... 3 1.1. SCOPE....................................................................................................................................................................... 3 1.2. RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 1.3. NORMATIVE REFERENCES ................................................................................................................................. 3 EXHIBIT 2. PERFORMANCE ASSESSMENT ............................................................................................................ 4 2.1. CLIENT INFORMATION ........................................................................................................................................... 4 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION.................................................................................................... 4 2.3. EUT’S TECHNICAL SPECIFICATIONS................................................................................................................ 5 2.4. LIST OF EUT’S PORTS................................................................................................................................................ 5 2.5. ANCILLARY EQUIPMENT............................................................................................................................................. 5 2.6. DRAWING OF TEST SETUP............................................................................................................................................ 6 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................. 7 3.1. CLIMATE TEST CONDITIONS........................................................................................................................................ 7 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS..................................................................... 7 EXHIBIT 4. SUMMARY OF TEST RESULTS ............................................................................................................. 8 4.1. LOCATION OF TESTS ............................................................................................................................................ 8 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS......................................................................... 8 4.3. MODIFICATIONS REQUIRED FOR COMPLIANCE ...........................................................................................8 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................. 9 5.1. TEST PROCEDURES...…

Text truncated - open the document above for the full version.

Annex 1 – Photographs of Test Setup Photo # 1 SCANNING RECEIVER, Model IC-2200H FCC ID: AFJ269800 Annex 1 – Photographs of Test Setup Photo # 2 SCANNING RECEIVER, Model IC-2200H FCC ID: AFJ269800
