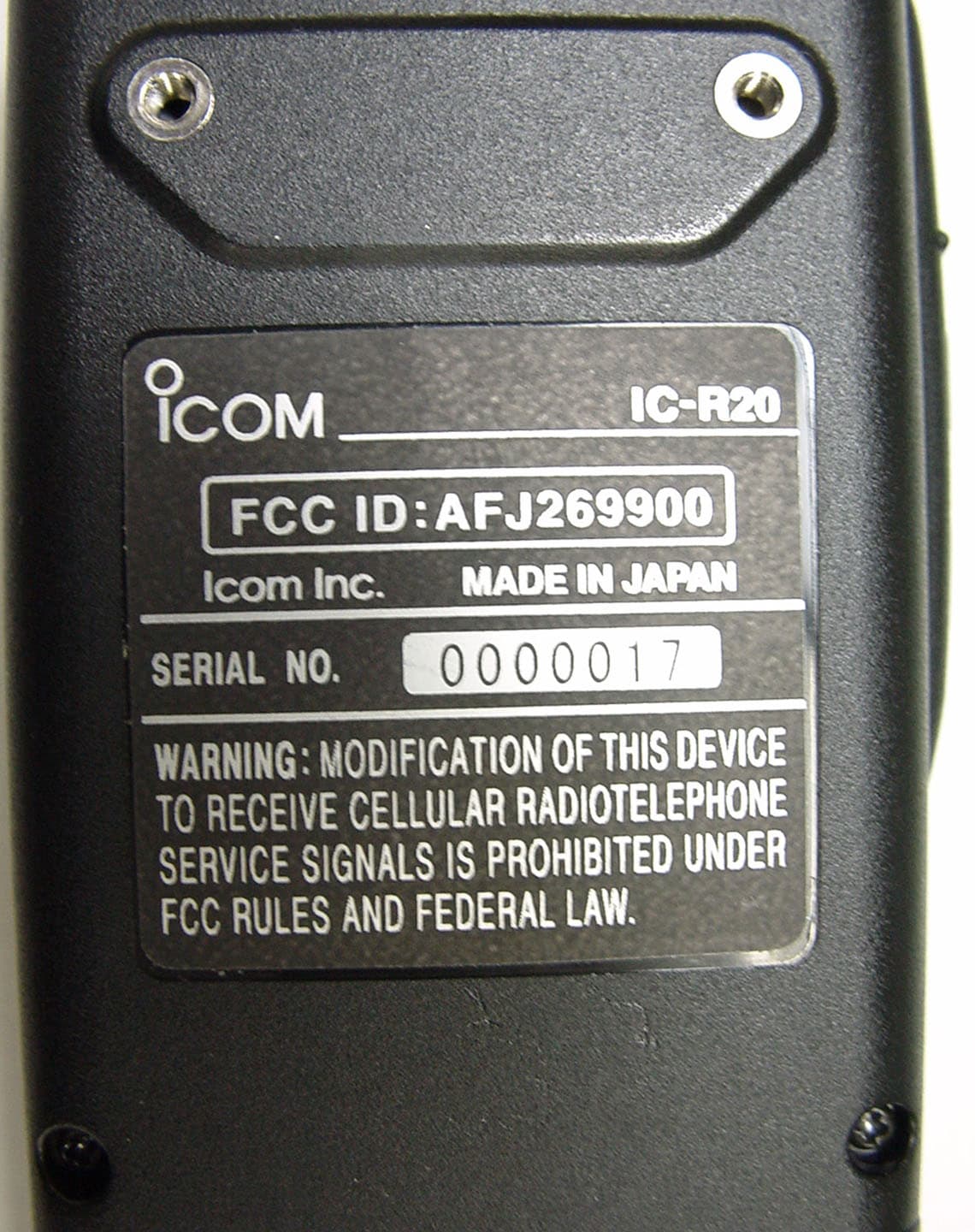

AFJ269900Amateur UHF Scanning Receiver

INSTRUCTION MANUAL iR20 COMMUNICATIONS RECEIVER This device complies with Part 15 of the FCC rules. Operation is sub-ject to the following two conditions: (1) This device may not causeharmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CEL- LULAR RADIO TELEPHONE SERVICE SIGNALS IS PROHIBITEDUNDER FCC RULES AND FEDERAL LAW. i FOREWORDThank you for purchasing this Icom product. The IC-R20 COM - MUNICATIONS RECEIVER is designed and built with Icom’s supe- rior technology and craftsmanship. With proper care, thisproduct should provide you with years of trouble-free operation. We want to take a couple of moments of your time to thank youfor making your IC-R20 your radio of choice, and hope youagree with Icom’s philosophy of “technology first.” Many hours ofresearch and development went into the design of your IC-R20. DD FEATURES ❍ Covers 0.150–3304.999 MHz* wide frequency range *Some frequency bands are inhibited according to version ❍ External power supply operation ❍ 1250 memory channels* with 26 banksavailable *200 auto write and 50 scan edge channels are included. ❍ Built-in bar-antenna ❍ Dualwatch operation IMPORTANTREAD ALL INSTRUCTIONS carefully and completely before using the receiver. SAVE THIS INSTRUCTION MANUAL— This in- struction manual contains important operating instructions forthe IC-R20. EXPLICIT DEFINITIONS WORD DEFINITION R WARNING! CAUTION NOTE Personal injury, fire hazard or electric shockmay occur.Equipment damage may occur.Recommended for optimum use. No risk ofpersonal injury, fire or electric shock. Icom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Ger-many, France, Spain, Russia and/or other countries. R WARNING! NEVER operate the receiver with a ear- phone, headphones or other audio accessories at high vol-ume levels. Hearing experts advise against continuous highvolume operation. If you experience a ringing in your ears, re-duce the volume level or discontinue use. R WARNING! NEVER connect the receiver to an AC outlet. This may pose a fire hazard or result in an electricshock. R WARNING! NEVER operate the receiver while dri- ving a vehicle. Safe driving requires your full attention—any-thing less may result in an accident. R WARNING! NEVER throw a battery cell or battery pack into a fire since as internal battery gas can cause explo-sion. R WARNING! NEVER disassemble the battery pack. If the battery cell’s internal material (electrolyte liquid) getsinto your eyes, wash your eyes with water and obtain treat-ment from an eye doctor immediately. NEVER connect the receiver to a power source of more than 6 V DC directly. This will damage the receiver. NEVER connect the receiver to a power source using re- verse polarity. This will damage the receiver. NEVER expose the receiver to rain, snow or any liquids. The receiver may be damaged. NEVER operate or touch the receiver with wet hands. This may result in an electric shock or damage the receiver. NEVER solder the battery cell. This may damage the bat- tery. AVOID using or placing the receiver in direct sunlight or in areas with temperatures below –10°C (+14 ̊F) or above+60°C (+140 ̊F). AVOID the use of chemical agents such as benzine or al- cohol when cleaning, as they can damage the receiver’s sur-faces.Even when the receiver power is OFF, a slight current stillflows in the circuits. Remove batteries from the receiver whennot using it for a long time. Otherwise, the installed batterieswill become exhausted, and will need to be recharged. RESPECT other peaple’s privacy. Information overheard but not intended for you cannot lawfully be used in any way.For U.S.A. onlyCAUTION: Changes or modifications to this device, not ex- pressly approved by Icom Inc., could void your authority tooperate this device under FCC regulations. ii PRECAUTION iii SUPPLIED ACCESSORIESq Antenna (FA-B04RE) .............................................1 w Belt clip (MB-98) ................................................1 set e Battery spacer ......................................................1 r Hand strap .........................................................1 t Battery pack* (BP-206) ..........................................1 y AC adaptor*(BC-149A/D) .......................................1 (The shape of the BC-149A and BC-149D are different.) *Not supplied with some versions. OPERATING THEORYElectromagnetic radiation which has frequencies of20,000 Hz (20 kHz*) and above is called radio frequency (RF)energy because it is useful in radio transmissions. The IC-R20 receives RF energy from 0.150 MHz* to 3304.999 MHzand converts it into audio frequency (AF) energy which in turnactuates a loudspeaker to create sound waves. AF energy isin the range of 20 to 20,000 Hz.*kHz is an abbreviation of kilohertz or 1000 hertz, MHz is abbreviation of megahertz or 1,000,000 hertz, where hertz is a unit of frequency. OPERATING NOTESThe IC-R20 may receive its own oscillated frequency, result-ing in no reception or only noise reception, on some frequen-cies.The IC-R20 may receive interference from extremely strongsignals on different frequencies or when using an externalhigh-gain antenna. qwe y r t iv TABLE OF CONTENTS 123456789101112131415 FOREWORD .................................................. iIMPORTANT .................................................. iEXPLICIT DEFINITIONS ................................ iPRECAUTION ............................................... iiSUPPLIED ACCESSORIES ......................... iiiOPERATING THEORY ................................. iiiOPERATING NOTES ................................... iiiTABLE OF CONTENTS ................................ ivQUICK REFERENCE GUIDE .................. I–VI  Preparation ............................................. I 1 PANEL DESCRIPTION ........................ 1–7  Front, top and…

Text truncated - open the document above for the full version.

March 25, 2004 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Certification Testing in accordance with FCC CFR 47, Part 15, Subpart B - Scanning Receivers Operating in the frequency band 0.150 - 3304.999 MHz. Product: Communications Receiver Model No.: IC-R20 FCC ID: AFJ269900 Dear Sir/Madam As appointed agent for ICOM Incorporated, we would like to submit the application for FCC certification of the above product. Please review all files uploaded to AmericanTCB electronic filing site. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

Communications Receiver Model No.: IC-R20 FCC ID: AFJ269900 Applicant: ICOM Incorporated 1-1-32, Kamiminami Hirano-ku, Osaka Japan, 547-003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Part 15, Subpart B Scanning Receivers Operating in the Frequency Band 0.15 - 3304.999 MHz UltraTech's File No.: ICOM-082FCC15RX This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: March 25, 2004 Report Prepared by: Dan Huynh Issued Date: March 25, 2004 Tested by: Hung Trinh, EMI/RFI Technician Test Dates: March 18, 2004 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC PART 15, SUBPART B, SCANNING RECEIVERS Communications Receiver, Model IC-R20 FCC ID: AFJ269900 ULTRATECH GROUP OF LABS File #: ICOM-082FCC15RX 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 25, 2004 Tel.: 905-829-1570, Fax. : 905-829-8050 All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST ........................................................................................................................................ 1 EXHIBIT 2. INTRODUCTION.......................................................................................................................................................... 2 2.1. SCOPE .......................................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S) .................................................................................................................................... 2 2.3. NORMATIVE REFERENCES ..................................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT ............................................................................................................................... 3 3.1. CLIENT INFORMATION............................................................................................................................................................ 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION............................................................................................................... 3 3.3. EUT’S TECHNICAL SPECIFICATIONS.................................................................................................................................... 4 3.4. LIST OF EUT’S PORTS............................................................................................................................................................... 4 3.5. ANCILLARY EQUIPMENT........................................................................................................................................................ 5 3.6. DRAWING OF TEST SETUP...................................................................................................................................................... 5 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ................................................ 6 4.1. CLIMATE TEST CONDITIONS ................................................................................................................................................. 6 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS............................................................... 6 EXHIBIT 5. SUMMARY OF TEST RESULTS................................................................................................................................ 7 5.1. LOCATION OF TESTS................................................................................................................................................................ 7 5.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ................................................................................ 7 5.3. MODIFICATIONS REQUIRED FOR COMPLIANCE ............................................................................................................... 7 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS ................................................ 8 6.1. TEST PROCEDURES .................................................................................................................................................................. 8 6.2. MEASUREMENT UNCERTAINTIES ........................................................................................................................................ 8 6.3. MEASUREMENT EQUIPMENT USED ..................................................................................................................................... 8 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER .......................................................... 8 6.5. AC POWERLINE CONDUCTED EMISSIONS [47 CFR 15.107 (a)]...................................................................... ................... 9 6.6. RECEIVER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS [47 CFR 15.111(a)] .................... 13 6.7. RECEIVER SPURIOUS/HARMONIC RADIATED EMISSIONS [47 CFR 15.109(a)] ........................................................... 20 6.8. RADIATED EMISSIONS FROM CLASS B UNINTENTIONAL RADIATION (DIGITAL DEVICE) [47 CFR 15.109 (a)] . 22 6.9. REQUIREMENT…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated Communications Receiver, Model IC-R20 FCC ID: AFJ269900 A1 - 1 AC Power Line Conducted Emissions (Front View) ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated Communications Receiver, Model IC-R20 FCC ID: AFJ269900 A1 - 2 AC Power Line Conducted Emissions (Side View) ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated Communications Receiver, Model IC-R20 FCC ID: AFJ269900 A1 - 3 Radiated Emissions at 3 Meters (Orthogonal Position # 1) ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated Communications Receiver, Model IC-R20 FCC ID: AFJ269900 A1 - 4 Radiated Emissions at 3 Meters (Orthogonal Position # 1) ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated Communications Receiver, Model IC-R20 FCC ID: AFJ269900 A1 - 5 Radiated Emissions at 3 Meters (Orthogonal Position # 2) ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated Communications Receiver, Model IC-R20 FCC ID: AFJ269900 A1 - 6 Radiated Emissions at 3 Meters (Orthogonal Position # 2) ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated Communications Receiver, Model IC-R20 FCC ID: AFJ269900 A1 - 7 Radiated Emissions at 3 Meters (Orthogonal Position # 3) ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated Communications Receiver, Model IC-R20 FCC ID: AFJ269900 A1 - 8 Radiated Emissions at 3 Meters (Orthogonal Position # 3)
