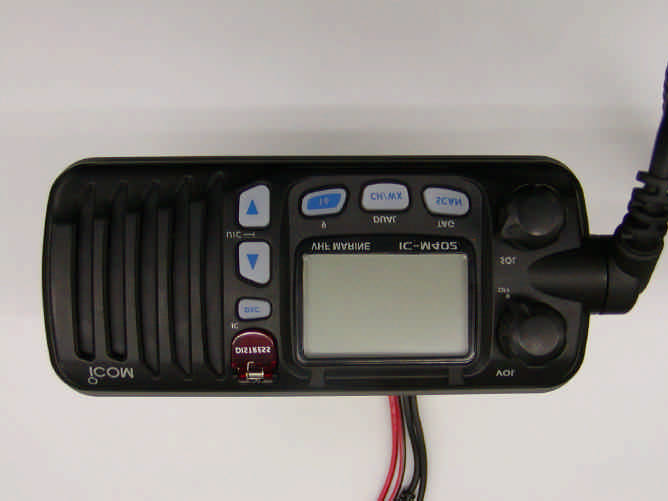

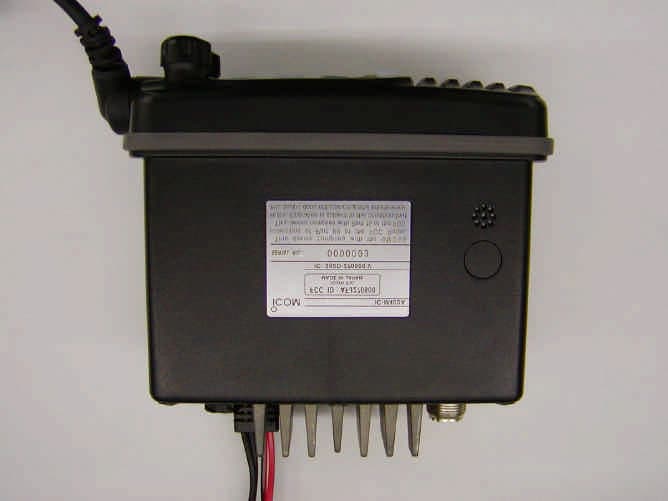

AFJ270600VHF Marine Transceiver

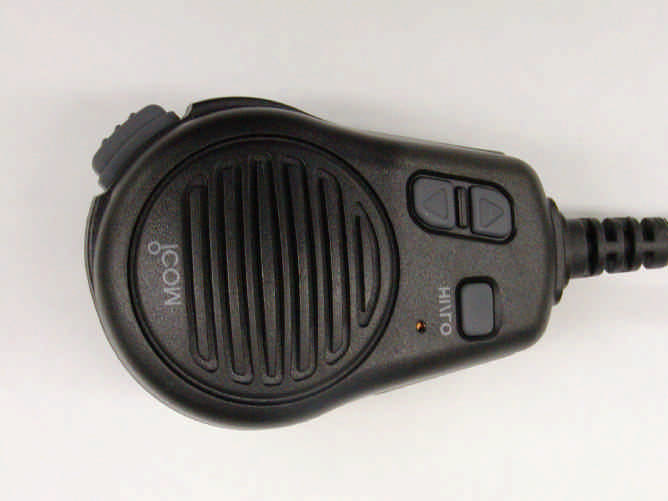

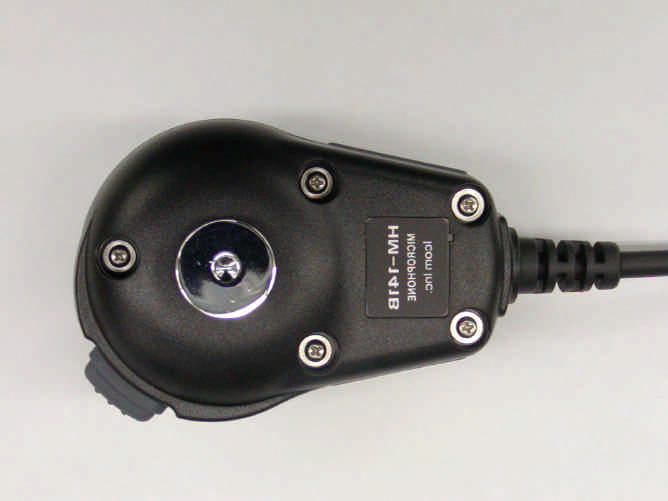

INSTRUCTION MANUAL iM402AVHF MARINE TRANSCEIVER New2001 (REMOTE-CONTROL MIC COMPATIBLE)iM402SAVHF MARINE TRANSCEIVER !IC-M402A_SA_draft.qxd 03.10.20 11:41 AM Page 1 (1,1) i New2001 FOREWORDThank you for purchasing this Icom product. The IC-M402A/M402SA VHF MARINE TRANSCEIVERS are designed and built with Icom’s state of the art technology and crafts-manship. With proper care, this product should provide youwith years of trouble-free operation.We want to take a couple of moments of your time to thankyou for making the IC-M402A/M402SA your radio of choice,and hope you agree with Icom’s philosophy of “technologyfirst.” Many hours of research and development went into thedesign of your IC-M402A/M402SA.D FEATURES ❍ Large 2-digit Ch with scrolling channel comment ❍ Easy to hear speaker ❍ Built-in DSC meets RTCM SC101 requirement ❍ Rugged waterproof construction ❍ Optional COMMANDMIC TM (IC-M402A only) IMPORTANTREAD ALL INSTRUCTIONS carefully and completely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This in- struction manual contains important operating instructions forthe IC-M402A/M402SA. EXPLICIT DEFINITIONS WORD DEFINITION R WARNING! CAUTION NOTE Personal injury, fire hazard or electric shockmay occur.Equipment damage may occur.Recommended for optimum use. No risk ofpersonal injury, fire or electric shock. CLEAN THE TRANSCEIVER AND MICROPHONE THOR-OUGHLY WITH FRESH WATER after exposure to water including salt water, otherwise, the keys and switches maybecome inoperable due to salt crystallization. Icom, Icom Inc. and the logo are registered trademarks of Icom Incor- porated (Japan) in the United States, the United Kingdom, Germany, France,Spain, Russia and/or other countries. !IC-M402A_SA_draft.qxd 03.10.20 11:41 AM Page i (1,1) ii IN CASE OF EMERGENCYIf your vessel requires assistance, contact other vessels andthe Coast Guard by sending a distress call on Channel 16.Or, transmit your distress call using digital selective calling onChannel 70. NOTEA WARNING STICKER is supplied with the transceiver. To comply with FCC regulations, this sticker must be affixed insuch a location as to be readily seen from the operating con-trols of the radio as in the diagram below. Make sure the cho-sen location is clean and dry before applying the sticker. (p. ?)EXAMPLE USING DIGITAL SELECTIVE CALLING (Ch 70) DISTRESS CALL PROCEDURE1. While lifting up the key cover, push and hold [DISTRESS] for 5 sec. until you hear 5 short beeps change to one long beep. 2. Wait for an acknowledgment on Channel 70 from a coast station. • After the acknowledgment is received, Channel 16 is automatically selected. 3. Push and hold [PTT] , then transmit the appropriate information as listed above. USING CHANNEL 16DISTRESS CALL PROCEDURE1. “MAYDAY MAYDAY MAYDAY.”2. “THIS IS ...............” (name of vessel)3. Your call sign or other indication of the vessel (AND 9- digit DSC ID if you have one). 4. “LOCATED AT ...............” (your position)5. The nature of the distress and assistance required.6. Any other information which might facilitate the rescue. New2001 !IC-M402A_SA_draft.qxd 03.10.20 11:41 AM Page ii (1,1) iii New2001 RADIO OPERATOR WARNING Icom requires the radio operator to meet the FCC Requirements for Radio Frequency Expo-sure.An omnidirectional antenna with gain notgreater than 9 dBi must be mounted a minimumof 5 meters (measured from the lowest point ofthe antenna) vertically above the main deck and all possible personnel. This is the minimum safe separationdistance estimated to meet all RF exposure compliance re-quirements. This 5 meter distance is based on the FCC SafeMaximum Permissible Exposure (MPE) distance of 3 metersadded to the height of an adult (2 meters) and is appropriatefor all vessels.For watercraft without suitable structures, the antenna mustbe mounted so as to maintain a minimum of 1 meter verticallybetween the antenna, (measured from the lowest point of theantenna), to the heads of all persons AND all persons muststay outside of the 3 meter MPE radius.Do not transmit with radio and antenna when persons arewithin the MPE radius of the antenna, unless such persons(such as driver or radio operator) are shielded from antennafield by a grounded metallic barrier. The MPE Radius is theminimum distance from the antenna axis that person shouldmaintain in order to avoid RF exposure higher than the allow-able MPE level set by FCC. WARNING FAILURE TO OBSERVE THESE LIMITS MAY ALLOWTHOSE WITHIN THE MPE RADIUS TO EXPERIENCE RFRADIATION ABSORPTION WHICH EXCEEDS THE FCCMAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMIT.IT IS THE RESPONSIBILITY OF THE RADIO OPERATORTO ENSURE THAT THE MAXIMUM PERMISSIBLE EXPO-SURE LIMITS ARE OBSERVED AT ALL TIMES DURINGRADIO TRANSMISSION. THE RADIO OPERATOR IS TOENSURE THAT NO BYSTANDERS COME WITHIN THERADIUS OF THE MAXIMUM PERMISSIBLE EXPOSURELIMITS.Determining MPE RadiusTHE MAXIMUM PERMISSIBLE EXPOSURE (MPE) RA-DIUS HAS BEEN ESTIMATED TO BE A RADIUS OFABOUT 3M PER OET BULLETIN 65 OF THE FCC.THIS ESTIMATE IS MADE ASSUMING THE MAXIMUMPOWER OF THE RADIO AND ANTENNAS WITH A MAXI-MUM GAIN OF 9dBi ARE USED FOR A SHIP MOUNTEDSYSTEM. !IC-M402A_SA_draft.qxd 03.10.20 11:41 AM Page iii (1,1) iv New2001 FOREWORD .............................. iIMPORTANT .............................. iEXPLICIT DEFINITIONS ............... iIN CASE OF EMERGENCY ......... iiNOTE ....................................... iiRADIO OPERATOR WARNING ... iiiTABLE OF CONTENTS ............... ivPRECAUTION ........................... v1 OPERATING RULES ............... 12 PANEL DESCRIPTION ......... 2–5  Front panel ........................ 2  Function display .................. 4  Microphone ........................ 5 3 BASIC OPERATION ......... 6–10  Channel selection ............... 6  Receiving and transmitting ... 8  Call channel programming ...... 9  Channel comments ............ 10  Microphone lock function ...... 10  Display backlighting ............ 10 4 DUALWATCH/TRI-WATCH ...... 11  Description …

Text truncated - open the document above for the full version.

November 14, 2003 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 80 Operating in the Frequency Band 156.025-157.425 MHz. Applicant: ICOM Incorporated Product: VHF Marine Transceiver Model: IC-M402A AND IC-M402SA FCC ID: AFJ270600 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to AmericanTCB electronic filing site. The Models IC-M402A and IC-M402SA are exactly identical except that the Model IC- M402A has REMOTE-CONTROL MIC COMPATIBLE option and Model IC-M402SA does not. Model IC-M402A is chosen to be tested and it shall also represent for Model IC- M402A since the additional option has no effect in test requirements. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 24, 2003 RE: FCC ID: AFJ270600_ATCB000937 Attention: Tri Lu I have a few comments on this Application. 1. Please note that ANSI C63.4 is specific to unlicensed part 15 devices and are not ‘normative’ reference documents for licensed devices. Use of ANSI C63.4 for licensed devices has no meaning and should not be used. For licensed devices TIA603-1 is the FCC accepted test methodology. Please explain why ANSI C63.4 is incorrectly referenced in section 2.1 of your report. Please test using TIA603-1 as applicable. 2. Please note that CISPR 22/ EN55022 are not ‘normative’ references for licensed devices. Please explain why they are referenced as such in the report. 3. Please note that TIA603-1 is the accepted FCC test method (as applicable) for all 47CFR licensed devices. Please explain why this document was not used or referenced in the report. 4. Please note that rf exposure must be provided in a separate exhibit. This is a requirement of the FCC in its uploading of exhibits. Please extract the MPE calculation section of your report and provide it as a separate exhibit. 5. Please provide an attestation that the G2B modulation implemented is in accordance to the appropriate ITU requirements. 6. Please note that it is customary to provide Occupied Bandwidth Plots. There does not appear to be OBW plots in the report. Please explain. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Tri Luu From: "Tri Luu" <[email protected]> To: "dward" <[email protected]> Sent: Tuesday, November 25, 2003 1:37 PM Attach: ICOM-075F80.pdf; ICOM-075F-MPE Caculation.pdf; ICM402- 80-225a.pd f Subject: Fw: AFJ270600_ATCB000937 Page 1 of 1 11/25/2003 ----- Original Message ----- From: Tri Luu To: dward Sent: Tuesday, November 25, 2003 1:33 PM Subject: Re: AFJ270600_ATCB000937 Hi Dennis, Please find my answers to your questions below: (1), (2),(3) & (6) Please find the revised test report with referenced to the correct TIA-603 (01-Nov-2002) Procedure, removal of CISPR 22 and 99% OBW measurements. (4) The MPE calculation was uploaded to ATCB RF Exposure Info per your request (5) The attestatio for complaince wiht 80.225(a) was uploaded to ATCB folder. Tri Luu, P.Eng. Ultratech Engineering Labs Inc. ----- Original Message ----- From: dward To: tri@ultratech -labs.com Sent: Monday, November 24, 2003 1:02 PM Subject: AFJ270600_ATCB000937 Hi Tri Please see comments Thanks Dennis

4 IC-M402A ADJUSTMENT PROCEDURES 1 PREPARATION  EQUIPMENT DC power supply RF power meter (terminated type) Frequency counter FM deviation meter DC voltmeter GRADE AND RANGE Output voltage: 13.8 V DC Current capacity: 10 Aor more Measuring range: 1–50 W Frequency range: 100–300 MHz Impedance: 50
SWR: Less than 1.2 : 1 Frequency range: 0.1–300 MHz Frequency accuracy: ±1 ppm or better Sensitivity: 100 mV or better Frequency range: 30–300 MHz Measuring range: 0 to ±10 kHz Input impedance: 50 k
/V DC or better EQUIPMENT Distortion meter Audio generator Standard signal generator (SSG) External speaker Attenuator GRADE AND RANGE Frequency range: 1 kHz ±10 % Measuring range: 1–100 % Frequency range: 300–3000 Hz Measuring range: 1–500 mV Frequency range: 0.1–300 MHz Output level: 0.1 μV–32 mV (–127 to –17 dBm) Input impedance: 4
Capacity: 5 W or more Power attenuation: 40 or 50 dB Capacity: 50 W or more 4 IC-M402A ADJUSTMENT PROCEDURES 1 PREPARATION  EQUIPMENT DC power supply RF power meter (terminated type) Frequency counter FM deviation meter DC voltmeter GRADE AND RANGE Output voltage: 13.8 V DC Current capacity: 10 Aor more Measuring range: 1–50 W Frequency range: 100–300 MHz Impedance: 50
SWR: Less than 1.2 : 1 Frequency range: 0.1–300 MHz Frequency accuracy: ±1 ppm or better Sensitivity: 100 mV or better Frequency range: 30–300 MHz Measuring range: 0 to ±10 kHz Input impedance: 50 k
/V DC or better EQUIPMENT Distortion meter Audio generator Standard signal generator (SSG) External speaker Attenuator GRADE AND RANGE Frequency range: 1 kHz ±10 % Measuring range: 1–100 % Frequency range: 300–3000 Hz Measuring range: 1–500 mV Frequency range: 0.1–300 MHz Output level: 0.1 μV–32 mV (–127 to –17 dBm) Input impedance: 4
Capacity: 5 W or more Power attenuation: 40 or 50 dB Capacity: 50 W or more 4 IC-M402A ADJUSTMENT PROCEDURES 1 PREPARATION  EQUIPMENT DC power supply RF power meter (terminated type) Frequency counter FM deviation meter DC voltmeter GRADE AND RANGE Output voltage: 13.8 V DC Current capacity: 10 Aor more Measuring range: 1–50 W Frequency range: 100–300 MHz Impedance: 50
SWR: Less than 1.2 : 1 Frequency range: 0.1–300 MHz Frequency accuracy: ±1 ppm or better Sensitivity: 100 mV or better Frequency range: 30–300 MHz Measuring range: 0 to ±10 kHz Input impedance: 50 k
/V DC or better EQUIPMENT Distortion meter Audio generator Standard signal generator (SSG) External speaker Attenuator GRADE AND RANGE Frequency range: 1 kHz ±10 % Measuring range: 1–100 % Frequency range: 300–3000 Hz Measuring range: 1–500 mV Frequency range: 0.1–300 MHz Output level: 0.1 μV–32 mV (–127 to –17 dBm) Input impedance: 4
Capacity: 5 W or more Power attenuation: 40 or 50 dB Capacity: 50 W or more 4 IC-M402A ADJUSTMENT PROCEDURES 1 PREPARATION  REQUIRED TEST EQUIPMENT EQUIPMENT DC power supply RF power meter (terminated type) Frequency counter FM deviation meter DC voltmeter GRADE AND RANGE Output voltage: 13.8 V DC Current capacity: 10 Aor more Measuring range: 1–50 W Frequency range: 100–300 MHz Impedance: 50
SWR: Less than 1.2 : 1 Frequency range: 0.1–300 MHz Frequency accuracy: ±1 ppm or better Sensitivity: 100 mV or better Frequency range: 30–300 MHz Measuring range: 0 to ±10 kHz Input impedance: 50 k
/V DC or better EQUIPMENT Distortion meter Audio generator Standard signal generator (SSG) External speaker Attenuator GRADE AND RANGE Frequency range: 1 kHz ±10 % Measuring range: 1–100 % Frequency range: 300–3000 Hz Measuring range: 1–500 mV Frequency range: 0.1–300 MHz Output level: 0.1 μV–32 mV (–127 to –17 dBm) Input impedance: 4
Capacity: 5 W or more Power attenuation: 40 or 50 dB Capacity: 50 W or more 5 2 PLLADJUSTMENTS LOCK VOLTAGE REFERENCE FREQUENCY ADJUSTMENT ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE POINT UNITLOCATIONUNITADJUST 1 2 1 • Operating channel: ch16 • Receiving • Operating channel: ch16 • Output power: Low • Transmitting • Operating channel: ch16 • Output power: Low • Connect an RF power meter or a 50

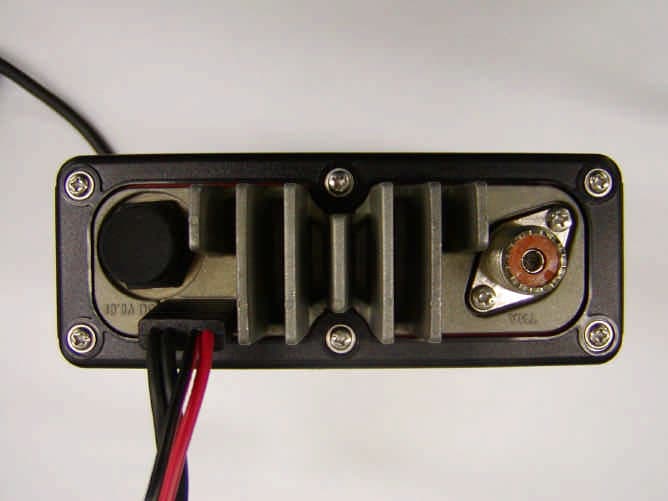

dummy load to the antenna connector. • Transmitting MAIN Rear Panel Connect a digital multi-meter or oscil- loscope to the check point LV. Loosely couple the frequency counter to the antenna con- nector. 1.8 V 1.6 V 156.8000 MHzMAIN Verify C12 5 2 PLLADJUSTMENTS LOCK VOLTAGE REFERENCE FREQUENCY ADJUSTMENT ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE POINT UNITLOCATIONUNITADJUST 1 2 1 • Operating channel: ch16 • Receiving • Operating channel: ch16 • Output power: Low • Transmitting • Operating channel: ch16 • Output power: Low • Connect an RF power meter or a 50
dummy load to the antenna connector. • Transmitting MAIN Rear Panel Connect a digital multi-meter or oscil- loscope to the check point LV. Loosely couple the frequency counter to the antenna con- nector. 1.8 V 1.6 V 156.8000 MHzMAIN Verify C12 5 2 PLLADJUSTMENTS LOCK VOLTAGE REFERENCE FREQUENCY ADJUSTMENT ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE POINT UNITLOCATIONUNITADJUST 1 2 1 • Operating channel: ch16 • Receiving • Operating channel: ch16 • Output power: Low • Transmitting • Operating channel: ch16 • Output power: Low • Connect an RF power meter or a 50
dummy load to the antenna connector. • Transmitting MAIN Rear Panel Connect a digital multi-meter or oscil- loscope to the check point LV. Loosely couple the frequency counter to the antenna con- nector. 1.8 V 1.6 V 156.8000 MHzMAIN Verify C12 5 2 PLLADJUSTMENTS LOCK VOLTAGE REFERENCE FREQUENCY ADJUSTMENT ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE POINT UNITLOCATIONUNITADJUST 1 2 1 • Operating channel: ch16 • Receiving • Operating channel: ch16 • Output power: Low • Transmitting • Operating channel: ch16 • Output power: Low • Connect an RF power meter or a 50
dummy load to the antenna connector. • Transmitting MAIN Rear Panel Connect a digital multi-meter or oscil- loscope to the check point LV. Loosely couple the frequency counter to the antenna con- nector. 1.8 V 1.6 V 156.8000 MHzMAIN Verify C12 6 OUTPUT POWER FREQUENCY DEV…

Text truncated - open the document above for the full version.

FCC Parts 2 and 80 Page 11 VHF Marine Transceiver, Model IC-M402A AND IC-M402SA FCC ID: AFJ270600 ULTRATECH GROUP OF LABS File #: ICOM-075F80 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 14, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.6. EXPOSURE OF HUMANS TO RADIO FREQUENCY FIELDS [§ 2.1091] The following criteria shall be used to evaluate the environmental impact of human exposure to RF radiation: FCC 1.1310:- The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). TABLE 1—LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 ......................... 614 1.63 *(100) 6 3.0–30 .......................... 1842/f 4.89/f *(900/f 2 ) 6 30–300 ......................... 61.4 0.163 1.0 6 300–1500 ..................... .............................. .............................. f/300 6 1500–100,000 ............... .............................. .............................. 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 ...................... 614 1.63 *(100) 30 1.34–30 ....................... 824/f 2.19/f *(180/f 2 ) 30 30–300 ......................... 27.5 0.073 0.2 30 300–1500 ..................... .............................. .............................. f/1500 30 1500–100,000 ............. .............................. .............................. 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be ex- posed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Calculation Method of RF Safety Distance : S = PG/4Πr 2 = EIRP/4Πr 2 ==> r = PG/4ПS = EIRP/4ПS Where: P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to center of radiation in cm FCC Parts 2 and 80 Page 12 VHF Marine Transceiver, Model IC-M402A AND IC-M402SA FCC ID: AFJ270600 ULTRATECH GROUP OF LABS File #: ICOM-075F80 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 14, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) MPE Evaluation Antenna Gain Limit specified by Manufacturer: 9 dBi Frequency (MHz) Measured RF Conducted (Watts) Calculated Peak EIRP (Watts) Calculated Average EIRP with 50% duty cylce (Watts) Laboratory’s Recommended Minimum RF Safety Distance r (metres) Manufacturer's Minimum RF Safety Distance (metres) 156.050 24.9 197.8 98.9 2.0 3 157.425 24.8 197.0 98.5 2.0 3 Note 1 : RF EXPOSURE DISTANCE LIMITS: r = (PG/4ΠS) 1/2 = (EIRP/4ΠS) 1/2 S = 0.2 mW/cm 2 (specified limits for general population/uncontrolled exposure) r = [ EIRP / 4ПS ] 1/2 = [ 197,800 / (4П(0.2)) ] 2 ≈ 281 cm ≈ 2.8 m ; for 50% duty cycle r=1.98m Evaluation of RF Exposure Compliance Requirements RF Exposure Requirements Manufacturer’s Specification for compliance with FCC Rules Minimum calculated separation distance between antenna and persons required: 2.0 meters Icom requires the radio operator to meet the FCC Requirements for Radio Frequency Exposure. An omnidirectional antenna with gain not greater than 9 dBi must be mounted a minimum of 5 meters (measured from the lowest point of the antenna) vertically above the main deck and all possible personnel. This is the minimum safe separation distance estimated to meet all RF exposure compliance requirements. This 5 meter distance is based on the FCC Safe Maximum Permissible Exposure (MPE) distance of 3 meters added to the height of an adult (2 meters) and is appropriate for all vessels

November 14, 2003 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 80 Operating in the Frequency Band 156.025-157.425 MHz. Applicant: ICOM Incorporated Product: VHF Marine Transceiver Model: IC-M402A AND IC-M402SA FCC ID: AFJ270600 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to AmericanTCB electronic filing site. The Models IC-M402A and IC-M402SA are exactly identical except that the Model IC- M402A has REMOTE-CONTROL MIC COMPATIBLE option and Model IC-M402SA does not. Model IC-M402A is chosen to be tested and it shall also represent for Model IC- M402A since the additional option has no effect in test requirements. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R November 14, 2003 Icom America, Inc. 2380 116 th Ave. N.E. Bellevue, Washington 98004 USA Attn.: Mr. Masaaki Takahashi Subject: Certification Testing in Accordance with FCC 47 CFR, Parts 2 and 80 Operating in the Frequency Band 156.025-157.425 MHz. Product: VHF Marine Transceiver Model: IC-M402A AND IC-M402SA Dear Mr. Takahashi, The product sample has been tested in accordance with FCC 47 CFR, Parts 2 and 80 Operating in the Frequency Band 156.025-157.425 MHz, and the results and observation were recorded in the engineering report, Our File No.: ICOM-075F80 Enclosed you will find copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R VHF Marine Transceiver Model No.: IC-M402A AND IC-M402SA FCC ID: AFJ270600 Applicant: Icom Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR Parts 2 and 80 (Marine in 156.025-157.425 MHz) UltraTech’s File No.: ICOM-075F80 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: November 14, 2003 Report Prepared by: WilliamTruong Issued Date: November 14, 2003 Tested by: Wayne Wu, RFI/EMI Technician Test Dates: November 8-13, 2003 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC Parts 2 and 80 Contents i VHF Marine Transceiver, Model IC-M402A AND IC-M402SA FCC ID: AFJ270600 ULTRATECH GROUP OF LABS File #: ICOM-075F80 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 14, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST........................................................................................................................ 1 EXHIBIT 2. INTRODUCTION ......................................................................................................................................... 2 2.1. SCOPE......................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 2 2.3. NORMATIVE REFERENCES ................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT .............................................................................................................. 3 3.1. CLIENT INFORMATION .......................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION............................................................................................. 3 3.3. EUT’S TECHNICAL SPECIFICATIONS.................................................................................................................. 4 3.4. LIST OF EUT’S PORTS ............................................................................................................................................. 5 3.5. ANCILLARY EQUIPMENT ...................................................................................................................................... 5 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 6 4.1. CLIMATE TEST CONDITIONS................................................................................................................................ 6 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS ............................................. 6 EXHIBIT 5. SUMMARY OF TEST RESULTS…
