AFJ272102UHF-FM Trunked Radio Transceiver

INSTRUCTION MANUAL iF43TR UHF TRUNKED RADIO(LTR ® /Passport version) This device complies with Part 15 of the FCC Rules.Operation is subject to the condition that this device doesnot cause harmful interference. !IC-F43TR.qxd 04.1.14 7:03 PM Page a (1,1) i EXPLICIT DEFINITIONS R CAUTION! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of thebody, especially the face or eyes, while transmitting. Thetransceiver will perform best if the microphone is 2 to 4 in. (5to 10 cm) away from the lips and the transceiver is vertical. R CAUTION! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. R CAUTION! NEVER short the terminals of the bat- tery pack. DO NOT push PTT when not actually desiring to transmit. AVOID using or placing the transceiver in direct sunlight or in areas with temperatures below +22°F (–30°C) or above+140°F (+60°C).The basic operations, transmission and reception of the trans-ceiver are guaranteed within the specified operating temper-ature range. However, the LCD display may not be operatecorrectly, or show an indication in the case of long hours ofoperation, or after being placed in extremely cold areas. PRECAUTION WORD DEFINITION R WARNING Personal injury, fire hazard or electric shockmay occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No riskof personal injury, fire or electric shock. READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instructionsfor the IC-F43TR UHF TRUNKED RADIO . IMPORTANTIcom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United states, the United Kingdom, Germany,France, Spain, Russia and/or other countries.LTR ® is a registered trademark of the E.F.Johnson Company. All other products or brands are registered trademarks or trademarks of theirrespective holders. !IC-F43TR.qxd 04.1.14 7:03 PM Page i (1,1) ii DO NOT modify the transceiver for any reason. KEEP the transceiver from the heavy rain, and Never immerse it in the water. The transceiver construction is water resistant , not waterproof. The use of non-Icom battery packs/chargers may impairtransceiver performance and invalidate the warranty.For U.S.A. onlyCAUTION: Changes or modifications to this transceiver, not expressly approved by Icom Inc., could void your authority tooperate this transceiver under FCC regulations. !IC-F43TR.qxd 04.1.14 7:03 PM Page ii (1,1) iii IMPORTANT ........................................................................ iEXPLICIT DEFINITIONS ..................................................... iPRECAUTION ..................................................................... iTABLE OF CONTENTS ...................................................... iii1 ACCESSORIES ......................................................... 1–3  Supplied accessories ................................................. 1  Accessory attachments .............................................. 1 2 PANEL DESCRIPTION ............................................. 4–8  Front panel ................................................................. 4  Function display ......................................................... 5  Programmable function keys ..................................... 6 3 BASIC OPERATION ..................................................... 9  Turning power ON ...................................................... 9  Channel selection ...................................................... 9  Call procedure............................................................. 9 4 PASSPORT OPERATION ..................................... 10–12  Receiving a call ........................................................ 10  Transmitting a call .................................................... 11  Other functions ......................................................... 12 5 LTR OPERATION .................................................. 13–14  Receiving a call ........................................................ 13  Transmitting a call .................................................... 14 6 CONVENTIONAL OPERATION ............................ 15–17  Receiving and transmitting........................................ 15  User set mode........................................................... 16  Emergency transmission........................................... 17  Scrambler function .................................................... 17  Stun function ............................................................. 17  Man Down transmission............................................ 17 7 OPTIONAL UNIT INSTALLATION ........................ 18–19  UT-113 installation ................................................... 18  UT-108 installation ................................................... 18  UT-109 and UT-110 installation ................................ 19 8 BATTERY CHARGING .......................................... 20–22  Battery charging ....................................................... 20  Battery caution ......................................................... 20  Optional battery chargers ......................................... 21 9 SWIVEL BELT CLIP .................................................... 23  MB-93 contents ........................................................ 23  To attach .................................................................. 23  To detach ................................................................. 24 10 OPTIONS ..................................................................... 2511 SAFETY TRAINING INFORMATION .................... 26–27 TABLE OF CONTENTS !IC-F43TR.qxd 04.1.14 7:03 PM Page iii (1,1) 1 1 ACCESSORIES  Supplied accessories The following accessories are supplied: Qty. q Flexible antenna ......................................…

Text truncated - open the document above for the full version.

March 10, 2004 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 400-470 MHz (12.5 kHz and 25 kHz Channel Spacings). Applicant: ICOM Incorporated Product: UHF Trunked Radio Model: IC-F43TR FCC ID: AFJ272102 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to ATCB electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 13, 2004 RE: ICOM Incorporated FCC ID: AFJ272102 I have a few comments on this Application. 1.) Please be advised that the FCC has not yet implemented Adobe 6.x. Some files created in Adobe 6.x cannot be viewed with Adobe 5.x viewers. Please be sure that all files created with Adobe 6.x be saved out as Adobe 5.x compatible. Your Test Report gave my own 5.x viewer problems. Please convert and reload to the ATCB website. 2.) Your Confidentiality Request letter asks for block diagram, schematics and operational description to be held Confidential. There is no request for Confidentiality on the parts list and tune up procedure – these exhibits will remain viewable through the FCC website. This is unusual and I would appreciate it if you would please confirm with your client that this is satisfactory. 3.) Please provide some idea of the power tuning range for the low and high power settings. I need to determine if this should be categorized as a switched 1W/4W, or a 4W variable product. 4.) Table 6.7.5.2 appears to show failing data for low pass filter data at 3.5 KHz. Please comment. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

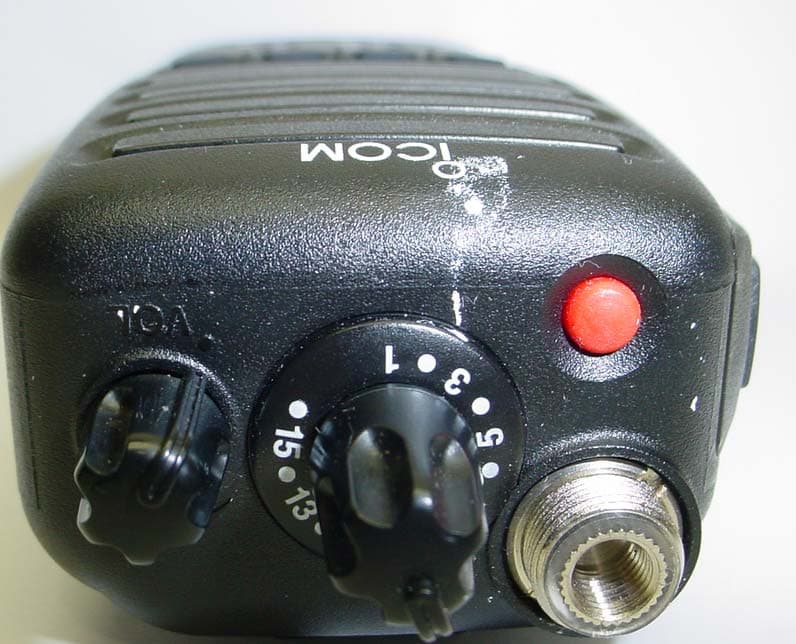

ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A2 - 1 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A2 - 2 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A2 - 3 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A2 - 4 ICOM Inc. ¼ wave whip antenna Model: FA-SC25U-1 Frequency Range: 400-430 MHz Gain: -2.57 dBi ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A2 - 5 ICOM Inc. Helical Whip Antenna Model: FA-SC73US Frequency Range: 450-490 MHz Gain: -10.4 dBi

Label Location SAR Warning Label FCC ID Label

ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 1 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 2 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 3 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 4 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 5 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 6 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 7 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 8 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 9 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 10 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 11 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 12 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A3 - 13

UHF Trunked Radio Model No.: IC-F43TR Tested For ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 In Accordance With SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: ICOM-081-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: March 10, 2004 Report Prepared by: JaeWook Choi, SAR System Engineer Tested by: JaeWook Choi, SAR System Engineer Issued Date: March 09, 2004 Test Dates: February 27, 2004 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATE (SAR) Page 1 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UHF Trunked Radio M/N: IC-F43TR FCC ID: AFJ272102 ULTRATECH GROUP OF LABS File #: ICOM-081-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 February 02, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com • Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) • Accredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) • Recognized/Listed by FCC (USA ) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1.INTRODUCTION ................................................................................................................................................ 5 1.1.SCOPE ............................................................................................................................................................................... 5 1.2.REFERENCES................................................................................................................................................................... 5 EXHIBIT 2.PERFORMANCE ASSESSMENT ..................................................................................................................... 6 2.1.CLIENT AND MANUFACTURER INFORMATION ...................................................................................................... 6 2.2.D EVICE UNDER TEST (D.U.T.) DESCRIPTION.............................................................................................................. 6 2.3.LIST OF D.U.T.’S ACCESSORIES:.................................................................................................................................. 7 2.4.SPECIAL CHANGES ON THE D.U.T.’S HARDWARE/SOFTWARE FOR TESTING PURPOSES ............................. 7 2.5.ANCILLARY EQUIPMENT ............................................................................................................................................. 7 2.6.GENERAL TEST CONFIGURATIONS ........................................................................................................................... 7 2.6.1.Equipment Configuration ........................................................................................................................................... 7 2.6.2.Exercising Equipment................................................................................................................................................. 7 2.7.S PECIFIC OPERATING CONDITIONS...................................................................................................................................... 8 2.8.BLOCK DIAGRAM OF TEST SETUP ............................................................................................................................. 8 EXHIBIT 3.SUMMARY OF TEST RESULTS ...................................................................................................................... 9 3.1.LOCATION OF TESTS ..................................................................................................................................................... 9 3.2.APPLICABILITY & SUMMARY OF SAR RESULTS..................................................................................................... 9 EXHIBIT 4.MEASUREMENTS, EXAMINATIONS & TEST DATA .............................................................................. 10 4.1.TEST SETUP ................................................................................................................................................................... 10 4.2.P HOTOGRAPH OF D.U.T. AND ALL ACCESORIES................................................................................................................ 11 4.3.PHOTOGRAPHS OF D.U.T. POSITION ........................................................................................................................19 4.3.1.Head Front Configuration........................................................................................................................................ 19 4.3.1.1.1/4 wave whip antenna (M/N: FA-SC25U-1); Push-To-Talk; Front-side in parallel to the phantom with the spacing of 25 mm 19 4.3.1.2.Helical whip antenna (M/N: FA-SC73US); Push-To-Talk; Front-side in parallel to the phantom with the spacing of 25 mm20 4.3.2.Body-Worn Configuration ........................................................................................................................................ 21 4.3.2.1.1/4 wave whip antenna (M/N: FA-SC25U-1); Body-worn; Back-side in parallel to the phan…

Text truncated - open the document above for the full version.

UHF Trunked Radio Model No.: IC-F43TR FCC ID: AFJ272102 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-079F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: March 10, 2004 Report Prepared by: Anca Dobre Issued Date: March 10, 2004 Tested by: Hung Trinh, EMI/RFI Technician Test Dates: January 7 - March 3, 2004 ! The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ! This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 ULTRATECH GROUP OF LABS File #: ICOM-079F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 10, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST .......................................................................................................................................... 1 EXHIBIT 2. INTRODUCTION............................................................................................................................................................ 2 2.1. SCOPE ............................................................................................................................................................................................ 2 2.2. RELATED SUBMITTAL(S)/GRANT(S) ...................................................................................................................................... 2 2.3. NORMATIVE REFERENCES ....................................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT ................................................................................................................................. 3 3.1. CLIENT INFORMATION.............................................................................................................................................................. 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION................................................................................................................. 3 3.3. EUT’S TECHNICAL SPECIFICATIONS...................................................................................................................................... 4 3.4. LIST OF EUT’S PORTS................................................................................................................................................................. 4 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS .................................................. 5 4.1. CLIMATE TEST CONDITIONS ................................................................................................................................................... 5 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS.................................................................5 EXHIBIT 5. SUMMARY OF TEST RESULTS.................................................................................................................................. 6 5.1. LOCATION OF TESTS.................................................................................................................................................................. 6 5.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS ........................................................................................... 6 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES............................................................ 6 5.4. DEVIATION OF STANDARD TEST PROCEDURES ................................................................................................................. 6 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS .................................................. 7 6.1. TEST PROCEDURES .................................................................................................................................................................... 7 6.2. MEASUREMENT UNCERTAINTIES .......................................................................................................................................... 7 6.3. MEASUREMENT EQUIPMENT USED ....................................................................................................................................... 7 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ............................................................ 7 6.5. RF POWER OUTPUT [§§ 2.1046 & 90.205] ...................................................................................... ........................................... 8 6.6. FREQUENCY STABILITY [§§ 2.1055 & 90.213] ........................................................................................................................ 9 6.7. AUDIO FREQUENCY RESPONSE [§ 2.1047(a)] ...................................................................................................................... 13 6.8. MODULATION LIMITING [§§ 2.1047(b) & 90.210]...............................................................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A1 - 1 ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A1 - 2 ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated UHF Trunked Radio, Model IC-F43TR FCC ID: AFJ272102 A1 - 3
