October 21, 2004 AmericanTCB, Inc. 6735 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 136-174 MHz (12.5 kHz and 25 kHz Channel Spacings). Applicant: ICOM Incorporated Product: VHF MOBILE TRANSCEIVER Model: IC-F1721D FCC ID: AFJ278100 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to ATCB electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE No.:1-877-747-6381 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 27, 2004 RE: FCC ID: AFJ278100_ATCB001845 Attention: Tri Luu I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please provide the MPE calculation report as a separate exhibit. 2. Please note that the OBW plot on pages 33 through 38 shows that there part of the fundamental modulation is still outside the marked 99%BW designation. This means that the measured 99%BW may not be correct. For example, the 99% BW on the plot on page 33 would more appropriately appear to be 10.5kHz rather than the 6.7kHz stated on the plot. Please note that the emissions mask plots would also seem to indicate this also. Please explain why the upper and lower modulation products that are over the 26dB point (23dB for actual 99% BW) were not included in the 99% BW measurements. 3. In reference to item 2, there also appear to be minor 99% BW errors (i.e. not all of the signal was considered) on pages 40, 41, 45, 46 and 47 of the report. Please explain. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RE: FCC ID: AFJ278100_ATCB001845 Reply: 1. Please provide the MPE calculation report as a separate exhibit. Pl find a separate MPE Exhibit uploaded 2. Please note that the OBW plot on pages 33 through 38 shows that there part of the fundamental modulation is still outside the marked 99%BW designation. This means that the measured 99%BW may not be correct. For example, the 99% BW on the plot on page 33 would more appropriately appear to be 10.5 kHz rather than the 6.7 kHz stated on the plot. Please note that the emissions mask plots would also seem to indicate this also. Please explain why the upper and lower modulation products that are over the 26dB point (23dB for actual 99% BW) were not included in the 99% BW measurements. 3. In reference to item 2, there also appear to be minor 99% BW errors (i.e. not all of the signal was considered) on pages 40, 41, 45, 46 and 47 of the report. Please explain. We have measured occupied bandwidth as per FCC rule part Sec. 2.1049, which recommends 99% BW measurement. 99% BW measurement is an automatic feature of the analyzer, hence once the full spectrum is displayed on the analyzer, we select 99% BW measurement and the analyzer calculates the BW, which contains 99% power and displays results automatically. There is no human control on these measurements. We have again performed measurement for Plot-1, with increased span of 30 KHz to cover full spectrum and the result is similar to our previous measurement, shown below for your reference. Also theoretically 99% BW = 10 log(0.01) = - 20dB. We have also measured 20 dB OBW, which is only 5.74 KHz, less than the 99% measurement, shown below for the comparison. Plot # 1: 20dB Bandwidth, Carrier Frequency: 136.1 MHz Channel Spacing: 12.5 kHz, Power: 50 W Modulation: FM with 2.5 kHz sine wave Measured 20dB BW = 5.74 kHz A_vi ewB_bl ank 12 3 CENTER 136. 10000 MHzSPAN 30. 0 kHz SWP 670 ms VBW1 k Hz RBW 300 Hz 136. 09700 MHz MK R 10dB/ REF 50. 0 dBmATT 20 dB -0.22 dB 136. 09700 MHz MA RKE R DL 25. 7 dBm *** Mul ti Marker Li st *** No. 1:136. 09700 MHz- 0. 22 dBA No. 2:136. 10274 MHz- 0. 47 dBA No. 3:136. 09991 MHz20. 00 dBA No. 4: No. 5: No. 6: No. 7: No. 8: : Plot # 1: 99% Occupied Bandwidth, Carrier Frequency: 136.1 MHz Channel Spacing: 12.5 kHz, Power: 50 W Modulation: FM with 2.5 kHz sine wave A_vi ewB_bl ank CENTER 136. 10000 MHzSPAN30.0kHz 670 ms SWP 1kHz VBW 300 Hz RBW 99. 0 % OBW % 10dB/ REF50.0dBmATT20dB 136. 09970 MHz 6. 43 kHz OBW, F c REF OFS 40. 3 dB

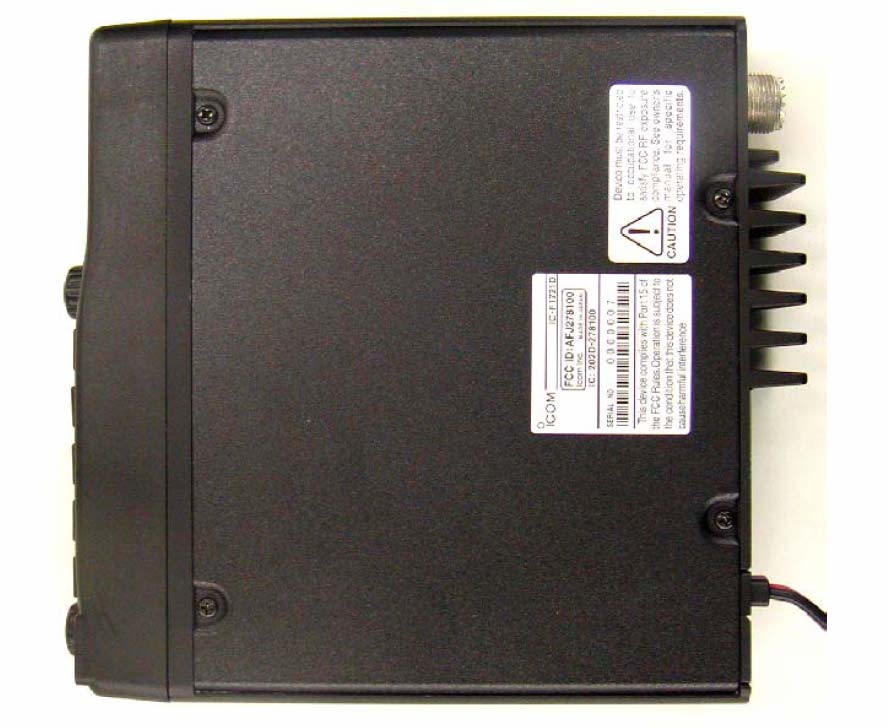

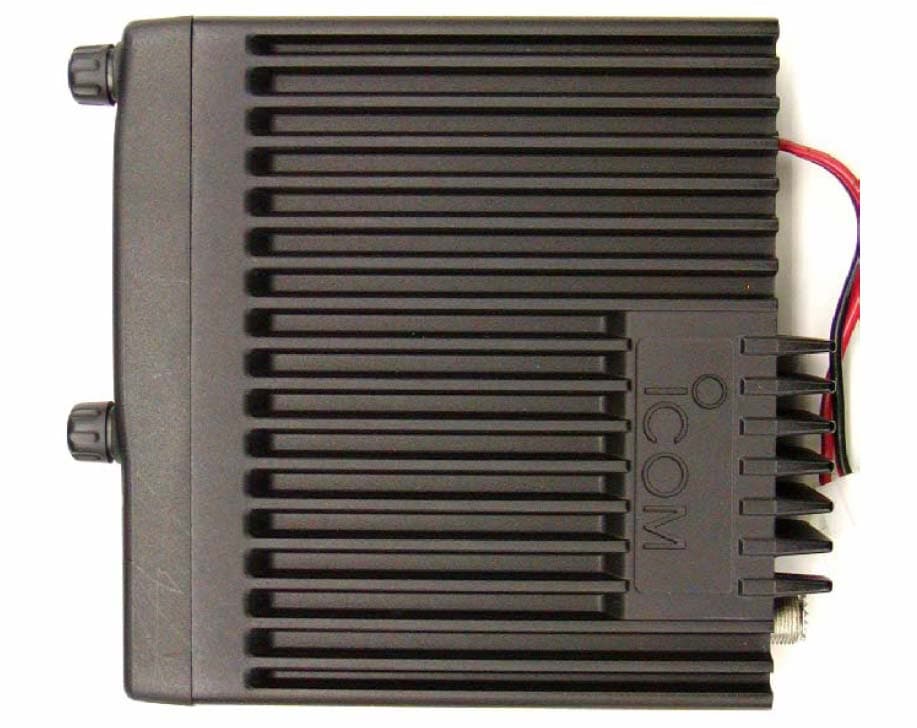

ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A2 - 1 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A2 - 2 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A2 - 3 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A2 - 4 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A2 - 5 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A2 - 6

IC-F1721D FCC ID LABEL CAUTION LABEL

ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A3 - 1 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A3 - 2 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A3 - 3 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A3 - 4 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A3 - 5 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A3 - 6 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated VHF Mobile Transceiver, Model IC-F1721D FCC ID: AFJ278100 A3 - 7

FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 12 VHF MOBILE TRANSCEIVER, Model IC-F1721D FCC ID: AFJ278100 ULTRATECH GROUP OF LABS File #: ICOM-094FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 21, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.6. RF EXPOSURE REQUIRMENTS @ 1.1310 & 2.1091 6.6.1. Limits ƒ FCC 1.1310:- The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Control Exposures 30-300 61.4 0.163 1.0 6 (B) Limits for General Population/Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 F = Frequency in MHz 6.6.2. Method of Measurements Refer to FCC @ 1.1310, 2.1091 and Public Notice DA 00-705 (March 30, 2000) • In order to demonstrate compliance with MPE requirements (see Section 2.1091), the following information is typically needed: (1) Calculation that estimates the minimum separation distance (20 cm or more) between an antenna and persons required to satisfy power density limits defined for free space. (2) Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement (3) Any caution statements and/or warning labels that are necessary in order to comply with the exposure limits (4) Any other RF exposure related issues that may affect MPE compliance FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 13 VHF MOBILE TRANSCEIVER, Model IC-F1721D FCC ID: AFJ278100 ULTRATECH GROUP OF LABS File #: ICOM-094FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 21, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) Calculation Method of RF Safety Distance : S = PG/4Πr 2 =EIRP/4Πr 2 Where: P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device r = PG/4ΠS FCC radio frequency exposure limits may not be exceeded at distances closer than r cm from the antenna of this device • For portable transmitters (see Section 2.1093), or devices designed to operate next to a person’s body, compliance is determined with respect to the SAR limit (define in the body tissues) for near-field exposure conditions. If the maximum average output power, operating condition configurations and exposure conditions are comparable to those of existing cellular and PCS phones., an SAR evaluation may be required in order to determine if such a device complies with SAR limit. When SAR evaluation data is not available, and the additional supporting information cannot assure compliance, the Commission may request that an SAR evaluation be performed, as provided for in Section 1.1307(d) FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 14 VHF MOBILE TRANSCEIVER, Model IC-F1721D FCC ID: AFJ278100 ULTRATECH GROUP OF LABS File #: ICOM-094FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 21, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.6.3. Test Data Antenna Gain Limit specified by Manufactuer : 0 dBi Measured Maximum RF Conducted Power (watts) Calculated EIRP (watts) Maximum Duty Cycle (50 %) Laboratory’s Recommended Minimum RF Safety Distance r (cm) Manufacturer's specified antenna separation distance (cm) 52.00 52.00 26.00 46.0 100.0 Note 1 : RF EXPOSURE DISTANCE LIMITS: r = (PG/4ΠS) 1/2 = (EIRP/4ΠS) 1/2 Limits for Occupational/Control Exposures S = 1.0 mW/cm 2 r = (PG/4ΠS) 1/2 = (EIRP/4ΠS) 1/2 = (26000/4Π x1.0) 1/2 = 46.0 cm Evaluation of RF Exposure Compliance Requirements RF Exposure Requirements Compliance with FCC Rules Minimum calculated separation distance between antenna and persons required: 46.0 cm Manufacturer’ instruction for separation distance between antenna and persons required: 100 cm Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement Please refer to Page 30 of Users Manual Caution statements and/or warning labels that are necessary in order to comply with the exposure limits Please refer to page 30 of the Users/ Manual and FCC RF Exposure folder Any other RF exposure related issues that may affect MPE compliance N/A

VHF MOBILE TRANSCEIVER Model No.: IC-F1721D FCC ID: AFJ278100 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka, Japan 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-094FCC90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: October 21, 2004 Report Prepared by: Dharmajit Solanki, RFI Engineer Issued Date: October 21, 2004 Tested by: William Truong, EMI/RFI Technician Test Dates: Sept. 14-21 & Oct. 20, 2004 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i VHF MOBILE TRANSCEIVER, Model IC-F1721D FCC ID: AFJ278100 ULTRATECH GROUP OF LABS File #: ICOM-094FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 21, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST........................................................................................................................ 1 EXHIBIT 2. INTRODUCTION ......................................................................................................................................... 2 2.1. SCOPE......................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 2 2.3. NORMATIVE REFERENCES ................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT .............................................................................................................. 3 3.1. CLIENT INFORMATION .......................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION............................................................................................. 3 3.3. EUT’S TECHNICAL SPECIFICATIONS.................................................................................................................. 4 3.4. LIST OF EUT’S PORTS ............................................................................................................................................. 5 3.5. ANCILLARY EQUIPMENT ...................................................................................................................................... 5 3.6. BLOCK DIAGRAM OF TEST SETUP...................................................................................................................... 6 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 7 4.1. CLIMATE TEST CONDITIONS................................................................................................................................ 7 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS............................................. 7 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................... 8 5.1. LOCATION OF TESTS .............................................................................................................................................. 8 5.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS ....................................................................... 8 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ....................................... 8 5.4. DEVIATION OF STANDARD TEST PROCEDURES ............................................................................................. 8 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................... 9 6.1. TEST PROCEDURES................................................................................................................................................. 9 6.2. MEASUREMENT UNCERTAINTIES ...................................................................................................................... 9 6.3. MEASUREMENT EQUIPMENT USED ................................................................................................................... 9 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER........................................ 9 6.5. RF POWER OUTPUT [§§ 2.1046 & 90.205]........................................................................................................... 10 6.6. RF EXPOSURE REQUIRMENTS @ 1.1310 & 2.1091........................................................................................... 12 6.7. FREQUENCY STABILITY [§§ 2.1055 & 90.213] .................................................................................................. 15 6.8. AUDIO FREQUENCY RESPONSE [§ 2.1047(A)] ................................................................................................. 17 6.9. MODULATION LIMITING [§§ 2.1047(B) & 90.210] ............................................................................................ 22 6.10. OC…
