INSTRUCTION MANUAL This device complies with Part 15 of the FCC Rules.Operation is subject to the condition that this devicedoes not cause harmful interference.UHF MOBILE TRANSCEIVER iF2821/D iF2721/D VHF MOBILE TRANSCEIVER iF1821/D iF1721/D !IC-F1721D.qxd 04.9.2 5:58 PM Page a (1,1) i EXPLICIT DEFINITIONS R WARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electricshock. NEVER connect the transceiver to a power source of more than 16 V DC such as a 24 V battery. This connection will ruinthe transceiver. NEVER cut the DC power cable between the DC plug and fuse holder. If an incorrect connection is made after cutting,the transceiver might be damaged. NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodilyinjury. NEVER allow children to touch the transceiver. NEVER expose the transceiver to rain, snow or any liquids. USE the supplied microphone only. Other microphones have different pin assignments and may damage the trans-ceiver. DO NOT use or place the transceiver in areas with tem- peratures below –30°C (–22°F) or above +60°C (+140°F), orin areas subject to direct sunlight, such as the dashboard. PRECAUTION WORD DEFINITION R WARNING Personal injury, fire hazard or electric shockmay occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No riskof personal injury, fire or electric shock. READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instructionsfor the IC-F1721/D, F1821/D, F2721/D and F2821/D VHF/ UHF MOBILE TRANSCEIVERS . IMPORTANTIcom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United states, the United Kingdom, Germany,France, Spain, Russia and/or other countries. !IC-F1721D.qxd 04.9.2 5:58 PM Page i (1,1) ii AVOID operating the transceiver without running the vehi- cle’s engine. The vehicle’s battery will quickly run out if thetransceiver transmits while the vehicle’s engine OFF.AVOID placing the transceiver in excessively dusty envi- ronments. AVOID placing the transceiver against walls. This will obstruct heat dissipation. AVOID the use of chemical agents such as benzine or alcohol when cleaning, as they damage the transceiver sur-faces.BE CAREFUL! The transceiver will become hot when operating continuously for long periods.For U.S.A. onlyCAUTION: Changes or modifications to this transceiver, not ex- pressly approved by Icom Inc., could void your authority to operatethis transceiver under FCC regulations. ABOUT APCO PROJECT 25 !IC-F1721D.qxd 04.9.2 5:58 PM Page ii (1,1) iii TABLE OF CONTENTSIMPORTANT ....................................................................................... iEXPLICIT DEFINITIONS .................................................................... iPRECAUTION .................................................................................... iABOUT APCO PROJECT 25 ............................................................. iiTABLE OF CONTENTS .................................................................... iii1 PANEL DESCRIPTION .............................................................. 1–7  Front panel .................................................................................. 1  Function display .......................................................................... 2  Programmable function keys ...................................................... 3 2 BASIC OPERATION ................................................................ 8–13  Turning power ON ....................................................................... 8  Channel selection ....................................................................... 8  Call procedure ............................................................................ 9  Receiving and transmitting ......................................................... 9 D Transmitting notes .................................................................. 10 D TX code channel selection ..................................................... 10 D TX code number edit .............................................................. 11 D Individual ID code selection.................................................... 12 D Talkgroup ID code selection ................................................... 12 D DTMF transmission ................................................................ 12  User set mode .......................................................................... 13  Scrambler function .................................................................... 13 3 BIIS OPERATION ................................................................... 14–24  Default setting ........................................................................... 14  Receiving a call ......................................................................... 14 D Individual call.......................................................................... 14 D Group call ............................................................................... 15 D Displaying the received call record......................................... 15  Transmitting a call ..................................................................... 16 D Using call memory .................................................................. 16 D Calling back from the queue channel ..................................... 16 D Direct code entry .................................................................... 17  Receiving a message ............................................................... 18 D Receiving a status message .................................................. 18 D Receiving an SDM.................................................................. 18 D Received message selection.................................................. 19  Transmi…

Text truncated - open the document above for the full version.

November 25, 2004 AmericanTCB, Inc. 6735 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 450-512 MHz (12.5 kHz and 25 kHz Channel Spacings). Applicant: ICOM Incorporated Product: UHF MOBILE TRANSCEIVER Model: IC-F2721D FCC ID: AFJ278202 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to ATCB electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE No.:1-877-747-6381 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R

January 25, 2005 AmericanTCB, Inc. 6735 Whittier Avenue, Suite C110 McLean, VA 22101 Sub: Correction in Emission Designators listed in Grant Applicant: ICOM Incorporated Product: UHF MOBILE TRANSCEIVER Model: IC-F2721D FCC IDs: AFJ278201 (LoUHF 400-470 MHz) AFJ278202 (Hi UHF 450-512 MHz) Dear Sir/Madam, The above Transceiver is already certified with two separate FCC ID for two different frequency range of operation. We have listed incorrect emission designators while filling form 731. The error has occurred due to a typo in the initial draft specifications provided by ICOM. We confirm that the error does not affect any test results provided by us to FCC for certification. We request you to correct the designator 8K50FE3 to 11K0F3E listed in both FCC Grants. This designator is for 12.5 kHz Voice channel and complies with the Authorized bandwidth requirement of 11.25 kHz as per Sec.90.209. We also like to delete 11K2F1D from the grants. Thanking You, Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax. (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R

ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A2 - 1 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A2 - 2 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A2 - 3 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A2 - 4 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A2 - 5 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A2 - 6 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A2 - 7 ANNEX 2 – EXTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A2 - 8

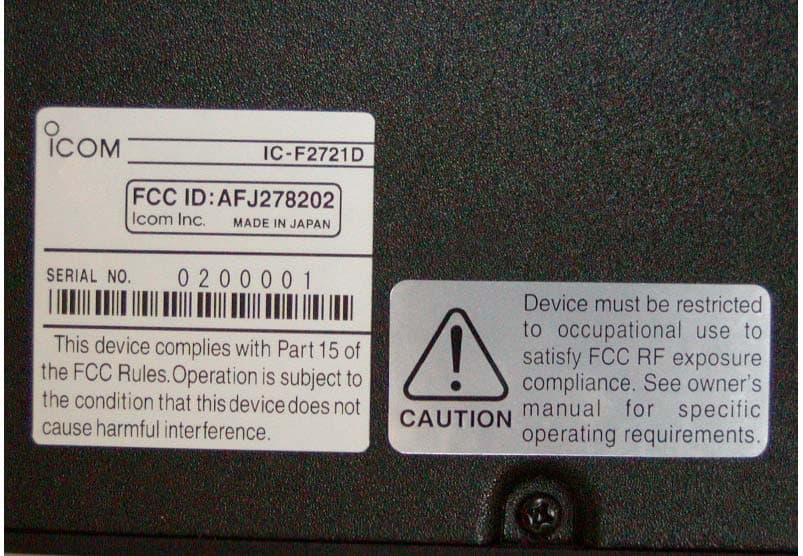

IC-F2721D LABEL LOCATION FCC ID LABEL WARNING LABEL

ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A3 - 1 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A3 - 2 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A3 - 3 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A3 - 4 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A3 - 5 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A3 - 6 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A3 - 7 ANNEX 3 – INTERNAL EUT PHOTOS ICOM Incorporated UHF Mobile Transceiver, Model: IC-F2721D FCC ID: AFJ278202, IC: 202D-278202 A3 - 8

FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 12 UHF MOBILE TRANSCEIVER, Model IC-F2721D FCC ID: AFJ278202 ULTRATECH GROUP OF LABS File #: ICOM101FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 25, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.6. RF EXPOSURE REQUIRMENTS @ 1.1310 & 2.1091 6.6.1. Limits ƒ FCC 1.1310:- The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Control Exposures 300-1500 ... ... F/300 6 (B) Limits for General Population/Uncontrolled Exposure 300-1500 ... ... F/1500 6 F = Frequency in MHz 6.6.2. Method of Measurements Refer to FCC @ 1.1310, 2.1091 and Public Notice DA 00-705 (March 30, 2000) • In order to demonstrate compliance with MPE requirements (see Section 2.1091), the following information is typically needed: (1) Calculation that estimates the minimum separation distance (20 cm or more) between an antenna and persons required to satisfy power density limits defined for free space. (2) Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement (3) Any caution statements and/or warning labels that are necessary in order to comply with the exposure limits (4) Any other RF exposure related issues that may affect MPE compliance FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 13 UHF MOBILE TRANSCEIVER, Model IC-F2721D FCC ID: AFJ278202 ULTRATECH GROUP OF LABS File #: ICOM101FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 25, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) Calculation Method of RF Safety Distance : S = PG/4Πr 2 =EIRP/4Πr 2 Where: P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device r = PG/4ΠS FCC radio frequency exposure limits may not be exceeded at distances closer than r cm from the antenna of this device • For portable transmitters (see Section 2.1093), or devices designed to operate next to a person’s body, compliance is determined with respect to the SAR limit (define in the body tissues) for near-field exposure conditions. If the maximum average output power, operating condition configurations and exposure conditions are comparable to those of existing cellular and PCS phones., an SAR evaluation may be required in order to determine if such a device complies with SAR limit. When SAR evaluation data is not available, and the additional supporting information cannot assure compliance, the Commission may request that an SAR evaluation be performed, as provided for in Section 1.1307(d) FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 14 UHF MOBILE TRANSCEIVER, Model IC-F2721D FCC ID: AFJ278202 ULTRATECH GROUP OF LABS File #: ICOM101FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 25, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.6.3. Test Data Antenna Gain Limit specified by Manufactuer : 0 dBi Measured Maximum RF Conducted Power (watts) Calculated EIRP (watts) Maximum Duty Cycle (50 %) Laboratory’s Recommended Minimum RF Safety Distance r (cm) Manufacturer's specified antenna separation distance (cm) 45.81 45.81 22.91 35.0 79.0 Note 1 : RF EXPOSURE DISTANCE LIMITS: r = (PG/4ΠS) 1/2 = (EIRP/4ΠS) 1/2 Limits for Occupational/Control Exposures S = F/300 = 470/300 = 1.57 mW/cm 2 r = (PG/4ΠS) 1/2 = (EIRP/4ΠS) 1/2 = (22910/4Π x1.57) 1/2 = 34.1 cm Evaluation of RF Exposure Compliance Requirements RF Exposure Requirements Compliance with FCC Rules Minimum calculated separation distance between antenna and persons required: 35.0 cm Manufacturer’ instruction for separation distance between antenna and persons required: 79 cm Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement Please refer to Page 30 of Users Manual Caution statements and/or warning labels that are necessary in order to comply with the exposure limits Please refer to page 30 of the Users/ Manual and FCC RF Exposure folder Any other RF exposure related issues that may affect MPE compliance N/A

30 5 SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagneticenergy during transmit mode. This radio isdesigned for and classi fi ed as “ Occupational Use Only ” , meaning it must be used only during the course of employment by individuals aware of thehazards, and the ways to minimize such hazards.This radio is NOT intended for use by the “ General Population ” in an uncontrolled environment. • For compliance with FCC and Industry Canada RF Exposure Requirements, the transmitter antenna installation shall comply withthe following two conditions: 1. The transmitter antenna gain shall not exceed 0 dBi.2. IC-F1721/IC-F1721D/IC-F1821/IC-F1821D: The antenna is required to be located outside of a vehicle andkept at a distance of 1 meter or more between the transmittingantenna of this device and any persons during operation. Forsmall vehicle as worst case, the antenna shall be located on theroof top at any place on the centre line along the vehicle in orderto achieve 1 meter separation distance. In order to ensure thisdistance is met, the installation of the antenna must be mountedat least 1 meter away from the nearest edge of the vehicle inorder to protect against exposure to bystanders. 3. IC-F2721/IC-F2721D/IC-F2821/IC-F2821D: The antenna is required to be located outside of a vehicle andkept at a distance of 79 centimeters or more between the trans-mitting antenna of this device and any persons during operation.For small vehicle as worst case, the antenna shall be located onthe roof top at any place on the centre line along the vehicle inorder to achieve 79 centimeters separation distance. In order toensure this distance is met, the installation of the antenna mustbe mounted at least 79 centimeters away from the nearest edgeof the vehicle in order to protect against exposure to bystanders. To ensure that your exposure to RF electromag-netic energy is within the FCC allowable limitsfor occupational use, always adhere to the fol-lowing guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCCRF exposure limits. A proper antenna is the antenna supplied withthis radio by the manufacturer or an antenna speci fi cally authorized by the manufacturer for use with this radio. • DO NOT transmit for more than 50% of total radio use time ( “ 50% duty cycle ” ). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radiois transmitting when the “ TX indicator ” lights red. You can cause the radio to transmit by pressing the “ PTT ” switch. Electromagnetic Interference/CompatibilityDuring transmissions, your Icom radio generates RF energy that canpossibly cause interference with other devices or systems. To avoidsuch interference, turn off the radio in areas where signs are postedto do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blastingsites. WARNING CAUTION !IC-F1721D.qxd 04.9.2 5:58 PM Page 30 (1,1)

UHF MOBILE TRANSCEIVER Model No.: IC-F2721D FCC ID: AFJ278202 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka, Japan 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM101FCC90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: November 25, 2004 Report Prepared by: Dharmajit Solanki, RFI Engineer Issued Date: November 25, 2004 Tested by: Hung Trinh, RFI Technician Test Dates: Nov. 16 – Nov. 20, 2004 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i UHF MOBILE TRANSCEIVER, Model IC-F2721D FCC ID: AFJ278202 ULTRATECH GROUP OF LABS File #: ICOM101FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 25, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST........................................................................................................................ 1 EXHIBIT 2. INTRODUCTION ......................................................................................................................................... 2 2.1. SCOPE......................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 2 2.3. NORMATIVE REFERENCES ................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT .............................................................................................................. 3 3.1. CLIENT INFORMATION .......................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION............................................................................................. 3 3.3. EUT’S TECHNICAL SPECIFICATIONS.................................................................................................................. 4 3.4. LIST OF EUT’S PORTS ............................................................................................................................................. 4 3.5. ANCILLARY EQUIPMENT ...................................................................................................................................... 5 3.6. BLOCK DIAGRAM OF TEST SETUP...................................................................................................................... 6 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 7 4.1. CLIMATE TEST CONDITIONS................................................................................................................................ 7 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS............................................. 7 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................... 8 5.1. LOCATION OF TESTS .............................................................................................................................................. 8 5.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS ....................................................................... 8 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ....................................... 8 5.4. DEVIATION OF STANDARD TEST PROCEDURES ............................................................................................. 8 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................... 9 6.1. TEST PROCEDURES................................................................................................................................................. 9 6.2. MEASUREMENT UNCERTAINTIES ...................................................................................................................... 9 6.3. MEASUREMENT EQUIPMENT USED ................................................................................................................... 9 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER........................................ 9 6.5. RF POWER OUTPUT [§§ 2.1046 & 90.205]........................................................................................................... 10 6.6. RF EXPOSURE REQUIRMENTS @ 1.1310 & 2.1091........................................................................................... 12 6.7. FREQUENCY STABILITY [§§ 2.1055 & 90.213] .................................................................................................. 15 6.8. AUDIO FREQUENCY RESPONSE [§ 2.1047(A)] ................................................................................................. 17 6.9. MODULATION LIMITING [§§ 2.1047(B) & 90.210] ............................................................................................ 22 6.10. OCCUPIED BAND…
