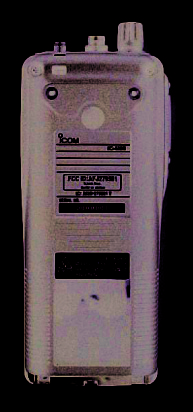

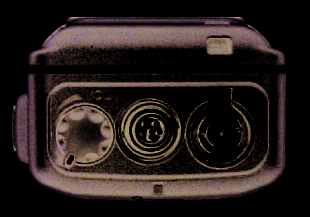

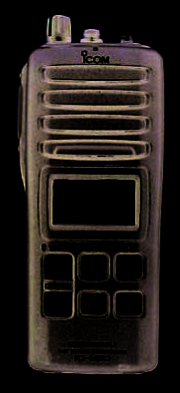

AFJ279501IC-M90 VHF Marine Transceiver

INSTRUCTION MANUAL iM90 VHF MARINE TRANSCEIVER This device complies with Part 15 of the FCCRules. Operation is subject to the condition thatthis device does not cause harmful interference. IC-M90.qxd 04.8.23 3:53 PM Page A i SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as“Occupational Use Only”, meaning it must be used only dur-ing the course of employment by individuals aware of the haz-ards, and the ways to minimize such hazards. This radio isNOT intended for use by the “General Population” in an un-controlled environment. This radio has been evaluated for compliance at the distance of 2.5 cm withthe FCC RF exposure limits for “Occupational Use Only”. In addition, your Icomradio complies with the following Standards and Guidelines with regard to RFenergy and electromagnetic energy levels and evaluation of such levels for ex-posure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electro-magnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Elec-tromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous ElectromagneticFields– RF and Microwave. • The following accessories are authorized for use with this product. Use of accessories other than those specified may result in RF exposure levelsexceeding the FCC requirements for wireless RF exposure.; Belt Clip (MB-86/103), Rechargeable Ni-Cd Battery Pack (BP-225) and Alkaline BatteryCase (BP-223). To ensure that your expose to RF electromagnetic en- ergy is within the FCC allowable limits for occupationaluse, always adhere to the following guidelines: CAUTION WARNING • DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you to exceed FCC RF exposurelimits. A proper antenna is the antenna supplied with this radio by the man-ufacturer or antenna specifically authorized by the manufacturer for usewith this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF expo-sure compliance requirements to be exceeded. The radio is transmittingwhen the “TX indicator” lights red. You can cause the radio to transmit bypressing the “PTT” switch. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clips which are listed onpage 33 when attaching the radio to your belt, etc., to ensure FCC RF ex-posure compliance requirements are not exceeded. To provide the recipi-ents of your transmission the best sound quality, hold the antenna at least5 cm (2 inches) from your mouth, and slightly off to one side. The information listed above provides the user with the information needed tomake him or her aware of RF exposure, and what to do to assure that this radiooperates with the FCC RF exposure limits of this radio. Electromagnetic Interference/CompatibilityDuring transmissions, your Icom radio generates RF energy that can possiblycause interference with other devices or systems. To avoid such interference,turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such ashospitals, aircraft, and blasting sites. Occupational/Controlled UseThe radio transmitter is used in situations in which persons are exposed asconsequence of their employment provided those persons are fully aware ofthe potential for exposure and can exercise control over their exposure. IC-M90.qxd 04.8.23 3:53 PM Page i ii IN CASE OF EMERGENCYIf your vessel requires assistance, contact other vessels andthe Coast Guard by sending a distress call on Channel 16. ❍ USING CHANNEL 16 DISTRESS CALL PROCEDURE1. “MAYDAY MAYDAY MAYDAY.”2. “THIS IS ...........................” (name of vessel)3. Your call sign or other indication of the ves- sel. 4. “LOCATED AT .....................” (your position)5. The nature of the distress and assistance re- quired. 6. Any other information which might facilitate the rescue. RECOMMENDATIONCLEAN THE TRANSCEIVER THOROUGHLY WITH FRESHWATER after exposure to saltwater, and dry it before opera- tion. Otherwise, the transceiver’s keys, switches and con-trollers may become inoperable due to salt crystallization. MIC /SP IC-M90.qxd 04.8.23 3:53 PM Page ii FOREWORDThank you for purchasing this Icom product. The IC-M90 VHFMARINE TRANSCEIVER is designed and built with Icom’s stateof the art technology and craftsmanship. With proper care thisproduct should provide you with years of trouble-free operation.IMPORTANTREAD ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL— This in- struction manual contains important operating instructions forthe IC-M90. EXPLICIT DEFINITIONS FEATURES Waterproof construction Built tough to withstand the punishing marine environ-ment, the IC-M90 meets JIS waterproof specificationgrade 7 while using BP-223 (option) or BP-225.  Dualwatch and tri-watch functions Convenient functions which allow you to monitor the dis-tress channel (Ch 16) while receiving a channel of yourchoice—dualwatch; or monitor the distress channel andanother channel while receiving a channel of yourchoice—tri-watch.  Large, easy-to-read LCD With dimensions of 19(H) × 35(W) mm; 3 ⁄ 4 (H) × 1 3 ⁄ 8 (W) inch, the IC-M90’s function display is easy to read and shows op-erating conditions at a glance. Backlighting and contrastcan be adjusted to suit your preferences.  Simple operation 6 large buttons on the front panel provide user-friendly op-eration. The independent volume and channel buttons arelocated on the front panel for convenient one-hand opera-tion. i…

Text truncated - open the document above for the full version.

September 20, 2004 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Equipment Authorization under FCC 47 CFR, Parts 2, 80 (Marine in 156.05-157.425 MHz Band) and 90 (146-174 MHz Band) - Non-Broadcast Radio Transceivers. Applicant: ICOM Incorporated Product: VHF Marine Transceiver Model: IC-M90 FCC ID: AFJ279501 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to FCC OET site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH Encl. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R

Re: FCC ID AFJ279501 Applicant: ICOM Incorporated Correspondence Reference Number: 28019 731 Confirmation Number: EA833128 1.) Please indicate compliance with Section 90.203, programming requirements. See manufacturer’s attestation letter for Section 90.203. 2.) Please provide a label for placement on the device advising the user of RF exposure concern and point them to the training information. See label uploaded to RF Exposure Info folder, as for the training information it is provided on page i of the Instructional Manual which was submitted in the original filing. 3.) Please explain how the 50% duty factor was accounted for in the measurement and results. A3) Since D.U.T. is designed to be used as Push-To-Talk operating unit, the 50% usage-based time average factor of ½ (50 %) was applied to calculate the final SAR value while the actual test was performed with D.U.T transmitting in CW. For example, when we measured 4.0 W/Kg of 1g-SAR from D.U.T. transmitting in CW, we reported 2.0 W/Kg and explicitly indicated that “50% usage-based time average factor was applied to calculate the SAR value” in test report.

VHF MARINE TRANSCEIVER Model No.: IC-M90 Tested For ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 In Accordance With SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: ICOM-092-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: September 24, 2004 Report Prepared by: JaeWook Choi, SAR System Engineer Tested by: Carolyn Luu Issued Date: September 24, 2004 Test Dates: September 08, 2004 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATE (SAR) Page 1 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) VHF Marine Transceiver M/N: IC-M90 FCC ID: AFJ279501 ULTRATECH GROUP OF LABS File #: ICOM-092-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 September 24, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com • Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) • Accredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) • Recognized/Listed by FCC (USA ) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1.INTRODUCTION ................................................................................................................................................ 4 1.1.SCOPE ............................................................................................................................................................................... 4 1.2.REFERENCES................................................................................................................................................................... 4 EXHIBIT 2.PERFORMANCE ASSESSMENT ..................................................................................................................... 5 2.1.CLIENT AND MANUFACTURER INFORMATION ...................................................................................................... 5 2.2.D EVICE UNDER TEST (D.U.T.) DESCRIPTION.............................................................................................................. 5 2.3.LIST OF D.U.T.’S ACCESSORIES:.................................................................................................................................. 6 2.4.SPECIAL CHANGES ON THE D.U.T.’S HARDWARE/SOFTWARE FOR TESTING PURPOSES ............................. 6 2.5.ANCILLARY EQUIPMENT ............................................................................................................................................. 6 2.6.GENERAL TEST CONFIGURATIONS ........................................................................................................................... 6 2.6.1.Equipment Configuration ........................................................................................................................................... 6 2.6.2.Exercising Equipment................................................................................................................................................. 6 2.7.S PECIFIC OPERATING CONDITIONS...................................................................................................................................... 6 2.8.BLOCK DIAGRAM OF TEST SETUP ............................................................................................................................. 7 EXHIBIT 3.SUMMARY OF TEST RESULTS ...................................................................................................................... 8 3.1.LOCATION OF TESTS ..................................................................................................................................................... 8 3.2.APPLICABILITY & SUMMARY OF SAR RESULTS..................................................................................................... 8 EXHIBIT 4.MEASUREMENTS, EXAMINATIONS & TEST DATA ................................................................................ 9 4.1.TEST SETUP ..................................................................................................................................................................... 9 4.2.P HOTOGRAPH OF D.U.T. AND ALL ACCESORIES................................................................................................................ 10 4.3.PHOTOGRAPHS OF D.U.T. POSITION ........................................................................................................................15 4.3.1.Head Front Configuration........................................................................................................................................ 15 4.3.1.1.Push-To-Talk; Front-side in parallel to the phantom with the spacing of 25 mm .................................................................... 15 4.3.2.Body-Worn(By stander) Configuration .................................................................................................................... 16 4.3.2.1.Body-worn; Back-side in parallel to the phantom and the belt clip in contact, Belt-clip (M/N: MB-103) and Speaker- microphone (M/N: HM-125) ........................................................…

Text truncated - open the document above for the full version.

VHF Marine Transceiver Model No.: IC-M90 FCC ID: AFJ279501 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Part 2, Part 80 (Marine in 156.025-157.425 MHz) & Part 90 (146-174 MHz) UltraTech's File No.: ICOM-090F80-90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: September 20, 2004 Report Prepared by: Dan Huynh Issued Date: September 20, 2004 Tested by: Wayne Wu, EMC/RFI Technician Test Dates: September 4 – 12, 2004 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC Parts 2, 80 (Marine in 156.05-157.425 MHz) & 90 (146-174 MHz), Non-Broadcast Radio Transceivers Contents i VHF Marine Transceiver, Model IC-M90 FCC ID: AFJ279501 ULTRATECH GROUP OF LABS File #: ICOM-092F80-90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 September 20, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST .............................................................................................................................................1 EXHIBIT 2. INTRODUCTION ...............................................................................................................................................................2 2.1. SCOPE ............................................................................................................................................................................................2 2.2. RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................................2 2.3. NORMATIVE REFERENCES .......................................................................................................................................................2 EXHIBIT 3. PERFORMANCE ASSESSMENT ....................................................................................................................................3 3.1. CLIENT INFORMATION ..............................................................................................................................................................3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION .................................................................................................................3 3.3. EUT’S TECHNICAL SPECIFICATIONS......................................................................................................................................4 3.4. LIST OF EUT’S PORTS.................................................................................................................................................................5 3.5. ANCILLARY EQUIPMENT ..........................................................................................................................................................5 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS......................................................6 4.1. CLIMATE TEST CONDITIONS ...................................................................................................................................................6 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS .................................................................6 EXHIBIT 5. SUMMARY OF TEST RESULTS .....................................................................................................................................7 5.1. LOCATION OF TESTS..................................................................................................................................................................7 5.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ..................................................................................7 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES............................................................8 5.4. DEVIATION OF STANDARD TEST PROCEDURES .................................................................................................................8 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS .....................................................9 6.1. TEST PROCEDURES ....................................................................................................................................................................9 6.2. MEASUREMENT UNCERTAINTIES ..........................................................................................................................................9 6.3. MEASUREMENT EQUIPMENT USED .......................................................................................................................................9 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ............................................................9 6.5. RF POWER OUTPUT [§§ 2.1046, 80.215 & 90.205(d)]........................................................................... ................................... 10 6.6. FREQUECNY STABILITY [§§ 2.1055, 80.209 & 90.213] ......................................................................................................... 12 6.7. AUDIO FREQUENCY RESPONSE [§§ 2.1047(a), 80.2…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) Icom Incorporated VHF Transceiver, Model IC-M90 FCC ID: AFJ279501 IC: 202D-279501 V A1 - 1 Radiated Emissions Orthogonal Position #1 ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) Icom Incorporated VHF Transceiver, Model IC-M90 FCC ID: AFJ279501 IC: 202D-279501 V A1 - 2 Radiated Emissions Orthogonal Position #1 ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) Icom Incorporated VHF Transceiver, Model IC-M90 FCC ID: AFJ279501 IC: 202D-279501 V A1 - 3 Radiated Emissions Orthogonal Position #2 ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) Icom Incorporated VHF Transceiver, Model IC-M90 FCC ID: AFJ279501 IC: 202D-279501 V A1 - 4 Radiated Emissions Orthogonal Position #3
