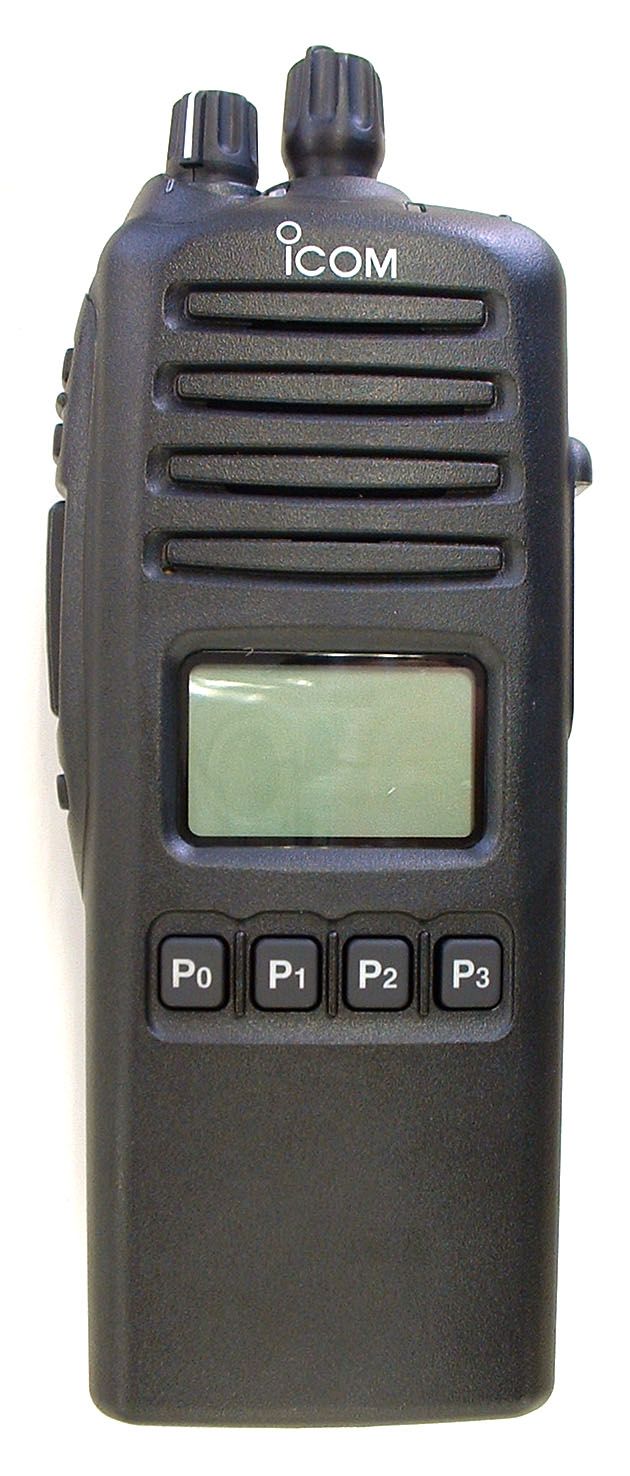

AFJ280401UHF Transceiver

INSTRUCTION MANUAL This device complies with Part 15 of the FCC Rules. Operation issubject to the condition that this device does not cause harmfulinterference. iF70DT/DS VHF TRANSCEIVER iF70T/S iF80DT/DS UHF TRANSCEIVER iF80T/S !IC-F70_F80.qxd 04.11.9 0:01 PM Page a (1,1) i EXPLICIT DEFINITIONS WORD DEFINITION R WARNING Personal injury, fire hazard or electric shockmay occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No riskof personal injury, fire or electric shock. READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instructionsfor the IC-F70DT/F70DS/F70T/F70S VHF TRANSCEIVER and IC-F80DT/F80DS/F80T/F80S UHF TRANSCEIVER . IMPORTANTIcom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United states, the United Kingdom, Germany,France, Spain, Russia and/or other countries.All other products or brands are registered trademarks or trademarks of theirrespective holders. ABOUT APCO PROJECT 25This device made under license under one or more of the fol-lowing US patents: #4,590,473, #4,636,791, #5,148,482,#5,185,796, #5,271,017, #5,377,229.The IMBE™ voice coding Technology embodied in this prod-uct is protected by intellectual property rights including patentrights, copyrights and trade secrets of Digital Voice Systems,Inc. This voice coding Technology is licensed solely for usewithin this Communications Equipment. The user of thisTechnology is explicitly prohibited from attempting to decom-pile, reverse engineer, or disassemble the Object Code, or inany other way convert the Object Code into a human-readableform. U.S. Pat. Nos. #5,870,405, #5,826,222, #5,754,974,#5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656,#5,517,511, #5,491,772, #5,247,579, #5,226,084, #5,195,166. !IC-F70_F80.qxd 04.11.9 0:01 PM Page i (1,1) ii R CAUTION! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of thebody, especially the face or eyes, while transmitting. Thetransceiver will perform best if the microphone is 2 to 4 in. (5to 10 cm) away from the lips and the transceiver is vertical. R CAUTION! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. R CAUTION! NEVER short the terminals of the bat- tery pack. DO NOT push PTT when not actually desiring to transmit. AVOID using or placing the transceiver in direct sunlight or in areas with temperatures below +22°F (–30°C) or above+140°F (+60°C).The basic operations, transmission and reception of the trans-ceiver are guaranteed within the specified operating temper-ature range. However, the LCD display may not be operatecorrectly, or show an indication in the case of long hours ofoperation, or after being placed in extremely cold areas. DO NOT modify the transceiver for any reason. KEEP the transceiver from the heavy rain, and Never immerse it in the water. The transceiver construction is water resistant , not waterproof. The use of non-Icom battery packs/chargers may impairtransceiver performance and invalidate the warranty.For U.S.A. onlyCAUTION: Changes or modifications to this transceiver, not expressly approved by Icom Inc., could void your authority tooperate this transceiver under FCC regulations. PRECAUTION !IC-F70_F80.qxd 04.11.9 0:01 PM Page ii (1,1) iii TABLE OF CONTENTSIMPORTANT .................................................................................... iEXPLICIT DEFINITIONS ................................................................. iABOUT APCO PROJECT 25 ........................................................... iPRECAUTION ................................................................................. iiTABLE OF CONTENTS .................................................................. iii1 ACCESSORIES ..................................................................... 1–3  Supplied accessories ............................................................. 1  Accessory attachments .......................................................... 1 2 PANEL DESCRIPTION ......................................................... 4–7  Front panel ............................................................................. 4  Function display ..................................................................... 6  Programmable function keys .................................................. 7 3 BASIC OPERATION .......................................................... 12–18  Turning power ON ................................................................ 12  Channel selection ................................................................. 12  Call procedure ...................................................................... 13  Receiving and transmitting ................................................... 13  User set mode ...................................................................... 17  Scrambler function ............................................................... 18 4 BIIS OPERATION .............................................................. 19–29  Default setting ...................................................................... 19  Receiving a call .................................................................... 19  Transmitting a call ................................................................ 21  Receiving a message ........................................................... 23  Transmitting a status ............................................................ 25  Transmitting an SDM (Short Data Message) ........................ 26  Position data transmission ................................................... 27  Printer connection ................................................................ 28  Digital ANI ............................................................................ 28  Auto emergency transmissi…

Text truncated - open the document above for the full version.

December 9, 2004 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Equipment Authorization under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 400-470 MHz (12.5 kHz and 25 kHz Channel Spacings). Applicant: ICOM Incorporated Product: UHF Transceiver Model: IC-F80DT/DS/T/S FCC ID: AFJ280401 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to AmericanTCB, Inc. for certification of the above product. Please review all files uploaded to ATCB electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R

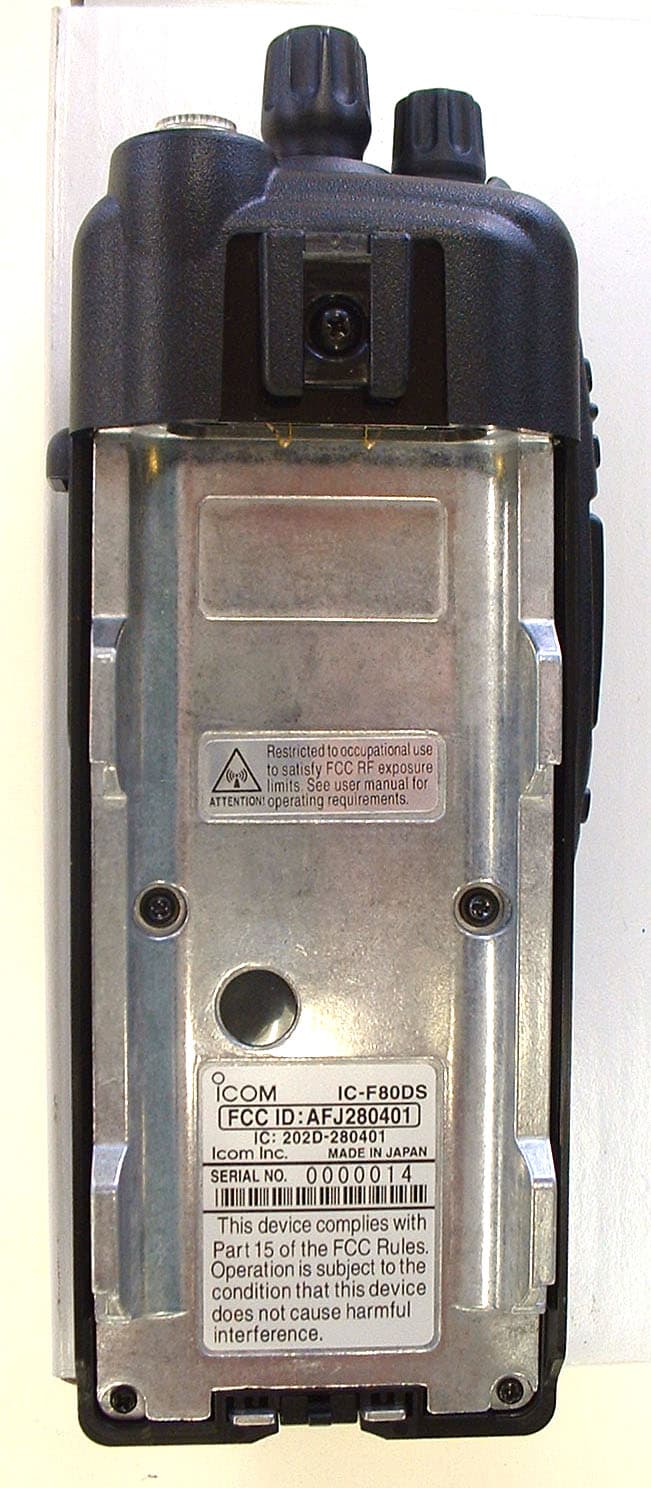

FCC ID LABEL C11150 ATTENTION LABEL C11085

42 11 SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagnetic energy during transmit mode. This radio isdesigned for and classified as “ Occupational Use Only ” , meaning it must be used only during the course of employment by individuals awareof the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “ General Population ” in an uncontrolled environment. This radio has been tested and complies with the FCC RFexposure limits for “ Occupational Use Only ” . In addition, your Icom radio complies with the following Standards andGuidelines with regard to RF energy and electromagneticenergy levels and evaluation of such levels for exposure tohumans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for HumanExposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to HumanExposure to Radio Frequency Electromagnetic Fields, 3kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement ofPotentially Hazardous Electromagnetic Fields – RF and Microwave. • The accessories (antennas, batteries, belt clips, speaker- microphone, etc. that is listed on Pages 39 – 40) are authorized for use with this product. Use of accessoriesother than those speci fi ed may result in RF exposure lev- els exceeding the FCC requirements for wireless RFexposure. To ensure that your expose to RF electro- magnetic energy is within the FCC allow-able limits for occupational use, alwaysadhere to the following guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may alsocause you to exceed FCC RF exposure limits. A properantenna is the antenna supplied with this radio by themanufacturer or antenna specifically authorized by themanufacturer for use with this radio. • DO NOT transmit for more than 50% of total radio use time ( “ 50% duty cycle ” ). Transmitting more than 50% of the time can cause FCC RF exposure compliancerequirements to be exceeded. The radio is transmittingwhen the TX indicator lights red. You can cause the radioto transmit by pressing the “ PTT ” switch or VOX function. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icombelt-clips listed on page 39 when attaching the radio toyour belt, etc., to ensure FCC RF exposure compliancerequirements are not exceeded. To provide the recipientsof your transmission the best sound quality, hold theantenna at least 5 cm (2 inches) from your mouth, andslightly off to one side. The information listed above provides the user with the infor-mation needed to make him or her aware of RF exposure,and what to do to assure that this radio operates with theFCC RF exposure limits of this radio. CAUTION WARNING !IC-F70_F80.qxd 04.11.9 0:02 PM Page 42 (1,1)

Applicant: ICOM Canada Address: Glenwood Centre 150-6165 Hwy. 17 Delta, BC CANADA, V4K 5B8 Contact Person: Mr. Bob Brunkow Phone #: +1-604-952-4266 FAX #: +1-604-952-0090 Email Address: [email protected] PRODUCT UNDER TEST: UHF Transceiver MODEL NO.: IC-F80DT/DS/T/S IC: 202D-280401 OPERATING FREQUENCY RANGE: 400.05 ~ 469.95 MHz RATED RF OUTPUT POWER: 4 W conducted DEVICE CATEGORY: Portable EXPOSURE CATEGORY: Occupational/Controlled MAX. PEAK SPATIAL-AVERAGE SAR 1g : 3.04 W/Kg YEAR OF MANUFACTURE: 2004 STANDARD(S) TO WHICH CONFORMITY IS DECLARED: SAR (Specific Absorption Rate) requirements using guidelines established in IEEE C95.1- 1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) • For detailed information please refer to the engineering test report, UltraTech File No.: ICOM-103-SAR, dated December 12, 2004. • I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units. Applicant: Legal Representative in Canada: Signature: Signature: Full Name: Robert W Brunkow Full Name: Robert W Brunkow Title: President Title: President Place: Delta, BC Place: Delta, BC

UHF TRANSCEIVER Model No.: IC-F80DT/DS/T/S Tested For ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 In Accordance With SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: ICOM-103-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: December 13, 2004 Report Prepared by: JaeWook Choi, SAR System Engineer Tested by: Carolyn Luu Issued Date: December 12, 2004 Test Dates: December 1, 2004 ~ December 2, 2004 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATE (SAR) Page 1 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UHF Transceiver M/N: IC-F80DT/DS/T/S FCC ID: AFJ280401 ULTRATECH GROUP OF LABS File #: ICOM-103-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 December 12, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com • Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) • Accredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) • Recognized/Listed by FCC (USA ) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ................................................................................................................................................ 5 1.1. SCOPE ............................................................................................................................................................................... 5 1.2. REFERENCES................................................................................................................................................................... 5 EXHIBIT 2. PERFORMANCE ASSESSMENT ..................................................................................................................... 6 2.1. CLIENT AND MANUFACTURER INFORMATION ...................................................................................................... 6 2.2. DEVICE UNDER TEST (D.U.T.) DESCRIPTION.............................................................................................................. 6 2.3. LIST OF D.U.T.’S ACCESSORIES:.................................................................................................................................. 7 2.4. SPECIAL CHANGES ON THE D.U.T.’S HARDWARE/SOFTWARE FOR TESTING PURPOSES ............................. 7 2.5. ANCILLARY EQUIPMENT ............................................................................................................................................. 7 2.6. GENERAL TEST CONFIGURATIONS ........................................................................................................................... 7 2.6.1. Equipment Configuration ........................................................................................................................................... 7 2.6.2. Exercising Equipment................................................................................................................................................. 7 2.7. SPECIFIC OPERATING CONDITIONS...................................................................................................................................... 7 2.8. BLOCK DIAGRAM OF TEST SETUP ............................................................................................................................. 8 EXHIBIT 3. SUMMARY OF TEST RESULTS ...................................................................................................................... 9 3.1. LOCATION OF TESTS ..................................................................................................................................................... 9 3.2. APPLICABILITY & SUMMARY OF SAR RESULTS..................................................................................................... 9 EXHIBIT 4. MEASUREMENTS, EXAMINATIONS & TEST DATA .............................................................................. 10 4.1. TEST SETUP ................................................................................................................................................................... 10 4.2. PHOTOGRAPH OF D.U.T. AND ALL ACCESORIES................................................................................................................ 11 4.3. PHOTOGRAPHS OF D.U.T. POSITION ........................................................................................................................18 4.3.1. Head Front Configuration........................................................................................................................................ 18 4.3.1.1. Push-To-Talk; Front-side in parallel to the phantom with the spacing of 25 mm, long antenna (M/N: FA-SC57U or FA- SC25U) 18 4.3.1.2. Push-To-Talk; Front-side in parallel to the phantom with the spacing of 25 mm, stubby antenna (M/N: FA-SC73US) ......... 19 4.3.2. Body Configuration .................................................................................................................................................. 20 4.3.2.1. Body-worn; Back-side in parallel to th…

Text truncated - open the document above for the full version.

UHF Transceiver Model No.: IC-F80DT/DS/T/S FCC ID: AFJ280401 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, PARTS 2 and 90 (Subpart I) UltraTech's File No.: ICOM-103F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: December 9, 2004 Report Prepared by: Dan Huynh Issued Date: December 9, 2004 Tested by: Wayne Wu, RFI/EMI Technician Test Dates: November 5 - 29, 2004 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E- 1119R 00-034 FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Contents i UHF Transceiver, Model IC-F80DT/DS/T/S FCC ID: AFJ280401 ULTRATECH GROUP OF LABS File #: ICOM-103F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 December 9, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST .......................................................................................................................................... 1 EXHIBIT 2. INTRODUCTION............................................................................................................................................................ 2 2.1. SCOPE ............................................................................................................................................................................................ 2 2.2. RELATED SUBMITTAL(S)/GRANT(S) ...................................................................................................................................... 2 2.3. NORMATIVE REFERENCES ....................................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT ................................................................................................................................. 3 3.1. CLIENT INFORMATION.............................................................................................................................................................. 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION................................................................................................................. 3 3.3. EUT’S TECHNICAL SPECIFICATIONS...................................................................................................................................... 4 3.4. LIST OF EUT’S PORTS................................................................................................................................................................. 5 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS .................................................. 6 4.1. CLIMATE TEST CONDITIONS ................................................................................................................................................... 6 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS.................................................................6 EXHIBIT 5. SUMMARY OF TEST RESULTS.................................................................................................................................. 7 5.1. LOCATION OF TESTS.................................................................................................................................................................. 7 5.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS ........................................................................................... 7 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES............................................................ 7 5.4. DEVIATION OF STANDARD TEST PROCEDURES ................................................................................................................. 7 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS .................................................. 8 6.1. TEST PROCEDURES .................................................................................................................................................................... 8 6.2. MEASUREMENT UNCERTAINTIES .......................................................................................................................................... 8 6.3. MEASUREMENT EQUIPMENT USED ....................................................................................................................................... 8 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ............................................................ 8 6.5. RF POWER OUTPUT [§§ 2.1046 & 90.205] ...................................................................................... ........................................... 9 6.6. FREQUENCY STABILITY [§§ 2.1055 & 90.213] ...................................................................................................................... 10 6.7. AUDIO FREQUENCY RESPONSE [§ 2.1047(a)] ...................................................................................................................... 13 6.8. MODULATION LIMITING [§§ 2.1047(b) & 90.210]......................................................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS Icom Incorporated UHF Transceiver, Model(s) IC-F80DT/DS/T/S FCC ID: AFJ280401 IC: 202D-280401 A1 - 1 Radiated Emissions Orthogonal Position #1 ANNEX 1 - TEST SETUP PHOTOGRAPHS Icom Incorporated UHF Transceiver, Model(s) IC-F80DT/DS/T/S FCC ID: AFJ280401 IC: 202D-280401 A1 - 2 Radiated Emissions Orthogonal Position #1 ANNEX 1 - TEST SETUP PHOTOGRAPHS Icom Incorporated UHF Transceiver, Model(s) IC-F80DT/DS/T/S FCC ID: AFJ280401 IC: 202D-280401 A1 - 3 Radiated Emissions Orthogonal Position #2 ANNEX 1 - TEST SETUP PHOTOGRAPHS Icom Incorporated UHF Transceiver, Model(s) IC-F80DT/DS/T/S FCC ID: AFJ280401 IC: 202D-280401 A1 - 4 Radiated Emissions Orthogonal Position #3
