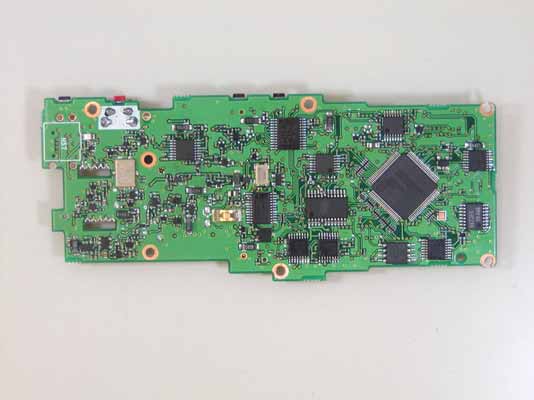

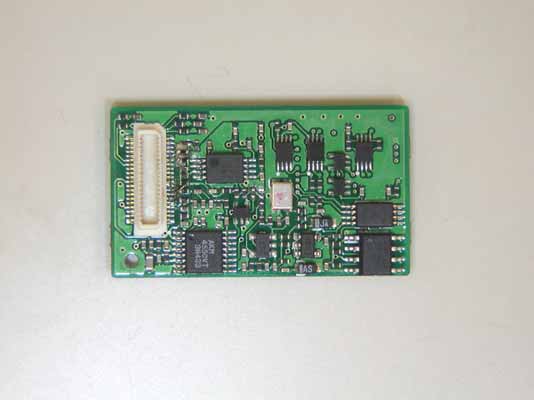

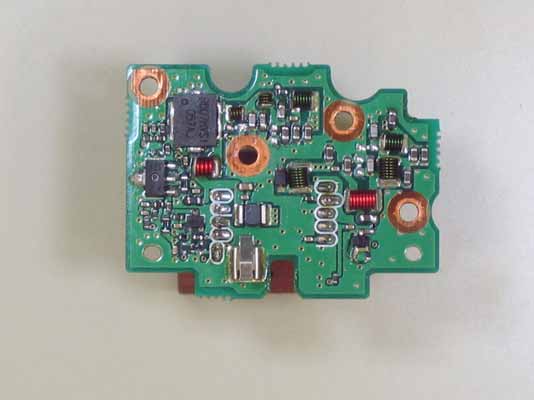

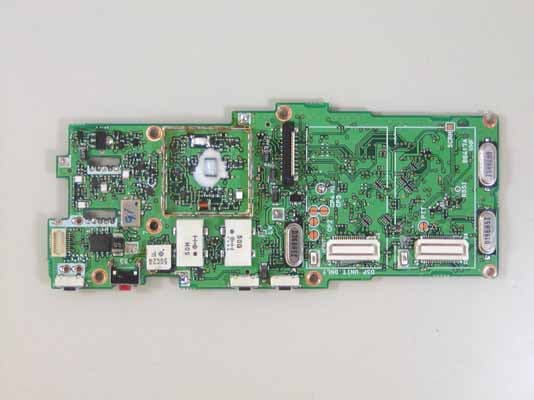

AFJ289300VHF Transceiver

INSTRUCTION MANUAL This device complies with Part 15 of the FCC Rules. Operationis subject to the condition that this device does not causeharmful interference. iF3061T/S VHF TRANSCEIVER PRECAUTIONS i R CAUTION! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of thebody, especially the face or eyes, while transmitting. Thetransceiver will perform best if the microphone is 2 to 4 in. (5to 10 cm) away from the lips and the transceiver is vertical. R CAUTION! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. R CAUTION! NEVER short the terminals of the bat- tery pack. DO NOT push PTT when not actually desiring to transmit. A VOID using or placing the transceiver in direct sunlight or in areas with temperatures below +22°F (–30°C) or above+140°F (+60°C).The basic operations, transmission and reception of the trans-ceiver are guaranteed within the specified operating temper-ature range. However, the LCD display may not be operatecorrectly, or show an indication in the case of long hours ofoperation, or after being placed in extremely cold areas. WORD DEFINITION R W ARNING Personal injury, fire hazard or electric shockmay occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No riskof personal injury, fire or electric shock. READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instructionsfor the IC-F3061T/S VHF TRANSCEIVER . IMPORTANTIcom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United states, the United Kingdom, Germany,France, Spain, Russia and/or other countries.SmarTrunk II™ and SmarTrunk 3G™ are Trademark of SmarTrunk Systems,Inc.EXPLICIT DEFINITIONS ii DO NOT modify the transceiver for any reason. KEEP the transceiver from the heavy rain, and Never immerse it in the water. The transceiver construction is water resistant , not waterproof. The use of non-Icom battery packs/chargers may impairtransceiver performance and invalidate the warranty.For U.S.A. onlyCAUTION: Changes or modifications to this transceiver, not expressly approved by Icom Inc., could void your authority tooperate this transceiver under FCC regulations. iii IMPORTANT ........................................................................ iEXPLICIT DEFINITIONS ..................................................... iPRECAUTIONS ................................................................... iT ABLE OF CONTENTS ...................................................... iii 1 ACCESSORIES ......................................................... 1–3■ Supplied accessories ................................................. 1 ■ Accessory attachments .............................................. 1 2P ANEL DESCRIPTION ............................................. 4–9 ■ Front panel ................................................................. 4 ■ Function display ......................................................... 6 ■ Programmable function keys ..................................... 7 3 BASIC OPERATION .............................................. 10–11■ T urning power ON .................................................... 10 ■ Channel selection .................................................... 10 ■ Call procedure ........................................................... 11 4L TR OPERATION .................................................. 12–13 ■ Receiving a call ........................................................ 12 ■ T ransmitting a call .................................................... 13 5 CONVENTIONAL OPERATION ............................ 14–17■ Receiving and transmitting........................................ 14 ■ User Set mode .......................................................... 16 ■ Emergency transmission .......................................... 16 ■ Scrambler function .................................................... 16 ■ Stun function ............................................................ 17 ■ Priority A channel selection ...................................... 17 6B A TTERY CHARGING .......................................... 18–21 ■ Battery charging ....................................................... 18 ■ Battery caution ......................................................... 18 ■ Optional battery chargers ......................................... 19 6 SWIVEL BELT CLIP .............................................. 22–23■ MB-93 contents ........................................................ 22 ■ To attach .................................................................. 22 ■ To detach ................................................................. 23 6 OPTIONS ............................................................... 24–25 7 SAFETY TRAINING INFORMATION .................... 26–27 T ABLE OF CONTENTS 1 1 ACCESSORIES ■ Supplied accessories The following accessories are supplied: Qty. q Flexible antenna ...................................................1 w Battery pack .........................................................1 e Belt clip ...............................................................1 r Connector cover (with screw) ..............................1 set ■ Accessory attachments D Flexible antenna Connect the supplied flexible anten-na to the antenna connector. CAUTION! • NEVER HOLD by the antenna when carrying the transceiver. • Transmitting without an antennamay damage the transceiver. qwe r 2 1 ACCESSORIES ï Battery pack To attach the battery pack: Slide the battery pack in the direction of the arrow ( q ), then lock it with the battery release button.• Slide the battery pack until the battery release button makes a ‘click’sound. To release the battery pack: Slide the battery release button in the direction of the arrow( w ) as shown below. The battery pack is then released. NEVER r…

Text truncated - open the document above for the full version.

March 31, 2006 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Equipment Authorization under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 136-174 MHz (25 KHz, 12.5 KHz and 6.25 KHz Channel Spacings). Applicant: ICOM Incorporated Product: VHF Transceiver Model: IC-F3061T/S FCC ID: AFJ289300 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to ATCB electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

1-1-32,Kamiminami,Hirano-ku,Osaka 547-0003 Japan. Phone : 06 6793 5302 Fax : 06 6793 0013 e-mail: [email protected] Letter of Agency January 11, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern; Please be advised that Icom Incorporated authorizes Tri Minh Luu, P. Eng., and / or UltraTech Engineering Labs Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc.(ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Icom Incorporated, Yoshiteru Yano General Manager

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 11, 2006 RE: FCC ID: AFJ289300_ATCB003353 Attention: Tri Luu I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that at recent TCB training as well as teleconferences between the FCC and TCBs the FCC has stated that requests for confidentiality should have the rule part specified. This rule part is Part 0.459. Please use this reference in the request for confidentiality letter and please provide an updated letter with this reference. 2. Please note that the confidentiality request letter is not signed. Please sign the request letter. 3. FYI - no action needed. Please note that the power shown in the RF evaluation exhibit states that the low threshold is 5.806W. Please note that this is only for the 135MHz band. The low threshold for the 174MHz band is 5.26W. As the device operates in the band, this would be the low threshold used for rf exposure determination. As the 50% duty cycle average is still only 2.68W the device is still under the low threshold, but accurate determination should be done using the lowest power. 4. Please explain why the upper and lower side lobes on the plots from page 27 to 29 of the report are not shown as part of the 99% bandwidth for FM modulation. These lobes should be considered in the dB down points for OBW. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dward ATCB From: JaeWook Choi [[email protected]] Sent: 04/17/2006 7:39 AM To: 'Dward ATCB' Cc: 'Tri Luu'; 'Dan Huynh'; 'Wei'; [email protected] Subject: RE: MESSAGE/uelrfiatcb/AFJ289300_ATCB003353 04/17/06 Hello Dennis, 1. Please note that at recent TCB training as well as teleconferences between the FCC and TCBs the FCC has stated that requests for confidentiality should have the rule part specified. This rule part is Part 0.459. Please use this reference in the request for confidentiality letter and please provide an updated letter with this reference. A-1) The revised letter of confidentiality has been uploaded to ATCB (see " IC-F3061--ConLtr- rev.pdf " ) 2. Please note that the confidentiality request letter is not signed. Please sign the request letter. A-2) The revised letter of confidentiality has been uploaded to ATCB (see " IC-F3061--ConLtr- rev.pdf " ) And we found the letter of agency and Part 90 attestation letter hadn't been signed either thus uploaded to ATCB as well. (see "IC-F3061--AutLtr_rev.pdf" and "IC-F3061-- Attestation_Part90_rev.pdf") 3. FYI - no action needed. Please note that the power shown in the RF evaluation exhibit states that the low threshold is 5.806W. Please note that this is only for the 135MHz band. The low threshold for the 174MHz band is 5.26W. As the device operates in the band, this would be the low threshold used for rf exposure determination. As the 50% duty cycle average is still only 2.68W the device is still under the low threshold, but accurate determination should be done using the lowest power. 4. Please explain why the upper and lower side lobes on the plots from page 27 to 29 of the report are not shown as part of the 99% bandwidth for FM modulation. These lobes should be considered in the dB down points for OBW. A-4) Yes, we did use the built-in auto calculation feature of our analyzer for 99% occupied bandwidth measurement. Best Regards, JaeWook Choi UltraTech Labs. -----Original Message----- From: Dward ATCB [mailto:[email protected]] Sent: Wednesday, April 12, 2006 1:13 PM To: [email protected] Cc: 'Tri Luu'; 'Dan Huynh'; 'Wei'; 'William Graff' Subject: RE: MESSAGE/uelrfiatcb/AFJ289300_ATCB003353 Hi Jae My apologies. I mean the plots on pdf pages 25 through 27. I should have been more specific. I have attached a pdf with notes for your convenience. I know that sometimes newer analyzer/receiver auto calculate the 99% bandwidth and sometimes this does not exactly match what is seen on the screen. I need some clarification on this issue. Please see the attached pdf with notes. Dennis Ward Evaluation Engineer American TCB Certification Resource for the Wireless Industry www.atcb.com 703-847-4700 fax 703-847-6888 direct - 703-880-4841 cell - 209-769-8316 NOTICE: This E-Mail message and any attachment may contain privileged or company proprietary information. If you received this message in error, please return to the sender. -----Original Message----- From: JaeWook Choi [mailto:[email protected]] Sent: 04/12/2006 7:01 AM To: 'Dward ATCB' Cc: 'Tri Luu'; 'Dan Huynh'; 'Wei'; [email protected] Subject: RE: MESSAGE/uelrfiatcb/AFJ289300_ATCB003353 Hello Dennis, Could you please clarify which plots did you referred in your question #4? It will be of great help for us if you can give us the specific plot number. RE: FCC ID: AFJ289300_ATCB003353 Regards, JaeWook Choi UltraTech Labs. -----Original Message----- From: Tri Luu [mailto:[email protected]] Sent: Wednesday, April 12, 2006 9:31 AM To: JaeWook Choi; [email protected]; Dan Hyunh Subject: FW: MESSAGE/uelrfiatcb/AFJ289300_ATCB003353 Hi Jae, 04/17/06 Please reply FCC per his request in the attached file. Tri Luu -----Original Message----- From: Dward ATCB [mailto:[email protected]] Sent: April 11, 2006 8:26 PM To: 'Tri Luu' Subject: RE: MESSAGE/uelrfiatcb/AFJ289300_ATCB003353 Hi Tri Please see comments Thanks Dennis Ward Evaluation Engineer American TCB Certification Resource for the Wireless Industry www.atcb.com 703-847-4700 fax 703-847-6888 direct - 703-880-4841 cell - 209-769-8316 NOTICE: This E-Mail message and any attachment may contain privileged or company proprietary information. If you received this message in error, please return to the sender. -----Original Message----- From: Dward ATCB [mailto:[email protected]] Sent: 04/05/2006 4:09 PM To: 'Tri Luu' Cc: '[email protected]' Subject: RE: MESSAGE/uelrfiatcb/AFJ289300_ATCB003353 HI Tri I was in the middle of reviewing the report and had some questions. I will put the comments aside until I get your new report. Hopefully the answers to my questions are in your new report. Thanks Dennis Ward Evaluation Engineer American TCB Certification Resource for the Wireless Industry www.atcb.com 703-847-4700 fax 703-847-6888 direct - 703-880-4841 cell - 209-769-8316 NOTICE: This E-Mail message and any attachment may contain privileged or company proprietary information. If you received this message in error, please return to the sender. -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: 04/05/2006 1:00 PM To: [email protected] 04/17/06 Cc: [email protected]; [email protected]; [email protected] Subject: MESSAGE/uelrfiatcb/AFJ289300_ATCB003353 From: Mr. Tri Luu (uelrfiatcb) mailto:[email protected] Hello. We have found that there is some mistakes in our test report. please hold reviewing until we upload the revised report. __________ NOD32 1.1485 (20060412) Information __________ This message was checked by NOD32 antivirus system. http://www.eset.com __________ NOD32 1.1485 (20060412) Information __________ This message was checked by NOD32 antivirus system. http://www.eset.com 04/17/06

SERIAL LOCATION FCC ID LABEL CAUTION LABEL

VHF Transceiver - IC-F3061T/S (FCC ID: AFJ289300) FCC power thresholds: f GHz 900/f Face-held controlled d >= 2.5 cm 0.155 5,806 mW 0.15 6,000 mW 1. 900/f = face-held controlled 2. d is the distance to a person’s body. No evaluation required if power is below this threshold: f GHz P out 0.155 5,806 mW (or 11,613 mW with 50% duty cycle) RF conducted peak power measured = 5,370 mW User-based time-average factor = 50 % = 0.5 Antenna Gain = -4.5 dBi Threshold for no SAR evaluation is 5,806 mW Transmitter power is 5,370 mW X 0.5 = 2,685 mW. Conclusion: No SAR evaluation required since Transmitter Power is below FCC power thresholds Distance from the antenna with the thinnest belt-clip (M/N: MB-94) mounted Antenna Information M/N: FA-SC55V Manufacturer: ICOM Gain: -4.5 dBi Type: Helical antenna Frequency range: 150 – 174 MHz Remark: The above information had been provided by the manufacturer

26 9 SAFETY TRAINING INFORMATION Y our Icom radio generates RF electromagnetic energy during transmit mode. This radio isdesigned for and classified as “Occupational UseOnly”, meaning it must be used only during thecourse of employment by individuals aware of thehazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” inan uncontrolled environment.This radio has been tested and complies with the FCC RF expo-sure limits for “Occupational Use Only”. In addition, your Icomradio complies with the following Standards and Guidelines withregard to RF energy and electromagnetic energy levels and eval-uation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C,Evaluating Compliance with FCC Guidelines for HumanExposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposureto Radio Frequency Electromagnetic Fields, 3 kHz to 300GHz. • American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of PotentiallyHazardous Electromagnetic Fields– RF and Microwave. • The following accessories are authorized for use with this product. Use of accessories other than those specified mayresult in RF exposure levels exceeding the FCC require-ments for wireless RF exposure.; Belt Clip (MB-94),Rechargeable Li-Ion Battery Pack (BP-231) and Speaker-microphone (HM-131L). To ensure that your expose to RF electromag- netic energy is within the FCC allowable limitsfor occupational use, always adhere to the fol-lowing guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may alsocause you to exceed FCC RF exposure limits. A properantenna is the antenna supplied with this radio by the manu-facturer or antenna specifically authorized by the manufac-turer for use with this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the timecan cause FCC RF exposure compliance requirements to beexceeded. The radio is transmitting when the “ ” (TX indi- cator) lights. You can cause the radio to transmit by pressingthe “PTT” switch. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clips listed on page 40 when attaching the radio to your belt,etc., to ensure FCC RF exposure compliance requirementsare not exceeded. To provide the recipients of your transmis-sion the best sound quality, hold the antenna at least 5 cm(2 inches) from your mouth, and slightly off to one side. The information listed above provides the user with the informa-tion needed to make him or her aware of RF exposure, and whatto do to assure that this radio operates with the FCC RF expo-sure limits of this radio. CAUTION WARNING

SERIAL LOCATION FCC ID LABEL CAUTION LABEL

VHF Transceiver Model No.: IC-F3061T FCC ID: AFJ289300 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-123F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: March 31, 2006 Report Prepared by: JaeWook Choi Issued Date: March 29, 2006 Tested by: Wayne Wu, Hung Trinh Test Dates: February 08 – March 09, 2006 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i VHF Transceiver, Model IC-F3061T FCC ID: AFJ289300 ULTRATECH GROUP OF LABS File #: ICOM-123F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 29, 2006 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST........................................................................................................................ 1 EXHIBIT 2. INTRODUCTION ......................................................................................................................................... 2 2.1. SCOPE......................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 2 2.3. NORMATIVE REFERENCES ................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT .............................................................................................................. 3 3.1. CLIENT INFORMATION .......................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ............................................................................................. 3 3.3. EUT’S TECHNICAL SPECIFICATIONS ..................................................................................................................4 3.4. LIST OF EUT’S PORTS ............................................................................................................................................. 4 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 5 4.1. CLIMATE TEST CONDITIONS ................................................................................................................................ 5 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS .............................................. 5 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................... 6 5.1. LOCATION OF TESTS .............................................................................................................................................. 6 5.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS ........................................................................ 6 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ........................................ 6 5.4. DEVIATION OF STANDARD TEST PROCEDURES.............................................................................................. 6 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................... 7 6.1. TEST PROCEDURES................................................................................................................................................. 7 6.2. MEASUREMENT UNCERTAINTIES ...................................................................................................................... 7 6.3. MEASUREMENT EQUIPMENT USED.................................................................................................................... 7 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ......................................... 7 6.5. RF POWER OUTPUT [§§ 2.1046 & 90.205] .............................................................................................................. 8 6.6. FREQUENCY STABILITY [§§ 2.1055 & 90.213]..................................................................................................... 9 6.7. AUDIO FREQUENCY RESPONSE [§ 2.1047(A)]................................................................................................... 11 6.8. MODULATION LIMITING [§§ 2.1047(B) & 90.210] ............................................................................................. 16 6.9. OCCUPIED BANDWIDTH & EMISSION MASK [§§ 2.1049, 90.209 & 90.210] .................................................. 21 6.10. TRANSMITTER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS [§ 90.210] ..... 77 6.11. TRANSMITTER SPURIOUS/HARMONIC RADIATED EMISSIONS [§ 90.210] ............................................ 91 6.12. TRANSIENT FREQUENCY BEHAVIOR [§ 90.214].......................................................................................... 94 EXHIBIT 7. MEASUREMENT UNCERTAINTY......…

Text truncated - open the document above for the full version.
