AFJ332902UHF Transceiver

ICOM Incorporated
UHF Transceiver - FCC ID AFJ332902 - ICOM Incorporated
Click to zoom

Application Details

Equipment Class
TNF - Licensed Non-Broadcast Transmitter Held to Face
Date of Grant
Jul 21, 2011
Application Purpose
Original Equipment
Date of Application
Jul 21, 2011
Equipment Note
UHF Transceiver
Frequency Range
450.00000000 - 512.00000000
Company
ICOM Incorporated
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

INSTRUCTION MANUAL This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. UHF TRANSCEIVERS iF4100D Series VHF TRANSCEIVERS iF3100D Series Limited functions only Limited functions only i FOREWORD READ ALL INSTRUCTIONS carefully and completely before using the transceiver. SAVE THIS INSTRUCTION MANUAL— This instruc- tion manual contains important operating instructions for the IC- F3101D/IC-F3103D/IC-F3106D VHF TRANSCEIVERS and the IC-F4101D/IC-F4103D/IC-F4106D UHF TRANSCEIVERS. EXPLICIT DEFINITIONS WORDDEFINITION RDANGER! Personal death, serious injury or an explo- sion may occur. RWARNING! Personal injury, fire hazard or electric shock may occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorpo- rated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries. ii FCC INFORMATION • FOR CLASS B UNINTENTIONAL RADIATORS: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi- sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications to this device, not expressly approved by Icom Inc., could void your authority to operate this transceiver under FCC regulations. iii PRECAUTIONS R DANGER! NEVER short the terminals of the battery pack. R DANGER! Use and charge only specified Icom battery packs with Icom radios or Icom chargers. Only Icom battery packs are tested and approved for use with Icom radios or charged with Icom chargers. Using third-party or counterfeit battery packs or chargers may cause smoke, fire, or cause the battery to burst. R WARNING! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of the body, especially the face or eyes, while transmitting. The transceiver will perform best if the microphone is 5 to 10 cm (2 to 4 inches) away from the lips and the transceiver is vertical. R WARNING! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. Hearing experts advise against continuous high volume operation. If you experience a ringing in your ears, reduce the volume level or discontinue use. R WARNING! NEVER operate the transceiver while driving a vehicle. Safe driving requires your full attention—anything less may result in an accident. CAUTION: MAKE SURE the flexible antenna and battery pack are securely attached to the transceiver, and that the antenna and battery pack are dry before attachment. Exposing the inside of the transceiver to water will result in serious damage to the trans- ceiver. DO NOT operate the transceiver near unshielded electrical blast- ing caps or in an explosive atmosphere. DO NOT push [PTT] when not actually intending to transmit. DO NOT use or place the transceiver in direct sunlight or in areas with temperatures below –30°C (+22°F) or above +60°C (+140°F). iv PRECAUTIONS DO NOT modify the transceiver. The transceiver warranty does not cover any problems caused by unauthorized modification. DO NOT use harsh solvents such as benzine or alcohol when cleaning, as they will damage the transceiver surfaces. BE CAREFUL! The transceiver will become hot when operating it continuously for long periods of time. KEEP the transceiver away from heavy rain, and never immerse it in the water. The transceiver meets IP54* requirements for dust- protection and splash resistance. However, once the transceiver has been dropped, dust-protection and splash resistance cannot be guaranteed because of possible damage to the transceiver’s case or the waterproof seal. * Only when the battery pack/case and jack cover are attached. Even when the transceiver power is OFF, a slight current still flows in the circuits. Remove the battery pack or batteries from the trans- ceiver when not using it for a long time. Otherwise, the installed battery pack or batteries will become exhausted, and will need to be recharged or replaced. MAKE SURE to turn the transceiver power OFF before connect- ing the supplied/optional equipment. v VOICE CODING TECHNOLOGY The AMBE+2™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Com- munications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. vi SUPPLIED ACCESSORIES The following accessories are supplied with the transceiver. Flexible antenna (This illustration is…

Text truncated - open the document above for the full version.

Cover Letter(s)

UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] June 22, 2011 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Certification under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 450-512 MHz Applicant: ICOM Incorporated Product: UHF Handheld Transceiver Model: IC-F4101D FCC ID: AFJ332902 Dear Sir/Madam: As appointed agent for ICOM Incorporated, we would like to submit the application for certification of the above product. Please review all files uploaded to your electronic filing site. If you have any queries, please do not hesitate to contact us. Yours truly, DHARMAJIT SOLANKI Dharmajit Solanki, Authorized Agent

External Photos

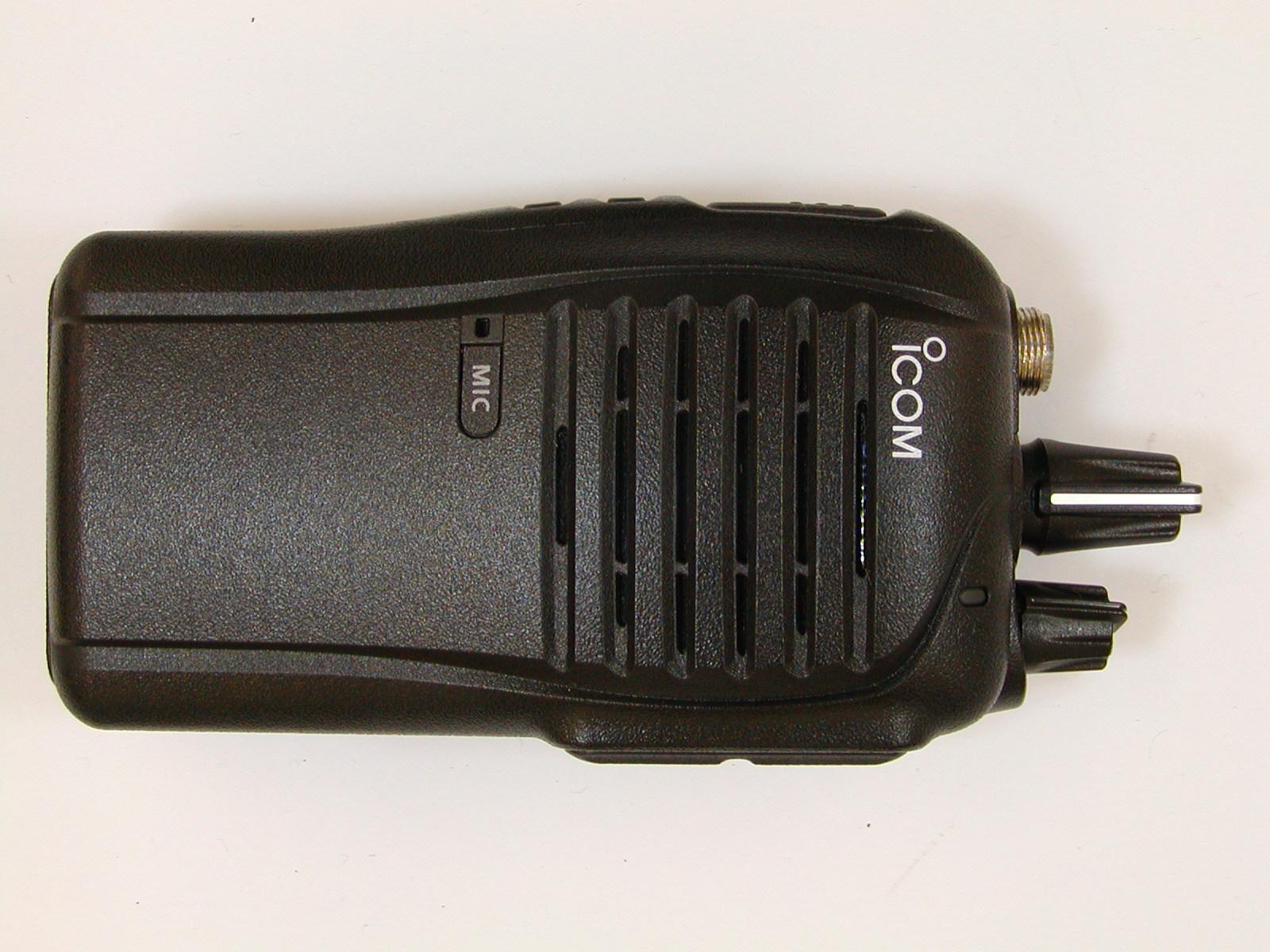

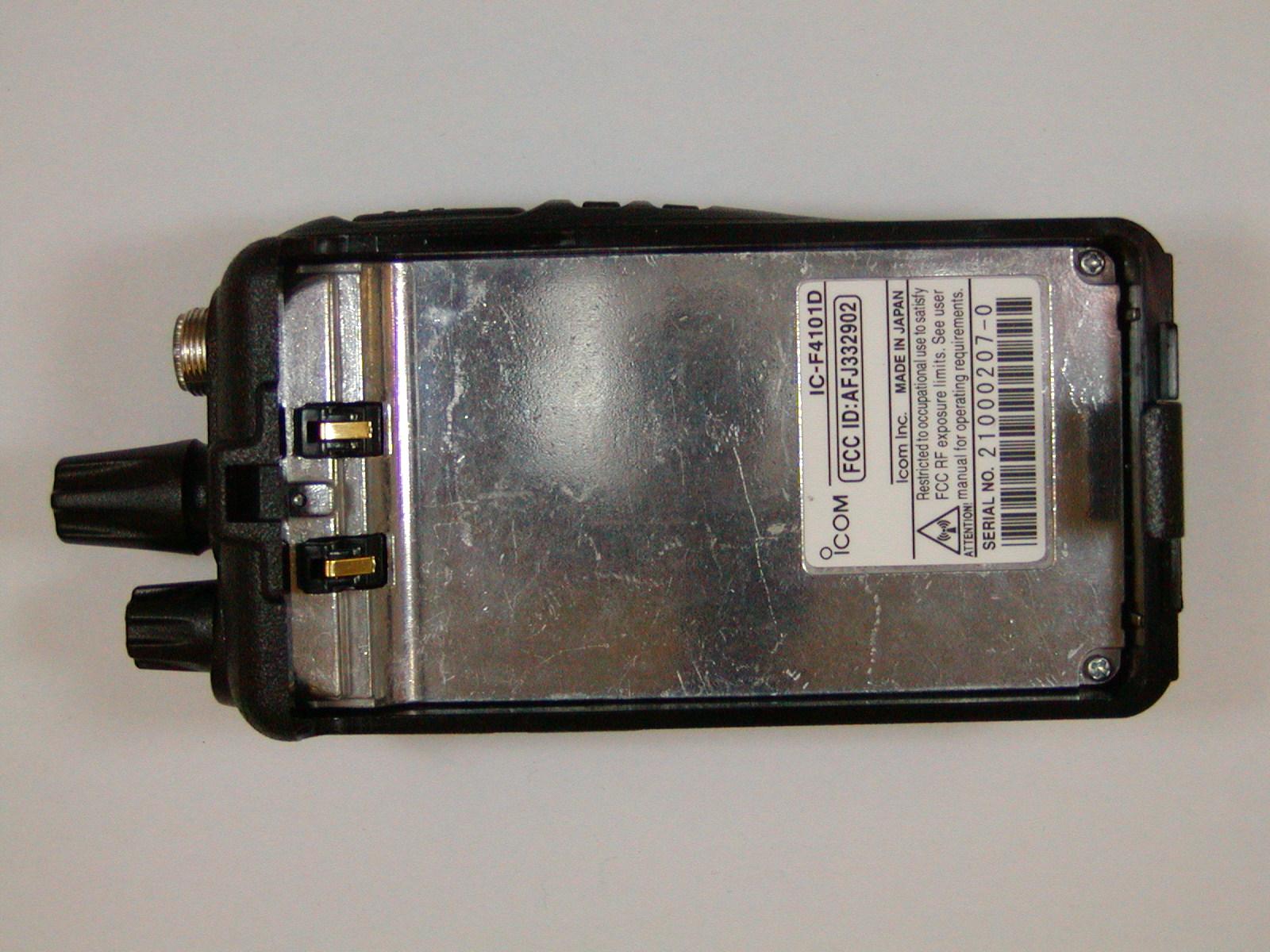

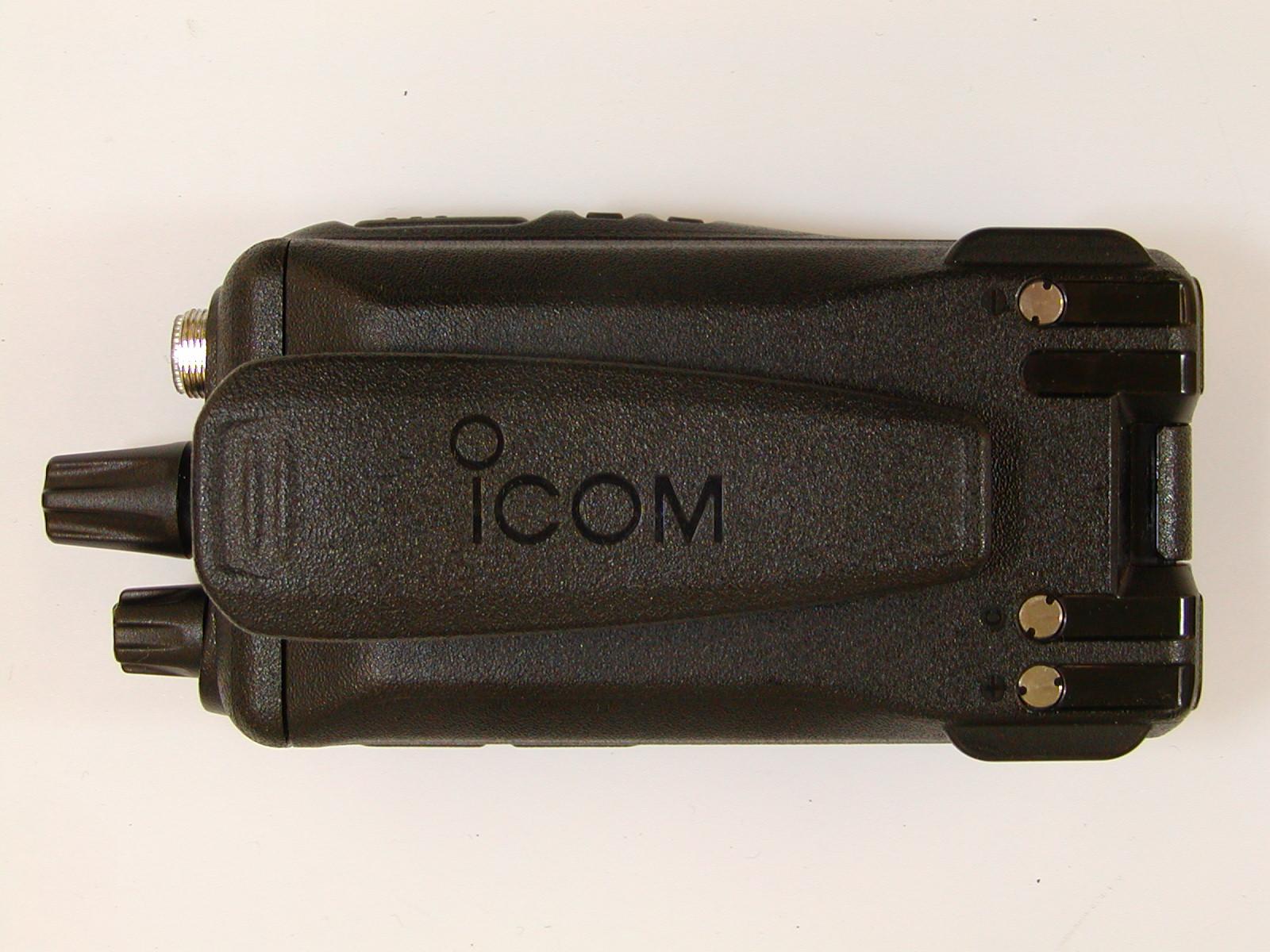

FRONT SIDE REAR SIDE FRONT SIDE REAR SIDE LEFT SIDE RIGHT SIDE LEFT SIDE RIGHT SIDE TOP SIDE BOTTOM SIDE TOP SIDE BOTTOM SIDE REAR SIDE SERIAL

ID Label/Location Info

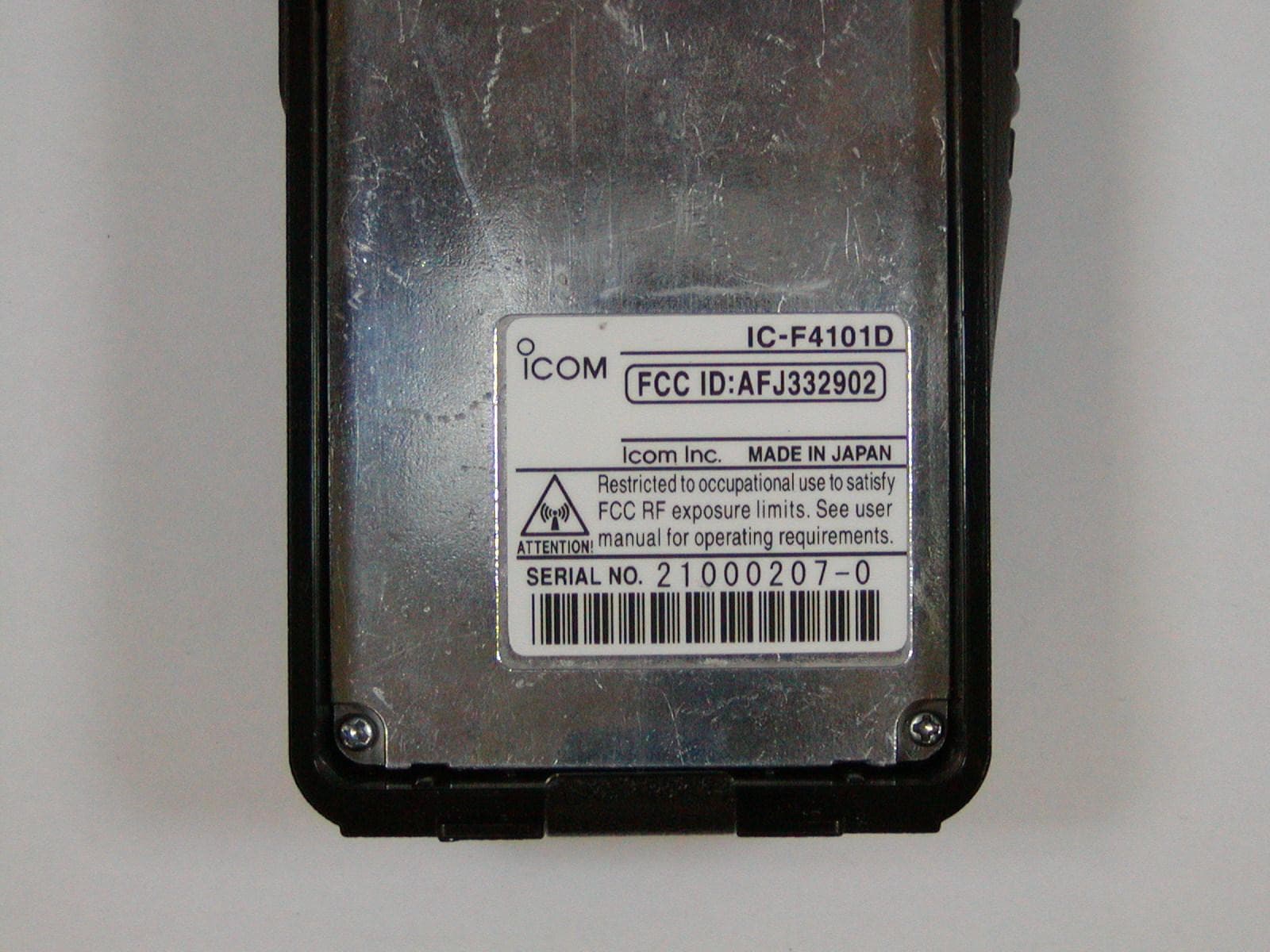

Serial Plate

Internal Photos

MAIN SIDE A MAIN SIDE B MAIN SIDE A MAIN SIDE B ANT SIDE A ANT SIDE B ANT SIDE A ANT SIDE B

RF Exposure Info

UHF Transceivers Model No.: IC-F4101D FCC ID: AFJ332902 IC: 202D-332902 Tested For ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka, Japan, 547-0003 In accordance with SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1992, FCC OET Bulletin 65 (Supplement C) and Industry Canada RSS-102 (Issue 4) UltraTech’s File No.: ICOM-272Q-SAR This Test report is Issued under the Authority of Tri M. Luu, BASc Vice President of Engineering UltraTech Group of Labs Date: June 28, 2011 Report Prepared by: Steven Lu Tested by: Steven Lu Issued Date: June 28, 2011 Test Dates: June 07~24, 2011 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected] , Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R CA2049 SPECIFIC ABSORPTION RATE (SAR) Contents i IEEE C95.1-1992, FCC OET Bulletin 65 (Supplement C) and Industry Canada RSS-102 (Issue 4) UHF Transceiverss M/N: IC-F4101D FCC ID: AFJ332902, IC: 202D-332902 ULTRATECH GROUP OF LABS File #: ICOM-272Q-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 June 28, 2011 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com  All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 1 1.1. SCOPE............................................................................................................................................................................ 1 1.2. REFERENCES ............................................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT.................................................................................................................. 2 2.1. CLIENT AND MANUFACTURER INFORMATION .................................................................................................. 2 2.2. DEVICE UNDER TEST (D.U.T.) DESCRIPTION .......................................................................................................... 3 2.2.1. Photograph of D.U.T .............................................................................................................................................. 3 2.3. LIST OF D.U.T.’S ACCESSORIES: .............................................................................................................................. 4 2.3.1. Li-ion Chargeable Battery (M/N: BP-265) ............................................................................................................. 4 2.3.2. Ni-MH Chargeable Battery (M/N: BP-264) ........................................................................................................... 4 2.3.3. BP-263 Alkaline Battery Case for 6*AA (LR6)....................................................................................................... 5 2.3.4. Belt-clip (M/N: MB-124)......................................................................................................................................... 5 2.3.5. Antennas: FA-SC57U (Red Ring) ........................................................................................................................... 6 2.3.6. Antennas: FA-SC72U (Blue Ring) .......................................................................................................................... 6 2.3.7. Stubby Antenna: FA-SC73US (Red Ring) ............................................................................................................... 7 2.3.8. Cut Antenna: FA-SC61UC (White Ring) ................................................................................................................ 7 2.3.9. Earphone-microphone (M/N: HM-171GP)............................................................................................................. 8 2.3.10. Speaker-microphone (M/N: HM-159L) .................................................................................................................. 8 2.3.11. Handset (M/N: HS-94) + Plug Adapter Cable (M/N: OPC-2004) ......................................................................... 9 2.3.12. Tube Earphone (MN: SP-27) .................................................................................................................................. 9 2.4. SPECIAL CHANGES ON THE D.U.T.’S HARDWARE/SOFTWARE FOR TESTING PURPOSES........................ 10 2.5. ANCILLARY EQUIPMENT ....................................................................................................................................... 10 2.6. SPECIFIC OPERATING CONDITIONS................................................................................................................................10 EXHIBIT 3. SUMMARY OF TEST RESULTS ................................................................................................................ 11 3.1. LOCATION OF TESTS ............................................................................................................................................... 11 3.2. APPLICABILITY & SUMMARY OF SAR RESULTS ............................................................................................... 11 3.3. SUMMARY OF MEASUREMENT RESULTS......................................................................................................................... 12 3.3.1. Head Configuration Results of Part 1: Antennas (FA-SC57U, FA-SC72U and FA-SC73US) ............................. …

Text truncated - open the document above for the full version.

Test Report

UHF Handheld Transceiver Model No.: IC-F4101D FCC ID: AFJ332902 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku,Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-272FCC90 This Test report is Issued under the Authority of Tri M. Luu, BASc, Vice President of Engineering UltraTech Group of Labs Date: June 22, 2011 Report Prepared by: Dharmajit Solanki Issued Date: June 22, 2011 Tested by: Wei Wu Test Dates: May 31 to June 20, 2011  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected] , Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Contents i UHF Handheld Transceiver, Model IC-F4101D FCC ID: AFJ332902 ULTRATECH GROUP OF LABS File #: ICOM-272FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 June 16, 2011 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 1 1.1. SCOPE............................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ...................................................................................................................... 1 1.3. NORMATIVE REFERENCES ...................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT.................................................................................................................. 2 2.1. CLIENT INFORMATION ............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................ 2 2.3. EUT’S TECHNICAL SPECIFICATIONS ..................................................................................................................... 3 2.4. LIST OF EUT’S PORTS ................................................................................................................................................ 4 2.5. GENERAL TEST SETUP .............................................................................................................................................. 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS................................... 5 3.1. CLIMATE TEST CONDITIONS................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS ................................................ 5 EXHIBIT 4. SUMMARY OF TEST RESULTS .................................................................................................................. 6 4.1. LOCATION OF TESTS ................................................................................................................................................. 6 4.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS........................................................................... 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES .......................................... 6 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS .................................. 7 5.1. TEST PROCEDURES .................................................................................................................................................... 7 5.2. MEASUREMENT UNCERTAINTIES.......................................................................................................................... 7 5.3. MEASUREMENT EQUIPMENT USED....................................................................................................................... 7 5.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ........................................... 7 5.5. RF POWER OUTPUT [§§ 2.1046 & 90.205] ................................................................................................................ 8 5.6. AUDIO FREQUENCY RESPONSE [§§ 2.1047(A) & 90.242(B)(8)]........................................................................... 9 5.7. MODULATION LIMITING [§§ 2.1047 (B) & 90.210] .............................................................................................. 12 5.8. OCCUPIED BANDWIDTH & EMISSION MASK [§§ 2.1049, 90.209 & 90.210] .................................................... 15 5.9. TRANSMITTER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS [§§ 2.1051, 2.1057 & 90.210]...................................................................................................................................................................... 35 5.10. TRANSMITTER SPURIOUS/HARMONIC RADIATED EMISSIONS [§§ 2.1053, 2.1057 & 90.210].................... 48 5.11. FREQUENCY STABILITY [§§ 2.1055 & 90.213] ..................................................................................................... 51 5.12. TRANSIENT FREQUENCY BEHAVIOR [§ 90.21…

Text truncated - open the document above for the full version.

Test Setup Photos

ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F4101D FCC ID: AFJ332902 Radiated Transmitter Emission Test at 3m, 30 MHz to 1GHz ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F4101D FCC ID: AFJ332902 Radiated Transmitter Emission Test at 3m, 30 MHz to 1GHz ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F4101D FCC ID: AFJ332902 Radiated Transmitter Emission Test at 3m, 30 MHz to 1GHz ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F4101D FCC ID: AFJ332902 Radiated Transmitter Emission Test at 3m, Above 1GHz ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F4101D FCC ID: AFJ332902 Radiated Transmitter Emission Test

Contact Information

Applicant

Atsushi Tomiyama(General Manager)
[email protected]+81667938424Fax: +81667933336

Test Firm

UltraTech Engineering Labs Inc.Tri Luu
[email protected]905-829-1570Fax: 905-829-8050

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
69450 MHz - 512 MHz1 W4K00F1D1 ppm
Confidentiality
Long Term
Grant Notes
Output is at the antenna terminal of the device and must not exceed that tested for SAR compliance. This transmitter may operate with the antennas tested for this filing in Push-to-Talk and body-worn configurations. Body-worn SAR compliance is limited to the specific belt-clip and speaker/microphone configurations tested for this filing. This device must be restricted to work related operations in an Occupational/Controlled RF exposure Environment. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational /Controlled SAR limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements and users must be provided with the training information. The maximum peak spatial - average SAR measured was found to be 4.27 W/Kg for head configuration and 5.90 W/Kg for body configuration with 50% usage-based time-averaging applied for PTT device.
