AFJ370500VHF FM Repeater

January 28, 2015 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Certification under FCC 47 CFR, Parts 2, 22, 74, 80 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 136-174 MHz (25 kHz, 12.5 kHz and 6.25 kHz Channel Spacing) Applicant: ICOM Incorporated Product: VHF FM Repeater Model: IC-FR5200H FCC ID: AFJ370500 Dear Sir/Madam: As appointed agent for ICOM Incorporated, we would like to submit the application to you for FCC certification of the above product. Please review all files uploaded to your electronic filing site. Note 1: As declared by the applicant in the attestation letter submitted with this filing, 25kHz channel spacing (16K0F3E) operation of this radio is permanently disabled for Part 90 use as required by FCC mandate. Test performed for 25kHz channel spacing are for parts 22, 74 & 80 certifications only. Note 2: ICOM hereby request FCC to list the entire frequency range from 136-174 MHz under FCC rules as per the reasons explained in the attached Frequency Justification letter submitted with this filing. If you have any queries, please do not hesitate to contact us. Yours truly, Dharmajit Solanki Dharmajit Solanki Authorized Agent UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 91038 1309 46390-2049 NVLAP LAB CODE 200093-0 SL2-IN-E-1119R Korea KCC-RRA CA2049 TL363_B TPTDP DA1300 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

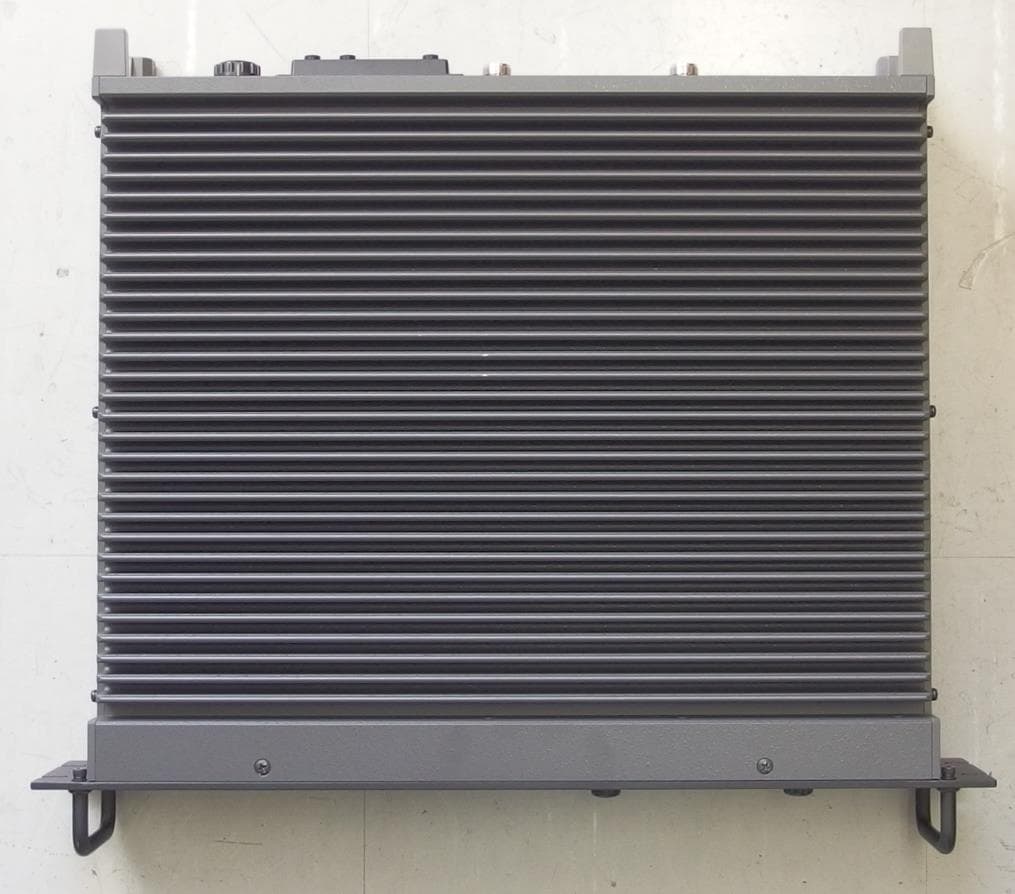

Photographs of the equipment 1 Front view Rear view Right view Left view Photographs of the equipment 2 Top view Bottom view

Photographs of the equipment 4 MAIN Side A MAIN Side B Photographs of the equipment 4 MAIN Side A MAIN Side B Photographs of the equipment 5 FRONT Side A FRONT Side B Photographs of the equipment 5 FRONT Side A FRONT Side B Photographs of the equipment 6 CONNECT Side A CONNECT Side B Photographs of the equipment 6 CONNECT Side A CONNECT Side B Photographs of the equipment 7 CONTROL Side A CONTROL Side B Photographs of the equipment 7 CONTROL Side A CONTROL Side B

FCC Parts 2, 22, 74, 80 and 90 Subpart I, Non-Broadcast Radio Transceivers Page 94 of 104 VHF FM Repeater, Model: IC-FR5200H FCC ID: AFJ370500 ULTRATECH GROUP OF LABS File #: 15ICOM388_FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 January 28, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.13. RF EXPOSURE REQUIREMENTS [§§ 1.1310 & 2.1091] 5.13.1. Limits § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 6141.63*(100) 6 3.0-30 1842/f4.89/f*(900/f 2 ) 6 30-300 61.40.1631.0 6 300-1500 f/300 6 1500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 6141.63*(100) 30 1.34-30 824/f2.19/f*(180/f 2 ) 30 30-300 27.50.0730.2 30 300-1500 f/1500 30 1500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC Parts 2, 22, 74, 80 and 90 Subpart I, Non-Broadcast Radio Transceivers Page 95 of 104 VHF FM Repeater, Model: IC-FR5200H FCC ID: AFJ370500 ULTRATECH GROUP OF LABS File #: 15ICOM388_FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 January 28, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.13.2. Method of Measurements Calculation Method of RF Safety Distance : 22 44r EIRP r PG S ⋅ = ⋅ = ππ Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm S EIRP S PG r ⋅ = ⋅ = ππ44 FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device. 5.13.3. Evaluation of RF Exposure Compliance Requirements Maximum RF Power conducted, P conducted [W]: 50.0 Maximum Antenna Gain, G[dBi]: 0 Maximum EIRP, P EIRP [W]: 50.0 User-based time-average for PTT 100% (Repeater worst case) MPE Limit for Occupational/Controlled Exposure, S controlled [mW/cm 2 ]: 1.0 MPE Limit for General Population/Uncontrolled Exposure, S uncontrolled [mW/cm 2 ] 0.2 Calculated RF Safety Distance for Occupational/Controlled Exposure, r safety_controlled [cm]: 64 Calculated RF Safety Distance for General Population/Uncontrolled Exposure, r safety_uncontrolled [cm] 141

VHF FM Repeater Model No.: IC-FR5200H FCC ID: AFJ370500 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka, Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2, 22, 74, 80 and 90 (Subpart I) UltraTech's File No.: 15ICOM388_FCC90 This Test report is Issued under the Authority of Tri M. Luu, BASc, Vice President of Engineering UltraTech Group of Labs Date: January 28, 2015 Report Prepared by: Dharmajit Solanki Issued Date: January 28, 2015 Tested by: Wei Wu Test Dates: Jan 07 – Jan.16, 2015  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] Korea KCC- RRA 91038 1309 46390-2049 NVLAP LAB CODE 200093-0 SL2-IN-E- 1119R CA2049 TL363_B TPTDP DA1300 FCC Parts 2, 22, 74, 80 and 90 Subpart I, Non-Broadcast Radio Transceivers Contents i VHF FM Repeater, Model IC-FR5200H FCC ID: AFJ370500 ULTRATECH GROUP OF LABS File #: 15ICOM388_FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 January 28, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 1 1.1. SCOPE ............................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ...................................................................................................................... 1 1.3. NORMATIVE REFERENCES ...................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT .................................................................................................................. 2 2.1. CLIENT INFORMATION ............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................ 2 2.3. EUT’S TECHNICAL SPECIFICATIONS ..................................................................................................................... 3 2.4. LIST OF EUT’S PORTS ................................................................................................................................................ 4 2.5. ANCILLARY EQUIPMENT ......................................................................................................................................... 4 2.6. GENERAL TEST SETUP .............................................................................................................................................. 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ................................... 5 3.1. CLIMATE TEST CONDITIONS ................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS ................................................ 5 EXHIBIT 4. SUMMARY OF TEST RESULTS .................................................................................................................. 6 4.1. LOCATION OF TESTS ................................................................................................................................................. 6 4.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS........................................................................... 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES .......................................... 6 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS .................................. 7 5.1. TEST PROCEDURES .................................................................................................................................................... 7 5.2. MEASUREMENT UNCERTAINTIES .......................................................................................................................... 7 5.3. MEASUREMENT EQUIPMENT USED ....................................................................................................................... 7 5.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ........................................... 7 5.5. RF POWER OUTPUT [§§ 2.1046, 22.565, 74.461, 80.215 & 90.205] .......................................................................... 8 5.6. AUDIO FREQUENCY RESPONSE [§ 2.1047(A), 80.213(E) & 90.242(B)(8)] ........................................................... 9 5.7. MODULATION LIMITING [§§ 2.1047 (B), 74.463, 80.213 & 90.210] ..................................................................... 14 5.8. OCCUPIED BANDWIDTH & EMISSION MASK [§§ 2.1049, 74.462, 80.211(F), 90.209 & 90.210] ...................... 19 5.9. TRANSMITTER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS [§ 2.1051, 2.1057, 22.359, 80.211(F)(3) & 90.210].................................................................................................................................... 69 5.10. TRANSMITTER SPURIOUS/HARMONIC RADIATED EMISSIONS [§§ 2.1053, 2.1057, 22.359, 80.211(F)(3) & 90.210] ....................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated VHF FM Repeater, M/N: IC-FR5200H FCC ID: AFJ370500 Plot #1: Tx Radiated Emission Test Setup ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated VHF FM Repeater, M/N: IC-FR5200H FCC ID: AFJ370500 Plot #2: Tx Radiated Emission Test Setup ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated VHF FM Repeater, M/N: IC-FR5200H FCC ID: AFJ370500 Plot #3: Tx Radiated Emission Test Setup
