AFJ372300VHF Marine Transceiver

INSTRUCTION MANUAL iM25EURO iM25 VHF MARINE TRANSCEIVER This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. ii FOREWORD Thank you for purchasing this Icom radio. The IC-M25/IC- M25EURO VHF MARINE TRANSCEIVER is designed and built with Icom’s state of the art technology and craftsmanship. With proper care this radio should provide you with years of trouble-free operation. IMPORTANT READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL—This instruction manual contains important operating instructions for the IC-M25/IC-M25EURO. EXPLICIT DEFINITIONS WORDDEFINITION RDANGER! Personal death, serious injury or an explo- sion may occur. RWARNING! Personal injury, fire hazard or electric shock may occur. CAUTION Equipment damage may occur. NOTE If disregarded, only inconvenience. No risk of personal injury, fire or electric shock. FEATURES Floats on water The transceiver floats in fresh or salt water even when the supplied acces- sories are attached. s)TMAYSINKWHENATHIRD PARTYSTRAP AN- tenna, and so on is attached. Floats and flashes An LED sends out intermittent light from a transparent section on the bottom of the radio, while floating in the water. As the LED light stands out in the dark, the radio can be easily retrieved from the water. This function works even when the radio is turned OFF. Floats and flashes and alert An alert sounds when the radio is dropped into the water so that you can noticed that you dropped the radio. For Canada: This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference. Cet appareil est conforme au CNR-310 d’Industrie Canada. Son exploitation est autorisée sous réserve que l’appareil ne cause pas de brouillage préjudiciable. ii IN CASE OF EMERGENCYRECOMMENDATION If your vessel requires assistance, contact other vessels and the Coast Guard by sending a distress call on Channel 16. MUSING CHANNEL 16 DISTRESS CALL PROCEDURE 1. “MAYDAY MAYDAY MAYDAY.” 2. “THIS IS .................. ” (name of vessel) 3. Your call sign or other indication of the ves- sel. 4. “LOCATED AT ............... ” (your position) 5. The nature of the distress and assistance required. 6. Any other information which might facilitate the rescue. CLEAN THE TRANSCEIVER THOROUGHLY WITH FRESH WATER after exposure to saltwater, and dry it before operat- ing. Otherwise, the transceiver's keys, switches and control- lers may become unusable due to salt crystallization. NOTE: DO NOT submerge the transceiver in water if there is any reason to suspect the waterproof protection may not be effective. For example, in cases where the [SP/MIC] jack cap or [DC] connector cover seal is damaged, the transceiver/ [DC] connector cover is cracked or broken, or the transceiver has been dropped, or when the antenna or DC connector cover is detached from the transceiver. iii RADIO OPERATOR WARNING Your Icom radio generates RF electromagnetic energy dur- ing transmit mode. This radio is designed for and classified as “General Population Use” in an uncontrolled environment. This radio has been evaluated for compliance at the distance of 2.5 cm (1 inch) with the FCC and IC RF exposure limits for “ General Population Use.” In addition, your Icom radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: s&##/%4"ULLETIN%DITION 3UPPLEMENT# %VALUATING#OMPLI- ance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. s!MERICAN.ATIONAL3TANDARDS)NSTITUTE#  )%%%3TANDARD for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. s!MERICAN.ATIONAL3TANDARDS)NSTITUTE#  )%%%2ECOM- mended Practice for the Measurement of Potentially Hazardous Electro- magnetic Fields– RF and Microwave. s4 HEFOLLOWINGACCESSORIESAREAUTHORIZEDFORUSEWITHTHISPRODUCT5SEOF accessories other than those specified may result in RF exposure levels exceeding the FCC and IC REQUIREMENTSFORWIRELESS2&EXPOSURE"ELT #LIP-"  2ECHARGEABLE,I ION"ATTERY0ACK"0   To ensure that your expose to RF electromagnetic energy is within the FCC and IC allowable limits for general popu- lation use, always adhere to the following guidelines: sDO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you to exceed FCC and IC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or antenna specifically authorized by the manufacturer for use with this radio. sDO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC and IC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “transmit indicator” appears on the LCD. You can cause the radio to transmit by pressing the “PTT” switch. sALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt clip which is listed on page 43 when attaching the radio to your belt, etc., to ensure FCC and IC RF exposure compliance requirements are not exceeded. To provide the re- cipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from your mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to assure that this radio operates with the FCC and IC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your Icom radio generates RF energy that can possibly cause interference with other dev…

Text truncated - open the document above for the full version.

May 14, 2015 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Authorization under FCC 47 CFR, Parts 2, 80 (Marine in 156.025-157.425 MHz Band) - Non-Broadcast Radio Transceivers. Applicant: ICOM Incorporated Product: VHF Marine Transceiver Model: IC-M25 FCC ID: AFJ372300 Dear Sir/Madam: As appointed agent for ICOM Incorporated, we submit the application for FCC certification of the above product. Kindly review all required documents uploaded to your E-Filing Site. If you have any queries, please do not hesitate to contact us. Yours truly, Dharmajit Solanki Dharmajit Solanki Authorized Agent UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 91038 1309 46390-2049 NVLAP LAB CODE 200093-0 SL2-IN-E-1119R Korea KCC-RRA CA2049 TL363_B TPTDP DA1300 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

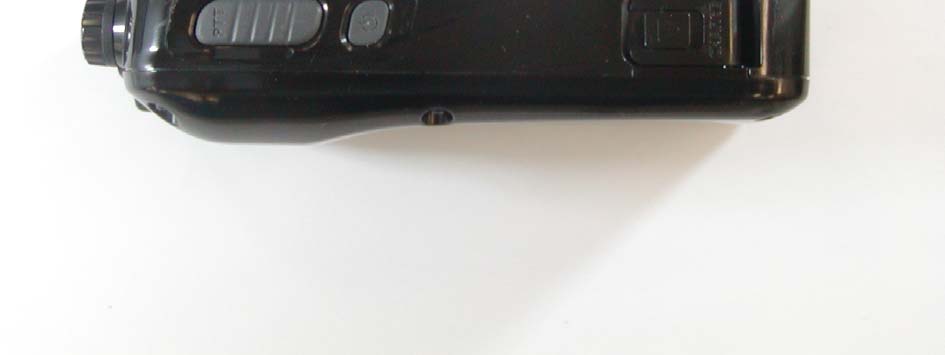

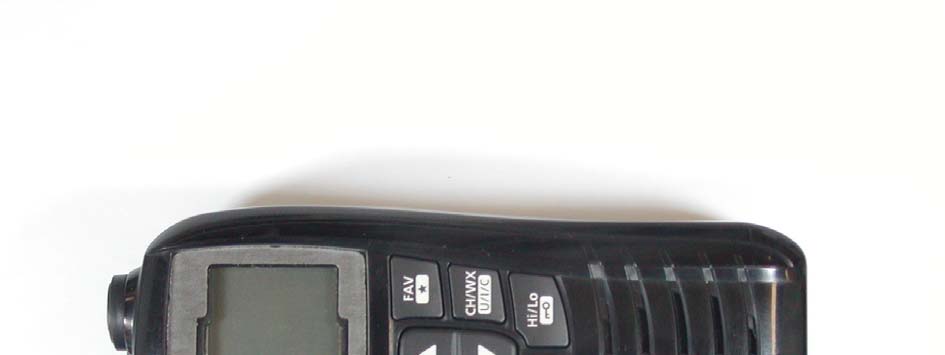

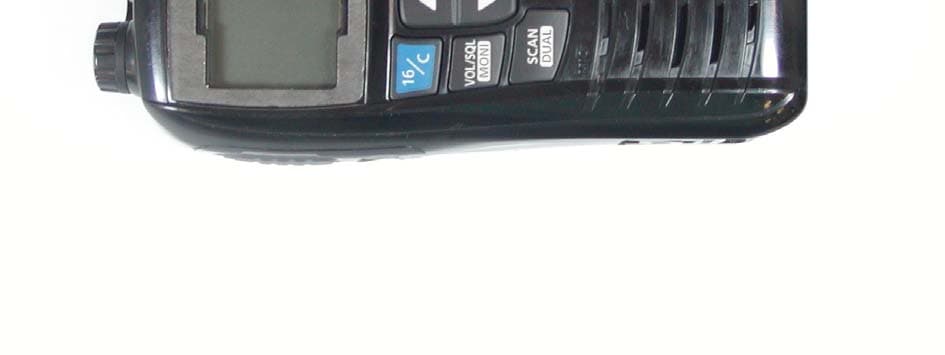

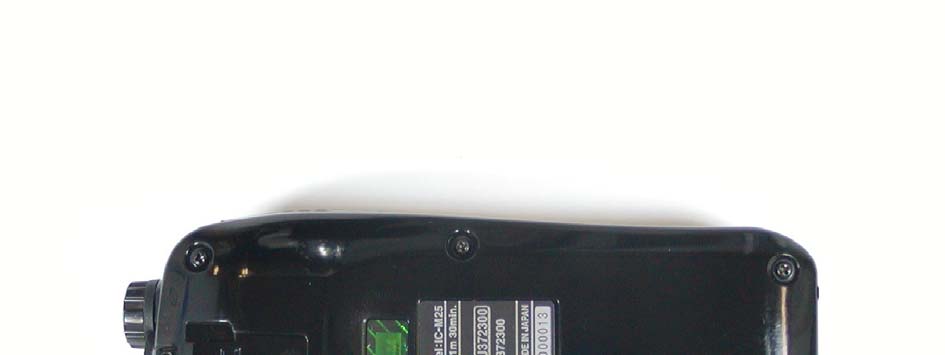

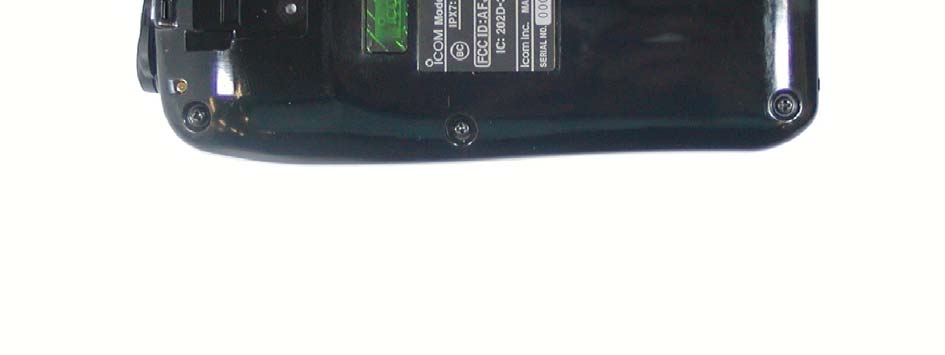

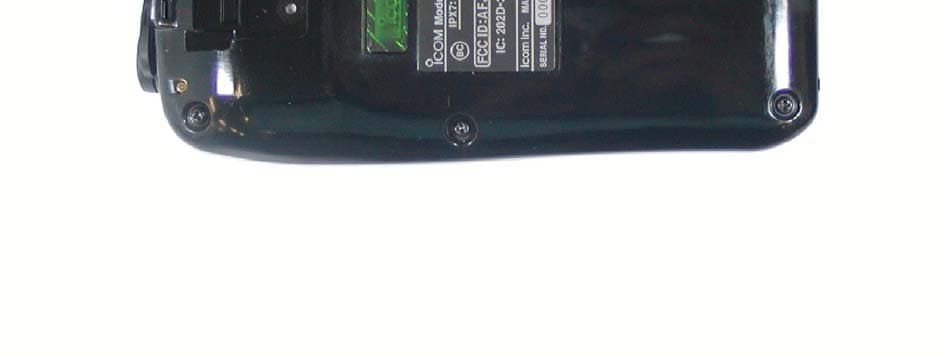

IC-M25 Serial Seal Location Serial Seal FCC Serial Seal

iii RADIO OPERATOR WARNING Your Icom radio generates RF electromagnetic energy dur- ing transmit mode. This radio is designed for and classified as “General Population Use” in an uncontrolled environment. This radio has been evaluated for compliance at the distance of 2.5 cm (1 inch) with the FCC and IC RF exposure limits for “ General Population Use.” In addition, your Icom radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 01-01 Supplement C, Evaluating Compli- ance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recom- mended Practice for the Measurement of Potentially Hazardous Electro- magnetic Fields– RF and Microwave. • The following accessories are authorized for use with this product. Use of accessories other than those specified may result in RF exposure levels exceeding the FCC and IC requirements for wireless RF exposure.; Belt Clip (MB-133), Rechargeable Li-ion Battery Pack (BP-282). To ensure that your expose to RF electromagnetic energy is within the FCC and IC allowable limits for general popu- lation use, always adhere to the following guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you to exceed FCC and IC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or antenna specifically authorized by the manufacturer for use with this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC and IC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “transmit indicator” appears on the LCD. You can cause the radio to transmit by pressing the “PTT” switch. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt clip which is listed on page 43 when attaching the radio to your belt, etc., to ensure FCC and IC RF exposure compliance requirements are not exceeded. To provide the re- cipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from your mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to assure that this radio operates with the FCC and IC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your Icom radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. iv AVERTISSEMENT POUR LES OPÉRATEURS RADIO Votre radio Icom produit une énergie électromagnétique de radiofréquences (RF), en mode de transmission. Elle est conçue pour une «utilisation grand public», dans un environnement non contrôlé. Cet appareil a été évalué et jugé conforme, à 2,5 cm, aux limites d'exposition aux RF de la FCC et d’IC, pour une «utilisation grand public». En outre, votre radio Icom satisfait les normes et directives qui suivent en matière de niveaux d'énergie et d'énergie électromagnétique de RF et d'évaluation de tels niveaux en ce qui concerne l'exposition humaine : • Supplément C, édition 01-01, du Bulletin OET de la FCC, «Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields». • Norme de l’American National Standards Institute (ANSI) : IEEE C95.1- 1992 sur les niveaux de sécurité compatibles avec l’exposition humaine aux champs électromagnétiques de radiofréquences (3 kHz à 300 GHz). • Norme de l’ANSI : IEEE C95.3-1992 sur la méthode d’évaluation recomman- dée du champ magnétique potentiellement dangereux des radiofréquences et des micro-ondes. • Les accessoires qui suivent sont approuvés pour une utilisation avec ce produit. L'utilisation d'accessoires autres que ceux précisés peut entraîner des niveaux d'exposition aux RF supérieures aux limites établies par la FCC et d’IC en matière d'exposition aux RF sans fil; attache pour ceinture (MB- 133), bloc-piles rechargeable au lithium-ion (BP-282). CAUTION Afin de vous assurer que votre exposition à une énergie électromagnétique de RF se situe dans les limites permises par la FCC et d’IC pour une utilisation grand public, veuillez en tout temps respecter les directives suivantes : • NE PAS faire fonctionner la radio sans qu'une antenne appropriée y soit fixée, car ceci risque d'endommager la radio et causer une exposition supérieure aux limites établies par la FCC et d’IC. L'antenne appropriée est celle qui est fournie avec cette radio par le fabricant ou une antenne spécialement autorisée par le fabricant pour être utilisée avec cette radio. • NE PAS émettre pendant plus de 50% du temps total d'utilisation de l'appareil («50% du facteur d'utilisation»). Émettre pendant plus de 50% du temps total d'utilisation peut causer une exposition aux RF supérieure aux limites établies par la FCC et d’IC. La radio est en train d’émettre lorsque le témoin du mode de transmission s'affiche sur l'écran ACL. La radio émettra si vous appuyez sur le bouton du microphone. • TOUJOURS tenir l'antenne éloignée d'au moins 2,5 cm de votre corps au moment d'émettre et utiliser uniquement l'attache pour ceinture Icom illustrée à la p. 43, lorsque vous attachez la radio à votre ceinture, ou à autre chose, de façon à vous assurer de ne pas provoquer une expositio…

Text truncated - open the document above for the full version.

9 IEE This Test re Tri M. Luu Vice Presid UltraTech G Date: Apr 1 Report Prep Natasha Ke Issued Date Apr 15, 20 91038 1 SAR (S EE C95.1-2005 eport is Issued u, BASc, dent of Enginee Group of Labs 15, 2015 pared by: ee e: 15 The results in Website 309 46 Specific Absor 5, FCC OET B Ul under the Aut ering n this Test Repor Ultr 3000 e: www.ultratech-l 6390-2049 VHF Mar Model FCC I IC: 2 T ICOM 1-1-32, Kam Osaka, In ac rption Rate) R Bulletin 65 (Su ltraTech’s Fil thority of rt apply only to t raTech 0 Bristol Circle, Oa Tel.: (905) 829- labs.com , Email: v NVLAP LA CODE 20009 rine Trans No.: IC-M ID: AFJ3723 202D-372300 Tested For M Incorporat miminami, Hir , Japan 547-00 ccordance with Requirements u upplement C) e No.: 15ICO M Tested b Natasha Test Dat Apr 6 ~ the sample(s) tes Group akville, Ontario, C -1570 Fax.: (905) vic@ultratech-lab AB 93-0 SL2-I N sceiver M25 00 0 ted rano-ku 03 h using guidelin and Industry M406_SAR by: a Kee tes: Apr 15, 2015 sted, which has b p of Lab Canada, L6H 6G4 829-8050 s.co m , Email: tri@ N-E-1119R nes established Canada RSS- been randomly s bs @ultratech-labs.co Korea KCC-RRA CA2049 d in -102 (Issue 4) selected. om TL363_B TPTDP DA1300 SPECIFIC ABSORPTION RATE (SAR) Contents i IEEE C95.1-2005, FCC OET Bulletin 65 (Supplement C) and Industry Canada RSS-102 (Issue 4) VHF Marine Transceiver, M/N: IC-M25 FCC ID: AFJ372300, IC: 202D-372300 ULTRATECH GROUP OF LABS File #: 15ICOM406_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Apr 15, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com  All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 1 1.1. SCOPE ............................................................................................................................................................................ 1 1.2. REVISION HISTORY ................................................................................................................................................... 1 1.3. REFERENCES ............................................................................................................................................................... 2 EXHIBIT 2. PERFORMANCE ASSESSMENT .................................................................................................................. 3 2.1. CLIENT AND MANUFACTURER INFORMATION .................................................................................................. 3 2.2. DEVICE UNDER TEST (D.U.T.) DESCRIPTION ....................................................................................................... 4 2.3. LIST OF D.U.T.’S ACCESSORIES: ............................................................................................................................. 6 2.4. SPECIAL CHANGES ON THE D.U.T.’S HARDWARE/SOFTWARE FOR TESTING PURPOSES ...................... 10 2.5. ANCILLARY EQUIPMENT ....................................................................................................................................... 10 2.6. SPECIFIC OPERATING CONDITIONS .................................................................................................................... 11 EXHIBIT 3. SUMMARY OF TEST RESULTS ................................................................................................................ 12 3.1. LOCATION OF TESTS ............................................................................................................................................... 12 3.2. APPLICABILITY & SUMMARY OF SAR RESULTS .............................................................................................. 12 3.3. SUMMARY OF MEASUREMENT RESULTS .......................................................................................................... 13 3.4. DASY5 SYSTEM OVERVIEW ................................................................................................................................... 14 3.5. SAR TEST PHANTOMS ............................................................................................................................................. 18 EXHIBIT 4. SAR DATA ACQUISITION METHODOLOGY ........................................................................................ 19 4.1. SAR MEASUREMENT PROCEDURE ....................................................................................................................... 19 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA ........................................................................... 24 5.1. TEST CONFIGURATIONS ......................................................................................................................................... 24 5.2. GENERAL TEST SETUP ............................................................................................................................................ 24 5.3. PHOTOGRAPHS OF TISSUE DEPTH ....................................................................................................................... 26 5.4. PHOTOGRAPHS OF D.U.T. POSITION .................................................................................................................... 27 5.5. STANDARD SOURCE ................................................................................................................................................ 29 5.6. STANDARD SOURCE INPUT POWER MEASUREMENT ..................................................................................... 30 5.7. SYSTEM VALIDATION PROCEDURE .................................................................................................................... 30 5.8. VERIFICATION RESULTS .............…

Text truncated - open the document above for the full version.

SPECIFIC ABSORPTION RATE (SAR) Page 1 of 20 VHF Marine Transceiver M/N: IC-M25 FCC ID: AFJ372300, IC:202D-372300 ULTRATECH GROUP OF LABS File #: ICOM-406Q-SAR-Appendix 1.docx 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Apr 10, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com  All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) ICOM-406Q-SAR.docx APPENDIX 1 SAR Measurement Data SPECIFIC ABSORPTION RATE (SAR) Page 2 of 20 VHF Marine Transceiver M/N: IC-M25 FCC ID: AFJ372300, IC:202D-372300 ULTRATECH GROUP OF LABS File #: ICOM-406Q-SAR-Appendix 1.docx 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Apr 10, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com  All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS Contents EXHIBIT 1. HEAD SAR MEASUREMENT SUMMARY ................................................................................................. 3 EXHIBIT 2. BODY SAR MEASUREMENT SUMMARY ............................................................................................... 14 SPECIFIC ABSORPTION RATE (SAR) Page 3 of 20 VHF Marine Transceiver M/N: IC-M25 FCC ID: AFJ372300, IC:202D-372300 ULTRATECH GROUP OF LABS File #: ICOM-406Q-SAR-Appendix 1.docx 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Apr 10, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com  All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) EXHIBIT 1. HEAD SAR MEASUREMENT SUMMARY Antenna Power (W)CH CH. Freq HEAD SAR1g (W/Kg) BP‐282 (MHz) 1500mAh FA‐SC59V 156mm 156‐163 MHz 4.68 1 156.05 1.24 4.64 16 156.8 0.987 4.61 28 157.4 1.02 SPECIFIC ABSORPTION RATE (SAR) Page 4 of 20 VHF Marine Transceiver M/N: IC-M25 FCC ID: AFJ372300, IC:202D-372300 ULTRATECH GROUP OF LABS File #: ICOM-406Q-SAR-Appendix 1.docx 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Apr 10, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com  All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TEST LABORATORY: ULTRATECH GROUP OF LABS File Name: BP-282 SC59V 156mm 156.05MHz.da52:0 DUT: ICOM VHF Transceiver; Type: IC-M25; Serial: 00000022 Program Name: Body Back with FA-SC59V Communication System: UID 0, CW; Frequency: 156.05 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 156.05 MHz; σ = 0.736 S/m; ε r = 53.007; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV3 - SN3208; ConvF(7.43, 7.43, 7.43); Calibrated: 1/23/2015; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn874; Calibrated: 10/9/2014 - Phantom: ELI 4.0; Type: QD OVA 001 BB; Serial: 1057 - ; SEMCAD X Version 14.6.10 (7331) Configuration_Head_IC-M25/Front to Face, P=5W, d=25mm/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 45.50 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 1.82 W/kg SAR(1 g) = 1.24 W/kg; SAR(10 g) = 0.924 W/kg (SAR corrected for target medium) Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.39 W/kg Configuration_Head_IC-M25/Front to Face, P=5W, d=25mm/Area Scan (61x201x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 1.48 W/kg SPECIFIC ABSORPTION RATE (SAR) Page 5 of 20 VHF Marine Transceiver M/N: IC-M25 FCC ID: AFJ372300, IC:202D-372300 ULTRATECH GROUP OF LABS File #: ICOM-406Q-SAR-Appendix 1.docx 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Apr 10, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com  All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 0 dB = 1.39 W/kg = 1.44 dBW/kg SPECIFIC ABSORPTION RATE (SAR) Page 6 of 20 VHF Marine Transceiver M/N: IC-M25 FCC ID: AFJ372300, IC:202D-372300 ULTRATECH GROUP OF LABS File #: ICOM-406Q-SAR-Appendix 1.docx 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Apr 10, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com  All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) Test Laboratory: Ultratech Group of Labs FILE NAME: BP-282 SC59V 156MM 157.4MHZ.DA52:0 DUT: ICOM VHF Transceiver; Type: IC-M25; Serial: 00000022 Program Name: Body Back with FA-SC59V Communication System: UID 0, CW; Frequency: 157.4 MHz;Duty Cycle: 1:1 Medium parameters used: f = 158 MHz; σ = 0.736 S/m; ε r = 52.812; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV3 - SN3208; ConvF(7.43, 7.43, 7.43); Calibrated: 1/23/2015; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn874; Calibrated: 10/9/2014 - Phantom: ELI 4.0; Type: QD OVA 001 BB; Serial: 1057 - ; SEMCAD X Version 14.6.10 (7331) Configuration_Head_IC-M25/Front to Face, P=5W, d=25mm/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 45.16 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 1.01 W/kg; SAR(10 g) = 0.759 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 1.13 W/kg Configuration_Head_IC-M25/Front to Face, P=5W, d=25mm/Area Scan (61x201x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.23 W/kg SPECIFIC ABSO…

Text truncated - open the document above for the full version.

VHF Marine Transceiver Model No.: IC-M25 FCC ID: AFJ372300 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku, Osaka Japan 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Part 2, Part 80 (Marine in 156.025-157.425 MHz) UltraTech's File No.: 15ICOM406_FCC80 This Test report is Issued under the Authority of Tri M. Luu Vice President of Engineering UltraTech Group of Labs Date: May 14, 2015 Report Prepared by: Dharmajit Solanki Issued Date: May 14, 2015 Tested by: Wei Wu, RF Technician Test Dates: May 5 - 14, 2015 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] Korea KCC-RRA 91038 1309 46390-2049 NVLAP LAB CODE 200093-0 SL2-IN-E- 1119R CA2049 TL363_B TPTDP DA1300 FCC Parts 2, 80 (Marine in 156.025-157.425 MHz), Non-Broadcast Radio Transceivers Contents i VHF Marine Transceiver, Model: IC-M25 FCC ID: AFJ372300 ULTRATECH GROUP OF LABS File #: 15ICOM406_FCC80 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 May 14, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ......................................................................................................................................... 1 1.1. SCOPE ......................................................................................................................................................................... 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ................................................................................................................... 1 1.3. NORMATIVE REFERENCES ................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT .............................................................................................................. 2 2.1. CLIENT INFORMATION .......................................................................................................................................... 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ............................................................................................. 2 2.3. EUT’S TECHNICAL SPECIFICATIONS .................................................................................................................. 3 2.4. LIST OF EUT’S PORTS ............................................................................................................................................. 3 2.5. ANCILLARY EQUIPMENT ...................................................................................................................................... 3 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 4 3.1. CLIMATE TEST CONDITIONS ................................................................................................................................ 4 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS ............................................. 4 EXHIBIT 4. SUMMARY OF TEST RESULTS ............................................................................................................... 5 4.1. LOCATION OF TESTS .............................................................................................................................................. 5 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS .............................................................. 5 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ....................................... 5 4.4. DEVIATION OF STANDARD TEST PROCEDURES ............................................................................................. 5 EXHIBIT 5. TEST DATA ................................................................................................................................................... 6 5.1. RF POWER OUTPUT [§§ 2.1046 & 80.215] ............................................................................................................. 6 5.2. MODULATION CHARACTERISTICS - AUDIO FREQUENCY RESPONSE [§§ 2.1047(A) & 80.213(E)] ......... 7 5.3. MODULATION LIMITING [§ 80.213 & § 2.1047(B)] ........................................................................................... 10 5.4. EMISSION MASK [§§2.1049, 80.205 & 80.211] ...................................................................…
