AFJAP-12Wireless Access Point

360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 49 of 63 APPENDIX J: MANUAL Please see the following pages. INSTRUCTION MANUAL WIRELESS ACCESS POINT AP-12 CONTENTS 1 SAFETY PRECAUTIONS 2 GENERAL 3 NOMENCLATURE 4 INSTALLING THE PRODUCT 5 CONNECTING THE PRODUCT 6 COMPUTER SETUP 7 AP-12 MANAGER 8 OPERATION TIPS 9 SETTING EXAMPLES 10 REFERENCE 11 AFTER SERVICE 12 SPECIFICATIONS 13 TERMINOLOGY INTRODUCTION INTRODUCTION CAUTION:Changes or modifications not expressly approved by Icom Inc. could void the user’s authority to operate this Access Point. Class B digital device users; This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. RF EXPOSURE SAFETY INFORMATION: CAUTION: To comply with the FCC RF exposure requirements, this transmitter (built- in antenna) must be installed with a separation distance of least 8 inches (20cm) from all persons and must not be co-located or operating in conjuction with any other antenna or transmitter. For CANADA only Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. ABOUT WIRELESS COMMUNICATION CHANNELS The wireless communication channel for the unit is referred to as “the DS Channel” (see page 25). AP-12 Tested to comply with FCC standards FOR HOME OR OFFICE USE FCC INFORMATION INTRODUCTION Thank you for purchasing an ICOM wireless access point. This wireless access point is provided with the functions necessary for supporting a wireless LAN. This manual is designed to help you use the product to its fullest potential. Read this manual carefully before using the product. FEATURES OF THE PRODUCT ""All settings can be adjusted using the provided utility program, AP-12 Manager. ""Up to 256 wireless terminals can be connected through the product. ""Windows 98/SE, ME, 2000 and Windows XP are supported. ""Networks combining wireless LAN and wired LAN components can be constructed with ease. ""The roaming function is provided in addition to the wireless access point function. ""11-Mbpswireless access point communications and 10BASE-T wired LAN communi- cations are allowed. ""Applicable ICOM wireless LAN cards include the following: (As of March 2002) SL-11 ""Security in communications is ensured by ESS IDsettings and WEPencryption. TRADEMARK CREDITS Icom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United states, the United Kingdom, Germany, France, Spain, Russia and/or other countries.Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries. The screen shots that appear in this manual are used with permission of Microsoft Corporation. Other product and company names mentioned herein are trademarks or registered trademarks of their respective owners. INTRODUCTION INTRODUCTION GENERAL PRECAUTIONS ™™Observe the instructions provided in the manuals included with the computer and other peripheral devices. ™™This device may cause signal interference when used in a domestic setting. When interference occurs, move this unit as far as possible away from the affected device. ™™The LAN unit drivers and the settings utility supplied with this unit are dedicated to the unit. Do not use them for other devices ™™Icom Inc. assumes no responsibility whatsoever for any damages or lost profits resulting from opportunities for voice or signal communications being missed because of the modifications, disassembly, failure, malfunctions, defects or data loss of the LAN unit, or because of such external causes as power failure; nor will Icom Inc. assume any responsibility for demands made by a third party. ™™All copyrights associated with this manual and all intellectual property rights associated with the hardware and software of this product are held by Icom Inc. ™™Unauthorized reproduction or transmission of this manual, or any part hereof, is prohibited. ™™The content of this manual, the hardware and software associated with this product, and the appearance of this product are all subject to change without notice. CONTENTS nWireless access point ·····························································4 Chapter 1 Safety Precautions (Be sure to read these precautions) ——1 Chapter 2 General —————————————————————4 Chapter 3 Nomenclature ——————————————————6 Chapter 4 Installing the Product———————————————7 nFront and rear panels ·····························································6 nInstallation method and location ·············································7 [Installation precautions]·····························································8 [Mounting to a shelf] ···································································9 [Connection precautions]·······…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 703 689-0368 ext 107 FAX 703 689-2056 April 19, 2002 RE: ICOM FCC ID: AFJAP-12 To Bill Graff: Kindly see below the answers to your questions, 1) The manual declares this device must be “fixed mounted on outdoor permanent structures with a separation distance of 20cm”. This is at odds with the installation instructions in Section 4 on page 7 of the manual. Statement corrected on page 4, a new manual will be uploaded upon receipt of DTS letter from manufacturer. 2.) The “Information to User” section described in 15.21 seems to be missing. If I am mistaken, please indicate where in the Manual it exists. The information to the User is on page 4 referenced under ‘Caution’ see page 4 attached. 3.) Parts Lists are not required for this type of Part 15 device, but a Parts List was uploaded to AmericanTCB. If this is to be included in the Confidentiality Request, please revise your letter. Kindly remove the part list from the application and forward to RTL. It was inadvertently uploaded to ATCB. 4.) Form 731 quotes EIRP as .0295W. This should be a conducted value. Corrected 5.) Form 731 and Test Report call this a DSS, but no processing gain is supplied. If this is to be a DTS, please supply a DTS request letter. A sample statement has been forwarded to the manufacturer for his signature. Thank you, Franck Schuppius mailto: [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 18, 2002 RE: ICOM FCC ID: AFJAP-12 I have a few comments on this Application. 1.) The manual declares this device must be “fixed mounted on outdoor permanent structures with a separation distance of 20cm”. This is at odds with the installation instructions in Section 4 on page 7 of the manual. 2.) The “Information to User” section described in 15.21 seems to be missing. If I am mistaken, please indicate where in the Manual it exists. 3.) Parts Lists are not required for this type of Part 15 device, but a Parts List was uploaded to AmericanTCB. If this is to be included in the Confidentiality Request, please revise your letter. 4.) Form 731 quotes EIRP as .0295W. This should be a conducted value. 5.) Form 731 and Test Report call this a DSS, but no processing gain is supplied. If this is to be a DTS, please supply a DTS request letter. Thank you, William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 41 of 63 APPENDIX B: AGENCY AUTHORIZATION LETTER

360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 42 of 63 APPENDIX C: CONFIDENTIALITY REQUEST LETTER

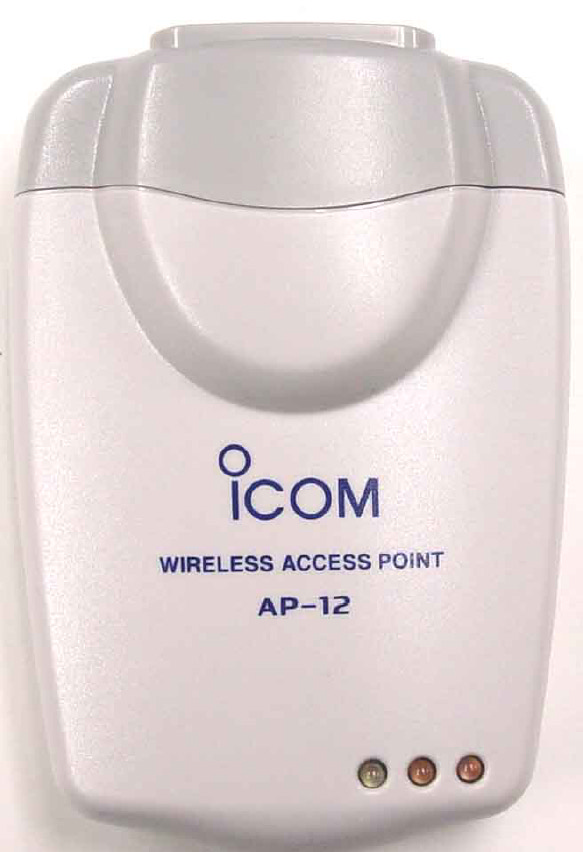

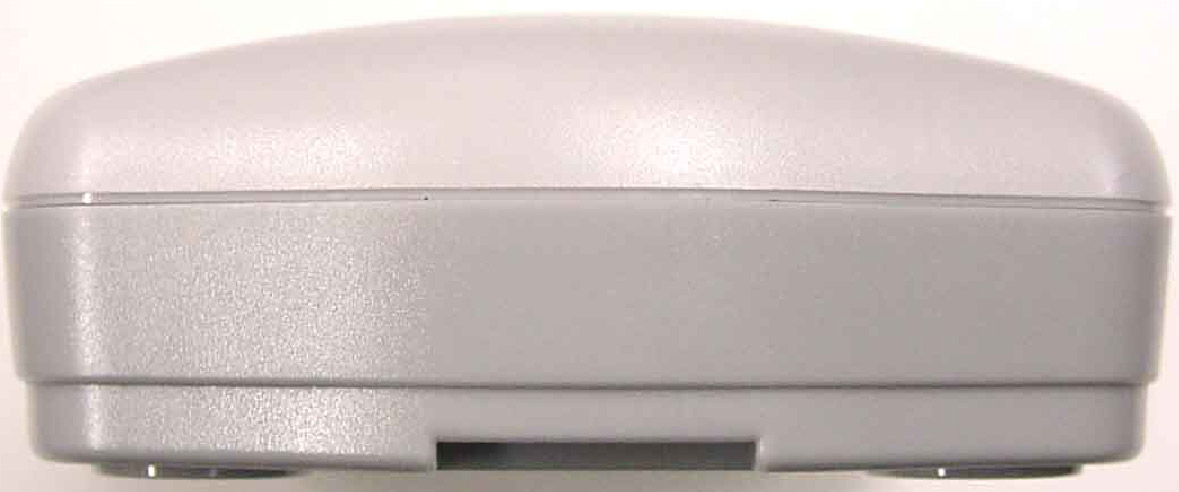

360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 52 of 63 APPENDIX L: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 4: TOP VIEW OF EUT 360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 53 of 63 PHOTOGRAPH 5: FRONT VIEW OF EUT PHOTOGRAPH 6: REAR VIEW OF HOST COMPUTER 360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 54 of 63 PHOTOGRAPH 7: RIGHT SIDE OF EUT PHOTOGRAPH 8: LEFT SIDE OF EUT

360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 45 of 63 APPENDIX F: LABEL AND LABEL LOCATION PHOTOGRAPH 1: IDENTIFICATION LABEL

360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 57 of 63 APPENDIX N: INTERNAL PHOTOGRAPHS PHOTOGRAPH 11: TOP VIEW MAIN PCB WITH SHIELD 360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 58 of 63 PHOTOGRAPH 12: BOTTOM VIEW MAIN PCB WITH SHIELD 360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 59 of 63 PHOTOGRAPH 13: TOP VIEW MAIN PCB WITHOUT SHIELD 360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 60 of 63 PHOTOGRAPH 14: BOTTOM VIEW MAIN PCB WITHOUT SHIELD

360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 44 of 63 APPENDIX E: PRODUCT DESCRIPTION 12 41 SPECIFICATIONS 11 12 • Applicable international standards : • Communication method: • Radio communication type: • Modulation method: • Frequency band: • Available channels: • Data transmission rates: • Transmission range: • Security: • Built-in antenna: • Transmission power: • Reception sensitivity: • Demodulation method: • Operating temperature range: • Input power: • Power consumption: • Outline dimensions: • Mass: • Supported machines: • Supported OS: IEEE 802.11/IEEE 802.11b Simplex Direct Sequence Spread Spectrum (DSSS) DPSK/DQPSK (Burger/CKK code) 2.4 GHz band (2400 – 2472 MHz) 1 – 11 Max. 11 Mbps Approx. 30m (indoor) at 11 Mbps WEP (Wired Equivalent Privacy) ESSID (Extended Service Set IDentifier) Diversity slot antenna Less than 1 W –76 dBm max. (frame error rate: 8%) Digital demodulation (matched filter type) 0 – +55°C 7.5 V DC ±5% (using supplied AC adaptor) Transmit450 mA (typical) Receive400 mA (typical) 100 (W) ×30.5 (H) ×70 (D) mm (excluding projections) Approx. 90 g (excluding accessories) PC/AT compatible machine, Windows 98, Windows 98 Second Edition, Windows Millennium Edition, Windows 2000 Windows XP * The specifications may be subject to change without notice. * The transmission range may vary depending on the transmission speed and the environmental conditions. ----------- Operation Explanation ---------- MAIN unit operation explanation 1- Receiving unit (1) 2.4G part The receiving signal that was input from the antenna terminal is passed through the BPF FI1 and antenna switch IC3, then it is guided to RF-AMP IC16. The output of RF-AMP is passed through the LC-BPF FI7 and amplified with IC4. After that, it is mixed with 1st-LO inside IC4 and be transformed to the 1st-IF signal of 374MHz. (2) IF part 1st-IF signal is output through sending and receiving switching SW, inside IC4, after it's band was restricted with BPF FI8 and then it is guided to IC6. After signal was amplified in IC6, it is done quadrature detection by 2 LO that have the phase difference of 90 degrees. Each I and Q signal passed through the LPF circuit inside the IC6 and then becomes output. The local oscillator signal used for detection, it is generated by oscillation circuit.(Q4 and D3). The output frequency of this oscillator (748MHz) applied to IC6 that was divided to 1/2 and it's phase shifted inside of the IC6. (3) Base band part I/Q signal from IC6 is input to base band processor IC7. The IC7 changes the A/D output signal and recovers it to normal demodulate signal form. The receive data of demodulated signal is output through interface. 2.Transmission part (1) Base band part The transmission data is input to IC7 through the interface. Responding the transmission speed that was set up inside IC7 is converted with each method of BPSK,QPSK and CCK. In the case of BPSK and QPSK, that are 11bits after dispersion becomes output. (2) IF part The signal that was diffused, is input to IC6. Signal has the phase difference of 90 degrees inside IC6 and via two LO modulated becomes 1st –IF signal (374MHz). 1st-IF signal is output through sending and receiving switching SW and after it was restricted the band with BPF FI8 it is input to IC4. (3) 2.4G part 1st-IF signal is mixed with 1st-LO with IC4 and becomes a RF signal. The RF signal is output, after it was amplified inside IC4. The output of IC4 is passed through the LC-BPF FI3 and amplified by PA-IC IC1. This output be through antenna switch IC3 and after removed the unnecessary bandwidth via BPF FI1, it is sent to the antenna. (4) ALC part The transmission RF power is detected by the detection part inside IC1 and be sent to IC7. There is an AGC register inside the IC7 that is controlled via software, the signal that was controlled here controls AGC-AMP of IC6. 3. VCO . PLL unit (1) 1st-LO part 2038 to 2088MHz as 1st-LO is produce. IC-4 is including the PLL synthesizer and it’s output provides lock for VCO unit. The output of VCO enters into IC4, after it was amplified with IC5. 1st-LO that entered into IC4 is used to the signal supply to the mixing and PLL of the signal inside IC4. (2) 748MHz LO part The LO (748MHz) of quadrature modulation and for demodulation is produce. IC6 is including the PLL synthesizer and the lock is applied to VCO that is composed of Q4 and D3. The output of VCO enters into IC6, after it was amplified with Q5. The LO that entered to IC6, used to the signal supply for modulate and demodulate and PLL ‘s signal inside IC6 (2) System clock part The reference clock of 44MHz is produce. The oscillation circuit is composed with IC14 (B), X1 and be supplied to the every part through the buffer of IC14 (A). 4. MAC unit IC8 is MAC-IC for wireless LAN. Depends on the software (the firmware) that operates with this IC, for wireless transmission of data the necessary processing is carried out. The firmware and also NID are housed to flash memory IC10. For buffering of the sending and receiving data or operation of the firmware RAM IC11 is installed. 5. Power Supply unit (1) 3.3V (A) power supply It supplies the base band processor (IC7), PA-IC(IC1) , RF-AMP (IC-16), also VCCA and VCCB. (2) 3.3V (B) power supply It supplies MAC (IC8, UC10,IC11) and base band processor (IC7). (3) VCCA, VCCB power supply The 2 power supply of 2.9V are used as the power supply of the IF main unit. VCCA is supplied to IC6, IC4 and also system clock. VCCB is supplied to 748MHz-VCO, 1stLO of VCO, 1stLO-AMP(IC5) and IC4. VCCA is generated by IC12 and VCCB is generated by IC13.

360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 55 of 63 APPENDIX M: ANTENNA PHOTOGRAPHS PHOTOGRAPH 9: TOP VIEW OF ANTENNA 360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 56 of 63 PHOTOGRAPH 10: BOTTOM VIEW OF ANTENNA

360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 43 of 63 APPENDIX D: ANTENNA SPECIFICATIONS Please see the following pages. Vertical Setting Directivity -85 -80 -75 -70 -65 -60 -55 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 Receive Level[dBm]

360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 40 of 63 APPENDIX A: RF EXPOSURE CALCULATIONS From FCC 1.1310 table 1A, the maximum permissible RF exposure for an uncontrolled environment is 1mW/cm 2. The Electric field generated for a 1mW/cm 2 exposure (S) is calculated as follows: S = E 2 /Z where: S = Power density E = Electric field Z = Impedance. E = √S x Z 1mW/cm 2 = 10 W/m 2 The impedance of free space is 337 ohms, where E and H fields are perpendicular. Thus: E = √10 x 377 = 61.4 V/m which is equivalent to 1mW/cm 2 Using the relationship between Electric field E, Power in watts P, and distance in meters d, the corresponding Antenna numeric gain G and the transmitter output power and solving for d, d = √ EIRPp eak x 30 E TABLE 11-1: RF EXPOSURE SEPARATION DISTANCE ANTENNA TYPE Antenna Gain (dBi) Max EIRP (dBm) CALCULATED RF EXPOSURE SEPARATION DISTANCE (cm) MINIMUM RF EXPOSURE SEPARATION DISTANCE (cm) Diversity Slot Antenna 2.8 12.7 1.2 20.0

360 Herndon Parkway, Suite 1400 Herndon, VA 20170 http://www.rheintech.com CERTIFICATE OF COMPLIANCE FCC PART 15.247 CERTIFICATION & INDUSTRY CANADA CERTIFICATION Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site : www.rheintech.com Herndon, VA 20170 Applicant Information ICOM Inc. 1-1-32, Kamiminami, Hirano-ku, Osaka, 547-0003 Japan Phone : 06 6793 5302 Fax : 06 6793 0013 E-Mail : [email protected] FCC ID: AFJAP-12 GRANTEE FRN NUMBER: 0005-8553-90 PLAT FORM: N/A RTL WORK ORDER NUMBER: 2002045 MODEL(S): AP-12 RTL QUOTE NUMBER: QRTL02-3802 DATE OF TEST REPORT: April 18, 2002 American National Standard Institute: ANSI/TIA/EIA603 and ANSI/TIA/EIA 603-1 FCC Classification: DSS – Spread Spectrum Transmitter FCC Rule Part(s): Part 15.247: Operation within the bands 920-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Direct Sequence System Industry Canada Standard: RSS-210: Low Power License-Exempt Radio-communication Devices (All Frequency Bands) RSS-210 Section 6.2.2(o): 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Digital Interface Information Digital Interface was found to be compliant Receiver Information Receiver was found to be compliant Frequency Range (MHz) Calculated Output Power (W) Freq. Tolerance Emission Designator 2412-2462 0.0295 N/A N/A We, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to or exclusions from the FCC Part 2, FCC Part 15, Industry Canada RSS-210, ANSI C63.4, ANSI/TIA/EIA603 and ANSI/TIA/EIA 603-1. Signature: Date: April 18, 2002 Typed/Printed Name: Desmond A. Fraser Position: President 360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 2 of 63 TABLE OF CONTENTS 1 General Information .............................................................................................................................................. 6 1.1 SCOPE ............................................................................................................................................................ 6 1.2 TEST FACILITY ............................................................................................................................................ 6 1.3 RELATED SUBMITTAL(S)/GRANT(S)....................................................................................................... 6 2 Equipment Information......................................................................................................................................... 7 2.1 APPLICANT AND EQUIPMENT INFORMATION ..................................................................................... 7 2.2 JUSTIFICATION............................................................................................................................................ 7 2.3 EXERCISING THE EUT................................................................................................................................ 7 2.4 TEST SYSTEM DETAILS ............................................................................................................................. 8 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................9 3 Compliance with the Restricted Band Edge - §15.205 ...................................................................................... 10 3.1 TEST PROCEDURE..................................................................................................................................... 10 3.2 COMPLIANCE WITH THE RESTRICTED BAND EDGE TEST DATA .................................................. 10 4 Conducted Limits - §15.207................................................................................................................................. 15 4.1 TEST METHODOLOGY FOR CONDUCTED EMISSIONS MEASUREMENTS .................................... 15 4.2 CONDUCTED EMISSION TEST ................................................................................................................ 15 4.3 CONDUCTED EMISSION TEST DATA ....................................................................................................16 5 Radiated Emission Limits (general Requirements) - §15.209........................................................................... 22 5.1 RADIATED EMISSION LIMITS TEST PROCEDURE.............................................................................. 22 5.2 RADIATED EMISSION TEST DATA ........................................................................................................ 22 6 Radiated Emission Limits (general Requirements) receiver/digital interface - §15.209 ................................ 25 6.1 RADIATED EMISSION LIMITS TEST PROCEDURE.............................................................................. 25 6.2 TEST EQUIPMENT USED FOR TESTING ................................................................................................27 7 Modulated Bandwidth - §15.247(a)(2) ................................................................................................................ 29 7.1 MODULATED BANDWIDTH TEST PROCEDURE ................................................................................. 29 7.2 MODULATED BANDWIDTH TEST DATA .............................................................................................. 29 7.3 TEST EQUIPMENT USED FOR TESTING ................................................................................................29 7.4 MODULATED BANDWIDTH PLOTS ..........................................................…

Text truncated - open the document above for the full version.

360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 50 of 63 APPENDIX K: TEST PHOTOGRAPHS PHOTOGRAPH 2: RADIATED EMISSION FRONT VIEW WORST CASE CONFIGURATION 360 Herndon Parkway, Suite 1400 Work Order number 2001326 Herndon, VA 20170 FCC Part 15.247 http://www.rheintech.com Industry Canada RSS-210 FCC ID AFJAP-12 M/N AP-12 © Rhein Tech Laboratories, Inc. Page 51 of 63 PHOTOGRAPH 3: RADIATED EMISSION REAR VIEW CASE CONFIGURATION
