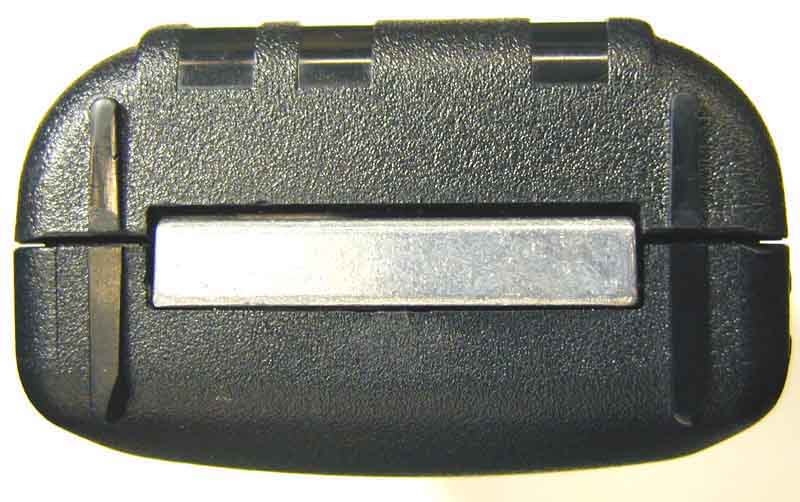

AFJIC-F21-1UHF-FM Hand Held Transceiver

iii this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio. •DO NOTtransmit for more than 50% of total radio use time ( “50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator” lights red. You can cause the radio to transmit by pressing the “PTT” switch. •ALWAYS useIcom authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories can cause the FCC RF exposure compliance requirements to be ex- ceeded. •ALWAYS keepthe antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clips, listed in p. 22, when attaching the radio to your belt, etc., to ensure FCC RF ex- posure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the an- tenna at least 5 cm (2 inches) from mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your Icom radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOToperate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. Your Icom radio generates RF electromagnetic energy during transmit mode. This radio is de- signed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Popula- tion” in an uncontrolled environment. This radio has been tested and complies with the FCC RF expo- sure limits for “Occupational Use Only.” In addition, your Icom radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1 – 1992), IEEE Stan- dard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3 – 1992), IEEE Rec- ommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. To ensure that your exposure to RF electromag- netic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: •DO NOToperate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with WARNING CAUTION SAFETY TRAINING INFORMATION iviii FOREWORD Thank you for purchasing the IC-F11/S, F21/S FM transceiver. READ ALL INSTRUCTIONScarefully and completely before using the transceiver. SAVE THIS INSTRUCTION MANUAL–This instruction manual contains important operating instructions for the transceiver. IMPORTANT RCAUTION! NEVERhold the transceiver so that the antenna is very close to, or touching exposed parts of the body, especially the face or eyes, while transmitting. The transceiver will perform best if the microphone is 2 to 4 in. (5 to 10 cm) away from the lips and the transceiver is vertical. RCAUTION! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. RCAUTION! NEVER short the terminals of the battery pack. DO NOTpush the PTT when not actually desiring to transmit. AVOID using or placing the transceiver in direct sunlight or in areas with temperatures below +14°F (–10°C) or above +122°F (+50°C). DO NOTmodify the transceiver for any reason. KEEPthe transceiver from the heavy rain, andNever immerse it in the water. The transceiver construction is water resistant, not water proof. The use of non-Icom battery packs/chargers may impair transceiver performance and invalidate the warranty. FCC caution:Changes or modifications to this transceiver, not expressly approved by Icom Inc., could void your authority to op- erate this transceiver under FCC regulations. TABLE OF CONTENTS SAFETY TRAINING INFORMATION . . . . . . . . . . . . . . . . . . . . . . .i-ii FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii IMPORTANT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv 1 PANEL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–3 ‘Switches, controls, keys and connectors . . . . . . . . . . . . . . .1–2 ‘LED indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 2 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 3 BATTERY PACKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–11 ‘Battery pack replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 ‘Battery cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 ‘Battery charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9 ‘ Charging NOTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 ‘ Battery case (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 44 PPRROOGGRRAAMMMMAABBLLEE FFUUNNCCTTIIOONNSS .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 12-16 ‘General . . . . . . . . . . …

Text truncated - open the document above for the full version.

November 30, 2001 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Certification Application under FCC CFR 47, Parts 2 & 90 – Licensed Non-Broadcast Radio Transceivers Operating in the Frequency Band 400-430 MHz (12.5 kHz and 25 kHz Channel Spacings). Applicant: Icom Incorporated Product: UHF-FM Hand Held Transceiver Model: IC-F21-1 and IC-F21S-1 FCC ID: AFJIC-F21-1 Dear Sir/Madam, As appointed agent for Icom Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML Encl. 2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] UltraTech Group of Labs

FCC ID Label SAR Warning Label

Explanation of the Operation for FX-2458 (IC-F21) 1. Mic Amp The audio signal from the mic is given +6 dB/oct pre-emphasis characteristics from R138 and C185 while being amplified in IC5C. 2. Mute/Switchover Circuit The audio signal amplified in IC5C, during transmission, is sent to the next stage splatter filter (IC5D), and during receive, is muted by the switch circuit IC6. Also, IC6 changes the receive HPF (IC5B) output to the next stage LPF (IC5D) during receive. IC5D is used as the splatter filter during transmit, and as the receive LPF during receive. The output from IC5D is again by way of the switch circuit IC6 sent to the VCO modulation circuit during transmit, and to the AF amp circuit during receive. 3. Splatter Filter IC5D has two functions as the splatter filter and the receive LPF, and when working as the splatter filter, operates also as a summing amp for the different types of audio signal signaling (CTCSS/DTCS/5/2 Tone and DTMF) from the mic amp. 4. Signaling (Encode) The 5 tone/2 tone/DTMF encode output is wave adjusted in the 4-bit D/A (made up of R215~R219), then passes through the IC16 LPF and is sent to the splatter filter and AF amp. The CTCSS/DTCS encode output is wave matched in the 3-bit D/A (made up of R176~R179), then passes through the Q29 LPF and is sent to the splatter filter. 5. Signaling (Decode) 5 tone/2 tone passes through the IC5A LPF and amp, and is input to the CPU’s pin 58, where it is decoded. CTCSS/DTCS passes through the IC12 LPF and amp, and is input to the CPU’s pin 57 (CDEC) where it is decoded. In IC12, during DTCS the amp gain is increased for wave adjustment, and during CTCSS the gain resistor is switched ON and OFF at IC13 and Q30, to lower the gain so as not to distort the wave shape. 6. D/A Converter The surrounding temperature is detected in the R151 thermistor and the CPU calculates the PLL lock voltage, frequency etc., and maintains the optimal control of the PLL standard oscillation, RF/BPF, modulation and transmission output via IC9 (D/A). 7. Power Circuit In IC10 the stabilized 5V becomes the CPU power, and furthermore as the standard, T5V is made in Q27, R5V in Q26 and S5V in Q24. 8. VCO At transmission, the oscillating frequency is decided in D7, L16 and C63~C66, and oscillation is carried out by Q11. D6 is a varactor diode for carrying out FM modulation. At reception, the frequency is decided in D5, L13 and C50~C53, and oscillation is carried out by Q10. The transmit/receive circuit switchover is carried out by grounding the Q10 and Q11 emitter resistor, and applying bias current. The oscillation output after amplification passes through Q6 to the PLL circuit, and is also sent from Q5 to the transmit YGR circuit and receive mixer circuit. 9. YGR/PA During transmission, Q5 output is linked to the YGR circuit while D3 is ON. After amplification in Q4 and Q3, it goes to the final FET Q1 after passing the driver FET Q2, where it is amplified to the necessary power. 10. APC Circuit The LPF L4 high frequency voltage is detected in D2 and is compared with the D/A output (T4) in IC2 to adjust this voltage and the RF power. By making the IC2 output voltage as the Q1 and Q2 gate voltage, RF power is controlled. 11. ANT SW/LPF The RF output passes through the transmit/receive switchover circuit (made up of D1, D9 and D10) and is directed to the ANT after passing through the LPF. 12. RF BPF The signal received in the antenna passes the LPF and is directed to the 1 st stage receive BPF. The BPF (made up of L21, C105, D12 and C104), the same as the 2 nd stage BPF, is adjusted to the optimal BPF according to the frequency of the D/A output tracking voltage, and is given ample attenuation in regard to the image frequency. Q15 is a low noise RF amp, and here the signal is amplified and passes through the next stage BPF circuit, where it is input to the mixer circuit (Q16) by the FET. An AGC circuit is employed for the Q15 gate-2 voltage adjusted at Q33 according to the signal input strength. 13. MIX The output from the VCO, during receive passes through D4 and is input to the Q16 mixer circuit as the 1 st Lo signal after going through the R79/R80/R81 attenuator, and C126 and L25 filter. And the receive signal that has passed through the receive BPF is mixed with the 1 st Lo, and changed to the 1 st IF frequency. 14. IF Amp The changed signal in the 1 st IF passes through the crystal filter FI1, and after amplification in Q17, is input to the FM detection IC, IC3. 15. IF DET In the FM detection IC (IC3), the standard oscillation output from IC1 is amplified in Q18 and the 3 rd order higher harmonics are used as the 2 nd Lo. The signal changed to the 1 st IF frequency and the signal mixed in the 2 nd Lo, is output from pin 3. This signal has the unwanted band components eliminated in the ceramic filter FI2, and is re-input to pin 5 as the 450 kHz 2 nd IF signal. Inside IC3 it is sent to the detection circuit after this. The detection circuit uses X2 as the Phase Delay by the Quadrature detection method. The detection output is output as an AF signal from pin 9. 16. SQL The signal from IC3 pin 9 is made into noise components only in the noise amp (made up of IC3 pin7, 8, R98~R100, C154 and C155), and is detected inside IC3. The detection signal from IC3 pin 13 is input to CPU pin 53 (NOIS) and is controlled by the respective mute signals (RMUT, AFON) in the CPU. 17. AF The audio signal from the IC3 pin 9 is directed to the SW-A or SW-B VOL after passing through the IC5B HPF and the IC5D LPF. After the level is controlled by the VOL, it is amplified in the IC4 AF amp and comes out of the speaker. 18. PLL The signal from the VCO is input to IC1 pin 8 after passing through Q6. This signal is divided into the N-data sent from the CPU and compared with the standard oscillation from X1 and Q31, with the result output from IC1 pin 5. This signal is directed to the VCO D5 and D7 after passing through the LPF (made up of R40~R42 and C75~C77), and is oscilla…

Text truncated - open the document above for the full version.

CHASSIS PARTS LIST REF No.DESCRIPTIONTYPE(PARTS)MANUFACTURERQTY S1SWITCHAS-244-A13MIYAMA1IC-F21S SP1SPEAKER036D0601FUJI(XIAMEN)1 W1CABLEOPC-963KOHNO1 MAIN PARTS LIST REF No. DESCRIPTIONTYPE(PARTS)MANUFACTURER QTY IC1S.ICMB15A02PFV-1FUJITSU1 IC2S.ICTA75S01FTOSHIBA1 IC3S.ICTA31136FN(D)TOSHIBA1 IC4S.ICTA7368FTOSHIBA1 IC5S.ICNJM13403VJRC1 IC6S.ICBU4066BCFVROHM1 IC7S.ICHD6433664A24FPHITACHI1 IC8S.ICS-80942ANMP-DD6SEIKO1 IC9S.ICM62363FP-650CMITSUBISHI1 IC10S.ICNJM2870JRC1 IC11S.ICHN58X2416TIHITACHI1 IC12S.ICNJM12904VJRC1 IC13S.ICTC7S66FUTOSHIBA1 IC15S.ICBU4094BCFVROHM1 IC16S.ICNJM12904VJRC1 Q1S.FET2SK2974MITSUBISHI1 Q2S.FET2SK2973MITSUBISHI1 Q3S.TRANSISTOR 2SC3585 R44NEC1 Q4S.TRANSISTOR 2SC5107 OTOSHIBA1 Q5S.TRANSISTOR 2SC5107 OTOSHIBA1 Q6S.TRANSISTOR 2SC5107 OTOSHIBA1 Q7S.TRANSISTOR 2SC5107 OTOSHIBA1 Q8S.TRANSISTOR DTC144EUROHM1 Q9S.TRANSISTOR XP1214MATSUSHITA1 Q10S.TRANSISTOR 2SC5085 YTOSHIBA1 Q11S.TRANSISTOR 2SC5085 YTOSHIBA1 Q12S.TRANSISTOR XP6501 ABMEC1 Q13S.FET2SK880 YTOSHIBA1 Q14S.TRANSISTOR DTA144EUROHM1 Q15S.FET3SK293TOSHIBA DEBAI1 Q16S.FET3SK272MEC1 Q17S.TRANSISTOR 2SC4215 OTOSHIBA1 Q18S.TRANSISTOR 2SC4116 GRTOSHIBA1 Q19S.TRANSISTOR 2SB1132 RROHM1 Q20S.TRANSISTOR XP6501 ABMEC1 Q21S.TRANSISTOR DTC144EUROHM1 Q22S.TRANSISTOR UN911HMEC1 Q23S.TRANSISTOR DTA144EUROHM1 Q24S.TRANSISTOR 2SB1132 RROHM1 Q25S.TRANSISTOR XP6501 ABMEC1 Q26S.TRANSISTOR 2SA1577 QROHM1 Q27S.TRANSISTOR 2SA1577 QROHM1 Q28S.TRANSISTOR DTC144EUROHM1 Q29S.TRANSISTOR 2SC4116 GRTOSHIBA1 Q30S.TRANSISTOR XP1213MACO1 Q31S.TRANSISTOR 2SC4215 OTOSHIBA1 Q32S.TRANSISTOR DTC144TUROHM1 Q33S.FET2SK1829TOSHIBA1 MAIN PARTS LIST REF No. DESCRIPTIONTYPE(PARTS)MANUFACTURER QTY D1S.DIODE1SV307TOSHIBA1 D2S.DIODERB706F-40ROHM1 D3S.DIODEMA77MEC1 D4S.DIODEMA77MEC1 D5S.VARICAPHVU350BHITACHI1 D6S.VARICAPMA368MEC1 D7S.VARICAPHVU350BHITACHI1 D9S.DIODEMA77MEC1 D10S.DIODEMA77MEC1 D12S.VARICAPHVU350BHITACHI1 D13S.VARICAPHVU350BHITACHI1 D14S.VARICAPHVU350BHITACHI1 D15S.VARICAPHVU350BHITACHI1 D16S.DIODEMA77MEC1 D17S.DIODERB706F-40ROHM1 D18S.DIODEMA2S111MEC1 D19S.VARICAPHVC362HITACHI1 D20S.DIODEMA2S111MEC1 D21S.DIODEMA2S111MEC1 D22S.DIODEMA2S111MEC1 FI1S.MONOLITHFL-335DAISHINKU1 FI2CERAMICALFYM450F=KTOKO1 X1S.XTALCR-671ADAISHINKU1 X2S.DISCRICDBC450CX24MURATA1 X3S.XTALCR-702(14.745600MHZ)HERTZ1 L1S.COIL0.30-0.9-5TL 14NUCHIDA1 L2S.COIL0.30-0.9-5TL 14NUCHIDA1 L3S.COILNL252018T R82J 0.82UTDK1 L4S.COIL0.30-0.9-5TL 14NUCHIDA1 L5S.COIL0.4-0.9-2TLUCHIDA1 L6S.COILEXCCL3225UMACO1 L8S.COILELJRE 12NG 12NMACO1 L9S.COILELJRE 15NG 15NMACO1 L10S.COILELJRE 27NG 27NMACO1 L11S.COILELJRE 27NG 27NMACO1 L13S.COIL0.45-1.4-3TL 11NUCHIDA1 L14S.COILNL252018T 4R7J 4.7UTDK1 L15S.COILELJFC R68M 0.68UMACO1 L16S.COIL0.45-1.4-3TL 11NUCHIDA1 L17S.COILNL252018T 4R7J 4.7UTDK1 L18S.COILELJRE 15NG 15NMACO1 L19S.COIL0.30-0.9-5TL 14NUCHIDA1 L20S.COIL0.30-0.9-5TL 14NUCHIDA1 L21S.COILLQN21A 10NJ04 10NMURATA1 L22S.COILLQN21A 10NJ04 10NMURATA1 L23S.COILLQN21A 10NJ04 10NMURATA1 L24S.COILLQN21A 10NJ04 10NMURATA1 MAIN PARTS LIST REF No. DESCRIPTIONTYPE(PARTS)MANUFACTURER QTY L25S.COILELJRE 33NG 33NMACO1 L26S.COILNL252018T 1R0J 1.0UTDK1 L27S.COILNL252018T R82J 0.82UTDK1 L28S.COILNL252018T R22J 0.22UTDK1 L29S.COILNL252018T 390J 39UTDK1 L30S.COIL0.30-0.9-9TRUCHIDA1 R1S.RESISTOR82K ERJ3GEMACO1 R2S.RESISTOR100 ERJ3GEMACO1 R3S.RESISTOR15K ERJ3GEMACO1 R4S.RESISTOR1K ERJ2GEMACO1 R5S.RESISTOR47 ERJ3GEMACO1 R6S.RESISTOR33K ERJ3GEMACO1 R7S.RESISTOR4.7K ERJ3GEMACO1 R8S.RESISTOR47 ERJ3GEMACO1 R9S.RESISTOR100K ERJ3GEMACO1 R10S.RESISTOR4.7K ERJ3GEMACO1 R11S.RESISTOR10 ERJ3GEMACO1 R12S.RESISTOR12K ERJ3GEMACO1 R13S.RESISTOR220 ERJ3GEMACO1 R14S.RESISTOR1K ERJ3GEMACO1 R15S.RESISTOR56K ERJ3GEMACO1 R16S.RESISTOR10K ERJ3GEMACO1 R17S.RESISTOR100 ERJ3GEMACO1 R18S.RESISTOR4.7K ERJ3GEMACO1 R19S.RESISTOR100 ERJ3GEMACO1 R20S.RESISTOR47K ERJ3GEMACO1 R21S.RESISTOR33 ERJ3GEMACO1 R22S.RESISTOR220 ERJ3GEMACO1 R23S.RESISTOR68K ERJ3GEMACO1 R24S.RESISTOR100 ERJ3GEMACO1 R25S.RESISTOR330 ERJ3GEMACO1 R26S.RESISTOR68K ERJ3GEMACO1 R27S.RESISTOR10K ERJ3GEMACO1 R28S.RESISTOR2.7K ERJ3GEMACO1 R29S.RESISTOR3.3K ERJ3GEMACO1 R30S.RESISTOR270 ERJ3GEMACO1 R31S.RESISTOR3.3K ERJ3GEMACO1 R32S.RESISTOR3.3K ERJ3GEMACO1 R33S.RESISTOR220 ERJ3GEMACO1 R34S.RESISTOR120K ERJ3GEMACO1 R35S.RESISTOR470K ERJ3GEMACO1 R36S.RESISTOR18K ERJ3GEMACO1 R37S.RESISTOR100K ERJ3GEMACO1 R38S.RESISTOR22K ERJ3GEMACO1 R39S.RESISTOR100K ERJ3GEMACO1 R40S.RESISTOR6.8K ERJ3GEMACO1 R41S.RESISTOR3.9K ERJ3GEMACO1 R42S.RESISTOR1K ERJ3GEMACO1 R43S.RESISTOR47K ERJ3GEMACO1 MAIN PARTS LIST REF No. DESCRIPTIONTYPE(PARTS)MANUFACTURER QTY R44S.RESISTOR1K ERJ3GEMACO1 R45S.RESISTOR10K ERJ3GEMACO1 R46S.RESISTOR1.2K ERJ3GEMACO1 R47S.RESISTOR47 ERJ3GEMACO1 R48S.RESISTOR82K ERJ3GEMACO1 R49S.RESISTOR47K ERJ3GEMACO1 R50S.RESISTOR150K ERJ3GEMACO1 R51S.RESISTOR47K ERJ3GEMACO1 R52S.ARRAYEXB-V8V 1KMACO1 R53S.RESISTOR47 ERJ3GEMACO1 R54S.RESISTOR10K ERJ3GEMACO1 R55S.RESISTOR2.2K ERJ3GEMACO1 R56S.RESISTOR10K ERJ3GEMACO1 R57S.RESISTOR68K ERJ3GEMACO1 R58S.RESISTOR150K ERJ3GEMACO1 R59S.RESISTOR120K ERJ3GEMACO1 R60S.RESISTOR100 ERJ3GEMACO1 R61S.RESISTOR1K ERJ3GEMACO1 R62S.RESISTOR220K ERJ3GEMACO1 R63S.RESISTOR10K ERJ3GEMACO1 R64S.RESISTOR100K ERJ3GEMACO1 R65S.RESISTOR220K ERJ3GEMACO1 R66S.RESISTOR39K ERJ3GEMACO1 R68S.RESISTOR330 ERJ3GEMACO1 R69S.RESISTOR47 ERJ3GEMACO1 R70S.RESISTOR220K ERJ3GEMACO1 R71S.RESISTOR10K ERJ3GEMACO1 R72S.RESISTOR220K ERJ3GEMACO1 R73S.RESISTOR10K ERJ3GEMACO1 R74S.RESISTOR220K ERJ3GEMACO1 R75S.RESISTOR10K ERJ3GEMACO1 R76S.RESISTOR4.7K ERJ3GEMACO1 R77S.RESISTOR1K ERJ3GEMACO1 R78S.RESISTOR10K ERJ3GEMACO1 R79S.RESISTOR470 ERJ3GEMACO1 R80S.RESISTOR12 ERJ3GEMACO1 R81S.RESISTOR470 ERJ3GEMACO1 R82S.RESISTOR47K ERJ3GEMACO1 R83S.RESISTOR100 ERJ3GEMACO1 R84S.RESISTOR1K ERJ3GEMACO1 R85S.RESISTOR1 ERJ3GEMACO1 R86S.RESISTOR220 ERJ3GEMACO1 R87S.RESISTOR2.7K ERJ3GEMACO1 R88S.RESISTOR180 ERJ3GEMACO1 R89S.RESISTOR1K ERJ3GEMACO1 R90S.RESISTOR120K ERJ3GEMACO1 R91S.RESISTOR470 ERJ3GEMACO1 R92S.RESISTOR1.8K ERJ3GEMACO1 R93S.RESISTOR330 ERJ3GEMACO1 R94S.RESISTOR47 ERJ3GEMACO1 MAIN PARTS LIST REF No. DESCRIPT…

Text truncated - open the document above for the full version.

UHF-FM Hand Held Transceiver Model No.: IC-F21-1 Tested For ICOM Incorporated 1-1-32, Kamininami Hirano-Ku, Osaka Japan, 547-0003 In Accordance With SAR (Specific Absorption Rate) Requirements Using Guidelines Established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: ICOM-033-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: December 07, 2001 Report Prepared by: JaeWook Choi Tested by: JaeWook Choi Issued Date: December 7, 2001 Test Dates: November 28, 2001 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATIO (SAR) Contents i IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UHF-FM Hand Held Transceiver TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION.........................................................................................................................................1 1.1. SCOPE...........................................................................................................................................................................1 1.2. REFERENCES.................................................................................................................................................................1 EXHIBIT 2. PERFORMANCE ASSESSMENT..............................................................................................................2 2.1. CLIENT AND MANUFACTURER INFORMATION................................................................................................................2 2.2. DEVICE UNDER TEST (EUT) DESCRIPTION.....................................................................................................................2 2.3. LIST OF EUT’S ACCESSORIES........................................................................................................................................3 2.4. SPECIAL CHANGES ON THE EUT’S HARDWARE/SOFTWARE FOR TESTING PURPOSES......................................................3 2.5. ANCILLARY EQUIPMENT................................................................................................................................................3 2.6. GENERAL TEST CONFIGURATIONS................................................................................................................................. 3 2.6.1. Equipment Configuration....................................................................................................................................3 2.6.2. Exercising Equipment..........................................................................................................................................3 2.7. SPECIFIC OPERATING CONDITIONS...............................................................................................................................3 2.8. BLOCK DIAGRAM OF TEST SETUP...................................................................................................................................4 EXHIBIT 3. SUMMARY OF TEST RESULTS...............................................................................................................5 3.1. LOCATION OF TESTS......................................................................................................................................................5 3.2. APPLICABILITY & SUMMARY OF SAR RESULTS..............................................................................................................5 EXHIBIT 4. MEASUREMENTS, EXAMINATIONS & TEST DATA.........................................................................6 4.1. TEST SETUP...................................................................................................................................................................6 4.2. PHOTOGRAPH OF EUT....................................................................................................................................................7 4.3. PHOTOGRAPHS OF EUT POSITION (HEAD FRONT).........................................................................................................11 4.4. PHOTOGRAPHS OF EUT POSITION (BODY-WORN)........................................................................................................13 4.5. MAXIMUM FIELD LOCATION........................................................................................................................................25 4.6. PEAK SPATIAL-AVERAGE SAR MEASURED...................................................................................................................26 4.7. SAR MEASUREMENT DATA..........................................................................................................................................26 4.7.1. Prescan results of head front configuration at 415.05 MHz NB (CH2, Narrow Bandwidth)............................26 4.7.2. Test results of head front configuration with M/N: BP-210 battery pack.........................................................26 4.7.3. Prescan results of body-worn configuration with M/N:BP-210 battery pack, M/N:MB-68 belt clip and M/N: HS-51 headset....................................................................................................................................................................27 4.7.4. Prescan results of body-worn configuration with M/N:BP-210 battery pack, M/N:MB-74 alligator belt clip and M/N: HS-51 headset.........…

Text truncated - open the document above for the full version.

UHF-FM Hand Held Transceiver Model No.: IC-F21-1 & IC-F21S-1 FCC ID: AFJIC-F21-1 Applicant: Icom Incorporated 1-1-32, Kamiminami Hirano-ku, Oaska Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 & 90 Licensed Non-Broadcast Radio Transceivers Operating in the Frequency Band 400-430 MHz (12.5 kHz and 25 kHz Channel Spacings) UltraTech's File No.: ICOM33-FTX This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: November 30, 2001 Report Prepared by: Tri Luu / Dan Huynh Tested by: Hung Trinh, RFI/EMI Technician Issued Date: November 30, 2001 Test Dates: Oct. 15-30, 2001 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 47 CFR, Parts 2 & 90 - LICENSED NON-BROADCAST RADIO TRANSCEIVERS Contents i UHF-FM Hand Held Transceiver, Models IC-F21-1 and IC-F21S-1 FCC ID: AFJIC-F21-1 ULTRATECH GROUP OF LABS File #: ICOM33-FTX 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 30, 2001 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com • Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) • Accredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) • Recognized/Listed by FCC (USA) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST...................................................................................................................... 1 EXHIBIT 2. INTRODUCTION ....................................................................................................................................... 2 2.1. SCOPE ......................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL ( S )/ GRANT ( S ) ............................................................................................................................. 2 2.3. NORMATIVE REFERENCES ........................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT ............................................................................................................ 3 3.1. CLIENT INFORMATION ........................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST ( EUT ) INFORMATION ............................................................................................................ 3 3.3. EUT ’ S TECHNICAL SPECIFICATIONS ............................................................................................................................. 4 3.4. LIST OF EUT ’ S PORTS ................................................................................................................................................... 4 EXHIBIT 4. EUT OPERATION CONDITIONS AND CONFIGURATIONS DURING TESTS ............................. 5 4.1. CLIMATE TEST CONDITIONS ......................................................................................................................................... 5 4.2. O PERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS ..................................................................... 5 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................. 6 5.1. LOCATION OF TESTS .................................................................................................................................................... 6 5.2. APPLICABILITY & S UMMARY OF EMC EMISSION TEST RESULTS ................................................................................... 6 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES .................................................................. 6 5.4. DEVIATION OF STANDARD TEST PROCEDURES ............................................................................................................. 6 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................. 7 6.1. TEST PROCEDURES ...................................................................................................................................................... 7 6.2. MEASUREMENT UNCERTAINTIES ...............................................…
