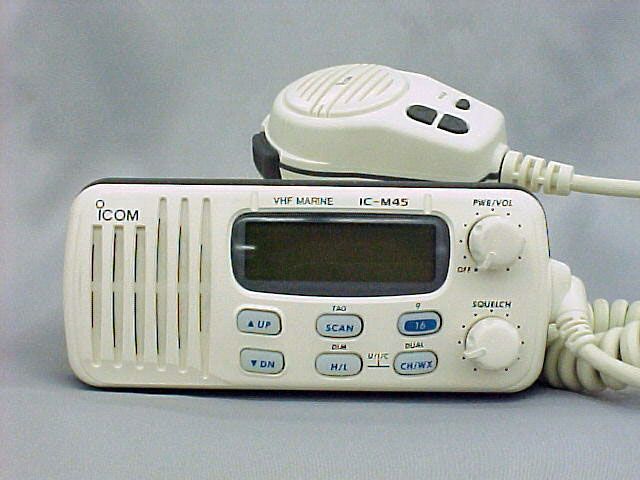

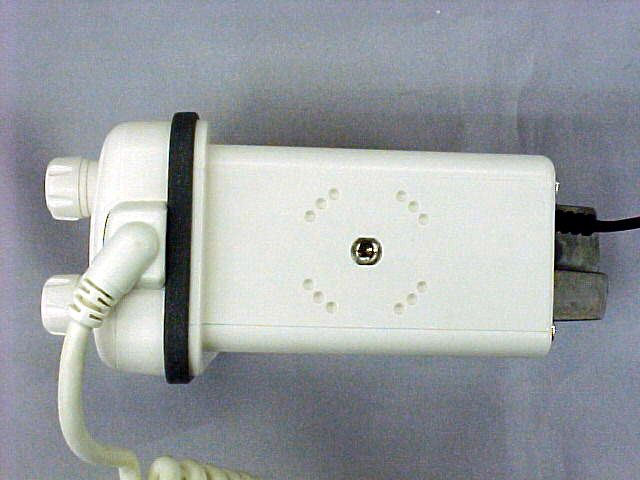

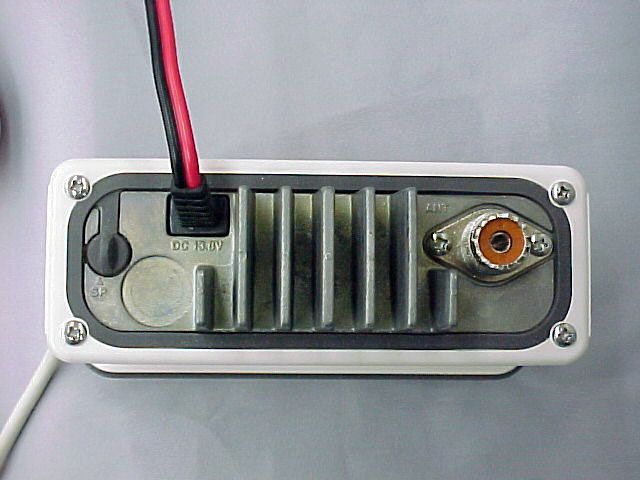

AFJIC-M45AVHF-FM Marine Transceiver

INSTRUCTION MANUAL iM45A VHF MARINE TRANSCEIVER IC-M45A Manual 99.3.29 2:45 PM Page A ii FOREWORDThank you for purchasing this Icom product. The IC-M45A VHFMARINE TRANSCEIVER is designed and built with Icom’s su-perior technology and craftsmanship. With proper care thisproduct should provide you with years of trouble-free operation.IMPORTANTREAD ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL— This in- struction manual contains important operating instructions forthe IC-M45A. EXPLICIT DEFINITIONS FEATURES+ Durable, water-resistant construction Built tough to withstand the punishing marine environ-ment, the IC-M45A offers reliability you can count on. + Dual watch and tri-watch functions Convenient functions which allow you to monitor the dis-tress channel (ch 16) while receiving a channel of yourchoice—dual watch; or monitor the distress channel andanother channel while receiving a channel of yourchoice—tri-watch. + Large, easy-to-read LCD With dimensions of 20(H) × 60(W) mm, the IC-M45A’s function display is easy to read and shows operating con-ditions at a glance. Backlighting and contrast can be ad-justed to suit your preferences. + ‘Smart’ microphone Operating channel and transmit output power level set-tings are easily selectable via the supplied microphone. + Simple operation Ergonomic design with a minimum number of switchesand controls provides simple intuitive operation. WORD DEFINITION R WARNING Personal injury, fire hazard or electricshock may occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No riskof personal injury, fire or electric shock. IC-M45A Manual 99.3.29 2:45 PM Page ii iii CAUTIONSR WARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electricshock. R WARNING HIGH VOLTAGE! NEVER touch the antenna or an internal antenna connector during trans-mission. This may result in an electric shock or a burn. NEVER connect the transceiver to a power source of more than 16 V DC. This connection will ruin the transceiver. AVOID using or placing the transceiver in direct sunlight or in areas with temperatures below –20°C (–4°F) or above+60°C (+140°F). DO NOT operate the transceiver without running the ves- sel’s engine. When your vessel’s engine is OFF and the trans-ceiver is transmitting, the vessel’s battery will soon becomeexhausted. KEEP the transceiver out of the reach of children. KEEP the antenna cable and DC power cable as far away as possible from electrical pumps, generators and other elec-tronic instruments to prevent instrument malfunctions. KEEP the transceiver and microphone at least 1 meter away from your vessel’s magnetic navigation compass. IN CASE OF EMERGENCYIf your vessel requires assistance, contact other vessels andthe Coast Guard by sending a distress call on channel 16. m USING CHANNEL 16 DISTRESS CALL PROCEDURE1. “MAYDAY MAYDAY MAYDAY.”2. “THIS IS ...........................” (name of vessel)3. Your call sign or other indication of the ves- sel. 4. “LOCATED AT ......................” (your position)5. The nature of the distress and assistance re- quired. 6. Any other information which might facilitate the rescue. IC-M45A Manual 99.3.29 2:45 PM Page iii iv FOREWORD ....................................................................... iiIMPORTANT ........................................................................ iiEXPLICIT DEFINITIONS ..................................................... iiFEATURES .......................................................................... iiCAUTIONS ......................................................................... iiiIN CASE OF EMERGENCY ............................................... iiiTABLE OF CONTENTS ...................................................... iv1 OPERATING RULES ...................................................... 12 PANEL DESCRIPTION ............................................... 2–4 n Front panel .................................................................. 2 n Microphone .................................................................. 3 n Function display ........................................................... 4 3 BASIC OPERATION ................................................. 5–10 n Power ON .................................................................... 5 n Channel selection ........................................................ 5 n Receiving ..................................................................... 7 n Transmitting ................................................................. 8 n Scan function ............................................................... 9 n Call channel programming ......................................... 10 n Display backlighting ................................................... 10 TABLE OF CONTENTS 4 SET MODE ............................................................. 11–12 n Entering SET mode ................................................... 11 n SET mode items ........................................................ 11 5 CONNECTIONS AND MAINTENANCE ................. 13–16 n Unpacking .................................................................. 13 n Antenna ..................................................................... 13 n Fuse replacement ...................................................... 13 n Cleaning .................................................................... 13 n Connections .............................................................. 14 n Mounting the transceiver ........................................... 15 n Dimensions ................................................................ 16 6 TROUBLESHOOTING .................................................. 177 VHF MARINE CHANNEL LIST .................................... 188 SPECIFICATIONS AND OPTIONS .............................. 19 n Specifications ...................................................…

Text truncated - open the document above for the full version.

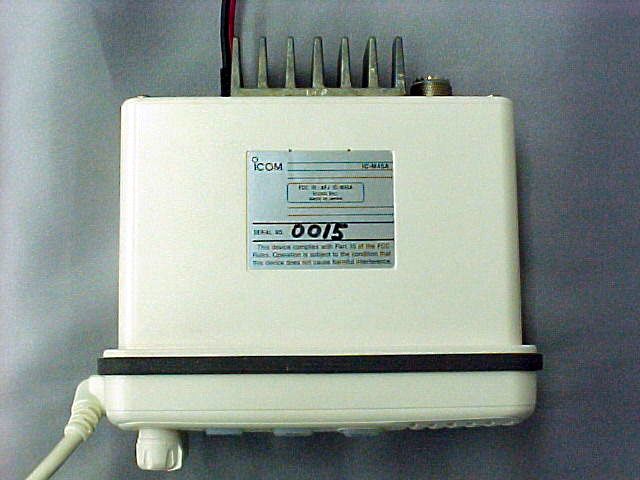

This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. SERIAL NO. MADE IN JAPAN FCC ID : AFJ IC-M45A IC-M45A IC-M45A C-08192 45426-FCC

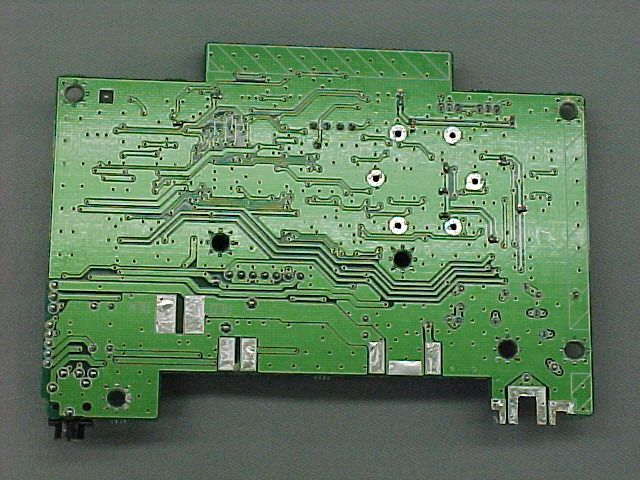

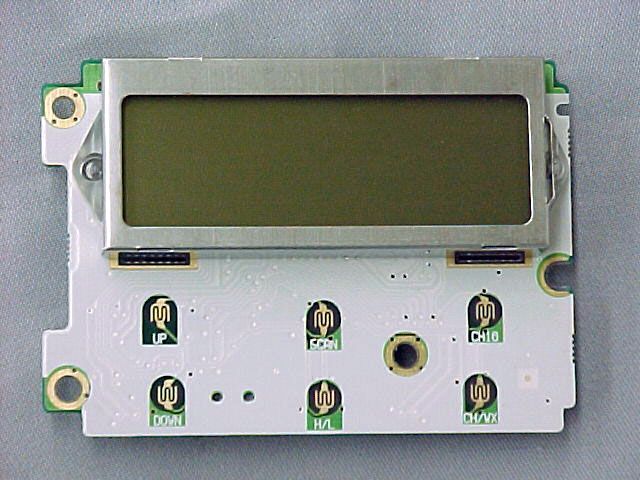

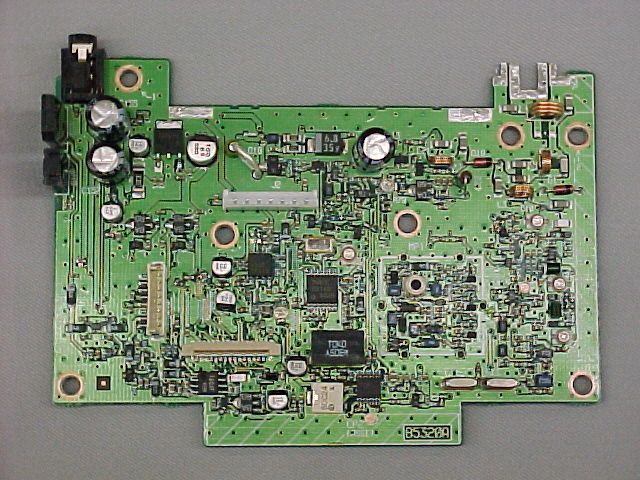

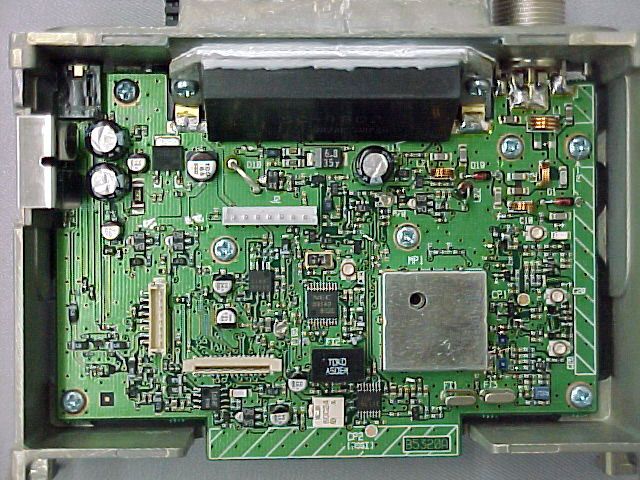

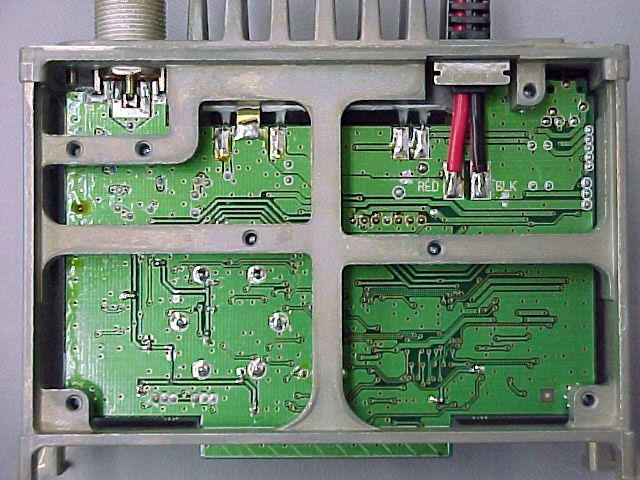

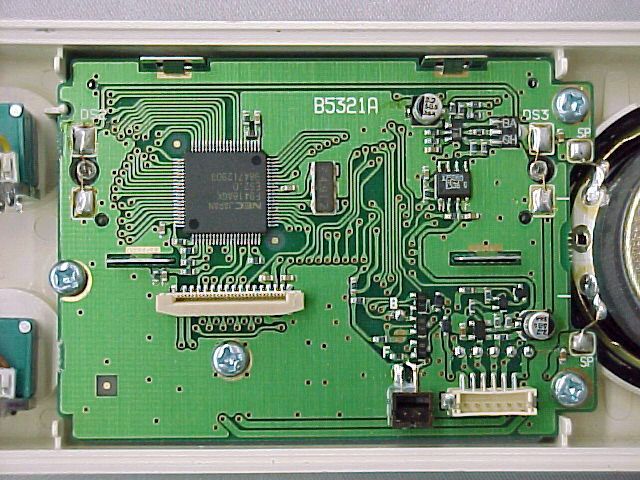

Ref No.DescriptionParts NameManufactureQ'ty IC1S.ICBA1604FROHM1 IC2S.ICTA31136FNTOSHIBA1 IC3S.ICUPD3140GSNEC1 IC4ICSC-1302MITSUBISHI1 IC5S.ICM5218AFP 600CMITSUBISHI1 IC6S.ICTA7805FTOSHIBA1 IC7ICLA4425ASANYO1 Q1S.FET3SK131 LNEC1 Q2S.FET3SK131 LNEC1 Q3S.TRANSISTOR2SC2714 YTOSHIBA1 Q4S.TRANSISTOR2SB1132 RROHM1 Q5S.TRANSISTORXP6501 ABMEC1 Q6S.TRANSISTOR2SD1664 QROHM1 Q7S.FET2SK302 YTOSHIBA1 Q8S.TRANSISTOR2SC4215 OTOSHIBA1 Q9S.TRANSISTOR2SC4215 OTOSHIBA1 Q10S.TRANSISTOR2SC4215 OTOSHIBA1 Q11S.TRANSISTOR2SC3775 3SANYO1 Q12S.TRANSISTOR2SC3268TOSHIBA1 Q13S.FET2SK880 YTOSHIBA1 Q14S.TRANSISTORRN1404TOSHIBA1 Q15S.TRANSISTORRN1404TOSHIBA1 Q16TRANSISTOR2SB1143 SSANYO1 Q17S.TRANSISTORFMW1ROHM1 Q18S.TRANSISTORRN1402TOSHIBA1 Q19S.TRANSISTORRN1404TOSHIBA1 Q20S.TRANSISTOR2SB1132 RROHM1 Q21S.TRANSISTORRN1404TOSHIBA1 Q22S.TRANSISTOR2SB1132 RROHM1 Q23S.TRANSISTOR2SC2712 YTOSHIBA1 Q24S.FET2SJ144 YTOSHIBA1 Q25S.TRANSISTOR2SC2712 YTOSHIBA1 D1DIODEXB15A308TOREX1 D2S.VARICAPHVU350HITACHI1 D3S.VARICAPHVU350HITACHI1 D4S.VARICAPHVU350HITACHI1 D5S.DIODE1SS321TOSHIBA1 D6S.VARICAPMA338MEC1 D7S.VARICAPMA338MEC1 D8S.DIODEMA77MEC1 D9S.DIODE1SS196TOSHIBA1 D11S.DIODEMA862MEC1 D12S.DIODE1SS196TOSHIBA1 D13S.DIODEHSM88ASRHITACHI1 D14S.DIODEHSM88ASRHITACHI1 D16S.DIODEDA204UROHM1 D18DIODEDSA3A1HITACHI1 D19DIODEXB15A308TOREX1 D20S.DIODEMA77MEC1 FI1MONOLITHFL-310HERTZ1 MAIN unit parts list1/13 Ref No.DescriptionParts NameManufactureQ'ty FI2CERAMICALFY450ETOKO1 FI3MONOLITHFL-310HERTZ1 X1S.DISCRICDBCA450CX24MURATA1 X2S.XTALCR-659HERTZ1 L1COILLA-253ATLAS1 L2COILLA-243ATLAS1 L3COILLA-243ATLAS1 L4S.COILLQN1A 56NJ04 56NMURATA1 L5S.COIL0.30-1.7-8TL 60NUCHIDA1 L6S.COIL0.30-1.7-8TL 60NUCHIDA1 L7S.COILNL252018T 047J 47NTDK1 L8S.COILNL252018T 047J 47NTDK1 L9S.COILNL322522T R82J-3 0.82UTDK1 L10S.COILNL252018T 1R0J 1.0UTDK1 L11S.COILNL252018T 1R0J 1.0UTDK1 L12S.COILLB-257SUMIDA1 L13S.COILNL252018T 1R0J 1.0UTDK1 L14S.COILNL252018T 1R0J 1.0UTDK1 L15S.COILNL252018T 1R0J 1.0UTDK1 L16S.COILMLR1608M R10K 0.1UTDK1 L17S.COILMLR1608M R10K 0.1UTDK1 L18S.COILMLR1608M R10K 0.1UTDK1 L19S.COILNL252018T 082J 82NTDK1 L20S.COILNL252018T 082J 82NTDK1 L21COILLA-243ATLAS1 L22COILLW-25ATLAS1 R1S.RESISTOR1M ERJ3GEMACO1 R2S.RESISTOR39K ERJ3GEMACO1 R3S.RESISTOR47K ERJ3GEMACO1 R4S.RESISTOR100K ERJ3GEMACO1 R5S.RESISTOR100 ERJ3GEMACO1 R6S.RESISTOR47 ERJ3GEMACO1 R7S.RESISTOR33 ERJ3GEMACO1 R8S.RESISTOR1M ERJ3GEMACO1 R9S.RESISTOR1M ERJ3GEMACO1 R10S.RESISTOR2.2K ERJ3GEMACO1 R11S.RESISTOR100 ERJ3GEMACO1 R12S.RESISTOR820K ERJ3GEMACO1 R13S.RESISTOR100K ERJ3GEMACO1 R14S.RESISTOR22K ERJ3GEMACO1 R15S.RESISTOR10K ERJ3GEMACO1 R17S.RESISTOR10 ERJ3GEMACO1 R18S.RESISTOR3.3K ERJ3GEMACO1 R19S.RESISTOR2.2K ERJ3GEMACO1 R20S.RESISTOR1.5K ERJ3GEMACO1 R21S.RESISTOR1.5K ERJ3GEMACO1 R22S.RESISTOR1.5K ERJ3GEMACO1 R23S.RESISTOR100K ERJ3GEMACO1 R24S.RESISTOR470 ERJ3GEMACO1 R25S.RESISTOR43K RR0816P DSUSUMU1 MAIN unit parts list2/13 Ref No.DescriptionParts NameManufactureQ'ty R26S.RESISTOR2.2M ERJ3GEMACO1 R27S.RESISTOR4.7K ERJ3GEMACO1 R28S.RESISTOR10K ERJ3GEMACO1 R29S.RESISTOR4.7K ERJ3GEMACO1 R30S.RESISTOR1.2K ERJ3GEMACO1 R31S.RESISTOR100K ERJ3GEMACO1 R32S.RESISTOR470 ERJ3GEMACO1 R33S.RESISTOR10K ERJ3GEMACO1 R34S.RESISTOR10K ERJ3GEMACO1 R35S.RESISTOR1.5K ERJ3GEMACO1 R36S.RESISTOR390 ERJ3GEMACO1 R37S.RESISTOR330K ERJ3GEMACO1 R38S.RESISTOR47K ERJ3GEMACO1 R39S.RESISTOR1.5K ERJ3GEMACO1 R40S.RESISTOR27K ERJ3GEMACO1 R41S.RESISTOR56K ERJ3GEMACO1 R42S.RESISTOR2.2K ERJ3GEMACO1 R43S.RESISTOR270K ERJ3GEMACO1 R44S.RESISTOR10 ERJ3GEMACO1 R45S.RESISTOR680 ERJ3GEMACO1 R46S.RESISTOR68K ERJ3GEMACO1 R47S.RESISTOR680 ERJ3GEMACO1 R48S.RESISTOR68K ERJ3GEMACO1 R49S.RESISTOR390 ERJ3GEMACO1 R50S.RESISTOR39K ERJ3GEMACO1 R51S.RESISTOR1K ERJ3GEMACO1 R52S.RESISTOR1K ERJ3GEMACO1 R53S.RESISTOR47K ERJ3GEMACO1 R54S.RESISTOR10K ERJ3GEMACO1 R55S.RESISTOR3.3K ERJ3GEMACO1 R56S.RESISTOR2.2K ERJ3GEMACO1 R57S.RESISTOR330 ERJ3GEMACO1 R58S.RESISTOR100 ERJ3GEMACO1 R59S.RESISTOR68 ERJ3GEMACO1 R60S.RESISTOR100 ERJ3GEMACO1 R61S.RESISTOR330 ERJ3GEMACO1 R63S.RESISTOR220 ERJ3GEMACO1 R64S.RESISTOR2.2K ERJ3GEMACO1 R65S.RESISTOR4.7K ERJ3GEMACO1 R66S.RESISTOR4.7K ERJ3GEMACO1 R67S.RESISTOR100 ERJ3GEMACO1 R68S.RESISTOR10 ERJ3GEMACO1 R69S.RESISTOR1K ERJ3GEMACO1 R70S.RESISTOR100 ERJ3GEMACO1 R71S.RESISTOR1K ERJ3GEMACO1 R72S.RESISTOR33 MCR18ROHM1 R73S.RESISTOR33 MCR18ROHM1 R74S.RESISTOR2.2K ERJ3GEMACO1 R75S.RESISTOR3.3K ERJ3GEMACO1 R76S.RESISTOR10K ERJ3GEMACO1 MAIN unit parts list3/13 Ref No.DescriptionParts NameManufactureQ'ty R77S.RESISTOR220 ERJ3GEMACO1 R78S.RESISTOR10K ERJ3GEMACO1 R79S.TRIMMERRV-143 (RH03A3AS2J 470)ALPS1 R80S.RESISTOR27K ERJ3GEMACO1 R81S.RESISTOR2.2K ERJ3GEMACO1 R82S.RESISTOR2.2K ERJ3GEMACO1 R83S.RESISTOR100K ERJ3GEMACO1 R84S.RESISTOR470 ERJ3GEMACO1 R85S.RESISTOR68 MCR10ROHM1 R86S.RESISTOR68 MCR10ROHM1 R87S.RESISTOR100 ERJ3GEMACO1 R88S.RESISTOR2.7K ERJ3GEMACO1 R89S.RESISTOR2.7K ERJ3GEMACO1 R90S.RESISTOR330K ERJ3GEMACO1 R91S.RESISTOR10K ERJ3GEMACO1 R92S.RESISTOR6.8K ERJ3GEMACO1 R94S.RESISTOR10K ERJ3GEMACO1 R95S.RESISTOR4.7K ERJ3GEMACO1 R98S.RESISTOR82K ERJ3GEMACO1 R99S.RESISTOR82K ERJ3GEMACO1 R100S.RESISTOR82K ERJ3GEMACO1 R101S.RESISTOR100 ERJ3GEMACO1 R102S.RESISTOR33K ERJ3GEMACO1 R103S.RESISTOR27K ERJ3GEMACO1 R104S.THERMISTORNTCCS20123NH 103KCTTDK1 R105S.RESISTOR8.2K ERJ3GEMACO1 R106S.TRIMMERRV-153 (RH03A3AN4X02A 33K)ALPS1 R107S.RESISTOR10K ERJ3GEMACO1 R108S.RESISTOR1.5M ERJ3GEMACO1 R109S.RESISTOR100K ERJ3GEMACO1 R110S.RESISTOR470K ERJ3GEMACO1 R111S.RESISTOR100K ERJ3GEMACO1 R112S.RESISTOR100K ERJ3GEMACO1 R113S.RESISTOR4.7 MCR10ROHM1 R114S.RESISTOR1K ERJ3GEMACO1 R115S.RESISTOR560K ERJ3GEMACO1 R116S.RESISTOR8.2K ERJ3GEMACO1 R117S.RESISTOR180K ERJ3GEMACO1 R118S.RESISTOR2.7K ERJ3GEMACO1 R119S.RESISTOR330 ERJ3GEMACO1 R120S.RESISTOR10K ERJ3GEMACO1 R121S.RESISTOR2.2K ERJ3GEMACO1 R122S.RESISTOR10K ERJ3GEMACO1 R123S.RESISTOR2.2K ERJ3GEMACO1 R124S.RESISTOR33 MCR50ROHM1 R125S.RESISTOR47K ERJ3GEMACO1 R128S.RESISTOR18K ERJ3GEMACO1 R129S.RESISTOR1K ERJ3GEMACO1 C1S.CERAMIC8P GRM42-6 500V CHMURATA1 C2S.CERAMIC24P GRM42-6 500V CHMURATA1 MAIN unit parts…

Text truncated - open the document above for the full version.

FCC ID: AFJIC-M45A MFA p9950008, d9950042 Date:May 21, 1999 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention:Authorization & Evaluation Division Applicant:Icom Incorporated Equipment:IC-M45A FCC ID:AFJIC-M45A FCC Rules:80 Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, William H. Graff enclosure(s) CERTIFIED MAIL, R.R.R. cc: Applicant WHG/cvr FCC ID: AFJIC-M45A MFA p9950008, d9950042 Date:May 21, 1999 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention:Authorization & Evaluation Division Applicant:Icom Incorporated FCC ID:AFJIC-M45A Equipment:IC-M45A Subject:Electronically Filed FORM 731 Confirmation: Gentlemen: As per instructions received, enclosed herewith please find completed Remittance Advice Form 159 for the referenced equipment, bearing original signature, and the application having been electronically filed. Sincerely yours, William H. Graff enclosure(s) CERTIFIED MAIL, R.R.R. cc: Visa cc: File WHG/cvr FCC ID: AFJIC-M45A MFA p9950008, d9950042 LIST OF EXHIBITS (FCC CERTIFICATION (TRANSMITTERS) - REVISED 9/28/98) APPLICANT:Icom Incorporated FCC ID:AFJIC-M45A BY APPLICANT: 1. LETTER OF AUTHORIZATION 2. IDENTIFICATION DRAWINGS, 2.1033(c)(11) LABEL LOCATION OF LABEL COMPLIANCE STATEMENT LOCATION OF COMPLIANCE STATEMENT 3. PHOTOGRAPHS, 2.1033(c)(12) 4. DOCUMENTATION: 2.1033(c) (3)USER MANUAL (9)TUNE-UP/ALIGNMENT PROCEDURE (10)SCHEMATIC DIAGRAM (10) OPERATIONAL DESCRIPTION BY M.F.A. INC. A.TESTIMONIAL & STATEMENT OF CERTIFICATION B.STATEMENT OF QUALIFICATIONS FCC ID: AFJIC-M45A MFA p9950008, d9950042 Sub-part 2.1033(c): EQUIPMENT IDENTIFICATION FCC ID: AFJIC-M45A NAMEPLATE DRAWING ATTACHED, EXHIBIT 1. LOCATION AS PER LABEL DRAWING(S) DATE OF REPORT May 21, 1999 SUPERVISED BY:William H. Graff FCC ID: AFJIC-M45A MFA p9950008, d9950042 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a)SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: AFJIC-M45A MFA p9950008, d9950042 TABLE OF CONTENTS RULEDESCRIPTIONPAGE .Test Report1 2.1033(c)General Information Required2 2.1033(c)(14) Rule Summary5 .Standard Test Conditions and Engineering Practices6 2.1046(a) P.F. Power Output7 2.1047(a) Audio Frequency Response9 2.1047(a) Audio Low Pass Filter (Voice Input)12 2.1047(b), 80.211, 80.213 Modulation Limiting14 2.1049(c)(1) Emission Masks (Occupied Bandwidth)16 2.1051 Spurious Emissions at Antenna Terminals)21 2.1053(a) Field Strength of Spurious Radiation24 2.1055(a)(1) Frequency Stability (Temperature Variation)28 2.1055(b)(1)Frequency Stability (Voltage Variation)31 80.203(b)User Controls32 80.203(c)Automatic Deactivation (Time-Out Timer)33 80.959(c)(1)(2) & (3) Power Output Over Time34 80.956(a) & (b)Subpart T - G3E Emissions36 80.956(a) & (b)Subpart T - G3E Emissions37 80.961(a) & (b)Subpart T - G3E Emissions38 2.202(g) Necessary Bandwidth and Emission Bandwidth39 FCC ID: AFJIC-M45A MFA p9950008, d9950042 PAGE NO.1 of 39. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a)TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number:d9950042 d) Client:Icom America, Inc. 2380 - 116th Ave. N. E. P.O. C-90029 Bellevue, Washington 98009-9029 e) Identification:IC-M45A FCC ID: AFJIC-M45A Description:VHF-FM Marine Transceiver f) EUT Condition:Not required unless specified in individual tests. g) Report Date:May 21, 1999 EUT Received:May 12, 1999 h, j, k):As indicated in individual tests. i) Sampling method:No sampling procedure used. l) Uncertainty:In accordance with MFA internal quality manual. m) Supervised by: William H. Graff n) Results:The results presented in this report relate only to the item tested. o) Reproduction:This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: AFJIC-M45A MFA p9950008, d9950042 PAGE NO.2 of 39. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS,…

Text truncated - open the document above for the full version.
