AFJIC-M88IC-M88

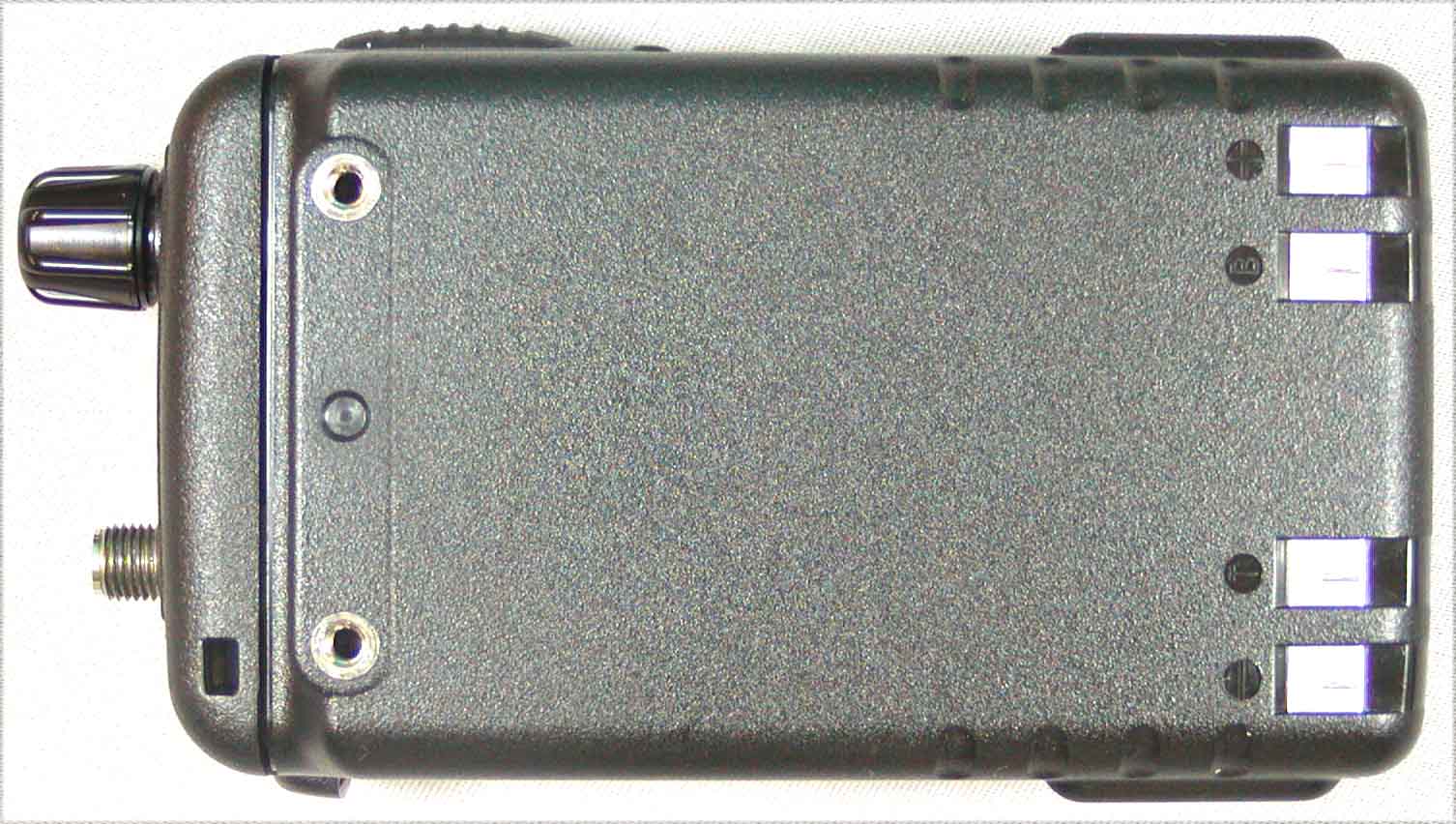

INSTRUCTION MANUAL iM88 VHF MARINE TRANSCEIVER This device complies with Part 15 of the FCC Rules. Operation is sub-ject to the follow two conditions: (1) This device may not cause harmfulinterference, and (2) this device must accept any interference received,including interference that may cause undesired operation. IC-M88-draft.qxd 02.9.26 2:44 PM Page A (1,1) SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as“Occupational Use Only”, meaning it must be used only duringthe course of employment by individuals aware of the haz-ards, and the ways to minimize such hazards. This radio isNOT intended for use by the “General Population” in an un-controlled environment. This radio has been tested and complies with the FCC RF exposure limits for“Occupational Use Only”. In addition, your Icom radio complies with the follow-ing Standards and Guidelines with regard to RF energy and electromagneticenergy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electro-magnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Elec-tromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous ElectromagneticFields– RF and Microwave. To ensure that your expose to RF electromagnetic en- ergy is within the FCC allowable limits for occupationaluse, always adhere to the following guidelines:• DO NOT operate the radio without a proper antenna at- tached, as this may damaged the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna sup-plied with this radio by the manufacturer or antenna specifically authorized bythe manufacturer for use with this radio. CAUTION WARNING • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF expo-sure compliance requirements to be exceeded. The radio is transmittingwhen the “TX indicator” lights red. You can cause the radio to transmit bypressing the “PTT” switch. • ALWAYS use Icom authorized accessories (antennas, batteries, belt clips, etc.). Use of unauthorized accessories can cause the FCC RF exposurecompliance requirements to be exceeded. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clips which are listed onpage 25 when attaching the radio to your belt, etc., to ensure FCC RF ex-posure compliance requirements are not exceeded. To provide the recipi-ents of your transmission the best sound quality, hold the antenna at least5 cm (2 inches) from your mouth, and slightly off to one side. The information listed above provides the user with the information needed tomake him or her aware of RF exposure, and what to do to assure that this radiooperates with the FCC RF exposure limits of this radio. Electromagnetic Interference/CompatibilityDuring transmissions, your Icom radio generates RF energy that can possiblycause interference with other devices or systems. To avoid such interference,turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such ashospitals, aircraft, and blasting sites. i IC-M88-draft.qxd 02.9.26 2:44 PM Page ii (1,1) ii IN CASE OF EMERGENCYIf your vessel requires assistance, contact other vessels andthe Coast Guard by sending a distress call on Channel 16. ❍ USING CHANNEL 16 DISTRESS CALL PROCEDURE1. “MAYDAY MAYDAY MAYDAY.”2. “THIS IS ...........................” (name of vessel)3. Your call sign or other indication of the ves- sel. 4. “LOCATED AT .....................” (your position)5. The nature of the distress and assistance re- quired. 6. Any other information which might facilitate the rescue. RECOMMENDATIONCLEAN THE TRANSCEIVER THOROUGHLY WITH FRESHWATER after exposure to salt water. Otherwise, the transceiver’s keys, switches and controllersmay become inoperable due to salt crystallization. IC-M88-draft.qxd 02.9.26 2:44 PM Page iii (1,1) iii FOREWORDThank you for purchasing this Icom product. The IC-M88 VHFMARINE TRANSCEIVER is designed and built with Icom’s su-perior technology and craftsmanship. With proper care thisproduct should provide you with years of trouble-free operation.IMPORTANTREAD ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL— This in- struction manual contains important operating instructions forthe IC-M88. EXPLICIT DEFINITIONS FEATURES Land operation MAX. 22 Free CH allows you to operate within 146.000 to174.000 MHz band and set the Wide/Narrow, CTCSS/DTCStone frequency. Depending on programming, your trans-ceiver can communicate with the LAND transceiver.  Waterproof construction Built tough to withstand the punishing marine environ-ment, the IC-M88 meets JIS waterproof specificationgrade 7 while using BP-226 or BP-227.  Dual watch and tri-watch functions Convenient functions which allow you to monitor the dis-tress channel (Ch 16) while receiving a channel of yourchoice—dual watch; or monitor the distress channel andanother channel while receiving a channel of yourchoice—tri-watch.  Simple operation Ergonomic design with a minimum number of switchesand controls provides simple intuitive operation. WORD DEFINITION R WARNING Personal injury, fire hazard or electric shockmay occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No riskof personal injury, fire or electric shock. IC-M88-draft.qxd 02.9.26 2:44 PM Page iv (1,1) CAUTIONSR WARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electricshock. R…

Text truncated - open the document above for the full version.

Oct. 23, 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject:Type Acceptance Application under FCC CFR 47, Parts 2, 80 (Marine in 156.025-157.425 MHz) and 90 (146-174 MHz) - Non-Broadcast Radio Transceivers Operating in the frequency bands . Applicant:ICOM Incorporated Product:VHF MARINE TRANSCEIVER Model:IC-M88 FCC ID:AFJIC-M88 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site. Evaluation of RF Exposure Compliance Requirements RF Exposure RequirementsCompliance with FCC Rules SAR Tests for Portable Transmitters • Body Tissue • Brain Tissue • Comply with SAR limits with body tissue with maximum SAR level of 0.724 W/Kg (duty cycle = 50% for push-to- talk transceiver) when the tip of the Tx antenna in was in contact with the phantom. • Comply with SAR limits with brain tissue with maximum SAR level of 1.196 W/Kg (duty cycle = 50% for push-to- talk transceiver) at 25 mm separation distance from the phantom. Any other RF exposure related issues that may affect MPE compliance RF Safety Training for Occupational Use is provided on Page i of the Users Manual If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.:1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH Encl. 31040/SIT C-1376 46390-2049 200093-0 2 00-034 UltraTech Group of Labs

Oct. 23, 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject:Type Acceptance Application under FCC CFR 47, Parts 2, 80 (Marine in 156.025-157.425 MHz) and 90 (146-174 MHz) - Non-Broadcast Radio Transceivers Operating in the frequency bands . Applicant:ICOM Incorporated Product:VHF MARINE TRANSCEIVER Model:IC-M88 FCC ID:AFJIC-M88 Dear Sir/Madam, Please find a separate Corrected Page 6, Section. 3.3 of the test report since we discovered some mistakes in data entry. Thanks Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH Encl. 31040/SIT C-1376 46390-2049 200093-0 2 00-034 UltraTech Group of Labs

3 1 PREPARATION When adjusting IC-M87/M88, optional OPC-966 cloning cable, adjustment software are required. EQUIPMENT DC power supply RF power meter (terminated type) Frequency counter Digital multimeter GRADE AND RANGE Output voltage: 7.2 V DC Current capacity: 3 A or more Measuring range: 0.1–10 W Frequency range: 100–300 MHz Impedance: 50 Ω SWR: Less than 1.2 : 1 Frequency range: 0.1–300 MHz Frequency accuracy : ±1 ppm or better Sensitivity: 100 mV or better Input impedance: 10 MΩ/DC or better EQUIPMENT FM deviation meter Audio generator Standard signal generator (SSG) Attenuator GRADE AND RANGE Frequency range: 30–300 MHz Measuring range: 0 to ±10 kHz Frequency range: 300–3000 Hz Measuring range: 1–500 mV Frequency range: 100–300 MHz Output level: 0.1 μV–32 mV (–127 to –17 dBm) Power attenuation: 40 dB or more Capacity: 10 W or more IC-M87/M88 ADJUSTMENT PROCEDURES 4 1 2 1 1 2 3 4 1 2 1 2 • Operating channel : center frequency • Receiving • Operating channel : center frequency • Connect the RF power meter or 50 Ω dummy load to the antenna connector. • Transmitting • Operating channel : center frequency • Connect the RF power meter or 50 Ω dummy load to the antenna connector. • Transmitting • Operating channel : center frequency • [H/L] switch: High • Transmitting • [H/L] switch: Mid • Transmitting • [H/L] switch: Low • Transmitting • [H/L] switch: Extra low • Transmitting • Operating channel : center frequency • Channel spacing: Wide • [H/L] switch: High • Connect the audio generator to the [MIC] jack and set as: 1.0 kHz/200 mV rms. • Set the FM deviation meter as: HPF: OFF LPF: 20 kHz De-emphasis: OFF Detector: (P–P)/2 • Transmitting • Channel spacing: Narrow • Transmitting • Operating channel : center frequency • Channel spacing: Wide • [H/L] switch: High • Set the DTCS as : Code 007 • Transmitting • Channel spacing: Narrow • Transmitting PLL LOCK VOLTAGE REFERENCE FREQUENCY OUTPUT POWER FM DEVIATION (Wide) (Narrow) MODULATION BARANCE (Wide) (Narrow) MAIN To p panel To p panel To p panel To p panel Connect the digital multimeter to the check point LV. Loosely couple the frequnecy counter to the antenna connec- tor. Connect the RF power meter to the antenna connector. Connect the FM deviation meter to the antenna connector through the attenuator. Connect the FM deviation meter with an oscilloscope to the antenna connector through the attenuator. 1.7–2.7 V (Verify) 2.0–3.0 V (Verify) 160.000000 MHz 5.0 W 3.0 W 0.75 W 0.45 W ±4.15–4.25 kHz ±2.05–2.15 kHz ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE UNIT LOCATION 2 PLL AND TRANSMITTER ADJUSTMENTS Select an operation using [↑] / [↓] keys, then set specified value using [←] / [→] keys on the connected computer keyboard. Set to flat wave form Set to flat wave form 5 Minimum distortion level 1 • Operating frequency: center frequency • Channel spacing: Wide • Connect a standard signal generator to the antenna connector and set as: Level: 10 μV* (–87 dBm) Modulation: OFF Deviation: ±3.5 kHz • Receiving • Operating frequency: center frequency • Channel spacing: Wide • Connect a standard signal generator to the antenna connector and set as: Level: 0.63 μV* (–111 dBm) Modulation: 1 kHz Deviation: ±3.5 kHz • Receiving RX SENSITIVITY [BPF T1]–[BPF T4] SQUELCH LEVEL [SQL] To p panel To p panel Connect a SINAD meter with an 8 Ωload to the [SP] jack. ADJUSTMENTADJUSTMENT CONDITION MEASUREMENT VALUE UNIT LOCATION *The output level of the standard signal generator (SSG) is indicated as the SSG’s open circuit. SOFTWARE ADJUSTMENT – continued Select an operation using [↑] / [↓] keys, then set specified value using [←] / [→] keys on the connected computer keyboard. CONVENIENT:The BPF T1–BPF T4 can be adjusted automatically. q-1: Set the cursol to “BPF ALL” on the adjustment program and then push [ENTER] key. q-2: The connected PC tunes BPF T1–BPF T4 to peak levels. or w-1: Set the cursol to one of BPF T1, T2, T3, or T4 as desired. w-2: Push [ENTER] key to start tuning. w-3: Repeat w-1 and w-2 to perform additional BPF tuning. 1 The “SQUELCH LEVEL” adjustment is adjusted by “ADJUSTMENT SOFTWARE”, automatically.

SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as“Occupational Use Only”, meaning it must be used only duringthe course of employment by individuals aware of the haz-ards, and the ways to minimize such hazards. This radio isNOT intended for use by the “General Population” in an un-controlled environment. This radio has been tested and complies with the FCC RF exposure limits for“Occupational Use Only”. In addition, your Icom radio complies with the follow-ing Standards and Guidelines with regard to RF energy and electromagneticenergy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electro-magnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Elec-tromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous ElectromagneticFields– RF and Microwave. To ensure that your expose to RF electromagnetic en- ergy is within the FCC allowable limits for occupationaluse, always adhere to the following guidelines:• DO NOT operate the radio without a proper antenna at- tached, as this may damaged the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna sup-plied with this radio by the manufacturer or antenna specifically authorized bythe manufacturer for use with this radio. CAUTION WARNING • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF expo-sure compliance requirements to be exceeded. The radio is transmittingwhen the “TX indicator” lights red. You can cause the radio to transmit bypressing the “PTT” switch. • ALWAYS use Icom authorized accessories (antennas, batteries, belt clips, etc.). Use of unauthorized accessories can cause the FCC RF exposurecompliance requirements to be exceeded. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clips which are listed onpage 25 when attaching the radio to your belt, etc., to ensure FCC RF ex-posure compliance requirements are not exceeded. To provide the recipi-ents of your transmission the best sound quality, hold the antenna at least5 cm (2 inches) from your mouth, and slightly off to one side. The information listed above provides the user with the information needed tomake him or her aware of RF exposure, and what to do to assure that this radiooperates with the FCC RF exposure limits of this radio. Electromagnetic Interference/CompatibilityDuring transmissions, your Icom radio generates RF energy that can possiblycause interference with other devices or systems. To avoid such interference,turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such ashospitals, aircraft, and blasting sites. i IC-M88-draft.qxd 02.9.26 2:44 PM Page ii (1,1)

VHF MARINE TRANSCEIVER Model No.: IC-M88 Tested For ICOM Incorporated 1-1-32, Kamiminami YangJae-Dong SeoChoi-Gu Japan, 547-0003 In Accordance With SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: ICOM-044-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: October 21, 2002 Report Prepared by: JaeWook Choi Tested by: JaeWook Choi Issued Date: October 21, 2002 Test Dates: October 16, 2002 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATE (SAR) Page 1 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) VHF Marine Transceiver M/N: IC-M88 FCC ID: AFJIC-M88 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION................................................................................................................................................4 1.1. SCOPE...............................................................................................................................................................................4 1.2. REFERENCES...................................................................................................................................................................4 EXHIBIT 2. PERFORMANCE ASSESSMENT.....................................................................................................................5 2.1. CLIENT AND MANUFACTURER INFORMATION......................................................................................................5 2.2. DEVICE UNDER TEST (D.U.T.) DESCRIPTION..............................................................................................................5 2.3. LIST OF D.U.T.’S ACCESSORIES:..................................................................................................................................6 2.4. SPECIAL CHANGES ON THE D.U.T.’S HARDWARE/SOFTWARE FOR TESTING PURPOSES.............................6 2.5. ANCILLARY EQUIPMENT.............................................................................................................................................6 2.6. GENERAL TEST CONFIGURATIONS...........................................................................................................................6 2.6.1. Equipment Configuration...........................................................................................................................................6 2.6.2. Exercising Equipment.................................................................................................................................................6 2.7. SPECIFIC OPERATING CONDITIONS......................................................................................................................................6 2.8. BLOCK DIAGRAM OF TEST SETUP............................................................................................................................. 7 EXHIBIT 3. SUMMARY OF TEST RESULTS......................................................................................................................8 3.1. LOCATION OF TESTS.....................................................................................................................................................8 3.2. APPLICABILITY & SUMMARY OF SAR RESULTS..................................................................................................... 8 EXHIBIT 4. MEASUREMENTS, EXAMINATIONS & TEST DATA................................................................................9 4.1. TEST SETUP.....................................................................................................................................................................9 4.2. PHOTOGRAPH OF D.U.T. AND ALL ACCESORIES................................................................................................................10 4.3. PHOTOGRAPHS OF D.U.T. POSITION........................................................................................................................18 4.3.1. Head Front Configuration........................................................................................................................................18 4.3.1.1. Push-To-Talk...........................................................................................................................................................................18 4.3.2. Body-Worn(By stander) Configuration....................................................................................................................19 4.3.2.1. DUT parallel to the phantom and its belt clip in contact..........................................................................................................19 4.3.2.1.1. Li-Ion battery pack and normal belt clip............................................................................................................................19 4.3.2.2. The tip of the antenna in contact..............................................................................................................................................20 4.3.2.2.1. Li-Ion battery pack and normal belt clip............................................................................................................................20 4.3.2.2.2. Li-Ion battery pack and swivel belt clip....................................…

Text truncated - open the document above for the full version.

UltraTech Group of Labs October 21, 2002 ICOM Incorporated 1-1-32, Kamiminami HIRANO-KU, OSAKA Japan, 547-0003 Attn.: Mr. Takahasi Aoki Subject: Verification Testing in accordance with SAR (Specific Absorption Rate) requirements using guidelines established in: IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C) Industry Canada RSS-102 (Issue 1) ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) Product: VHF Marine Transceiver Model: IC-M88 Dear Mr. Aoki The product sample has been tested in accordance with SAR (Specific Absorption Rate) requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1)and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1), and the results and observation were recorded in the engineering report, Our File No.: ICOM-044-SAR Enclosed you will find a copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. 31040/SIT A96/TH/0093 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as“Occupational Use Only”, meaning it must be used only duringthe course of employment by individuals aware of the haz-ards, and the ways to minimize such hazards. This radio isNOT intended for use by the “General Population” in an un-controlled environment. This radio has been tested and complies with the FCC RF exposure limits for“Occupational Use Only”. In addition, your Icom radio complies with the follow-ing Standards and Guidelines with regard to RF energy and electromagneticenergy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electro-magnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Elec-tromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous ElectromagneticFields– RF and Microwave. • The following accessories are authorized for use with this product. Use of accessories other than those specified may result in RF exposure levelsexceeding the FCC requirements for wireless RF exposure.; Belt Clip (MB-79), Swivel Belt Clip (MB-86), Rechargeable Li-Ion Battery Pack (BP-227),Alkaline Battery Case (BP-226) and Speaker-microphone (HM-138). To ensure that your expose to RF electromagnetic en- ergy is within the FCC allowable limits for occupationaluse, always adhere to the following guidelines: CAUTION WARNING • DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you to exceed FCC RF exposurelimits. A proper antenna is the antenna supplied with this radio by the man-ufacturer or antenna specifically authorized by the manufacturer for usewith this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF expo-sure compliance requirements to be exceeded. The radio is transmittingwhen the “TX indicator” lights red. You can cause the radio to transmit bypressing the “PTT” switch. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clips which are listed onpage 31 when attaching the radio to your belt, etc., to ensure FCC RF ex-posure compliance requirements are not exceeded. To provide the recipi-ents of your transmission the best sound quality, hold the antenna at least5 cm (2 inches) from your mouth, and slightly off to one side. The information listed above provides the user with the information needed tomake him or her aware of RF exposure, and what to do to assure that this radiooperates with the FCC RF exposure limits of this radio. Electromagnetic Interference/CompatibilityDuring transmissions, your Icom radio generates RF energy that can possiblycause interference with other devices or systems. To avoid such interference,turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such ashospitals, aircraft, and blasting sites. Occupational/Controlled UseThe radio transmitter is used in situations in which persons are exposed asconsequence of their employment provided those persons are fully aware ofthe potential for exposure and can exercise control over their exposure. i IC-M88-3.qxd 02.12.16 11:10 AM Page ii (1,1)

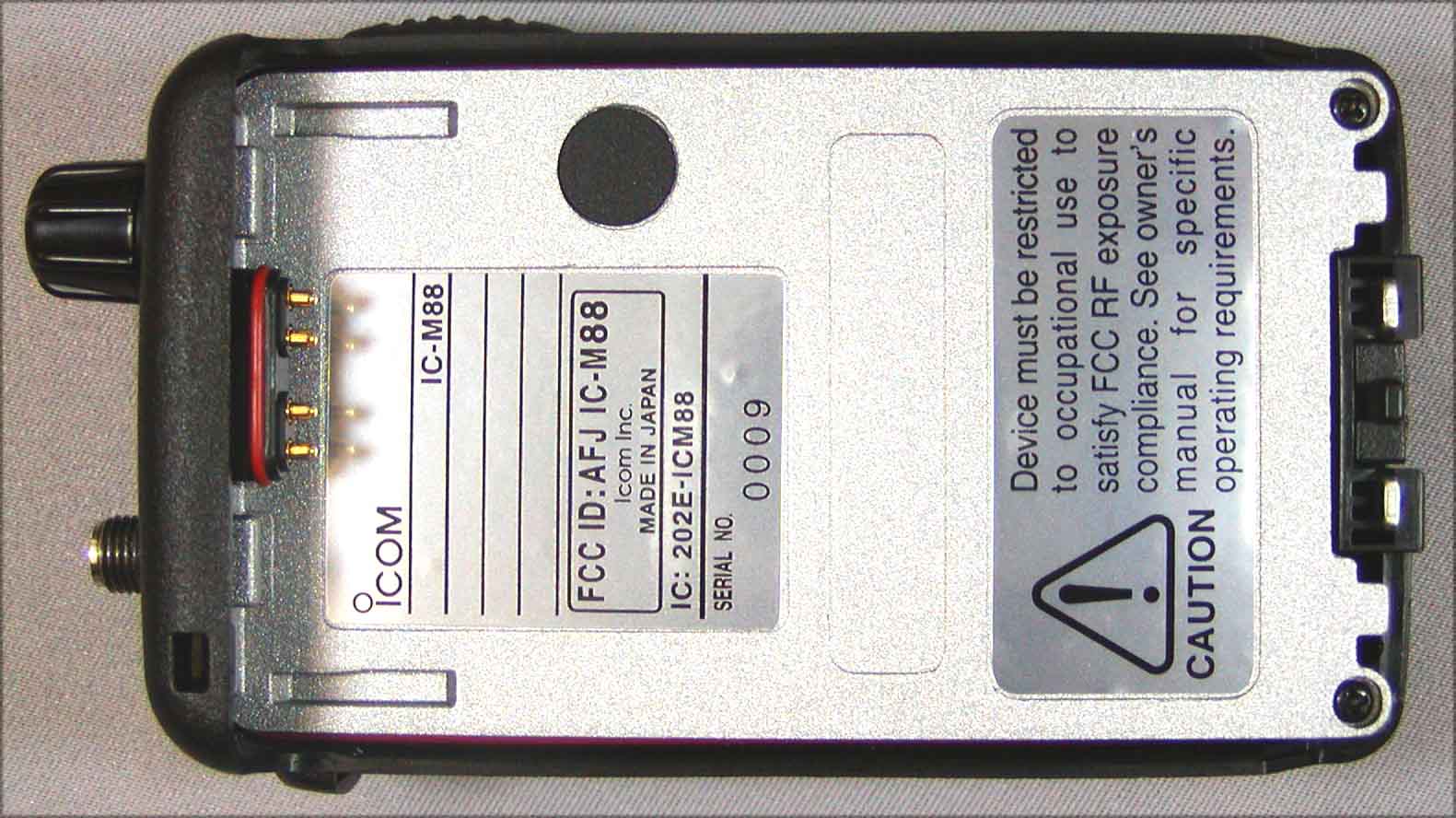

To: Andy Leimer [email protected] FCC Application Processing Branch Re: FCC ID AFJIC-M88 Applicant: ICOM Incorporated Correspondence Reference Number: 24516 731 Confirmation Number: EA861171 Q1) Updated body worn statement "ALWAYS use Icom authorized accessories (antennas, batteries, belt clips, etc.). Use of unauthorized accessories can cause the FCC RF exposure" could easily be misunderstood to refer to any ICOM accessory. Please refer to the specific accessories tested. A1)Please see the updated page of the Users Manual in "RF Exposure" folder to include the following information for SAR compliance: “The following accessories are authorized for use with this product. Use of accessories other than those specified may result in RF exposure levels exceeding the FCC requirements for wireless RF exposure.” Belt Clip (M/N: MP-79) Swivel Belt Clip (M/N: MB-68) Rechargeable Li-Ion Battery Pack(M/N:BP-227) Alkaline Battery Holder (M/N:BP-226) Speaker-Microphone (M/N:HM-138) Q2) Updated RF safety instruction with additional information about the definition of "occupational". References to occupational use was found in the warning label but no related instructions in the user manual were found. A1)Please see the updated page of the Users Manual in "RF Exposure" folder to include the following information for SAR compliance: Q3) Additional information about the SAR measurement system. Please provide manufacturer, general description of, and photographs. A3)The original system was manufactured by Oscar Garay, 3D-EMC Laboratory in Florida. Since the IEEE 1528 standard has still not been ratified and keep evolving, the system has been improved and modified in order to keep up with the latest requirements and/or recommendations. The description and detail of the system was included at the Exhibit 5. SAR system configuration & test methodology in the report. Q 4)Strong justification for use of head liquid calibration for body worn measurements. Provide SAR results using probe calibrated in body liquid as appropriate. A4)The conversion factor calibrated using tested tissue (γ muscle : 7.850, ζ muscle@cal : 0.0360 [W/Kg/mV]) is found to yield similar or lower SAR results than that calibrated using the brain tissue (γ brain : 7.623, ζ brain@cal : 0.0362 [W/Kg/mV]). The percentage difference between the sensitivities in each target tissue is found to be less than 0.56 [%]. The calibration detail using the tested muscle tissue and the revised SAR data using the new conversion factor is shown below. Simulated tissue for muscle Tissue calibration typeHP Dielectric Strength Probe System Tissue calibration date [MM/DD/YYYY] 09/20/2002 Tissue calibrated byJaeWook Choi Room temperature [°C] 24 Room humidity [%] 50 Simulated tissue temperature [°C] 24 Tissue calibration frequency [MHz] 150 Tissue TypeMuscle Target conductivity [S/m] 0.80 Target dielectric constant61.9 Specific Heat Capacity [J/Kg/°C] 3,046 Mass Density [Kg/m3] 1,241 Measured conductivity [S/m] 0.81 (+0.3 % ) Measured dielectric constant62.5 (+1.5 % ) Penetration depth (plane wave excitation) [mm] 61.9 Conversion Factor for muscle tissue Calibration Date [MM/DD/YYYY] 09/22/2002 Calibration byJaeWook Choi Calibration Frequency [MHz] 150 Room Temperature [°C] 24 Room Humidity [%] 50 Simulated Tissue Temperature [°C] 24 PO tot_tissue [mV] 15.987@ 0.50 [W] 34.696@ 1.01 [W] 52.834@ 1.48 [W] 68.711@ 2.01 [W] δδ(PO tot_tissue )/δδP [m…

Text truncated - open the document above for the full version.
