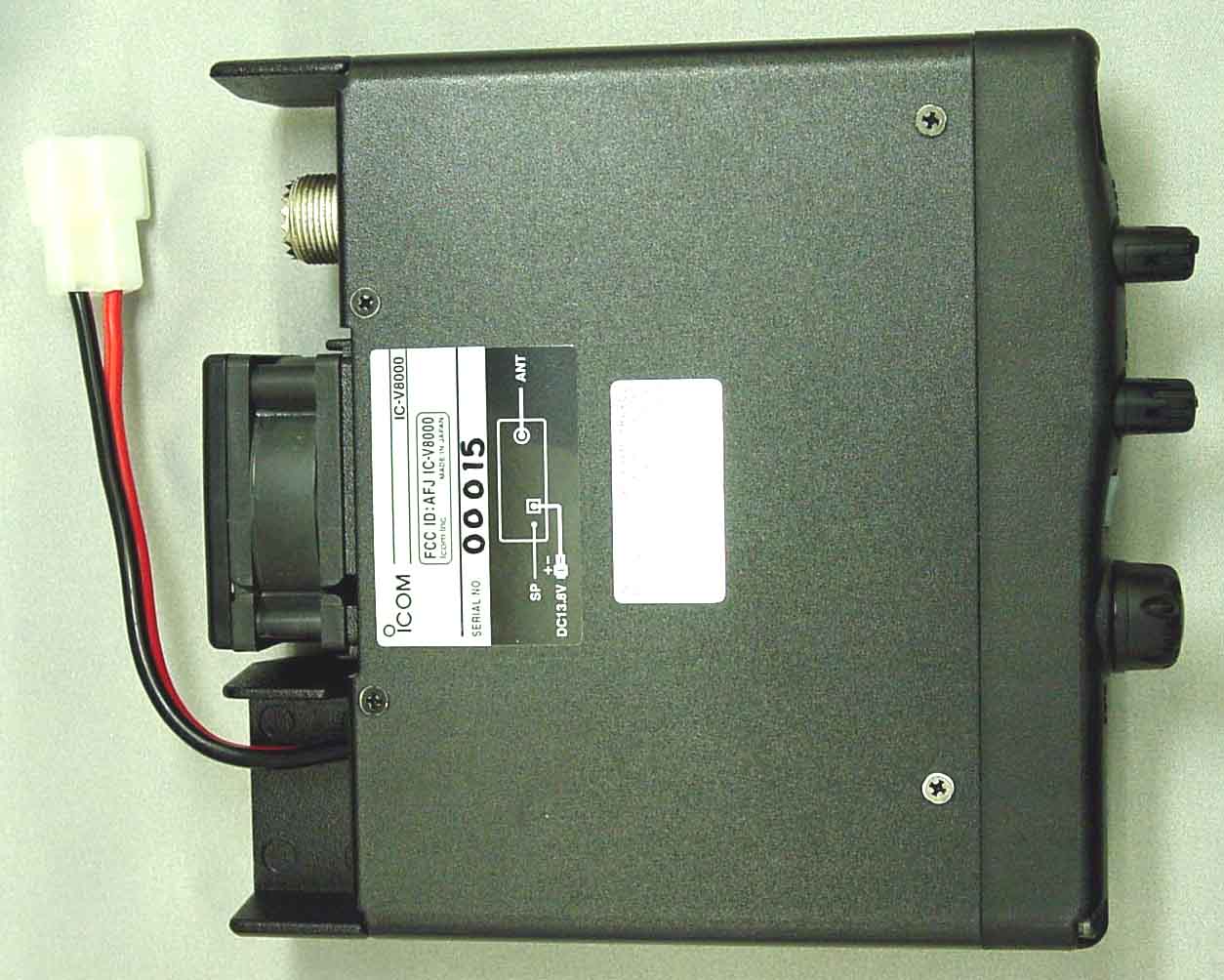

AFJIC-V8000Amateur Scanning Transceiver

INSTRUCTION MANUAL iV8000 VHF FM TRANSCEIVER This device complies with Part 15 of the FCC rules. Operation is sub- ject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FOREWORD Thank you for purchasing this Icom product. The IC-V8000 VHF FM TRANSCEIVERis designed and built with Icom’s supe- rior technology and craftsmanship. With proper care, this prod- uct should provide you with years of trouble-free operation. We understand making you have a choice of many different radios in the market place. I want to take a couple of mo- ments of your time to thank you for making your IC-V8000 your radio of choice, and hope you agree with ICOM’s philos- ophy of “technology first.” Many hours of research and devel- opment went into the design of your IC-V8000. FEATURES ❍75 W* of high transmit output power (except Taiwan version) ❍Front mounted speaker for clear readability ❍Tone squelch, DTCS squelch standard ❍Dual color (amber & green) LCD backlight ❍Remote control microphone available (optional for some versions) ❍Optional DTMF decoder IMPORTANT READ ALL INSTRUCTIONScarefully and completely before using the transceiver. SAVE THIS INSTRUCTION MANUAL—This in- struction manual contains important operating instructions for the IC-V8000. EXPLICIT DEFINITIONS i WORDDEFINITION RWARNING! CAUTION NOTE Personal injury, fire hazard or electric shock may occur. Equipment damage may occur. Recommended for optimum use. No risk of personal injury, fire or electric shock. Icom, Icom Inc. and the are registered trademarks of Icom In- corporated (Japan) in the United States, the United Kingdom, Ger- many, France, Spain, Russia and/or other countries. ii CAUTIONS RWARNING RF EXPOSURE!This device emits Radio Frequency (RF) energy. Extreme caution should be ob- served when operating this device. If you have any questions re- garding RF exposure and safety standards please refer to the Federal Communications Commission Office of Engineering and Technology’s report on Evaluating Compliance with FCC Guide- lines for Human Radio frequency Electromagnetic Fields (OET Bulletin 65) RWARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electric shock. RWARNING! NEVER operate the transceiver while dri- ving a vehicle. Safe driving requires your full attention—anything less may result in an accident. NEVER connect the transceiver to a power source of more than 16 V DC. This will ruin the transceiver. NEVER connect the transceiver to a power source using re- verse polarity. This will ruin the transceiver. NEVER cut the DC power cable between the DC plug and fuse holder. If an incorrect connection is made after cutting, the transceiver may be damaged. NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodily injury. NEVER let objects impede the operation of the cooling fan on the rear panel. DO NOT push the PTT when not actually desiring to trans- mit. DO NOT allow children to play with any radio equipment con- taining a transmitter. During mobile operation, DO NOToperate the transceiver without running the vehicle’s engine. When the transceiver’s power is ON and your vehicle’s engine is OFF, the vehicle’s bat- tery will soon become exhausted. BE CAREFUL! The transceiver will become hot when op- erating it continuously for long periods. AVOID using or placing the transceiver in direct sunlight or in areas with temperatures below –10°C (+14 ̊F) or above +60°C (+140 ̊F). AVOIDthe use of chemical agents such as benzine or alcohol when cleaning, as they can damage the transceiver’s surfaces. USEIcom microphones only (supplied or optional). Other man- ufacturer’s microphones have different pin assignments and may damage the transceiver if attached. Front panel qPOWER SWITCH [PWR] Turns power ON and OFF when pushed for 1 sec. wMEMORY/CALL•PRIORITY SWITCH [M/CALL(PRIO)] (p. 00) ➥Push to selects and toggles memory, call and weather channel* mode. *Weather channels available for USA versions only. ➥Starts priority scan when pushed for 1 sec. eMICROPHONE CONNECTOR Connects the supplied microphone. (p. 00) rSQUELCH CONTROL [SQL] Varies the squelch level. (p. 00) • The RF attenuator activates and increases the attenuation when rotated clockwise to the center position and further. tVOLUME CONTROL [VOL] Adjusts the audio level. (p. 00) OPT BANK V/MHz SCAN LOW DUP MONI ANM SET LOCK PWR S.MW MW T-SCAN TONE PRIO M/CALL t Function display (p. 00) q w e ryuioSpeaker !0!1!2!3 1 PANEL DESCRIPTION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 1 2 1 PANEL DESCRIPTION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 yBANK•OPTION SWITCH [BANK(OPT)] ➥Selects memory memory bank when pushed. (p. 00) ➥Push for 1 sec. to turn the DTMF decoder ON and OFF when the optional UT-108 is installed. (p. 00) uSET•LOCK SWITCH [SET(LOCK)] ➥Selects set mode when pushed. ➥Switches the lock function ON and OFF when pushed for 1 sec. (p. 14) iTUNING DIAL [DIAL] Selects the memory channel (p. 00), call channel (pgs. 00, 00, 00), the contents of the set mode display and the scanning direction (p. 00). oMEMORY WRITE SWITCH [MW(S.MW)] ➥Enter to memory edit mode when pushed. (p. 00) ➥Program into the selected memory channel when pushed for 1 sec. (p. 00) •Continue to hold the switch to increment the memory channel automatically. !0MONITOR•CHANNEL NAME SWITCH [MONI(ANM)] ➥Push to switch the monitor function ON and OFF. (p. 00) ➥Push for 1 sec. to toggle the frequency indication and channel name indication. (p. 00) !1OUTPUT POWER SWITCH [LOW(DUP)] ➥Each push changes the output power selection. (p. 00) ➥Select DUP–, DUP+ and simplex operation when pushed for 1 sec. (p. 00) !2TONE/TONE SCAN SWITCH [TONE(T-SCAN)] ➥Each push selects a tone function. (p. 00) •Tone encoder, pocket beep, tone squelch or tone function OFF …

Text truncated - open the document above for the full version.

MO DIF IC AT IO N OF T H IS DE V IC E T O R E C E IV E C E L L U L AR R ADIOT E L E P H ON E S E R V IC E S IGN AL S IS P R O H IB IT E D U N DE R F C C R U L E S AN D F E DE R AL L AW. WA R N IN G :

Adjustment No. Adjustment Condition & Tuning Value REF No. CK. Point Reference Frequency Adjustment& Confirmation TX Output TX Spurious 1 1 2 1 2 Connect a frequency counter to the ANT terminal through an attenuator. Use the compatible software on PC and adjust the following functions via it: Frequency :145.00MHz After the adjustment, confirm that the designated frequency becomes inside specifications. Attention 1) Connect a power-meter with 100W maximum range. Attention 2) Use the accessory cable and Connect it to 13.8V power supply. Adjust the transmission frequency on 146.000MHz and set the following condition via software. HI POWER :75W MID POWER :25W (For Version #04, 22W) MID-LOW POWER :10W LOW POWER :5W Confirm the TX output and TX current inside specifications. Connect a spectrum analyzer to the ANT terminal through an attenuator and transmit un-modulation signal. Confirm the spurious inside specifications. Inside Specificati ons Instructio ns value Inside Specificati ons Inside Specificati ons Software Adjustme nt - Software Adjustme nt - - ANT Terminal ANT Terminal ANT Terminal ANT Terminal ANT Terminal Adjustment No. Adjustment Condition & Tuning Value REF No. CK. Point Modulation Adjustment & Confirmation DTCS Wave Form 1 2 3 4 5 1 The adjustment of WIDE/NARROW switching function, Set on WIDE mode. Connect a detector to the ANT terminal through an attenuator and transmit the signal, set it for amateur band center as follows. HPF :OFF LPF :20KHz De-emphasis :OFF Level-meter :(P-P)/2 Connect a low frequency oscillator to EXT MIC terminal and set as: Modulation frequency :1KHz Input level: 80mv rms (#05, 15, 25, 35) 20mv rms (Another version) Set on Transmission mode and prepare the software on PC, Adjust the maximum modulation level as: Deviation :+/-4.2KHz Confirm the maximum modulation level at WIDE/ANARROW modes to become inside specifications. Adjust low frequency oscillator for output level and confirm the modulation level at WIDE/NARROW modes to become inside specifications. The adjustment of WIDE/NARROW switching function, Set on WIDE mode. Connect a detector to the ANT terminal through an attenuator and transmit the signal, set it for amateur band center as follows. Observe the shape of signal. HPF :OFF LPF :20KHz De-emphasis :OFF Level-meter :(P-P)/2 +/-4.2KHz Inside Specificati ons Inside Specificati ons Software Adjustme nt - ANT Terminal MIC Terminal ANT Terminal MIC Terminal ANT Terminal MIC Terminal Adjustment No. Adjustment Condition & Tuning Value REF No. CK. Point DTCSS CTCSS Adjustment & Confirmation 1 2 Without input from MIC, transmit the signal and adjust the DTCS BAL via software until DTCS wave shape becomes a straight line preferably. Attention 1) For a correct adjustment, A linear modulation analyzer is necessary with ability of detect the DC component. Attention 2) Do not change the initial value of DTCS decode bit. Connect a linear modulation analyzer to the ANT terminal through an attenuator and set each signaling output ability as: DTCS CODE 023 (Normal code) CTCSS 88.5MHz Set the linear modulation analyzer for condition below: HPF :OFF LPF :20KHz De-emphasis :OFF Level-meter :(P-P)/2 Without input from MIC, transmit the signal and confirm the following condition inside specifications as: DTCS : +/- 0.5KHz ~ +/-1.0KHz CTCSS: +/-0.5KHz ~+/-1.0KHz Attention) For a correct adjustment, A linear modulation analyzer is necessary with ability of detect the DC component. Inside Specificati ons Software Adjustme nt - ANT Terminal ANT Terminal Adjustment No. Adjustment Condition & Tuning Value REF No. CK. Point TX S/N Confirmation 1 2 3 Connect a linear modulation analyzer to the ANT terminal through an attenuator and set the condition bellow as: HPF :50Hz LPF :20KHz De-emphasis :OFF Level-meter :(P-P)/2 Add 1KHz via a low frequency oscillator to external MIC terminal and set the modulation level for 70% of standard modulation. Confirm the transmission output and Linear modulation analyzer output to become inside specifications. Inside Specificati ons - ANT Terminal

IssueDate:December19,2001 Page 1 of 28 EMC EMISSION - TEST REPORT JQA APPLICATION No.: KL80010450 Name of Product: VHF Transceiver Model/Type No.: IC-V8000 FCC ID: AFJ IC-V8000 Applicant :ICOMIncorporated Address : 1-6-19, Kuratsukuri, Kami, Hirano-ku, Osaka, Japan Manufacturer :ICOMIncorporated Address : 1-6-19, Kuratsukuri, Kami, Hirano-ku, Osaka, Japan Receive date of EUT: November 22, 2001 Final Judgement :Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) under METI Japan and Communications Research Lab. (CRL) under MPHPT Japan. THE TEST RESULTS only responds to the test sample. This test report shall not be reproduced except in full. Page 2 of 28 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 Test Conditions4-8 Configuration of EUT / Operation mode of the EUT9 - 11 EUT Modification / Responsible Party / Deviation from Standard12 Test results / Measurement Uncertainty13 - 14 Summary15 Test System-Arrangement (Drawings) 16 Preliminary Test and Test-setup (Drawings) 17 - 20 Test-setup (Photographs) at worst case 21 B) Test data Conducted Emission450 kHz - 30 MHz22 Electromagnetic Field Radiated Emission 30 MHz - 1000 MHz23 - 24 Antenna-Conducted Power30 MHz - 1000 MHz25 - 26 38dB Rejection Test27 - 28 JQA Application No. : KL80010450Regulation : CFR 47 FCC Rules Part 15 Model No.: IC-V8000Issue Date : December 19, 2001 FCC ID: AFJ IC-V8000 JQA Application No. : KL80010450Regulation : CFR 47 FCC Rules Part 15 Model No.: IC-V8000Issue Date : December 19, 2001 FCC ID: AFJ IC-V8000 Page 3 of 28 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and B (February 28, 2001) {- Class A Digital Device {- Class B Digital Device z- Scanning Receiver Test procedure: The tests were performed according to the procedures in ANSI C63.4-1992. GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai : 1st and 2nd Open Sites (3 m Site) Test Facility located at Kameoka: 1st Open Site (3, 10 and 30 m, on common plane) :2ndOpenSite(3and10m,oncommonplane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 Description of the Equipment Under Test (EUT): 1) Name: VHF Transceiver 2) Model/Type No.: IC-V8000 3) Product Type: Pre-Production (S/N: 00015) 4) Category: Scanning Receiver 5) EUT Authorization: - Verification- Certification- D.o.C.{z { 6) Highest local frequency: 152.300 MHz 7) Other highest frequency used/generated : 21.25 MHz 8) Power Rating: DC 13.8V Definitions for symbols used in this test report: z- Black box indicates that the listed condition, standard or equipment is applicable for this Report. {- Blank box indicates that the listed condition, standard or equipment is not applicable for this Report. JQA Application No. : KL80010450Regulation : CFR 47 FCC Rules Part 15 Model No.: IC-V8000Issue Date : December 19, 2001 FCC ID: AFJ IC-V8000 Page 4 of 28 TEST CONDITIONS AC Powerline Conducted Emission Measurement was performed in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan z-Shieldedroom KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan {-Shieldedroom {- On metal plane of open site Used test instruments and sites: Model No.Device IDast Cal. DateCal. Interval L {-ESCS30A-1 z-ESH2A-2May,20001Year {-ESH2A-3 z-KNW-407D-6January,20011Year {-KNW-408D-11 {-KNW-242D-7 {- ESH3-Z5D - 12 {-KNW-341CD-13 {-KNW-408D-14 {-KNW-244CD-77 {-KNW-408D-78 {- ESH2-Z5D - 10 {- ESH2-Z3D - 17 {- 65 BNC-50-0-1H - 26 {- 65 BNC-50-0-1H - 27 {-CableH-7 z- CableH - 8January, 20011 Year Environmental conditions: Temperature: 25 °C Humidity: 32 % JQA Application No. : KL80010450Regulation : CFR 47 FCC Rules Part 15 Model No.: IC-V8000Issue Date : December 19, 2001 FCC ID: AFJ IC-V8000 Page 5 of 28 Electromagnetic Field Radiated Emission Measurement was performed in horizontal and vertical polarization, in the frequency range of 30 MHz - 1000 MHz, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan {- 1st open test site (3 meters) z- 2nd open test site (3 meters) KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan {{{{- 1st open test site- 3 m- 10 m- 30 m {{{- 2nd open test site- 3 m- 10 m Validation of Site Attenuation: 1) Last Confirmed Date : October 9, 2001 2) Interval: 1 Year Used test instruments: Model No.Device IDast Cal. DateCal. Interval L {-ESV/ESV-Z3A-7/A-17 z-ESV/ESV-Z3A-6/A-18December,20001Year {-ESV/ESV-Z3A-4/A-20 {-ESV/ESV-Z3A-8/A-19 {-ESVS10A-5 {-KBA-511AC-13 {-KBA-611C-19 z- VHA9103/BBA9106C - 43August, 20011 Year z- UHALP9107C - 42August, 20011 Year {- VHA9103/FBAB9177 C - 25 {- UHALP9108-A1C - 28 {-CableH-1 {-CableH-2 {-CableH-5 z- CableH - 6November, 20011 Year {-CableH-9 Environmental conditions: Temperature: 13 °C Humidity: 44 % JQA Application No. : KL80010450Regulation : CFR 47 FCC Rules Part 15 Model No.: IC-V8000Issue Date : December 19, 2001 FCC ID: AFJ IC-V8000 Page 6 of 28 Electromagnetic Field Radiated Emission Measurement was performed in horizontal and vertical polarization, in the frequency range of 1 GHz - 2 GHz, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan {- 1st open test site (3 meters) {- 2nd open test site (3 meters) KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan {{{{- 1st open test site- 3 m- 10 m- 30 m {{{- 2nd open test site- 3 m- 10 m Used test instruments: Model No.Device IDast Cal. DateCal. Interval L {-ESCS30A-1 {- 8566BA - 13 {- 8593AA - 15 {-ESVA-6…

Text truncated - open the document above for the full version.

JQA Application No. : KL80010450Regulation : CFR 47 FCC Rules Part 15 Model No.: IC-V8000Issue Date : December 19, 2001 FCC ID: AFJ IC-V8000 Page 16 of 28 Test System-Arrangement (Drawings) External Speaker 50Ω ANTSP VHF Transceiver MIC Microphone DC 13.8V DC Power Supply 12-pinplugφ 120V/60Hz Note) - Ferrite Core JQA Application No. : KL80010450Regulation : CFR 47 FCC Rules Part 15 Model No.: IC-V8000Issue Date : December 19, 2001 FCC ID: AFJ IC-V8000 Page 17 of 28 Preliminary Test and Test-setup(Drawings) AC Powerline Conducted Emission 450 kHz - 30 MHz: Measurement Procedure: IEEE 213(1987) & ANSI C63.4(1992) The preliminary test was performed receiving over each band, and the worst result was reported as the final test. Shielded Enclosure Ceiling Metal Plane Vertical Metal planeAntenna Coupling PadTestSignal ReceiverGenerator 0.4m ANT IN. EUT 0.75m LISN to AC Power JQA Application No. : KL80010450Regulation : CFR 47 FCC Rules Part 15 Model No.: IC-V8000Issue Date : December 19, 2001 FCC ID: AFJ IC-V8000 Page 18 of 28 Electromagnetic Field Radiated Emission 30 MHz - 1000 MHz: The preliminary test was performed according to the description of ANSI C63.4-1992 Sec.8.3.1.1 (Preliminary Radiated Emissions Tests) and Sec.6.2.1 (Tabletop Equipment Tests). The preliminary test was carried out to investigate the frequency of the emission that has the highest amplitude relative to the limits within normal operating modes, cable positions, and a typical system configuration. In order to find out to the maximum emission, the preliminary test and a final test were performed in accordance with the following steps. Step 1: One operation mode of the test system was setting. Step 2: Using a test receiver and a test antenna probe, the significant frequency of the emission's circumstance from the test system were investigated. These data were recorded every one of 22 divided bands in the specified frequency band (30 MHz - 1000 MHz). Step 3: Using a test receiver and a linearly polarized broadband antenna, the emission's circumstance from the test system was measured in according with ANSI C63.4-1992 Sec.8.3.1.2 (Final Radiated Emissions Tests) at each frequency which was found the higher emission referred to level vs. frequency on the list and which was measured by the resonant tuned dipole antenna. The maximum emission was found by changing the cable positions or cable manipulation under a typical system configuration. Step 4: Return to step 1, if the other operation mode was possible to be setting. Step 5: The worst result was reported arranging data of which was obtained and performed by one or plural operation modes as the final test. At the worst point that has the highest amplitude relative to the limit the repeatability of the level was reconfirmed. The photographs of the tests system setup on the worst point were taken and recorded. z-3m {-10m EUT1-4 mTest Receiver 0.8 m Ground Plane Turntable30 MHz - 300 MHz : Biconical Antenna 300 MHz - 1000 MHz : Log periodic Antenna JQA Application No. : KL80010450Regulation : CFR 47 FCC Rules Part 15 Model No.: IC-V8000Issue Date : December 19, 2001 FCC ID: AFJ IC-V8000 Page 19 of 28 Antenna-Conducted Power 30 MHz - 1000 MHz: The test was performed according to the description of ANSI C63.4-1992 Sec.12.1.5 (Antenna-Conducted Power Measurements). EUTTest ANT10dB PadReceiver INAttenuator JQA Application No. : KL80010450Regulation : CFR 47 FCC Rules Part 15 Model No.: IC-V8000Issue Date : December 19, 2001 FCC ID: AFJ IC-V8000 Page 20 of 28 38dB Rejection Test (§15.121(b)): The test(38dB Rejection Test) is carried out in accordance with procedure as follows. 1) Test system is composed as follows. SignalE U TResistorDistortion GeneratorLoad (8 )MeterΩ ANT IN 2) The setting frequencies of the signal generator were selected the bottom, the medium and the top frequency within each of the frequency bands allocated to the Cellular Radiotelephone Service in CFR 47 FCC Rules and Regulations Part 22 Subpart H. For transmitter in Mobile : 824.040 MHz, 836.505 MHz, 848.970 MHz For transmitter in Base: 869.040 MHz, 881.505 MHz, 893.970 MHz The setting output of the signal generator was adjusted to a level 60dB(μV). The setting frequency modulation was adjusted to an 1 kHz tone at 8 kHz deviation. 3) The EUT is capable of receiving 136.000 MHz - 174.000 MHz. For each frequency in step 2), the band of the EUT was scanned all over the range by stepping up every 1 kHz. Then the squelch of the EUT was adjusted to a minimum threshold level. Whenever the scanning stopped, the detected frequency was noted. 4) The EUT was tuning to the detected frequency under signal generator was setting to the same condition as step 3). At first, The volume position of the EUT was adjusted as the audio nominal power is set to 50mW at 8 .Ω The level of the signal generator (12dB SINAD level at the injected frequency) was adjusted as the distortion meter is set to produce a 12dB SINAD measurement (audio nominal power 50mW at 8 ,Ω and 25% of distortion). 5) The EUT was tuning to the detected frequency under signal generator was setting to the same detected frequency. At first, The volume position of the EUT was adjusted as the audio nominal power issetto50mWat8 .Ω The level of the signal generator (12dB SINAD level at the detected frequency) was adjusted as the distortion meter is set to produce a 12dB SINAD measurement (audio nominal power 50mW at 8 ,Ω and 25% of distortion). 6) The rejection ratio, i.e. the difference between the 12dB SINAD levels at the injected frequency and the detected frequency, must be at least 38dB. Page 21 of 28 Test-Setup(Photographs)atworstcase Conducted Emission 450kHz - 30MHz:Radiated Emission 30MHz - 1000MHz: Front ViewFront View Side ViewRear View EUT Ferrite Core (Speaker Cable) JQA …
