AFJSB-110Wireless LAN Access Point

INSTALLATION AND CONNECTION SETTING YOUR PC SETTING SB-110 SETTING SCREEN MAINTENANCE FOR YOUR REFERENCE 2 3 4 5 6 7 BEFORE INSTALLATION 1 INSTRUCTION MANUAL WIRELESS LAN BRIDGE SB-110 i INTRODUCTION Thank you for purchasing Icom Wireless LAN Bridge SB-110. This product is a wireless LAN bridging device con- necting LAN system of two or more buildings up to 11Mbps for 800m(0.5mile) wirelessly. Each LAN system needs at least one unit of SB-110 for bridg- ing. One single unit may work as a wireless LAN ac- cess point alternatively. Please read this instruction manual before using SB-110. We hope our products serve you years of reliable operation. Trademark Credits Icom, Icom Inc. and the logo are registered trade- marks of Icom Incorporated (Japan) in the United states, the United Kingdom, Germany, France, Spain, Russia and other countries. Macintosh and Mac-OS are registered trademarks of Apple Computer, Inc., in the United States. Netscape Navigator is a trademark of Netscape Communications Corporation. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. The screen shots that appear within this text are used with permission of Microsoft Corporation. Other product and company names mentioned herein are the trademarks or registered trademarks of their respective owners. INTRODUCTION ii INTRODUCTION PRODUCT OVERVIEW Two or more SB-110s bridge LAN systems of buildings or rooms while eliminating wiring between them. Single SB-110 unit works as access point for wireless LAN cli- nents at alternative setting. SB-110 can be easily configured with common web browser software. Communication speed between SB-110s is automatically adjusted to 11Mbps, 5.5Mbps, 2Mbps or 1Mbps to maintain network connections if there is interference(function applicable for bridging mode). Data can be protected by high-level security function such as MAC address registration, encryption with WEP function, etc. JIS-4 water-resistant strong enclosure allows outdoor installations as well as indoor applications. This unit uses a waterproof resin casing, therefore installation outdoors is possible. SB-110 uses direct sequence spread spectrum modulation which ensures stabilized communication under infulence of noise and interference. iii INTRODUCTION FCC INFORMATION SB-110 Tested to comply with FCC standards FOR HOME OR OFFICE USE CAUTION:Changes or modifications not expressly approved by Icom Inc. could void the user’s authority to operate this SB-110. Class B digital device users; This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. RF EXPOSURE SAFETY INFORMATION: CAUTION: To comply with the FCC RF exposure requirements, this transmitter (built-in antenna) must be fixed-mounted on permanent structures with a separation distance of at least 8 inches (20cm) from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. For CANADA only Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. INTRODUCTION iv INTRODUCTION NOTES ON HANDLING If a connection cable is removed or the connection becomes unstable during an opera- tion, an error may occur. Connect the connectors completely and do not touch the con- nectors during an operation. For the handling of PC and any peripheral devices, follow the instructions provided in the manuals which come with the PC and other peripheral devices. SB-110 may cause the signal interference when it is used in your house. When the in- terference occurs, move SB-110 as far as possible away from the affected household electric appliance. The CD-ROM (excluding Acrobat Reader) which comes with SB-110 is for SB-110 only. Do not use it for any other devices. Icom Inc. is not responsible for any interference arisen by incorporating a configuration file for SB-110 or a firmware update data file, which is available in our home page, into any device other than SB-110. Moreover, Icom Inc. is not responsible for any interfer- ence arisen by modifying or disassembling SB-110. Furthermore, Icom Inc. is not re- sponsible for any damages, lost profits or third party's claim resulting from any missed communication or telephone call due to SB-110's fault, error, malfunction, breakage, data loss or any other external factor such as power failure. All copyrights associated with this manual and all intellectual property rights associated with the hardware and software of SB-110 are held by Icom Inc. Unauthorized diversion of this manual, in part or in whole, is prohibited. The content of this manual, the hardware and software associated with SB-110, and the appearance of SB-110 are all subject to change without notice. The following notational conventions are used in this manual: •The names of utilities, menus, windows, tabs, icons, text boxes, and check…

Text truncated - open the document above for the full version.

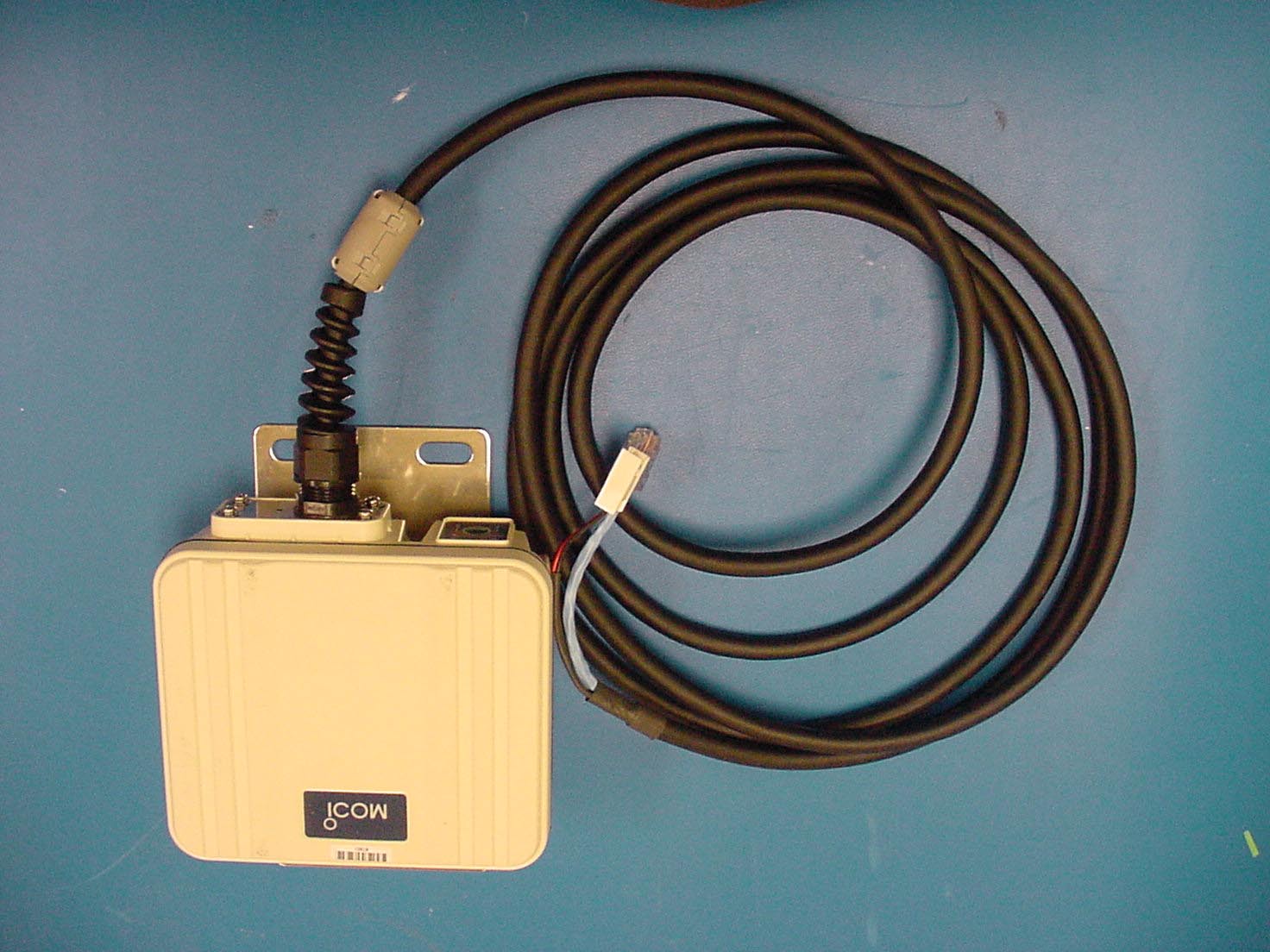

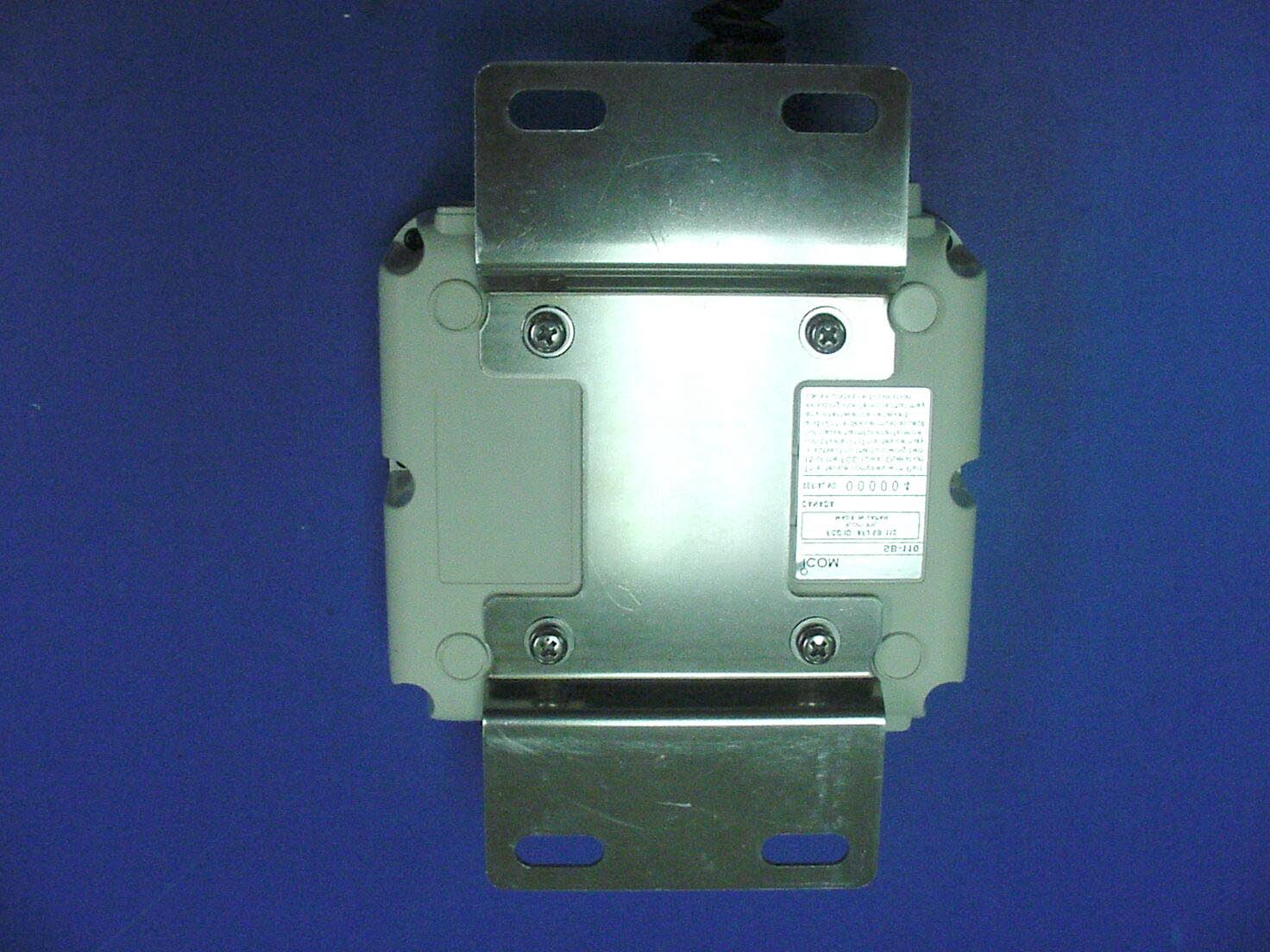

360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 44 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 APPENDIX L: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 5: TOP VIEW WITH I/O CABLES 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 45 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 6: AC/DC ADAPTER 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 46 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 7: TOP VIEW 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 47 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 8: TOP VIEW AND LEFT SIDE 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 48 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 9: BOTTOM VIEW WITH INSTALLATION BRACKET 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 49 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 10: CONNECTORS, SWITCHES AND LEDS 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 50 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 11: CABLE THAT CONNECTS THE ANTENNA TO THE WLAN

360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 51 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 APPENDIX M: INTERNAL PHOTOGRAPHS PHOTOGRAPH 12: TOP VIEW WITH COVER REMOVED ANTENNA ANTENNA CONNECTION 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 52 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 13: BOTTOM VIEW OF ANTENNA IN THE REMOVABLE COVER 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 53 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 14: INSIDE VIEW OF REMOVABLE COVE WITHOUT ANTENNA 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 54 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 15: TOP VIEW OF ANTENNA 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 55 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 16: TOP VIEW WITH COVER REMOVED 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 56 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 17: TOP VIEW OF MAIN PCB BOARD REMOVED FROM CHASSIS 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 57 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 18: BOTTOM VIEW OF MAIN PCB BOARD REMOVED FROM CHASSIS

----- Theory of Operation ----- Operation Explanation Main Control Unit The main control unit is composed of the CPU (IC101), RAM( IC103) and also ROM(IC102). CPU is an exclusive use chip for communication control unit (Communication Processor) that consisted of 32 bit processor, IC211, X211 and an oscillator to provide 66MHz as clock signal. The ROM is a Flash-Memory included 16 bit data bus width that depends on user setting it saves the data and also it corresponds to the version up of the farm wear. The RAM is using SDRAM with 16 bit data bus width . Wireless LAN Control Unit The communication done via controlling the RF unit with the CPU. The interface is PCMCIA conformed and the control signal is generated with IC104 (Gate Array). Power Supply Unit DC12V that was input from the power supply connector (J901) is entered to the power supply circuit through the poly-switch (S901). The poly-switch included an over-current protection element so it is not operate in the passage current at the time of the overload and as it is a self return nature switch, it has different characteristic of the fuse. The power supply circuit, consisted of switching regulator controller (IC901) at the center. The IC901 is an integrated circuit for the switching power supply and it is included the reference voltage circuit, oscillation circuit, comparative circuit to provide 5.0V. To make a 3.3V it considered 5.0V as a reference and provided 3.3V via R971 and R972.

360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 31 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 APPENDIX A: RF EXPOSURE CALCULATIONS FOR HIGH GAIN ANTENNAS FCC Rules and Regulations Part 1.1307, 1.1310, 2.1091, 2.1093: RF EXPOSURE C OMPLIANCE 1. General Information: FCCID: AFJ SB-110 Environment: General Population/Uncontrolled Exposure Device category: Fixed operations 2. Operating Configurations and Test Conditions: 2.1 Antenna Type(s): Antenna Mfg Type Gain (dBi) ICOM Pattern antenna (patch) 5.5 Operating Conditions: This device (built-in antenna) is specifically designed to be operated and installed on a mast or a wall, either indoor or outdoor. A minimum separation distance of 20 cm is normally maintained between all users, bystanders and the antenna (including any radiating structure) during normal operation of this device. The peak conducted and peak radiated (EIRP) output power does not exceed 200 mW. Test signal, Time-averaging, Max. Measured Output Power: Modulation Type/Mode: DSSS/11.0 Mbps Frequency Range Freq. Tolerance (ppm) Emission Designator 2412-2462 MHz N/A N/A Output Power (Watt) B High Time averaging (__% Duty Cycle) ERP N/A N/A EIRP 0.054 (17.3 dBm) N/A Conducted 0.015 N/A Rated N/A N/A B = Measured output power 3. MPE Calculation: The maximum distance, from the antenna at which MPE is met or exceeded, is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G, and separation distance in meters: d GP mVE ×× = 30 )/( Power density: 3770 )/( 2 2 E cmmWP d = Frequency A : 2437 MHz – Channel 6 The limit for general population/uncontrolled exposure environment above 1500MHz is 1 2 /cmmW . 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 32 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 SEPARATION DISTANCE: Antenna Gain (dBi) Separation Distance A 5.5 Power B (Watt) (in) (cm) Duty Cycle 0.054 0.8 2.0 N/A N/A N/A N/A 50% Notes: A = Distances are calculated for the largest (worst-case) separation distance as applicable B = Measured radiated output power EIRP C ONCLUSION : The device complies with the MPE requirements by providing a safe separation distance between the antenna, including any radiating structure, and any persons. Proposed RF exposure safety information to include in User’s Manual: CAUTION: To comply with the FCC RF exposure requirements, this transmitter (built-in antenna) must be fixed- mounted on permanent structures with a separation distance of at least 8 inches (20cm) from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com © Rhein Tech Laboratories, Inc. CERTIFICATE OF COMPLIANCE FCC PART 15.247 CERTIFICATION & INDUSTRY CANADA CERTIFICATION Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 Applicant Information: ICOM Incorporated 1-6-19 Kamikurazukuri Hirano-ku Osaka, Japan 547 Contact: Masaaki Takahashi Phone: 425-454-8155 E-Mail: [email protected] FCC ID: AFJ SB-110 FRN NUMBER: 0005-8553-90 EQUIPMENT TYPE: Access Point MODEL(S): SB-110 RTL WORK ORDER NUMBER: 2001336 RTL QUOTE NUMBER: QRTL01-382H DATE OF TEST REPORT: 1-11-2002 FCC Classification: DSS – Spread Spectrum Transmitter DTS – Digital Transmission System FCC Rule Part(s): Part 15.247: Operation within the bands 920-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Frequency Hopping System Direct Sequence System Hybrid System Industry Canada Standard: RSS-210: Low Power License-Exempt Radiocommunication Devices (All Frequency Bands) RSS-210 Section 6.2.2(o): 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Frequency Range (MHz) Conducted Output Power (W) Freq. Tolerance (ppm, %, or Hz) Emission Designator 2410-2462 .015 N/A N/A We, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to or exclusions from the FCC Part 2, FCC Part 15, Industry Canada RSS-210 and RSS 139, and ANSI C63.4. Signature: Date: January 25, 2002 Typed/Printed Name: Bruno Clavier Position: Vice President of Operations (NVLAP Signatory) Note: This report may not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Accredited by the National Voluntary Accreditation Program for the specific scope of accreditation under Lab Code 200061-0. 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 2 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 TABLE OF CONTENTS 1 GENERAL INFORMATION.............................................................................................................................5 1.1 SCOPE .........................................................................................................................................................5 1.2 TEST FACILITY .........................................................................................................................................5 1.3 RELATED SUBMITAL(S)/GRANT(S)......................................................................................................5 2 EQUIPMENT INFORMATION ........................................................................................................................6 2.1 APPLICANT AND EQUIPMENT INFORMATION .................................................................................6 2.2 JUSTIFICATION.........................................................................................................................................6 2.3 EXERCISING THE EUT ............................................................................................................................6 2.4 TEST SYSTEM DETAILS ..........................................................................................................................7 2.5 CONFIGURATION OF TESTED SYSTEM ..............................................................................................7 3 COMPLIANCE WITH THE RESTRICTED BAND EDGE - §15.205 ..........................................................8 3.1 TEST PROCEDURE ...................................................................................................................................8 3.2 COMPLIANCE WITH THE RESTRICTED BAND EDGE TEST DATA ................................................8 4 CONDUCTED LIMITS - §15.207....................................................................................................................11 4.1 TEST EQUIPMENT USED FOR TESTING ............................................................................................13 5 RADIATED EMISSION LIMITS (GENERAL REQUIREMENTS) - §15.209...........................................14 5.1 RADIATED EMISSION LIMITS TEST PROCEDURE ..........................................................................14 5.2 TEST EQUIPMENT USED FOR TESTING ............................................................................................14 5.3 RADIATED EMISSION LIMITS TEST DATA.......................................................................................15 6 MODULATED BANDWIDTH - §15.247(A)(2) ..............................................................................................18 6.1 MODULATED BANDWIDTH TEST PROCEDURE ..............................................................................18 6.2 TEST EQUIPMENT USED FOR TESTING ............................................................................................18 6.3 MODULATED BANDWIDTH TEST DATA ..........................................................................................18 6.4 MODULATED BANDWIDTH PLOTS....................................................................................................19 7 POWER OUTPUT - §15.247(B) .......................................................................................................................22 7.1 POWER OUTPUT TEST PROCEDURE ..................................................................................................22 7.2 TEST EQUIPMENT USED FOR TESTING .........…

Text truncated - open the document above for the full version.

360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 42 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 APPENDIX K: TEST PHOTOGRAPHS PHOTOGRAPH 1: RADIATED TEST CONFIGURATION (FRONT VIEW) PHOTOGRAPH 2: RADIATED TEST CONFIGURATION (REAR VIEW) 360 Herndon Parkway RTL Work Order: 2001336 Suite 1400 RTL Quote Number: QRTL01-382H Herndon, VA 20170 Date of Tests: 1-7-2002 to 1-11-2002 http://www.rheintech.com Page 43 of 58 © Rhein Tech Laboratories, Inc. FCC Part 15.247 Industry Canada RSS-210 PHOTOGRAPH 3: CONDUCTED TEST CONFIGURATION (FRONT VIEW) PHOTOGRAPH 4: CONDUCTED TEST CONFIGURATION (REAR VIEW)
