For Your Safety Para Su Seguridad Pour Votre Sûreté Para Sua Segurança en Important Safety and Operational Information Please read the following safety and operational instructions before using your headset/headphones and accessories. Please keep these instructions for your reference. Additional warnings may be present on the product, packaging, or in the user instructions. This symbol identifies and alerts the user to the presence of important safety warnings. General Operating, storage and charging temperature is 0°C to 40°C (32°F to 104°F). Warnings • Exposure to high volume sound levels or excessive sound pressure may cause temporary or permanent damage to your hearing. Although there is no single volume setting that is appropriate for everyone, you should always use your headset/headphones with the volume set at moderate levels and avoid prolonged exposure to high volume sound levels. The louder the volume, the less time is required before your hearing could be affected. You may experience different sound levels when using your headset /headphones with different devices. The device you use and its settings affect the level of sound you hear. If you experience hearing discomfort, you should stop listening to the device through your headset/headphones and have your hearing checked by your doctor. To protect your hearing, some hearing experts suggest that you: 1. Set the volume control in a low position before putting your headset or headphones on your ears and use as low a volume as possible. 2. Avoid turning up the volume to block out noisy surroundings. Whenever possible, use your headset or headphones in a quiet environment with low background noise. 3. Limit the amount of time you use headsets or headphones at high volume levels. 4. Turn the volume down if the sound from the headset/headphones prevent you from hearing people speaking near you. See plantronics.com/healthandsafety for more information on headsets/ headphones and hearing. • Use of a headset/headphones that cover both ears will impair your ability to hear other sounds. Use of such headset/headphones while operating a motor vehicle or riding a bicycle may create a serious hazard to you and/or others, and is illegal in most regions. • Check local laws regarding use of a mobile phone and headset/headphones while driving. If you use the headset/headphones while driving ensure your attention and focus remain on driving safely. • Observe all signs and instructions that require an electrical device or RF radio product to be switched off in designated areas, such as gas/refueling stations, hospitals, blasting areas, potentially explosive atmospheres, or aircraft. • This product is not a toy. Never allow children to play with the product — small parts may be a choking hazard. • Install and use eartips and earbuds in accordance with the instructions provided. Do not force eartips or earbuds down the ear canal. If either becomes lodged in the ear canal, seek medical attention immediately. • Ensure eartips and earbuds are kept clean and free of ear wax buildup to maintain the specified product performance. • If you experience a skin irritation after using this product, discontinue use and contact Plantronics. • Applying excessive pressure to the headset/headphones may injure the outer ear. Do not wear the headset /headphones while sleeping or in other situations where pressure may be exerted against the headset/headphones. • Do not disassemble or insert anything into the product or charger because this may cause damage to the internal components or cause injury to you. • If the product or charger: overheats; has a damaged cord or plug; has been dropped or damaged; has been dropped into water, disconnect any charger from its power supply, discontinue use of the product and contact Plantronics. es • Prevent rain, moisture or other liquid from coming into contact with the product to protect against damage to your headset / headphone or injury to you. This warning is not applicable for ruggedized or sports products which are designed to withstand contact with moisture. To avoid the risk of electric shock, explosion, fire or leakage of corrosive or toxic chemicals, observe the following charging and battery warnings: Charging Warnings • Use only the charger supplied by Plantronics to charge the product. Do not use the chargers for any other purpose. Ensure that the voltage rating corresponds to the power supply you intend to use. • If your headset / headphone is designed to be charged with your mobile phone charger using a custom adapter, use only mobile phone chargers approved and provided by your mobile phone manufacturer. • Charge the headset / headphones according to the instructions supplied with the unit. • Plug the AC adapter or charger into an outlet that is near the equipment and will be easily accessible. • Never charge the battery where the temperature may fall below 0°C (32°F) or rise above 40°C (104°F) — for example, in an unattended motor vehicle. • Avoid charging the battery while it is unattended. Battery Warnings To avoid the risk of explosion, fire or leakage of toxic chemicals, please observe the following warnings: • Do not dispose of the product or battery in a fire or heat above 100ºC. • Do not open, deform or mutilate the battery as there may be corrosive materials which can cause damage to eyes or skin and may be toxic if swallowed. • Do not attempt to open the headset/headphones or remove the battery. Recycling: Your product and batteries must be recycled or disposed of properly. Contact your local recycling center for information on proper disposal. Información importante sobre la seguridad y el funcionamiento Lea las siguientes instrucciones de uso y seguridad antes de utilizar el audífono y los accesorios. Conserve estas instrucciones como referencia. Puede haber advertencias adicionales en el producto, en la caja o en las instrucciones de uso. Este símbolo identifica y avisa al usuario de la presencia de a…

Text truncated - open the document above for the full version.

plantronics.com 345 Encinal St., Santa Cruz CA 95060 United States +1‐831‐426‐5858 February 11, 2014 UL VS Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: Regarding FCC ID: AL8-BBFIT, we, the undersigned, declare that the equipment complies with the Bluetooth CORE Specification 3.0 which includes: 1) a pseudorandom hopping sequence 2) equal on average channel use 3) a receiver with a compliant input bandwidth, based on the measured 20 dB emission bandwidth 4) a receiver with the ability to hop in synchronization with the transmitter 5) a frequency hopping system compliant with all pertinent requirements when presented with a lengthy data stream 6) a frequency hopping system compliant with the non-coordination requirement 7) AFH with a minimum of 20 channels. Sincerely, Peter Clark Compliance Engineering Manager

plantronics.com 345 Encinal St., Santa Cruz CA 95060 United States +1‐831‐426‐5858 February 11, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Long Term Confidentiality FCC ID: AL8-BBFIT To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Sincerely, Peter Clark Compliance Engineering Manager

plantronics.com 345 Encinal St., Santa Cruz CA 95060 United States +1‐831‐426‐5858 February 11, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Short Term Confidentiality FCC ID: AL8-BBFIT To Whom It May Concern: Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until June 1, 2014. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Peter Clark Compliance Engineering Manager

plantronics.com 345 Encinal St., Santa Cruz CA 95060 United States +1‐831‐426‐5858 February 11, 2014 UL VS Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL VS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL VS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL VS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Peter Clark Compliance Engineering Manager

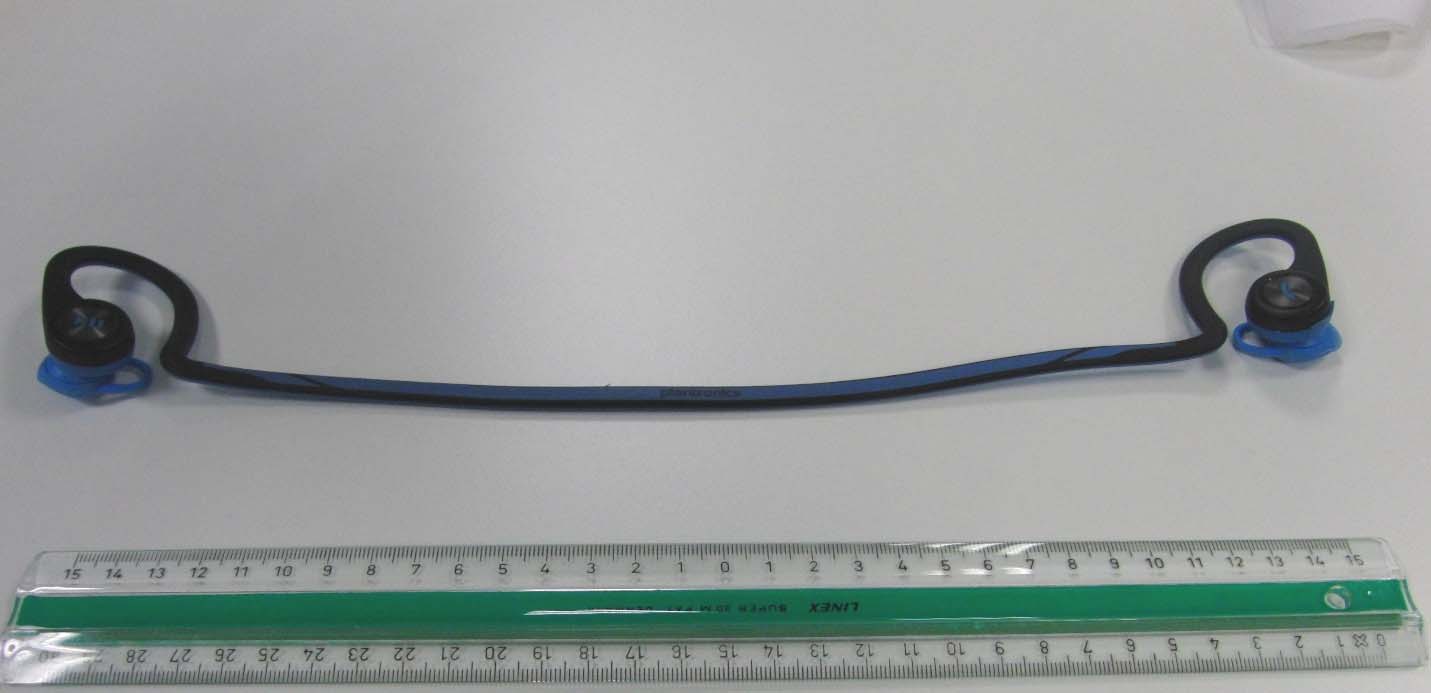

External Photos AL8‐BBFIT Top Bottom

Label and Location for AL8‐BBFIT Label: Location:

Internal Photos AL8‐BBFIT Left PCBA Installed Right PCBA Installed Left PCBA Bottom Left PCBA Top Right PCBA Top Right PCBA Bottom

FCC Part 1 Subpart I FCC Part 2 Subpart J INDUSTRY CANADA RSS 102 ISSUE 3 RF EXPOSURE REPORT FOR BLUETOOTH HEADSET MODEL NUMBER: BackBeat FIT FCC ID: AL8-BBFIT IC: 457A-BBFIT REPORT NUMBER: 14U16884-4 Revision B ISSUE DATE: February 18, 2014 Prepared for PLANTRONICS INC. 345 ENCINAL ST, SANTA CRUZ, CA 95060 Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 14U16884-4B DATE: FEBRUARY 18, 2014 FCC ID: AL8-BBFIT IC: 457A-BBFIT Page 2 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 02/11/2014 Initial Issue F. de Anda A 02/13/2014 Included max. power numbers F. de Anda B 02/18/2014 Updated max. tuned power table F. de Anda REPORT NO: 14U16884-4B DATE: FEBRUARY 18, 2014 FCC ID: AL8-BBFIT IC: 457A-BBFIT Page 3 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. MAXIMUM PERMISSIBLE RF EXPOSURE ....................................................................... 6 5.1. FCC RULES ................................................................................................................ 6 5.2. IC RULES .................................................................................................................... 7 5.3. EQUATIONS ................................................................................................................ 8 5.4. LIMITS AND IC EXEMPTION .....................................................................................10 6. RF EXPOSURE RESULTS ................................................................................................11 REPORT NO: 14U16884-4B DATE: FEBRUARY 18, 2014 FCC ID: AL8-BBFIT IC: 457A-BBFIT Page 4 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: PLANTRONICS. 345 ENCINAL ST, SANTA CRUZ, CA 95060 EUT DESCRIPTION: BLUETOOTH HEADSET MODEL: BackBeat FIT SERIAL NUMBER: 83 & 91 DATE TESTED: JANUARY 16 to 28, 2014 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J Pass INDUSTRY CANADA RSS 102 ISSUE 3 Pass UL Verification Services Inc. calculated the RF Exposure of the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Verification Services By: Tested By: FRANCISCO DEANDA TONY WAGONER WiSE PROJECT LEAD EMC ENGINEER UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 14U16884-4B DATE: FEBRUARY 18, 2014 FCC ID: AL8-BBFIT IC: 457A-BBFIT Page 5 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC OET Bulletin 65 Edition 97-01 and IC Safety Code 6. 3. REFERENCES All measurements were made as documented in test report UL Verification Services Inc. Document 13U15293-2 for operation in the 2.4 GHz band. Output power, Duty cycle and Antenna gain data is excerpted from the applicable test reports. Antenna gain data is excerpted from product documentation provided by the applicant. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 47173 and 47266 Benicia Street, Fremont, California, USA. Line conducted emissions are measured only at the 47173 address. The following table identifies which facilities were utilized for radiated emission measurements documented in this report. Specific facilities are also identified in the test results sections. 47173 Benicia Street 47266 Benicia Street Chamber A Chamber D Chamber B Chamber E Chamber C Chamber F UL Verification Services Inc. is accredited by NVLAP, Laborato…
