AL8-CBF60Wireless Charging case

Voyager Free 60+ True Wireless Earbuds Draft User Guide Contents Your earbud system3 Earbud controls4 Be safe4 Charge case controls5 USB Bluetooth adapter6 Power7 Power on/off your earbuds7 Connect and pair8 Pair to mobile device8 Connect to PC8 Configure USB adapter9 Reconnect9 Pair mode9 Pair BT700 USB adapter again9 Bluetooth transmitter 10 The basics11 Adjust the volume 11 Play or pause audio11 Track selection11 Answer or end a call11 Mute 11 Use sensors11 Charge12 Wireless charging12 Load software13 Update your Poly device13 Support14 2 Your earbud system easily connects to your mobile phone and computer. The system includes: •Wireless earbuds with smart sensors •Bluetooth adapter for connection to high-fidelity computer audio •Charge case with touch screen controls Your earbud system 3 Control audio features on either earbud. Click the button by pinching your earbud stem. Swipe the touch sensor on your earbud stem to change levels. Voice assistant Button controls Call answer/end Click 1 time Bluetooth pairing Hold 4 seconds Play/pause * Click 1 time Next track * Click 2 times Previous track * Click 3 times Siri/Google Assistant Default phone assistant Click and hold 2 seconds NOTE*Functionality varies by application. May not function with web-based apps. ANC Swipe controls Volume Swipe to change level Mute Swipe during an active call ANCActive Noise Canceling With earbuds idle, swipe to change level Please read the safety guide for important safety, charging, battery and regulatory information before using your new device. Earbud controls Be safe 4 Control audio features and settings on your charge case touch screen. ANC Touch screen controls Volume Bluetooth pairing Call answer/end Mute ANCActive Noise Canceling Music and streaming audio* Battery level NOTE*Functionality varies by application. May not function with web-based apps. Charge case controls 5 Your high-fidelity Bluetooth USB adapter comes pre-paired to your Poly device. Plug it into your computer to connect to high-fidelity computer audio. NOTEAdapter's USB connection and design may vary, but function is the same. Standard LEDs USB LEDsWhat they mean Flashing red and bluePairing Solid blueDevice connected Flashing blueOn a call Solid redMute active Flashing purpleStreaming media from computer LEDs when Microsoft Teams* is detected USB LEDsWhat they mean Flashing red and bluePairing Solid purpleMicrosoft Teams connected Flashing blueOn a call Solid redMute active Pulsing purpleMicrosoft Teams notification NOTE*Requires Microsoft Teams desktop application. USB Bluetooth adapter 6 •Removing your earbuds from the case automatically powers them on. Conversely, placing your earbuds in the case automatically powers them off and starts charging them. Power Power on/off your earbuds 7 1Remove the earbuds from the charge case. 2Select the Bluetooth pairing icon on your case touch screen to put your earbuds in pairing mode. 3Activate Bluetooth ® on your phone and set it to search for new devices. •iPhone Settings > Bluetooth > On* •Android ™ Settings > Bluetooth: On > Scan for devices* NOTE* Menus may vary by device. 4Select " Poly VFree 60 Series." When your earbuds are successfully paired, you hear “pairing successful” and "phone connected." Your Bluetooth USB adapter provides the best connection, softphone functionality and acoustic sound quality through your headset. The adapter comes pre-paired to your headset. 1Turn on your headset and insert the Bluetooth USB adapter into your laptop or PC. 2The USB adapter LED flashes and then turns solid to indicate the headset is connected to the USB adapter. If you are wearing your headset you hear “PC connected” to indicate the connection has been established. When on a call, the LED on the USB adapter flashes blue. When not on a call the LED is solid. Connect and pair Pair to mobile device Connect to PC 8 3Load Poly Lens Desktop App by visiting poly.com/lens. This allows you to customize your headset behavior through advanced settings and options. Your high-fidelity Bluetooth USB adapter comes ready to take calls. If you want to listen to music, you will need to configure your Bluetooth USB adapter. Windows 1To configure your Bluetooth USB adapter to play music, go to Start menu > Control Panel > Sound > Playback tab. Select Poly BT700 or Plantronics BT600, set it as the Default Device and click OK. 2To pause music when you place or receive calls, go to Start menu > Control Panel > Sound > Communications tab and select the desired parameter. Mac 1To configure the Bluetooth USB adapter, go to Apple menu > System Preferences > Sound. On both the Input and Output tabs, select Poly BT700 or Plantronics BT600. With Bluetooth activated and in range, click your right earbud to reconnect to your phone. Choose from 2 ways to put your earbuds in pair mode: • With your earbuds removed from the case, select the Bluetooth icon on the charge case touch screen. • Press and hold your earbud button for 4 seconds until you hear "pairing." Your USB adapter requires Poly Lens Desktop App to pair to a Poly audio device. Download: poly.com/lens. BT700 USB-C BT700 USB-A 1Insert the high-fidelity Bluetooth USB adapter into your laptop or computer and wait for your computer to recognize it. Configure USB adapter Reconnect Pair mode Pair BT700 USB adapter again 9 2Put your Poly audio device in pair mode. 3Launch Poly Lens Desktop App and navigate to Poly BT700. 4Put your Bluetooth USB adapter into pair mode by selecting "Pair new device" on the adapter's main page or overflow menu. Your adapter flashes red and blue. Pairing is successful when you hear "pairing successful" and "PC connected" and the Bluetooth USB adapter LED is solid. NOTETo pair again using Plantronics Hub Desktop App, navigate to the app's Poly BT700 general settings and select "Pair." Stream audio wirelessly from an inflight entertainment system or other audio source with 3.5 mm port. 1Connect the supplied adapter cable from your charge case…

Text truncated - open the document above for the full version.

Regulatory Compliance Information Compliance e-labeling Model ID F60T(F60TR, F60TL), CBF60+: Find compliance e-labeling information on the charge case touch screen by selecting the information (i) icon next to the QR code. Alternatively, find it by swiping left twice from the home screen. United States/Puerto Rico BC 4006678 81242 3115593 5018866 I .T. E FCC Regulatory Information Declaration of Conformity We Plantronics, Inc., 345 Encinal Street Santa Cruz, California, 95060 USA (800) 544-4660 declare under our sole responsibility that the product MODELS F60T (F60TR, F60TL) / CBF60+ / CBF60 / BT700 / BT700C complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on another circuit. 4. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FreeRTOS software Permission is hereby granted, free of charge, to any person obtaining a copy of this FreeRTOS software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. UAE MFi iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone SE (2nd generation), iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 plus, iPhone 7, iPad Pro 12.9-inch (5th generation), iPad Pro 11-inch (3rd generation), iPad Pro 10.5-inch, iPad Pro 12.9-inch (3rd generation), iPad Pro 10.5-inch, iPad Pro 12.9-inch (2nd generation), iPad Pro 9.7 inch, iPad Pro 12.9-inch (1st generation), iPad Air (3rd generation), iPad Air 2, iPad mini (5th generation), iPad mini 4, iPad (7th generation), iPad (6th generation). Model IDs CBF60/CBF60+: CAN RSS-216 / CNR-216 China Model IDs F60T, CBF60+: 型号核准代码显示在产品标签和 产品本体上 Europe Japan Korea 해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다 이 기기는 가정용(B급) 전자파적합기기로서 주로 가정에서 사용하는 것을 목적 으로 하며, 모든 지역에서 사용할 수 있습니다. Mexico Model IDs F60T (F60TR, F60TL), CBF60+: Requisitos del IFT Su uso está sujeto a las dos condiciones siguientes: 1. Este dispositivo no puede causar interferencias nocivas. 2. Este dispositivo debe aceptar todas las interferencias recibidas,incluidas aquellas que puedan causar un funcionamiento no deseado. Philippines Russia Singapore Model IDs F60T (F60TR, F60TL), CBF60+: Complies with IMDA Standards DA101619 Taiwan Model IDs F60T (F60TR, F60TL), CBF60+: 根據NCC低功率管理辦法規定：取得審驗證明之低功率射頻器材， 非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變 更原設計之特性及功能。低功率射頻器材之使用不得影響飛航安全 及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干 擾時方得繼續使用。前述合法通信，指依電信管理法規定作業之無線 電通信。低功率射頻器材須忍受合法通信或工業、科學及醫療用電波 輻射性電機設備之干擾。 Model IDs F60T (F60TR, F60TL), CBF60+: Exposure to RF Radiation This equipment has been tested and meets applicable limits for radio frequency (RF) exposure. Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. The SAR limit is 1.6 watts per kilogram in countries that set the limit averaged over 1 gram of tissue. During testing, device radios are set to their highest transmission levels and placed in positions that simulate use near the body, with 0mm separation. Cases with metal parts may change the RF performance of the device, including its compliance with RF exposure guidelines, in a manner that has not been tested or certified. Cet équipement a été testé et respecte les limites applicables d’exposition aux radiofréquences (RF). Le débit d’absorption spécifique est la vitesse à laquelle le corps absorbe l’énergie radiofréquence. La limite du débit d’absorption spécifique est de 1,6 watt par kilogramme dans les pays où la moyenne a été établie sur un gramme de tissu. Pendant l’essai, les radios de appareil sont réglées sur le niveau de transmission maximal et sont placées dans des positions simulant une utilisation à proximité du corps, avec une séparation de 0mm. Les étuis dotés de pièces métalliques peuvent modifier les performances des radiofréquences de l’appareil, y compris sa conformité aux directives d’exposition aux radiofréquences, d’une façon qu…

Text truncated - open the document above for the full version.

Plantronics, Inc. 345 Encinal Street Santa Cruz, CA 95060 Confidentiality Request Letter Date: November 14, 2022 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: AL8-CBF60 To whom it may concern: Short-term Confidentiality Pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are request the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 45 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : Plantronics Inc Address : 345 Encinal Street, Santa Cruz, California 95060, United States Signature : _________________________________ Name and Job Title. : Mark Lawson, Director, Global Compliance E-mail : [email protected] Tel. : +44 1793842416

Plantronics, Inc. 345 Encinal Street Santa Cruz, CA 95060 Letter of Authorization Date: November 14, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: AL8-CBF60 Product Name: Wireless Charging case To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan Name : Leo Huang Job Title : Director e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Plantronics Inc Address : 345 Encinal Street, Santa Cruz, California 95060, United States Signature : _________________________________ Name and Job Title. : Mark Lawson, Director, Global Compliance E-mail : [email protected] Tel. : +44 1793842416

Plantronics, Inc. 345 Encinal Street Santa Cruz, CA 95060 Date: November 14, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Declaration of composite/rated equipment for FCC ID: AL8-CBF60 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Class B personal computers and peripherals has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : Plantronics Inc Address : 345 Encinal Street, Santa Cruz, California 95060, United States Signature : _________________________________ Name and Job Title. : Mark Lawson, Director, Global Compliance E-mail : [email protected] Tel. : +44 1793842416

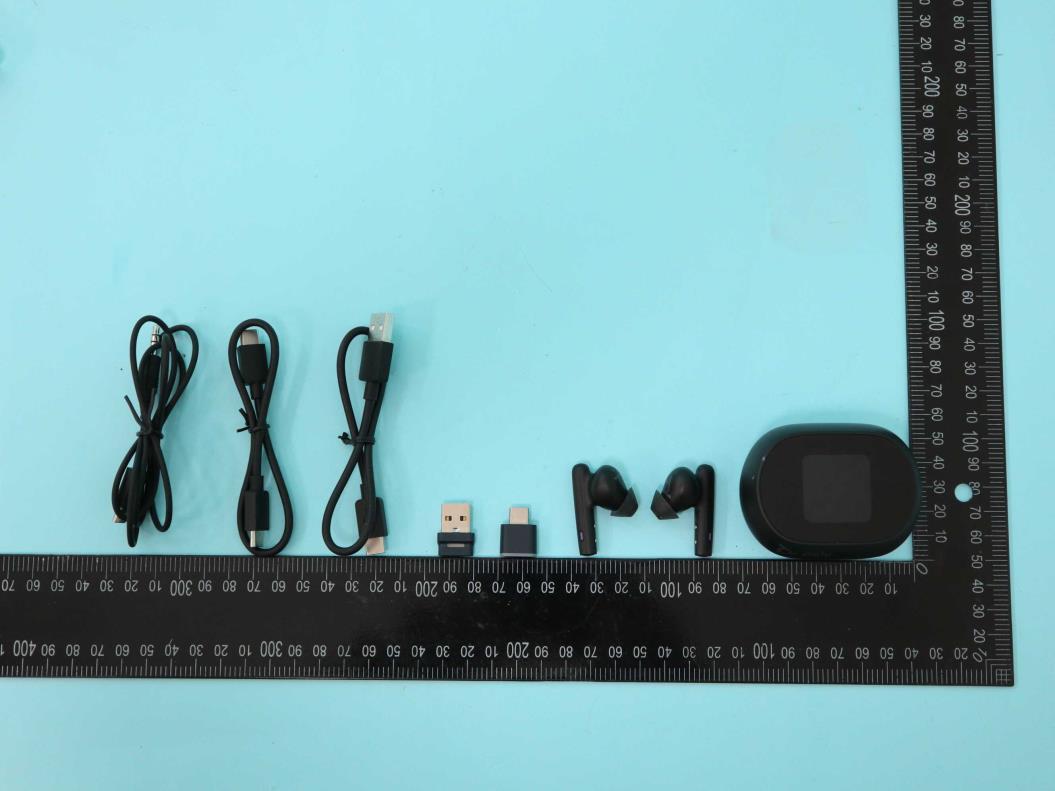

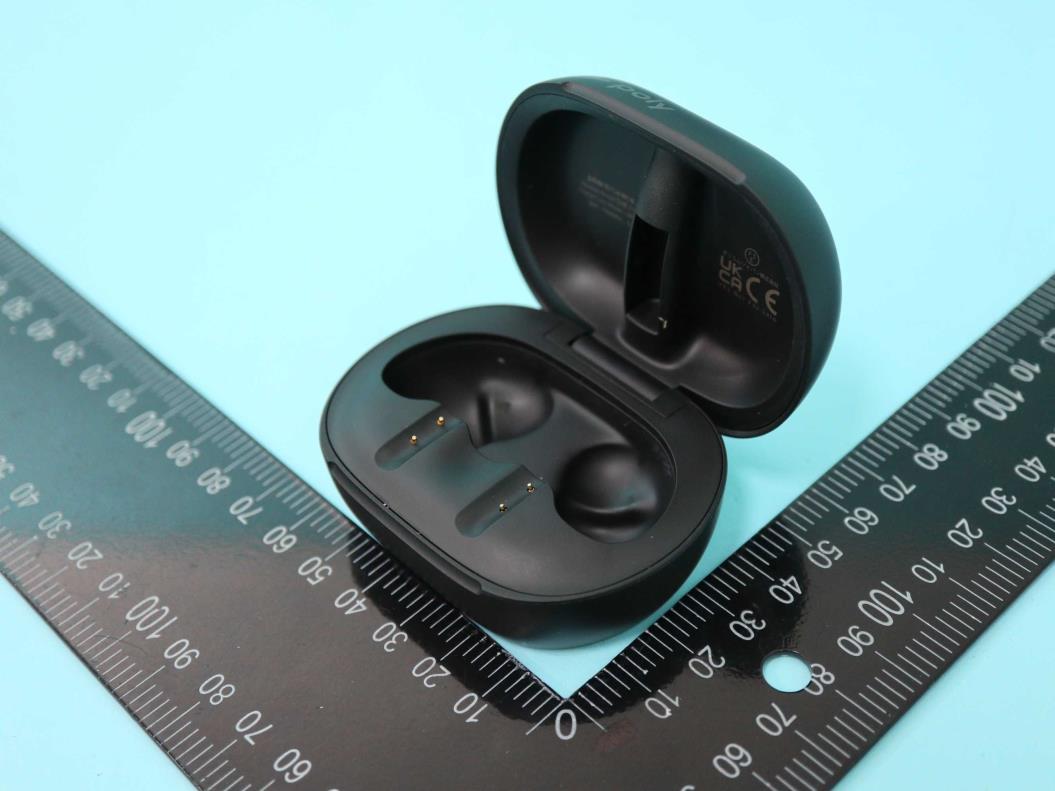

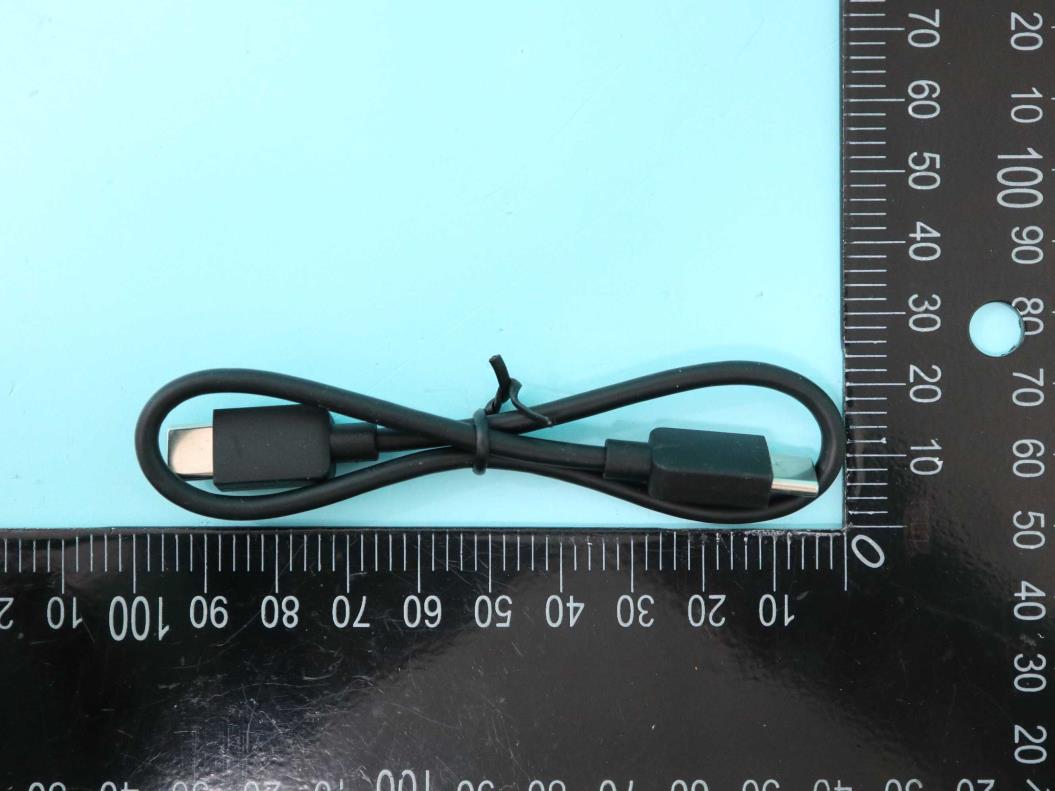

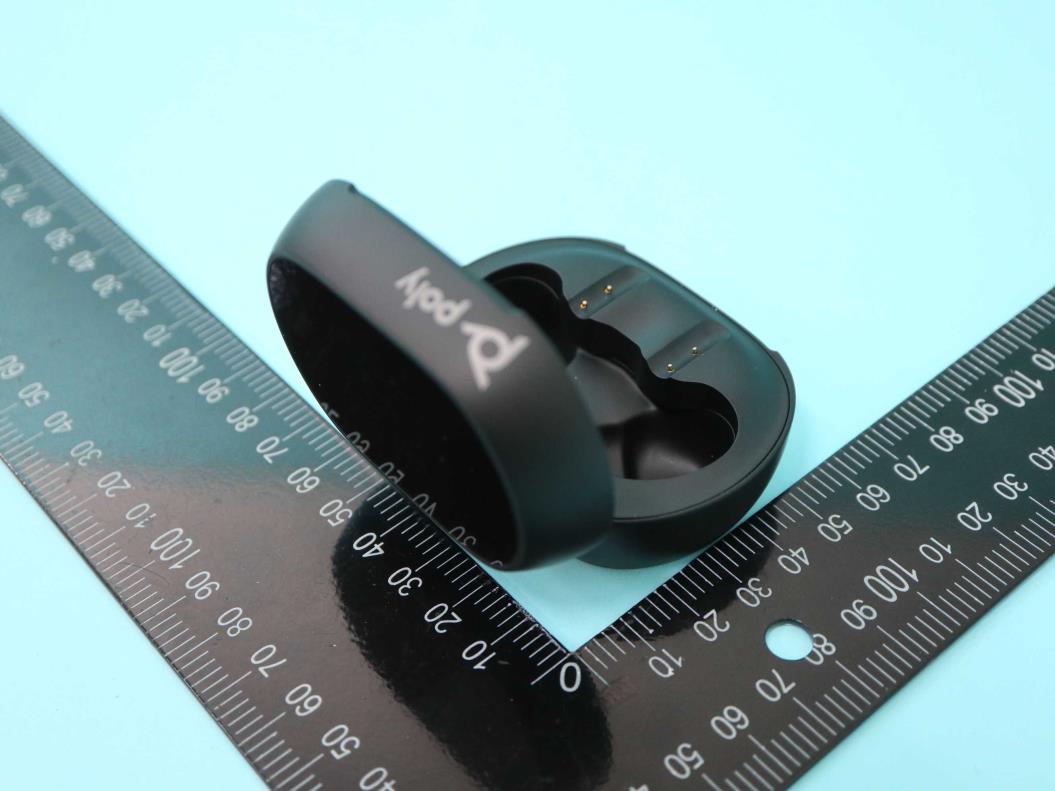

PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 1 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 2 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 3 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 4 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 5 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 6 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 20 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 Earphone (Optional) PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 21 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 22 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 23 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 USB Cable (Type-C to A) (Optional) PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 24 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 USB Cable (Type-C to C) (Optional) PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 25 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 Audio Cable (Type-C to Audio)(Optional) PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 26 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 Bluetooth Dongle (Type-C) (Optional) PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 27 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 28 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 Bluetooth Dongle (Type-A) (Optional) PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 29 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 30 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 ______________THE END______________

Plantronics Inc 345 Encinal Street Santa Cruz, CA 95060 +1 (831) 426-5858 poly.com Date: 2022-12-20 FCC ID: AL8-F60R IC: 457A-F60R HVIN: F60TR AL8-F60L 457A-F60L F60TL AL8-CBF60 457A-CBF60 CBF60+ FCC E-Label Information: 1. Justification of using the alternative method of e-labeling for the product The electronic labeling method was used because the radiofrequency device is equipped with an integrated electronic display screen, or only operate in conjunction with another associated product that has an electronic display. 2. According to KDB 784748 D02 e labeling v02 section 4, for devices with an integrated electronic display, or those devices that only operate in conjunction with another associated product that has an electronic display, below info has been stated in e-label and/or user manual. A. User Steps to Access Information Users can access the information in no more than three steps from the product’s menu. Product access process is as follows: Starting from Main or Home Menu: Step 1 – Swip left Step 2 – Select the information (i) icon next to the QR code Step 3 – Swip right B. Products must not require special accessories or supplemental plug-ins (e.g., the installation of a SIM/USIM card) to access the information. The product does not require special accessories or supplemental plug-ins to access the information. Access to the information does not require special codes, accessories, or permissions beyond the normal security protection to unlock the screen, sign-in page, or overall product access. C. Information to be Displayed and Readability of Regulatory Information Information on E-label In Manual FCC ID number Yes No FCC logo No No 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) No Yes Class A / B Digital Device user manual statements No Yes Plantronics Inc 345 Encinal Street Santa Cruz, CA 95060 +1 (831) 426-5858 poly.com Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. No Yes IC ID number Yes No HVIN Yes Yes Product’s e-label screen is provided below: The above information is displayed electronically in a manner that is clearly legible without the aid of magnification. D. Regulatory Information must be Secure The regulatory information and dedicated exclusive application(s) or script(s) are secured and implemented in a factory-set-unalterable format. The regulatory information is capable of being retrieved and displayed locally and accessed by the end user. The e-label information is pre-programmed by the grantee. The information cannot be modified by the end user. E. Physical and Temporary label for Purchasing and Importation The below information is also on the packaging, at the time of importation, marketing, and sales: 1. FCC ID; 2. IC ID; 3. HVIN; and 4. Product model number. F. Additional Considerations (Modular transmitters) The device is not a modular device. _________________________________ (Signature & Company Seal) Name: Mark Lawson Designation: Director, Global Compliance Department: Compliance and Environmental Eng Company Name: Plantronics, Inc.

PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 7 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 8 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 9 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 10 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 11 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 12 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 13 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 Battery PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 14 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 15 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 16 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 17 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 18 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 19 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP253009 Sporton International Inc. Page No. : 20 of 30 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 08, 2022 Report Version : 1

Date: 2022-11-02 System Check_Head_2450MHz DUT: D2450V2 - SN929 Communication System: CW; Frequency: 2450.0 MHz; Duty Cycle: 1:1 Medium: HSL_2450_221102 Medium parameters used: f= 2450.0 MHz; σ= 1.83 S/m; ε r = 39.32 Ambient Temperature: 23.5°C; Liquid Temperature: 22.5°C DASY6 Configuration: - Probe: EX3DV4 - SN3728; ConvF(7.44, 7.44, 7.44); Calibrated: 2022-03-02 - Sensor-Surface: 1.4 mm - Electronics: DAE4 Sn656; Calibrated: 2022-01-19 - Phantom: ELI V8.0 (20deg probe tilt); Serial: 2155; Section: Flat - Measurement Software: 16.0.2.83 - UID: CW Pin=50dBm/Area Scan (40.0 mm x 80.0 mm): Measurement Grid: 10.0 mm x 10.0 mm SAR (1g) = 2.54 W/kg; SAR (10g) = 1.20 W/kg; Pin=50dBm/Zoom Scan (30.0 mm x 30.0 mm x 30.0 mm): Measurement Grid: 5.0 mm x 5.0 mm x 1.5 mm Power Drift = -0.07 dB SAR (1g) = 2.52 W/kg; SAR (8g) = 1.34 W/kg; SAR (10g) = 1.22 W/kg psAPD (1.0cm2, sq) = 25.2 [W/m2]; psAPD (4.0cm2, sq) = 26.7 [W/m2]

Date: 2022-11-02 #01_Bluetooth_1Mbps_Back_0mm_Ch0 Communication System: Bluetooth; Frequency: 2402.0 MHz; Duty Cycle: 1:1.299 Medium: HSL_2450_221102 Medium parameters used: f= 2402.0 MHz; σ= 1.78 S/m; ε r = 39.5 Ambient Temperature: 23.5°C; Liquid Temperature: 22.5°C DASY6 Configuration: - Probe: EX3DV4 - SN3728; ConvF(7.44, 7.44, 7.44); Calibrated: 2022-03-02 - Sensor-Surface: 1.4 mm - Electronics: DAE4 Sn656; Calibrated: 2022-01-19 - Phantom: ELI V8.0 (20deg probe tilt); Serial: 2155; Section: Flat - Measurement Software: 16.0.2.83 - UID: Bluetooth, 10032-CAA Area Scan (100.0 mm x 120.0 mm): Measurement Grid: 10.0 mm x 10.0 mm SAR (1g) = 0.197 W/kg; SAR (10g) = 0.097 W/kg; Zoom Scan (30.0 mm x 30.0 mm x 30.0 mm): Measurement Grid: 5.0 mm x 5.0 mm x 1.5 mm Power Drift = 0.05 dB SAR (1g) = 0.221 W/kg; SAR (8g) = 0.126 W/kg; SAR (10g) = 0.118 W/kg

Calibration Laboratory of Schmid & Partner Engineering AG Zeughausstrasse 43, 8004 Zurich, Switzerland Accredited by the Swiss Accreditation Service (SAS) The Swiss Accreditation Service is one of the signatories to the EA Multilateral Agreement for the recognition of calibration certificates s Schweizerischer Kalibrierdienst C Service suisse d'etalonnage Servizio svizzero di taratura s Swiss Calibration Service Accreditation No.: SCS 0108 Client Sporton Certificate No: 02450V2-929 _Nov19 CALIBRATION CERTIFICATE Object D2450V2 - SN:929 Calibration procedure(s) QA CAL-05.v11 Calibration Procedure for SAR Validation Sources between 0.7-3 GHz Calibration date: November 21, 2019 This calibration certificate documents the traceability to national standards, which realize the physical units of measurements (SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature (22 ± 3)°C and humidity< 70%. Calibration Equipment used (M& TE critical for calibration) Primary Standards ID# Power meter NRP SN: 104778 Power sensor NRP-Z91 SN: 103244 Power sensor NRP-Z91 SN: 103245 Reference 20 dB Attenuator SN: 5058 (20k) Type-N mismatch combination SN: 5047.2 / 06327 Reference Probe EX3DV4 SN: 7349 DAE4 SN: 601 Secondary Standards ID # Power meter E4419B SN: 8839512475 Power sensor HP 8481A SN: US37292783 Power sensor HP 8481A SN: MY41092317 RF generator R&S SMT-06 SN: 100972 Network Analyzer Agilent E8358A SN: US41080477 Name Calibrated by: Claudio Leubler Approved by: Katja Pokovic Cal Date (Certificate No.) 03-Apr-19 (No. 217-02892/02893) 03-Apr-19 (No. 217-02892) 03-Apr-19 (No. 217-02893) 04-Apr-19 (No. 217-02894) 04-Apr-19 (No. 217-02895) 29-May-19 (No. EX3-7349_May19) 30-Apr-19 (No. DAE4-601_Apr19) Check Date (in house) 30-0ct-14 (in house check Feb-19) 07-0ct-15 (in house check Oct-18) 07-0ct-15 (in house check Oct-18) 15-Jun-15 (in house check Oct-18) 31-Mar-14 (in house check Oct-19) Function Laboratory Technician Technical Manager This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: D2450V2-929_Nov19 Page 1 of 7 Scheduled Calibration Apr-20 Apr-20 Apr-20 Apr-20 Apr-20 May-20 Apr-20 Scheduled Check In house check: Oct-20 In house check: Oct-20 In house check: Oct-20 In house check: Oct-20 In house check: Oct-20 Issued: November 25, 2019 Calibration Laboratory of Schmid & Partner Engineering AG Zeughausstrasse 43, 8004 Zurich, Switzerland Accredited by the Swiss Accreditation Service (SAS} The Swiss Accreditation Service is one of the signatories to the EA Multilateral Agreement for the recognition of calibration certificates Glossary: TSL ConvF N/A tissue simulating liquid sensitivity in TSL / NORM x,y,z not applicable or not measured Calibration is Performed According to the Following Standards: S Schweizerischer Kalibrierdienst C s Service suisse d'etalonnage Servizio svizzero di taratura Swiss Calibration Service Accreditation No.: SCS 0108 a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial- Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques", June 2013 b) IEC 62209-1, "Measurement procedure for the assessment of Specific Absorption Rate (SAR) from hand-held and body-mounted devices used next to the ear (frequency range of 300 MHz to 6 GHz)", July 2016 c) IEC 62209-2, 11 Procedure to determine the Specific Absorption Rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) 11 , March 2010 d) KDB 865664, "SAR Measurement Requirements for 100 MHz to 6 GHz" Additional Documentation: e) DA…
