Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Plantronics Discovery ® 925 User Guide ii Welcome Thank you for purchasing the Plantronics Discovery ® 925 earpiece. This guide contains instructions for setting up and using your new earpiece. Please refer to the Safety Information in this booklet for important product safety information prior to use of the product. Getting Assistance The Plantronics Technical Assistance Center is ready to assist you. You can find answers to frequently asked questions, ask a question using e-mail, receive service over the Internet, or speak directly with a representative. Visit www.plantronics.com/support or call 1-866-363-BLUE (2583). note If you are considering returning this earpiece, please contact the Technical Assistance Center first. Registering Your Product Visit www.plantronics.com/productregistration to register your product online so we can provide you with the best service and technical support. note For pairing your Earpiece, your PIN code, or “Passkey,” is 0000. iii en Contents Package Contents, Features and Accessories ......................................1 Charging Your Earpiece ........................................................................2 Using the AC or USB charger ......................................................2 Using the Charging Case .............................................................3 Checking the Battery Level ..........................................................3 Recharging the Charging Case ....................................................4 Pairing Your Earpiece ............................................................................5 Plantronics QuickPair™ Technology ............................................5 How to Pair Your Phone With Your Earpiece for the First Time .....6 Adjusting the Fit ....................................................................................7 How to Install a Different Gel Eartip ..............................................7 Earpiece Controls .................................................................................8 Hands-Free Features ............................................................................9 Range ................................................................................................10 Indicator Lights and Tones ..................................................................10 Troubleshooting ..................................................................................12 Using More Than One Bluetooth Phone ..............................................14 How to Turn the Multipoint Feature On and Off ..........................14 How to Initiate a Call..................................................................14 How to Answer a Call While Talking on the Other Phone ...........14 Product Specifications ........................................................................15 Limited Warranty.................................................................................16 Important Safety and Operational Information .....................................17 Regulatory Notices .............................................................................20 Package Contents and Features Product Name & Number Accessories* Vehicle Power Charger #78583-01 Earpiece Charging Case * Not included. To order, please contact your Plantronics supplier or go to www.plantronics.com AC Charger 100 – 240V USB Charging Cable Volume Control Button Charging Jack Eartip Stabilizing Eartips (small, medium, and large) Call Control Button USB Lanyard #74948-01 en Option A: Using the AC Charger 1 Plug the AC charger into a power outlet. 2 Connect the AC charger to the charging jack on the earpiece. Charging Your earpiece Your new earpiece performs best when fully charged. While your earpiece is charging, the indicator light slowly flashes red. When your earpiece is fully charged, the indicator light turns off. This applies to all charging options. 1 2 Option B: Using the USB Charger 1 Connect USB charger to the USB port on a computer or laptop. 2 Connect the USB charger to the charging jack on the earpiece. 3 turn the computer or laptop on. 1 2 3 WARninG Do not use your earpiece while it is connected to the charger. Charging time 3 hours ..... Full charge using aC or USB hour ....... minimum charge before first use 3 Option C: Using the Charging Case 1 open the cover of the case. Align the charging jack on the earpiece with the micro USB connection in the case. Gently push the earpiece onto the micro USB connection until you feel it click into place. iMPoRtAnt Incorrect removal of the earpiece from the case will damage the micro USB port in the case. To properly remove the earpiece, use your thumb to gently push the earpiece in a diagonal, not vertical, direction away from the micro USB connector. Checking the Battery Level of Your Earpiece 1 With the earpiece on, simultaneously press and hold the call control button and the volume button for about 2 seconds. the indicator light flashes red to show the charge level. 1 Charging Your earpiece Charge indiCator lightS red FlashesBattery level Full battery /3 to /3 full 3less than /3 full Volume Button Call Control Button 1 Charging time 3 hours ..... Full charge using charging case hour ....... minimum charge before first use en 2 Recharging the Charging Case 1 to check the battery status of the charging case, you must connect the earpiece to the case. if the earpiece does not begin charging mode (indicator light slowly flashes red) then both the earpiece and case need recharging. 2 Plug either the AC charger or the USB charger to power source before connecting to the charging jack on the bottom of the case. While the case is charging, the indicator light on the bottom of the case slowly flashes red. When fully charged, the indicator turns off. note If recharging with the AC charger, the charging case will feel warm to the touch during the charging cycle. Once fully charged, the case will cool down. See “Safety …
Text truncated - open the document above for the full version.
Worldwide Headquarters 345 Encinal Street z P.O. Box 635 Santa Cruz, CA 95060 Bluetooth Declaration Per FCC 15.247 Requirements 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 2.0 + EDR for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. Worldwide Headquarters 345 Encinal Street z P.O. Box 635 Santa Cruz, CA 95060 The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR- operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviors: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviors for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Worldwide Headquarters 345 Encinal Street z P.O. Box 635 Santa Cruz, CA 95060 Bluetooth devices. There for all Bluetooth devices comply with the FCC dwell time requirement in data mode. This was checked during the Bluetooth Qualification tests. The Dwell time in hybrid mode is measured and stated in the test report. 8 Channel Separation in hybrid mode The nominal channel spacing of the Bluetooth s…
Text truncated - open the document above for the full version.
Date :12-Dec-07 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Compliance Certification Services (Kunshan) Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Compliance Certification Services (Kunshan) Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Compliance Certification Services (Kunshan) Inc. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Compliance Engineer Plantronics, Inc. 12-Dec-07 345 Encinal Street Santa Cruz, CA 95060

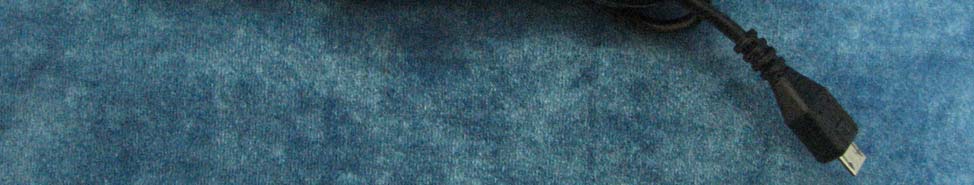

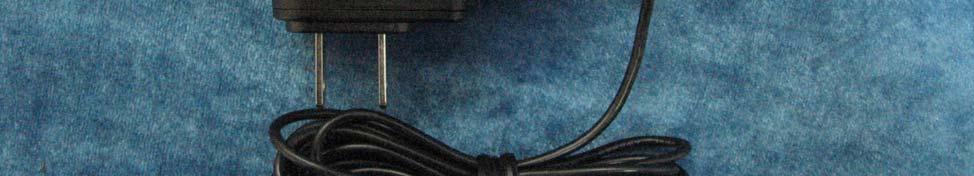

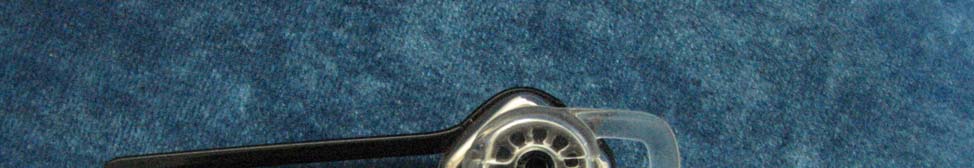

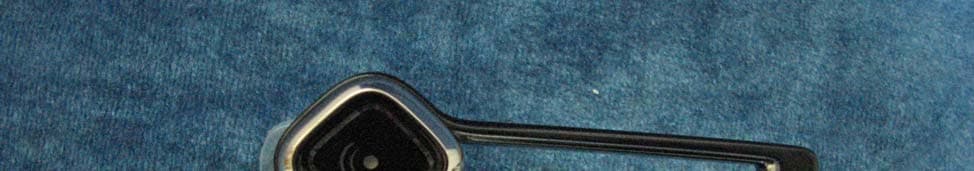

Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D675 Date of Issue: November 14, 2007 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D675 Date of Issue: November 14, 2007 Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D675 Date of Issue: November 14, 2007 Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D675 Date of Issue: November 14, 2007 Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D675 Date of Issue: November 14, 2007 Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D675 Date of Issue: November 14, 2007 Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D675 Date of Issue: November 14, 2007 Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D675 Date of Issue: November 14, 2007
ARTMASTERREV. LEVEL : REF. PA RT #: DESCRIPTION: PREPARED BY :DATE: PMS COLOR #: Ruby (Link) headset laser etching: Regulatory artwork 78901-00 N/A 26 J. Yang Nov. 15, 2007 76666-01 1:1 reference (Bottom Housing) Scale: 2:1 Scale: 1:1 Plantronics Discovery 925 FCC ID:AL8-D925 SW MYY CN IC:457A-D925 R Plantronics Discovery 925 FCC ID:AL8-D925 SW MYY CN IC:457A-D925 R Plantronics Discovery 925 FCC ID:AL8-D925 SW MYY CN IC:457A-D925 R 13 mm 13 mm
Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D925 Date of Issue: November 14, 2007 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D925 Date of Issue: November 14, 2007 Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D925 Date of Issue: November 14, 2007 Bluetooth Antenna
Compliance Certification Services Inc. Report No.: KS071026A02-RP FCC ID: AL8-D925 Date of Issue:November 14, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 41 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth headset Model: Discovery 925 Trade Name: PLANTRONICS Prepared for Plantronics, Inc. 345 Encinal Street , Santa Cruz, CA 95060, USA Issued by COMPLIANCE CERTIFICATION SERVICES (KUNSHAN) INC. 10#Weiye Rd, Innovation Park Eco. & Tec. Development Zone Kunshan city JiangSu, (215300) CHINA TEL: 86-512-57355888 FAX: 86-512-57370818 Compliance Certification Services Inc. Report No.: KS071026A02-RP FCC ID: AL8-D925 Date of Issue:November 14, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION......................................................................................................................5 3.2 EUT EXERCISE..................................................................................................................................5 3.3 GENERAL TEST PROCEDURES...........................................................................................................5 MEASUREMENT UNCERTAINTY .....................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ......................................................6 3.5 DESCRIPTION OF TEST MODES.........................................................................................................7 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES 8 5.2 EQUIPMENT......................................................................................................................................8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT.....................................................................................................10 6.2 SUPPORT EQUIPMENT .............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 7.1 PEAK POWER..................................................................................................................................11 7.2 BAND EDGES MEASUREMENT ..............................................................................................12 7.3 FREQUENCY SEPARATION .....................................................................................................18 7.4 NUMBER OF HOPPING FREQUENCY.....................................................................................20 7.5 TIME OF OCCUPANCY (DWELL TIME) .................................................................................22 7.6 RADIO FREQUENCY EXPOSURE......................................................................................................26 7.7 SPURIOUS EMISSIONS...............................................................................................................27 7.9 POWERLINE CONDUCTED EMISSIONS.............................................................................................38 Compliance Certification Services Inc. Report No.: KS071026A02-RP FCC ID: AL8-D925 Date of Issue:November 14, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Bluetooth headset Trade Name PLANTRONICS Model Number Discovery 925 Bluetooth module Model Number BC05MM Bluetooth module Brand name CSR Power Supply For AC adapter: Trade name: PLANTRONICS Model number: SSA-3W-05 050035F Input: 100-240V, 50/60Hz, 0.2A Output: 5V, 350mA; Frequency Range 2402 ~ 2480 MHz Transmit Power 1.98 dBm Modulation Technique FHSS Transmit Data Rate GFSK(1 Mbps), π/4-DQPSK(2 Mbps),8-DPSK(3 Mbps) Number of Channels 79 Channels Antenna Specification Antenna / Gain: -1.13 dBi Remark: This submittal(s) (test report) is intended for FCC ID: AL8-D925 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: KS071026A02-RP FCC ID: AL8-D925 Date of Issue:November 14, 2007 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turnt…
Text truncated - open the document above for the full version.
Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D925 Date of Issue: November 14, 2007 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST Compliance Certification Services (Kunshan) Inc. Report No.: KS071026A02-RP FCC ID: AL8-D925 Date of Issue: November 14, 2007 RADIATED EMISSION TEST
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 1.00 mW |
