AL8-E3XXBluetooth Headset

PLANTRONICS EXPLORER ™ 300 Series BLUETOOTH ® HEADSET USER GUIDE_ 72357-01 (04-06) REGISTER YOUR PRODUCT ONLINE Visit www.plantronics.com/productregistrationto register your product online so we can provide you with the best possible service and technical support. WELCOME Thank you for purchasing a Plantronics headset. Let us provide you with the best possible service and technical support. After you review this user guide, if you need additional assistance or have any product questions, please contact: •Plantronics Technical Assistance Center at 866-363-BLUE (2583) •www.plantronics.com/support TABLE OF CONTENTS Package Contents & Features3 Charging & Powering5 Pairing6 Adjusting Fit7 Using Your Headset8 Indicator Lights9 Accessories10 Troubleshooting12 Product Specifications12 Technical Assistance13 Warranty13 Regulatory Notices14 3 PACKAGE CONTENTS & FEATURES PLANTRONICS EXPLORER 330 Indicator light Call control button Microphone Adjustable ear loop Ear tip Charging jack Indicator light Call control button Microphone Adjustable ear loop Ear tip Charging jack PLANTRONICS EXPLORER 340 AND 350 4 PACKAGE CONTENTS & FEATURES In-car charging cradle (shown with vent clip) AC power adapter Vent clip Vehicle charging adapter USB headset charger Dash mount Cradle Mount Options PLANTRONICS EXPLORER 350 PLANTRONICS EXPLORER 330 & 340 5 CHARGING & POWERING 1 2 1 2 Before using, you must first charge your headset. 20 minutes = minimum charge 3 hours = full charge Light is solid red when battery is charging. NOTEFor the best user experience, keep your headset fully charged. CAUTIONDo not use headset while charging and do not connect the charger while the headset is in use. CHARGING POWERING Press the control button for 3 seconds to power on. Press the control button for 7 seconds to power off. Explorer 330 & 340Explorer 350 6 PAIRING Begin with headset turned off. 1.Press call control button for 9 seconds. Release button when indicator light flashes blue and red. Headset is ready to pair with Bluetooth device. NOTEThe headset can pair to multiple Bluetooth devices, but will only connect to one device at a time. The headset will auto- matically connect to the last device to which it was connected. 2.While the headset is flashing red and blue, use the phone menu to search for Bluetooth devices and select “3XXPlantronics”. 3.When prompted for passkey enter 0000. Headset will flash blue when paired successfully. 1.2. 3. Before using your headset for the first time, you must pair it with your Bluetooth ® phone or device. Be sure the headset is fully charged. For set up and pairing instructions with Bluetooth devices other than mobile phones, please consult your Bluetooth device user guide. 7 ADJUSTING FIT Place ear loop behind ear. Position speaker and align microphone with mouth. Right Ear Left Ear Lift ear loop.Swivel ear loop to the right or left for right or left ear wearing. Pivot headset to place speaker into ear. 1.2. 3.4.5. 8 USING YOUR HEADSET ADJUSTING THE VOLUME ANSWERING/ENDING/MAKING CALLS Briefly push up or down on the call control button for incremental volume steps. You will hear two tones (high tone followed by low tone) at the volume limit. WARNINGFor your comfort, health, and safety, do not exceed moderate listening levels. For best performance, position your mobile phone on the same side of your body as the headset. To answer or end a call, briefly press the call control button. To make a call, enter number on your phone, press send, and the call is automatically transferred to headset; no need to press call control button. 9 USING YOUR HEADSET ADDITIONAL FEATURES INDICATOR LIGHTS Headset StatusHeadset Indicator Light Powering onBlue flashes. Repeat. Powering offRed appears and goes off. Charging batteryRed solid light. Low batteryRed flashes. Pairing modeBlue/red flashes for 120 seconds. Missed call Purple flashes. Double press the call control button to cancel. RingingPurple flashes. Briefly press call control button to answer the call. Press call control button for 2 seconds to reject the call. R edialing Last Number To activate last number redial, double press the call control button. You will hear a high tone after each double key press. Using Voice Dialing With the headset on, press the call control button for 2 seconds to activate the voice dialing. NOTETo use voice activated dialing, the voice dialing feature must be enabled on your phone. See your Bluetooth phone manual for instructions. R ejecting a Call When receiving an incoming call, press the call control button for 2 seconds to reject the call. Switching a Call From Phone to Headset To switch an active call from your phone to your headset, press the call control button for 3 seconds. Switching a Call From Headset to Phone To switch an active call from your headset to your phone, press the call control button for 2 seconds. ACCESSORIES INCLUDED ACCESSORIES 10 In-car charging cradle and in-vehicle charging adapter – for Explorer 350 only 1. Select vent clip or dash mount option. Attach to rear of in-car charging cradle. NOTESelect the mounting option that allows the charging cradle to not interfere with car controls. 2. Insert charging plug into slot on bottom of charging cradle. Be sure to slide to top of slot. 3. Attach charging cradle to dash mount or vent. IMPORTANTClip onto lowest vent slot. Be sure the headset is not directly in the vent air flow. If headset cannot be positioned out of air flow, use dash mount instead. 4.Place ear tip as shown in the top of the cradle. Gently press the bottom of the headset to plug the charging adapter into the charging jack. Then plug in-vehicle charging adapter into vehicle power. 1. 3. 2. 4. AVAILABLE FOR PURCHASE 69520-01 Vehicle charging adapter 72321-01Desktop charging cradle72323-01In-car charging cradle (can be used with Explorer 340) 69519-01 USB headset charger 11 To order, please contact your Plantronics supplier or go to www.plantronics.com. ACCESSORIES 12 TROUBLESHOOTING…

Text truncated - open the document above for the full version.

Confidentiality Request 6/27/06 AmericanTCB 6731 Whittier Ave. McLean, VA 22101 FCC ID: AL8E3XX and IC: 457A-E3XX In regards the exhibits submitted in support of the application for FCC ID: AL8E3XX and IC # 457A-E3XX, please classify the following as confidential under the provision of 47 CFR 0.459: • Schematics • Parts List • System Block Diagram These exhibits contain technical information which the Applicant deems to be sensitive and proprietary. Therefore this information cannot be published. If this information were to be made public it could be used to the disadvantage of the applicant in the marketplace. Bob Cole President EMCE Engineering (Authorized Agent)

6/27/06 AmericanTCB 6731 Whittier Ave. McLean, VA 22101 FCC ID: AL8E3XX / IC: 457A-E3XX In regards the application submittal for FCC ID: AL8E3XX and IC: 457A-E3XX. Please review the associated exhibits for the purpose of issuing a FCC Grant of Certification and an IC TAC for the Plantronics, Inc. Bluetooth Dongle. Bob Cole President EMCE Engineering 44366 S. Grimmer Blvd Fremont, ca 94538 510-490-4307 510-490-3441 (Authorized Agent for Socket Communications, Inc.)

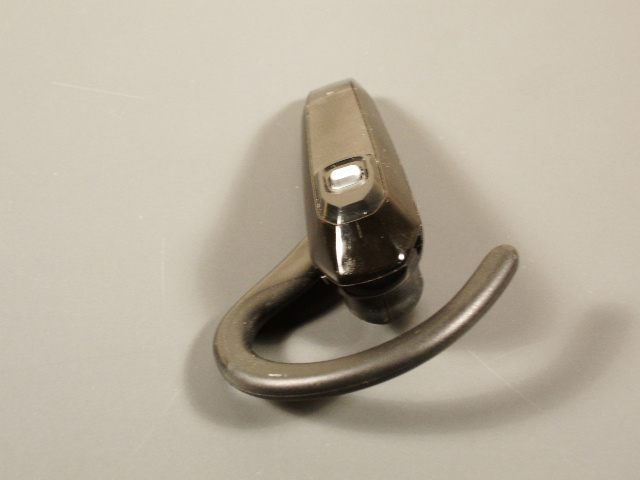

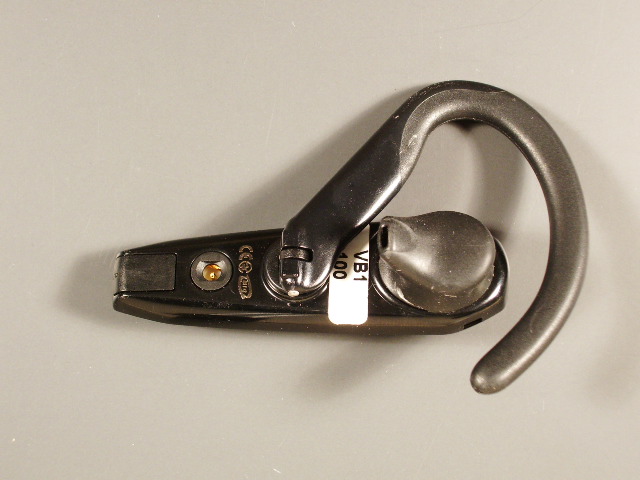

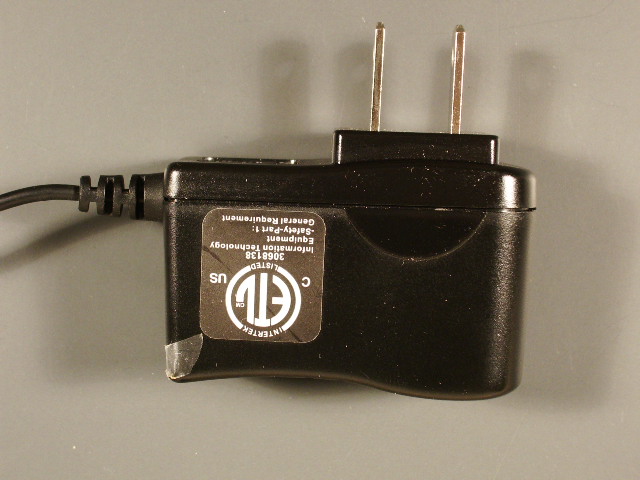

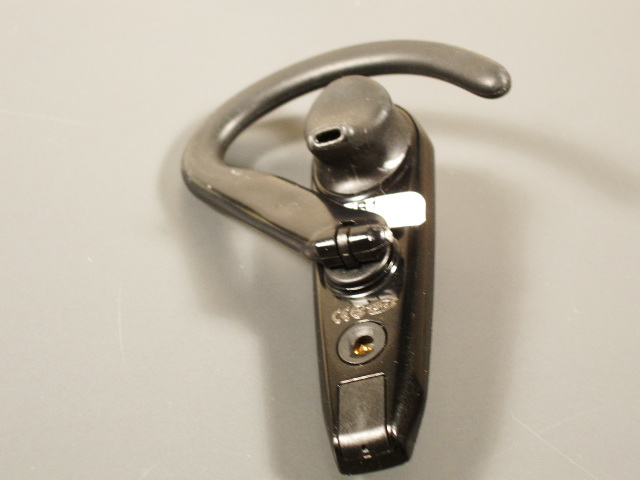

Plantronics, Inc. FCC ID: AL8-E3XX IC: 457A-E3XX EUT Photos External Photos EUT Top View Plantronics, Inc. FCC ID: AL8-E3XX IC: 457A-E3XX EUT Photos External Photos EUT Bottom View Plantronics, Inc. FCC ID: AL8-E3XX IC: 457A-E3XX EUT Photos External Photos EUT Front View Plantronics, Inc. FCC ID: AL8-E3XX IC: 457A-E3XX EUT Photos External Photos EUT Rear View Plantronics, Inc. FCC ID: AL8-E3XX IC: 457A-E3XX EUT Photos External Photos EUT Power Supply

ARTWORK CONTROL DOCUMENT SHEET #: DESCRIPTION: PREPARED BY: DATE: SCALE:REF.ARTMASTER#: STAGE II ID DOC #: Plantronics Industrial Design Toga Agency Approval Artwork See Callouts See Views Jose Zazueta Jun 16, 2006 1 of 1 REVISION: B Scale 1:1 Arial Narrow 3.6pt Arial Narrow 3.3pt Plantronics Model: 340 IC:457A-E3XX SW MMYY FCC:ID AL8-E3XX MADE IN MEXICO C L Artwork Only Scale 2:1 Scale 4:1 74321-00 Plantronics Model: 340 IC:457A-3XX SW MMYY FCC:ID AL8-3XX MADE IN MEXICO

Plantronics, Inc. FCC ID: AL8-E3XX IC: 457A-E3XX EUT Photos Internal Photos PCB Top View Plantronics, Inc. FCC ID: AL8-E3XX IC: 457A-E3XX EUT Photos Internal Photos PCB Bottom View Plantronics, Inc. FCC ID: AL8-E3XX IC: 457A-E3XX EUT Photos Internal Photos PCB with Battery

Product Description for Compliance Plantronics Confidential Rev 1 page 1 of 7 Product Description for Compliance Explorer 330, 340 and 350 series Products Product Description for Compliance Plantronics Confidential Rev 1 page 2 of 7 Table of Contents 1 Introduction................................................................................................................... 3 1.1 Change History ................................................................................................. 3 1.2 Scope................................................................................................................. 3 1.3 Glossary ............................................................................................................ 3 2 Product Requirements ................................................................................................... 5 2.1 Product Rendering ............................................................................................ 5 2.2 Product Description .......................................................................................... 5 2.2.1 Accessories ........................................................................................... 6 2.3 Technical Description ....................................................................................... 6 2.4 Functional Requirements .................................................................................. 7 2.4.2 Test Points and Access.......................................................................... 8 2.4.3 Accessories: .......................................................................................... 8 2.4.4 User Documentation (11 Languages) ................................................... 8 2.4.5 Firmware ............................................................................................... 9 2.4.6 User Interface Requirements................................................................. 9 Product Description for Compliance Plantronics Confidential Rev 1 page 3 of 7 1 Introduction 1.1 Change History Revision Date Comments Rev 1 November 2005 Keith W. Petersen for Compliance Rev 2 June 2006 Keith W. Petersen for Compliance Rev 3 June 2006 Keith W. Petersen for Compliance 1.2 Scope This document identifies the detailed requirements for the Explorer series Bluetooth headset program for Bluetooth and Conformity Testing & Reporting. 1.3 Glossary acronym meaning notes AFH Adaptive Frequency Hopping APLA Asia-Pacific-Latin-America Region BOM Bill of Material CLA Cigarette Lighter Adapter CSR Cambridge Silicon Radio EMEA Region MMI Man-Machine-Interface User Interface Functions and Visual/auditory Feed-Back NA North America Region PC Personal Computer PSB Plantronics Serial Bus Plantronics proprietary Serial Bus for communication with accessories such as OLI or HL SMIF Smart Mechanical Inter-Face Plantronics proprietary Charging Connector USB Universal Serial Bus PC Serial Bus EDR Enhanced Data Rate eSCO Extended synchronous connections Product Description for Compliance Plantronics Confidential Rev 1 page 4 of 7 2 Product Requirements 2.1 Product Rendering Explorer 340 and 350 Explorer 330 2.2 Product Description Explorer 330, 340 and 350 use case involve a mobile environment in which the series head set will be used to communicate with another Bluetooth device which supports the headset or hands-free profiles such as a Bluetooth enabled mobile device i.e. cell phone or PDA. The Explorer 330, 340 and 350 will be available as Headset only. Approvals are expected as Headset only. • The Plantronics Explorer series utilizes the latest Bluetooth technology (v2.0 + EDR or v 1.2) features from CSR, including the single-point feature, to provide seamless operation of the headset with another Bluetooth enabled device. The Headset contains Class 2 Transceivers • Other performance differentiators include improved 2.4GHz coexistence features such as Adaptive Frequency Hopping (AFH), for best audio performance in an 802.11 interference environment. This will include EDR for optimum data transmission. Toga will not include eSCO. • There are 3 versions of the Explorer. 330, 340, 350 are identical electrically and functionally. The 340 and 350 variants are distinguished solely by in box accessories for headset stowage. The 330 differs solely in color, material and finish ONLY • The only difference between the versions is the external plastic finish. 2.2.1 Accessories • Universal travel charger Multi-voltage charger with interchangeable pins for SMIF • Car charging CLA cable Product Description for Compliance Plantronics Confidential Rev 1 page 5 of 7 • Desk Top Headset Holder Plastic holder for h/s while charging. No electronics or power in holder. • .In car charger cradle Plastic holder for h/s while charging. No electronics or power in holder. 2.3 Technical Description • The Explorer 330, 340, 350 is a Bluetooth ™ Class 2 (2.5mW maximum) device, which receives and transmits in the frequency range of 2.402-2.480GHz. It is a spread spectrum (frequency hopping) headset; 79 channels, 1MHz Bandwidth, frequency hops at 1600 hops/second per the Bluetooth standard. The product communicates with other Bluetooth products using a Time division duplex scheme that alternates transmission and receive functions, and thus uses the same antenna to transmit and receive at different times. • The CSR Single chip Bluetooth system provides voltage regulation (1.8V), battery charging, and is provided its clock input from the 16MHz crystal oscillator. • The same omni directional antenna is used to send and receive RF signals. • Battery charging is done with a linear constant current to charge a 120mAH rechargeable Li P battery. • The headset can communicate with other Bluetooth ™ products that support the Headset Profile and Handsfree Profile. See the user guide for basic operation of the products. 2.4 Functional Requirements Explorer 330, 340 and 350 Headset will use the plug & …

Text truncated - open the document above for the full version.

EMCE Test Report # 2512-1 6/27/06 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 1 of 46 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 Intentional Radiator Test Report Test Standards: FCC Part 15 (Subpart C – Intentional Radiators) Industry Canada RSS-210 Prepared For: Plantronics, Inc. 345 Encinal Street Santa Cruz, CA 95060 Equipment Under Test: Bluetooth Headest Model: EXPLORER M/N: 330 / 340 / 350 Prepared by: 44366 S. Grimmer Blvd. Fremont, CA 94538 USA EMCE Test Report # 2512-1 6/27/06 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 2 of 46 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 TABLE OF CONTENTS 1. CUSTOMER INFORMATION 3 2. EUT AND ACCESSORY INFORMATION 4 3. SUMMARY OF TEST RESULTS 5 4. STANDARDS AND MEASUREMENT METHODS 6 5. TEST SETUPS 7 6. TEST RESULTS 9 7. TEST EQUIPMENT 47 EMCE Test Report # 2512-1 6/27/06 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 3 of 46 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 1.0 CUSTOMER INFORMATION Test Laboratory: FCC registration number EMCE Engineering 44366 S. Grimmer Blvd. Fremont, CA 94538 USA Tel: 510-490-4307 Fax: 510-490-3441 [email protected] 0007198120 Customer: Plantronics, Inc. 345 Encinal Street Santa Cruz, CA Tel: 831-426-5858 Fax: 831-426-6098 Contact Person: Myhassan Bakrim Receipt of EUT: 5/20/06 Test plan reference: FCC Part 2, 15 (15.247) / IC RSS-210 Date of testing: 5/20/06 – 6/1/06 Date of Report: 6/27/06 The tests listed in this report have been completed to demonstrate compliance to the CFR 47 Section 15.247, as well as Industry Canada Radio Standard RSS-210, Issue 5. Contents approved: Name: Bob Cole Title: President EMCE Test Report # 2512-1 6/27/06 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 4 of 46 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 2.0 EUT AND ACCESSORY INFORMATION EUT description The EUT is a Plantronics, Inc. EXPLORER Bluetooth Headset, M/N: 330 / 340 / 350 EUT and accessories The table below lists all EUTs and accessories used in the tests. Later in this report, only numbers in the last column are used to refer to the devices in each test. Software The computers were equipped with test software provided by the customer. The software was used to control the EUT in the tests. Name Type S/N Number EUT EXPLORER 330 / 340 / 350 USB Headset N/A E0001 Accessories Laptop Computer Compaq Presario M/N: 1694 3882A744 S0001 Software CSR Bluesuite 1.20 Bluetest, BlueChat N/A N/A EUT Information Product Specification Description Model Name EXPLORER Model Number 330 / 340 / 350 Type of Modulation Frequency Hopping Spread Spectrum (FHSS) Number of Hopping Channels 79 Operating Frequency Range 2480 – 2483.5 MHz Type of Equipment Combined, Battery Powered Extreme Operating Temperature Range -20 C – 55 C Extreme Operating Voltage Range Fully Charged Battery Type of Antenna Integral Antenna Gain (dBi) 0.0 dB [nominal] Transmitter Method of Frequency Generation Synthesized Transmitter Aggregate Data Rate >250kbps Transmitter Duty Type Intermittant Transmitter Duty Cycle Tx ON: .326 ms, Tx OFF: .924 ms: Duty Cycle = .261 Continuous Operation for Testing Purposes? Yes Transmit Emissions Designator 1M00 Q1D EMCE Test Report # 2512-1 6/27/06 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 5 of 46 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 3.0 SUMMARY OF TEST RESULTS Section in CFR 47 Section in RSS-210Description Results 15.245 (b)(1) 6.2.2(o) (a2) Peak output power (Radiated Emissions) PASSED 15.247 (a)(1) 6.2.2(o) (a3) CF Separation PASSED 15.247 (a)(1)(ii) 6.2.2(o) (a3) Number of Hopping Frequencies PASSED 15.247 (a)(1)(ii) 6.2.2(o) (a3) Dwell Time PASSED 15.247 (a)(1)(ii) 6.2.2(o) (a3) 20 dB Bandwidth PASSED 15.247, c 6.2.2(o) (e1) Band-edge compliance of RF Radiated emission PASSED 15.247, c 6.2.2(o) (e1) Restricted Band (Radiated Emissions) PASSED 15.247(d) 6.2.2(o) (e1) Spurious radiated emissions PASSED 15.247(d) 6.2.2(o) (e1) Spurious Antenna Conducted emissions PASSED PASS The EUT passed that particular test. FAIL The EUT failed that particular test. EMCE Test Report # 2512-1 6/27/06 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 6 of 46 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 4.0 STANDARDS AND MEASUREMENT METHODS The tests were performed in guidance of CFR 47 section 15.247, FCC Public Notice DA 00-705 (March 30, 2000), FCC Report & Order 97-114 (April 10, 1997),and ANSI C63.4 (2003). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under “Test method”. For the test equipment, see device list in the end of this test. 4.1 Selection of operation mode for tests Before tests, several operation modes, and modulation patterns were tried. The worst case was selected for each test and those results reported. EMCE Test Report # 2512-1 6/27/06 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 7 of 46 Tel:510-490-4307 Fax: 510-490-3441 e-mail:…

Text truncated - open the document above for the full version.

Plantronics, Inc. FCC ID: AL8-E3XX IC: 457A-E3XX EUT Photos Test Setup Photos Radiated Emissions Setup Plantronics, Inc. FCC ID: AL8-E3XX IC: 457A-E3XX EUT Photos Test Setup Photos Line Conducted Setup
