AL8-HDW-2Bluetooth Headset

User’s Guide for the Wireless Headset (HDW-2) 9355260 Issue 1 hdw-2_1en.fm Page 1 Friday, October 4, 2002 10:32 AM DECLARATION OF CONFORMITY We, NOKIA CORPORATION declare under our sole responsibility that the product HDW-2 is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found from http://www.nokia.com/phones/declaration_of_conformity/. Copyright © 2002 Nokia. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia is a registered trademark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice. The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you. 9355260 / Issue 1 hdw-2_1en.fm Page 2 Friday, October 4, 2002 10:32 AM Contents 3 Contents 1. Introduction ......................... 4 Bluetooth wireless technology .......... 4 Chargers and batteries ......................... 5 The card in the sales package ............ 5 2. Getting started..................... 6 Overview................................................... 6 Charging the battery ............................ 7 When the battery charge falls low.......................................................... 8 Changing the battery............................ 8 Switching the headset on or off ..... 10 Taking the headset into use for the first time ......................................... 10 Adjusting the headset to your ear .. 12 Placing the headset on the ear........ 13 Troubleshooting.................................... 13 3. Using the headset .............. 14 Connecting the paired headset to your phone ....................................... 14 Making a call ........................................ 15 Voice dialling ........................................ 15 Redialling the last dialled number................................................... 15 Answering a call.................................. 15 Ending a call......................................... 16 Rejecting a call .................................... 16 Automatic answer............................... 16 Adjusting the earphone volume ..... 16 Switching the call between phone and headset ............................. 16 Disconnecting the headset from the phone...................................................... 17 Reconnecting the paired headset to your phone ................... 17 Using the headset with several phones.................................................... 18 Using the headset with several paired phones ................................... 18 Resetting the headset........................ 19 4. Battery information ........... 20 Care and maintenance ............ 22 hdw-2_1en.fm Page 3 Friday, October 4, 2002 10:32 AM Introduction 4 1. Introduction The Wireless Headset HDW-2 can be connected without wires to a compatible phone that supports Bluetooth wireless technology. This gives you complete freedom for making and receiving calls while on the move or at the office. Read this user’s guide carefully before using the headset. More detailed information is provided by your phone's own user's guide. Do not use this Wireless Headset (HDW-2) user’s guide in place of your phone’s user's guide, which provides important safety and maintenance information. ■Bluetooth wireless technology Since Bluetooth devices communicate using radio waves, your Bluetooth phone and headset do not need to be in a line of sight. The two devices only need to be within a maximum of 10 meters of each other, although the connection can be subject to interference from obstructions, such as walls, or from other electronic devices. The headset is specially designed for Nokia phones that support Bluetooth wireless technology. The headset can, however, be used with any compatible Bluetooth devices that support the Handsfree or Headset profile. (Here, "Profile" means a set of Bluetooth commands that your phone uses for controlling the headset.) The headset provides the best performance when it is used with a compatible Nokia phone. If you use the headset with a phone produced by hdw-2_1en.fm Page 4 Friday, October 4, 2002 10:32 AM Introduction 5 another manufacturer, all the functions described in this user’s guide may not be available. In some countries, there may be restrictions on using Bluetooth devices. Check with your local authorities. ■Chargers and batteries Check the model number of any charger before using it with this device. The Wireless Headset HDW-2 is intended for use with the following chargers: ACP-8, ACP-9 and ACP-12 . Warning! Use only batteries and chargers approved by Nokia for use with this particular accessory. The use of any other types will invalidate any approval or warranty applying to the accessory, and may be dangerous. For availability of approved batteries and chargers, please check with your local dealer. When you disconnect the power cord of any accessory, grasp and pull the plug, not the cord. ■The card in the sales package The card contains the Bluetooth pa…

Text truncated - open the document above for the full version.

M1500 RF Block Diagram (M1000 Headset and A500 Adapter) BALUN X2BALUN DEMOD DC OFFSET REG SYNTH REG ANTENNA BANDPASS FILTER T/R SWITCH RSSI S_EN/CLK/DATA T_EN, R_ON REF CLK CP_TUNE CHARGEPUMP CURRENT CTRL LOGIC T_GFSK R_DATA DATA- Receive Transmit 13MHz Crystal

The label will be placed within this identified area

MADE IN MEXICO FCC ID: AL8-HDW-2 IC: 661V-HDW-2 TYPE: HDW-2 ® 0682 See drawing p/n 63669-01 for specifications including size and bevel. remove blue outline before printing.

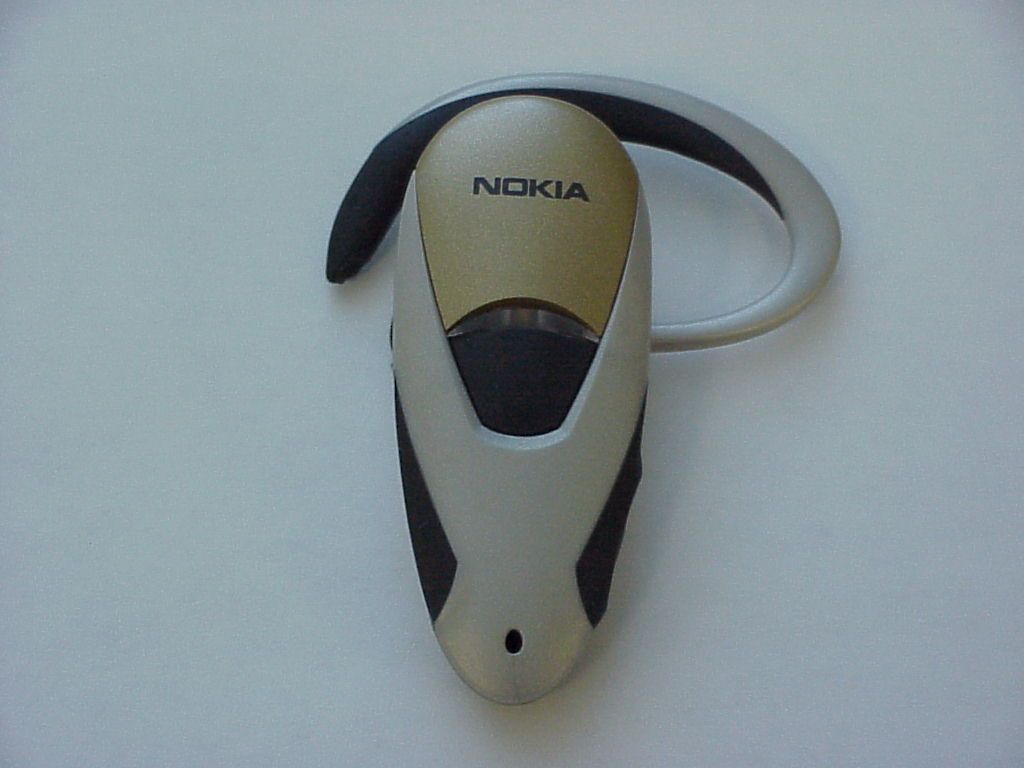

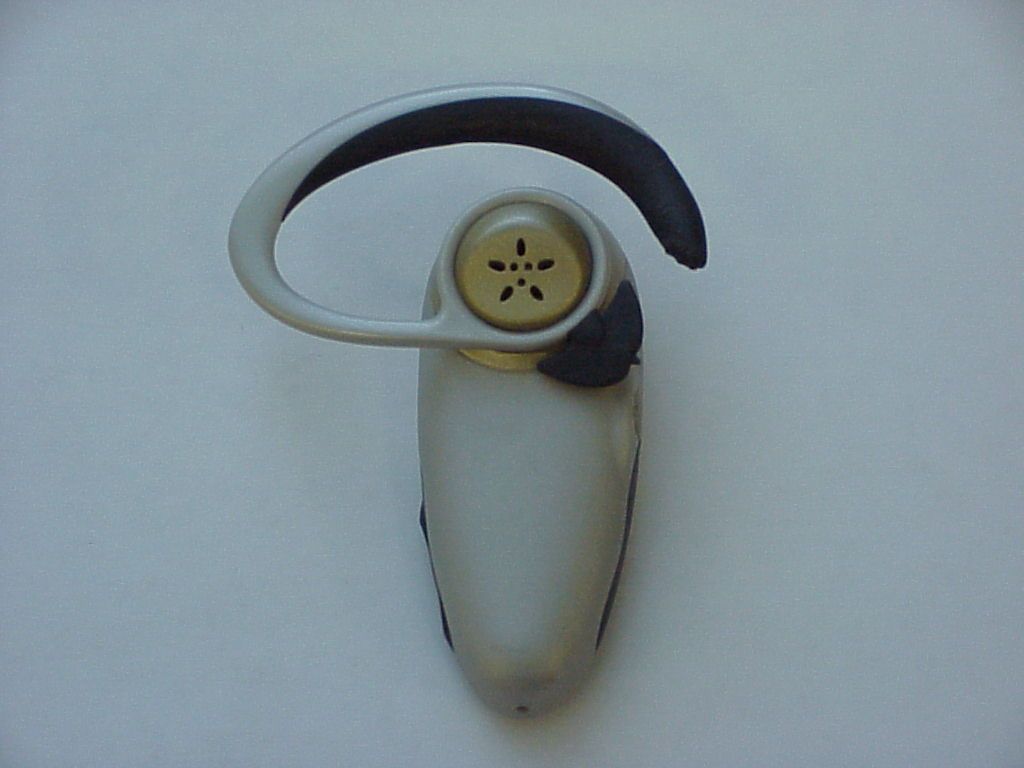

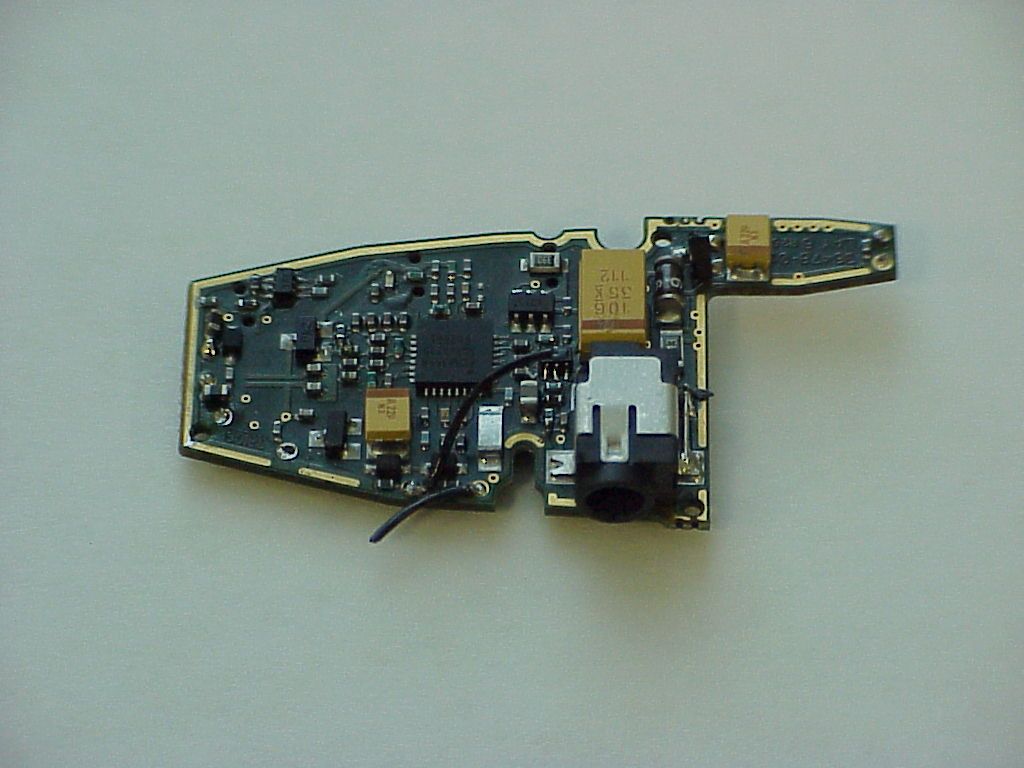

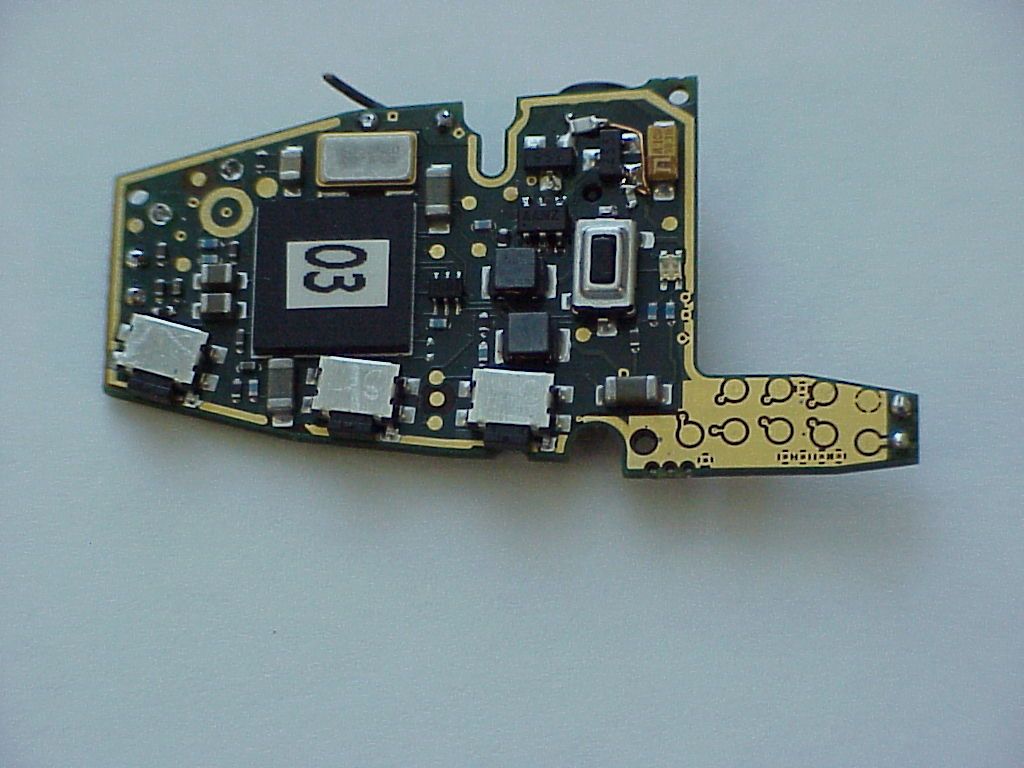

Technical Description of the HDW-2 Headset SS 9/16/02 The HDW-2 is a Bluetooth ™ Class 2 (2.5mW maximum) device, which receives and transmits in the frequency range of 2.402-2.480GHz. It is a spread spectrum (frequency hopping) headset; 79 channels, 1MHz Bandwidth, frequency hops at 1600 hops/second per the Bluetooth standard. The product communicates with other Bluetooth products using a Time division duplex scheme that alternates transmission and receive functions, and thus uses the same antenna to transmit and receive at different times. The Philips Baseband chip controls the Philips radio chip, provides voltage regulation, battery charging, and is provided its clock input from the 13MHz crystal oscillator. The same omni directional -3dBi antenna is used to send and receive RF signals. Battery charging is done with a pulse width modulation to charge a 150-170mAH rechargeable Nickel Metal Hydride battery. The headset can communicate with other Bluetooth ™ products that support the Headset Profile and Handsfree Profile. See the user guide for basic operation of the products.

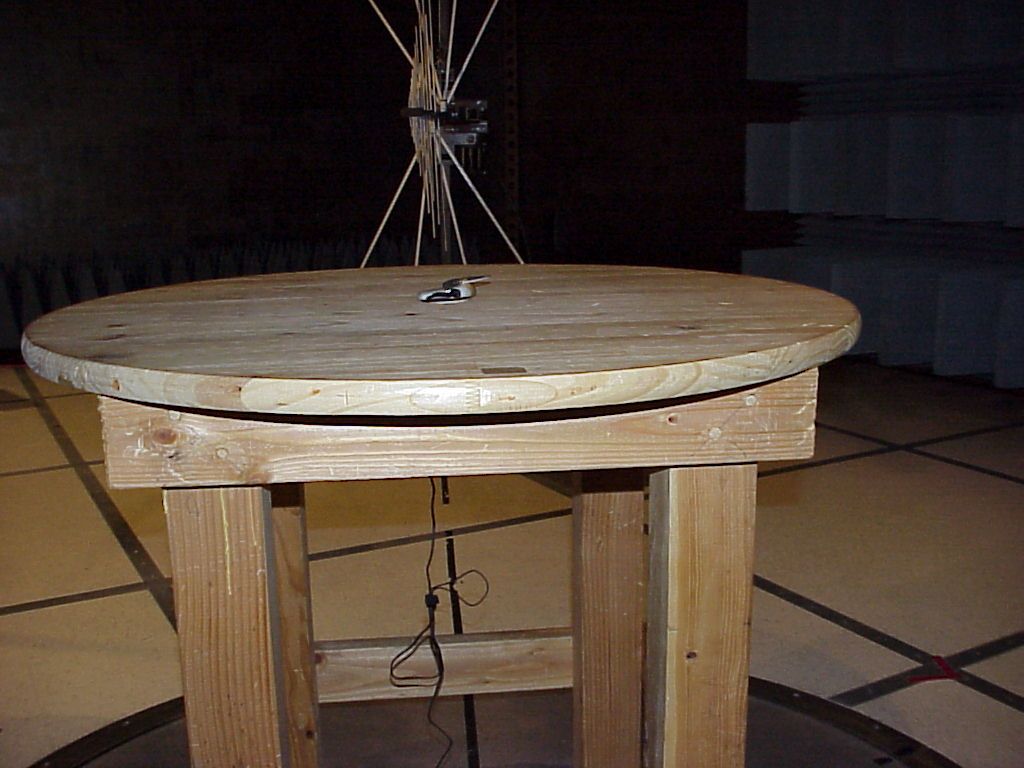

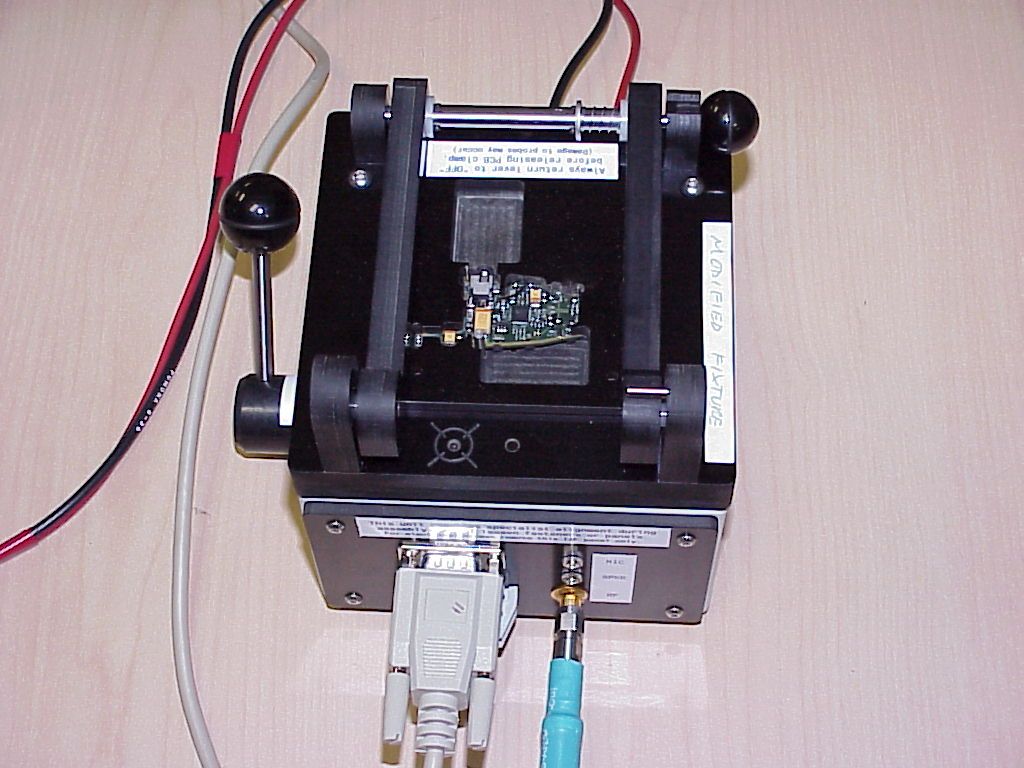

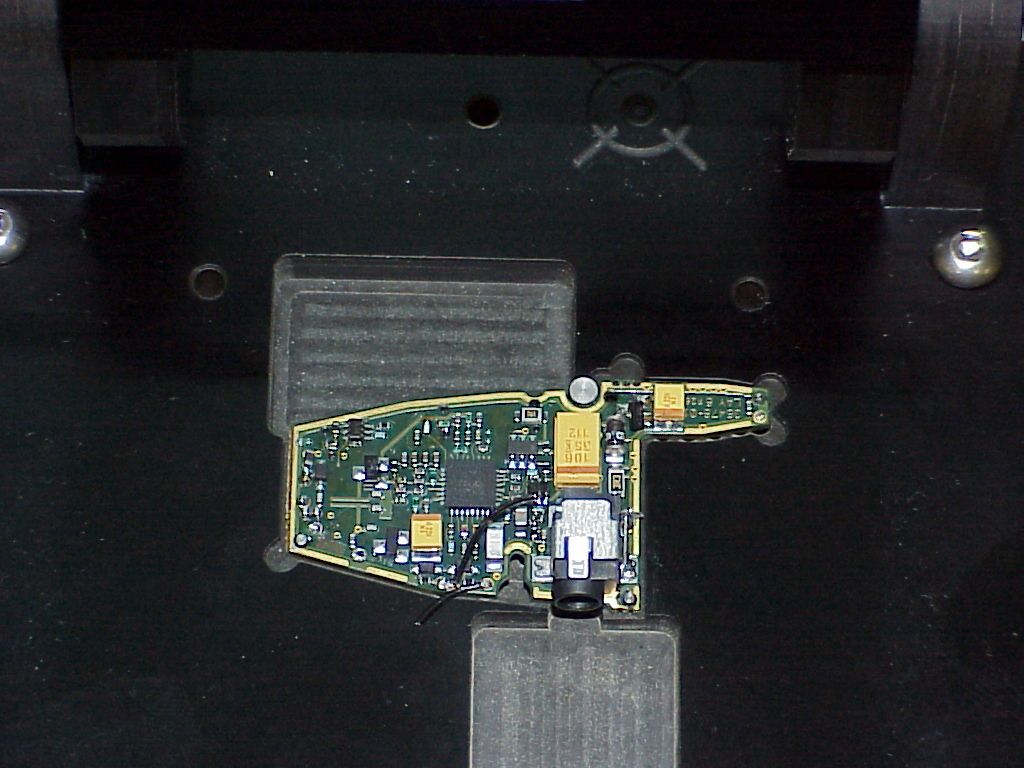

CETECOM Inc. CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 www.cetecom.com Issued test report consists of 59 Pages Page 1 (59) Test report no.: EMC_325_FCC15.247_2002 FCC Part 15.247 for FHSS Systems / CANADA RSS-210 (HDW-2) FCC LISTED, REG. NO.: 101450 & RECOGNIZED BY INDUSTRY CANADA IC – 3925 CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 2 (59) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 3 (59) 1.3 Details of applicant Name : Plantronics Street : 345 Encinal St. City / Zip Code : Santa Cruz, 95060 Country : USA Contact : Sidora Sin Telephone : +1 831 458 4476 Tele-fax : +1 831 429 5731 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2002-08-01 Date of receipt test item : 2002-08-06 Date of test : 2002-08-06/07/08 1.5 Test item Manufacturer : Applicant Marketing Name : HDW-2 Model No. : HDW-2 Description : Bluetooth Headset FCC-ID : AL8-HDW-2 Additional information Frequency : 2402MHz – 2480MHz Type of modulation : GFSK Number of channels : 79 Antenna : Integral Power supply : 2.5VDC, Battery and AC adapter Output power : -4.4dBm(0.363mW) Extreme vol. Limits : 2.0VDC – 3.0VDC Extreme temp. Tolerance : 0 C – 50 C 1.6 Test standards: FCC Part 15 §15.247 (DA00-705) / CANADA RSS-210 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 4 (59) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2002-09- 20 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2002-09-20 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 5 (59) 2.2 Test report TEST REPORT Test report no. : EMC_325_FCC15.247_2002 (HDW-2) CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 6 (59) TEST REPORT REFERENCE LIST OF MEASUREMENTS PAGE ANTENNA GAIN § 15.204 7 CARRIER FREQUENCY SEPERATION §15.247(a) 8 NUMBER OF HOPPING CHANNELS §15.247(a) 9 TIME OF OCCUPANCY (DWELL TIME) §15.247(a) 13 SPECTRUM BANDWIDTH OF FHSS SYSTEM §15.247(a) 14 POWER SPECTRAL DENSITY §15.247 (d) 18 MAXIMUM PEAK OUTPUT POWER § 15.247 (b) (1) 22 BAND EDGE COMPLIANCE §15.247 (c) 30 EMISSION LIMITATIONS § 15.247 (c) (1) 34 CONDUCTED EMISSIONS § 15.107/207 47 RECEIVER SPURIOUS RADIATION § 15.209 51 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 57 BLOCK DIAGRAMS 58 CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 7 (59) ANTENNA GAIN § 15.204 The antenna gain of the complete system is calculated by the difference of conducted power of the module and the radiated power in EIRP. Low channel Mid channel High channel Conducted Power -11.25dBm -9.19dBm -6.03dBm Raidated Power (EIRP) -6.82dBm -6.75dBm -4.40dBm Antenna Gain +4.43dBi +2.44dBi +1.63dBi The calculated antenna gain is between +4.43dBi and +1.63dBi. CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 8 (59) CARRIER FREQUENCY SEPERATION §15.247(a) CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 9 (59) NUMBER OF HOPPING CHANNELS §15.247(a) The number of hopping channels is 79 (see next 4 plots) The right red line corresponds to the left red line from the next plot. Plot 1: Total 23 CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 10 (59) Plot 2: Total 24 CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 11 (59) Plot 3: Total 20 CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 12 (59) Plot 4: Total 12 CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 13 (59) TIME OF OCCUPANCY (DWELL TIME) §15.247(a) DH1 – Packet The system makes worst case 1600 hops per second or 1 time slot has a length of 625μs with 79 channels. A DH1 Packet need 1 time slot for transmitting and 1 time slot for receiving. Then the system makes worst case 800 hops per second with 79 channels. So you have each channel 10.13 times per second and so for 30 seconds you have 303.9 times of appearence . Each Tx-time per appearence is 447μs. So we have 303.9 * 447μs = 135.84ms per 30 seconds. Note: The EUT supports DH1 type packets only. CETECOM Inc. Test report no.:EMC_325_FCC15.247_2002 Issue date:2002-09-20 Page 14 (59) SPECTRUM BANDWIDTH OF FHSS SYSTEM §15.247(a) 20 dB bandwidth TEST CONDITIONS 20 dB BANDWIDTH (kHz) Frequency (MHz) 2402 2440 2480 T nom (23)
C V nom (2.5)VDC 825.65 825.65 829.66 RBW / VBW as provided in the "Measurement Guidelines’’ (DA 00-705, March 30, 2…

Text truncated - open the document above for the full version.

Descrition how the EUT meets the definition of a frequency hopping spread spectrum system. Bluetooth is a hybrid system that employs a combination of both direct sequence and frequency hopping modulation techniques. In data mode (FHSS) 79 hopping frequencies are used and in inquiry/paging mode (DSSS) 32 hopping frequencies are used. The Bluetooth baseband and RF IC (BlueMoon Single) has been qualified according the Bluetooth specification. This specification is based on the established regulations for Europe, Japan and North America. For the USA: Approval Standards: Federal Communications Commission, FCC, USA Documents: CFR47, Part 15, Sections 15.205, 15.209, 15.247 Description how the hopping sequence is generated. Provide an example of the hopping sequence channels, in order to demonstrate that the sequence meets the requirement specified in the definition of a frequency hopping spread spectrum system. The frequency at a time instant is calculated by the frequency hopping algorithm. The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB's of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB's of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offsets are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB's (4 bits) (Input 1) and the 27 MSB's of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviour: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. The hopping kernel of the Bluetooth baseband and RF IC (BlueMoon Single) has been tested to produce the exact sample data given the Bluetooth Core Specification 1.1 in Appendix IV, section 2. BlueMoon Single has passed all tests for Bluetooth compliance and therefore fulfils all the requirements for a Bluetooth wireless system. Description how each individual EUT meets the requirement that each of its hopping channels is used equally on average (e.g., that each new transmission event begins on the next channel in the hopping sequence after the final channel used in the previous transmission event). The Bluetooth baseband and RF IC (BlueMoon Single) is manufactured in mass production using the same productions masks that are used for the engineering samples of the IC, which has been qualified for Bluetooth. Description how the associated receiver(s) complies with the requirement that its input bandwidth (either RF or IF) matches the bandwidth of the transmitted signal. The receiver fully fulfills the Bluetooth requirements (certified by Bluetooth acceptance tests) which are inline with the FCC rules. The input bandwidth of the receiver is set by the bandwidth of the channel filter which is 1 MHz and this is internally trimmed with Crystal accuracy. The transmit bandwidth is also limited to 1MHz by the data rate and the Gaussian shaping of the modulated signal. Description how the associated receiver(s) has the ability to shift frequencies in synchronization with the transmitted signals. Bluetooth units which want to communicate with each other must be organised in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. When two Bluetooth devices establish contact for the first time, one device sends an inquiry access code, the other device is scanning for this inquiry access code. If two devices have been connected previously and want to start a new transmission, a similar procedure takes place. The only difference is, instead of the inquiry access code, a special access code, derived from the BD_ADDRESS of the paged device, will be sent by the master of this connection. Due to the fact that both units have been connected before (in the inquiry procedure) the paging unit has timing and frequency information about the page scan of the paged unit. During the connection the master coordinates to shift frequencies. The received signal is downconverted to an IF of 1MHz. The synthesizer PLL is programmed in front of every received slot to settle on the required channel with 1 MHz offset to the received signal frequency. The channel frequency is determined by the Bluetooth hopping scheme, which is inline with the FCC rules.
