AL8-M1000Bluetooth Class 2 Device

CORDLESS HEADSET SOLUTION WITH BLUETOOTH™ M1500 QUICK START AND INFORMATION GUIDE PARTS AND ACCESSORIESIMPORTANT SAFETY INSTRUCTIONS OTHER IMPORTANT INSTRUCTIONS ABOUT PLANTRONICS CORDLESS HEADSET SOLUTION WITH BLUETOOTH™ Your Plantronics M1500cordless headset solution utilizes 2.4GHz Bluetooth technology to provide lightweight, hands-free and wire-free communication for your headset-ready mobile phone. Designed for maximum comfort and ease of use, this cordless headset solution is tailored to suit your mobile lifestyle. This guide will help you set up and use your cordless headset. Your headset is compliant with version 1.1of the Bluetooth Specification and supports the Headset Profile. The adapter unit also supports the Audio Gateway Profile. For accessibility information call the Plantronics Technical Assistance Center (TAC)at (800) 544-4660or visit www.plantronics.com. M1500 BATTERY Replacement battery for headset or adapter, 2.4V Nickel Metal Hydride (NiMH). M1500 FLEXIBLE EARLOOP Replacement headset earloop. AC ADAPTER 110-Volt AC Adapter. Replacement AC adapter/charger for North America. 220-Volt AC Adapter. Replacement AC adapter/charger for Europe. 220-Volt UK AC adapter. Replacement AC adapter/charger for United Kingdom. CAR LIGHTER ADAPTER Optional car lighter Y-adapter allows you to charge your M1500 headset, adapter and one other device from any 12-Volt car lighter socket. M1500 HEADSET Replacement headset for your M1500 system. Battery included. A500 ADAPTER Replacement adapter for your M1500 system. Battery included. PAIRING TO ANOTHER DEVICE FIG. 7.1A FIG. 7.1B FIG. 7.2 FIG. 7.3 WARRANTY AND SERVICES IN THE UNITED STATESIN CANADA Plantronics Service Center Plantronics Service Center 345 Encinal Street 1455 Pitfield Boulevard Santa Cruz, Saint-Laurent, CA 95060 Quebec H4S lG3 Tel:800.544.4660 Tel:800.540.8363 (toll free) (toll free) 514.956.8363 (toll call) Fax: 800.279.0162 Fax: 514.956.1825 (toll free) (toll call) Please use the original container, or pack the unit(s) in a car ton with sufficient packing material to prevent damage. Include the following information: 1. Proof of purchase indicating model number and date of purchase. 2. Bill-to address. 3. Ship-to address. 4. Number and description of units shipped. 5. Name and telephone number of person to call, should con- tact be necessary. 6. Reason for return and description of the problem. The following one-year warranty and service information applies only to product purchased and used in the U.S. and Canada. Contact your local retail dealer for warranty informa- tion in your country. During this warranty time, if the product is defective in workmanship or materials, Plantronics, at our option, will replace or exchange it for a model of equal value. Damage caused by improper care, accidents, unauthorized repair or modifications are not covered under this warranty. NEITHER PLANTRONICS NOR YOUR RETAIL DEALER OR SELLING DISTRIBUTOR HAS ANY RESPONSIBILITY FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, DAMAGE TO PROP- ERTY, COMMERCIAL LOSS OF PROFIT, OR FOR ANY EXPENSES, LOSS OF TIME, OR INCONVENIENCE. SOME STATES DO NOT ALLOW EXCLUSION OR LIMITA- TION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. To obtain warranty service, please prepay shipment and return the unit to the appropriate facility listed at right: Consult the dealer or an experienced radio/TV technician for help. NOTE: Modifications not expressly approved by Plantronics, Inc. could void the user's authority to operate the equipment. EXPOSURE TO RADIO FREQUENCY RADIATION The radiated output power of this internal wireless radio is far below the FCC radio frequency exposure limits. Never- theless, the wireless radio shall be used as described in the manual. The internal wireless radio operates within guidelines found in radio frequency safety standards and recom- mendations, which reflect the consensus of the scientific community. Plantronics therefore believes the internal wireless radio is safe for use by consumers. The level of energy emitted is far less than the electromagnetic energy emitted by wire- less devices such as mobile phones. However, the use of wireless radios may be restricted in some situations or envi- ronments, such as aboard airplanes. If you are unsure of restrictions, you are encouraged to ask for authorization before turning on the wireless radio. REPLACING THE ADAPTER BATTERY FIG. 6.1 – Loosen and remove the two screws on the bottom of the adapter using a small Philips screwdriver. FIG. 6.2 – Lift the cover and remove the battery. Insert a new battery so the (+) and (-) symbols correspond correctly to the labels inside the battery compartment. Replace the bottom cover and insert and tighten the two screws. Be careful not to over tighten the screws. BLUETOOTH PAIRING Use these instructions only if you replace either the headset or adapter in your system. Your M1500 headset and adapter are already paired when you receive them. See Section 7 for instructions on pairing just the head- set to a Bluetooth enabled mobile phone. FIG. 6.3 – PAIRING THE HEADSET AND ADAPTER Make sure both devices are turned on. See Section 5 for more details. Press and HOLD the POWER button on the adapter unit for about 10 seconds, or until the INDICATOR light begins to flash red. Now, PUSH IN and HOLD the headset MUTE/VOL- UME dial until the INDICATOR light begins to flash. The pairing process should take about 15–30 seconds. If pairing is successful, the headset will sound a tone and both the headset and adapter INDICATOR lights will turn off. If pairing fails, the headset INDICATOR will stop blink- ing after 60 seconds and return to standby mode. It will not sound a tone. Also, the adapter INDICATOR will light red for 2 seconds and then turn off. Repeat the pairing process. You may also use the headset alone with a compatible Bluetooth mobile device. The following instructions sho…

Text truncated - open the document above for the full version.

M1500 RF Block Diagram (M1000 Headset and A500 Adapter) BALUN X2BALUN DEMOD DC OFFSET REG SYNTH REG ANTENNA BANDPASS FILTER T/R SWITCH RSSI S_EN/CLK/DATA T_EN, R_ON REF CLK CP_TUNE CHARGEPUMP CURRENT CTRL LOGIC T_GFSK R_DATA DATA- Receive Transmit 13MHz Crystal

''!If L~e~ C!m!2i~ !e~!e , Lynda" Fry Telephone: (831) 458-7379 Vice President, Quality Ernail: [email protected] July 8, 2002 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Plantronics, Inc. ("Plantronics") hereby requests confidentiality for the following products: FCC ill Number Product Title/Model AL8-MI000 Bluetooth headset-M 1500/M 1 000/A500 For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Parts List (Bill of Materials) No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Plantronics trade secrets and proprietary information that could be of benefit to 0 competitors regarding the design of our mobile headset and adapter. This material is not arily available to the general public and we request that it be withheld from public inspection. lease feel free to contact me at the address shown below. 345 Encinal Street - Santa Cruz - California - 95050 www.p;lantronics.corn

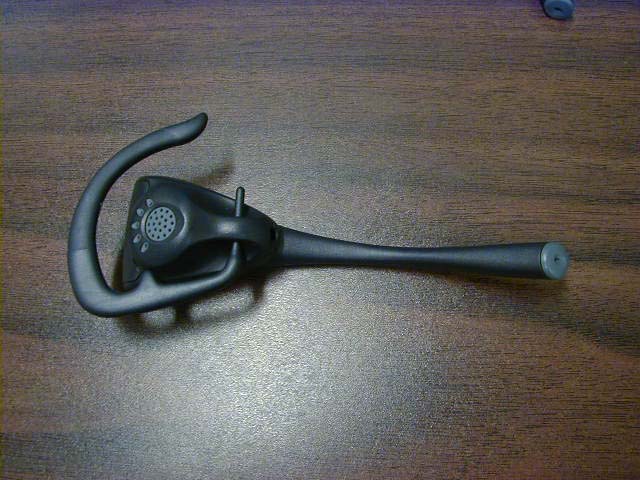

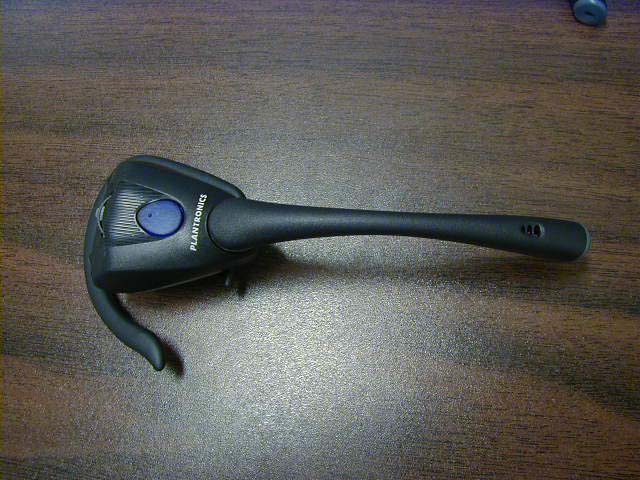

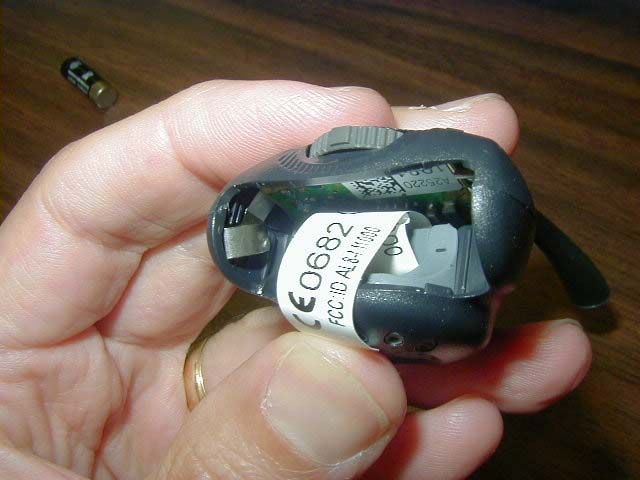

Made in Mexico IC: 457A-M1000

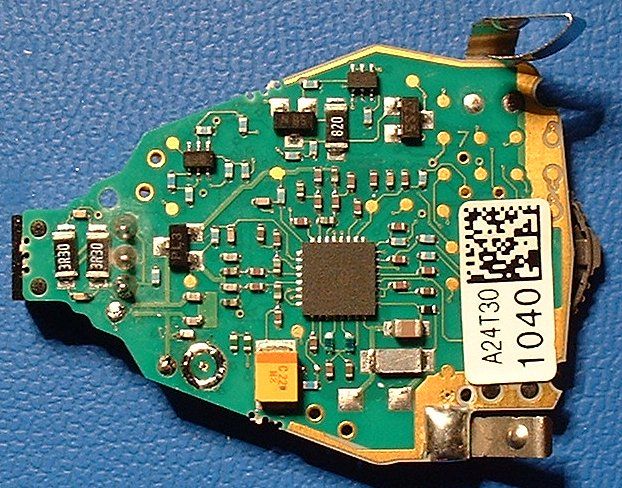

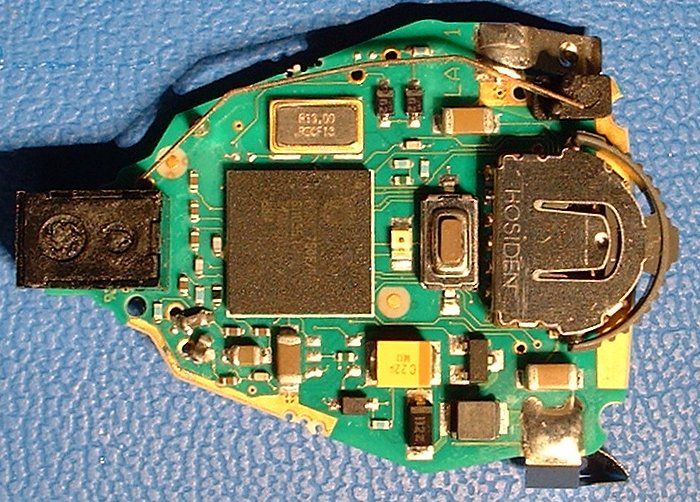

Technical Description of the M1000 HeadsetJGM 5/30/02 The M1000 is a Bluetooth ™ Class 2 (2.5mW maximum) device, which receives and transmits in the frequency range of 2.402-2.480GHz. It is a spread spectrum (frequency hopping) headset; 79 channels, 1MHz Bandwidth, frequency hops at 1600 hops/second per the Bluetooth standard. The product communicates with other Bluetooth products using a Time division duplex scheme that alternates transmission and receive functions, and thus uses the same antenna to transmit and receive at different times. The Philips Baseband chip controls the Philips radio chip, provides voltage regulation, battery charging, and is provided its clock input from the 13MHz crystal oscillator. The same omni directional -3dBi antenna is used to send and receive RF signals. Battery charging is done with a pulse width modulation to charge a 150-170mAH rechargeable Nickel Metal Hydride battery. The headset can communicate with other Bluetooth ™ products that support the Headset Profile. See the user guide for basic operation of the products.

CETECOM Inc. CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 www.cetecom.com Issued test report consists of 48 Pages Page 1 (48) FCC LISTED, REG. NO.: 101450 & RECOGNIZED BY INDUSTRY CANADA IC – 3925 Test report no.: 249FCC/2002 FCC Part 15.247 (M500 Bluetooth adapter & M1000 Bluetooth Headset) CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 2 (48) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: Designation: Name 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 3 (48) 1.3 Details of applicant Name : Plantronics Street : 345 Encinal St. City : Santa Cruz,CA 95060 Country : USA Contact : John Mihelic Telephone : (831) 458-7659 Telefax : N/A e-mail : [email protected] 1.4 Application details Date of receipt of application : 2/1/2002 Date of receipt test item : 2/15/2002 Date of test : 2/15, 2/19, 2/20, 2/21 & 4/26, 2002 1.5 Test item Manufacturer : Plantronics Street Address : 345 Encinal St. City / Country : Santa Cruz,CA 95060, USA Name of EUT : M500, M1000 & M1500 Type name: OEM Philips HSBX 38 Description : Bluetooth Headset Model No. : A500, M1000 & M1500 Serial No. : A21V301357 FCC ID. : AL8-M1000 Additional information Frequency : 2402MHz – 2480MHz Type of modulation : GFSK Number of channels : 79 Antenna : Integral Power supply : Battery 2.5VDC Output power : Max. EIRP (in dBm and Watt) Extreme vol. Limits : 2.9VDC – 2.1VDC Extreme temp. Tolerance : 0
C - +50

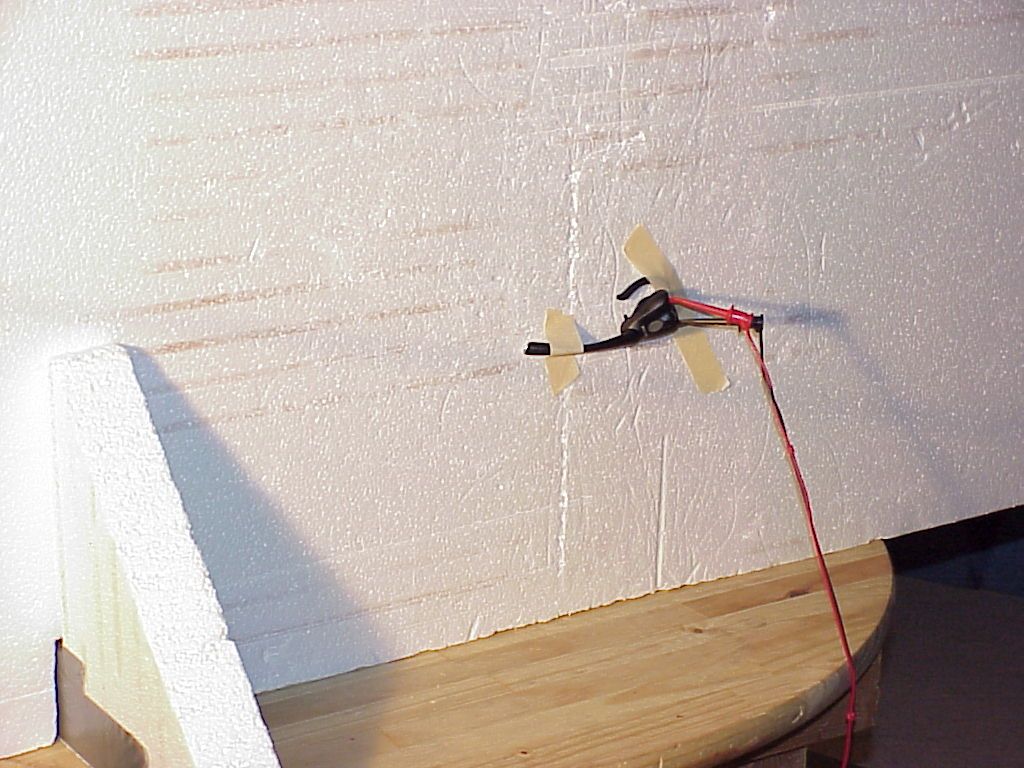

C 1.6 Test standards: FCC Part 15 §15.247 (DA00-705) Additional Description: The Equipment under test (EUT) consists of a Bluetooth headset model name M1000 and a Bluetooth adapter model name A500. The two models will be marketed both individually and as a system. When CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 4 (48) both the headset and adapter are marketed together the model name for the system will be M1500. An identical transciever module is used in both the headset and the adapter. Antenna port conducted tests were performed on one model, the headset M1000. These tests are valid for both models. Radiated tests were performed for both models. CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 5 (48) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Technical responsibility for area of testing : 2002-01-23 EMC & Radio Lothar Schmidt Date Section Name Signature CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 6 (48) 2.2 Testreport TEST REPORT Test report no. : 249FCC/2002 (M500 Bluetooth Adapter & M1000 Bluetooth Headset) CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 7 (48) TEST REPORT REFERENCE LIST OF MEASUREMENTS Paragraph PARAMETER TO BE MEASURED PAGE Transmitter parameters § 15.247 (a) Carrier frequency separation 8 § 15.247 (a) Number of hopping channels 9 § 15.247 (a) Time of occupancy (dwell time) 11 § 15.247 (a)(1) Spectrum Bandwith of a FHSS System 12 § 15.247 (b)(2) Maximum peak output power 16 §15.247 Band edge compliance 24 § 15.247 (c)(1) Emission limitations 26 § 15.107/207 AC Line Conducted Emission 35 Receiver parameters § 15.209 Spurious radiations - Radiated 36 Test equipment listing 39 CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 8 (48) TEST CONFIGURATION RADIATED SETUP: Styrofoam Board EUT Turntable Measurement Antenna DC Supply CONDUCTED SETUP: To Spectrum Analyzer DC Power Supply Test Fixture EUT CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 9 (48) CARRIER FREQUENCY SEPERATION §15.247(a) The carrier frequency seperation is 998.3256 KHz. CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 10 (48) NUMBER OF HOPPING CHANNELS §15.247(a) The number of hopping channels is 79 (see next 2 plots) The marker corresponds to the marker from the next plot. Plot 1: Total 38 channels CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 11 (48) Plot 2: Total 41 channels CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 12 (48) TIME OF OCCUPANCY (DWELL TIME) FOR DH1 §15.247(a) The system makes worst case 1600 hops per second or 1 time slot has a length of 625μs with 79 channels. A DH1 Packet need 1 time slot for transmitting and 1 time slot for receiving. Then the system makes worst case 800 hops per second with 79 channels. So you have each channel 10.13 times per second and so for 30 seconds you have 303.9 times of appearence . Each Tx-time per appearence is 214.4289 μs. 303.9 * 214.4289 μs = 65.165 ms per 30 seconds. The EUT only supports DH-1 type packets. CETECOM Inc. Test report no.:249FCC/2002 Issue date:2002-01-29 Page 13 (48) SPECTRUM BANDWIDTH OF FHSS SYSTEM §15.247(a) 20 dB bandwidth TEST CONDITIONS 20 dB BANDWIDTH ( kHz ) Frequency (MHz) 2402 2440 2480 T nom ( 23 )
C V nom (2.5)V 713.427 713.426 709.419 Measurement uncertainty ±3dB RBW / VBW as provided in the "Measurement Guidelines’’ (DA 00-705, March 30, 2000) Note: An UNCAL condition occu…
