AL8-M3000Bluetooth Headset

BLUETOOTH™ HEADSET FROM PLANTRONICS M3000 QUICK START AND INFORMATION GUIDE PARTS AND ACCESSORIES MAINTENANCE / TROUBLESHOOTING PARTS AND ACCESSORIES WARRANTYIMPORTANT SAFETY INFORMATION IMPORTANT SAFETY INFORMATION ABOUT THE PLANTRONICS M3000 BLUETOOTH ™ HEADSET 345 Encinal Street, Santa Cruz, CA 95060 (800) 544-4660 • www.plantronics.com 64625-01 04.03 M3000 BATTERY M3000 EARLOOP SET M3000 EXTRA COMFORT EARLOOP SET AC ADAPTERCAR LIGHTER ADAPTERCARRY CASE TRAVEL AC ADAPTER Standard AC adapter (120VAC). Lightweight multi-voltage (100-240VAC) adapter. European and UK versions available. Soft case to protect your headset. Includes belt clip. Car lighter adapter allows you to charge and use your M3000 headset from any 12-volt car lighter socket. HEADBANDNECKBAND Behind-the-head neckband for discreet long-term wearing comfort. Over-the-head headband for long-term wearing comfort. A set of three earloops (small, medium and large). One large and one small replacement earloops. Replacement headset battery pack. Items shown are optional accessories available for your M3000 Bluetooth headset that may be purchased separately. Call 1.800.544.4660 or visit www.plantronics.com for ordering information. Items shown are optional accessories available for your M3000 Bluetooth headset that may be purchased separately. Call 1.800.544.4660 or visit www.plantronics.com for ordering information. Your Plantronics M3000 headset utilizes 2.4GHz Bluetooth technology to provide lightweight, hands-free, private and secure communication — without the hassle of wires. Designed to provide maximum comfort and ease of use, this wireless headset contains many advanced features tailored to suit your mobile lifestyle. This guide will help you set up and use your Bluetooth headset. This product is compatible with devices that support Bluetooth Headset and/or Handsfree Profiles. For information on compatibility, visit www.plantronics.com. Register your headset online! To receive important updates and other valuable information, visit www.plantronics.com and click on on-line registration. Check local laws regarding use of a mobile phone and headset while driving. If you use the product while driving ensure your attention and focus remains on your responsibility of driving safely. CHILDREN. Never allow children to play with the headset—small parts may be a choking hazard. Batteries can be swallowed by children and are dangerous if swallowed. Always store and dispose of batteries where children can’t reach them. Observe all signs that require an electrical device or RF radio product to be switched off in designated areas. These could include hospitals, blasting areas, and potentially explosive atmospheres. Turn off your headset prior to boarding an aircraft. Do not use your headset in an aircraft. Never mount or store your headset over any air bag deployment area as serious injury may result when an air bag deploys. CAUTION: To reduce the risk of fire or injury to persons, read and follow these instructions. 1. Use only the battery pack supplied with this product. 2. Do not dispose of battery in a fire. The cells may explode. Check with local codes for possible dis- posal instructions. 3. Do not open or mutilate the battery pack. Released electrolyte is corrosive and may cause damage to eyes or skin and may be toxic if swallowed. 4. Exercise care in handling the battery in order not to "short" the battery contacts with conducting materi- als such as rings, bracelets, or keys. The battery or conductor may overheat and cause burns. 5. Charge the battery in accordance with instructions supplied with this unit. 6. Observe proper orientation between battery and charger contacts. CAUTION: Use only the supplied Class 2 AC adapter to charge the headset from an AC voltage or wall outlet. CAUTION: If the headset becomes hot during charging, disconnect the AC adapter from the wall and contact qualified service personnel. CAUTION: Do not disassemble the AC adapter of this product as it may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the product is subsequently used. CAUTION: Do not use the charger outdoors or in damp areas. Only charge the headset battery in accordance with the instructions of this manual. Charger Output: 5V/180mA maximum, center contact positive. Never submerge your headset in water or other liquids. Protect your headset from spills, excessive rain, and wet locations. Do not use liquid cleaners or aerosol cleaners as they may damage the headset or finish of the headset. Use a dry cloth to clean the external portions of the headset. Do not stick anything inside the product as this may damage internal components. The radiated output power of this internal wireless radio is far below the FCC radio frequency exposure limits. Nevertheless, the wireless radio shall be used as described in the manual. The internal wireless radio operates within guide- lines found in radio frequency safety standards and recommendations, which reflect the consensus of the scientific community. Plantronics therefore believes the internal wireless radio is safe for use by consumers. The level of energy emitted is far less than the electromagnetic energy emitted by wireless devices such as mobile phones. However, the use of wireless radios may be restricted in some situations or environments, such as aboard airplanes. If you are unsure of restric- tions, you are encouraged to ask for authorization before turning on the wireless radio. NOTE:Modifications not expressly approved by Plantronics, Inc. could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a …

Text truncated - open the document above for the full version.

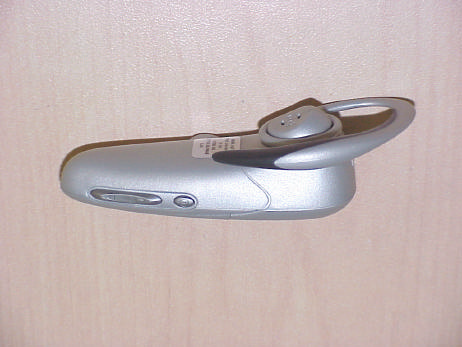

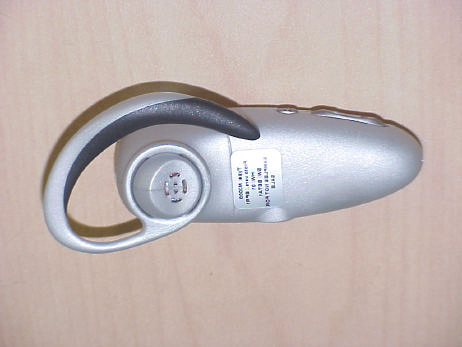

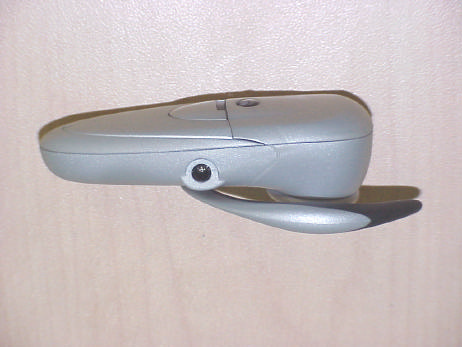

Model: M3000 External Photos FCC ID: AL8-M3000 IC: 457A-M3000 EUT – Top view EUT – Bottom view Model: M3000 External Photos FCC ID: AL8-M3000 IC: 457A-M3000 EUT – Right profile view EUT – Left profile view

Scale 1:1 © 2003 ARTMASTER REV. LEVEL: REF. PART #: DESCRIPTION: PREPARED BY:DATE: PMS COLOR #: 64125-01 S. Ham Jan. 17. 2003 Tsunami laser etch label xxxxx-00 Scale 2:1 N/A N/A Note: Text to be modified accordingly. Arial Narrow 4.5pt Arial Narrow 4.5pt Arial Narrow Bold 5pt Plantronics Model: M3000 Made in Mexico IC:457A-M3000 FCC:ID AL8-M3000 0682 ! 0682 ! Plantronics Model: M3000 Made in Mexico IC:457A-M3000 FCC:ID AL8-M3000 Arial 4.5pt Arial Narrow 4pt Arial Narrow 4pt Nominal Leading 4.5pt Note: Text to be modified accordingly. Scale 1:1 Scale 4:1

Model: M3000 Internal Photos FCC ID: AL8-M3000 IC: 457A-M3000 PCB – Bottom view Model: M3000 Internal Photos FCC ID: AL8-M3000 IC: 457A-M3000 PCB – Top view

Technical Description of the M2000 and M3000 Headset JGM 3/14/03 The M2000/3000 is a Bluetooth ™ Class 2 (2.5mW maximum) device, which receives and transmits in the frequency range of 2.402-2.480GHz and is a spread spectrum (frequency hopping) device that utilizes 79 channels each 1MHz wide. The product communicates with other Bluetooth™ products using a Time division duplex scheme that alternates transmission and receive functions, and uses the same 0dBi omni directional antenna to receive and transmit. The headset can communicate with other Bluetooth ™ products that support the Headset or Hands Free Profile. See the user guide for basic operation. The Bluetooth™ microprocessor also controls the battery charging of the NiMH rechargeable batteries. Battery charging is accomplished using a wall adapter to provide 5 VDC to the headset, which uses a linear current source to regulate current and charge the batteries.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_ 463FCC15.247_2003_M3000 FCC Part 15.247 for FHSS systems / CANADA RSS-210 Model: (M3000) FCC ID: AL8-M3000 Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 2 (57) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 3 (57) 1.3 Details of applicant Name : Plantronics Inc. Street : 345 Encinal Street City / Zip Code : Santa Cruz, Ca 95060 Country : USA Contact : Myhassan Bakrim Telephone : +831 458 7618 Tele-fax : +831 42 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2003-04-05 Date of receipt test item : 2003-04-17 Date of test : 2003-04-17/23 1.5 Test item Manufacturer : Applicant Marketing Name : M3000 Model No. : M3000 Description : Bluetooth Headset FCC-ID : AL8-M3000 Additional information Frequency : 2402MHz – 2480MHz Type of modulation : GFSK Number of channels : 79 Antenna : Integral Power supply : Battery HW / SW version : Rev 5 / Rev Beta 1.07 Output power : 4.68dBm (2.94mW) conducted peak power Extreme vol. Limits : 2.2 – 2.9VDC (2.5VDC nominal) Extreme temp. Tolerance : 0ºC-55ºC 1.6 Test standards: FCC Part 15 §15.247 (DA00-705) / RSS 210 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 4 (57) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-05-09 EMC & Radio Lothar Schmidt (EMC Manager) Date Section Name Signature Responsible for test report and project leader: 2003-05-09 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 5 (57) 2.2 Test report TEST REPORT Test report no.: EMC_463FCC15.247_2003_M3000 (Model: M3000) Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 6 (57) TEST REPORT REFERENCE LIST OF MEASUREMENTS PAGE CARRIER FREQUENCY SEPERATION §15.247(a) 7 NUMBER OF HOPPING CHANNELS §15.247(a) 8 TIME OF OCCUPANCY (DWELL TIME) §15.247(a) 12 SPECTRUM BANDWIDTH OF FHSS SYSTEM §15.247(a) 15 POWER SPECTRAL DENSITY §15.247 (d) 19 MAXIMUM PEAK OUTPUT POWER § 15.247 (b) (1) 23 BAND EDGE COMPLIANCE §15.247 (c) 31 EMISSION LIMITATIONS § 15.247 (c) (1) 35 CONDUCTED EMISSIONS § 15.107/207 49 RECEIVER SPURIOUS RADIATION § 15.209 50 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 55 BLOCK DIAGRAMS 56 Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 7 (57) CARRIER FREQUENCY SEPERATION §15.247(a) Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 8 (57) NUMBER OF HOPPING CHANNELS §15.247(a) The number of hopping channels is 79 (see next 4 plots) The right red line corresponds to the left red line from the next plot. Plot 1: Total 22 Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 9 (57) Plot 2: Total 25 Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 10 (57) Plot 3: Total 20 Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 11 (57) Plot 4: Total 12 Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 12 (57) TIME OF OCCUPANCY (DWELL TIME) §15.247(a) DH1 – Packet The system makes worst case 1600 hops per second or 1 time slot has a length of 625μs with 79 channels. A DH1 Packet need 1 time slot for transmitting and 1 time slot for receiving. Then the system makes worst case 800 hops per second with 79 channels. So you have each channel 10.13 times per second and so for 30 seconds you have 303.9 times of appearance. Each Tx-time per appearance is 488.17μs. So we have 303.9 * 488.17μs = 148.35ms per 30 seconds. Test report no.: EMC_463FCC15.247_2003_M3000 Issue date:2003-05-09 Page 13 (57) TIME OF OCCUPANCY (DWELL TIME) §15.247(a) DH3 – Packet A DH3 Packets need 3 time slots for transmit and 1 for receiving, then the system makes worst case 400 hops per second with 79 channels. So you have each channel 5.1 times per second and so for 30 seconds you have 153 times of appearance. Each Tx-time per appearance is 1.738ms. So we have 153 * 1.738ms = 265.91ms per 30 seconds. Test report no.: EMC_463FCC15.247_2003_M3000 I…

Text truncated - open the document above for the full version.

Model: M3000 Test setup Photos FCC ID: AL8-M3000 IC: 457A-M3000 Test setup – conducted measurements-1 Test setup – conducted measurements-2 Model: M3000 Test setup Photos FCC ID: AL8-M3000 IC: 457A-M3000 EUT in test fixture Test setup – Radiated measurements Model: M3000 Test setup Photos FCC ID: AL8-M3000 IC: 457A-M3000 Test setup – AC Line conducted emissions
