AL8-WH500XD900MHz Convertible Headset

NOTE You may also call the automated sound test at 800-317-8308. It’s the quickest way to test and optimize your system. 4 End call by pressing headset call control button and hang up the handset. Troubleshooting Tip: If you do not hear a dial tone, adjust the slide switch (A–G) until you do. Default setting A works for majority of desk phones. NOTE For remote call control capability (HL10™ lifter or EHS™ cable), see plantronics.com/accessories. Funciones del sistema 1 Botón de volumen/silencio Aumentar el volumen Presionar hacia arriba* Bajar el volumen Presionar hacia abajo* *Si el auricular se usa del lado izquierdo, las posiciones arriba y abajo se revierten. 2 Botón de control de llamadas Responder/finalizar llamada Tocar 3 Interruptor de audio de banda ancha/estrecha Negro: audio de banda estrecha Amarillo: audio de banda ancha (el teléfono de escritorio debe tener capacidad para audio de banda ancha) NOTA Se reducirá el tiempo de conversación al operar en modo de banda ancha. 4 Respuesta automática Conmutador Negro (apagado) Toque el botón de control de llamadas para realizar o responder una llamada Gris (encendido) Levante el auricular de la base para realizar o responder una llamada Su CS540-XD incluye una base C054-XD y un auricular WH500-XD. System Features 1 Volume/Mute button Increase volume Press up* Decrease volume Press down* *If headset worn on the left side, up and down positions are reversed. Mute Press in (base LED solid red) 2 Call Control Button Answer/end call Tap 3 Narrowband/Wideband Audio Switch Black Narrowband Audio Yellow Wideband Audio (desk phone must be capable of wideband audio) NOTE Talk time will be reduced when operating in wideband mode. 4 Auto Answer Switch Black (off) Tap call control button to place or answer call Gray (on) Lift headset from base to place or answer call Your CS540-XD consists of a C054-XD™ base and a WH500-XD™ headset. Plantronics, Inc. 345 Encinal Street Santa Cruz, CA 95060 United States © 2012 Plantronics, Inc. All rights reserved. Plantronics, the logo design, CS540-XD, C054-XD, WH500-XD, and EHS, and HL10 are trademarks or registered trademarks of Plantronics, Inc. All other trademarks are the property of their respective owners. Patents US D635,548; D635,962; D645027; BR DI70057630; DI70057796; DI71026975; CN ZL201030710901.2; ZL201030710900.8; 201130145424.4; EM 001792276-0002; 001792276-0003; 001865510-0002; IN 33102; 236858; KR D143954; D143955; Patents Pending Guía de inicio rápido Guide de démarrage rapide Guia de Início Rápido QUICK START GUIDE CS540-XD ™ Wireless Headset System Designed in Santa Cruz, California 1 Select Wearing Style 1 Choose headset wearing style, using guide to assemble. Over the ear OR Over the head 2 Charge Headset 1 Plug one end of power supply into power jack on back of the base and other end into working power outlet. 2 To charge, dock headset in base for minimum of 20 minutes. = 20 3 Connect Desk Phone 1 Connect cables from desk phone to base. 4 Make a Call 1 While wearing headset, tap call control button. 2 Remove the desk phone handset. 3 Dial test call from desk phone. Limited Warranty Plantronics offers a one-year limited warranty on this product. In some countries you must register your product to receive warranty services. Please be aware that you may have other rights depending on the laws of the state and country where the product was purchased. We strongly advise you to keep your receipt of purchase in order to prove the date of purchase of this product. To register your product and for warranty terms and conditions, visit our website at www.plantronics.com/ support. Arbitration Agreement Most disputes and claims related to this product, including your use of this product, are subject to the Plantronics, Inc. Arbitration Agreement (“Arbitration Terms”). Disputes or claims arising or brought in any country of Europe or Africa are not subject to this Arbitration Agreement. The Arbitration Terms along with FAQs related to the arbitration process can be found at www.plantronics.com/us/terms/arbitration-forms/, or can be requested in writing submitted either to: (i) [email protected] or (ii) Plantronics, Inc., 345 Encinal Street, Santa Cruz, CA 95060, United States of America, Attention: General Counsel. Safety Instructions Please read the following safety and operational instructions before using this product. Please keep these instructions for your reference. When using this product, these basic safety precautions and warnings should be followed to reduce the risk of fire, electric shock, injury to persons and damage to property. Additional warnings may be present on the product, packaging, or in the user instructions. General Operating, storage and charging temperature is 0°C to 40°C (32°F to 104°F). Warnings • Use only those Plantronics products and accessories designed for use with this Plantronics system. • CHILDREN. Never allow children to play with the product—small parts may be a choking hazard. • Install and use eartips and earbuds in accordance with the instructions provided. Do not force eartips or earbuds down the ear canal. If either becomes lodged in the ear canal, seek medical attention immediately. • Ensure eartips and earbuds are kept clean and free of ear wax buildup to maintain the specified product performance. • Do not disassemble the product or AC adapter as this may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock or fire when the product is subsequently used. • Do not insert anything into the product or charger because this may cause damage to the internal components or cause injury to you. • Avoid contact with liquids. Do not locate this product near water, for example, near a bathtub, or sink, in a wet basement, or near a swimming pool to protect against damage to the product or injury to you. • Discontinue use of product and contact Plantronics if the product overheats, has a damaged cord or plug, if th…

Text truncated - open the document above for the full version.

plantronics.com 345 Encinal St., Santa Cruz CA 95060 United States +1‐831‐426‐5858 December 10, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: AL8‐W H500XD To whom it may concern Pursuant to the provisions of Sections 0.457 and 0.4 59 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withh old the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Oper ation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04‐1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short‐term confidentiality request on the following attachments for 160. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Peter Clark Senior Manager, Compliance Engineering Plantronics, Inc.

plantronics.com 345 Encinal St., Santa Cruz CA 95060 United States +1‐831‐426‐5858 December 10, 2012 UL‐CCS Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern I, the undersigned, hereby authorize UL CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL‐CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Peter Clark Senior Manager, Compliance Engineering Plantronics, Inc.

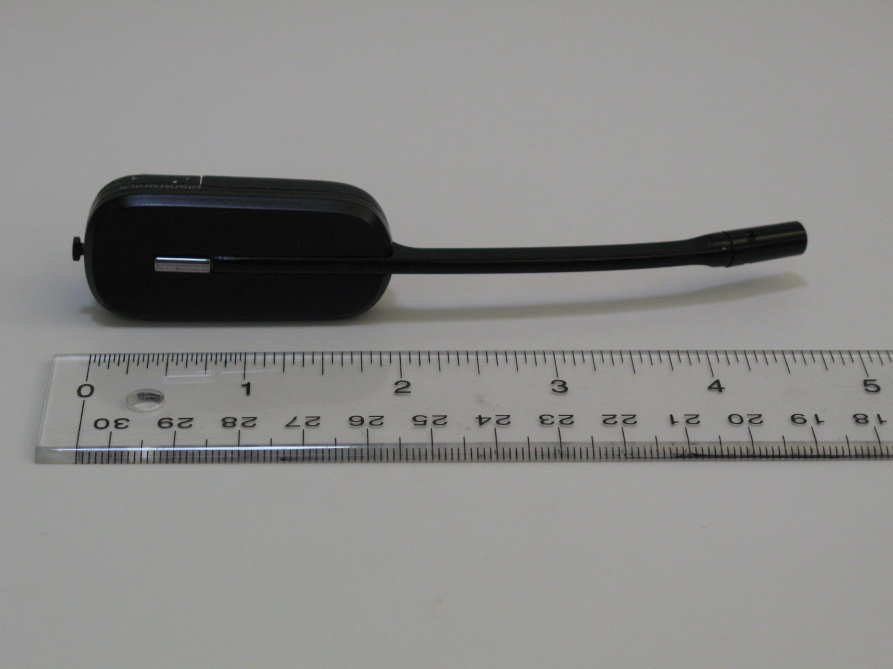

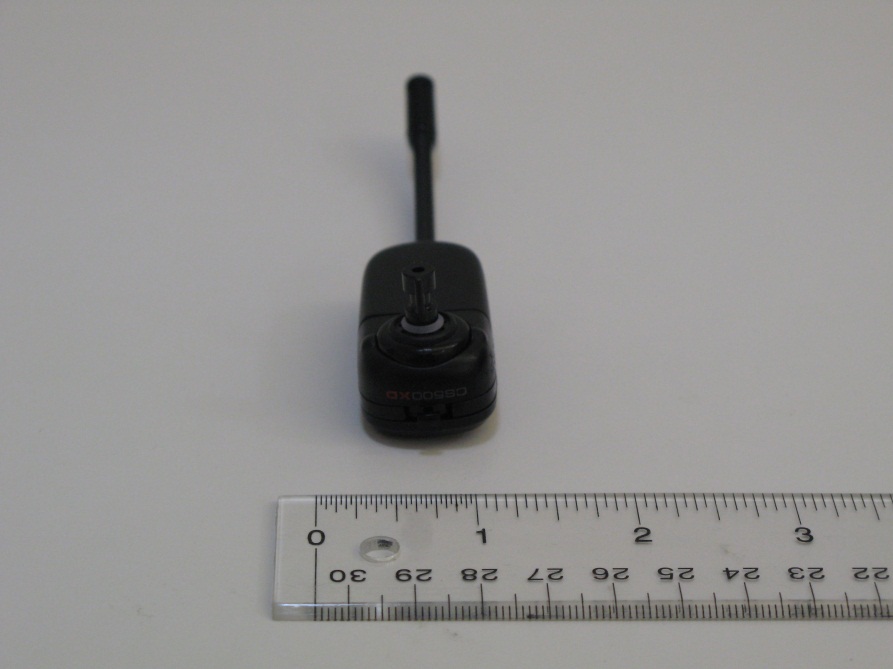

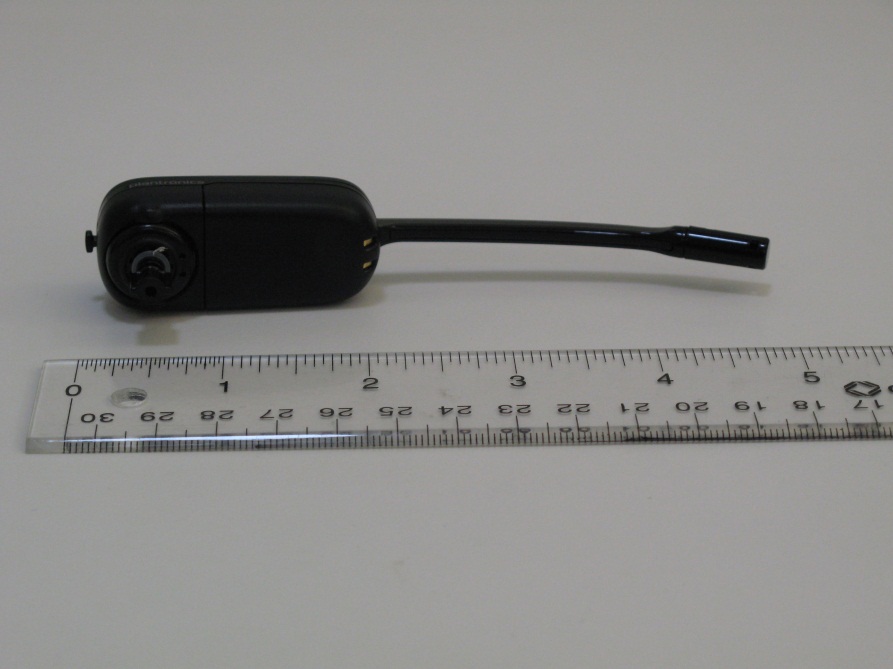

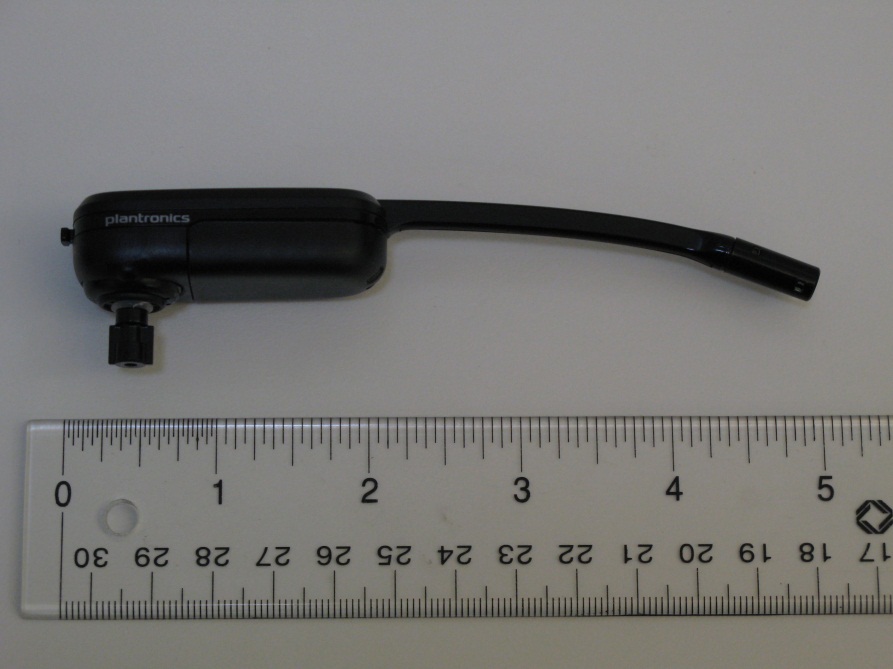

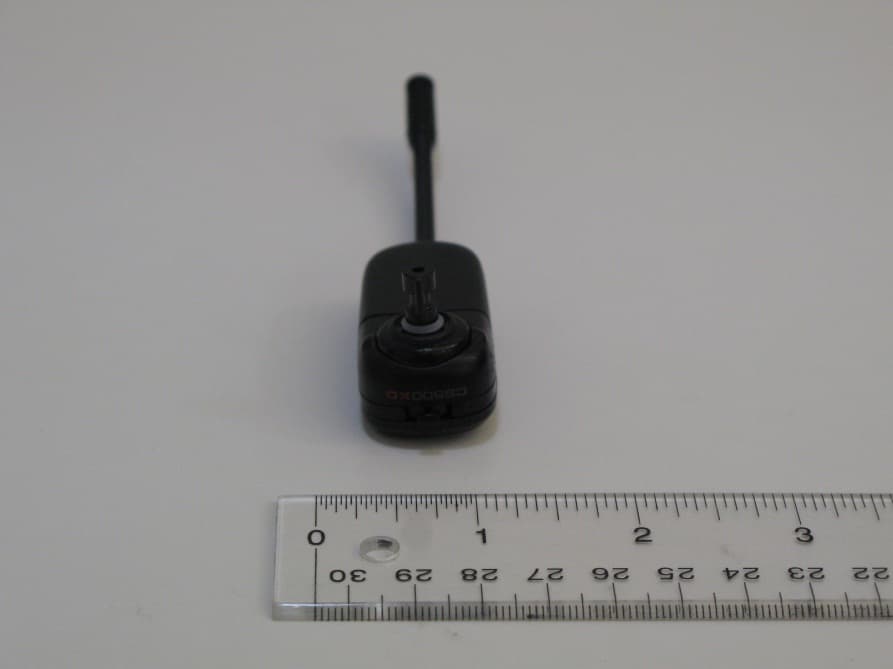

AL8‐WH500XD; 457A‐WH500XD External Photos Top Bottom Left Right Front Back

AL8‐WH500XD; 457A‐WH500XD – Label and Location

AL8‐WH500XD; 457A‐WH500XD Internal Photos PCBA Installed PCBA Bottom PCBA Top PCBA Top without shield

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR 900 MHZ CONVERTIBLE HEADSET MODEL NUMBER: WH500-XD FCC ID: AL8-WH500XD IC: 457A-WH500XD REPORT NUMBER: 12U14646- 1, REVISION B ISSUE DATE: DECEMBER 26, 2012 Prepared for PLANTRONICS 345 ENCINAL STREET SANTA CRUZ, CA 95060, U.S.A. Prepared by UL CCS 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 12U14646-1B DATE: DECEMBER 26, 2012 FCC ID: AL8-WH500XD IC: 457A-WH500XD Page 2 of 47 UL CCS FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 11/12/12 Initial Issue Tim Lee A 12/20/12 Added AC Conducted Emission Data T. Lee B 12/26/12 Added AC Conducted Emission Test Setup Photos T. Lee REPORT NO: 12U14646-1B DATE: DECEMBER 26, 2012 FCC ID: AL8-WH500XD IC: 457A-WH500XD Page 3 of 47 UL CCS FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................. 6 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 6 5.4. SOFTWARE AND FIRMWARE ...................................................................................... 6 5.5. DESCRIPTION OF TEST SETUP .................................................................................. 6 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................... 8 7. ANTENNA PORT TEST RESULTS ...................................................................................... 9 7.1.1. 6 dB BANDWIDTH .................................................................................................. 9 7.1.2. 99% BANDWIDTH ................................................................................................ 12 7.1.3. OUTPUT POWER ................................................................................................. 15 7.1.4. AVERAGE POWER .............................................................................................. 18 7.1.5. POWER SPECTRAL DENSITY ............................................................................ 19 7.1.6. CONDUCTED SPURIOUS EMISSIONS ............................................................... 22 8. RADIATED TEST RESULTS .............................................................................................. 26 8.1. LIMITS AND PROCEDURE ......................................................................................... 26 8.2. TRANSMITTER BELOW 1 GHz ................................................................................... 27 8.2.1. BANDEDGE .......................................................................................................... 27 8.2.2. HARMONICS AND SPURIOUS ENISSION .......................................................... 29 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................... 39 10. SETUP PHOTOS ............................................................................................................. 43 REPORT NO: 12U14646-1B DATE: DECEMBER 26, 2012 FCC ID: AL8-WH500XD IC: 457A-WH500XD Page 4 of 47 UL CCS FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: PLANTRONICS 345 ENCINAL STREET SANTA CRUZ, CA 95060, U.S.A. EUT DESCRIPTION: 902-928 MHZ CONVERTIBLE HEADSET MODEL: WH500-XD SERIAL NUMBER: For Radiated Unit S/N: Low Channel 102 Mid Channel M005 High Channel 150 For Conducted Unit S/N: Low channel S/N L001 Mid channel S/N M002 High Channel S/N H003 DATE TESTED: NOVEMBER 7- 13, 2012 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass INDUSTRY CANADA RSS-210 Issue 8 Annex 8 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL CCS tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL CCS will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by N…

Text truncated - open the document above for the full version.

REPORT NO: 12U14646-1B DATE: DECEMBER 26, 2012 FCC ID: AL8-WH500XD IC: 457A-WH500XD Page 43 of 47 UL CCS FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 10. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 12U14646-1B DATE: DECEMBER 26, 2012 FCC ID: AL8-WH500XD IC: 457A-WH500XD Page 44 of 47 UL CCS FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED RF MEASUREMENT SETUP FOR Base C052 FRONT PHOTO REPORT NO: 12U14646-1B DATE: DECEMBER 26, 2012 FCC ID: AL8-WH500XD IC: 457A-WH500XD Page 45 of 47 UL CCS FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. BACK PHOTO REPORT NO: 12U14646-1B DATE: DECEMBER 26, 2012 FCC ID: AL8-WH500XD IC: 457A-WH500XD Page 46 of 47 UL CCS FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 12U14646-1B DATE: DECEMBER 26, 2012 FCC ID: AL8-WH500XD IC: 457A-WH500XD Page 47 of 47 UL CCS FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
