AL8-WO2Wireless Communications System Base Unit with Bluetooth

Savi ® W740 Wireless Headset System Quick Start Guide Guide de démarrage rapide Guía de inicio rápido Guia de Início Rápido 1 Savi WH500 Headset 1 Volume Button (Press in to mute/unmute) 2 Call Control Button 3 Indicator Light 4 Microphone 5 Headband 6 Battery 7 Eartips 8 Earloops 9 Charge Cradle 8 9 7 6 4 2 3 5 Savi WO2 Base 1 PC Talk Button and Indicator Light 2 Mobile Phone Talk Button and Indicator Light 3 Desk Phone Talk Button and Indicator Light 4 Desk Phone Speaking Volume 5 Configuration Switch 6 Desk Phone Listening Volume 7 Bluetooth Pairing Button and Indicator Light 8 DECT Subscription Button and Indicator Light 9 Charging Indicator Light 10 Power Jack 11 Handset Lifter Jack 12 Telephone Interface Cable Jack 13 USB Port Base Power Supply Telephone Interface Cable 8 7 5 6 4 9 10 11 12 13 1 2 3 USB Cable CD includes: • Animated Setup Guide • Plantronics Software • Complete User Guide 3-1 3-2 5-1 4-1 7-6 8-4 8-5 9-1 11-1 11-2 6-1 Welcome Congratulations on purchasing your new Plantronics product. This Quick Start Guide contains instructions for setting up the Savi W740 (WO2 ™ Base + WH500 ™ Headset) Wireless Headset System. Please refer to the separate safety instructions for important product safety information prior to installation or use of the product. Set Up, Complete User Guide and Software We highly recommend that you refer to the included CD. The CD contains animated set up instructions; the complete user guide that provides full details on how to use your system; and the Plantronics software. The software enables you to: • Remotely answer incoming softphone calls • Customize your headset and Savi base settings to your personal preferences • Automatically manage your PC multimedia so you never miss a call • Quickly access links to product support and software/firmware upgrade information You can also download the software at plantronics.com/software and the user guide at plantronics.com/documentation. System Requirements The minimum system requirements for Savi W740 are as follows: • Supported Operating Systems: Windows XP ® , Windows Vista ® , Windows ® 7 • Processor: 400 MHz Pentium ® processor or equivalent (Minimum); 1 GHz Pentium processor or equivalent (Recommended) • RAM: 96 MB (Minimum); 256 MB (Recommended) • Hard Disk: 280 MB (Minimum); 500 MB (Recommended) • Display: 800 x 600, 256 colors (Minimum); 1024 x 768 high color, 32-bit (Recommended) • Internet Explorer ® V6 or better must be on the user’s system (Required) Easy Set Up 1 Locate CD and insert into your PC. 2 Select your headset and lifter (if applicable). 3 Launch animated setup guide. 7-2 7-7 7-2 8-6 7-2 8-7 2-1 2-2 2-3 1 1 Attaching Charge Cradle to Base 1-1 Connect the headset charge cradle to the base. Push firmly on the cradle until the cradle snaps into place. 2 Connecting Base to Desk Phone 2-1 Connect the telephone interface cable to the telephone interface cable jack on the base. 2-2 After disconnecting the handset coil cord from the desk phone, connect the telephone interface cable to the now open handset port on the desk phone. 2-3 Connect the handset coil cord to the telephone interface cable junction box. 3 Connecting Power Supply to Base 3-1 Connect the base power supply into the power jack on the base. 3-2 Connect the power supply to outlet. 4 Installing Battery to Headset 4-1 Position the battery as shown on headset and slide into position until the battery snaps into place. NOTE This product has a replaceable battery. Use only the battery type supplied by Plantronics. 5 Choosing Wearing Style 5-1 If you prefer the over-the-ear style, attach the earloop first and then the eartip to the headset. NOTE Ensure the large end of the eartip faces down towards the microphone. 5-2 If you prefer the over-the-head style, attach the headband to the headset. 6 Docking and Charging Headset 6-1 Gently push the headset into the charge cradle. The charging indicator light on the base will flash green to indicate that the headset battery is charging. 6-2 Charge for at least 20 minutes prior to the first use. A full charge takes 3 hours. 7 Checking Configuration 7-1 Set volume on desk phone to mid-range. 7-2 On the base, ensure the configuration switch is set to “A” and the desk phone speaking volume and desk phone listening volume are both set to 3. NOTE For most phones, these factory default settings will sound the best. 7-3 While wearing your headset, press the call control button on headset. 7-4 Remove the handset from desk phone cradle. 7-5 Listen for a dial tone. If the dial tone sounds clear, press the call control button on headset and continue with Step 8 Making a Test Call with Desk Phone. 7-6 If the dial tone is too loud or too soft, adjust the headset volume level. 7-7 If the dial tone still does not sound clear, adjust the configuration switch until the dial tone sounds the best. NOTE Multiple settings might work with your phone; however, only one is the optimal position. 7-8 Press the call control button on the headset and return the handset to the cradle to complete configuration. 8 Making a Test Call with Desk Phone 8-1 While wearing your headset, press the call control button on headset. 8-2 Remove the handset from desk phone cradle. 8-3 Dial the number using your desk phone. 8-4 You can fine tune the listening volume on the headset. When wearing the headset on your right ear, push the volume button up to increase the volume and push the volume button down to decrease the volume. The opposite is true when wearing on left ear. 8-5 To mute/unmute the call, press the volume button in. The desk phone talk button on the base will turn solid red when the headset is muted. 8-6 If the listening volume is still too loud or too soft, adjust the desk phone listening volume on the base. 8-7 If the speaking volume is too loud or too soft for your listener, adjust the desk phone speaking volume on the base. 8-8 Press the call control button on the headset and return the handset to the cradle to comple…

Text truncated - open the document above for the full version.

Worldwide Headquarters 345 Encinal Street Santa Cruz, CA 95060 September 1, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Long Term Confidentiality FCC ID: AL8-WO2 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Sincerely, Peter Clark Compliance Manager

Worldwide Headquarters 345 Encinal Street Santa Cruz, CA 95060 September 1, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Short Term Confidentiality FCC ID: AL8-WO2 To Whom It May Concern: Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short- term confidentiality request on the following attachments until March 1, 2011. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Peter Clark Compliance Manager

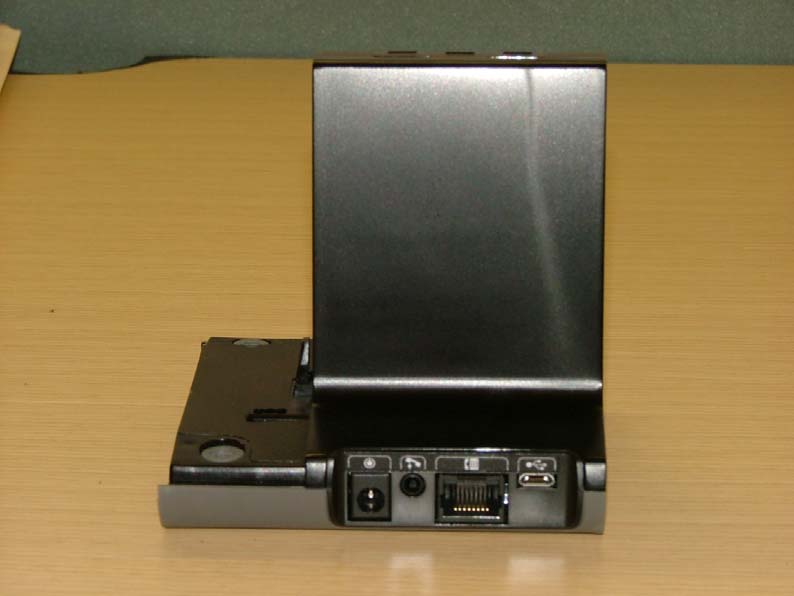

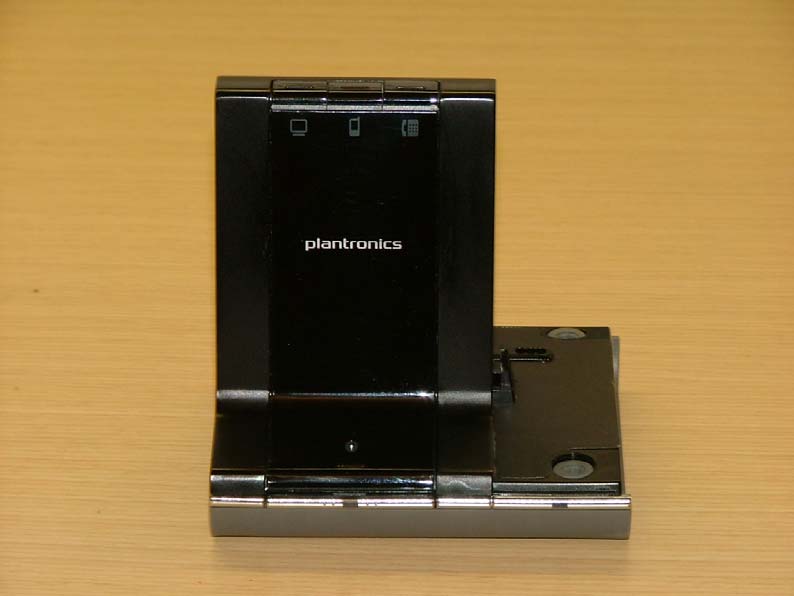

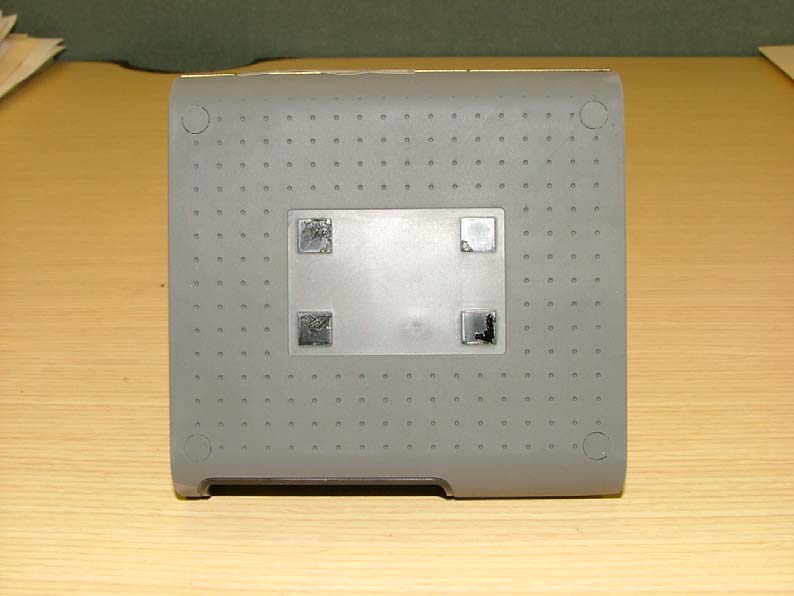

External Photos AL8-WO2 Front Back Left Right Top Bottom

Label and Location

Internal Photos AL8-WO2 PCB Installed PCB Top PCB Bottom with shield PCB Bottom No Shield

REPORT NO: 10U13328-1 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 74 of 81 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 10. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 10U13328-1 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 75 of 81 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. IC RULES IC Safety Code 6, Section 2.2.1 (a) A person other than an RF and microwave exposed worker shall not be exposed to electromagnetic radiation in a frequency band listed in Column 1 of Table 5, if the field strength exceeds the value given in Column 2 or 3 of Table 5, when averaged spatially and over time, or if the power density exceeds the value given in Column 4 of Table 5, when averaged spatially and over time. REPORT NO: 10U13328-1 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 76 of 81 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. EQUATIONS Power density is given by: S = EIRP / (4 * Pi * D^2) where S = Power density in W/m^2 EIRP = Equivalent Isotropic Radiated Power in W D = Separation distance in m Power density in units of W/m^2 is converted to units of mWc/m^2 by dividing by 10. Distance is given by: D = SQRT (EIRP / (4 * Pi * S)) where D = Separation distance in m EIRP = Equivalent Isotropic Radiated Power in W S = Power density in W/m^2 For multiple colocated transmitters operating simultaneously in frequency bands where the limit is identical, the total power density is calculated using the total EIRP obtained by summing the Power * Gain product (in linear units) of each transmitter. Total EIRP = (P1 * G1) + (P2 * G2) + ... + (Pn * Pn) where Px = Power of transmitter x Gx = Numeric gain of antenna x In the table(s) below, Power and Gain are entered in units of dBm and dBi respectively and conversions to linear forms are used for the calculations. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 From IC Safety Code 6, Section 2.2 Table 5 Column 4, S = 10 W/m^2 REPORT NO: 10U13328-1 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 77 of 81 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RESULTS (MPE distance equals 20 cm) BandModeSeparationOutputAntennaIC PowerFCC Power DistancePowerGainDensityDensity (m)(dBm)(dBi)(W/m^2)(mW/cm^2) 2.4 GHzBluetooth0.203.761.800.010.001

RF Exposure Requirements for FCC ID: AL8-WO2 Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s Guidelines. Limits: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact to human exposure to radiofrequency (RF) radiation as specified in Sec 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this Chapter. Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 MPE Calculation: Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 where, S = Power Density (W/m 2 ) P = Power Input to antenna (19.84 dBm; 0.096Watts) G = Antenna Gain, in numeric (3 dBi; 1.995 numeric) R = distance to the center of radiation of the antenna (0.2 m) S = 0.096W*1.995 / 4*3.14*(0.2m) 2 = 0.381 W/m 2 EUT complies with 20cm distance exposure.

1/103 Exhibit #11 Conducted RF and Spectral Etiquette Measurements to Support the Certification of the Wireless Office Base WO2, FCC ID AL8-WO2. Plantronics, John Mihelic & Andy Ward, 17-August, 2010. Alvin Ilarina 9/17/2010 I. Background 2 A. EUT description 2 B. Manufacturer’s attestations, mandatory declarations and descriptions 2 C. Standard test configurations 4 D. Calibration 7 II. Test Results Summary Base EUT 13 III. Tests of clause 6, Base EUT 24 A. Clause 6.1 Emissions tests for the Base EUT 24 B. Clause 6.2 Tests of frequency and time stability for the Base EUT 60 IV. Tests of clause 7, Base EUT 67 A. Clause 7.3.2 Upper threshold for EUTs which implement the LIC procedure, Base EUT 67 B. Clause 7.3.3 Least interfered channel (LIC) procedure test, Base EUT 69 C. Clause 7.3.4 Selected channel confirmation, Base EUT 73 D. Clause 7.4 Threshold monitoring bandwidth Base EUT 73 E. Clause 7.5 Reaction time and monitoring interval, Base EUT 74 V. Tests of clause 8, Base EUT 83 A. Clause 8.1.1 Access Criteria Test Interval, Base EUT 83 B. Clause 8.2.1 Acknowledgement, Base EUT 91 C. Clause 8.2.2 Transmission duration, Base EUT 94 VI. Appendix A WBM (Wide Band Mode), Base EUT 95 A. Clause 6.1.2 Peak transmit power, Base EUT in WBM 96 B. Clause 6.1.3 Emission bandwidth B, Base EUT in WBM 97 C. Clause 6.1.6 Emissions, Base EUT in WBM maximum power 97 VII. Appendix B Power Control-minimum output power, Base EUT 98 A. Clause 6.1.3 Emission bandwidth, Base EUT, in minimum power mode and WBM 99 B. Clause 6.1.6 Emissions, Base EUT 102 2/103 I. Background A. EUT description The Wireless Office Base, WO2, is a base station unit which can receive and transmit audio to/from its companion headset assembly. The base unit replaces a telephone handset connection to a standard telephone. The telephone’s handset then plugs into the base unit. The base unit also includes a USB port for interfacing to a personal computer for audio and control, as well as a Bluetooth radio for interfacing to portable cellular devices. This report includes only compliance relative to the DECT/DECT 6.0 RF portion of the base unit. Performance of the Bluetooth radio is detailed in a separate report. The base unit provides a docking cradle for charging a headset, and is provided with an AC power adapter. Other accessories (on-line indicator, telephone handset lifter) may be connected to the base unit at the end-user’s discretion. The base unit is an intentional radiator, designed in accordance with the requirements of 47CFR15 subpart D. This document reports compliance of the Base to the test parameters of C63.17-2006 for the DECT/DECT 6.0 radio only. The Base EUT is capable of RF power control. The power control modes are fixed, or adaptive. Adaptive power control will allow the RF transmitter to adjust the output power from a maximum of 19.84dBm to a minimum of 2dBm in four 5-7dB steps. Fixed power mode does not allow power control. The user can select between adaptive or fixed but can not set the power range, this is done during EUT factory set up. Compliance to C63.17-2006 is documented in Appendix A which repeats any testing that may operate differently from maximum power mode or affect the access threshold. The Base companion device can initiate a link in a wideband mode using the P00J Longslot configuration for transmission and receive, but the Base does not perform the access threshold check or initiate the WBM communications traffic link; the companion headset performs the proper access checks per ANSI C63.17-2006 clause 8.3.1 or 2. The specific unit tested is Base #1 for emissions bandwidth, spectral etiquette, and access criteria. The RF output power and emissions testing was performed on the test sample 01CFEA50C. B. Manufacturer’s attestations, mandatory declarations and descriptions The Wireless Office WO2 Base uses digital modulation. Clause 4.11 in C63.17-2006 requires the following declarations to be made by the manufacturer. These declarations are used in demonstrating compliance with certain sections of 47CFR15 subpart D, and in support of test parameters within C63.17-2006. The channel plan. Five RF carriers are used, as follows: 1928.448 MHz. 1926.720 MHz. 1924.992 MHz. 1923.264 MHz. 1921.536 MHz. Maximum EUT antenna gain GA (dBi), and orientation and polarization for maximum gain. The maximum Base EUT antenna gain is 3dBi. Maximum peak power level Maximum specified peak conducted power level for the Base EUTs is +19.84dBm. Minimum peak power level 3/103 The maximum power level at the minimum RF power setting is specified peak conducted power level for the headset EUTs is +2dBm. Emission bandwidth Emission bandwidth measured according to the procedures of C63.17-2006 clause 6.1.3 for the Base EUT is 1.45MHz. Nominal receive bandwidth Nominal receive bandwidth is +/-500kHz. Frame period and time slot plan, if TDMA techniques are used The EUT system is a TDMA system which “further divides access in time” in the context of clause 6.2.2 of C63.17- 2006. Frame period is 10mS. There are 24 timeslots per frame, with one of the first 12 timeslots used for the headset transmissions and one of the last 12 timeslots used for the base transmissions. Transmit and receive timeslots are 5mS apart in time. Transient events occur during which two non-adjacent timeslots may be in use by the base during the setup of the communications channel, or by both the base and the headset EUT as the system does a soft handoff in response to interference. Minimum and maximum burst length, if TDMA techniques are used Minimum burst length is 90uS, the beacon transmissions from the base when a communications channel is not open. Maximum burst length is 780uS, transmissions from the Base when a communications channel is open in wideband mode. Minimum and maximum operating temperature range declared to the end-user The minimum operating temperature is +4C. The maximum operating temperature is +44C. Whether a system built with the EUT does o…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART B ICES-003 ISSUE 4 TEST REPORT FOR WIRELESS OFFICE AND CALL CENTER COMMUNICATION ACCESSORY MODEL NUMBER: WO2 FCC ID: AL8-WO2 IC: 457A-WO2 REPORT NUMBER: 10U13328-2 ISSUE DATE: AUGUST 12, 2010 Prepared for PLANTRONICS, INC. 345 ENCINAL STREET SANTA CRUZ, CA 95060, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10U13328-2 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 2 of 22 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 08/12/10 Initial Issue F. Ibrahim REPORT NO: 10U13328-2 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 3 of 22 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION.................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 5 4.2. SAMPLE CALCULATION.............................................................................................. 5 4.3. MEASUREMENT UNCERTAINTY................................................................................ 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT................................................................................................ 6 5.2. GENERAL INFORMATION ........................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 6 5.4. SOFTWARE AND FIRMWARE..................................................................................... 6 5.5. CONFIGURATION ........................................................................................................ 7 5.6. MODE OF OPERATION ............................................................................................... 7 5.7. DESCRIPTION OF TEST SETUP................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 10 7. RADIATED TEST RESULTS .............................................................................................. 11 7.1. LIMITS AND PROCEDURE ........................................................................................ 11 7.2. RADIATED EMISSIONS BELOW 1 GHz .................................................................... 12 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................... 15 9. SETUP PHOTOS................................................................................................................. 19 REPORT NO: 10U13328-2 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 4 of 22 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: PLANTRONICS, INC. 345 ENCINAL STREET SANTA CRUZ, CA, 95060, U.S.A EUT DESCRIPTION: WIRELESS OFFICE AND CALL CENTER COMMUNICATION ACCESSORY MODEL: WO2 SERIAL NUMBER: 114 DATE TESTED: AUGUST 03- 05, 2010 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart B Pass ICES-003 ISSUE 4 Pass Compliance Certification Services, Inc. (CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by CCS will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For CCS By: Tested By: FRANK IBRAHIM THANH NGUYEN EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 10U13328-2 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 5 of 22 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.10-2009, FCC CFR 47 Part 2, FCC CFR 47 Part 15…

Text truncated - open the document above for the full version.

REPORT NO: 10U13328-1 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 78 of 81 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 10U13328-1 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 79 of 81 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO RADIATED BACK PHOTO REPORT NO: 10U13328-1 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 80 of 81 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 10U13328-1 DATE: AUGUST 12, 2010 FCC ID: AL8-WO2 IC: 457A-WO2 Page 81 of 81 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
