APV-2630GBTGSM/GPRS 850/1900, Bluetooth and Bluetooth LE

CalAmp Corp. l www.calamp.com1 EXPERIENCE THE ADVANTAGE The LMU-2600 fleet tracking unit offers leading edge fleet management features including a 3-axis accelerometer for measuring driver behavior and vehicle impacts while offering the high reliability fleet customers demand. COMPETITIVE PRICE, COMPETITIVE TECHNOLOGY, COMPETITIVE EDGE The LMU-2600 is a robust, affordable device you can count on for AVL and fleet applications. The LMU-2600 incorporates GSM/GPRS, CDMA 1xRTT, or HSPA wireless communication along with extra-sensitive GPS, a powerful processing engine, and a 3-axis accelerometer that detects and acts on hard braking, aggressive acceleration, or vehicle impacts. Internal or external antenna options enables the device to be mounted virtually anywhere for easy, inexpensive installations. FLEXIBILITY The LMU-2600 employs CalAmp’s industry leading on-board alert engine, PEG™ (Programmable Event Generator). This advanced engine monitors external conditions and supports customer-dened exception-based rules to help meet the needs of your application. PEG continuously monitors the vehicle environment and responds instantaneously to pre-dened threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been elded. With PEG, your unique application will meet demanding customer requirements and give you a distinct advantage over your competition. OVER-THE-AIR SERVICEABILITY The LMU-2600 also leverages CalAmp's industry leading over-the-air device management and maintenance system, PULS™ (Programming, Updates, and Logistics System). Conguration parameters, PEG rules, and rmware can all be updated over-the-air. PULS oers out-of-the- box hands-free conguration and automatic post-installation upgrades. You can also monitor unit health status across your customers' eets to quickly identify issues before they become expensive problems. • GSM/GPRS, CDMA 1xRTT, or HSPA congurations • Internal or external cellular and GPS antenna options for easy installation • High sensitivity GPS • 3-axis precision accelerometer for driver behavior and impact detection • 20,000 buered message log • 32 geo-fence capability • 5 inputs/3 outputs/1-wire® interface for driver ID, temperature sensors, and more • Dual switched power serial ports • Garmin®, Magellan®, and other advanced peripherals support • Power management sleep modes • Over-the-air con figuration and firmware download LMU-2600™ GPRS/CDMA/HSPA Series Fleet tracking Unit with Leading Technologies CalAmp Corp. 1401 N. Rice Avenue, Oxnard, CA 93030 T: 760.438.9010 l F: 760.438.5835 www.calamp.com CalAmp Corp. l www.calamp.com2 © 2014 CalAmp. Rev: 2.11.14 All specications are typical and subject to change without notice LMU-2600 SPECIFICATIONS Digital Inputs Digital Outputs Serial Interface Analog Inputs 1-Wire® Interface Status LEDs 5 (1 xed bias low, 4 programmable bias) 3 relay driver (200 mA) 2 (1 TTL serial, 1 switched power TTL) 2 (1 internal VCC monitor, 1 external A/D input) Driver ID, temperature sense GPS and cellular COMPREHENSIVE I/O GENERAL Communication Modes Location Technology Operating Voltage GPRS/EDGE/HSPA and CDMA 1xRTT packet data, UDP and SMS 50 channel GPS 12/24 volt vehicle systems CELLULAR Location Technology Location Accuracy Tracking Sensitivity Acquisition Sensitivity AGPS Capable 50 channel GPS (with SBAS) SBAS: WAAS, EGNOS, MSAS, GAGAN 2.0 meter CEP (with SBAS) -162dBm -147dBm GPS Temperature Humidity Shock and Vibration EMC/EMI RoHS Compliant -30º to +70º C (operating) -40 º to +85º C (storage) 95%RH @ 50º C non-condensing U.S. Military Standards 202G and 810F, SAE J1455 SAE J1113; FCC–Part 15B; Industry Canada ENVIRONMENTAL Operating Voltage Power Consumption 7-32 VDC Typical 4mA @ 1 2V (deep sleep ) Typical 19mA @ 12V (radio-active sleep) Typical 17mA @ 12V (SMS+UDP connection, GPS off) Typical 60mA @ 12V (continuous transmit) ELECTRICAL Dimensions Weight 2 x 4 x 0.85”, (51 x 102 x 22 mm) 74 g (external), 85 g (internal) PHYSICAL Connection Type GPS Antenna Cellular Antenna SIM Access 20-pin Molex-type fused power harness External SMA (w/ tamper monitoring, 3V) or internal External SMC or internal Internal (GSM/GPRS or HSPA variant only) CONNECTORS, SIM ACCESS MOUNTING Tie-wrap, adhesive, or Velcro • Driver ID with 1-wire® protocol • Temperature sensing via 1-wire® protocol • Backup battery • External GPS and cellular antennas • Internal GPS and cellular antennas • NMEA data via serial • External A/D input • Serial cables • External jPOD™ truck ECU interface • Garmin®, Magellin, and other advanced peripherals support • Piezo speaker, panic button, and privacy button • Power harness with two (2) 3A fuses OPTIONAL FEATURES/FUNCTIONS Customized hardware and software development available on request DEVELOPMENT SUPPORT OPTIONS About CalAmp CalAmp Corp. (NASDAQ: CAMP) is a proven leader in providing wireless communications solutions to a broad array of vertical market applications and customers. CalAmp’s extensive portfolio of intelligent communications devices streamline otherwise complex machine-to-machine (M2M) deployments. These solutions enable customers to optimize their operations by collecting, monitoring and efficiently reporting business critical data and desired intelligence from high-value remote assets. For more information, please visit www.calamp.com. Data Support Operating Bands (MHz) GSM/GPRS CDMA/1XRTT HSPA/UMTS Transmitter Power GSM/GPRS CDMA/1XRTT HSPA/UMTS HSPA data rates HSPA Fallback SMS, UDP packet data 850/900/1800/1900 850/1800 800(VI)/850(V)/900(VIII)/ 1700(IV)/1900(II)/2100(I) 850/900 1800/1900 850 1800 (all bands) 5.6 Mbps upload/7.2 Mbps download EDGE/GPRS/GSM quad band EDGE MCS1-MCS9 3GPP Release 6 Fully certied FCC, CE, IC, PTCRB, Applicable Carriers CERTIFICATIONS 32.5 dBm 29.3 dBm 24 dBm 23 dBm 23 dBm External vPOD T…

Text truncated - open the document above for the full version.

Copyright ©CalAmp DataCom Inc 2012 CalAmp Proprietary & Confidential LMU-2x30™ Hardware and Installation Guide Version 1.1 March 2015 LMU-2x20™ Hardware and Installation Guide V1.0.10 December 12, 2010 Copyright ©CalAmp DataCom Inc 2010 - ii - CalAmp Proprietary & Confidential License Agreement FOR SOFTWARE, APPLICATION PROGRAMING INTERFACES (APIS) & DOCUMENTATION IMPORTANT: DO NOT INSTALL OR USE THE SOFTWARE OR DOCUMENTATION UNTIL YOU HAVE READ AND AGREED TO THIS LICENSE AGREEMENT. This is a legal agreement between you, the Customer, and CalAmp DataCom Incorporated (“CalAmp”). By installing and/or using the software or documentation, you are consenting to the terms of this License. If you do not agree to the terms of this non-exclusive License Agreement, DO NOT INSTALL OR USE THE SOFTWARE, APIs OR DOCUMENTATION. For a full refund, return the unused media package and all accompanying materials within seven (7) days to CalAmp. Where there is no packaging or media, use of the software and/or documentation constitutes acceptance. DEFINITIONS: As used in this License Agreement, “Software” means CalAmp’s LM Direct™, LMU Manager™, LapTop Locator™, LMU Application/Programmable Event Generator™, CDMA LMU Provisioning Tool, GPRS LMU Provisioning Tool, iDEN™ Provisioning Tool, LMU Status, Clone Config, Hex Dump, LM Exchange™ Traffic Monitor, Freewave Base Station Config, Remote Serial Port, App Watcher Service and/or other software products licensed by CalAmp for use in computer applications development or integration including the computer programs, libraries and related materials either contained on the media provided to you by or from CalAmp, or which you have received or downloaded electronically. “Application” means a compiled or executable software program created by Developer that uses some or all of the functionality of the Software. “Software Copies” means the actual copies of all or any portion of the Software including backups, updates, merged or partial copies permitted hereunder or subsequently licensed to you. “Documentation” means the non-Software information contained on the media provided with this package or downloaded and which is used with and describes the operation and use of the Software. “Documentation Copies” means the actual copies of all or any portion of the Documentation including backups, updates, merged or partial copies permitted hereunder or subsequently provided to you. “Related Materials” means all other materials and whatever is provided by or from CalAmp, and the non-Software and non-Documentation contained on the media supplied, downloaded, or otherwise supplied by or from CalAmp for use with the Software and Documentation. “Server” means a single, networked computer that is accessible to other client machines on the network. “User” means (i) a single person using an Application for his/her internal, use or (ii) a single terminal or a single workstation of a computer used only by a person (and not accessed otherwise) for accessing an Application. “Use License” means limited rights granted by CalAmp for deployment of a single Application to a User. “Developer” means a single programmer developing an Application. “Developer License” means the grant of certain limited rights to use and maintain the Software, Software Copies, Documentation, Documentation Copies and Related Materials in development of Applications. BACKGROUND: A Developer License is required for each Developer who uses the Software in building Application(s). A Use License is required and must be purchased by Customer for each User to which Customer provides access to an Application (unless a Server or Site license for unlimited or a specified number of users has been purchased). Each Use License is specific to one client-side Application only and may not be used for any other client-side Application. Each Server license is limited to Server-based Applications deployed on that Server for which the license has been purchased as specified in a CalAmp License Certificate. The Software is licensed on a per Developer, and on a per User, per Application basis. In order to preserve and protect its rights under applicable law, CalAmp is not selling you ownership rights to Software or Documentation (owned by or licensed to CalAmp). CalAmp specifically retains title to all CalAmp Software, Documentation and Related Materials and CalAmp licensors retain title to items owned by them. DURATION: This License Agreement is effective from the day you install or start using the Software, or receive or download it electronically, and continues until terminated. If you fail to comply with any provision of the License, termination is automatic, without notice from CalAmp and without the necessity for recourse to any judicial authority. Upon termination, you must destroy the Related Materials, the Software, Documentation and all Software and Documentation copies. CalAmp can also enforce its other legal and equitable rights. DEVELOPER LICENSE ONLY—USES PERMITTED: Software and Documentation may be used for the sole purpose of developing Applications and only by a licensed Developer. Software and Documentation may be installed onto a hard disk drive or a Server, access to which is restricted to Developers for which a Developer License has been purchased and may also be stored or installed on a storage device such as a network server, used only to install or access the Software or Documentation on your other computers over an internal network; however, you must have acquired a license for each separate computer on which the Software or Documentation is installed or accessed from the storage device. A Developer License may not be shared or used concurrently on different computers. One backup copy may be made for each legally obtained media copy or electronic copy you have received, provided that all CalAmp and third party licensor information — including copyright notices — are maintained and possession of the copy is retain…

Text truncated - open the document above for the full version.

A E R C E P T D A T A R A D I O L A N D C E L L O M E G A S MA R T L I N K www.calamp.com CalAmp / Mobile resource Management MRM/M2M Products 2177 Salk Ave, STE 200 Carlsbad, CA 92008 PH: (760) 438-9010 – Fax: (760) 438-5835 March 16, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Re: FCC ID: APV-2630GBT IC: 5843C-2630GBT M/N: LMU26G30BT1 Dir Sir and Madam, The LMU-2630 family is a fleet management and tracking device that resides in private, it is a single box enclosure incorporating a processor, a GPS receiver, a wireless data modem, vehicle-rated power supply and Vehicle bus interface. The LMU-2630 family also supports inputs and outputs to monitor and react to the vehicular environment and/or driver actions. The LMU-2630 family contains the same Bluetooth board already certified by TUV under model: LMU30H30BT3 with FCC ID: APV-3030HBT and IC ID: 5843C-3030HBT. In addition to the Bluetooth, The LMU-2630 has cellular module is Gemalto BGS2-W FCC ID: QIPBGS2 and IC ID: 7830A-BGS2 Sincerely, Product Certification Manager Imad Rizk Phone number: (760) 814-9697 Email: [email protected]

A E R C E P T D A T A R A D I O L A N D C E L L O M E G A S MA R T L I N K www.calamp.com CalAmp / Mobile resource Management MRM/M2M Products 2177 Salk Ave, STE 200 Carlsbad, CA 92008 PH: (760) 438-9010 – Fax: (760) 438-5835 March 16, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Re: FCC ID: APV-2630GBT IC: 5843C-2630GBT M/N: LMU2630GB Dir Sir and Madam, The LMU-2630 family is a fleet management and tracking device that resides in private, it is a single box enclosure incorporating a processor, a GPS receiver, a wireless data modem, vehicle-rated power supply and Vehicle bus interface. The LMU-2630 family also supports inputs and outputs to monitor and react to the vehicular environment and/or driver actions. The LMU-2630 family contains the same Bluetooth board already certified by TUV under model: LMU30H30BT3 with FCC ID: APV-3030HBT and IC ID: 5843C-3030HBT. In addition to the Bluetooth, The LMU-2630 has cellular module is Gemalto BGS2-W FCC ID: QIPBGS2 and IC ID: 7830A-BGS2 Sincerely, Product Certification Manager Imad Rizk Phone number: (760) 814-9697 Email: [email protected]

A E R C E P T D A T A R A D I O L A N D C E L L O M E G A S MA R T L I N K www.calamp.com CalAmp / Mobile resource Management MRM/M2M Products 2177 Salk Ave, STE 200 Carlsbad, CA 92008 PH: (760) 438-9010 – Fax: (760) 438-5835 March 09, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Re: FCC ID: APV-2630GBT IC: 5843C-2630GBT Dir Sir and Madam, We CalAmp 2177 Salk Ave, STE 200, Carlsbad, CA 92008 hereby authorize Juan Manuel Gonzalez TUV SUD America, Inc. 10040 Mesa Rim Road, San Diego, CA 92121 Tel: (858) 678-1466 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expire on February 4, 2016 Sincerely, Product Certification Manager Imad Rizk Phone number: (760) 814-9697 Email: [email protected]

A E R C E P T D A T A R A D I O L A N D C E L L O M E G A S MA R T L I N K www.calamp.com CalAmp / Mobile resource Management MRM/M2M Products 2177 Salk Ave, STE 200 Carlsbad, CA 92008 PH: (760) 438-9010 – Fax: (760) 438-5835 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: APV-2630GBT Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, CalAmp Wireless networks hereby requests permanent confidential treatment of information accompanying this application as: - Block Diagram - Operation description - Schematic - Part list Also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: - Internal photos - External photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, March 09 2015 Product Certification Manager Imad Rizk Phone number: (760) 814-9697 Email: [email protected]

A E R C E P T D A T A R A D I O L A N D C E L L O M E G A S MA R T L I N K www.calamp.com CalAmp / Mobile resource Management MRM/M2M Products 2177 Salk Ave, STE 200 Carlsbad, CA 92008 PH: (760) 438-9010 – Fax: (760) 438-5835 March 27, 2014 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Family Certification Letter I hereby request Family Certification for the following model numbers: LMU26G30BT1 and LMU2630GB There are no differences between the two models except the model number. Both models are electrically identical. Test report numbers (6_0009_11_6_2a, 2-20795542b/11) for previously approved Cellular Cinterion module certified under IC: 7830A-BGS2 and FCC:QIPBGS2 remains unchanged, valid and representative for this device and the results contained meet the current FCC and IC standards, rules and regulations, and are therefore leveraged for this application. Sincerely, Certification Manager Imad Rizk Phone number: (760) 814-9697 Email: [email protected]

FCC ID: APV-2630GBT IC: 5843C-2630GBT

UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS DECIMALS ANGLES ±1/32 .XX ±.01 ±0°30’ .XXX ± .005 USED ON REVISIONS MATERIAL FINISH DRAWN: CHECKED: ISSUED: TITLE DO NOT SCALE DRAWING SIZE CAGE CODE DWG NO. REV A 6T925 SHEET 1 OF 1 SCALE ITEM NO. QTY REQD IDENTIFYING NO. DESCRIPTION MKTG: 1 1 LABEL BLANK, COATED MATTE, 2.75 X 1.56, 1” SPL 79969-2 NOTES: UNLESS OTHERWISE SPECIFIED 1. APPLICABLE STANDARDS / SPECIFICATIONS; MIL-STD-100E, ENGINEERING DRAWING PRACTICES. ANSI Y14.5M-1982, DIMENSIONS AND TOLERANCES. 2. FONT : BARCODE FORMAT 39, BLACK INK 3. DATE CODE SHALL BE DEFINED AS : WWYY WW – TWO DIGIT WORK WEEK YY – TWO DIGIT YEAR 4. MATERIAL MUST BE LEAD (Pb) FREE PER THE EUROPEAN UNION’S RESTRICTION OF HAZARDOUS SUBSTANCE (RoHS) DIRECTIVE. A. HARGITAI MM/DD/YYYY D. PATEL 2/19/2015 A. ANGELES MM/DD/YYYY 134793-G1000 A REV ECO NO. DESCRIPTION DATE APPROVED A 66019 PRODUCTION RELEASE 2/19/2015 D. PATEL LABEL, UNIT MARKING, LMU2630, GEMALTO GSM, BLUETOOTH, BATT, INT ANT, GEN-HW LMU26G30BT1-G1000 Elec. File: 134793-G1000_A.doc WWYY nnnnnnnnnn P/N: LMU26G30BT1 ESN: nnnnnnnnnnnnnnn IMEI: This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Assembled in China 3 FCC ID: APV-2630GBT IC: 5843C-2630GBT CC: G1000

UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS DECIMALS ANGLES ±1/32 .XX ±.01 ±0°30’ .XXX ± .005 USED ON REVISIONS MATERIAL FINISH DRAWN: CHECKED: ISSUED: TITLE DO NOT SCALE DRAWING SIZE CAGE CODE DWG NO. REV A 6T925 SHEET 1 OF 1 SCALE ITEM NO. QTY REQD IDENTIFYING NO. DESCRIPTION MKTG: 1 1 LABEL BLANK, COATED MATTE, 2.75 X 1.56, 1” SPL 79969-2 NOTES: UNLESS OTHERWISE SPECIFIED 1. APPLICABLE STANDARDS / SPECIFICATIONS; MIL-STD-100E, ENGINEERING DRAWING PRACTICES. ANSI Y14.5M-1982, DIMENSIONS AND TOLERANCES. 2. FONT : BARCODE FORMAT 39, BLACK INK 3. DATE CODE SHALL BE DEFINED AS : WWYY WW – TWO DIGIT WORK WEEK YY – TWO DIGIT YEAR 4. MATERIAL MUST BE LEAD (Pb) FREE PER THE EUROPEAN UNION’S RESTRICTION OF HAZARDOUS SUBSTANCE (RoHS) DIRECTIVE. A. HARGITAI MM/DD/YYYY D. PATEL 3/13/2015 A. ANGELES MM/DD/YYYY 134xxx-G1000 REV ECO NO. DESCRIPTION DATE APPROVED xxxxx PRODUCTION RELEASE 3/13/2015 D. PATEL LABEL, UNIT MARKING, LMU2630, GEMALTO GSM, BLUETOOTH, BATT, INT ANT, GEN-HW LMU2630GB-H000-G1000 Elec. File: 134xxx-G1000.doc WWYY nnnnnnnnnn P/N: LMU2630GB ESN: nnnnnnnnnnnnnnn IMEI: This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Assembled in China 3 FCC ID: APV-2630GBT IC: 5843C-2630GBT CC: H000-G1000

FCC ID APV-2630GBT IC: 5843C-2630GBT ID Label location

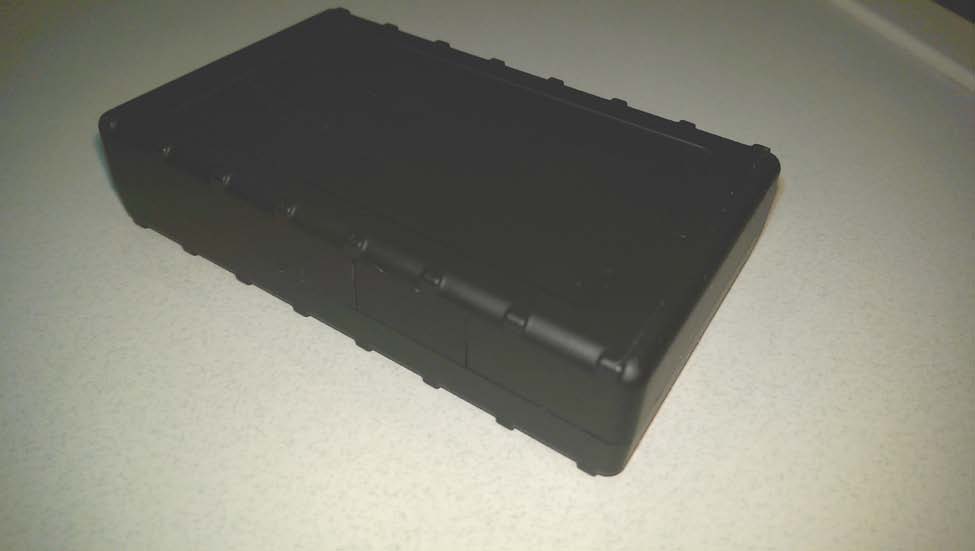

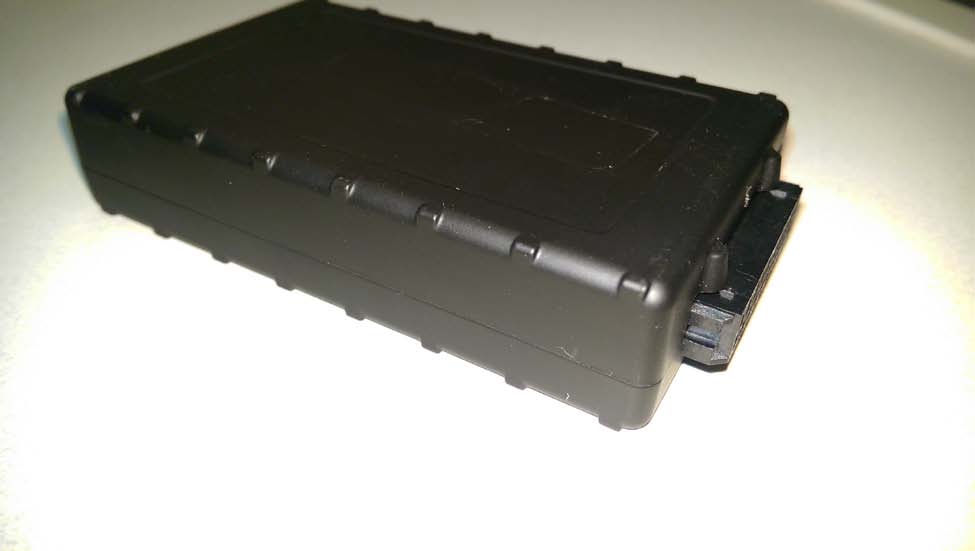

FCC ID APV-2630GBT IC: 5843C-2630GBT





TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 March 23, 2015 TUV SUD BABT Octagon House, Concorde Way Segensworth Rd N, Fareham PO15 5RL Attention: Director of Certification RE: Analysis of RF Exposure for Portable use per Title 47, Part 1 Subpart I, §1.1310, Title 47, Part 2 Subpart J, §2.1091 and RSS-102 Issue 4 March 2010. FCC ID: APV-2630GBT IC: 5843C-2630GBT 1. Mobile MPE Calculation Summary using a 20cm separation distance: Mode Output Power Antenna Gain Power Density (mW/cm 2 ) GSM/GPRS 850 32.3dBm (837.0 MHz) -6.1 dBi* 0.0207 GSM/GPRS 1900 29.7dBm (1880.0 MHz) -5.3 dBi* 0.0137 Bluetooth 100.4 dBμV/m @ 3 meters 0 dBi 0.00065441 Bluetooth LE 86.6 dBμV/m @ 3 meters 0 dBi 0.00002728 2. Co-Located Transmitters transmission table: Transmitter type Transmitter type that can transmit at the same time GSM/GPRS 850 Bluetooth GSM/GPRS 850 Bluetooth LE GSM/GPRS 1900 Bluetooth GSM/GPRS 1900 Bluetooth LE TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 3. Simultaneous Transmission MPE (Worst Case Combination): Transmitter type MPE (mw/cm 2 ) Limit (mW/cm 2 ) MPE ratio (MPE/Limit) GSM/GPRS 1900 0.0207 0.558 0.0207 Bluetooth 0.00065441 1.0 0.00065441 Sum of the ratios (should be <1.0) 0.02135441 4. Mobile MPE Calculation using a 20cm separation distance (GSM/GPRS 850): Using Power Density formula: S= PG 4πR 2 where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to isotropic R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 32.3 (dBm) Maximum peak output power at antenna input terminal: 1698.24 (mW) Antenna gain(typical): -6.1 (dBi) Maximum antenna gain: 0.245 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 25 (%) Prediction frequency: 837 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.558 (mW/cm 2 ) Power density at prediction frequency: 0.0207 (mW/cm 2 ) Power density at prediction frequency: 0.207 (W/m 2 ) Margin of Compliance: -14.3 (dB) 5. Mobile MPE Calculation using a 20cm separation distance (GSM/GPRS 1900): Maximum peak output power at antenna input terminal: 29.7 (dBm) Maximum peak output power at antenna input terminal: 933.25 (mW) Antenna gain(typical): -5.3 (dBi) Maximum antenna gain: 0.295 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 25 (%) Prediction frequency: 1880 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm 2 ) Power density at prediction frequency: 0.0137 (mW/cm 2 ) Power density at prediction frequency: 0.137 (W/m 2 ) Margin of Compliance: -18.63 (dB) TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 6. Mobile MPE Calculation using a 20cm separation distance (Bluetooth): Measured Field Strength --Radiated: 100.4 (dBuV/m) Maximum peak output power --Radiated: 0.0032894 (W) Antenna gain(typical): 0.00 (dBi) Maximum antenna gain: 1.00 (numeric) Prediction distance: 20.00 (cm) Prediction frequency: 319.00 (MHz) Limit from table below: 1 (mW/cm 2 ) Power density at prediction frequency: 0.00065441 (mW/cm 2 ) Margin of Compliance: -31.84 (dB) 7. Mobile MPE Calculation using a 20cm separation distance (Bluetooth LE): Measured Field Strength --Radiated: 86.6 (dBuV/m) Maximum peak output power --Radiated: 0.0001371 (W) Antenna gain(typical): 0.00 (dBi) Maximum antenna gain: 1.00 (numeric) Prediction distance: 20.00 (cm) Prediction frequency: 319.00 (MHz) Limit from table below: 1 (mW/cm 2 ) Power density at prediction frequency: 0.00002728 (mW/cm 2 ) Margin of Compliance: -45.64 (dB) *Notes: Power level and worst case channel information for the cellular radio were derived from the test reports of the original filing. Antenna gains information of the cellular radio were derived from a reference cellular module testing using CTIA over the Air Performance Summation Test Report (7 layers, Inc. Project Name: MUS_CALAMP_1407) provided by the client. Sincerely, Juan M. Gonzalez Name Authorized Signatory Title: Commercial/Wireless EMC Lab Manager

Page 1 of 21 The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Laboratory Accreditation and Listings D-PL-12047-01-01 Reg. No.: 736496 MRA US-EU 0003 Industry Canada Reg. No.: 3462D-1 3462D-2 Reg. No.: R-2665, R-2666 C-2914, T-1967 G-301 accredited according to DIN EN ISO/IEC 17025 CETECOM GmbH Laboratory Radio Communications & Electromagnetic Compatibility Im Teelbruch 116 • 45219 Essen • Germany Registered in Essen, Germany, Reg. No.: HRB Essen 8984 Tel.: + 49 (0) 20 54 / 95 19-954 • Fax: + 49 (0) 20 54 / 95 19-964 E-mail: [email protected] • Internet: www.cetecom.com PARTIAL TEST REPORT No.: 6_0009_11_6_2a for Quad-Band GSM/GPRS Module BGS2-W (HW B2.2) FCC-ID: QIPBGS2 IC: 7830A-BGS2 According to: FCC Regulations FCC Part 22H/24E FCC Part 15.207C FCC Part 15.209C & IC Regulations RSS-132, Issue 2 RSS-133, Issue 5 RSS-Gen, Issue 3 Cinterion Wireless Modules GmbH Test Report 6_0009_11_6_2a, Page 2 of 21 B_6_0009_11_6_2a.doc Table of contents 1. SUMMARY OF TEST RESULTS...................................................................................................................... 3 1.1. TESTS OVERVIEW FCC Part 15/22/24 and Canada IC Standards (RSS) .................................................... 3 2. ADMINISTRATIVE DATA ............................................................................................................................... 5 2.1. Identification of the testing laboratory ............................................................................................................. 5 2.2. Test location .................................................................................................................................................... 5 2.3. Organizational items ........................................................................................................................................ 5 2.4. Applicant’s details ........................................................................................................................................... 5 2.5. Manufacturer’s details ..................................................................................................................................... 5 3. EQUIPMENT UNDER TEST (EUT) ................................................................................................................. 6 3.1. Additional declaration and description of main EUT ...................................................................................... 6 3.2. Configuration of cables used for testing .......................................................................................................... 6 3.3. EUT: Type, S/N etc. and short descriptions used in this test report ................................................................ 7 3.4. Auxiliary Equipment (AE): Type, S/N etc. and short descriptions .................................................................. 7 3.5. EUT set-ups ..................................................................................................................................................... 7 3.6. EUT operating modes ...................................................................................................................................... 8 3.7. Parameter Settings on mobile phone and base station CMU200 ..................................................................... 9 4. DESCRIPTION OF TEST SET-UP’S ................................................................................................................ 10 4.1. Test set-up for radiated measurements ............................................................................................................ 10 5. MEASUREMENTS ............................................................................................................................................. 11 5.1. RF power output (Conducted and Radiated) ................................................................................................... 11 5.2. Emission limits (Spurious emission conducted/radiated) ................................................................................ 13 6. CALIBRATION METHOD OF ANECHOIC CHAMBER ............................................................................. 17 7. MEASUREMENT UNCERTAINTIES .............................................................................................................. 18 8. INSTRUMENTS AND ANCILLARY ................................................................................................................ 19 8.1. Used equipment “CTC” ................................................................................................................................... 19 Table of annex Total pages SEPARATE DOCUMENT B_6_0009_11_6_2a_A1.PDF: DIAGRAMS OF TESTING 32 SEPARATE DOCUMENT B_6_0009_11_6_2a_A2.PDF: PHOTOS OF EUT 6 SEPARATE DOCUMENT B_6_0009_11_6_2a_A3.PDF: PHOTOS OF SET-UP 4 Test Report 6_0009_11_6_2a, Page 3 of 21 B_6_0009_11_6_2a.doc 1. Summary of test results The presented GSM 850/900/1800/1900 Module can be build inside host applications and extends their capability by wireless GSM technology. Data transmissions or voice applications are possible field applications. In order to verify the compliance with applicable rules, a repres…

Text truncated - open the document above for the full version.
