APV-3641MBFleet Management and Tracking Device

CalAmp
Fleet Management and Tracking Device - FCC ID APV-3641MB - CalAmp
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Jun 16, 2020
Application Purpose
Original Equipment
Date of Application
Jun 16, 2020
Equipment Note
Fleet Management and Tracking Device
Frequency Range
1850.70000000 - 1914.30000000
Company
CalAmp
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

9/27/2017LMU-3640 Hardware & Installation Guide - PULS Wiki https://puls.calamp.com/wiki/LMU-3640_Hardware_%26_Installation_Guide1/23 Contents 1 Introduction 1.1 About This Manual 1.2 About The Reader 1.3 About CalAmp 1.4 About the CalAmp Location Messaging Unit - LMU-3640™ 2 System Overview 2.1 Overview 2.2 Component Descriptions 2.2.1 Backend Software 2.2.2 LMU Manager 2.2.3 LM Direct Server 2.2.4 Wireless Data Network 2.2.5 LMU-3640™ 2.2.6 Host Device – Laptop/PDA or MDT 2.3 Wireless Data Primer 2.3.1 SMS (Short Message Service) 3 Hardware Overview 3.1 LMU-3640™ 3.1.1 Environmental Specifications 3.1.2 Physical Specifications 3.2 Location Messaging Unit - LMU-3640™ 3.3 LMU-3640™ Connectors 3.3.1 I/O Connector 3.3.2 VBUS Connector 3.3.3 Accessories 3.4 GPS Receiver 3.5 I/O Descriptions 3.5.1 3-Axis Accelerometer Input 3.5.2 Ignition and Inputs 3.5.3 Outputs 3.5.4 Status LEDs 4 Configuration and Activation 4.1 Quick Start - General Config 4.2 Activating LTE Using AT Commands 4.3 Auto provisioning of GSM or HSPA LMUs 4.4 Activating GSM or HSPA LMU using AT Commands 4.5 Preparing for Installation 4.6 Plan The Installation 4.6.1 Size and Placement of LMU Unit 4.6.2 Access to the SIM (Subscriber Identity Module) Card 4.6.3 Protection from Heat 4.6.4 Visibility of Diagnostic LEDs 4.6.5 Cable Length 4.6.6 Moisture and Weather Protection 4.6.7 Preventing Accidental or Unauthorized Modification 4.7 Installing the LMU in a Vehicle 4.7.1 Place the LMU unit in the vehicle. 4.7.2 Connect power, ignition, and ground. 4.7.3 Typical Connection Sequence 4.8 Installation Verification 4.8.1 Comm Verification 4.8.2 GPS Verification 4.8.3 Inbound Verification 4.8.4 Verification via SMS LMU-3640 Hardware & Installation Guide LMU-3640™ Hardware and Installation Guide IMPORTANT: DO NOT INSTALL OR USE THE SOFTWARE OR DOCUMENTATION UNTIL YOU HAVE READ AND AGREED TO THE LICENSE AGREEMENT AND REVIEWED THE LIMITED WARRANTY AND REGULATORY INFORMATION. 1 Introduction Welcome to the LMU-3640™ Hardware and Installation Guide. This manual is intended to give you information on the basic setup and installation of the CalAmp LMU-3640™ product(s) including hardware descriptions, environmental specifications, wireless network overviews and device installation. 1.1 About This Manual The LMU-3640™ is one of the most flexible economy mobile tracking hardware products available. In order to accurately describe the functionality of these units we have broken this manual into the following sections: System Overview – A basic description of a CalAmp LMU-3640™ based tracking system. This includes a description of roles and responsibilities of each of the CalAmp components as well as a brief overview of the wireless data technologies used by the LMU-3640™. Hardware Overview – Describes the physical characteristics and interfaces of the LMU-3640™. Installation and Verification – Provides guidance for the installation of the LMU-3640™ versions in a vehicle and instructions on how to verify the installation is performing adequately. 1.2 About The Reader In order to limit the size and scope of this manual, the following assumptions have been made about the reader. 1. You are familiar with GPS concepts and terminology 9/27/2017LMU-3640 Hardware & Installation Guide - PULS Wiki https://puls.calamp.com/wiki/LMU-3640_Hardware_%26_Installation_Guide2/23 2. You have some experience with installing equipment in vehicles 3. You are familiar with the use of AT Commands 4. You are familiar with the use of terminal programs such as HyperTerminal or PuTTY 1.3 About CalAmp CalAmp is a leading provider of wireless communications products that enable anytime/anywhere access to critical information, data and entertainment content. With comprehensive capabilities ranging from product design and development through volume production, CalAmp delivers cost-effective high quality solutions to a broad array of customers and end markets. CalAmp is the leading supplier of Direct Broadcast Satellite (DBS) outdoor customer premise equipment to the U.S. satellite television market. The Company also provides wireless data communication solutions for the telemetry and asset tracking markets, private wireless networks, public safety communications and critical infrastructure and process control applications. For additional information, please visit the Company’s website at www.calamp.com (http://www.calamp.com/) . 1.4 About the CalAmp Location Messaging Unit - LMU-3640™ The CalAmp Location and Messaging unit-LMU-3640™ is a mobile device that resides in private, commercial or government vehicles. The LMU-3640™ is a single box enclosure incorporating a processor, a GPS receiver, a wireless data modem, and a vehicle-rated power supply. The LMU-3640™ also supports inputs and outputs to monitor and react to the vehicular environment and/or driver actions.. The LMU-3640™ collects, stores and transmits vehicular and location data over a designated wireless network including LTE and HSPA. Vehicular and location data are transmitted to a customized software application that has been designed to receive, acknowledge, process, store, and respond to this data. Unit location and vehicular information is sent at pre-determined intervals, on demand, or when pre-programmed vehicular conditions are met. Transmission of data are sent immediately when in wireless network coverage and stored for later transmission when out of the wireless coverage area. SMS messaging can be used as an alternative or redundant communication backup. The LMU-3640™ is designed to support a variety of custom fleet applications starting with basic automatic vehicle location and including applications requiring more sophisticated features such as geo-fencing, speed and mileage monitoring, third party security monitoring, dynamic reporting routines, and an array of exception alerts. LMU-3640™ are sold exclusively to authorized systems integrators, software firms, and service providers who have developed their…

Text truncated - open the document above for the full version.

Cover Letter(s)

Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 SUBJECT: FCC Application for FCC ID: APV-3641MB To Whom It May Concern: We, the undersigned, hereby authorize David Zhang at Vista Laboratories, Inc on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Vista Laboratories, Inc. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Full Name: Imad Rizk Position / Title: Certification Manager Place of Issue: 2177 Salk Ave Carlsbad, Ca 92008. USA Date: June 2 nd 2020

Cover Letter(s)

Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 Subject: Request for Permanent Confidentiality FCC ID: APV-3641MB To Whom It May Concern: In accordance with §0.457(d) and §0.459 of CFR 47, and KDB 726920, Full Company Name hereby requests permanent confidentiality for documents filed under the following exhibit types: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational Description These items contain detailed system and equipment description and related information about the product which Full Company Name considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Full Company Name also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. We are aware that exhibit types cover letters, attestations, label document, test reports, RF exposure information (SAR and MPE reports), cannot be requested to be classified confidential and are thus subject to publication, as will be documents of all other exhibits types for which we have not requested a confidentiality classification. Sincerely Full Name: Imad Rizk Position / Title: Sr. Manager Certification Place of Issue: 2200 Faraday Ave, Suite 220 Carlsbad, Ca 92008. USA Date: June 2 nd 2020.

Cover Letter(s)

Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 Subject: Request for Short Term Confidentiality FCC ID: APV-3641MB To Whom It May Concern: In accordance with §0.457(d) and §0.459 of CFR 47, Full Company Name hereby requests short term confidentiality for documents filed under the following exhibit types: 1. External Photographs 2. Internal Photographs 3. User / Instruction Manual 4. Test Set-up Photographs Until the product will be publicly announced. Short term confidentiality release date / period: 180 days from grant issue date These items contain detailed system and equipment description and related information about the product which Full Company Name considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Full Company Name also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. We are informed and aware of our obligation that we have to inform the involved TCB in written and in due time if we intend to market the product prior to the above specified confidentiality release date so that the short term confidentiality classification can be reset prior to product launch. We are aware that exhibit types cover letters, attestations, label document, test reports, RF exposure information (SAR and MPE reports), cannot be requested to be classified confidential and are thus subject to publication, as will be documents of all other exhibits types for which we have not requested a confidentiality classification. Full Name: Imad Rizk Position / Title: Certification Manager Place of Issue: 2177 Salk Ave Carlsbad, Ca 92008. USA Date: June 2 nd 2020

External Photos

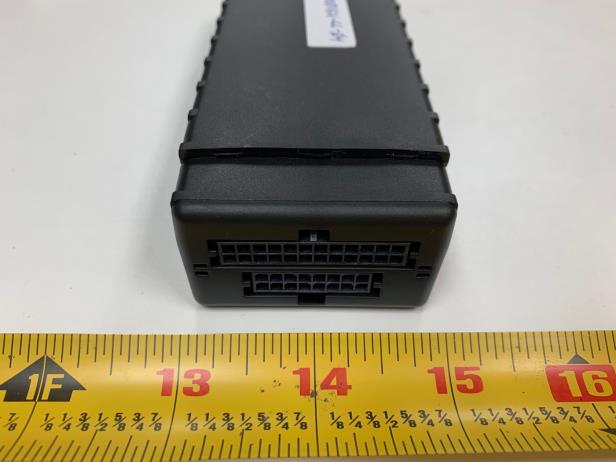

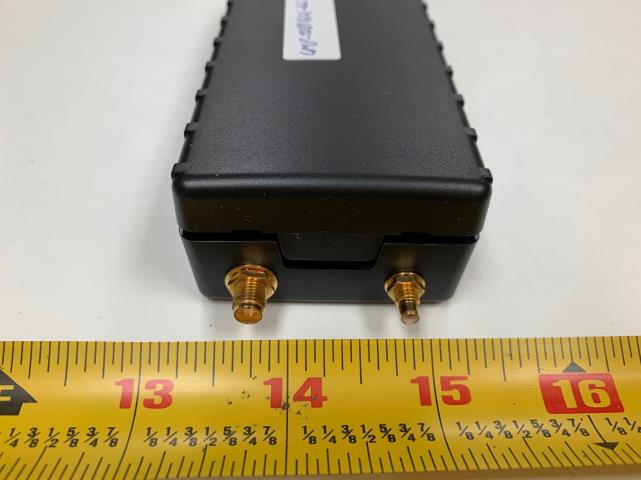

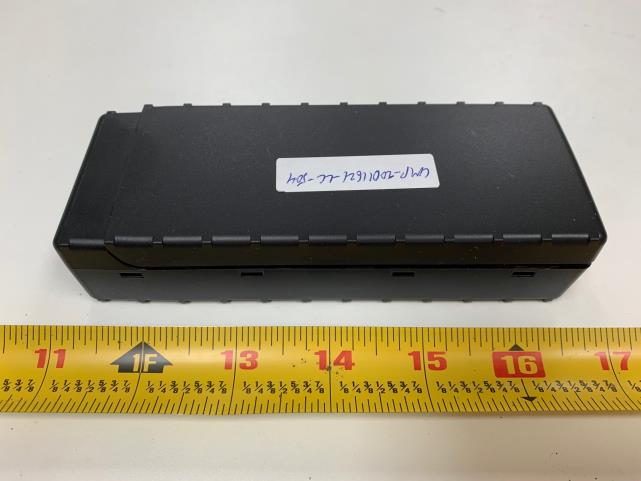

EUT Top View EUT Bottom View EUT Front View EUT Rear View EUT Left View EUT Right View Cellular antenna - Top Cellular antenna - Bottom
