APV-TAG09iOn Tag

STAG09XT Operation manual Calamp’s STAG09XT have been developed to work alongside the tracking and monitoring devices. They can report presence / absence as well as the data for alert notifications (temperature & proximity). The logging checks and stores temperatures every 60 seconds to local memory. When in the range of a compatible device, the logged data is communicated to our server for storage, visualization and analysis. Installation of the STAG09XT is via a 3M adhesive backing which provides a strong attachment to plastic and metal assets. Each STAG09XT has a unique identifier that is presented as a number and a barcode on its label. Association is completed by scanning this barcode and entering details regarding the asset. The STAG09XT can also be coupled with Type T Thermocouple to obtain additional temperature readings – ranging between -270c to 400c. The STAG09XT communicates via a proprietary protocol over 2.4GHz, with a Tx power of 0dBm. The range is 20m indoors, and 80m outdoors (LOS). The STAG reporting interval is every 5 seconds, and the logging frequency is 15 minutes, which provides a 30 day logging buffer. The temperature accuracy is sub 1 degree C (NIST traceable). Regulatory Information Human Exposure Compliance Statement Pursuant to 47 CFR § 15.247 (i) of the FCC Rules and Regulations, personal communications services (PCS) equipment is subject to the radio frequency radiation exposure requirements specified in § 1.1307(b), § 2.1091 and § 2.1093, as appropriate. CalAmp Wireless Networks Inc. certifies that it has determined that the STAG09XT complies with the RF hazard requirements applicable to broadband PCS equipment operating under the authority of 47 CFR Part 15, Subpart C of the FCC Rules and Regulations. This determination is dependent upon installation, operation and use of the equipment in accordance with all instructions provided. FCC Rules and Industry Canada (IC) regulatory information Compliance Statement (Part 15.19) The equipment device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by Calamp Wireless Networks could void the user’s authority to operate the equipment. Manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Compliance Statement (Part 15.105(b)) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Class B digital device notice “CAN ICES-3 (B)/NMB-3(B)” RF Radiation Exposure Statement This equipment complies with the FCC/IC radiation exposure limits set fourth for mobile transmitting devices operation in an uncontrolled environment. End users must follow the specific operating instructions to satisfy RF exposure compliance. This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 Date: May 27 2021 SUBJECT: FCC Application for (FCC ID: APV-TAG09) To Whom It May Concern: We, the undersigned, hereby authorize David Zhang in Vista Laboratories, Inc on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Vista Laboratories, Inc. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Full Name: Imad Rizk Position / Title: Certification Manager Place of Issue: 2200 Faraday Ave, suite 220 Carlsbad, Ca 92008. USA Date: May 27 2021

Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 Confidentiality Request regarding application for certification of FCC ID: APV-TAG09 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Type of Confidentiality Requested Exhibit Type ☐Short Term ☒Permanent Block Diagrams ☒Short Term External Photos ☒Short Term ☐Permanent* Internal Photos ☐Short Term ☒Permanent Operation Description ☐Short Term ☒Permanent Parts List/BOM ☐Short Term ☒Permanent Schematics ☒Short Term Test Setup Photos ☒Short Term ☐Permanent* User manual *Requires further justification before permanent confidentiality will be allowed. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for an initial period of 180 days. Full Name: Imad Rizk Position / Title: Certification Manager Place of Issue: 2200 Faraday Ave, suite 220 Carlsbad, Ca 92008. USA Date: May 27 2021

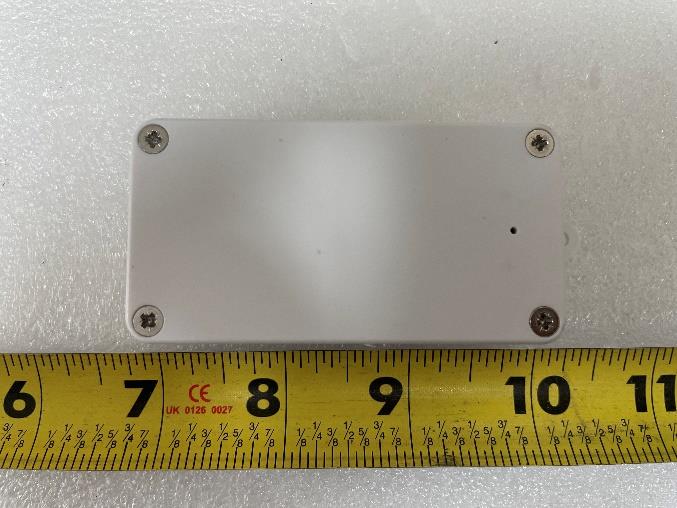

EUT Top View EUT Bottom View

Size of main label: 57x19mm (1mm corner radius) Size of second label: 6x19mm (1mm corner radius) Cuts are shown with red dashed line. PLEASE NOTE: Artwork is not finalised and is subject to change. The device ID and 128 barcode will be unique (sequential) for each label. TM ID: 72057594037927936 iOn Trak TM iOn Tag ID: 72057594037927936 on pcbdevice label Powered by CalAmp Supply Chain Integrity Powered by CalAmp Supply Chain Integrity LABEL 1: IDs are sequential All corners rounded (1mm radius) www.calamp.com 15635 Alton Pkwy #250, Irvine, CA 92618 P/N: STAG09XT FCC ID: APV-TAG09 IC: 5843C-TAG09 F/W: 2.2.0

\ EUT PCB Top View EUT PCB Bottom View EUT Battery

Phone: +1 (949) 393-1123 Web: www.vista-compliance.com Email: [email protected] FCC ISED RF Exposure Evaluation Report Test Report Number CMP-21042044-LC-FCC-IC-RF Exposure FCC ID APV-TAG09 ISED ID Applicant 5843C-TAG09 CalAmp Applicant Address 2200 Faraday Ave, Suite 220 Carlsbad, CA 92008 Product Name iOn Tag Model (s) STAG09XT Date of Receipt 04/29/2021 Date of Test 04/29/2021- 05/14/2021 Report Issue Date 05/20/2021 Test Standards 47 CFR §1.1307(b), 47 CFR §1.1310 RSS-102 Issue 5: Feb 2021 Test Result PASS Issued by: Vista Compliance Laboratories 1261 Puerta Del Sol, San Clemente, CA 92673 USA www.vista-compliance.com Daniel Bruno (Test Technician) David Zhang (Technical Manager) This report is for the exclusive use of the applicant. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Note that the results contained in this report pertain only to the test samples identified herein, and the results relate only to the items tested and the results that were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested and the results thereof based upon the information provided to us. The applicant has 60 days from date of issuance of this report to notify us of any material error or omission. Failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is not to be reproduced by any means except in full and in any case not without the written approval of Vista Laboratories. Report# CMP-21042044-LC-FCC-IC-RF Exposure Page 2 of 7 REVISION HISTORY Report Number Version Description Issued Date CMP-21042044-LC-FCC-IC-RF Exposure 01 Initial report 05/20/2021 Report# CMP-21042044-LC-FCC-IC-RF Exposure Page 3 of 7 TABLE OF CONTENTS 1 GENERAL INFORMATION ..................................................................................................................................... 4 1.1 Applicant .......................................................................................................................................................... 4 1.2 Product information ...................................................................................................................................... 4 1.3 Test standard and method .......................................................................................................................... 5 2 TEST SITE INFORMATION ..................................................................................................................................... 5 3 TEST RESULTS .......................................................................................................................................................... 6 3.1 FCC SAR Test Exclusion ................................................................................................................................. 6 3.2 ISED RF Exposure Exemption ...................................................................................................................... 7 Report# CMP-21042044-LC-FCC-IC-RF Exposure Page 4 of 7 1 General Information 1.1 Applicant Applicant CalAmp Applicant address 2200 Faraday Ave, Suite 220 Carlsbad, CA 92008 Manufacturer CalAmp Manufacturer Address 2200 Faraday Ave, Suite 220 Carlsbad, CA 92008 1.2 Product information Product Name iOn Tag Product Description iOn Tag Model Number STAG09XT Family Models N/A Serial Number 72308628870323375 Frequency Band 2402-2480MHz Type of modulation GFSK Equipment Class DTS Antenna Information Internal PCB Antenna Clock Frequencies N/A Input Power 3 x AAA Alkaline Cell Batteries operated, 3.3VDC Power Adapter Manufacturer/Model N/A Power Adapter SN N/A Hardware version N/A Software version N/A Simultaneous Transmission N/A Additional Info EMC Emission Class B Report# CMP-21042044-LC-FCC-IC-RF Exposure Page 5 of 7 1.3 Test standard and method Test standard 47 CFR §1.1307(b), 47 CFR §1.1310 RSS-102 Issue 5: Feb 2021 Test method 47 CFR §1.1307(b), 47 CFR §1.1310 RSS-102 Issue 5: Feb 2021 2 Test Site Information Lab performing tests Vista Laboratories, Inc. Lab Address 1261 Puerta Del Sol, San Clemente, CA 92673 USA Phone Number +1 (949) 393-1123 Website www.vista-compliance.com Test Condition Temperature Humidity Atmospheric Pressure RF Testing 23.2°C 57.5% 996 mbar Radiated Emission Testing 23.2°C 57.5% 996 mbar Report# CMP-21042044-LC-FCC-IC-RF Exposure Page 6 of 7 3 Test Results 3.1 FCC SAR Test Exclusion RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 2402-2480MHz Equation: According to the procedure in KDB447498 (v05r02) section 4.3, 1g-SAR testing is excluded if the following criteria is met. (P/d)* √f ≤3.0 for 1-g SAR 10g-SAR testing is excluded if the following criteria is met. (P/d)* √f ≤7.5 for 10-g SAR Where P is the time averaged maximum conducted power in mW d minimum separation distance in mm f is the frequency in GHz The distance between the antenna and human body is 5 mm. The calculation was based on the dista…

Text truncated - open the document above for the full version.

Phone: +1 (949) 393-1123 Web: www.vista-compliance.com Email: [email protected] FCC ISED RF Test Report Test Report Number CMP-21042044-LC-FCC-IC-DTS FCC ID APV-TAG09 ISED ID Applicant 5843C-TAG09 CalAmp Applicant Address 2200 Faraday Ave, Suite 220 Carlsbad, CA 92008 Product Name iOn Tag Model (s) STAG09XT Date of Receipt 04/29/2021 Date of Test 04/29/2021- 05/14/2021 Report Issue Date 05/20/2021 Test Standards 47 CFR Part 15.247 RSS-247 Issue 2, Feb 2017 Test Result PASS Issued by: Vista Compliance Laboratories 1261 Puerta Del Sol, San Clemente, CA 92673 USA www.vista-compliance.com Daniel Bruno (Test Technician) David Zhang (Technical Manager) This report is for the exclusive use of the applicant. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Note that the results contained in this report pertain only to the test samples identified herein, and the results relate only to the items tested and the results that were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested and the results thereof based upon the information provided to us. The applicant has 60 days from date of issuance of this report to notify us of any material error or omission. Failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is not to be reproduced by any means except in full and in any case not without the written approval of Vista Laboratories. Report# CMP-21042044-LC-FCC-IC-DTS Page 2 of 32 REVISION HISTORY Report Number Version Description Issued Date CMP-21042044-LC-FCC-IC-DTS 01 Initial report 05/20/2021 Report# CMP-21042044-LC-FCC-IC-DTS Page 3 of 32 TABLE OF CONTENTS 1 TEST SUMMARY ...................................................................................................................................................... 4 2 GENERAL INFORMATION ..................................................................................................................................... 5 2.1 Applicant .......................................................................................................................................................... 5 2.2 Product information ...................................................................................................................................... 5 2.3 Test standard and method .......................................................................................................................... 5 3 TEST SITE INFORMATION ..................................................................................................................................... 6 4 MODIFICATION OF EUT / DEVIATIONS FROM STANDARDS ....................................................................... 6 5 TEST CONFIGURATION AND OPERATION ....................................................................................................... 6 5.1 EUT Test Configuration ................................................................................................................................. 6 5.2 Supporting Equipment ................................................................................................................................. 7 6 UNCERTAINTY OF MEASUREMENT ................................................................................................................... 7 7 TEST RESULTS .......................................................................................................................................................... 8 7.1 Antenna Requirement .................................................................................................................................. 8 7.2 DTS (6 dB) Bandwidth ................................................................................................................................... 9 7.3 Occupied Bandwidth (99%) ........................................................................................................................ 12 7.4 Maximum Output Power............................................................................................................................ 15 7.5 Power Spectral Density ............................................................................................................................... 17 7.6 Conducted Band-Edge Measurement ..................................................................................................... 20 7.7 Radiated Band-Edge & Spurious Emissions into Restricted Frequency Bands .............................. 22 8 EUT AND TEST SETUP PHOTOS ......................................................................................................................... 31 9 TEST INSTRUMENT LIST ..................................................................................................................................... 32 Report# CMP-21042044-LC-FCC-IC-DTS Page 4 of 32 1 Test Summary Test Item Test Requirement Test Method Result Antenna Requirement 47 CFR Part 15.247 RSS-247 Issue 2, Feb 2017 ANSI C63.10-2013 558074 D01 15.247 Meas…

Text truncated - open the document above for the full version.

RE Below 1GHz – Front View RE Below 1GHz – Rear View RE Above 1GHz – Front View RE Above 1GHz – Rear View
