APV09002CRM4200 Cellular Module

Interface Specification DocumentRev. - Cellular Radio Module CRM4250/4200 Company Confidential Standard Communications Corp.-1- November 20, 2000 Interface Specification CRM4250/4200 Cellular Radio Module Standard Communications Corp. 1111 Knox St. Torrance, CA 90502 800-767-2831 Interface Specification DocumentRev. - Cellular Radio Module CRM4250/4200 Company Confidential Standard Communications Corp.-2- November 20, 2000 Preliminary Draft - subject to change without notice Document Changes: Initial Release:Rev. - 11/20/00 Interface Specification DocumentRev. - Cellular Radio Module CRM4250/4200 Company Confidential Standard Communications Corp.-3- November 20, 2000 1.0. SYSTEM OVERVIEW 4 2.0. GENERAL DESCRIPTION 4 3.0. INTERFACE SPECIFICATION 4 3.1 GENERAL 4 3.2 PHYSICAL 5 3.3 ELECTRICAL 6 3.4. SERIAL DATA FORMAT 6 4.0 SERIAL CONTROL PROTOCOL 7 4.1. PACKET STRUCTURE 7 4.2. DATA TRANSPARENCY 7 4.3. MESSAGE FLOW 7 6.0. DETAILED COMMAND DESCRIPTIONS 9 6.1. LABELING CONVENTIONS FOR SYNTAX: 9 6.2. GENERAL COMMANDS 9 7.0 CONTROL MESSAGE FLOW DIAGRAMS 26 7.1 INITIAL POWER-UP SEQUENCE 26 7.2 POWER-DOWN SEQUENCE 26 7.3 CHANGE OPERATING MODE 26 8.0 POWER MANAGEMENT 27 Interface Specification DocumentRev. - Cellular Radio Module CRM4250/4200 Company Confidential Standard Communications Corp.-4- November 20, 2000 1.0. SYSTEM OVERVIEW The Standard Communications CRM4250/4200 Cellular Radio Module is part of a two-piece solution for wireless data communications. The CRM4250/4200 unit is used in conjunction with a separate modem unit to provide a complete solution. This architecture allows use of multiple radio and other media interface modules with a common multi-standard modem unit. 2.0 GENERAL DESCRIPTION The CRM4250/4200 contains all of the functional elements of a complete cellular telephone with the exception of the user interface and the battery. The unit includes a complete receiver and transmitter; plus, a micro controller and other circuitry to allow the unit to efficiently interface to an external modem unit. 3.0. INTERFACE SPECIFICATION 3.1 General The CRM4250/4200 interface is designed to allow simple interfacing between various modems and radio modules. It is designed to be hardware and standard independent on both the radio and the modem sides of the interface. This interface has been submitted to the PCMCIA committee for adoption as an extension to the PCMCIA modem card auxiliary connector standard. The interface command set includes operating modes to support many different radio system standards. At present, the standards defined for the interface include AMPS cellular telephone. Products utilizing this interface may support one or more of these operating modes and will have the ability to query the personality of a given module and to set the operating mode of a multiple mode module. Interface Specification DocumentRev. - Cellular Radio Module CRM4250/4200 Company Confidential Standard Communications Corp.-5- November 20, 2000 3.2 Physical The host interface to the CRM4250/4200 is implemented using a 20 pin (2x10) header connector. It provides all connections between the CRM4250/4200 and the base band controller and/or data modem. PIN SMBOL I/O DESCRIPTION 1,2 GNDGNDGround. 3 SPKR OUTO High Power Audio (Ear/Speaker) 4 LINE AO RX demodulated signal (+) +/-8.0kHz deviation input will produce 1 volt p-p output signal (variable level with 99h command) for modem use. 5 SPKR OUT O High Power Audio (Ringer). 6 LINE INITX modulation (+) 1 volt p-p signal, will produce +/-8.0kHz deviation. Single-ended input (600 ohm) 7 LINE B O Fixed -18dBm modem audio output. 8 MIC I Microphone audio input. Can be directly connected to 600 ohm impedance microphone or Electric type microphone. 9,10 VCC PWR(CRM4200 ONLY) +5 VDC supply input. Requires a minimum available current of 750mA. (DO NOT CONNECT IF CRM4250) 11 reserved - Do not connect. 12 RSSI O Receive signal strength indication. Varying DC voltage output based on received signal strength. 13,14 VCC PWR (CRM4250 ONLY) +12VDC supply input Requires a minimum available current of 1.2 amps. (DO NOT CONNECT IF CRM4200) Interface Specification DocumentRev. - Cellular Radio Module CRM4250/4200 Company Confidential Standard Communications Corp.-6- November 20, 2000 PIN SMBOL I/O DESCRIPTION continued. 15 RXD I Control serial data RX. TTL/CMOS compatible levels. 16 TXD O Control serial data TX. TTL/CMOS compatible levels. 17 PROGRAM I Do not connect. Reserved for production. 18 AUXA I/O Reserved for customer applications. 19 AUXB I/O Reserved for customer applications. 20 GND GND Ground. Note: Portions of this physical interface specification are in the process of being redefined. Contact the factory for latest status or for special requirements. 3.3 Electrical 3.3.1 Serial Control Link Tx Data:TTL / CMOS logic level signal output for data from radio to host Rx Data:TTL / CMOS logic level signal input for data from host to radio Handshake:none, handshakes implemented in s/w only 3.4. Serial Data Format type: asynchronous, full duplex word format: 1 start, 8 data, 1 parity and 1 stop bit parity: even bit rate: 9600 baud Interface Specification DocumentRev. - Cellular Radio Module CRM4250/4200 Company Confidential Standard Communications Corp.-7- November 20, 2000 4.0 SERIAL CONTROL PROTOCOL 4.1. Packet Structure / control field / data field / | SOF | byte count | command | data 1 | ... | data n | FCS | Where: SOF Start Of Frame, hex value 02 (STX) byte count One byte value indicating the total number of bytes in the packet, except the SOF. command One byte value representing the command/message type being transmitted data argument or data for the command or message FCS checksum; the two's complement of the lower 8-bits of the sum of the binary values of all of the bytes in the packet except the SOF and FCS. 4.2. Data Transparency Byte stuffing is used to reduce the probability of errors in frame synchronization. An STX (02 hex) byte in the control or data f…

Text truncated - open the document above for the full version.

TO: Joe Dichoso FCC Application Processing Branch Re: FCC ID APV09002 Applicant: Standard Communications Corporation Correspondence Reference Number: 19436 731 Confirmation Number: EA100577 1) Schematics. The exhibit in the schematic folder is not a schematic. Response: Correct Schematics have been uploaded. 2) The Operational description exhibit and Specification manual were identical. Are they suppose to be? This exhibit indicates 631 mW output power. The latest EIRP measurements indicate an EIRP of 30.2 and and ERP of 28.06. What was the conducted output power for these measurements? Correct all exhibits including the operational/specification exhibits with the correct output power. The conducted output power must agree with the latest radiated measurements and antenna gain. Response: Yes, they should be identical. The conducted output power measured is 28 dBm. Please change the 731 form to reflect 631 mW maximum output power, Standard communication wants to be authorized for 631 mW, instead. Conducted output power with antenna gain = 28 dBm + 2.5 dBi = 30.5 dBm (EIRP) ERP = 30.5 dBm – 2.14 dB = 28.36 dBm 3) The manual was not a manual but a specifications document. Please explain/correct. Response: The OEM module is not provide with a user manual, since it will not be sold to the public, instead it is supply with an "interface specification document" in conjunction with "OEM integration guide" for the OEM customers, so they can integrate the module into their final product. The “interface specification manual” was uploaded to the user manual exhibit by mistake. 4) The OEM intallation guide must provide the installer with the proper instructions for compliance. Include insturctions that the antenna must be mounted without a ground plane and must not be co-located. Also, the OEM does not file a Class II permissive change, only the grantee can. Change this statement also. Response: Uploaded calculated RF exposure for Co-location and MPE measurements with a ground plane, to address the RF exposure requirements. For the OEM guide the Class II permissive change statement was removed.

SECTION 22.921: 911 call processing procedure; 911-only calling mode The E911 requirement does not apply in any way to the CMM products as they have no ability to place actual calls to any number, and they have no voice capability. The CRM products (4200) are exempt from the E911 requirement due to the fact that they are principally embedded data transceivers only. The current implementations of the CRM4250 and CRM4200 application interfaces do not support use of the transceiver on a stand-alone basis where internal E911 capability is required. In the event that the customer’s final application has voice calling capability, that application will be required to comply with the E911 requirement. At this time, the G2 CRM products (CRM4200) do not include any special handling provisions for 911 calling. The CRM does provide the application with access to the necessary radio control functions for use in implementing any of the 3 approved call-handling scenarios. We do plan to implement and offer internal E911 call processing features in the future to simplify customer applications where this capability is required. The timeframe is within 2001 (target mid- year). The specific scenario(s) to be implemented have not yet been determined although it is anticipated that it will be a fully self-contained process, given the embedded nature of our products.

M. MALIN 11/20/2000 1/1 408V491110 CRM4250/4200 S. KIMATA 408V 1/1 APPROVED BY R E M A R K 7 4321 C B A E D C B A 654321 PAGE PART CODE PART NAME PRJ. TREATMENT MATERIAL DESIGNED BY SCALE TOOL2TOOL1DATEORDER

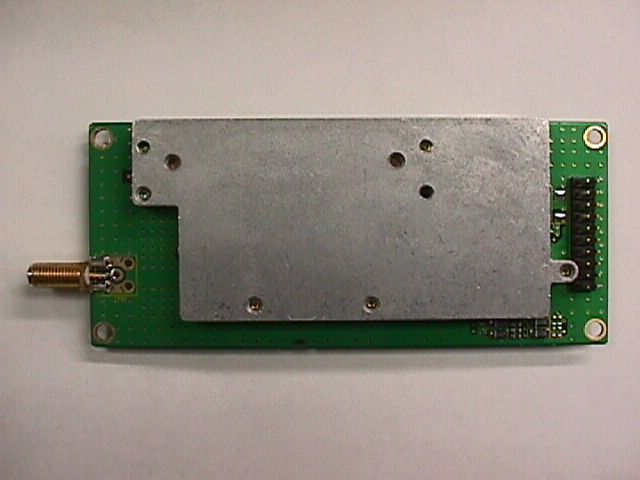

CRM4200 Bottom View Standard Communications Corp. 1111 Knox St., Torrance, CA 90502 Voice: (310) 532-5300 November 20, 2000

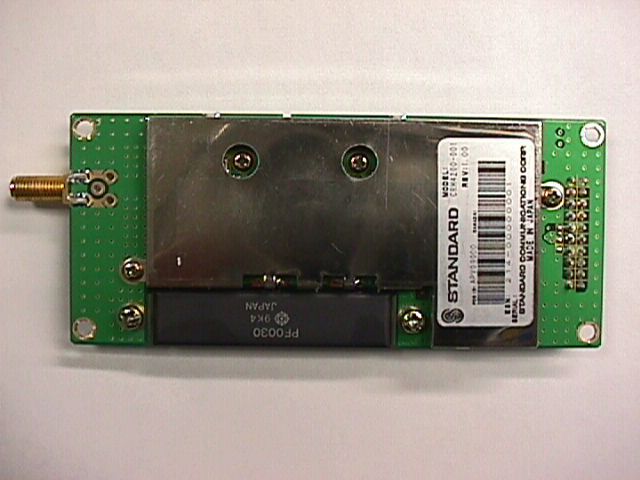

CRM4200 Top View Standard Communications Corp. 1111 Knox St., Torrance, CA 90502 Voice: (310) 532-5300 November 20, 2000

Fcc_stmt.doc 4/9/01 Statement Regarding Compliance of Standard Communications Wireless Modules with Regulations for Human Exposure to Radiofrequency Emissions In August 1996, the Federal Communications Commission (FCC) adopted a Report and Order in ET Docket 93-62 amending its rules for evaluating the environmental effects of radiofrequency (RF) electromagnetic fields. Specifically, the FCC adopted new guidelines and procedures for evaluating human exposure to RF emissions from FCC- regulated transmitters and facilities. As a part of this proceeding, new limits were adopted for human exposure to RF emissions from certain mobile and portable devices. The wireless modules offered by Standard Communications’ Wireless Datacomm Division are subject to these amended rules and associated orders. MPE calculation were made for the CRM 4200 unit, with the highest gain antenna being 2.5 dBi, which yield a 1.07 Watt ERP (12.4 cm). Per Section 2.1091 paragraph C, the CRM 4200 is exempt from routine evaluation. Please refer to the excel spreadsheet, label “MPE Caculations” showing the calculated distance and power values in ERP and EIRP. But, based upon calculations using a standardized configuration, the models mention above is in compliance with the “Maximum Permissible Exposure” (MPE) limits as defined in the rules for “mobile” devices. Under these rules, “mobile” devices are those devices where the typical installation configuration has a spacing of at least 20 centimeters between the antenna and any nearby human(s). The rules relating to this matter and the related performance measures are heavily influenced by the final packaging and antenna configuration of the end-product as well as the installation environment. With an OEM module such as those provided by Standard, it is impossible for Standard to accurately predict the performance of every possible application configuration and guarantee compliance with the rules. As a convenience to Standard’s customers, Standard does secure FCC Equipment Authorizations for most of its OEM wireless modules. These authorizations are secured using a typical configuration that assures compliant operation within the normal operating ranges, and transmitter input signal ranges of the device. This standardized configuration also assumes a typical antenna configuration. Customers and end-users are cautioned that operation in configurations differing from the typical configuration may result in transmitter operation outside of the limits permitted under the rules. The pass-thru of Standard’s equipment authorization is invalid if the device is operated in a configuration inconsistent with that under which it was authorized. Customers desiring to operate these devices under different configurations of antenna, Fcc_stmt.doc 4/9/01 power, grounding, etc. must have their specific configurations evaluated by a competent RF engineering and certification laboratory to ensure compliance with the rules and secure additional approvals as necessary. Ultimately, the company offering a final product to the market is responsible for full compliance with the FCC rules. All customers are strongly encouraged to have any product that they develop thoroughly tested to insure proper RF operation and compliance with all applicable rules. As a reminder, Standard also conducts EMI measurements under Part 15 as part of the authorization and certification process. This is done to insure that the modules are in compliance with the established EMI limits. However, all final customer applications must be re-evaluated and certified for compliance under Part 15 prior to the product being commercially offered. Reference Sources Federal Communication Commission 47CFR sections 1.1307-1.1310, 2.1091, 2.1093 Federal Communication Commission 47CFR part 22 Subpart H Federal Communication Commission OET Bulletin 65, and Supplement C Federal Communications Commission primary web site: www.fcc.gov Federal Communications Commission Office of Engineering and Technology web site: www.fcc.gov/oet/rfsafety

Standard Communications Corp. Integration Guide Cellular Radio Module CRM4200/4250 1 March 27th, 2001 Integration Guide CRM4200/4250 Cellular Radio Module Standard Communications Corp. 1111 Knox St. Torrance, CA 90502 800-767-2831 Document Changes: DateDocume nt Re visionDe tails Standard Communications Corp. Integration Guide Cellular Radio Module CRM4200/4250 2 March 27th, 2001 Standard Communications Corp. Integration Guide Cellular Radio Module CRM4200/4250 3 March 27th, 2001 RF SAFETY WARNING This device and associated antenna must be installed in a location at least 20cm from the body of the user or other nearby persons in order to comply with the FCC RF exposure guidelines. The above warning must be included in the user documentation of the final product that these modules are incorporated into. A warning label should also be included on the exterior of the device. IMPORTANT!! Performance and compliance with FCC rules are heavily influenced by final packaging and antenna configuration of the end-product. Installations not complying with the 20cm minimum separation requirement, using substantially different antenna configurations from those described herein, or utilizing operating voltages outside of the normal specifications must be evaluated for compliance with FCC Rules and RF exposure requirements. Responsibility for compliance of the final product is the responsibility of the end-product manufacturer. Refer to the following resources for additional information regarding FCC rules and RF Safety Guidelines for this type of devices: 47CFR Part 22 Subpart H 47CFR Part 1.1307 – 1.1310 47CFR Part 2.1091, 2.1093 Federal Communications Commission (FCC) Primary website: www.fcc.gov Federal Communications Commission Office of Engineering and Technology web site: www.fcc.gov/oet/rfsafety Standard Communications Corp. Integration Guide Cellular Radio Module CRM4200/4250 4 March 27th, 2001 INTEGRATION The following guide is designed to provide the developer / designer additional information regarding hardware considerations. The sections include detailed design ideas along with tips and tricks we have used in implementing various applications. Each section has a brief description and diagrams to assist you in your planning stages with the CRM4200/4250. Standard Communications Corp. Integration Guide Cellular Radio Module CRM4200/4250 5 March 27th, 2001 Mounting Considerations Standard Communications Corp. Integration Guide Cellular Radio Module CRM4200/4250 6 March 27th, 2001 ANTENNA CONSIDERATIONS The diagrams below illustrate the different antenna selections used for applications. Each example has implementation criteria due to its performance and operation. A. The quarter wave antenna is small and lends itself well into tight applications where space is critical. A ground plane radius of greater than 100mm is required for proper operation. Failure to provide this grounding will result in erratic radiation patterns, signal loss and mismatched impedance to the CRM4200/4250. B. The half wave antenna is twice the length of the quarter wave. It’s properties require less ground plane which make it more ideal for applications that have less metal mass. The antenna has a better radiation pattern. C. The dipole antenna provides a ground-plane-free operation with optimum gain for its size. This antenna provides its own ground-radiating element and can be used with plastic enclosures. D. The loading coil antenna is the largest of the four mentioned but has a gain advantage over the dipole. The loading coil located in the center of the antenna provides electrically longer antenna to radiate the signal better. Standard Communications Corp. Integration Guide Cellular Radio Module CRM4200/4250 7 March 27th, 2001 1/4 λλ λ 1/2 1/4 λλ Gain = unity Gain = unity Gain 3-5 dB Loading Coil D 1/4 λλ Gain unity C C B A 50 Ω 1 / 4 λ 1/4 λλ IDEAL GROUND PLANE METAL DISK WITH MINIMUM RADIUS OF 1/4 λ MAIN4 USE 50-OHM.COAX PLASTIC ENCLOSURE DIPOLE ANTENNA PLASTIC ENCLOSURES OR ENCLOSURES WITH LITTLE METAL GROUNDING IS SUITABLE FOR THE DIPOLE ANTENNA. ILLUSTRATION A. ILLUSTRATION B. A. QUAITER WAVE ANTENNA, WITH GROUND PLANE B. HALF WAVE ANTENNA, LESS DEPENDENT UPON GROUND PLANE C. DIPOLE ANTENNA, INDEPENDENT OF GROUND PLANE ( NO GROUND PLANE REQUIRED) D. LOADING COIL ANTENNA, INDEPENDENT OF GROUND PLAN WITH GAIN 3 -5 db Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 1-2March 27th, 2001 SHIELDING CONSIDERATIONS When planning the PCB layout for an application some design rules and layout plans should be considered. The following diagrams show various mounting configurations with respect to shielding. Often the application PCB does not allow for separate ground plane implementation. In these cases a list of design rules should be used in order to prevent inter-circuit problems. The last section of this document deals with common design practices used with RF module implementations. Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 1-2March 27th, 2001 INSIDE VIEW GROUND PLANE MADE OF THIN SHEET METAL OR COPPER FOIL ANTENNA ANTENNA PLACEMENT AND GROUND PLANE EXAMPLES RF SHIELD COATING PLASTIC OR NON-CONDUCTIVE ENCLOSURE USED. PLASTIC OR NON-CONDUCTIVE ENCLOSURE COAX RF COAX CABLE RF COAX CABLE 100 mm MIN DETAI L SEE DETAIL Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 1-2March 27th, 2001 HARDWARE RESOURCES The following are suggested hardware manufacturers providing various components of an application. The sources are kept as current as possible, but changes in the product line offered by the manufacturers occur often. Please contact them for their latest catalog to insure product availability. Antennas CompanyProducts offeredTelephone # Ace Antenna CompanyFixed and portable antennas818-718-1534 Antenna Specialist /Mobile portable & base antennas800-664-5274 Allen Telecom Group www.allentele.com Astron Antenna Co.Fi…

Text truncated - open the document above for the full version.

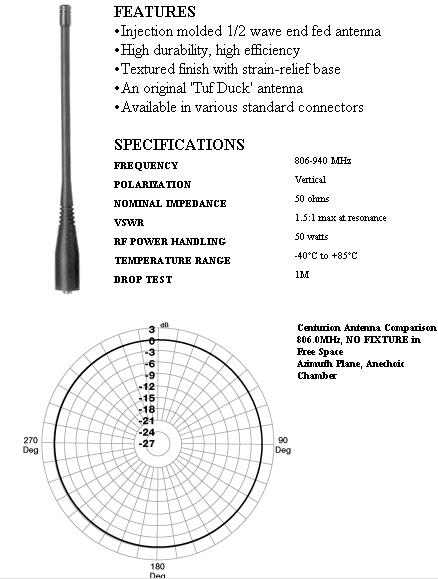

Centurion (Model: EXE-821-SM) 2.5dBi 1/2 wave antenna LogLinear Gain (dBi/linear) 2.51.8 Power (dBm/mW) 28.06639.7 ERP (dBm/mW)1137.6 Limit 0.549 mW/cm 2 MPE Distance: 12.8cm EIRP (mW)1865.7

Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 1 March 27th, 2001 +PVGITCVKQP)WKFG %4/    %GNNWNCT4CFKQ/QFWNG Standard Communications Corp. 1111 Knox St. Torrance, CA 90502 800-767-2831 Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 2 March 27th, 2001 Document Changes: Date Document Revision Details Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 3 March 27th, 2001 RF SAFETY WARNING This device and associated antenna must be installed in a location at least 20cm from the body of the user or other nearby persons in order to comply with the FCC RF exposure guidelines. The above warning must be included in the user documentation of the final product that these modules are incorporated into. A warning label must also be included on the exterior of the device. IMPORTANT!! Performance and compliance with FCC rules are heavily influenced by final packaging and antenna configuration of the end-product. Installations not complying with the 20cm minimum separation requirement, using substantially different antenna configurations from those described herein, or utilizing operating voltages outside of the normal specifications must be evaluated for compliance with FCC Rules and RF exposure requirements. Responsibility for compliance of the final product is the responsibility of the end-product manufacturer. Refer to the following resources for additional information regarding FCC rules and RF Safety Guidelines for this type of devices: 47CFR Part 22 Subpart H 47CFR Part 1.1310 47CFR Part 2.1091 Federal Communications Commission (FCC) Primary website: www.fcc.gov Federal Communications Commission Office of Engineering and Technology web site: www.fcc.gov/oet/rfsafety WARNING While this device is in operation, a separation distance of at least 20 centimeters must be maintained between the radiating antenna and the body of all persons exposed to the transmitter in order to meet the FCC RF exposure guidelines. Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 4 March 27th, 2001 INTEGRATION The following guide is designed to provide the developer / designer additional information regarding hardware considerations. The sections include detailed design ideas along with tips and tricks we have used in implementing various applications. Each section has a brief description and diagrams to assist you in your planning stages with the CRM4200/4250. Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 5 March 27th, 2001 Mounting Considerations Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 6 March 27th, 2001 ANTENNA SPECIFICATION Standard Communication has provided a Centurion (Model: EXE-821-SM) 2.5 dBi gain antenna with the kit. Only use this antenna with the module. (Please refer to statement below) * Centurion Antenna: Model: EXE-821-SM 2.5dBi gain IMPORTANT!! Performance and compliance with FCC rules are heavily influenced by final packaging and antenna configuration of the end-product. Installations not complying with the 20cm minimum separation requirement, using substantially different antenna configurations from those described above, or utilizing operating voltages outside of the normal specifications must be evaluated for compliance with FCC Rules and RF exposure requirements. Responsibility for compliance of the final product with a different antenna(s) is the responsibility of the OEM end- product manufacturer and will required a new MPE measurement. The new application can be submitted as a Class II Permissive change with the new antenna(s). Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 7 March 27th, 2001 SHIELDING CONSIDERATIONS When planning the PCB layout for an application some design rules and layout plans should be considered. The following diagrams show various mounting configurations with respect to shielding. Often the application PCB does not allow for separate ground plane implementation. In these cases a list of design rules should be used in order to prevent inter-circuit problems. The last section of this document deals with common design practices used with RF module implementations. Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 8 March 27th, 2001 HARDWARE RESOURCES The following are suggested hardware manufacturers providing various components of an application. The sources are kept as current as possible, but changes in the product line offered by the manufacturers occur often. Please contact them for their latest catalog to insure product availability. Antennas Company Products offered Telephone # Ace Antenna Company Fixed and portable antennas 818-718-1534 Antenna Specialist / Mobile portable & base antennas 800-664-5274 Allen Telecom Group www.allentele.com Astron Antenna Co. Fixed, “DISC”, “Hemi” antennas 703-450-5517 www.astronantennas.com Centurion International Fixed and portable antennas 800-228-4563 www.centurion.com and batteries. MAXRAD Fixed and Mobile antennas 800-323-9122 www.maxrad.com/wirelessdata TX/RX Systems Inc. Base antennas / Fixed antennas 716-549-4700 www.txrx.com Batteries Company Products offered Telephone # Centurion International Fixed and portable antennas 800-228-4563 www.centurion.com and batteries. Digi-Key Corporation Mounting hardware / connectors 800-344-4539 www.digikey.com interface cables and components Cables Company Products offered Telephone # Richardson Electronics RF connectors and cable assy’s 800-737-6937 www.rfpowernet.com Standard Communications Corp. Integration Guide Cellular Modem Module CRM4200/4250 9 March 27th, 2001 Coatings (RF shielding) Company Products offered Telephone # Chomerics EMI, RF Shielding gaskets, 781-935-4850 www.chomerics.com covers & spray Connectors Company Products offered Telephone # Digi-Key Corporation Mounting har…

Text truncated - open the document above for the full version.

In § 2.1091(b), a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's antenna and the body of the user or nearby persons. In accordance with § 2.1091(c), mobile Cellular devices are categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use if their ERP is less than 1.5 W (31.7 dBm). The CRM4200 technical specification mandates a separation distance of at least 20 cm between the unit's antenna and the body of the user and nearby persons for ALL uses and applications. The CRM4200 is not designed for or intended to be used in portable applications, as defined in § 2.1093 (within 20 cm of the body of the user), and the technical specifications and OEM instructions contains specific language prohibiting such uses. Finally, to provide proof that the CRM 4200 is categorically excluded from a routine environmental evaluation for RF exposure, an MPE calculation is provided and has been uploaded, which is label “revised MPE calculation”. The customer will be providing a Centurion (M/N: EXE-821-SM), which has a gain of 2.5 dBi. This will be the only antenna provided by the customer. The maximum power that they want authorization is 600 mW. Using the provided information the following EIRP or ERP can be calculated. 600 mW (27.78 dBm) EIRP = 27.78 dBm + 2.5 dBi = 30.28 dBm ERP = 30.28 dBm – 2.14 dB = 28.14 dBm or .651 Watts Using the provided antenna gain, the total power, in ERP, comes out to be .651 Watts. This is below the 1.5 Watts (ERP), which excludes the CRM4200 from routine environmental evaluation for RF exposure.

File: R39897 Page 1 of 17 RF Hazard Evaluation Report on the Cellular OEM module Model: CRM4200 GRANTEE:Standard Communications Corp. 1111 Knox St. Torrance, CA 90502 TEST SITE:Elliott Laboratories, Inc. 684 W. Maude Ave Sunnyvale, CA 94086 REPORT DATE:June 11, 2001 FINAL TEST DATE:June 7, 2001 AUTHORIZED SIGNATORY:______________________________ Juan Martinez EMC Engineer This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC DepartmentTest Report Report Date: June11, 2001 File: R39897Page 2 of 6 pages TABLE OF CONTENTS COVER PAGE............................................................................................................................................................ 1 TABLE OF CONTENTS ............................................................................................................................................2 GENERAL INFORMATION .....................................................................................................................................3 SCOPE..........................................................................................................................................................................4 OBJECTIVE ................................................................................................................................................................4 TEST RESULTS ..........................................................................................................................................................5 S ECTION 2.1091: RADIOFREQUENCY RADIATION EXPOSURE EVALUATION: MOBILE DEVICES. ...................5 EQUIPMENT UNDER TEST (EUT) DETAILS ......................................................................................................6 ENCLOSURE ...........................................................................................................................................................6 S…

Text truncated - open the document above for the full version.
