APVGX820Modular Transmitter

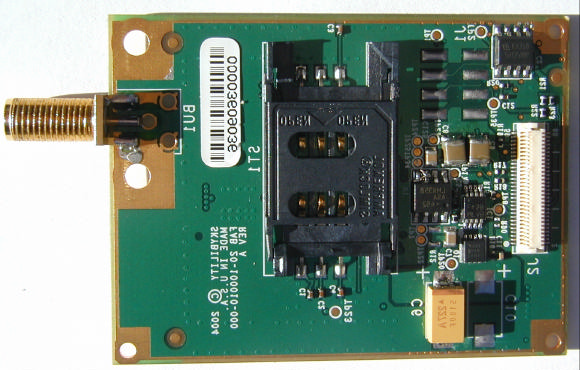

With shields above Without shields below Backside

MODEL : GX820 REV : - FCC ID : APVGX820 CalAmp Corp. CANADA : 5843A-GX820

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Mode: AMPS Maximum peak output power at antenna input terminal:29.17(dBm)GX820 Maximum peak output power at antenna input terminal:826.0(mW) Antenna gain(typical):3(dBi)Tuf Duck EXE-821-SM Maximum antenna gain:1.995(numeric) Prediction distance:20(cm) Prediction frequency:836.49(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.55766(mW/cm^2) Power density at prediction frequency:0.328(mW/cm^2) Maximum allowable antenna gain:5.3(dBi) Margin of Compliance:2.3 CalAmp Corporation GSM/GPRS Modem Module 2 4R PG S π =

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Mode: GSM Maximum peak output power at antenna input terminal:28.76(dBm)GX820 Maximum peak output power at antenna input terminal:751.6(mW) Antenna gain(typical):3(dBi)Tuf Duck EXE-821-SM Maximum antenna gain:1.995(numeric) Prediction distance:20(cm) Prediction frequency:848.8(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.565866667(mW/cm^2) Power density at prediction frequency:0.298(mW/cm^2) Maximum allowable antenna gain:5.8(dBi) Margin of Compliance:2.8 CalAmp Corporation GSM/GPRS Modem Module 2 4R PG S π =

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Mode: GSM PCS Maximum peak output power at antenna input terminal:28.28(dBm)GX820 Maximum peak output power at antenna input terminal:673.0(mW) Antenna gain(typical):3(dBi)Tuf Duck EXE-821-SM Maximum antenna gain:1.995(numeric) Prediction distance:20(cm) Prediction frequency:1850.02(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.267(mW/cm^2) Maximum allowable antenna gain:8.7(dBi) Margin of Compliance:5.7 CalAmp Corporation GSM/GPRS Modem Module 2 4R PG S π =

Nemko USA, Inc. 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 Certification Test Report Test Report: 2005 060392-FCC FCC ID: APVGX820 Equipment Under Test: GSM/GPRS Modem Module Model: GX820 Antenna Model: Tuf Duck EXE-821-SM Applicant: CalAmp Corporation 2236 Rutherford Road, Suite 103 Carlsbad, CA 92008-8836 760.268.5876 In Accordance With: FCC Part 22, Subpart H Industry Canada RSS-129, Issue 2 Industry Canada RSS-132, Issue 2 AND In Accordance With: FCC Part 24, Subpart E Industry Canada RSS-133.Issue 3 Tested By: Nemko USA Inc. 11696 Sorrento Valley Road San Diego, CA 92121-1024 Date: June 7, 2005 Total Number of Pages: 69 Nemko USA Inc. FCC Part 22, Part 24 25-352-SKYR1 GSM/GPRS Modem Module FCC ID#: APVGX820 Page 2 of 69 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification.........................................................................6 Section 3. RF Power Output................................................................................................10 Section 4. Audio Frequency Response.................................................................................24 Section 6. Modulation Limiting...........................................................................................26 Section 7. Occupied Bandwidth...........................................................................................27 Section 8. Spurious Emissions At Antenna Terminals........................................................46 Section 9. Field Strength of Spurious..................................................................................66 Section 10. Frequency Variation............................................................................................67 Section 11. Test Equipment List.............................................................................................69 Nemko USA Inc. FCC Part 22, Part 24 25-352-SKYR1 GSM/GPRS Modem Module FCC ID#: APVGX820 Page 3 of 69 Section 1. Summary of Test Results General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, Subpart H and FCC Part 24, Subpart E. DOCUMENT HISTORY REVISION DATE COMMENTS - June 7, 2005 Prepared By: A. Laudani - June 7, 2005 Initial Release: Chip Fleury NOTE: Nemko USA, Inc. hereby makes the following statements so as to conform to Chapter 10 (Test Reports) Requirements of ANSI C63.4 (2003) “Methods and Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”: o The unit described in this report was received at Nemko USA, Inc.'s facilities on June 1, 2005 . Testing was performed on the unit described in this report on June 1, 2005 to June 5, 2005 . o The Test Results reported herein apply only to the Unit actually tested, and to substantially identical Units. o This report does not imply the endorsement of the Federal Communications Commission (FCC), NVLAP or any other government agency. This Report is the property of Nemko USA, Inc., and shall not be reproduced, except in full, without prior written approval of Nemko USA, Inc. However, all ownership rights are hereby returned unconditionally to CalAmp, and approval is hereby granted to CalAmp and its employees and agents to reproduce all or part of this report for any legitimate business purpose without further reference to Nemko USA, Inc. Nemko USA Inc. FCC Part 22, Part 24 25-352-SKYR1 GSM/GPRS Modem Module FCC ID#: APVGX820 Page 4 of 69 CERTIFICATION Nemko USA, Inc., an independent Electromagnetic Compatibility (EMC) Test Laboratory, produced this Test Report and performed the Radio Frequency Interference (RFI) testing and data evaluation contained herein. Nemko USA, Inc.’s measurement facility is currently registered with the United States Federal Communications Commission (FCC) in accordance with the provisions of 47 United States Code (CFR) Part 2, Subpart I, Section 2.948(a). A current description of Nemko USA, Inc.’s measurement facility is on file with the FCC. Nemko USA Inc. has additionally satisfied the FCC that it complies with the requirements set forth in 47 CFR Part 2, Subpart I, Section 2.948(d) regarding the accreditation of EMC laboratories. As a result, the FCC has placed Nemko USA Inc. on its list of EMC laboratories approved to perform Declaration of Conformity (DOC) procedure testing. The RFI testing, test data collection and test data evaluation were accomplished in accordance with the ANSI C63.4-2003 Standard, and in accordance with the applicable sections of the FCC rules (47 CFR Parts 2 and 18)." digital devices. The testing was also accomplished in accordance with Industry Canada's ICES-003 standard for unintentional radiating device per EMCAB-3, Issue 3 (May 1998). The administrative summary of this test report provides a description of the test sample I hereby certify that the test data, test data evaluation, and equipment configurations used to compile this test report are a true and accurate representation of the test sample’s radio frequency interference characteristics as of the test date(s), and, for the design of the test sample. Test Supervisor: Chip Fleury Chip Fleury Manager Nemko USA, Inc. Nemko USA Inc. FCC Part 22, Part 24 25-352-SKYR1 GSM/GPRS Modem Module FCC ID#: APVGX820 Page 5 of 69 Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 Complies Audio Frequency Response 2.1047 NA 1 Audio Low Pass Filter Response 2.1047 NA 1 Modulation Limiting 2.1047 NA 1 Occupied Bandwidth (WB Data ) 2.1049 Complies Spurious Emissions at Antenna Terminals 2.1051 Complies Field Strength of Spurious Emissions 2.1053 Complies Frequency Stability 2.1055 Complies Footnotes For N/A’s: 1 Digital Modulation Nemko USA Inc. FCC Part 22, Part 24 25-352-SKYR1 GSM/GPRS…
